Volkswagen Touareg 2018-2026

Looking for Volkswagen Touareg fuse box diagrams? This article covers the third-generation Volkswagen Touareg (Model Code: CR), available from 2018 to 2026, and includes fuse box diagrams for Volkswagen Touareg 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025 and 2026, along with information about the location of the fuse panels inside the vehicle and a detailed breakdown of the assignment of each fuse (fuse layout).

Passenger Compartment (Footwell)

Fuse Box Location

Left-hand drive

The fuses are located in the left footwell under the footrest.

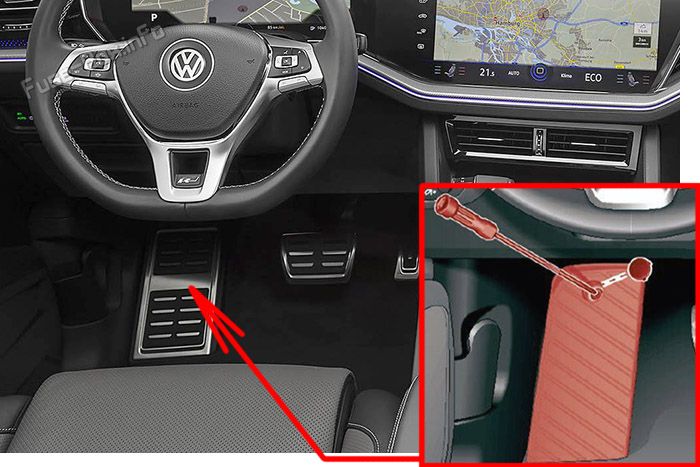

Location of the fuses in the footwell (LHD): Volkswagen Touareg (2018-2021)

Right-hand drive

The fuses are located behind a cover.

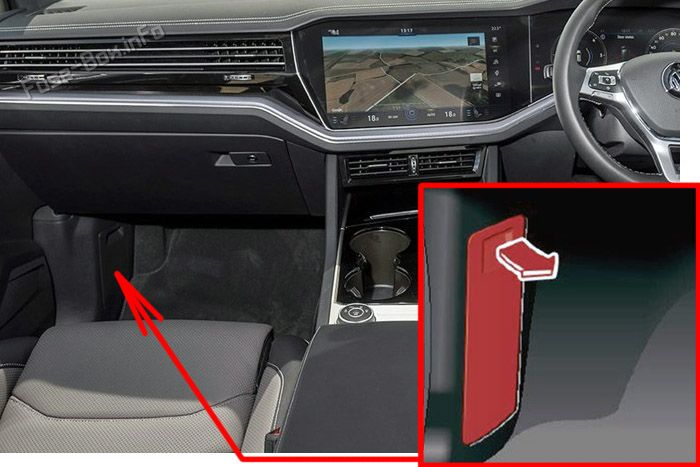

Location of the fuses in the footwell (RHD): Volkswagen Touareg (2018-2021)

Fuse Box Diagram

Left-hand drive

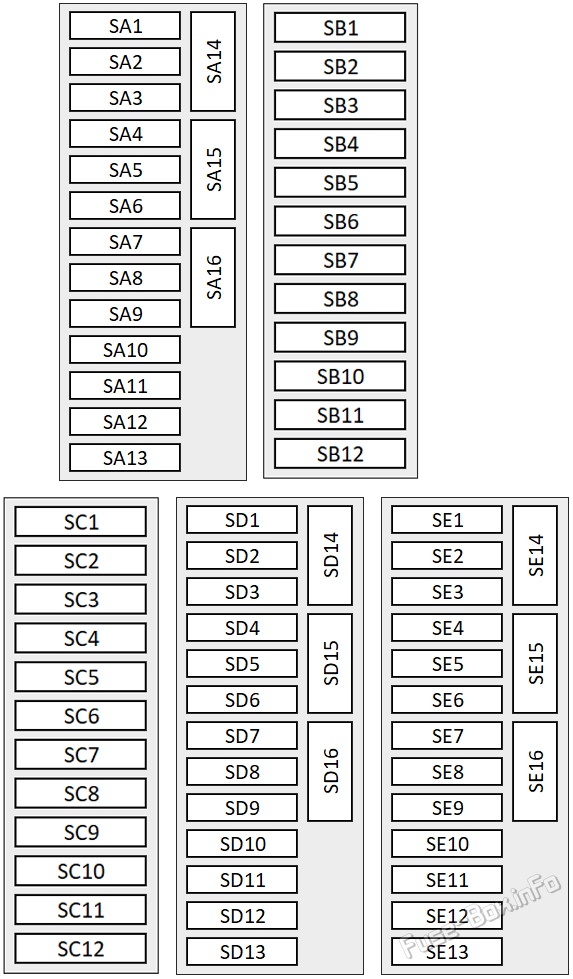

Footwell fuse box diagram (LHD): Volkswagen Touareg (2018, 2019, 2020, 2021)

Right-hand drive

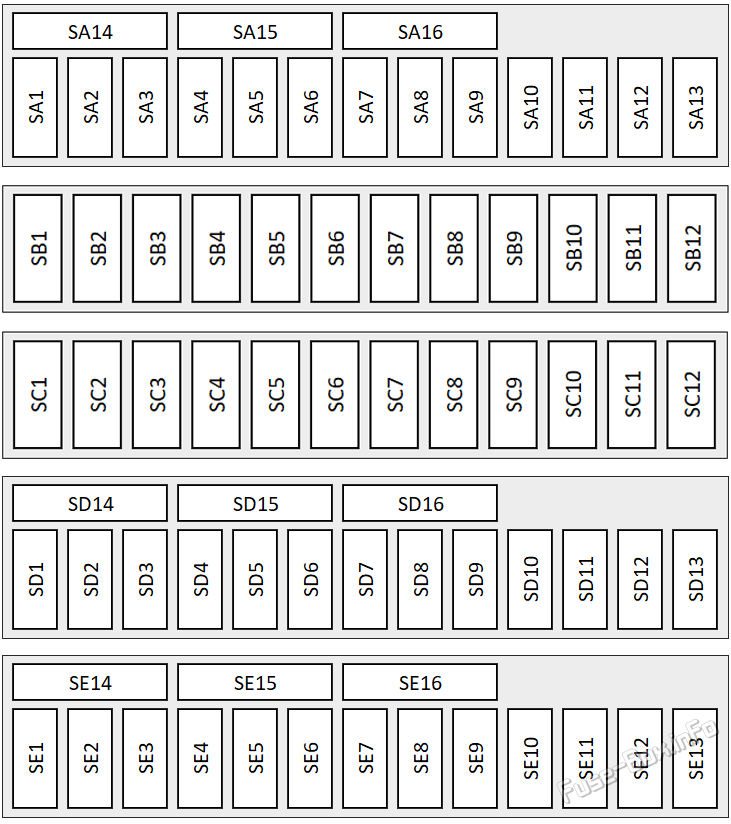

Footwell fuse box diagram (RHD): Volkswagen Touareg (2018, 2019, 2020, 2021)

Fuses (SA)

Assignment of the fuses in the footwell SA fuse holder

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SA1––
SA210ACirculation pump
SA3––
SA410ACirculation pump
Control unit for NOx sender
Control unit for NOx sender 2
Particulate sensor
Fuel tank shut-off valve
Exhaust flap control unit
SA55ABrake light switch
SA67.5A/15ALeft electrohydraulic engine mounting solenoid valve
Right electrohydraulic engine mounting solenoid valve
Inlet cam actuator 1 for cylinder 1~4
Coolant valve for cylinder head
Coolant pump
Map-controlled engine cooling system thermostat
Cam adjustment actuator 1~8
Exhaust gas recirculation cooler changeover valve
Exhaust gas recirculation cooling bypass valve 2
Pressure reduction valve
Exhaust gas recirculation cooling bypass valve
Automatic glow period control unit
Glow period control unit 2
Gearbox mounting valve 2
SA75A/15ALambda probe 1 after catalytic converter
Lambda probe after particulate filter 2
Air mass measurement module
Air mass meter 2
SA87.5A/15ALeft electrohydraulic engine mounting solenoid valve
Coolant valve for gearbox
Gearbox mounting valve 1
Secondary air pump relay
Control unit for fuel tank leak detection
Coolant circulation pump
Right electrohydraulic engine mounting solenoid valve
Exhaust cam actuator 1 for cylinder 3
Exhaust cam actuator 1 for cylinder 1
Exhaust cam actuator 1 for cylinder 4
Exhaust gas recirculation cooler changeover valve
Inlet cam actuator 1 for cylinder 2
Inlet cam actuator 1 for cylinder 3
Inlet cam actuator 1 for cylinder 4
Inlet cam actuator 1 for cylinder 5
Inlet cam actuator 1 for cylinder 6
Continued coolant circulation pump
Map-controlled engine cooling system thermostat
Fuel pressure regulating valve
Fuel metering valve
Metering pump 2
SA95AEngine component current supply relay
SA105AOil level and oil temperature sender
SA117.5AAccelerator pedal module
SA127.5A/10A/15AAir filter bypass flap valve
Secondary air inlet valve
Left electrohydraulic engine mounting solenoid valve
Right electrohydraulic engine mounting solenoid valve
Piston cooling jet control valve
Valve for oil pressure control
Intake manifold flap valve
Turbocharger air recirculation valve
Camshaft control valve 1
Exhaust camshaft control valve 1
Activated charcoal filter solenoid valve 1
Exhaust camshaft control valve 2
Camshaft control valve 2
Charge pressure control solenoid valve
Inlet cam actuator 1 for cylinder 1~8
Exhaust cam actuator 1 for cylinder 1~8
SA135ARadiator fan
SA1415A/25AEngine/motor control unit
Injector 2, cylinder 1~4
SA1510A/15ALambda probe 1 after catalytic converter
Lambda probe 1 before catalytic converter
Lambda probe after particulate filter
SA1630AFuel pump control unit

Fuses (SB)

Assignment of the fuses in the footwell SB fuse holder

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SB120AIgnition coil 1~6 with output stage
SB2––
SB3––
SB4––
SB530AElectrohydraulic engine mounting control unit
SB625AFront left seat belt
SB720A/40AFuse holder F
SB825AFront right seat belt
SB920A/30AFresh air blower control unit
SB10––
SB1140A/15AStarter relay 2
Thermal management control unit
SB12––

Fuses (SC)

Assignment of the fuses in the footwell SC fuse holder

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SC130AOnboard supply control unit
SC220ADriver door control unit
SC320AOnboard supply control unit
SC430ASliding sunroof adjustment control unit
SC530AOnboard supply control unit
SC620ARear driver side door control unit
SC730AWiper motor control unit
SC820ARear passenger side door control unit
SC930AOnboard supply control unit
SC1010A/30AOnboard supply control unit
SC1120A/30APotentiometer for electric trailer brakes
SC1230AAuxiliary heater control unit
Clutch actuator

Fuses (SD)

Assignment of the fuses in the footwell SD fuse holder

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SD15AInterior mirror
Heated rear seats control unit
Diagnostic connection
SD210AData bus diagnostic interface
Onboard supply control unit
SD37.5AEngine sound generator control unit
SD45AGearbox oil cooling valve
SD55AStarter relay 1
Starter relay 2
Power and control electronics for electric drive
SD6––
SD715AAccelerator pedal module
SD85AControl unit for night vision system
Anti-roll bar control unit
Anti-roll bar control unit 2
SD910AAdaptive cruise control unit
Front left radar sensor control unit for object detection
Front right radar sensor control unit for object detection
SD10––
SD1110AFront camera for driver assist systems
SD127.5AFront left seat backrest fan 1
Front left seat cushion fan 1
Front right seat backrest fan 1
Front right seat cushion fan 1
SD135AUSB charging socket 1
SD1415ARear window wiper motor
SD1520AFront right headlight
SD1620AFront left headlight

Fuses (SE)

Assignment of the fuses in the footwell SE fuse holder

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SE15AAnti-theft alarm sensor
Alarm horn
SE25AMain relay
SE35AGarage door operating unit
SE47.5ASelector lever sensors control unit
SE515AOnboard supply control unit
SE65AElectromechanical parking brake button
SE75A/10AData bus diagnostic interface
SE85AFront roof module
SE9––
SE105A/10AAirbag control unit
SE115AABS control unit
SE1210ARain and light sensor
Diagnostic connection
SE1320AOnboard supply control unit
SE1420AFront passenger door control unit
SE1520AOnboard supply control unit
SE1630ADC/AC converter with socket, 12V – 230V
Brake system pressure accumulator

Passenger Compartment (Single Fuses)

Fuse Box Location and Diagram

Left-hand drive

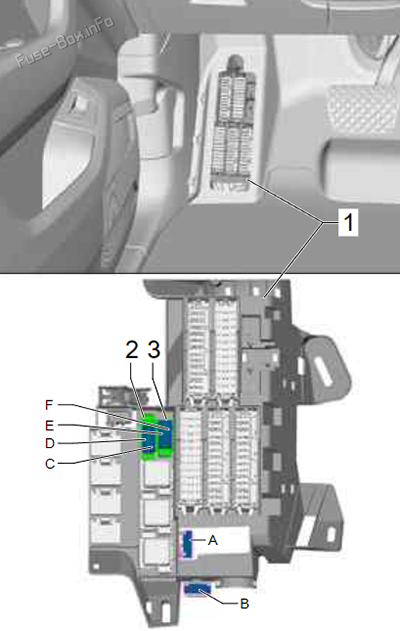

Single fuses (LHD): Volkswagen Touareg (2018, 2019, 2020, 2021)
Fuses

Single fuses (LHD)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

ID.AmpsDescription
A15ASeat and steering column adjustment control unit with memory
B15AFront passenger seat adjustment with memory control unit
C40AABS control unit
D40AABS control unit
E––
F50AGearbox auxiliary hydraulic pump

Right-hand drive

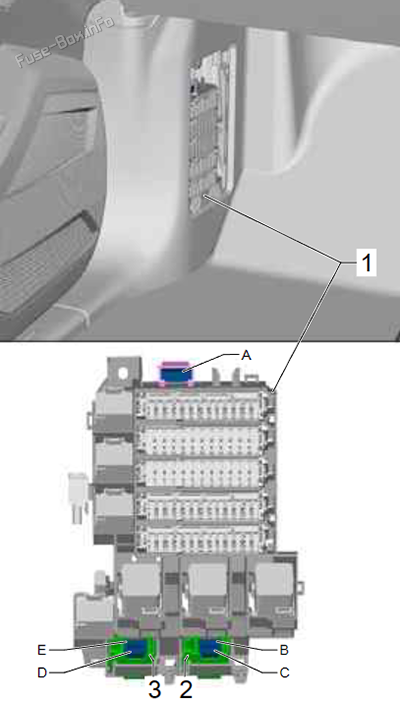

Single fuses (RHD): Volkswagen Touareg (2018, 2019, 2020, 2021)
Fuses

Single fuses (RHD)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

ID.AmpsDescription
A15ASeat and steering column adjustment control unit with memory
B40AABS control unit
C40AABS control unit
D––
E––

Passengers Compartment (Driver’s Side)

Fuse Box Location

The fuses are located behind a cover on the driver’s side (both LHD and RHD).

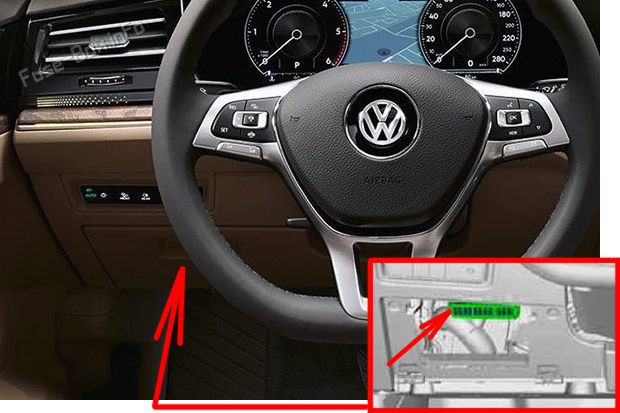

Location of the fuses in the instrument panel: Volkswagen Touareg (2018-2021)

Fuse Box Diagram

Left-hand drive

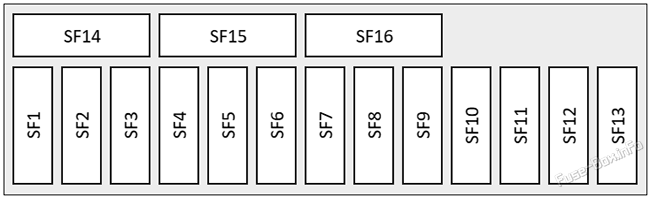

Instrument panel fuse box diagram (LHD): Volkswagen Touareg (2018, 2019, 2020, 2021)

Right-hand drive

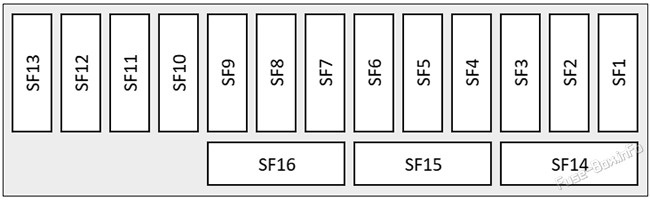

Instrument panel fuse box diagram (LHD): Volkswagen Touareg (2018, 2019, 2020, 2021)

Fuses

Assignment of the fuses in the instrument panel

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SF1––
SF25ALeft effect loudspeaker
SF35A/7.5AOperating unit for driving mode selection
Operating unit to regulate suspension height
Button for driver assist systems
Switch module 1 in centre console
SF45AControl unit for Head-up Display
SF57.5AUSB hub
SF610AHeater and air conditioning controls
SF75A/10ASteering column lock control element
SF85A/10AMultimedia system operating unit
SF910AControl unit in dash panel insert
SF105AMultimedia system operating unit
SF115ARotary light switch
SF121ASteering column electronics control unit
SF13––
SF145A/20AControl unit 1 for information electronics
SF1525AControl unit for electrically adjustable steering column
SF1610ASteering column electronics control unit

Engine Compartment

Fuse Box Location and Diagram

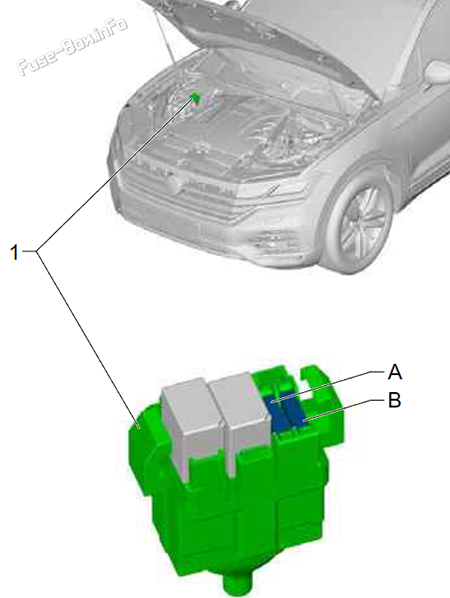

Under-hood fuse box diagram: Volkswagen Touareg (2018, 2019, 2020, 2021)

Fuses

Assignment of the fuses in the engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

ID.AmpsFunction / component
A15AEngine/motor control unit
B––

Luggage Compartment

Fuse Box Location

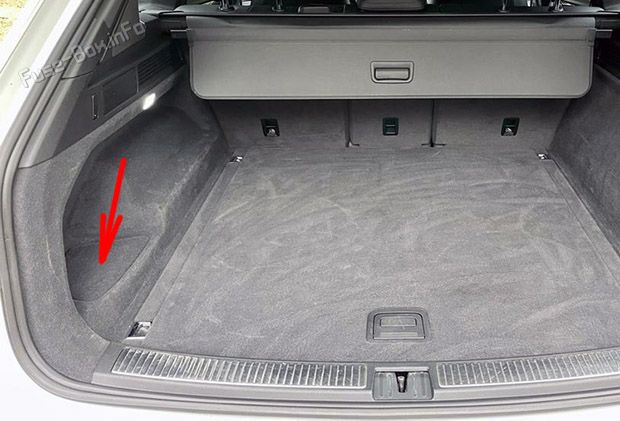

Location of the fuses in the trunk: Volkswagen Touareg (2018-2021)

Fuse Box Diagram

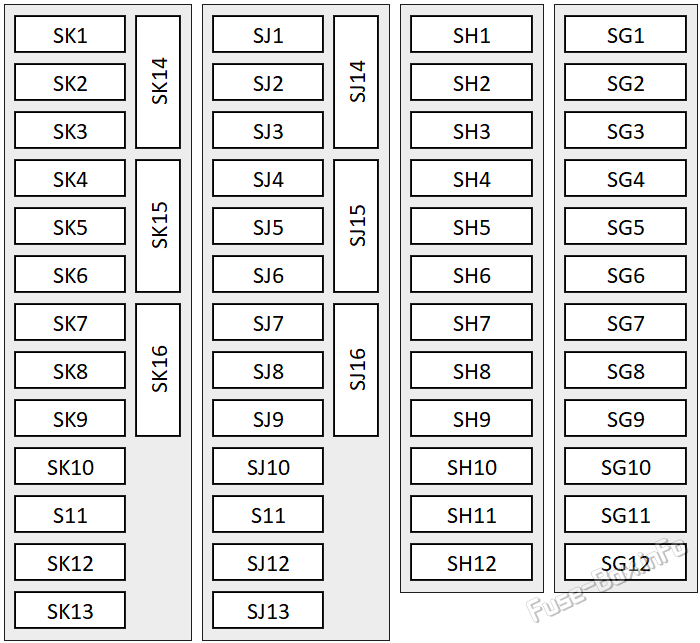

Trunk fuse box diagram: Volkswagen Touareg (2018, 2019, 2020, 2021)

Fuses (SG)

Assignment of the fuses in the luggage compartment fuse holder SG

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SG110ARefrigerant pressure and temperature sender 1
Refrigerant pressure and temperature sender 2
Refrigerant expansion valve 2
High-voltage heater (PTC)
Radiator blind control motor
SG2––
SG3––
SG4––
SG515AAdaptive suspension control unit
SG615AAutomatic gearbox control unit
SG720AOnboard supply control unit 2
SG825AOperating and display unit for rear air conditioning system
SG9––
SG1025ATrailer detector control unit
SG1130ARear lid control unit
SG1220ARear fresh air blower control unit

Fuses (SH)

Assignment of the fuses in the luggage compartment fuse holder SH

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SH120AOnboard supply control unit 2
SH2––
SH330AControl unit for reducing agent metering system
DC/AC converter with socket, 12V – 230V
SH410AOperating and display unit for rear air conditioning system
SH525ATrailer detector control unit
SH630ATrailer detector control unit
SH715ATrailer detector control unit
SH8––
SH915ATrailer detector control unit
SH10––
SH11––
SH1225AControl unit for reducing agent metering system

Fuses (SJ)

Assignment of the fuses in the luggage compartment fuse holder SJ

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SJ115ADriver assist systems control unit
SJ25AAerial amplifier for mobile telephone
SJ3––
SJ45ALane change assist control unit
Lane change assist control unit 2
SJ5––
SJ65ATyre Pressure Monitoring System control unit
SJ715ADriver assist systems control unit
SJ85ARemote control receiver for auxiliary heater
SJ9––
SJ105ATV tuner
SJ115ARoof aerial
SJ125AGarage door operation control unit
SJ135AReversing camera system control unit
SJ1420AOnboard supply control unit 2
SJ15––
SJ1640ADigital sound package control unit

Fuses (SK)

Assignment of the fuses in the luggage compartment fuse holder SK

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SK15ARoll stabiliser control unit
Roll stabiliser control unit 2
SK27.5AMaintenance connector for high-voltage system
SK310AHigh-voltage battery coolant pump relay
SK47.5APower and control electronics for electric drive
SK55ABrake servo
SK6––
SK7––
SK85AAir conditioner compressor with magnetic coupling and regulating valve
SK910ABattery, 48 V
Voltage converter (48V/12V)
SK105AHigh-voltage battery 1
SK117.5ACharging unit 1 for high-voltage battery
SK12––
SK13––
SK1420AThermal management coolant pump relay
SK15––
SK16––

Luggage Compartment (Single Fuses)

Fuse Box Location and Diagram

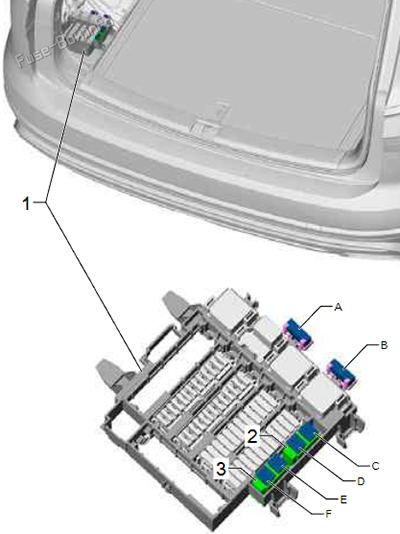

Single fuses (trunk): Volkswagen Touareg (2018, 2019, 2020, 2021)

Fuses

Assignment of the single fuses in the luggage compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
A15AFront passenger seat adjustment with memory control unit (right-hand drive)
B––
C30AHeated rear window relay
D40AAdaptive suspension compressor electronics
E––
F––

Scroll to Top
