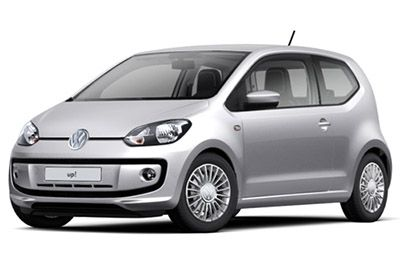

Volkswagen Up! 2011-2023

Looking for Volkswagen Up fuse box information? This article covers the city car Volkswagen Up, which was available from 2011 to 2023, and includes fuse box diagrams for Volkswagen Up 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022 and 2023, along with details on the location of the fuse panels inside the vehicle and a clear explanation of the fuse layout, helping you quickly identify and understand each fuse.

Engine Compartment

There are two fuse boxes located in the engine compartment: Fuse Holder “A” and Fuse Holder “B”.

Fuse Box Location (A/B)

The fuses are located underneath a cover on the vehicle battery.

The fuse strip (multifuse) must be replaced as a complete unit.

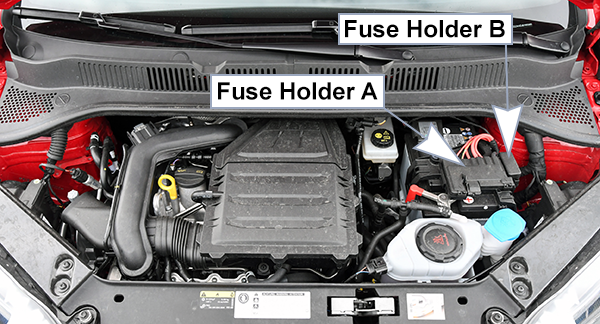

Volkswagen Up! (2011-2016): Engine compartment fuse box location

Fuse Box Diagrams (A/B)

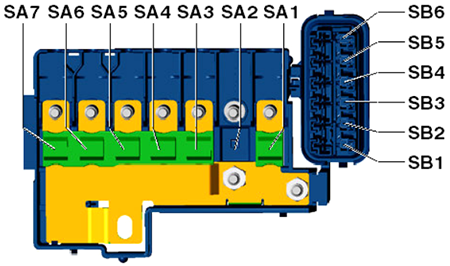

Volkswagen Up! (2011-2016): Engine compartment fuse box diagram

From August 2011

Fuse Holder (A)

Assignment of fuses in the engine compartment fuse holder A (From August 2011)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SA1150A
175A *		Alternator
SA2––
SA3110AFuse holder C
Main relay
Terminal 75 voltage supply relay 1
SA440APower steering control unit
SA540AABS control unit
SA640ARadiator fan control unit
SA750A*Automated manual gearbox control unit
* Depends on equipment

Fuse Holder (B)

Assignment of fuses in the engine compartment fuse holder B (From August 2011)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SB125AABS control unit
SB230ARadiator fan thermal switch
Radiator fan control unit
SB35ARadiator fan control unit
Terminal S ignition/starter switch
SB410AABS control unit
SB55AOnboard supply control unit
– Reference
SB630AFuse holder C
Ignition/starter switch

From May 2013

Fuse Holder (A)

Assignment of fuses in the engine compartment fuse holder A (From May 2013)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SA1150A
175A *		Alternator
SA230AAmplifier
SA3110AFuse holder C
Main relay
Terminal 75 voltage supply relay 1
Terminal 15 voltage supply relay
SA450APower steering control unit
SA540AABS control unit
SA640A**Radiator fan control unit
SA750A**Automated manual gearbox control unit
* Depends on equipment
** Only models with start/stop system

Fuse Holder (B)

Assignment of fuses in the engine compartment fuse holder B (From May 2013)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SB130AABS control unit
SB230ARadiator fan thermal switch
SB37.5ATerminal S ignition/starter switch
SB410AABS control unit
SB57.5AOnboard supply control unit
– Reference
SB630AIgnition/starter switch

From November 2015

Fuse Holder (A)

Assignment of fuses in the engine compartment fuse holder A (From November 2015)

No.AmpsDescription
SA1150A
175A *		Alternator
SA230AAmplifier
SA3110AFuse holder C
Main relay
Terminal 75 voltage supply relay 1
Terminal 15 voltage supply relay
SA450APower steering control unit
SA540AABS control unit
SA640A**Radiator fan control unit
SA750A**Automated manual gearbox control unit
* Depends on equipment
** Only models with start/stop system

Fuse Holder (B)

Assignment of fuses in the engine compartment fuse holder B (From November 2015)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SB130AABS control unit
SB230ARadiator fan thermal switch
SB37.5ASteering column combination switch
– Terminal S ignition/starter switch
SB410AABS control unit -J104-
SB57.5AOnboard supply control unit
*Battery monitor control unit
SB630ASteering column combination switch
– Ignition/starter switch
*Starter relay 1
* Only models with start/stop system

From May 2016

Fuse Holder (A)

Assignment of fuses in the engine compartment fuse holder A (From May 2016)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
1150A
175A *		Alternator
230AAmplifier
3110AFuse holder C
Main relay
Terminal 75 voltage supply relay 1
Terminal 15 voltage supply relay
450APower steering control unit
540AABS control unit
640A**Radiator fan control unit
750A**Automated manual gearbox control unit
* Depends on equipment
** Only models with start/stop system

Fuse Holder (B)

Assignment of fuses in the engine compartment fuse holder B (From May 2016)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
130AABS control unit
230A***Radiator fan thermal switch
**Fresh air blower control unit
37.5ASteering column combination switch
– Terminal S ignition/starter switch
410AABS control unit
57.5AOnboard supply control unit
– Reference
*Battery monitor control unit
630ASteering column combination switch
– Ignition/starter switch
*Starter relay 1
* Only models with start/stop system
** Only models with Climatronic
*** Only models with no air conditioning system/Climatronic

Passenger Compartment

Fuse Box Location (C)

The fuses are located underneath the steering wheel on the underside of the dash panel.

  1. Push the locking lever (1) until the cover can be opened.
  2. Fold the cover down.
Volkswagen Up! (2011-2016): Instrument panel fuse box location (Fuse Holder C)

Fuse Box Diagrams (C)

From August 2011

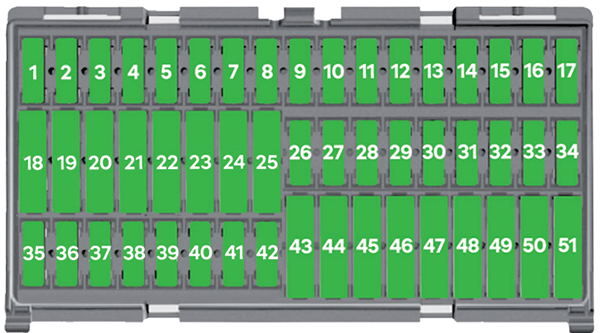

Volkswagen Up! (2011-2013): Instrument panel fuse box diagram
Fuse Holder (C)

Assignment of fuses in the Fuse Holder C (From August 2011)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
15ADash panel insert
Engine/motor control unit
Radiator fan control unit
215AAir conditioning system relay
Air conditioning system control unit
Diagnostic connection
High-pressure sender
37.5ABrake light switch
Clutch pedal switch
Camshaft control valve 1
47.5AOnboard supply control unit
– Light switch dipped beam/daytime driving lights/main beam
– *Number plate light
55AOnboard supply control unit
– Ignition/starter switch
Cruise control system switch
65AHeadlight range control regulator
Left headlight range control motor
Right headlight range control motor
Mirror adjustment switch
710ASelector lever
87.5AAutomated manual gearbox control unit
Selector lever
97.5AAirbag control unit
Centre switch module 2 in dash panel
105AParking aid control unit
1110ARight headlight dipped beam bulb
125ADash panel insert
Rear left fog light bulb
1310ALeft headlight dipped beam bulb
1415ARear window wiper motor
1515ALight switch
165ATerminal 15 voltage supply relay
Power steering control unit
1715AWasher pump switch (automatic wash/wipe and headlight washer system)
187.5AReversing light switch
1915AInjector, cylinder 1
Injector, cylinder 2
Injector, cylinder 3
205AABS control unit
Emergency braking function sensor unit
Steering angle sender
215ARight side light bulb
Right tail light bulb
**Number plate light
Onboard supply control unit
– Light switch, side light
2210ALeft daytime running light bulb
Right daytime running light bulb
235ALeft side light bulb
Left tail light bulb
2415AHeadlight flasher switch
2510AWindscreen and rear window washer pump
265AMain relay
Dash panel insert
Steering angle sender
277.5AOnboard supply control unit
– Front interior light
– Front passenger reading light
– Driver side reading light
285ADiagnostic connection
297.5AOnboard supply control unit
305AOnboard supply control unit
– Heated exterior mirror on driver side
– Heated exterior mirror on passenger side
3110ALambda probe
Lambda probe after catalytic converter
Activated charcoal filter solenoid valve 1
3215AOnboard supply control unit
– Turn signal/brake light
3310ARight headlight main beam bulb
3410ALeft headlight main beam bulb
Dash panel insert
35
3615ACigarette lighter
3730AAir conditioning system control unit
Heater control unit
3815ARadio
3930ASliding sunroof adjustment control unit
4015AEngine/motor control unit
4125AOnboard supply control unit
– Central locking
4225AIgnition coil 1 with output stage
Ignition coil 2 with output stage
Ignition coil 3 with output stage
4320AHeated front seats control unit
Centre switch module in dash panel
Centre switch module 2 in dash panel
4415AFuel pump relay
4520ALight switch
4630AOnboard supply control unit
– Heated rear window
4725AFront right window regulator switch
4820AOnboard supply control unit
– Treble horn
– Bass horn
4920AOnboard supply control unit
– Wiper motor control unit
5015ALeft fog light bulb
Right fog light bulb
5125AFront left window regulator switch
* Only models with no start/stop system
** Only models with start/stop system

From May 2013

Volkswagen Up! (2013-2014): Instrument panel fuse box diagram
Fuse Holder (C)

Assignment of fuses in the Fuse Holder C (From May 2013)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
17.5ADash panel insert
Engine/motor control unit
Radiator fan control unit
215AAir conditioning system relay
Air conditioning system control unit
Diagnostic connection
High-pressure sender
37.5ABrake light switch
Clutch pedal switch
Camshaft control valve 1
47.5AOnboard supply control unit
Light switch, dipped beam/daytime driving lights/main beam
**Number plate light
57.5AOnboard supply control unit
Ignition/starter switch
Cruise control system switch
67.5AHeadlight range control regulator
Left headlight range control motor
Right headlight range control motor
Mirror adjustment switch
710ASelector lever
87.5AAutomated manual gearbox control unit
Selector lever
97.5AAirbag control unit
Centre switch module 2 in dash panel
107.5AParking aid control unit
1110ARight headlight dipped beam bulb
127.5ADash panel insert
Control unit in dash panel insert
Rear left fog light bulb
Onboard supply control unit
1310ALeft headlight dipped beam bulb
1415ARear window wiper motor
1515ALight switch
167.5ATerminal 15 voltage supply relay
Power steering control unit
1715AWasher pump switch (automatic wash/wipe and headlight washer system)
187.5AReversing light switch
1915AInjector, cylinder 1
Injector, cylinder 2
Injector, cylinder 3
207.5AABS control unit
Emergency braking function sensor unit
Steering angle sender
217.5ARight side light bulb
Right tail light bulb
*Number plate light
Onboard supply control unit
Light switch, side light
2210ALeft daytime running light bulb
Right daytime running light bulb
237.5ALeft side light bulb
Left tail light bulb
2415AHeadlight flasher switch
2510AWindscreen and rear window washer pump
267.5AMain relay
Dash panel insert
Steering angle sender
277.5AOnboard supply control unit
Front interior light
Front passenger reading light
Driver side reading light
287.5ADiagnostic connection
297.5AOnboard supply control unit
307.5AOnboard supply control unit
Heated exterior mirror on driver side
Heated exterior mirror on passenger side
3110ALambda probe
Lambda probe after catalytic converter
Activated charcoal filter solenoid valve 1
3215AOnboard supply control unit
Turn signal/brake light
3310ARight headlight main beam bulb
3410ALeft headlight main beam bulb
Dash panel insert
35––
3620ACigarette lighter
3730AAir conditioning system control unit
Heater control unit
3815ARadio
3930ASliding sunroof adjustment control unit
4015AEngine/motor control unit
4125AOnboard supply control unit
Central locking
4225AIgnition coil 1 with output stage
Ignition coil 2 with output stage
Ignition coil 3 with output stage
4320AHeated front seats control unit
Centre switch module in dash panel
Centre switch module 2 in dash panel
4415AFuel pump relay
4520ALight switch
4630AOnboard supply control unit
Heated rear window
4730AFront right window regulator switch
4820AOnboard supply control unit
Treble horn
Bass horn
4930AOnboard supply control unit
Wiper motor control unit
5015A
20A *		Left fog light bulb
Right fog light bulb
*Onboard supply control unit
5130AFront left window regulator switch
* Only models with start/stop system
** Only models with no start/stop system

From November 2014

Volkswagen Up! (2014-2015): Instrument panel fuse box diagram
Fuse Holder (C)

Assignment of fuses in the Fuse Holder C (From November 2014)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
17.5ADash panel insert
Engine/motor control unit
Radiator fan control unit
215AAir conditioning system relay
Air conditioning system control unit
Diagnostic connection
High-pressure sender
37.5ABrake light switch
Clutch pedal switch
Camshaft control valve 1
47.5AOnboard supply control unit
Light switch, dipped beam/daytime driving lights/main beam
***Number plate light
57.5AOnboard supply control unit
Ignition/starter switch
Cruise control system switch
67.5AHeadlight range control regulator
Left headlight range control motor
Right headlight range control motor
Mirror adjustment switch
710ASelector lever
87.5AAutomated manual gearbox control unit
Selector lever
97.5AAirbag control unit
Centre switch module 2 in dash panel
107.5AParking aid control unit
1110ARight headlight dipped beam bulb
127.5ADash panel insert
Control unit in dash panel insert
Rear left fog light bulb
Onboard supply control unit
1310ALeft headlight dipped beam bulb
1415ARear window wiper motor
1515ALight switch
167.5ATerminal 15 voltage supply relay
Power steering control unit
1715AWasher pump switch (automatic wash/wipe and headlight washer system)
187.5AReversing light switch
1915AInjector, cylinder 1
Injector, cylinder 2
Injector, cylinder 3
207.5AABS control unit
Emergency braking function sensor unit
Steering angle sender
217.5ARight side light bulb
Right tail light bulb
*Number plate light
Onboard supply control unit
Light switch, side light
2210ALeft daytime running light bulb
Right daytime running light bulb
237.5ALeft side light bulb
Left tail light bulb
2415AHeadlight flasher switch
2510AWindscreen and rear window washer pump
267.5AMain relay
Dash panel insert
Steering angle sender
277.5AOnboard supply control unit
Front interior light
Front passenger reading light
Driver side reading light
287.5ADiagnostic connection
297.5AOnboard supply control unit
307.5AOnboard supply control unit
Heated exterior mirror on driver side
Heated exterior mirror on passenger side
3110ALambda probe
Lambda probe after catalytic converter
Activated charcoal filter solenoid valve 1
3215AOnboard supply control unit
Turn signal/brake light
3310ARight headlight main beam bulb
3410ALeft headlight main beam bulb
Dash panel insert
35––
3620ACigarette lighter
3730AAir conditioning system control unit
Heater control unit
3815ARadio
3930ASliding sunroof adjustment control unit
4015AEngine/motor control unit
4125AOnboard supply control unit
Central locking
4225AIgnition coil 1 with output stage
Ignition coil 2 with output stage
Ignition coil 3 with output stage
4320AHeated front seats control unit
Centre switch module in dash panel
Centre switch module 2 in dash panel
4415AFuel pump relay
4520ALight switch
4630AOnboard supply control unit
Heated rear window
4730AFront right window regulator switch
**Operating unit for window regulator in driver door
Driver side central locking lock unit
4820AOnboard supply control unit
Treble horn
Bass horn
4930AOnboard supply control unit
Wiper motor control unit
5015A
20A *		Left fog light bulb
Right fog light bulb
*Onboard supply control unit
5130AOperating unit for window regulator in driver door
*Driver side central locking lock unit
* Only models with start/stop system
** Only right-hand drive models
*** Only models with no start/stop system

From November 2015

Volkswagen Up! (2015-2016): Instrument panel fuse box diagram
Fuse Holder (C)

Assignment of fuses in the Fuse Holder C (From November 2015)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
115AAir conditioning system control unit
Air conditioning system relay
High-pressure sender
Diagnostic connection
27.5AFront left headlight
Left headlight range control motor
Front right headlight
Right headlight range control motor
Parking aid control unit
Mirror adjustment switch
Headlight range control regulator
37.5ATerminal 15 voltage supply relay
Power steering control unit
Radiator fan control unit
Automated manual gearbox control unit
Selector lever
Dash panel insert
Steering column combination switch
Engine/motor control unit
Onboard supply control unit
410AAirbag control unit
Centre switch module 2 in dash panel
Seat heating
57.5A
10A ****		Reversing light switch
Onboard supply control unit
Reversing light
610AWindscreen and rear window washer pump
710AFront left headlight
Left headlight main beam bulb
Dash panel insert
Onboard supply control unit
Main beam
810AFront right headlight
Right headlight main beam bulb
9––
107.5AOnboard supply control unit
Heated exterior mirror
1110ADaytime running lights changeover relay
1215A****Left fog light bulb
****Right fog light bulb
****Daytime running lights changeover relay
****Onboard supply control unit
Fog light
137.5AFront left headlight
Left tail light
Side light relay, left
Onboard supply control unit
Front left headlight
147.5AFront right headlight
Right tail light
Side light relay, right
Onboard supply control unit
Front right headlight
157.5A **
10A *		*Radio
**Rotary light switch
**Switch module 1 in centre console
**Heater control unit
**Number plate light
**Centre switch module 2 in dash panel
**Selector lever
**Air conditioning system control unit
**Cigarette lighter
**Onboard supply control unit
167.5ALeft tail light
Dash panel insert
Onboard supply control unit
1715ARear window wiper motor
1830ASliding sunroof adjustment control unit
1925AOnboard supply control unit
Rear lid central locking
2030AOnboard supply control unit
Heated rear window
2120A **
15A *		Onboard supply control unit
Reversing light, turn-off light, fog light
2225AOnboard supply control unit
Treble horn
2330AVoltage converter
2420ASteering column combination switch
2530AOnboard supply control unit
Front wiper motor
2610A**Radio
*Onboard supply control unit
Headlight dipped beam
2715AOnboard supply control unit
Turn signal
287.5ASelector lever
2915AFuel pump relay
307.5AMain relay
Steering column combination switch
Diagnostic connection
Dash panel insert
3110AOnboard supply control unit
Headlight dipped beam
327.5AOnboard supply control unit
3315ARotary light switch
347.5AOnboard supply control unit
Interior light
357.5A *
10A **		Dash panel insert
Front right headlight
367.5A *
10A **		*Relay for emergency braking function
Emergency braking function sensor unit
**Front left headlight
377.5AABS control unit
Steering column combination switch
****Emergency braking function sensor unit
3810ACentre switch module in dash panel
Start/Stop operation button
Voltage converter
Relay for emergency braking function
3915ASteering column combination switch
4010ALambda probe 1 before catalytic converter
Lambda probe heater
Lambda probe
Lambda probe 1 after catalytic converter
Lambda probe 1 heater after catalytic converter
Lambda probe after catalytic converter
Activated charcoal filter solenoid valve 1
****Relay for gas shut-off valves
****High-pressure valve for gas mode
417.5ABrake light switch
Clutch pedal switch
Clutch position sender
Camshaft control valve 1
4215AEngine/motor control unit
Air conditioning system relay
43––
4415AInjector, cylinder 1
Injector, cylinder 2
Injector, cylinder 3
****Gas injection valve 1
****Gas injection valve 2
****Gas injection valve 3
4525AIgnition coil 1 with output stage
Ignition coil 2 with output stage
Ignition coil 3 with output stage
4620ACigarette lighter
4730A****Heater control unit
****Air conditioning system control unit
4820AHeated front seats control unit
Centre switch module 2 in dash panel
Button for right seat heating
Centre switch module in dash panel
Button for left seat heating
4930AOperating unit for window regulator in driver door
5020ARotary light switch
5130AFront right window regulator switch
* Only models with start/stop system
** Only models with no start/stop system
*** Only right-hand drive models
**** Depending on equipment

From May 2016

Fuse Holder (C)

Assignment of fuses in the Fuse Holder C (From May 2016)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
110AAir conditioning system control unit
Air conditioning system relay
High-pressure sender
Diagnostic connection
27.5AFront left headlight
Left headlight range control motor
Front right headlight
Right headlight range control motor
Parking aid control unit
Mirror adjustment switch
Headlight range control regulator
****Steering column combination switch
37.5ATerminal 15 voltage supply relay
Power steering control unit
Radiator fan control unit
Automated manual gearbox control unit
Selector lever
Dash panel insert
Steering column combination switch
Engine/motor control unit
Onboard supply control unit
47.5AAirbag control unit
Centre switch module 2 in dash panel
Seat heating
57.5A****Reversing light switch
****Onboard supply control unit
Reversing light
610AWindscreen and rear window washer pump
710AFront left headlight
Left headlight main beam bulb
Dash panel insert
Onboard supply control unit
Main beam
810AFront right headlight
Right headlight main beam bulb
9–
107.5A****Onboard supply control unit
Heated exterior mirror
****Diagnostic connection
1110A****Daytime running lights changeover relay
Front left headlight
Front right headlight
****Front left headlight
Left daytime running light bulb
****Front right headlight
Right daytime running light bulb
1215A****Left fog light bulb
****Right fog light bulb
****Daytime running lights changeover relay
****Light switch
****Onboard supply control unit
Fog light
137.5A****Front left headlight
****Left tail light
147.5A****Front right headlight
****Right tail light
157.5A **
10A */****
15A *****		****/*****Radio
**Rotary light switch
**Switch module 1 in centre console
**Heater control unit
**Number plate light
Centre switch module in dash panel
**Centre switch module 2 in dash panel
**Selector lever
**Air conditioning system control unit
**Cigarette lighter
**Onboard supply control unit
Light conductor for front centre console ****background lighting
Light conductor for front passenger side ****background lighting
****Light conductor for driver side background lighting
****Left number plate light
****Right number plate light
167.5A****Left tail light
Rear left fog light bulb
****Right tail light
Rear right fog light bulb
Dash panel insert
Onboard supply control unit
1715ARear window wiper motor
1830ASliding sunroof adjustment control unit
1925AOnboard supply control unit
Rear lid central locking
2030AOnboard supply control unit
Heated rear window
2120A **
15A *		Onboard supply control unit
Reversing light, turn-off light, fog light
2225AOnboard supply control unit
Treble horn
2330A *
20A **		*Voltage converter
**Onboard supply control unit
2420ASteering column combination switch
2530AOnboard supply control unit
Front wiper motor
2610A */**
15A *****		**/*****Radio
*Onboard supply control unit
Headlight dipped beam
2715AOnboard supply control unit
Turn signal
287.5ASelector lever
2915AFuel pump relay
307.5AMain relay
Steering column combination switch
Diagnostic connection
Dash panel insert
****Climatronic control unit
****Engine/motor control unit
****Rain and light sensor
****Reversing camera
3110AOnboard supply control unit
Headlight dipped beam
327.5AOnboard supply control unit
Terminal 30
3310A
15A ****		Rotary light switch
347.5AOnboard supply control unit
Interior light
357.5A *
10A **		*Dash panel insert
**Front right headlight
367.5A *
10A **		*Relay for emergency braking function
Emergency braking function sensor unit
**Front left headlight
377.5AABS control unit
Steering column combination switch
****Emergency braking function sensor unit
3810A****Centre switch module in dash panel
Start/Stop operation button
****Voltage converter
****Relay for emergency braking function
****Starter relay 1
****Starter relay 2
3915ASteering column combination switch
4010ALambda probe 1 before catalytic converter
Lambda probe heater
Lambda probe
Lambda probe 1 after catalytic converter
Lambda probe 1 heater after catalytic converter
Lambda probe after catalytic converter
Activated charcoal filter solenoid valve 1
****Camshaft control valve 1
****Exhaust camshaft control valve 1
****Valve for oil pressure control
****Relay for gas shut-off valves
****High-pressure valve for gas mode
417.5ABrake light switch
Clutch pedal switch
Clutch position sender
Camshaft control valve 1
4215AEngine/motor control unit
4310A****Air conditioning system relay
****Vacuum pump for brakes
Brake servo pressure sensor
4415A
20A ****		Injector, cylinder 1
Injector, cylinder 2
Injector, cylinder 3
****Gas injection valve 1
****Gas injection valve 2
****Gas injection valve 3
****Fuel pressure regulating valve
****Charge air cooling pump
****Fuel pump control unit
4520AIgnition coil 1 with output stage
Ignition coil 2 with output stage
Ignition coil 3 with output stage
4620ACigarette lighter
4730A****Heater control unit
****Air conditioning system control unit
4815AHeated front seats control unit
Centre switch module 2 in dash panel
Button for right seat heating
Centre switch module in dash panel
Button for left seat heating
4930AOperating unit for window regulator in driver door
Front right window regulator switch
5020A
10A
25A ****		Rotary light switch
5130AOperating unit for window regulator in driver door
* Only models with start/stop system
** Only models with no start/stop system
*** Only right-hand drive models
**** Depending on equipment
***** Only models with Touch radio

From November 2016

Fuse Holder (C)

Assignment of fuses in the Fuse Holder C (From November 2016)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
110AAir conditioning system control unit
Air conditioning system relay
High-pressure sender
Diagnostic connection
27.5AFront left headlight
Left headlight range control motor
Front right headlight
Right headlight range control motor
Parking aid control unit
Mirror adjustment switch
Headlight range control regulator
Steering column combination switch 4
37.5ATerminal 15 voltage supply relay
Power steering control unit
Radiator fan control unit
Automated manual gearbox control unit
Selector lever
Dash panel insert
Steering column combination switch
Engine/motor control unit
Onboard supply control unit
47.5AAirbag control unit
Centre switch module 2 in dash panel
Seat heating
57.5AReversing light switch 4
Onboard supply control unit 4
Reversing light
610AWindscreen and rear window washer pump
710AFront left headlight
Left headlight main beam bulb
Dash panel insert
Onboard supply control unit
Main beam
810AFront right headlight
Right headlight main beam bulb
9–
107.5AOnboard supply control unit 4
Heated exterior mirror
Diagnostic connection 4
1110ADaytime running lights changeover relay 4
Front left headlight
Front right headlight
Front left headlight 4
Left daytime running light bulb
Front right headlight 4
Right daytime running light bulb
12–
137.5AFront left headlight 4
Left tail light 4
147.5AFront right headlight 4
Right tail light 4
157.5A 2
10A 1, 4
15A 5		Radio 4, 5
Rotary light switch 2
Switch module 1 in centre console 2
Heater control unit 2
Number plate light 2
Centre switch module in dash panel
Centre switch module 2 in dash panel 2
Selector lever 2
Air conditioning system control unit 2
Cigarette lighter 2
Light conductor for front centre console background lighting 4
Light conductor for front passenger side background lighting 4
Light conductor for driver side background lighting 4
Left number plate light 4
Right number plate light 4
167.5ALeft tail light 4
Rear left fog light bulb
Right tail light 4
Rear right fog light bulb
Dash panel insert
Onboard supply control unit
1715ARear window wiper motor
1830ASliding sunroof adjustment control unit
1925AOnboard supply control unit
Rear lid central locking
2030AOnboard supply control unit
Heated rear window
2120A 2
15A 1
7.5A 7		Onboard supply control unit
Reversing light, turn-off light, fog light
2225AOnboard supply control unit
Treble horn
2330A 1
15A 2		Voltage converter 1
Onboard supply control unit 2
2420A
7.5A 6		Steering column combination switch
2530AOnboard supply control unit
Front wiper motor
2610A 1, 2
15A 5		Radio 2, 5
Onboard supply control unit 1
Headlight dipped beam
2715AOnboard supply control unit
Turn signal
287.5ASelector lever
2915AFuel pump relay
307.5AMain relay
Steering column combination switch
Diagnostic connection
Dash panel insert
Climatronic control unit 4
Engine/motor control unit 4
Rain and light sensor 4
Reversing camera 4
3110A
15A 4		Onboard supply control unit
Headlight dipped beam
327.5AOnboard supply control unit
Terminal 30
3310A
15A 4		Rotary light switch
347.5AOnboard supply control unit
Interior light
357.5A 1
10A 2		Dash panel insert 1
Front right headlight 2
367.5A 1
10A 2		Relay for emergency braking function 1
Emergency braking function sensor unit
Front left headlight 2
377.5AABS control unit
Terminal 15 voltage supply relay
Emergency braking function sensor unit 4
387.5ACentre switch module in dash panel 4
Start/Stop operation button
Voltage converter 4
Relay for emergency braking function 4
Starter relay 1 4
Starter relay 2 4
3915ASteering column combination switch
4010ALambda probe 1 before catalytic converter
Lambda probe heater
Lambda probe
Lambda probe 1 after catalytic converter
Lambda probe 1 heater after catalytic converter
Lambda probe after catalytic converter
Activated charcoal filter solenoid valve 1
Camshaft control valve 1 4
Exhaust camshaft control valve 1 4
Valve for oil pressure control 4
Relay for gas shut-off valves 4
High-pressure valve for gas mode 4
Radiator fan
417.5ABrake light switch
Clutch pedal switch
Clutch position sender
Camshaft control valve 1
4215AEngine/motor control unit
4310AAir conditioning system relay 4
Vacuum pump for brakes 4
Brake servo pressure sensor
4415A
20A 4		Injector, cylinder 1
Injector, cylinder 2
Injector, cylinder 3
Gas injection valve 1 4
Gas injection valve 2 4
Gas injection valve 3 4
Fuel pressure regulating valve 4
Charge air cooling pump 4
Fuel pump control unit 4
4520AIgnition coil 1 with output stage
Ignition coil 2 with output stage
Ignition coil 3 with output stage
4620ACigarette lighter
4730AHeater control unit 4
Air conditioning system control unit 4
4815AHeated front seats control unit
Centre switch module 2 in dash panel
Button for right seat heating
Centre switch module in dash panel
Button for left seat heating
4930AOperating unit for window regulator in driver door
Front right window regulator switch
5020A
10A
25A 4		Rotary light switch
5130AOperating unit for window regulator in driver door
Front right window regulator switch
1) Only models with start/stop system
2) Only models with no start/stop system
3) Only right-hand drive models
4) Depending on equipment
5) Only models with Touch radio
6) Only models with Coming Home function
7) Only models with no fog lights

From November 2017

Fuse Holder (C)

Assignment of fuses in the Fuse Holder C (From November 2017)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
110AAir conditioning system control unit
Air conditioning system relay
High-pressure sender
Diagnostic connection
27.5AFront left headlight
Left headlight range control motor
Front right headlight
Right headlight range control motor
Parking aid control unit
Mirror adjustment switch
Headlight range control regulator
Steering column combination switch 4
Centre switch module 2 in dash panel
Button for right seat heating
Centre switch module in dash panel
Button for left seat heating
37.5ATerminal 15 voltage supply relay
Power steering control unit
Radiator fan control unit
Automated manual gearbox control unit
Selector lever
Dash panel insert
Steering column combination switch
Engine/motor control unit
Onboard supply control unit
47.5AAirbag control unit
Centre switch module 2 in dash panel
Seat heating
57.5AReversing light switch 4
Onboard supply control unit 4
Reversing light
610AWindscreen and rear window washer pump
710AFront left headlight
Left headlight main beam bulb
Dash panel insert
Onboard supply control unit
Main beam
810AFront right headlight
Right headlight main beam bulb
9––
107.5AOnboard supply control unit 4
Heated exterior mirror
Diagnostic connection 4
Reversing camera 4
Rain and light sensor 4
1110ADaytime running lights changeover relay 4
Front left headlight
Front right headlight
Front left headlight 4
Left daytime running light bulb
Front right headlight 4
Right daytime running light bulb
12––
137.5AFront left headlight 4
Left tail light 4
147.5AFront right headlight 4
Right tail light 4
157.5A 2
10A 1, 4
15A 5		Radio 4, 5
Rotary light switch
Switch module 1 in centre console 2
Heater control unit 2
Number plate light 2
Centre switch module in dash panel
Centre switch module 2 in dash panel 2
Selector lever 2
Air conditioning system control unit 2
Cigarette lighter 2
Light conductor for front centre console background lighting 4
Light conductor for front passenger side background lighting 4
Light conductor for driver side background lighting 4
Left number plate light 4
Right number plate light 4
167.5ALeft tail light 4
Rear left fog light bulb
Right tail light 4
Rear right fog light bulb
Dash panel insert
Onboard supply control unit
1715ARear window wiper motor
1830ASliding sunroof adjustment control unit
1925AOnboard supply control unit
Rear lid central locking
2030AOnboard supply control unit
Heated rear window
2120A 2
15A 1
7.5A 7		Onboard supply control unit
Reversing light, turn-off light, fog light
2225AOnboard supply control unit
Treble horn
2330A 1
15A 2		Voltage converter 1
Onboard supply control unit 2
2420A
7.5A 6		Steering column combination switch
2530AOnboard supply control unit
Front wiper motor
2615ARadio 2, 5
Onboard supply control unit
Headlight dipped beam
2715AOnboard supply control unit
Turn signal
287.5ASelector lever
2915AFuel pump relay
307.5AMain relay
Steering column combination switch
Diagnostic connection
Dash panel insert
Climatronic control unit 4
Engine/motor control unit 4
3115AOnboard supply control unit
Headlight dipped beam
327.5AOnboard supply control unit
Terminal 30
3310A
15A 4		Rotary light switch
347.5AOnboard supply control unit
Interior light
357.5A 1
10A 2		Dash panel insert 1
Front right headlight 2
367.5A 1
10A 2		Relay for emergency braking function 1
Emergency braking function sensor unit
Front left headlight 2
377.5AABS control unit
Terminal 15 voltage supply relay
Emergency braking function sensor unit 4
387.5ACentre switch module in dash panel 4
Start/Stop operation button
Voltage converter 4
Relay for emergency braking function 4
Starter relay 1 4
Starter relay 2 4
3915ASteering column combination switch
4010ALambda probe 1 before catalytic converter
Lambda probe heater
Lambda probe
Lambda probe 1 after catalytic converter
Lambda probe 1 heater after catalytic converter
Lambda probe after catalytic converter
Activated charcoal filter solenoid valve 1
Camshaft control valve 1 4
Exhaust camshaft control valve 1 4
Valve for oil pressure control 4
Relay for gas shut-off valves 4
High-pressure valve for gas mode 4
Radiator fan
417.5ABrake light switch
Clutch pedal switch
Clutch position sender
Camshaft control valve 1
4215AEngine/motor control unit
4310AAir conditioning system relay 4
Vacuum pump for brakes 4
Brake servo pressure sensor
4415A
20A 4		Injector, cylinder 1
Injector, cylinder 2
Injector, cylinder 3
Gas injection valve 1 4
Gas injection valve 2 4
Gas injection valve 3 4
Fuel pressure regulating valve 4
Charge air cooling pump 4
Fuel pump control unit 4
4520AIgnition coil 1 with output stage
Ignition coil 2 with output stage
Ignition coil 3 with output stage
4620ACigarette lighter
4730AHeater control unit 4
Air conditioning system control unit 4
4815AHeated front seats control unit
4930AOperating unit for window regulator in driver door
Front right window regulator switch
5020A
10A
25A 4		Rotary light switch
5130AOperating unit for window regulator in driver door
Front right window regulator switch
1) Only models with start/stop system
2) Only models with no start/stop system
3) Only right-hand drive models
4) Depending on equipment
5) Only models with Touch radio
6) Only models with Coming Home function
7) Only models with no fog lights

From July 2018

Fuse Holder (C)

Assignment of fuses in the Fuse Holder C (From July 2018)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
110AAir conditioning system control unit
Air conditioning system relay
High-pressure sender
Diagnostic connection
27.5AFront left headlight
Left headlight range control motor
Front right headlight
Right headlight range control motor
Parking aid control unit
Mirror adjustment switch
Headlight range control regulator
Steering column combination switch 4
Centre switch module 2 in dash panel
Button for right seat heating
Centre switch module in dash panel
Button for left seat heating
37.5ATerminal 15 voltage supply relay
Power steering control unit
Radiator fan control unit
Automated manual gearbox control unit
Selector lever
Dash panel insert
Steering column combination switch
Engine/motor control unit
Onboard supply control unit
47.5AAirbag control unit
Centre switch module 2 in dash panel
Seat heating
57.5AReversing light switch 4
Onboard supply control unit 4
Reversing light
610AWindscreen and rear window washer pump
710AFront left headlight
Left headlight main beam bulb
Dash panel insert
Onboard supply control unit
Main beam
810AFront right headlight
Right headlight main beam bulb
9––
107.5AOnboard supply control unit 4
Heated exterior mirror
Diagnostic connection 4
Reversing camera 4
Rain and light sensor 4
Climatronic control unit 4
1110ADaytime running lights changeover relay 4
Front left headlight
Front right headlight
Front left headlight 4
Left daytime running light bulb
Front right headlight 4
Right daytime running light bulb
12––
137.5AFront left headlight 4
Left tail light 4
147.5AFront right headlight 4
Right tail light 4
157.5A 2
15A 5		Radio 4, 5
Rotary light switch 2
Switch module 1 in centre console 2
Heater control unit 2
Number plate light 2
Centre switch module in dash panel
Centre switch module 2 in dash panel 2
Selector lever 2
Air conditioning system control unit 2
Cigarette lighter 2
Light conductor for front centre console background lighting 4
Light conductor for front passenger side background lighting 4
Light conductor for driver side background lighting 4
Left number plate light 4
Right number plate light 4
167.5ALeft tail light 4
Rear left fog light bulb
Right tail light 4
Rear right fog light bulb
Dash panel insert
Onboard supply control unit
1715ARear window wiper motor
1830ASliding sunroof adjustment control unit
1925AOnboard supply control unit
Rear lid central locking
2030AOnboard supply control unit
Heated rear window
2120A 2
7.5A 7		Onboard supply control unit
Reversing light, turn-off light, fog light
2225AOnboard supply control unit
Treble horn
2330A 1
15A 2		Voltage converter 1
Onboard supply control unit 2
2420A
7.5A 6		Steering column combination switch
2530AOnboard supply control unit
Front wiper motor
2615ARadio 2, 5
Onboard supply control unit 1
Headlight dipped beam
2715AOnboard supply control unit
Turn signal
287.5ASelector lever
2915AFuel pump relay
307.5AMain relay
Steering column combination switch
Diagnostic connection
Dash panel insert
Engine/motor control unit 4
3115AOnboard supply control unit
Headlight dipped beam
327.5AOnboard supply control unit
Terminal 30
3310A
15A 4		Rotary light switch
347.5AOnboard supply control unit
Interior light
357.5A 1
10A 2		Dash panel insert 1
Front right headlight 2
367.5A 1
10A 2		Relay for emergency braking function 1
Emergency braking function sensor unit
Front left headlight 2
377.5AABS control unit
Terminal 15 voltage supply relay
Emergency braking function sensor unit 4
387.5ACentre switch module in dash panel 4
Start/Stop operation button
Voltage converter 4
Relay for emergency braking function 4
Starter relay 1 4
Starter relay 2 4
3915ASteering column combination switch
4010ALambda probe 1 before catalytic converter
Lambda probe heater
Lambda probe
Lambda probe 1 after catalytic converter
Lambda probe 1 heater after catalytic converter
Lambda probe after catalytic converter
Activated charcoal filter solenoid valve 1
Camshaft control valve 1 4
Exhaust camshaft control valve 1 4
Valve for oil pressure control 4
Relay for gas shut-off valves 4
High-pressure valve for gas mode 4
Radiator fan
417.5ABrake light switch
Clutch pedal switch
Clutch position sender
Camshaft control valve 1
4215AEngine/motor control unit
4310AAir conditioning system relay 4
Vacuum pump for brakes 4
Brake servo pressure sensor
4415A
20A 4		Injector, cylinder 1
Injector, cylinder 2
Injector, cylinder 3
Gas injection valve 1 4
Gas injection valve 2 4
Gas injection valve 3 4
Fuel pressure regulating valve 4
Charge air cooling pump 4
Fuel pump control unit 4
4520AIgnition coil 1 with output stage
Ignition coil 2 with output stage
Ignition coil 3 with output stage
4620ACigarette lighter
4730AHeater control unit 4
Air conditioning system control unit 4
4815AHeated front seats control unit
4930AOperating unit for window regulator in driver door
Front right window regulator switch
5020A
10A
25A 4		Rotary light switch
5130AOperating unit for window regulator in driver door
Front right window regulator switch
1) Only models with start/stop system
2) Only models with no start/stop system
3) Only right-hand drive models
4) Depending on equipment
5) Only models with Touch radio
6) Only models with Coming Home function
7) Only models with no fog lights

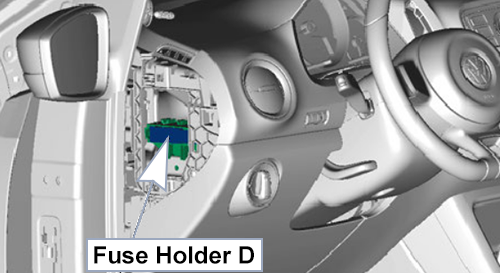

Fuse Box Location (D)

The fuses are on the left side of the dash panel behind a cover.

Volkswagen Up! (2011-2016): Fuse Holder D Location

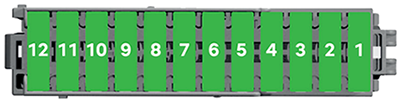

Fuse Box Diagrams (D)

From August 2011

Volkswagen Up! (2011-2016): Fuse Holder D
Fuse Holder (D)

Assignment of fuses in the Fuse Holder D (From August 2011)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
15AEmergency braking function sensor unit
25ADash panel insert
310ARadio
47.5AVoltage converter
Starter relay 1
Starter relay 2
5––
6––
7––
8––
915AOnboard supply control unit
– Right main beam/dipped beam/daytime driving lights
1015AOnboard supply control unit
– Left main beam/dipped beam/daytime driving lights
1130AStarter relay 1
Starter relay 2
1230AVoltage converter

From May 2013

Volkswagen Up! (2011-2016): Fuse Holder D
Fuse Holder (D)

Assignment of fuses in the Fuse Holder D (From May 2013)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
17.5ARelay for emergency braking function
Emergency braking function sensor unit
27.5ADash panel insert
315ARadio
47.5AVoltage converter
Starter relay 1
Starter relay 2
5––
6––
7––
8––
915AOnboard supply control unit
– Right main beam/dipped beam/daytime driving lights
1015AOnboard supply control unit
– Left main beam/dipped beam/daytime driving lights
1130AStarter relay 1
Starter relay 2
1230AVoltage converter

Relay Box Location

Relay Box Diagram

From August 2011

List of relays in the relay box (From August 2011)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
1Terminal 75 voltage supply relay 1
2Terminal 15 voltage supply relay
3Starter relay 2 (Only models with start/stop system)
4Main relay
5–
6Starter relay 1 (Only models with start/stop system)
7/AFuel pump relay (Only models with petrol engine)
7/BMain and dip beam relay (Only models with no start/stop system)
Relay for emergency braking function (Only models with start/stop system)
8–
9–
10Air conditioning system relay
11/AStarter inhibitor relay
11/BRelay for gas shut-off valves (LHD, Only models with CNG engine)
Fuel pump relay (RHD, Only models with CNG engine)
12–

From May 2015

List of relays in the relay box (From May 2015)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
1Terminal 75 voltage supply relay 1
2Terminal 15 voltage supply relay
3Starter relay 2 (Only models with start/stop system)
4Main relay
5Daytime running lights changeover relay
6Starter relay 1 (Only models with start/stop system)
7/AFuel pump relay (Only models with petrol engine)
7/BMain and dip beam relay (Only models with no start/stop system)
Relay for emergency braking function (Only models with start/stop system)
8–
9/ASide light relay – left
9/BSide light relay – right
10Air conditioning system relay
11/AStarter inhibitor relay
11/BRelay for gas shut-off valves (LHD; Only models with CNG engine)
Fuel pump relay (RHD; Only models with CNG engine)
12–

From 2016

List of relays in the relay box (From 2016)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
1Terminal 75 voltage supply relay 1
2Terminal 15 voltage supply relay
3Starter relay 2 (Only models with start/stop system)
4Main relay
5Daytime running lights changeover relay
6Starter relay 1 (Only models with start/stop system)
7/AFuel pump relay (Only models with petrol engine)
7/BMain and dip beam relay (Only models with no start/stop system)
Relay for emergency braking function (Only models with start/stop system)
8–
9–
10Air conditioning system relay
11/AStarter inhibitor relay
11/BRelay for gas shut-off valves (LHD; Only models with CNG engine)
Fuel pump relay (RHD; Only models with CNG engine)
12–

Scroll to Top
