Volvo S60 Fuse Box Locations and Diagrams (2001-2010)

The first-generation Volvo S60 was produced from 2000 to 2009, blending Scandinavian design with a focus on safety, comfort, and driving dynamics. Positioned between the S40 and S80, it became one of Volvo’s most popular sedans worldwide, offering a wide range of engines, advanced safety features, and a reputation for long-term durability.

In this article, you will find fuse box diagrams for the Volvo S60, covering model years 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008 and 2009. These diagrams are designed to help identify the fuse layout, making it easier to locate, inspect, and replace fuses and relays as needed.

What’s Included:

Fuse Box Diagrams – Clear visuals showing fuse and relay placement.
Fuse Panel Locations – Instructions on where the fuse panels are located in the vehicle.
Fuse Assignments – A detailed list of what each fuse and relay controls, aiding in repairs and troubleshooting.

Whether you’re replacing a blown fuse or tracking down an electrical fault, this guide will assist in keeping your Volvo S60 (2001–2009) in top condition and ensure that its electrical systems remain reliable.

What’s Included

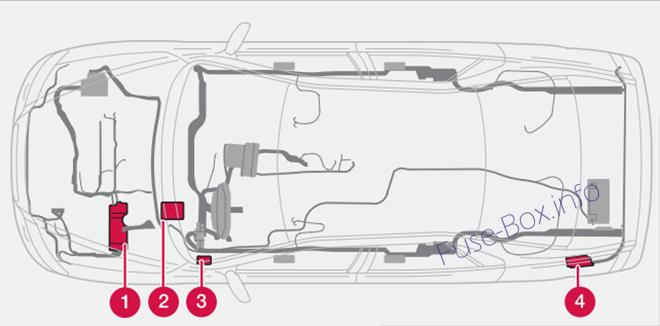

Fuse Box Locations

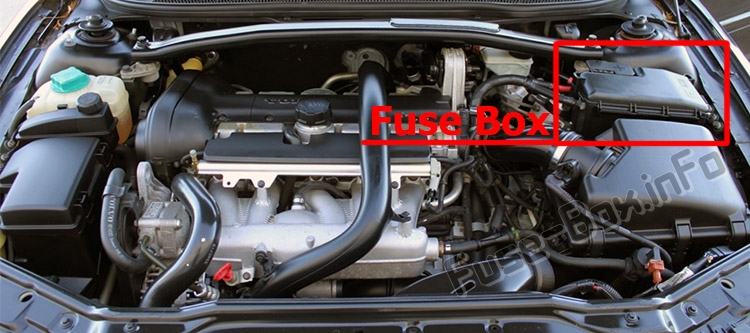

Engine compartment (1)

Relays/fuse box in the engine compartment.

The location of the fuses in the engine compartment: Volvo S60 (2007-2009)

Passenger compartment (2 and 3)

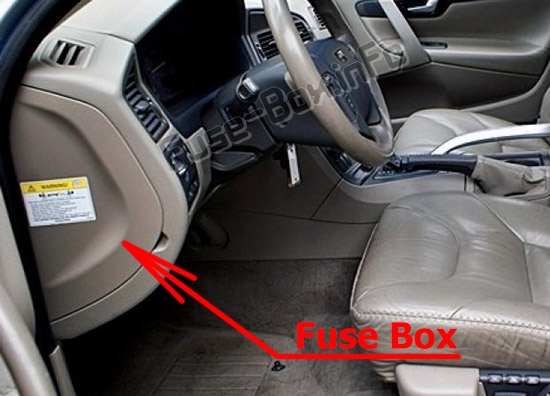

Fuse box in the passenger compartment below the steering wheel, behind plastic cover.

The location of the fuses in the passenger compartment: Volvo S60 (2001-2009)

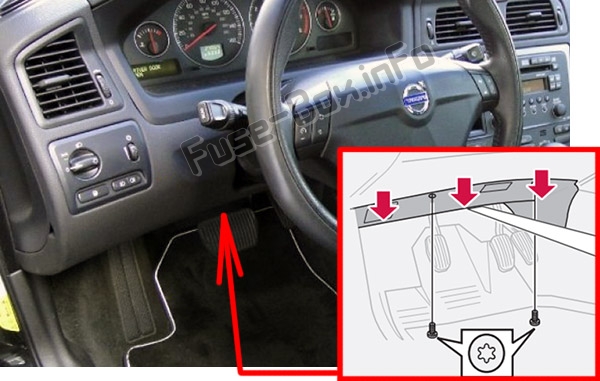

Fuse box in the passenger compartment, on the edge of the dashboard.

Luggage compartment (4)

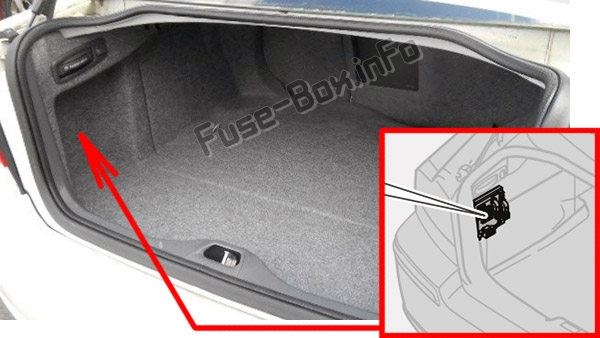

Fuse box is located behind the panel on the driver’s side of the cargo compartment.

Fuse Box Diagrams

Engine compartment

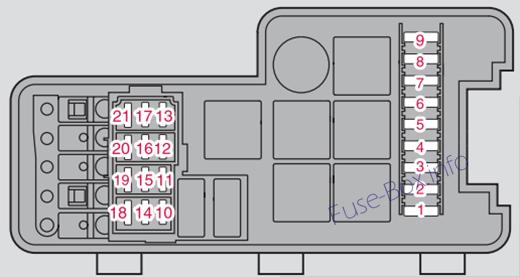

Under-hood fuse box diagram: Volvo S60 (2007, 2008)

Assignment of fuses in the engine compartment

Premium fuse data

Full access is available to registered users — log in or register to unlock this content.

№	Description	Amp
1	ABS	30
2	ABS	30
3	Headlight washers (certain models)	35
4	–
5	Auxiliary lights (option)	20
6	Starter motor relay	35
7	Windshield wipers	25
8	Fuel pump	15
9	Transmission control module (R-models)	15
10	Ignition coils, engine control module	20
11	Throttle pedal sensor, A/C compressor, e-box fan	10
12	Engine control module, fuel injectors, mass airflow sensor	15
13	Throttle housing control module	10
14	Heated oxygen sensor	20
15	Crankcase ventilation heater, solenoid valves	10
16	Driver’s side low beam headlight	20
17	Passenger’s side low beam headlight	20
18	–
19	Engine control module feed, engine relay	5
20	Parking lights	15
21	Vacuum pump	20

Below steering wheel

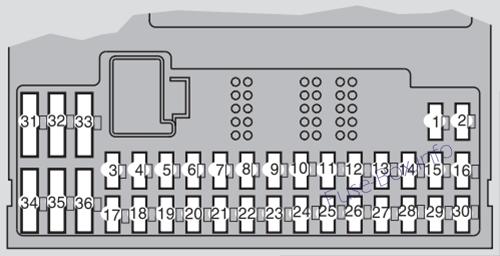

Interior fuse box diagram: Volvo S60 (2007, 2008)

Assignment of fuses below the steering wheel

Premium fuse data

Full access is available to registered users — log in or register to unlock this content.

№	Description	Amp
1	Heated passenger’s seat (option)	15
2	Heated driver’s seat (option)	15
3	Horn	15
4	–	–
5	–	–
6	–	–
7	–	–
8	Alarm siren (option)	5
9	Break light switch feed	5
10	Instrument panel, climate system, power driver’s seat (option)	10
11	12-volt sockets – front and rear seats	15
12	–	–
13	–	–
14	Headlight wipers (S60 R)	15
15	ABS, DSTC	5
16	Power steering, Active Bi-Xenon headlights (option)	10
17	Driver’s side front foglight (option)	7.5
18	Passenger’s side front foglight (option)	7.5
19	–	–
20	–	–
21	Transmission control module, reverse gear block (M66)	10
22	Driver’s side high beam	10
23	Passenger’s side high beam	10
24	–	–
25	–	–
26	–	–
27	–	–
28	Power passenger’s seat (option), audio system	5
29	Fuel pump	7.5
30	–	–
31	–	–
32	–	–
33	Vacuum pump	20
34	Windshield washer pump	15
35	–	–
36	–	–

Edge of dashboard

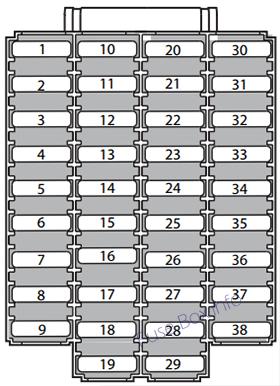

Instrument panel fuse box diagram: Volvo S60 (2007, 2008)

Assignment of fuses on the edge of the dashboard

Premium fuse data

Full access is available to registered users — log in or register to unlock this content.

№	Description	Amp
1	Power driver’s seat (option)	25
2	Power passenger’s seat (option)	25
3	Climate system blower	30
4	Control module – front passenger’s door	25
5	Control module – driver’s door	25
6	Ceiling lighting, upper electrical control module	10
7	Moon roof (option)	15
8	Ignition switch, SRS system, engine control module, immobilizer, transmission control module (R-models)	7,5
9	Onboard diagnostics, headlight switch, steering wheel angle sensor, steering wheel control module	5
10	Audio system	20
11	Audio system amplifier (option)	30
12	Navigation system display (option)	10
13-38	–

Luggage compartment

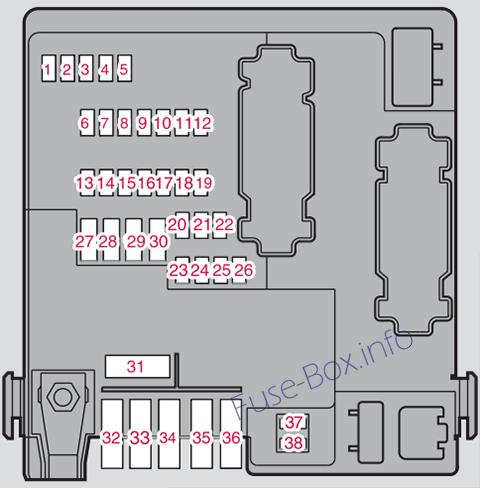

Trunk fuse box diagram: Volvo S60 (2007, 2008)

Assignment of fuses in the cargo area

Premium fuse data

Full access is available to registered users — log in or register to unlock this content.

№	Description	Amp
1	Backup lights	10
2	Parking lights, foglights, cargo area lighting, license plate lighting, brake lights	20
3	Accessory control module	15
4	–
5	Rear Electronic Module	10
6	CD-changer (option), Navigation system (option)	7.5
7	Trailer wiring (30-feed) – option	15
8	12-volt socket – cargo area	15
9	Rear passenger’s side door -power window, power window cutout function	20
10	Rear driver’s side door – power window, power window cutout function	20
11	–	–
12	–	–
13	–	–
14	–	–
15	–	–
16	–	–
17	Accessory audio	5
18	–
19	Folding head restraints	15
20	Trailer wiring (15-feed) – option	20
21	–
22	–
23	All Wheel Drive	7.5
24	Four-C chassis system (option)	15
25	–
26	Park assist (option)	5
27	Main fuse: trailer wiring, Four-C, park assist, All Wheel Drive	30
28	Central locking system	15
29	Driver’s side trailer lighting: parking lights, turn signal (option)	25
30	Passenger’s side trailer lighting: parking light, brake light, fog light, turn signal (option)	25
31	Main fuse: fuses 37 and 38	40
32	–	–
33	–	–
34	–	–
35	–	–
36	–	–
37	Heated rear window	20
38	Heated rear window	20

FAQ

What are the cigar lighter (power outlet) fuses in the Volvo S60?

Fuse #11 (front and rear seat sockets) in the instrument panel fuse box below the steering wheel, and fuse #8 (cargo area socket) in the luggage compartment fuse box.
