The second-generation Volvo S60 , after receiving its facelift in 2015 , was produced until 2018 . This update refreshed Volvo’s premium compact executive sedan with sharper styling, upgraded interiors, improved safety features, and more efficient engines. The facelift brought the S60 closer to Volvo’s evolving design language while maintaining its reputation for comfort, performance, and cutting-edge safety technology.
In this article, you will find fuse box diagrams for the Volvo S60, covering model years 2015, 2016, 2017 and 2018. These diagrams help you understand the fuse layout, making it easier to locate, inspect, and replace fuses and relays tied to vital electrical systems.
What’s Included:
Fuse Box Diagrams – Clear illustrations showing the arrangement of fuses and relays.Fuse Panel Locations – Step-by-step details on where to find fuse panels inside the vehicle.Fuse Assignments – A full breakdown of each fuse and relay function to simplify troubleshooting and repairs.
Whether you’re replacing a blown fuse, diagnosing an electrical problem, or performing preventative maintenance, this guide will help keep your Volvo S60 (2015–2018) operating at peak reliability and safety.

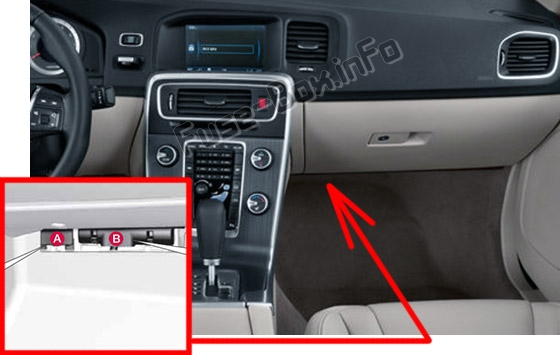

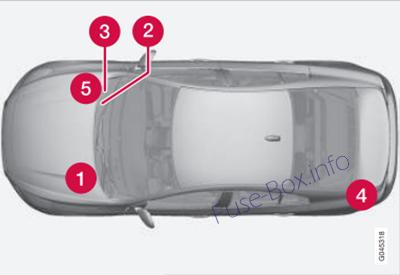

Under the glove compartment Fusebox A (General fuses) and Fusebox B (Control module fuses).

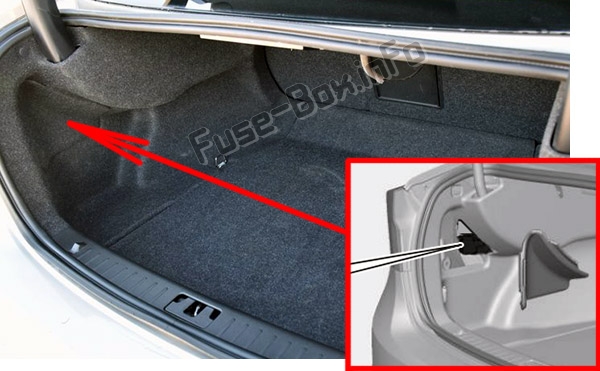

Located behind the upholstery on the left side of the trunk.

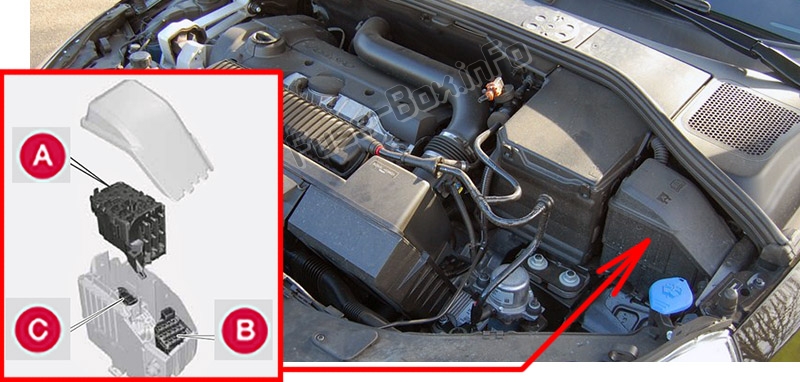

Assignment of fuses in the engine compartment (2015)
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
№ Function A 1 Circuit breaker: central electrical module under the glove compartment (not used on vehicles with the optional Start/Stop function) 50 2 Circuit breaker: central electrical module under the glove compartment 50 3 Circuit breaker: central electrical module in the trunk (not used on vehicles with the optional Start/Stop function) 60 4 Circuit breaker: central electrical module under the glove compartment (not used on vehicles with the optional Start/Stop function) 60 5 Circuit breaker: central electrical module under the glove compartment (not used on vehicles with the optional Start/Stop function) 60 6 – 7 – 8 Headed windshield (Option), driver’s side 40 9 Windshield wipers 30 10 – 11 Climate system blower (not used on vehicles with the optional Start/Stop function) 40 12 Headed windshield (Option), passenger’s side 40 13 ABS pump 40 14 ABS valves 20 15 Headlight washers 20 16 Active Bending Lights-headlight leveling (Option) 10 17 Central electrical module (under the glove compartment) 20 18 ABS 5 19 Adjustable steering force (Option) 5 20 Engine Control Module (ECM), transmission, SRS 10 21 Heated washer nozzles (Option) 10 22 – 23 Lighting panel 5 24 – 25 – 26 – 27 Relay coils 5 28 Auxiliary lights (Option) 20 29 Horn 15 30 Relay coils, Engine Control Module (ECM) 10 31 Control module – automatic transmission 15 32 A/C compressor (not 4-cyl. engines) 15 33 Relay-coils A/C, relay coils in engine compartment cold zone for Start/Stop 5 34 Starter motor relay (not used on vehicles with the optional Start/Stop function) 30 35 Engine control module (4-cyl. engines) Ignition coils (5-/6-cyl. engines), condenser (6-cyl. engines) 20 36 Engine Control Module (4-cyl. engines) 20 36 Engine Control Module (5-cyl. & 6-cyl. engines) 10 37 4-cyl. engines: mass air meter, thermostat, EVAP valve 10 37 5-/6-cyl. engines: Injection system, mass air meter (6-cyl. engines only), engine control module 15 38 A/C compressor (5-/6-cyl. engines), engine valves, engine control module (6-cyl. engines), solenoids (6-cyl. non-turbo only), mass air meter (6-cyl. only) 10 38 Engine valves/oil pump/center heated oxygen sensor (4-cyl. engines) 15 39 Front/rear heated oxygen sensors (4-cyl. engines), EVAP valve (5-/6-cyl. engines), heated oxygen sensors (5-/6-cyl. engines) 15 40 Oil pump (automatic transmission)/crank-case ventilation heater (5-cyl. engines) 10 40 Ignition coils 15 41 Fuel leakage detection (5-/6-cyl. engines), control module for radiator shutter (5-cyl. engines) 5 41 Fuel leakage detection, A/C relay (4-cyl. engines) 15 42 Coolant pump (4-cyl. engines) 50 43 Cooling fan (4/5-cyl. engines) 60 43 Cooling fan (6-cyl. engines) 80 44 Power steering 100
This content requires JavaScript and a valid membership to view.
Assignment of fuses under the glove compartment (Fusebox A – 2015)
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
№ Function A 1 Circuit breaker for the infotainment system and for fuses 16-20 40 2 Windshield washers 25 3 4 5 6 Keyless drive (Option) (door handles) 5 7 8 Controls in driver’s door 20 9 Controls in front passenger’s door 20 10 Controls in right rear passenger’s door 20 11 Controls in left rear passenger’s door 20 12 Keyless drive (Option) 7.5 13 Power driver’s seat (Option) 20 14 Power front passenger’s seat (Option) 20 15 16 Infotainment system control module 5 17 Infotainment system: amplifier, SiriusXM™ satellite radio (Option) 10 18 Infotainment system 15 19 Bluetooth hands-free system 5 20 21 Power moonroof (Option), Courtesy lighting, climate system sensor 5 22 12-volt sockets in tunnel console 15 23 Heated rear seat (Option) (passenger’s side) 15 24 Heated rear seat (Option) (driver’s side) 15 25 26 Heated front passenger’s seat (Option) 15 27 Heated driver’s seat (Option) 15 28 Park assist (Option), trailer hitch control module (Option), park assist camera(Option), Blind Spot Information System (BLIS) (Option) 5 29 All Wheel Drive (Option) control module 15 30 Active chassis system (Option) 10
This content requires JavaScript and a valid membership to view.
Assignment of fuses under the glove compartment (Fusebox B – 2015)
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
№ Function A 1 2 3 Front courtesy lighting, driver’s door power window controls, power seat(s) (Option), HomeLInk® Wireless Control System (Option) 7.5 4 Instrument panel 5 5 Adaptive cruise control/collision warning (Option) 10 6 Courtesy lighting, rain sensor (Option) 7.5 7 Steering wheel module 7.5 8 Cental locking: fuel filler door 10 9 Electrically heated steering wheel (Option) 15 10 Electrically heated windshield (Option) 15 11 Trunk open 10 12 Electrical folding rear seat outboard head restraints (Option) 10 13 Fuel pump 20 14 Climate system control panel 5 15 16 Alarm, On-board diagnostic system 5 17 18 Airbag system, occupant weight sensor 10 19 Collision warning system (Option) 5 20 Accelerator pedal, auto-dim mirror function, heated rear seats (Option) 7.5 21 – 22 Brake lights 5 23 Power moonroof (Option) 20 24 Immobilizer 5
This content requires JavaScript and a valid membership to view.

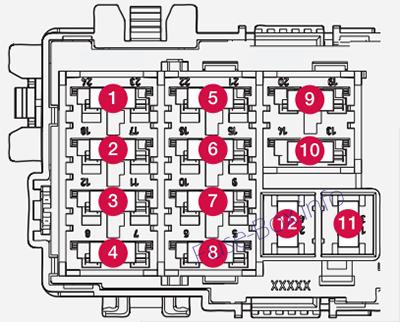

Assignment of fuses in the cargo area
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
№ Function Amp 1 Electric parking brake (left side) 30 2 Electric parking brake (right side) 30 3 Heated rear window 30 4 Trailer socket 2 (Option) 15 5 – 6 7 Rear 12-volt socket 15 8 – – 9 – – 10 – – 11 Trailer socket 1 (option) 40 12 – –
This content requires JavaScript and a valid membership to view.
Assignment of fuses in the Engine compartment cold zone (2015)
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
№ Function A A1 Circuit breaker: central electrical module in the engine compartment 175 A2 Circuit breaker: fuseboxes under the glove compartment, central electrical module in the trunk 175 1 2 Circuit breaker: fusebox B under the glove compartment 50 3 Circuit breaker: fusebox A under the glove compartment 60 4 Circuit breaker: fusebox A under the glove compartment 60 5 Circuit breaker: central electrical module in the trunk 60 6 Climate system blower 40 7 8 9 Starter motor relay 30 10 Internal diode 50 11 Auxiliary battery 70 12 Central electrical module: auxiliary battery reference voltage, auxiliary battery charging point 15
This content requires JavaScript and a valid membership to view.
Assignment of fuses in the engine compartment (2016)
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
№ Function A 1 Primary fuse for the central electronic module (CEM) under the glovebox (not used on vehicles with the optional Start/Stop function) 50 2 Primary fuse for the central electronic module (CEM) under the glovebox 50 3 Primary fuse for central electrical unit in cargo area (not used on vehicles with the optional Start/Stop function) 60 4 Primary fuse for relay/fuse box under the glovebox 60 5 Primary fuse for relay/fuse box under the glovebox (not used on vehicles with the optional Start/Stop function) 60 6 7 Electric additional heater (not used on vehicles with the optional Start/Stop function) 100 8 Heated windscreen (not used on vehicles with the optional Start/Stop function) , lefthand side 40 9 Windscreen wipers 30 10 Parking heater (Option) 25 11 Ventilation fan (not used on vehicles with the optional Start/Stop function) 40 12 Heated windscreen (not used on vehicles with the optional Start/Stop function) , righthand side 40 13 ABS pump 40 14 ABS valves 20 15 Headlamp washers (Option) 20 16 Headlamp levelling (Option); Active Xenon headlamps – ABL (Option) 10 17 Primary fuse for the central electronic module (CEM) under the glovebox 20 18 ABS 5 19 Adjustable steering force (Option) 5 20 Engine control module; Transmission control module; Airbags 10 21 Heated washer nozzles (Option) 10 22 23 Headlamp control 5 24 25 26 27 Relay coils 5 28 Auxiliary lamps (Option) 20 29 Horn 15 30 Relay coil in main relay for engine management system (4-cyl.); Engine control module (4-cyl.) 5 30 Relay coil in main relay for engine management system (5, 6-cyl.); Engine control module (5, 6-cyl.) 10 31 Transmission control module 15 32 Solenoid clutch A/C (5, 6-cyl. petrol); Supporting coolant pump (4-cyl. diesel) 15 33 Relay coil in relay for solenoid clutch A/C (5, 6-cyl. petrol); Relay coils in central electrical unit in engine compartment cold zone (Start/Stop) 5 34 Start relay (5, 6-cyl. petrol) (not used on vehicles with the optional Start/Stop function) 30 35 Glow control module (5-cyl. diesel) 10 35 Engine control module (4-cyl.); Ignition coils (5, 6-cyl. petrol); Capacitor (6-cyl.) 20 36 Engine control module (5, 6- cyl. petrol) 10 36 Engine control module (5-cyl. diesel) 15 36 Engine control module (4-cyl.) 20 37 Mass air flow sensor (4-cyl.); Thermostat(4-cyl. petrol); EVAP valve (4-cyl. petrol); Cooling pump for EGR (4-cyl. diesel) 10 37 Mass air flow sensor (5-cyl. diesel, 6-cyl.); Control valves (5-cyl. diesel); Injectors (5, 6- cyl. petrol); Engine control module (5, 6-cyl. petrol) 15 38 Solenoid clutch A/C (5, 6-cyl.); Valves (5, 6-cyl.); Engine control module (6-cyl.); Mass air flow sensor (5-cyl. petrol); Oil level sensor 10 38 Valves (4-cyl.); Oil pump (4- cyl. petrol); Lambda-sond, centre (4-cyl. petrol); Lambdasond, rear (4-cyl. diesel) 15 39 Lambda-sond, front (4-cyl.); Lambda-sond, rear (4-cyl. petrol), EVAP valve (5, 6-cyl. petrol); Lambda-sonds (5, 6-cyl.); Control module radiator roller cover (5-cyl. diesel) 15 40 Coolant pump (5-cyl. petrol); Crankcase ventilation heater (5-cyl. petrol); Oil pump automatic gearbox (5-cyl. petrol Start/Stop) 10 40 Ignition coils (4-cyl. petrol) 15 40 Diesel filter heater (diesel) 20 41 Control module, radiator roller cover (5-cyl. petrol) 5 41 Solenoid clutch A/C (4-cyl.); Glow control module (4-cyl. diesel); Oil pump (4-cyl. diesel) 7.5 41 Crankcase ventilation heater (5-cyl. diesel); Oil pump automatic gearbox (5-cyl. diesel Start/Stop) 10 42 Coolant pump (4-cyl. petrol) 50 42 Glow plugs (diesel) 70 43 Cooling fan (4 – 5-cyl. petrol) 60 43 Cooling fan (6-cyl., 4, 5-cyl. diesel) 80 44 Power steering 100
This content requires JavaScript and a valid membership to view.
Assignment of fuses under the glove compartment (Fusebox A – 2016)
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
№ Function A 1 Primary fuse for audio control module (Option); Primary fuse for fuses 16-20: Infotainment 40 2 Windscreen washers 25 3 – – 4 5 6 Door handle (Keyless (Option)) 5 7 – – 8 Control panel, driver’s door 20 9 Control panel, front passenger door 20 10 Control panel, rear passenger door, right 20 11 Control panel, rear passenger door, left 20 12 Keyless (Option) 7.5 13 Power seat, driver’s side (Option) 20 14 Power seat, passenger side (Option) 20 15 16 Infotainment Control Module or Screen 5 17 Audio control unit (amplifier) (Option); TV (Option); Digital radio (Option) 10 18 Audio control module or Control module Sensus 15 19 Telematics (Option); Bluetooth (Option) 5 20 21 Sunroof(Option); Interior lighting roof; Climate sensor (Option); Damper motors, air intake 5 22 12 V socket, tunnel console 15 23 Seat heating, rear right (Option) 15 24 Seat heating, rear left (Option) 15 25 Electric additional heater (Option) 5 26 Seat heating, front passenger side 15 27 Seat heating, front driver’s side 15 28 Parking assistance (Option); Parking camera (Option); BLIS (Option) 5 29 AWD control module (Option) 15 30 Active chassis Four-C (Option) 10
This content requires JavaScript and a valid membership to view.
Assignment of fuses under the glove compartment (Fusebox B – 2016)
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
№ Function A 1 2 3 Interior lighting; Driver’s door control panel, power windows; Power seats (Option) 7.5 4 Combined instrument panel 5 5 Adaptive cruise control, ACC collision warning system (Option) 10 6 Interior lighting; Rain sensor (Option) 7.5 7 Steering wheel module 7.5 8 Central locking system, fuel filler flap 10 9 Heated steering wheel (Option) 15 10 Heated windscreen (Option) 15 11 Unlocking, boot lid 10 12 Folding head restraint (Option) 10 13 Fuel pump 20 14 Movement detector alarm (Option); Climate panel 5 15 Steering lock 15 16 Siren (Option); Data link connector OBDII 5 17 – – 18 Airbags 10 19 Collision warning system (Option) 5 20 Accelerator pedal sensor; Dimming interior rearview mirror (Option); Seat heating, rear (Option) 7.5 21 Infotainment control module (Performance); Audio (Performance) 15 22 Brake light 5 23 Sunroof (Option) 20 24 Immobiliser 5
This content requires JavaScript and a valid membership to view.
Assignment of fuses in the cargo area
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
№ Function Amp 1 Electric parking brake (left side) 30 2 Electric parking brake (right side) 30 3 Heated rear window 30 4 Trailer socket 2 (Option) 15 5 – 6 7 Rear 12-volt socket 15 8 – – 9 – – 10 – – 11 Trailer socket 1 (option) 40 12 – –
This content requires JavaScript and a valid membership to view.
Assignment of fuses in the Engine compartment cold zone (2016)
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
№ Function A A1 Main fuse for central electrical unit in the engine compartment 175 A2 Main fuse for central electronic module (CEM) under the glovebox, relay/fuse box under the glovebox, central electrical unit in cargo area 175 1 Electric additional heater* 100 2 Primary fuse for the central electronic module (CEM) under the glovebox 50 3 Primary fuse for relay/fuse box under the glovebox 60 4 Heated windscreen (option) 60 5 Primary fuse for central electrical unit in cargo area 60 6 Ventilation fan 40 7 8 9 Start relay 30 10 11 Support battery 70 12 Central electronic module (CEM) – reference voltage support battery 5
This content requires JavaScript and a valid membership to view.
Assignment of fuses in the engine compartment (2017)
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
№ Function A 1 Primary fuse for the central electronic module (CEM) under the glovebox (not used on vehicles with the optional Start/Stop function) 50 2 Primary fuse for the central electronic module (CEM) under the glovebox 50 3 Primary fuse for central electrical unit in cargo area (not used on vehicles with the optional Start/Stop function) 60 4 Primary fuse for relay/fuse box under the glovebox 60 5 Primary fuse for relay/fuse box under the glovebox (not used on vehicles with the optional Start/Stop function) 60 6 7 Electric additional heater (not used on vehicles with the optional Start/Stop function) 100 8 Heated windscreen (not used on vehicles with the optional Start/Stop function) , lefthand side 40 9 Windscreen wipers 10 Parking heater (Option) 11 Ventilation fan (not used on vehicles with the optional Start/Stop function) 12 Heated windscreen (not used on vehicles with the optional Start/Stop function), right-hand side 40 13 ABS pump 40 14 ABS valves 20 15 Headlamp washers (Option) 20 16 Headlamp levelling (Option); Active Xenon headlamps – ABL (Option) 10 17 Primary fuse for the central electronic module (CEM) under the glovebox 20 18 ABS 5 19 Adjustable steering force (Option) 5 20 Engine control module; Transmission control module; Airbags 10 21 Heated washer nozzles (Option) 10 22 – – 23 Headlamp control 5 24 – – 25 – – 26 – – 27 Relay coils 5 28 Auxiliary lamps (Option) 20 29 Horn 15 30 Relay coil in main relay for engine management system (4-cyl.); Engine control module (4-cyl.) 5 30 Relay coil in main relay for engine management system (5-cyl. diesel); Engine control module (5-cyl. diesel) 10 31 Transmission control module 15 32 Supporting coolant pump (4-cyl. diesel) 15 33 Relay coils in central electrical unit in engine compartment cold zone Start/Stop 5 34 – – 35 Glow control module (5-cyl. diesel) 10 35 Engine control module (4-cyl.) 20 20 36 Engine control module (5-cyl. diesel) 15 36 Engine control module (4-cyl.) 20 37 Mass air flow sensor (4-cyl.); Thermostat(4-cyl. petrol); EVAP valve (4-cyl. petrol); Cooling pump for EGR (4-cyl. diesel) 10 37 Mass airflow meter (5-cyl. diesel); Control valves (5-cyl. diesel) 15 38 Solenoid clutch A/C (5-cyl. diesel); Valves (5-cyl. diesel); Oil level sensor 10 38 Valves (4-cyl.); Oil pump (4-cyl. petrol); Lambda-sond, centre (4-cyl. petrol); Lambda-sond, rear (4-cyl. diesel) 15 39 Lambda-sond, front (4-cyl.); Lambda-sond, rear (4-cyl. petrol) Lambda-sonds (5-cyl. diesel); Control module, radiator roller cover (5-cyl. diesel) 15 40 Ignition coils (4-cyl. petrol) 15 40 Diesel filter heater (diesel) 20 41 Solenoid clutch A/C (4-cyl.); Glow control module (4-cyl. diesel); Oil pump (4-cyl. diesel) 7.5 41 Crankcase ventilation heater (5-cyl. diesel); Oil pump automatic gearbox (5-cyl. diesel Start/Stop) 10 42 Coolant pump (4-cyl. petrol) 50 42 Glow plugs (diesel) 70 43 Cooling fan (petrol) (Depending on cooling fan variant) 60/80 43 Cooling fan (diesel) 80 44 Power steering 100
This content requires JavaScript and a valid membership to view.
Assignment of fuses under the glove compartment (Fusebox A – 2017)
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
№ Function A 1 Primary fuse for audio control module (Option); Primary fuse for fuses 16-20: Infotainment 40 2 Windscreen washers 25 3 – – 4 5 6 Door handle (Keyless (Option)) 5 7 – – 8 Control panel, driver’s door 20 9 Control panel, front passenger door 20 10 Control panel, rear passenger door, right 20 11 Control panel, rear passenger door, left 20 12 Keyless (Option) 7.5 13 Power seat, driver’s side (Option) 20 14 Power seat, passenger side (Option) 20 15 16 Infotainment Control Module or Screen 5 17 Audio control unit (amplifier) (Option); TV (Option); Digital radio (Option) 10 18 Audio control module or Control module Sensus 15 19 Telematics (Option); Bluetooth (Option) 5 20 21 Sunroof(Option); Interior lighting roof; Climate sensor (Option); Damper motors, air intake 5 22 12 V socket, tunnel console 15 23 Seat heating, rear right (Option) 15 24 Seat heating, rear left (Option) 15 25 Electric additional heater (Option) 5 26 Seat heating, front passenger side 15 27 Seat heating, front driver’s side 15 28 Parking assistance (Option); Parking camera (Option); BLIS (Option) 5 29 AWD control module (Option) 15 30 Active chassis Four-C (Option) 10
This content requires JavaScript and a valid membership to view.
Assignment of fuses under the glove compartment (Fusebox B – 2017)
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
№ Function A 1 2 3 Interior lighting; Driver’s door control panel, power windows; Power seats* 7.5 4 Combined instrument panel 5 5 Adaptive cruise control, ACC collision warning system* 10 6 Interior lighting; Rain sensor (Option) 7.5 7 Steering wheel module 7.5 8 Central locking system, fuel filler flap 10 9 Heated steering wheel (Option) 15 10 Heated windscreen (Option) 15 11 Unlocking, boot lid 10 12 Folding head restraint (Option) 10 13 Fuel pump 20 14 Movement detector alarm (Option); Climate panel 5 15 Steering lock 15 16 Siren (Option); Data link connector OBDII 5 17 – – 18 Airbags 10 19 Collision warning system (Option) 5 20 Accelerator pedal sensor; Dimming interior rearview mirror (Option); Seat heating, rear (Option) 7.5 21 Infotainment control module (Performance); Audio (Performance) 15 22 Brake light 5 23 Sunroof (Option) 20 24 Immobiliser 5
This content requires JavaScript and a valid membership to view.
Assignment of fuses in the cargo area
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
№ Function Amp 1 Electric parking brake (left side) 30 2 Electric parking brake (right side) 30 3 Heated rear window 30 4 Trailer socket 2 (Option) 15 5 – 6 7 Rear 12-volt socket 15 8 – – 9 – – 10 – – 11 Trailer socket 1 (option) 40 12 – –
This content requires JavaScript and a valid membership to view.
Assignment of fuses in the Engine compartment cold zone (2017)
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
№ Function A A1 Main fuse for central electrical unit in the engine compartment 175 A2 Main fuse for central electronic module (CEM) under the glovebox, relay/fuse box under the glovebox, central electrical unit in cargo area 175 1 Electric additional heater (Option) 100 2 Primary fuse for the central electronic module (CEM) under the glovebox 50 3 Primary fuse for relay/fuse box under the glovebox 60 4 Heated windscreen (Option) 60 5 Primary fuse for central electrical unit in cargo area 60 6 Ventilation fan 40 7 8 9 Start relay 30 10 11 Support battery 70 12 Central electronic module (CEM) – reference voltage support battery 5
This content requires JavaScript and a valid membership to view.
Assignment of fuses in the engine compartment (2018)
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
№ Function A 1 Circuit breaker: central electrical module under the glove compartment (not used on vehicles with the optional Start/Stop function) 50 2 Circuit breaker: central electrical module under the glove compartment 50 3 Circuit breaker: central electrical module in the trunk (not used on vehicles with the optional Start/Stop function) 60 4 Circuit breaker: central electrical module under the glove compartment (not used on vehicles with the optional Start/Stop function) 60 5 Circuit breaker: central electrical module under the glove compartment (not used on vehicles with the optional Start/Stop function) 60 6 – 7 – 8 Headed windshield (Option), driver’s side 40 9 Windshield wipers 30 10 – 11 Climate system blower (not used on vehicles with the optional Start/Stop function) 40 12 Headed windshield (Option), passenger’s side 40 13 ABS pump 40 14 ABS valves 20 15 Headlight washers 20 16 Active Bending Lights-headlight leveling (Option) 10 17 Central electrical module (under the glove compartment) 20 18 ABS 5 19 Adjustable steering force (Option) 5 20 Engine Control Module (ECM), transmission, SRS 10 21 Heated washer nozzles (Option) 10 22 – 23 Lighting panel 5 24 – 25 – 26 – 27 Relay coils 5 28 Auxiliary lights (Option) 20 29 Horn 15 30 Relay coils, Engine Control Module (ECM) 10 31 Control module – automatic transmission 15 32 A/C compressor (not 4-cyl. engines) 15 33 Relay-coils A/C, relay coils in engine compartment cold zone for Start/Stop 5 34 Starter motor relay (not used on vehicles with the optional Start/Stop function) 30 35 Engine control module (4-cyl. engines) Ignition coils (5 cyl. engines) 20 36 Engine Control Module (4-cyl. engines) 20 36 Engine Control Module (5-cyl. engines) 10 37 4-cyl. engines: mass air meter, thermostat, EVAP valve 10 37 5-cyl. engines: Injection system, engine control module 15 38 A/C compressor (5-cyl. engines), engine valves, oil level sensor (5-cyl. only) 10 38 Engine valves/oil pump/ center heated oxygen sensor (4-cyl. engines) 15 39 Front/rear heated oxygen sensors (4-cyl. engines), EVAP valve (5-cyl. engines), heated oxygen sensors (5-cyl. engines) 15 40 Oil pump/crankcase ventilation heater/coolant pump (5-cyl. engines) 10 40 Ignition coils (4-cyl. engines) 15 41 Fuel leakage detection (5-cyl. engines), control module for radiator shutter (5-cyl. engines) 5 41 Fuel leakage detection, A/C solenoid (4-cyl. engines) 7.5 42 Coolant pump (4-cyl. engines) 50 43 Cooling fan 60 or 80 (4-cyl. engines), 44 Power steering 100
This content requires JavaScript and a valid membership to view.
Assignment of fuses under the glove compartment (Fusebox A – 2018)
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
№ Function A 1 Circuit breaker for the infotainment system and for fuses 16-20 40 2 Windshield washers 25 3 – 4 – 5 – 6 Keyless drive (Option) (door handles) 5 7 – 8 Controls in driver’s door 20 9 Controls in front passenger’s door 20 10 Controls in right rear passenger’s door 20 11 Controls in left rear passenger’s door 20 12 Keyless drive (Option) 7.5 13 Power driver’s seat (Option) 20 14 Power front passenger’s seat (Option) 20 15 – 16 Infotainment system display 5 17 Infotainment system: amplifier, Sir-iusXM satellite radio (Option) 10 18 Sensus control module 15 19 Bluetooth hands-free system 5 20 21 Power moonroof (Option), Courtesy lighting, climate system sensor 5 22 12-volt sockets in tunnel console 15 23 Heated rear seat (passenger’s side) (Option) 15 24 Heated rear seat (driver’s side) (Option) 15 25 – 26 Heated front passenger’s seat (Option) 15 27 Heated driver’s seat (Option) 15 28 Park assist (Option), Blind Spot Information System (BUS) (Option), park assist camera (Option) 5 29 All Wheel Drive control module (Option) 15 30 Active chassis system (Option) 10
This content requires JavaScript and a valid membership to view.
Assignment of fuses under the glove compartment (Fusebox B – 2018)
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
№ Function A 1 – 2 – 3 Front courtesy lighting, driver’s door power window controls, power seat(s) (Option), 7.5 4 Instrument panel 5 5 Adaptive cruise control/collision warning (Option) 10 6 Courtesy lighting, rain sensor (Option), HomeLInk (Option), Wireless Control System (Option) 7.5 7 Steering wheel module 7.5 8 Cental locking: fuel filler door 10 9 Electrically heated steering wheel (Option) 15 10 Electrically heated windshield (Option) 15 11 Trunk open 10 12 Electrical folding rear seat outboard head restraints (Option) 10 13 Fuel pump 20 14 Climate system control panel 5 15 16 Alarm, On-board diagnostic system 5 17 Satellite radio (Option), audio system amplifier 10 18 Airbag system, occupant weight sensor 10 19 Collision warning system 5 20 Accelerator pedal sensor, auto-dim mirror function, heated rear seats (Option) 7.5 21 – 22 Brake lights 5 23 Power moonroof (Option) 20 24 Immobilizer 5
This content requires JavaScript and a valid membership to view.
Assignment of fuses in the cargo area
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
№ Function Amp 1 Electric parking brake (left side) 30 2 Electric parking brake (right side) 30 3 Heated rear window 30 4 Trailer socket 2 (Option) 15 5 – 6 7 Rear 12-volt socket 15 8 – – 9 – – 10 – – 11 Trailer socket 1 (option) 40 12 – –
This content requires JavaScript and a valid membership to view.
Assignment of fuses in the Engine compartment cold zone (2018)
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
№ Function A A1 Circuit breaker: central electrical module in the engine compartment 175 A2 Circuit breaker: fuseboxes under the glove compartment, central electrical module in the trunk 175 1 2 Circuit breaker: fusebox B under the glove compartment 50 3 Circuit breaker: fusebox A under the glove compartment 60 4 Circuit breaker: fusebox A under the glove compartment 60 5 Circuit breaker: central electrical module in the trunk 60 6 Climate system blower 40 7 8 9 Starter motor relay 30 10 Internal diode 50 11 Auxiliary battery 70 12 Central electrical module: auxiliary battery reference voltage, auxiliary battery charging point 15
