The second-generation Volvo S80 , after a facelift, was produced from 2011 to 2016 . As Volvo’s executive sedan, the S80 combined Scandinavian luxury with advanced safety technology, efficient engines, and a refined design. The facelift brought updated styling, modern infotainment features, and improved driver assistance systems, further enhancing its reputation as a premium, comfortable long-distance cruiser.
In this article, you will find fuse box diagrams for the Volvo S80, covering model years 2011, 2012, 2013, 2014, 2015 and 2016. These diagrams provide essential insights into the vehicle’s electrical system, helping owners, technicians, and enthusiasts with accurate maintenance and troubleshooting.
What’s Included:
Fuse Box Diagrams – Clear layouts showing the arrangement of fuses and relays.Fuse Panel Locations – Guidance on where the fuse panels are situated inside the Volvo S80.Fuse Assignments – Detailed explanations of what each fuse and relay controls, assisting with diagnostics and repairs.
Whether you’re replacing a fuse, diagnosing an electrical problem, or carrying out preventive maintenance, this guide ensures your Volvo S80 (2011–2016) remains dependable and fully functional.

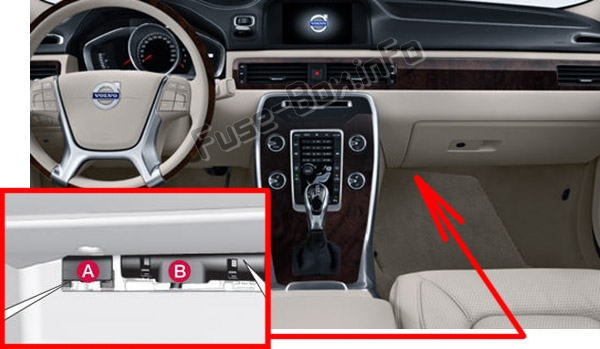

Fuse box A (General fuses) and Fuse box B (Control module fuses)

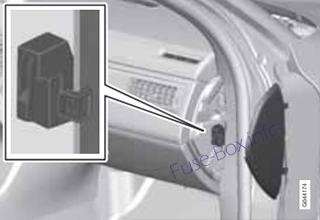

The fuse boxes are located behind the lining.
Located behind the upholstery on the left side of the trunk.

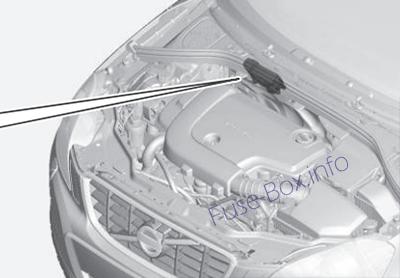

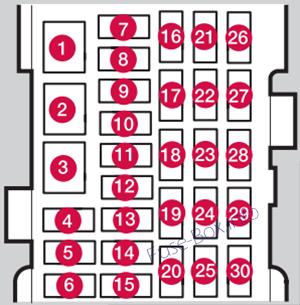

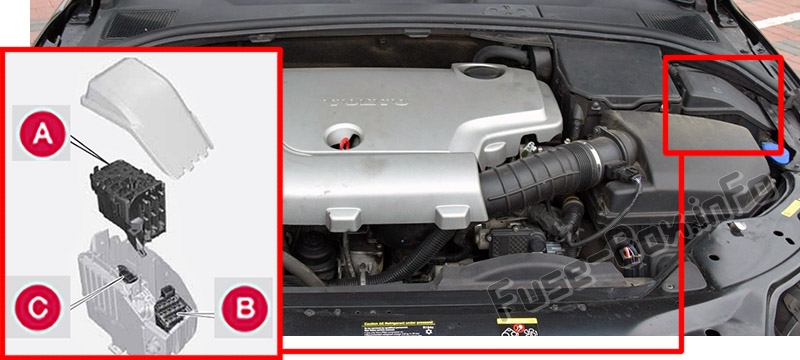

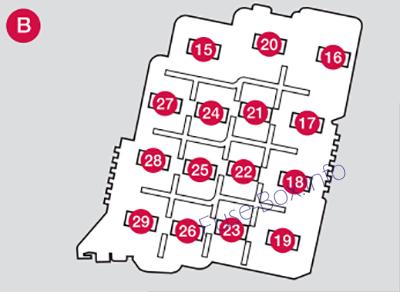

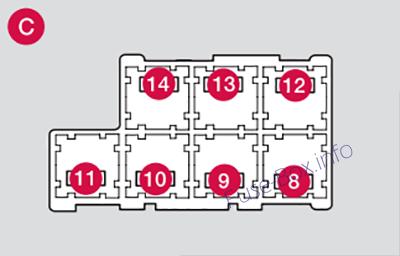

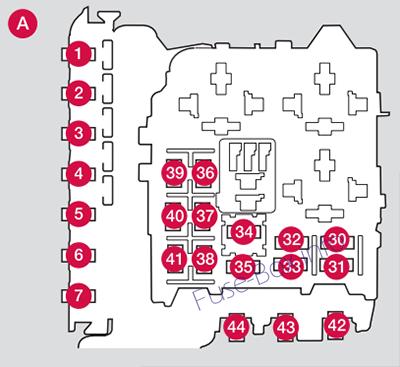

Assignment of fuses in the engine compartment (2011)
№ Function Amp 1 Circuit breaker 50 2 Circuit breaker 50 3 Circuit breaker 60 4 Circuit breaker 60 5 Circuit breaker 60 6 7 8 Headlight washers (option) 20 9 Windshield wipers 30 10 11 Climate system blower 40 12 13 ABS pump 40 14 ABS valves 20 15 – 16 Active Bending Lights-head-light leveling (option) 10 17 Central electrical module 20 18 ABS 15 feed 5 19 Speed-dependent steering force (option) 5 20 Engine Control Module (ECM), transmission, SRS 10 21 Heated washer nozzles (option) 10 22 Vacuum pump I5T 5 23 Lighting panel 5 24 – 25 – 26 – 27 Relay – engine compartment box 5 28 Auxiliary lights (option) 20 29 Horn 15 30 Engine Control Module (ECM) 10 31 Control module – automatic transmission 15 32 A/C compressor 15 33 Relay-coils 5 34 Starter motor relay 30 35 Ignition coils 20 36 Engine Control Module (ECM), throttle 10 37 Injection system, Mass air meter (ECM) 15 38 Engine valves 10 39 EVAP/heated oxygen sensor/ fuel injection 15 40 – 41 Fuel leakage detection 5 42 – 43 Cooling fan 80 44 Electro-hydraulic power steering 100
Login or Register to view this content

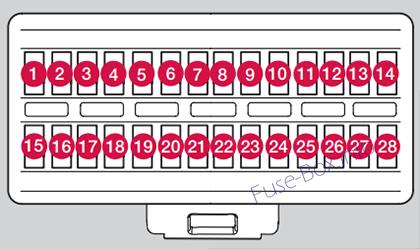

Assignment of fuses under the glove compartment (Fusebox A – 2011)
№ Function Amp 1 Circuit breaker – audio system, subwoofer (option) 40 2 3 4 5 6 7 12-volt socket (trunk) 15 8 Controls in driver’s door 20 9 Controls in front passenger’s door 20 10 Controls in right rear passenger’s door 20 11 Controls in left rear passenger’s door 20 12 Keyless drive (option) 20 13 Power driver’s seat (option) 20 14 Power front passenger’s seat (option) 20 15 Folding rear seat head restraints 15 16 – 17 Audio system, Navigation system display (option) 10 18 Audio system 15 19 Bluetooth hands-free system 5 20 – 21 Power moonroof (option), Courtesy lighting, climate system sensor 5 22 12-volt sockets 15 23 Heated front passenger’s seat (option) 15 24 Heated driver’s seat (option) 15 25 Electric sun curtain (option), S80 Executive only: Front seat massage and armrest lighting, refrigerator (option) 10 26 Heated rear passenger’s seat (right) (option) 15 27 Heated rear passenger’s seat (left) (option) 15 28 Park assist (option), Volvo Navigation System (option), Park assist camera (option) 5 29 All Wheel Drive control module (option) 5 30 Active chassis system (option) 10
Login or Register to view this content
Assignment of fuses under the glove compartment (Fusebox B – 2011)
№ Function Amp 1 2 3 Front courtesy lighting, power seat(s) (option) 7.5 4 Instrument panel information display 5 5 Adaptive cruise control/ collision warning (option) 10 6 Courtesy lighting, rain sensor (option) 7.5 7 Steering wheel module 7.5 8 Rear cental locking and fuel filler door 10 9 Washers 15 10 Windshield washer 15 11 Trunk unlock 10 12 Trunk lock 10 13 Fuel pump 20 14 Remote key receiver, Alarm, Climate system 5 15 Steering wheel lock 15 16 Alarm, On-board diagnostic system 5 17 18 Airbag system, Occupant weight system 10 19 Adaptive cruise control front radar (option) 5 20 Accelerator pedal, power door mirrors, Heated rear seats (option) 7.5 21 Audio system, CD and radio 15 22 Brake lights 5 23 Power moonroof (option) 20 24 Immobilizer 5
Login or Register to view this content
1 – Analogue clock, 5A

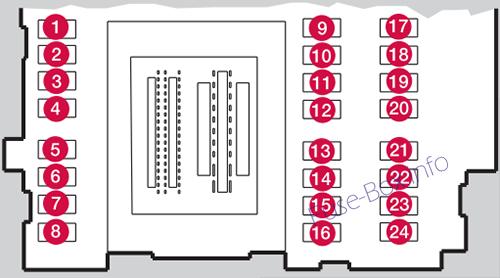

Assignment of fuses in the cargo area
№ Function Amp 1 Electric parking brake (left side) 30 2 Electric parking brake (right side) 30 3 Heated rear window 30 4 Trailer socket 2 (option) 15 5 – – 6 – – 7 – – 8 – – 9 – – 10 – – 11 Trailer socket 1 (option) 40 12 – –
Login or Register to view this content
Assignment of fuses in the engine compartment (2012)
№ Function Amp 1 Circuit breaker 50 2 Circuit breaker 50 3 Circuit breaker 60 4 Circuit breaker 60 5 Circuit breaker 60 6 7 8 Headlight washers (option) 20 9 Windshield wipers 30 10 11 Climate system blower 40 12 13 ABS pump 40 14 ABS valves 20 15 – 16 Active Bending Lights-head-light leveling (option) 10 17 Central electrical module 20 18 ABS 5 19 Speed-dependent steering force (option) 5 20 Engine Control Module (ECM), transmission, SRS 10 21 Heated washer nozzles (option) 10 22 23 Lighting panel 5 24 – 25 – 26 – 27 Relay – engine compartment box 5 28 Auxiliary lights (option) 20 29 Horn 15 30 Engine Control Module (ECM) 10 31 Control module – automatic transmission 15 32 A/C compressor 15 33 Relay-coils 5 34 Starter motor relay 30 35 Ignition coils 20 36 Engine Control Module (ECM), throttle 10 37 Injection system, mass air 15 38 A/C compressor, engine valves, engine control module 10 39 EVAP/heated oxygen sensor/ fuel injection 15 40 – 41 Fuel leakage detection 5 42 – 43 Cooling fan 80 44 Electro-hydraulic power steering 100
Login or Register to view this content
Assignment of fuses under the glove compartment (Fusebox A – 2012)
№ Function Amp 1 Circuit breaker for the infotainment system and for fuses 16-20 40 2 3 4 5 6 7 12-volt socket (trunk) 15 8 Controls in driver’s door 20 9 Controls in front passenger’s door 20 10 Controls in right rear passenger’s door 20 11 Controls in left rear passenger’s door 20 12 Keyless drive (option) 20 13 Power driver’s seat (option) 20 14 Power front passenger’s seat (option) 20 15 Folding rear seat head restraints 15 16 Infotainment control module 5 17 Infotainment system, Sirius 10 18 Infotainment system 15 19 Bluetooth hands-free system 5 20 Rear Seat Entertainment system (RSE) (option) 7.5 21 Power moonroof (option), Courtesy lighting, climate system sensor 5 22 12-volt sockets 15 23 Heated rear seat (passenger’s 15 24 Heated rear seat (driver’s 15 25 26 Heated front passenger’s 15 27 Heated driver’s seat (option) 15 28 Park assist (option), Volvo Navigation System (option), Park assist camera (option) 5 29 All Wheel Drive control module (option) 5 30 Active chassis system (option) 10
Login or Register to view this content
Assignment of fuses under the glove compartment (Fusebox B – 2012)
№ Function Amp 1 2 3 Front courtesy lighting, driver’s door power window controls, power seat(s) (option), HomeLInk® Wireless Control System (option) 7.5 4 Instrument panel information display 5 5 Adaptive cruise control/ collision warning (option) 10 6 Courtesy lighting, rain sensor (option) 7.5 7 Steering wheel module 7.5 8 Cental locking: fuel filler door 10 9 10 Windshield washer 15 11 Trunk open 10 12 13 Fuel pump 20 14 Climate system control panel 5 15 16 Alarm, On-board diagnostic system 5 17 18 Airbag system, Occupant weight system 10 19 Collision warning system (option) 5 20 Accelerator pedal, power door mirrors, Heated rear seats (option) 7.5 21 22 Brake lights 5 23 Power moonroof (option) 20 24 Immobilizer 5
Login or Register to view this content
1 – Analogue clock, 5A
Assignment of fuses in the cargo area
№ Function Amp 1 Electric parking brake (left side) 30 2 Electric parking brake (right side) 30 3 Heated rear window 30 4 Trailer socket 2 (option) 15 5 – – 6 – – 7 – – 8 – – 9 – – 10 – – 11 Trailer socket 1 (option) 40 12 – –
Login or Register to view this content
Assignment of fuses in the engine compartment (2013)
№ Function Amp 1 Circuit breaker 50 2 Circuit breaker 50 3 Circuit breaker 60 4 Circuit breaker 60 5 Circuit breaker 60 6 7 8 Headlight washers (option) 20 9 Windshield wipers 30 10 11 Climate system blower 40 12 13 ABS pump 40 14 ABS valves 20 15 – 16 Active Bending Lights-head-light leveling (option) 10 17 Central electrical module 20 18 ABS 5 19 Speed-dependent steering force (option) 5 20 Engine Control Module (ECM), transmission, SRS 10 21 Heated washer nozzles (option) 10 22 23 Lighting panel 5 24 – 25 – 26 – 27 Relay – engine compartment box 5 28 Auxiliary lights (option) 20 29 Horn 15 30 Engine Control Module (ECM) 10 31 Control module – automatic transmission 15 32 A/C compressor 15 33 Relay-coils 5 34 Starter motor relay 30 35 Ignition coils 20 36 Engine Control Module (ECM), throttle 10 37 Injection system, mass air 15 38 A/C compressor, engine valves, engine control module (6-cyl.), solenoids (6- cyl. non-turbo only), mass air meter (5-cyl. only) 10 39 EVAP/heated oxygen sensor/ fuel injection 15 40 – 41 Fuel leakage detection 5 42 – 43 Cooling fan 80 (6- cyl. engine) 44 Electro-hydraulic power steering 100
Login or Register to view this content
Assignment of fuses under the glove compartment (Fusebox A – 2013)
№ Function Amp 1 Circuit breaker for the infotainment system and for fuses 16-20 40 2 3 4 5 6 7 12-volt socket (trunk) 15 8 Controls in driver’s door 20 9 Controls in front passenger’s door 20 10 Controls in right rear passenger’s door 20 11 Controls in left rear passenger’s door 20 12 Keyless drive (option) 20 13 Power driver’s seat (option) 20 14 Power front passenger’s seat (option) 20 15 Folding rear seat head restraints 15 16 Infotainment control module 5 17 Infotainment system, Sirius 10 18 Infotainment system 15 19 Bluetooth hands-free system 5 20 Rear Seat Entertainment system (RSE) (option) 7.5 21 Power moonroof (option), Courtesy lighting, climate system sensor 5 22 12-volt sockets 15 23 Heated rear seat (passenger’s 15 24 Heated rear seat (driver’s 15 25 26 Heated front passenger’s 15 27 Heated driver’s seat (option) 15 28 Park assist (option), Volvo Navigation System (option), Park assist camera (option) 5 29 All Wheel Drive control module (option) 5 30 Active chassis system (option) 10
Login or Register to view this content
Assignment of fuses under the glove compartment (Fusebox B – 2013)
№ Function Amp 1 2 3 Front courtesy lighting, driver’s door power window controls, power seat(s) (option), HomeLInk® Wireless Control System (option) 7.5 4 Instrument panel information display 5 5 Adaptive cruise control/ collision warning (option) 10 6 Courtesy lighting, rain sensor (option) 7.5 7 Steering wheel module 7.5 8 Cental locking: fuel filler door 10 9 10 Windshield washer 15 11 Trunk open 10 12 Electrical folding rear seat outboard head restraints (option) 10 13 Fuel pump 20 14 Climate system control 5 15 16 Alarm, On-board diagnostic system 5 17 18 Airbag system, Occupant weight system 10 19 Collision warning system (option) 5 20 Throttle pedal, auto-dim 7.5 21 22 Brake lights 5 23 Power moonroof (option) 20 24 Immobilizer 5
Login or Register to view this content
1 – Analogue clock, 5A
Assignment of fuses in the cargo area
№ Function Amp 1 Electric parking brake (left side) 30 2 Electric parking brake (right side) 30 3 Heated rear window 30 4 Trailer socket 2 (option) 15 5 – – 6 – – 7 – – 8 – – 9 – – 10 – – 11 Trailer socket 1 (option) 40 12 – –
Login or Register to view this content
Assignment of fuses in the engine compartment (2014)
№ Function Amp 1 Circuit breaker 50 2 Circuit breaker 50 3 Circuit breaker 60 4 Circuit breaker 60 5 Circuit breaker 60 6 7 8 Headed windshield, 40 9 Windshield wipers 30 10 11 Climate system blower 40 12 Headed windshield, passenger’s side (option) 40 13 ABS pump 40 14 ABS valves 20 15 Headlight washers 20 16 Active Bending Lights-head-light leveling (option) 10 17 Central electrical module 20 18 ABS 5 19 Speed-dependent steering force (option) 5 20 Engine Control Module (ECM), transmission, SRS 10 21 Heated washer nozzles (option) 10 22 23 Lighting panel 5 24 – 25 – 26 – 27 Relay – engine compartment box 5 28 Auxiliary lights (option) 20 29 Horn 15 30 Engine Control Module (ECM) 10 31 Control module – automatic transmission 15 32 A/C compressor 15 33 Relay-coils 5 34 Starter motor relay 30 35 Ignition coils 20 36 Engine Control Module (ECM), throttle 10 37 Injection system, mass air meter, engine control module 15 38 A/C compressor, engine valves, engine control module (6-cyl.), solenoids (6- cyl. non-turbo only), mass air meter (5-cyl. only) 10 39 EVAP/heated oxygen sensor/ fuel injection 15 40 – 41 Fuel leakage detection 5 42 – 43 Cooling fan 80 (6- cyl. engine) 44 Electro-hydraulic power steering 100
Login or Register to view this content
Assignment of fuses under the glove compartment (Fusebox A – 2014)
№ Function Amp 1 Circuit breaker for the infotainment system and for fuses 16-20 40 2 3 4 Electrically heated steering wheel (option) 10 5 6 7 12-volt socket (trunk) 15 8 Controls in driver’s door 20 9 Controls in front passenger’s door 20 10 Controls in right rear passenger’s door 20 11 Controls in left rear passenger’s door 20 12 Keyless drive (option) 20 13 Power driver’s seat (option) 20 14 Power front passenger’s seat (option) 20 15 16 Infotainment control module 5 17 Infotainment system, Sirius satellite radio (option) 10 18 Infotainment system 15 19 Bluetooth hands-free system 5 20 Rear Seat Entertainment system (RSE) (option) 7.5 21 Power moonroof (option), Courtesy lighting, climate system sensor 5 22 12-volt sockets 15 23 Heated rear seat (passenger’s side) (option) 15 24 Heated rear seat (driver’s side) (option) 15 25 26 Heated front passenger’s seat (option) 15 27 Heated driver’s seat (option) 15 28 Park assist (option), Volvo Navigation System (option), Park assist camera (option) 5 29 All Wheel Drive control module (option) 5 30 Active chassis system (option) 10
Login or Register to view this content
Assignment of fuses under the glove compartment (Fusebox B – 2014)
№ Function Amp 1 2 3 Front courtesy lighting, driver’s door power window controls, power seat(s) (option), HomeLInk® Wireless Control System (option) 7.5 4 Instrument panel 5 5 Adaptive cruise control/ collision warning (option) 10 6 Courtesy lighting, rain sensor (option) 7.5 7 Steering wheel module 7.5 8 Cental locking: fuel filler door 10 9 10 Windshield washer 15 11 Trunk open 10 12 Electrical folding rear seat outboard head restraints (option) 10 13 Fuel pump 20 14 Climate system control panel 5 15 16 Alarm, On-board diagnostic system 5 17 18 Airbag system, Occupant weight system 10 19 Collision warning system (option) 5 20 Throttle pedal, auto-dim mirror function, heated rear seats (option) 7.5 21 22 Brake lights 5 23 Power moonroof (option) 20 24 Immobilizer 5
Login or Register to view this content
1 – Analogue clock, 5A
Assignment of fuses in the cargo area
№ Function Amp 1 Electric parking brake (left side) 30 2 Electric parking brake (right side) 30 3 Heated rear window 30 4 Trailer socket 2 (option) 15 5 – – 6 – – 7 – – 8 – – 9 – – 10 – – 11 Trailer socket 1 (option) 40 12 – –
Login or Register to view this content
Assignment of fuses in the engine compartment (2015, 2016)
№ Function Amp 1 Circuit breaker: central electrical module under the glove compartment (not used on vehicles with the optional Start/Stop function) 50 2 Circuit breaker: central electrical module under the glove compartment 50 3 Circuit breaker: central electrical module in the trunk (not used on vehicles with the optional Start/Stop function) 60 4 Circuit breaker: central electrical module under the glove compartment (not used on vehicles with the optional Start/Stop function) 60 5 Circuit breaker: central electrical module under the glove compartment 60 6 – 7 – 8 Headed windshield, driver’s side (option) 40 9 Windshield wipers 30 10 – 11 Climate system blowei (not used on vehicles with the optional Start/Stop function) 40 12 Headed windshield, passenger’s side (option) 40 13 ABS pump 40 14 ABS valves 20 15 Headlight washers 20 16 Active Bending Lights-headlight leveling (option) 10 17 Central electrical module (under the glove compartment) 20 18 ABS 5 19 Adjustable steering force (option) 5 20 Engine Control Module (ECM), transmission, SRS 10 21 Heated washer nozzles (option) 10 22 23 Lighting panel 5 24 25 26 27 Relay coils 5 28 Auxiliary lights (option) 20 29 Horn 15 30 Relay coils, Engine Control Module (ECM) 10 31 Control module – automatic transmission 15 32 A/C compressor (not 4-cyl. engines) 15 33 Relay-coils A/C, relay coils in engine compartment cold zone for Start/Stop 5 34 Starter motor relay (not used on vehicles with the optional Start/Stop function) 30 35 Engine control module (4-cyl. engines) Ignition coils (5-/6-cyl. engines), condenser (6-cyl. engines) 20 36 Engine Control Module (4-cyl. engines) 20 36 Engine Control Module (5-cyl. & 6-cyl. engines) 10 37 4-cyl. engines: mass air meter, thermostat, EVAP valve 10 37 5-/6-cyl. engines: Injection system, mass air meter (6-cyl. engines only), engine control module 15 38 A/C compressor (5-/6-cyl. engines), engine valves, engine control module (6-cyl. engines), solenoids (6-cyl. non-turbo only), mass air meter (6-cyl. only) 10 38 Engine valves/oil pump/center heated oxygen sensor (4-cyl. engines) 15 39 Front/rear heated oxygen sensors (4-cyl. engines), EVAP valve (5-/6-cyl. engines), heated oxygen sensors (5-/6-cyl. engines) 15 40 Oil pump (automatic transmission)/crank-case ventilation heater (5-cyl. engines) 10 40 Ignition coils 15 41 Fuel leakage detection (5-/6-cyl. engines), control module for radiator shutter (5-cyl. engines) 5 41 Fuel leakage detection, A/C relay (4-cyl. engines) 15 42 Coolant pump (4-cyl. engines) 50 43 Cooling fan 60 (4/5-cyl. engines), 44 Power steering 100
Login or Register to view this content
Assignment of fuses under the glove compartment (Fusebox A – 2015, 2016)
№ Function Amp 1 Circuit breaker for the infotainment system and for fuses 16-20 40 2 3 4 Electrically heated steering wheel (option) 10 5 Analog clock (Executive) 5 6 7 12-volt socket (trunk), refrigerator (S80 Executive only) 15 8 Controls in driver’s door 20 9 Controls in front passenger’s door 20 10 Controls in right rear passenger’s door 20 11 Controls in left rear passenger’s door 20 12 Keyless drive (option) 20 13 Power driver’s seat (option) 20 14 Power front passenger’s seat (option) 20 15 16 Infotainment control module 5 17 Infotainment system, Sirius satellite radio (option) 10 18 Infotainment system 15 19 Bluetooth hands-free system 5 20 Rear Seat Entertainment system (RSE) (option) 7.5 21 Power moonroof (option), Courtesy lighting, climate system sensor 5 22 12-volt sockets in tunnel console 15 23 Heated rear seat (passenger’s side) (option) 15 24 Heated rear seat (driver’s side) (option) 15 25 26 Heated front passenger’s seat (option) 15 27 Heated driver’s seat (option) 15 28 Park assist (option), Volvo Navigation System (option), Park assist camera (option) 5 29 All Wheel Drive control module (option) 15 30 Active chassis system (option) 10
Login or Register to view this content
Assignment of fuses under the glove compartment (Fusebox B – 2015, 2016)
№ Function Amp 1 2 3 Front courtesy lighting, driver’s door power window controls, power seat(s) (option), HomeLInk® Wireless Control System (option) 7.5 4 Instrument panel 5 5 Adaptive cruise control/ collision warning (option) 10 6 Courtesy lighting, rain sensor (option) 7.5 7 Steering wheel module 7.5 8 Cental locking: fuel filler door 10 9 10 Windshield washer 15 11 Trunk open 10 12 Electrical folding rear seat outboard head restraints (option) 10 13 Fuel pump 20 14 Climate system control panel 5 15 16 Alarm, On-board diagnostic system 5 17 18 Airbag system, Occupant weight system 10 19 Collision warning system (option) 5 20 Throttle pedal, auto-dim mirror function, heated rear seats (option) 7.5 21 22 Brake lights 5 23 Power moonroof (option) 20 24 Immobilizer 5
Login or Register to view this content
1 – Analogue clock, 5A
Assignment of fuses in the cargo area (2015, 2016)
№ Function Amp 1 Electric parking brake (left side) 30 2 Electric parking brake (right side) 30 3 Heated rear window 30 4 Trailer socket 2 (option) 15 5 – – 6 – – 7 – – 8 – – 9 – – 10 – – 11 Trailer socket 1 (option) 40 12 – –
Login or Register to view this content

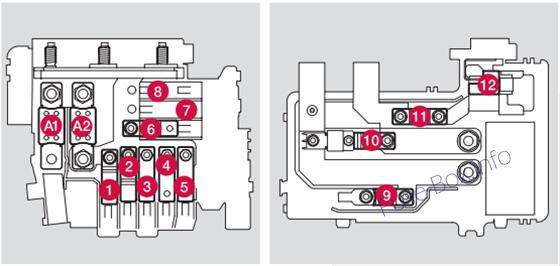

Assignment of fuses in the engine compartment cold zone (2015, 2016)
№ Function A A1 Circuit breaker: central electrical module in the engine compartment 175 A2 Circuit breaker: fuseboxes under the glove compartment, central electrical module in the trunk 175 1 2 Circuit breaker: fusebox B under the glove compartment 50 3 Circuit breaker: fusebox A under the glove compartment 60 4 Circuit breaker: fusebox A under the glove compartment 60 5 Circuit breaker: central electrical module in the trunk 60 6 Climate system blower 40 7 8 9 Starter motor relay 30 10 Internal diode 50 11 Auxiliary battery 70 12 Central electrical module: auxiliary battery reference voltage, auxiliary battery charging point 15
