Volvo XC90 Fuse Box Locations and Diagrams (2015-2025)

The second-generation Volvo XC90, including the Twin-Engine and Recharge Plug-in Hybrid versions, has been available from 2015 to 2025. Known for its elegant Scandinavian design, advanced safety technology, and luxurious interior, this generation marked a significant leap in Volvo’s approach to premium SUVs.

In this article, you will find fuse box diagrams for the Volvo XC90, covering model years 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024 and 2025. These diagrams are essential for identifying fuse panel locations and understanding the function of each fuse and relay, especially in hybrid and plug-in hybrid configurations.

What’s Included:

Fuse Box Diagrams – Detailed visuals for each model year showing the arrangement of fuses and relays.
Fuse Panel Locations – Instructions on where to find fuse panels in the vehicle (e.g., engine compartment, passenger compartment, cargo area).
Fuse Assignments – A complete breakdown of what each fuse and relay controls, helping you with diagnostics and maintenance.

Whether you’re replacing a fuse or diagnosing an electrical problem, this guide will assist you in maintaining the functionality and reliability of your Volvo XC90 (2015–2025).

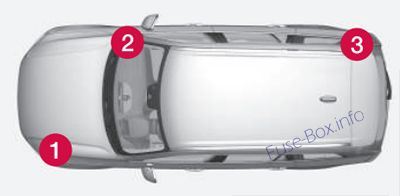

Fuse Box Locations

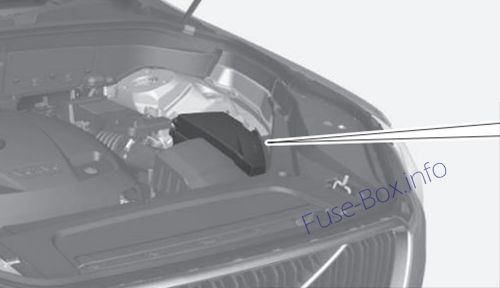

1) Engine compartment

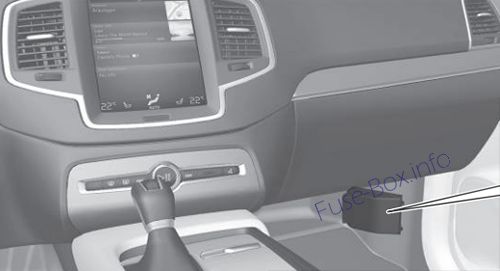

2) Glove compartment

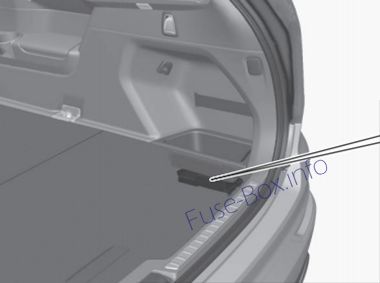

3) Cargo compartment

The fuse box is under the storage compartment on the right side.

Fuse Box Diagrams

2015, 2016

Engine compartment

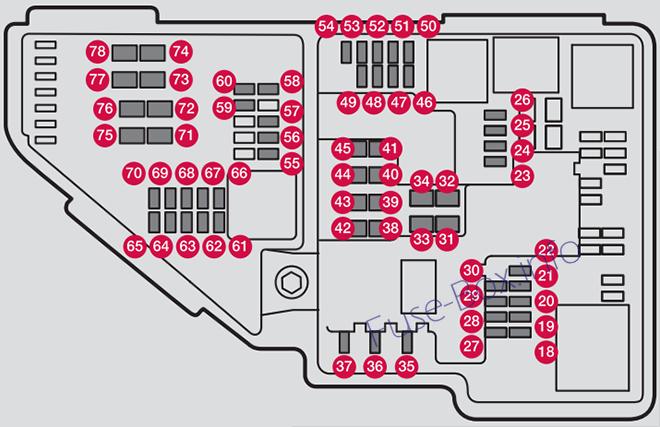

Under-hood fuse box diagram: Volvo XC90 (2016)

Assignment of fuses in the engine compartment (2015, 2016)

№	Function	Amp
18
19
20
21
22
23	USB socket (option)	5
24	12-volt socket in the cargo compartment	15
25	12-volt socket on the rear side of the tunnel console	15
26	12-volt socket in the front tunnel console	15
27
28
29
30
31	Heated windshield, driver side (option)	Shunt
32	Heated windshield, driver side (option)	40
33	Headlight washers (option)	25
34	Windshield washer	25
35
36	Horn	20
37	Alarm siren (option)	5
38	Brake system control module (valves, parking brake)	40
39	Windshield wipers	30
40	Tailgate window washer	25
41	Heated windshield, passenger side (option)	40
42
43	Brake system control module (ABS pump)	40
44	–	–
45	Heated windshield, passenger side (option)	Shunt
46	Feed when ignition is switched on to: engine control module, transmission components, electrical power steering, central electrical module; Brake system control module	5
47
48	Passenger side headlight	7.5
49	–	–
50	–	–
51	Battery connections control module	5
52	Air bags; Occupant Weight Sensor (OWS)	5
53	Driver side headlight	7.5
54	Accelerator pedal sensor	5
55	Transmission control module	15
56	Engine control module	5
57	–	–
58	–	–
59	–	–
60	–	–
61	Engine control module; Turbocharger valve	20
62	Solenoids; Valves; Engine cooling system thermostat	10
63	Vacuum regulators; Coolant fan relay winding; Valve	7.5
64	Spoiler shutter control module; Radiator shutter control module; Fuel leakage detection	5
65
66	Heated oxygen sensors (front and rear)	15
67	Oil pump solenoid; A/C magnetic coupling; heated oxygen sensor (center)	15
68	Crankcase ventilation heater	7,5
69	Engine control module	20
70	Ignition coil; Spark plugs	15
71
72
73
74
75
76
77	Starter motor	Shunt
78	Starter motor	Shunt

Fuses 18–30, 35–37, 46–54 and 55–70 are called “Micro”.
Fuses 31–34, 38–45 and 71–78 are called “MCase” and should only be replaced by a trained and qualified Volvo service technician.

Glove compartment

Interior fuse box diagram: Volvo XC90 (2016)

Assignment of fuses under the glove compartment (2015, 2016)

№	Function	Amp
1	–	–
2	110-volt socket	30
3	–	–
4	Alarm system movement sensor (option)	5
5	Media player	5
6	Instrument panel	5
7	Center console buttons	5
8	Sun sensor	5
9
10
11	Steering wheel module	5
12	Module for start knob and parking brake	5
13	Heated steering wheel module (option)	15
14
15
16
17
18	Climate system control module	10
19	–	–
20	On-board diagnostics (OBDII)	5
21	Center display	5
22	Climate system blower module (front)	40
23	–	–
24	Instrument lighting; Courtesy lighting; Rearview mirror auto-dim function; Rain and light sensor; Rear tunnel console keypad (option); Power front seats (option)	7.5
25	Control module for driver support functions	5
26	Panorama roof and sun shade (option)	20
27	Head-up display (option)	5
28	Courtesy lighting	5
29	–	–
30	Ceiling console display (seat belt reminder, front passenger side airbag indicator)	5
31
32	Humidity sensor	5
33	Rear passenger-side door module	20
34	Fuses in the cargo compartment	10
35	Internet connection control module; Volvo On Call control module	5
36	Rear driver-side door module	20
37	Infotainment control module (amplifier)	40
38	Climate system blower module (rear)	40
39	Multi-band antenna module	5
40	–	–
41	–	–
42	Tailgate window wiper	15
43	Fuel pump control module	15
44	–	–
45	–	–
46	Driver side seat heating (option)	15
47	Passenger side seat heating (option)	15
48	Coolant pump	10
49	–	–
50	Front driver-side door module	20
51	Active chassis (option)	20
52	–	–
53	Sensus control module	10
54
55
56	Front passenger-side door module	20
57	–	–
58	–	–
59	Circuit breaker for fuses 53 and 58	15

Fuses 1, 3–21, 23–36, 39–53 and 55–59 are called “Micro”.
Fuses 2, 22, 37–38 and 54 are called “MCase” and should only be replaced by a trained and qualified Volvo service technician.

Cargo compartment

Trunk fuse box diagram: Volvo XC90 (2016)

Assignment of fuses in the cargo compartment (2015, 2016)

№	Function	Amp
1	Heated tailgate window	30
2
3	Pneumatic suspension compressor (option)	40
4	Heated rear seat (passenger side) (option)	30
5	–	–
6	Heated rear seat (driver side) (option)	30
7
8
9	Power tailgate (option)	25
10	Power passenger seat module (option)	20
11	Trailer hitch control module (option)	40
12	Seat belt tensioner module (passenger side)	40
13	Internal relay windings	5
14	–	–
15	Foot movement detection module for opening the power tailgate (option)	5
16	–	–
17	Folding third row seats backrest module (option)	20
18	Trailer hitch control module (option)	25
19	Power driver seat module (option)	20
20	Seat belt tensioner module (driver side)	40
21	Parking camera (option)	5
22	–	–
23	–	–
24	–	–
25	–	–
26	Airbag and seat belt tensioner modules	5
27
28	Heated rear seat (driver side) (option)	15
29	–	–
30	BLIS (option)	5
31	–	–
32	Seat belt tensioner modules	5
33	Emission system actuator	5
34	–	–
35	All Wheel Drive control module	15
36	Heated rear seat (passenger side) (option)	15
37

Fuses 13–17 and 21–36 are called “Micro”.
Fuses 1–12, 18–20 and 37 are called “MCase” and should only be replaced by a trained and qualified Volvo service technician.

2016 Twin-Engine

Engine compartment

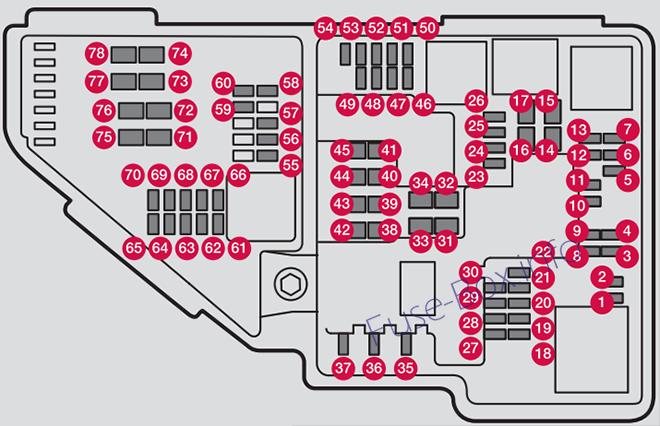

Under-hood fuse box diagram: Volvo XC90 Twin-Engine (2016)

Assignment of fuses in the engine compartment (2015, 2016 Twin-Engine)

№	Function	Amp
1	Converter for controlling feed to the rear axle electric motor	5
2	–	–
3	–	–
4	Control module for engaging/ changing gears	5
5	High Voltage Coolant Heater control module	5
6	Control module for: charge module, heat exchanger cut-off valve, cut-off valve for coolant through the climate system	5
7	Hybrid battery control module for high-voltage converter for combined high-voltage genera-tor/starter motor with 500V-12V voltage converter	5
8	–	–
9	Converter for controlling feed to the rear axle electric motor	10
10	Hybrid battery control module for high-voltage converter for combined high-voltage genera-tor/starter motor with 500V-12V voltage converter	10
11	Charging module	5
12	Cut-off valve for hybrid battery coolant; coolant pump 1 for hybrid battery	10
13	Coolant pump for electric drive system	10
14	Hybrid component cooling fan	25
15
16
17
18
19
20
21
22
23	USB socket (option); USB-port (option)	5
24	12-volt socket in the cargo compartment (option)	15
25	12-volt socket on the rear side of the tunnel console	15
26	12-volt socket in the front tunnel console	15
27
28
29
30
31	Heated windshield driver side (option)	Shunt
32	Heated windshield driver side (option)	40
33	Headlight washers (option)	25
34	Windshield washer	25
35	–	–
36	Horn	20
37	Alarm siren (option)	5
38	Brake system control module (valves, parking brake)	40
39	Windshield wipers	30
40	Tailgate window washer	25
41	Heated windshield, passenger side (option)	40
42	–	–
43	Brake system control module (ABS pump)	40
44
45	Heated windshield, passenger side (option)	Shunt
46	Feed when ignition is switched on to: engine control module, transmission components, electrical power steering, central electrical module;	5
47	Exterior vehicle sound (certain markets)	5
48	Passenger side headlight	7,5
49
50
51
52	Air bags; Occupant Weight Sensor (OWS)	5
53	Driver side headlight	7,5
54	Accelerator pedal sensor	5
55	Transmission control module; Gear selector control module	15
56	Engine control module	5
57
58
59
60
61	Engine control module; Turbocharger valve	20
62	Solenoids; Valves; Engine cooling system thermostat	10
63	Vacuum regulators; Coolant fan relay winding; Valve	7,5
64	Spoiler shutter control module; Radiator shutter control module; Fuel leakage detection	5
65
66	Heated oxygen sensors (front and rear)	15
67	Oil pump solenoid; A/C magnetic coupling; heated oxygen sensor (center)	15
68	–	–
69	Engine control module	20
70	Ignition coil; Spark plugs	15
71
72
73	Transmission oil pump control module	30
74	Vacuum pump control module	40
75	Transmission actuator	25
76	–	–
77	Starter motor	Shunt
78	Starter motor	Shunt

Fuses 1–13, 18–30, 35–37, 46–54 and 55–70 are called “Micro”.
Fuses 14–17, 31–34 and 71–78 are called “MCase” and should only be replaced by a trained and qualified Volvo service technician.

Glove compartment

Interior fuse box diagram: Volvo XC90 Twin-Engine (2016)

Assignment of fuses under the glove compartment (2015, 2016 Twin-Engine)

№	Function	Amp
1	–	–
2	110-volt socket	30
3	–	–
4	Alarm system movement sensor (option)	5
5	Media player	5
6	Instrument panel	5
7	Center console buttons	5
8	Sun sensor	5
9
10
11	Steering wheel module	5
12	Module for start knob and parking brake	5
13	Heated steering wheel module (option)	15
14
15
16
17
18	Climate system control module	10
19	–	–
20	On-board diagnostics (OBDII)	5
21	Center display	5
22	Climate system blower module (front)	40
23	–	–
24	Instrument lighting; Courtesy lighting; Rearview mirror auto-dim function; Rain and light sensor; Rear tunnel console keypad*; Power front seats (option)	7.5
25	Control module for driver support functions	5
26	Panorama roof and sun shade (option)	20
27	Head-up display (option)	5
28	Courtesy lighting	5
29	–	–
30	Ceiling console display (seat belt reminder, front passenger side airbag indicator)	5
31
32	Humidity sensor	5
33	Rear passenger-side door module	20
34	Fuses in the cargo compartment	10
35	Internet connection control module; Volvo On Call control module	5
36	Rear driver-side door module	20
37	Infotainment control module (amplifier)	40
38	Climate system blower module (rear)	40
39	Multi-band antenna module	5
40	Seat Comfort module/Massage	5
41	–	–
42	Tailgate window wiper	15
43	Fuel pump control module	15
44	Relay windings for engine compartment electrical module; Relay winding for transmission oil pump	5
45	–	–
46	Driver side seat heating (option)	15
47	Passenger side seat heating (option)	15
48	Coolant pump	10
49	–	–
50	Front driver-side door module	20
51	Active chassis (option)	20
52	–	–
53	Sensus control module	10
54
55
56	Front passenger-side door module	20
57	–	–
58	–	–
59	Circuit breaker for fuses 53 and 58	15

Cargo compartment

Trunk fuse box diagram: Volvo XC90 Twin-Engine (2016)

Assignment of fuses in the cargo compartment (2015, 2016 Twin-Engine)

№	Function	Amp
1	Heated tailgate window	30
2
3	Pneumatic suspension compressor (option)	40
4	Heated rear seat (passenger side) (option)	30
5	–	–
6	Heated rear seat (driver side) (option)	30
7
8
9	Power tailgate (option)	25
10	Power passenger seat module (option)	20
11	Trailer hitch control module (option)	40
12	Seat belt tensioner module (passenger side)	40
13	Internal relay windings	5
14	–	–
15	Foot movement detection module for opening the power tailgate (option)	5
16	–	–
17	Folding third row seats backrest module (option)	20
18	Trailer hitch control module (option)	25
19	Power driver seat module (option)	20
20	Seat belt tensioner module (driver side)	40
21	Parking camera (option)	5
22	–	–
23	–	–
24	–	–
25	Feed when ignition is switched on	10
26	Airbag and seat belt tensioner modules	5
27
28	Heated rear seat (driver side) (option)	15
29	–	–
30	BLIS (option)	5
31	–	–
32	Seat belt tensioner modules	5
33	Emission system actuator	5
34	–	–
35	–	–
36	Heated rear seat (passenger side) (option)	15
37

Fuses 13–17 and 21–36 are called “Micro”.
Fuses 1–12, 18–20 and 37 are called “MCase” and should only be replaced by a trained and qualified Volvo service technician.

2017

Engine compartment

Assignment of fuses in the engine compartment (2017)

№	Function	Amp
18	–	–
19	–	–
20	–	–
21	–	–
22	–	–
23	Front USB socket (option)	5
24	12-volt socket in the front tunnel console	15
25	12-volt socket on the rear side of the tunnel console; 12-volt socket in the tunnel console between the rear seats	15
26	12-volt socket in the cargo compartment	15
27
28
29
30
31	Heated windshield, driver side (option)	Shunt
32	Heated windshield, driver side (option)	40
33	Headlight washers (option)	25
34	Windshield washer	25
35	–	–
36	Horn	20
37	Alarm siren (option)	5
38	Brake system control module (valves, parking brake)	40
39	Windshield wipers	30
40	Rear window washer	25
41	Heated windshield, passenger side (option)	40
42	–	–
43	Brake system control module (ABS pump)	40
44
45	Heated windshield, passenger side (option)	Shunt
46	Feed when ignition is switched on to: engine control module, transmission components, electrical power steering, central electrical module; Brake system control module	5
47	–	–
48	Passenger side headlight	7.5
49
50
51	Battery connections control module	5
52	Air bags; Occupant Weight Sensor (OWS)	5
53	Driver side headlight	7.5
54	Accelerator pedal sensor	5
55	Transmission control module	15
56	Engine control module	5
57
58
59
60
61	Engine control module; actuator; Turbocharger valve	20
62	Solenoids; Valves; Engine cooling system thermostat	10
63	Vacuum regulators; Valve	7.5
64	Spoiler shutter control module; Radiator shutter control module; Fuel leakage detection	5
65
66	Heated oxygen sensors (front and rear)	15
67	Oil pump solenoid; A/C magnetic coupling; heated oxygen sensor (center)	15
68	–	–
69	Engine control module	20
70	Ignition coil; Spark plugs	15
71
72
73
74
75
76
77	Starter motor	Shunt
78	Starter motor	40

Glove compartment

Interior fuse box diagram: Volvo XC90 (2017)

Assignment of fuses under the glove compartment (2017)

№	Function	Amp
1	–	–
2	120-volt socket on the rear side of the tunnel console (option)	30
3	–	–
4	Alarm system movement sensor (option)	5
5	Media player	5
6	Instrument panel	5
7	Center console buttons	5
8	Sun sensor	5
9
10
11	Steering wheel module	5
12	Module for start knob and parking brake	5
13	Heated steering wheel module (option)	15
14
15
16
17
18	Climate system control module	10
19	–	–
20	On-board diagnostics (OBDII)	10
21	Center display	5
22	Climate system blower module (front)	40
23	–	–
24	Instrument lighting; Courtesy lighting; Rearview mirror auto-dim function; Rain and light sensor; Rear tunnel console keypad*; Power front seats (option)	7.5
25	Control module for driver support functions	5
26	Panorama roof and sun shade (option)	20
27	Head-up display (option)	5
28	Courtesy lighting	5
29	–	–
30	Ceiling console display (seat belt reminder, front passenger side airbag indicator)	5
31
32	Humidity sensor	5
33	Rear passenger-side door module	20
34	Fuses in the cargo compartment	10
35	Internet connection control module; Volvo On Call control module	5
36	Rear driver-side door module	20
37	Infotainment control module (amplifier)	40
38	Climate system blower module (rear)	40
39	Multi-band antenna module	5
40	Front seat massage function	5
41	–	–
42	Tailgate window wiper	15
43	Fuel pump control module	15
44	–	–
45	–	–
46	Driver side seat heating (option)	15
47	Passenger side seat heating (option)	15
48	Coolant pump	10
49	–	–
50	Front driver-side door module	20
51	Active chassis (option)	20
52	–	–
53	Sensus control module	10
54
55
56	Front passenger-side door module	20
57	–	–
58	–	–
59	Circuit breaker for fuses 53 and 58	15

Cargo compartment

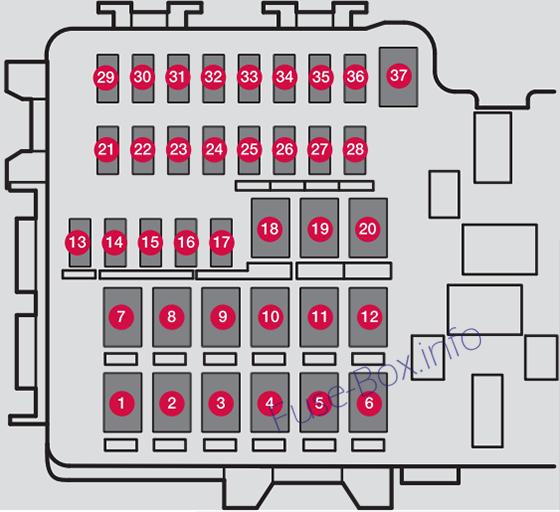

Trunk fuse box diagram: Volvo XC90 (2017)

Assignment of fuses in the cargo compartment (2017)

№	Function	Amp
1	Heated tailgate window	30
2
3	Pneumatic suspension compressor (option)	40
4	Heated rear seat (passenger side) (option)	30
5	–	–
6	Heated rear seat (driver side) (option)	30
7
8
9	Power tailgate (option)	25
10	Power passenger seat module (option)	20
11	Trailer hitch control module (option)	40
12	Seat belt tensioner module (passenger side)	40
13	Internal relay windings	5
14	–	–
15	Foot movement detection module for opening the power tailgate (option)	5
16	–	–
17	Folding third row seats backrest module (option)	20
18	Trailer hitch control module (option)	25
19	Power driver seat* module	20
20	Seat belt tensioner module (driver side)	40
21	Parking camera (option)	5
22	–	–
23	–	–
24	–	–
25	–	–
26	Airbag and seat belt tensioner modules	5
27
28	Heated rear seat (driver side) (option)	15
29	–	–
30	BLIS (option)	5
31	–	–
32	Seat belt tensioner modules	5
33	Emission system actuator	5
34	–	–
35	All Wheel Drive control module	15
36	Heated rear seat (passenger side) (option)	15
37

Fuses 13–17 and 21–36 are called “Micro”.
Fuses 1–12, 18–20 and 37 are called “MCase” and should only be replaced by a trained and qualified Volvo service technician.

2017 Twin-Engine

Engine compartment

Under-hood fuse box diagram: Volvo XC90 Twin-Engine (2017)

Assignment of fuses in the engine compartment (2017 Twin-Engine)

№	Function	Amp
1	Converter for controlling feed to the rear axle electric motor	5
2	–	–
3	–	–
4	Control module for engaging/ changing gears	5
5	High Voltage Coolant Heater control module	5
6	Control module for: charge module, heat exchanger cut-off valve, cut-off valve for coolant through the climate system	5
7	Hybrid battery control module for high-voltage converter for combined high-voltage genera-tor/starter motor with 500V-12V voltage converter	5
8	–	–
9	Converter for controlling feed to the rear axle electric motor	10
10	Hybrid battery control module for high-voltage converter for combined high-voltage genera-tor/starter motor with 500V-12V voltage converter	10
11	Charging module	5
12	Cut-off valve for hybrid battery coolant; coolant pump 1 for hybrid battery	10
13	Coolant pump for electric drive system	10
14	Hybrid component cooling fan	25
15
16
17
18
19
20
21
22
23	Front USB socket (option)	5
24	12-volt socket in the front tunnel console	15
25	12-volt socket on the rear side of the tunnel console (Not XC90 Excellence); 12-volt socket in the tunnel console between the rear seats (XC90 Excellence)	15
26	12-volt socket in the cargo compartment; USB sockets for iPad holdersB	15
27
28
29
30
31	Heated windshield driver side (option)	Shunt
32	Heated windshield driver side (option)	40
33	Headlight washers (option)	25
34	Windshield washer	25
35	–	–
36	Horn	20
37	Alarm siren (option)	5
38	Brake system control module (valves, parking brake)	40
39	Windshield wipers	30
40	Tailgate window washer	25
41	Heated windshield, passenger side (option)	40
42	–	–
43	Brake system control module (ABS pump)	40
44
45	Heated windshield, passenger side (option)	Shunt
46	Feed when ignition is switched on to: engine control module, transmission components, electrical power steering, central electrical module;	5
47	Exterior vehicle sound (certain markets)	5
48	Passenger side headlight	7,5
49
50
51
52	Air bags; Occupant Weight Sensor (OWS)	5
53	Driver side headlight	7,5
54	Accelerator pedal sensor	5
55	Transmission control module; Gear selector control module	15
56	Engine control module	5
57
58
59
60
61	Engine control module; Turbocharger valve	20
62	Solenoids; Valves; Engine cooling system thermostat	10
63	Vacuum regulators; Coolant fan relay winding; Valve	7,5
64	Spoiler shutter control module; Radiator shutter control module; Fuel leakage detection	5
65
66	Heated oxygen sensors (front and rear)	15
67	Oil pump solenoid; A/C magnetic coupling; heated oxygen sensor (center)	15
68	–	–
69	Engine control module	20
70	Ignition coil; Spark plugs	15
71
72
73	Transmission oil pump control module	30
74	Vacuum pump control module	40
75	Transmission actuator	25
76	–	–
77	–	–
78	–	–

Glove compartment

Interior fuse box diagram: Volvo XC90 Twin-Engine (2017)

Assignment of fuses under the glove compartment (2017 Twin-Engine)

№	Function	Amp
1	–	–
2	120-volt socket on the rear side of the tunnel console (option)	30
3	–	–
4	Alarm system movement sensor (option)	5
5	Media player	5
6	Instrument panel	5
7	Center console buttons	5
8	Sun sensor	5
9
10
11	Steering wheel module	5
12	Module for start knob and parking brake	5
13	Heated steering wheel module (option)	15
14
15
16
17
18	Climate system control module	10
19	–	–
20	On-board diagnostics (OBDII)	10
21	Center display	5
22	Climate system blower module (front)	40
23	–	–
24	Instrument lighting; Courtesy lighting; Rearview mirror auto-dim function; Rain and light sensor; Rear tunnel console keypad (option); Power front seats (option); Instrument lighting; Courtesy lighting; Rearview mirror auto-dim function; Rain and light sensor; Rear tunnel console keypad (option) (Not Excellence); Power front seats (option); Power rear seats (Excellence only); Display for rear seat convenience functions (option); Rear seat massage function (option)	7.5
25	Control module for driver support functions	5
26	Panorama roof and sun shade (option)	20
27	Head-up display (option)	5
28	Courtesy lighting	5
29	–	–
30	Ceiling console display (seat belt reminder, front passenger side airbag indicator)	5
31
32	Humidity sensor	5
33	Rear passenger-side door module	20
34	Fuses in the cargo compartment	10
35	Internet connection control module; Volvo On Call control module	5
36	Rear driver-side door module	20
37	Infotainment control module (amplifier)	40
38	Climate system blower module (rear)	40
39	Multi-band antenna module	5
40	Front seat massage function	5
41	–	–
42	Tailgate window wiper	15
43	Fuel pump control module	15
44	Relay windings for engine compartment electrical module; Relay winding for transmission oil pump	5
45	–	–
46	Driver side seat heating (option)	15
47	Passenger side seat heating (option)	15
48	Coolant pump	10
49	–	–
50	Front driver-side door module	20
51	Active chassis (option)	20
52	–	–
53	Sensus control module	10
54
55
56	Front passenger-side door module	20
57	Display for rear seat convenience functions (Excellence only)	5
58	–	–
59	Circuit breaker for fuses 53 and 58	15

Cargo compartment

Trunk fuse box diagram: Volvo XC90 Twin-Engine (2017)

Assignment of fuses in the cargo compartment (2017 Twin-Engine)

№	Function	Amp
1	Heated tailgate window	30
2	Power rear seat (driver side) (XC90 Excellence)	20
3	Pneumatic suspension compressor (option)	40
4	Heated rear seat (passenger side) (option)	30
5	–	–
6	Heated rear seat (driver side) (option)	30
7	Power rear seat (passenger side) (XC90 Excellence)	20
8
9	Power tailgate (option)	25
10	Power passenger seat module (option)	20
11	Trailer hitch control module (option)	40
12	Seat belt tensioner module (passenger side)	40
13	Internal relay windings	5
14	–	–
15	Foot movement detection module for opening the power tailgate (option)	5
16	–	–
17	Folding third row seats backrest module (option)	20
18	Trailer hitch control module (option)	25
19	Power driver seat module (option)	20
20	Seat belt tensioner module (driver side)	40
21	Parking camera (option)	5
22	–	–
23	–	–
24	Ionic air cleaner (XC90 Excellence)	5
25	Feed when ignition is switched on.	10
26	Airbag and seat belt tensioner modules	5
27	Cooler; heated/cooled cup holder (rear) (XC90 Excellence)	10
28	Heated rear seat (driver side) (option)	15
29	–	–
30	BLIS (option)	5
31	–	–
32	Seat belt tensioner modules	5
33	Emission system actuator	5
34	–	–
35	–	–
36	Heated rear seat (passenger side) (option)	15
37

Fuses 13–17 and 21–36 are called “Micro”.
Fuses 1–12, 18–20 and 37 are called “MCase” and should only be replaced by a trained and qualified Volvo service technician.

2018

Engine compartment

Assignment of fuses in the engine compartment (2018)

№	Function	Amp
1	–	–
2	–	–
3	–	–
4	Ignition coils (petrol); Spark plugs (petrol)	15
5	Solenoid for engine oil pump; Solenoid clutch A/C; Lambda sond, centre (petrol); Lambda sond, rear (diesel)	15
6	Vacuum regulators; Valve; Valve for output pulse (diesel)	7.5
7	Engine control module; Actuator; Throttle unit; EGR valve (diesel); Position sensor for turbo (diesel); Valve for turbocharger (petrol)	20
8	Engine Control Module (ECM)	5
9
10	Solenoids (petrol); Valve; Thermostat for engine cooling system (petrol); EGR cooling pump (diesel); Glow control module (diesel)	10
11	Control module for spoiler roller cover; Control module for radiator roller cover; Relay coils for output pulse (diesel)	5
12	Lambda-sond, front; Lambda-sond, rear (petrol)	15
13	Engine Control Module (ECM)	20
14	Starter motor	40
15	Starter motor	Shunt
16	Fuel filter heater (diesel)	30
17
18
19
20
21
22
23
24	12 V socket in tunnel console, front	15
25	12 V socket in tunnel console, by legroom for second seat row	15
26	12 V socket in cargo area (option)	15
27
28
29
30
31	Heated windscreen left-hand side (option)	Shunt
32	Heated windscreen left-hand side (option)	40
33	Headlamp washers (option)	25
34	Windscreen washers	25
35	Transmission control module	15
36	Horn	20
37	Siren (option)	5
38	Control module for brake system (valves, parking brake)	40
39	Windscreen wipers	30
40	Rear window washer	25
41	Heated windscreen right-hand side (option)	40
42		20
43	Control unit for brake system (ABS pump)	40
44
45	Heated windscreen right-hand side (option)	Shunt
46	Supplied when the ignition is switched on: Engine control module; Transmission components; Electric steeringlservo; Central electronic module; Control module for brake system	5
47	–	–
48	Right-hand headlamp	7.5
48	Right-hand headlamp, certain variants of LED	7.5
49
50
51	Module for controlling battery engagement	5
52	Airbags	5
53	Left-hand headlamp	7.5
53	Left-hand headlamp, certain variants of LED	7.5
54	Accelerator pedal sensor	5

Fuses 1-13, 18-30, 35-37 and 46-54 are of the “Micro” type.
Fuses 31-34 and 38-45 are of the “MCase” type and should be replaced by a workshop.

Glove compartment

Interior fuse box diagram: Volvo XC90 (2018)

Assignment of fuses under the glove compartment (2018)

№	Function	Amp
1	–	–
2	230 V socket in tunnel console, by legroom for second seat row (option)	30
3	–	–
4	Movement detector (option)	5
5	Media player	5
6	Driver display	5
7	Keypad in centre console	5
8	Sun sensor	5
9	–	–
10	–	–
11	Steering wheel module	5
12	Module for start knob and for parking brake control	5
13	Steering wheel module for heated steering wheel (option)	15
14
15
16
17
18	Control module for climate control system	10
19	Steering lock	7.5
20	Diagnostic socket OBDII	10
21	Centre display	5
22	Fan module for climate control system, front	40
23	USB HUB	5
24	Controls lighting; Interior lighting; Dimming of interior rearview mirror (option); Rain and light sensor (option); Keypad in tunnel console, by legroom for rear seat (option); Power front seats (option); Control panels in rear doors	7.5
25	Control module for driver support functions	5
26	Panorama roof with sun blind (option)	20
27	Head-up display (option)	5
28	Passenger compartment lighting	5
29
30	Display in roof console (Seatbelt reminder/lndicator for airbag on the front passenger seat)	5
31	–	–
32	Humidity sensor	5
33	Door module in right-hand rear door	20
34	Fuses in cargo area	10
35	Control module for online connected car: Control module for Volvo On Call	5
36	Door module in left-hand rear door	20
37	Audio control module (amplifier) (certain variants)	40
38	Fan module for climate control system, rear (option)	40
39	Module for multi-band antenna	5
40	Modules for seat comfort (massage) front (option)	5
41	–	–
42	Rear window wiper	15
43	Control module for fuel pump	15
44	–	–
45	–	–
46	Seat heating, driver’s side front	15
47	Seat heating, passenger side front	15
48	Coolant pump	10
49
50	Door module in left-hand front door	20
51	Control module for suspension (active chassis) (option)	20
52	–	–
53	Sensus control module	10
54	–	–
55	–	–
56	Door module in right-hand front door	20
57	–	–
58	TV (option) (certain markets)	5
59	Primary fuse for fuses 53 and 58	15

Cargo compartment

Trunk fuse box diagram: Volvo XC90 (2018)

Assignment of fuses in the cargo compartment (2018)

№	Function	Amp
1	Rear window defroster	30
2	–	–
3	Compressor for air suspension (option)	40
4	Electric additional heaters right-hand side rear (option)	30
5
6	Electric additional heaters left-hand side rear (option)	30
7	–	–
8	Control module for reduction of nitrous oxides (diesel)	30
9	Power operated tailgate (option)	25
10	Electrically operated front passenger seat (option)	20
11	Towbar control module (option)	40
12	Seatbelt pretensioner module, right-hand side	40
13	Internal relay coils	5
14	Control module for reduction of nitrous oxides (diesel)	15
15	Module for detecting foot movement (option) (for opening the power operated tailgate)	5
16	Alcohol lock	5
17	Module for lowering the backrest in the third seat row (option)	20
18	Towbar control module (option)	25
19	Power driver seat (option)	20
20	Seatbelt pretensioner module, left-hand side	40
21	Parking camera (option)	5
22
23
24
25
26	Control module for airbags and seatbelt tensioners	5
27	–	–
28	Seat heating left-hand side rear (option)	15
29	–	–
30	Blind Spot Information (BLIS) (option): control module, exterior reversing sound	5
31
32	Seatbelt pretensioner modules	5
33	Actuator for exhaust gases (petrol, certain engine variants)	5
34	–	–
35	All Wheel Drive (AWD) control module (option)	15
36	Seat heating right-hand side rear (option)	15
37	–	–

Fuses 13–17 and 21–36 are called “Micro”.
Fuses 1–12, 18–20 and 37 are called “MCase” and should only be replaced by a trained and qualified Volvo service technician.

2019

Engine compartment

Assignment of fuses in the engine compartment (2019)

№	Ampere	Function
1	–	Not Used
2	–	Not Used
3	–	Not Used
4	15	Ignition coils (gasoline); spark plugs (gasoline)
5	15	Oil pump solenoid; A/C magnetic coupling; heated oxygen sensor, center (gasoline); heated oxygen sensor, rear (diesel)
6	7.5	Vacuum regulators; valve; valve for power pulse (diesel)
7	20	Engine control module; actuator; throttle unit; EGR valve (diesel); turbo position sensor (diesel); turbocharger valve (gasoline)
8	5	Engine control module
9	–	Not Used
10	10	Solenoids (gasoline); valve; Engine cooling system thermostat (gasoline); EGR cooling pump (diesel); glow control module (diesel)
11	5	Spoiler shutter control module; Radiator shutter control module; Relay windings for power pulse (diesel)
12	–	Not Used
13	20	Engine control module
14	40	Starter motor
15	Shunt	Starter motor
16	30	Fuel filter heater (diesel)
17	–	Not Used
18	–	Not Used
19	–	Not Used
20	–	Not Used
21	–	Not Used
22	–	Not Used
23	–	Not Used
24	15	12 V outlet in tunnel console, front
25	15	12 V outlet in tunnel console between rear seats
26	15	12 V outlet in trunk/cargo compartment
27	–	Not Used
28	15	Left-side headlight, some models with LED
29	15	Right-side headlight, some models with LED
30	–	Not Used
31	Shunt	Heated windshield, left side
32	40	Heated windshield, left side
33	25	Headlight washers
34	25	Windshield washer
35	15	Transmission control module
36	20	Horn
37	5	Alarm siren
38	40	Brake system control module (valves, parking brake)
39	30	Wipers
40	25	Rear window washer
41	40	Heated windshield, right side
42	20	Parking heater
43	40	Brake system control module (ABS pump)
44	–	Not Used
45	Shunt	Heated windshield, right side
46	5	Fed when ignition is on: engine control module, transmission components, electrical power steering, central electrical module, brake system control module
47	–	Not Used
48	7.5	Right-side headlight
48	15	Right-side headlight, some models with LED
49	–	Not Used
50	–	Not Used
51	5	Battery connection control module
52	5	Airbags
53	7.5	Left-side headlight
53	15	Left-side headlight, some models with LED
54	5	Accelerator pedal sensor

Engine compartment (Twin-engine)

Assignment of fuses in the engine compartment, Twin-engine (2019)

№	Ampere	Function
1	–	Not Used
2	–	Not Used
3	–	Not Used
4	5	Control module for actuator for engaging/changing gears, automatic transmission
5	5	High-voltage coolant heater control module
6	5	Control module for A/C; heat exchanger cut-off valve; cutoff valve for coolant through the climate system
7	5	Hybrid battery control module; high-voltage converter for combined high-voltage gener-ator/starter motor with 500V-12 V voltage converter
8	–	Not Used
9	10	Converter for controlling feed to rear axle electric motor
10	10	Hybrid battery control module; high-voltage converter for combined high-voltage gener-ator/starter motor with 500 V-12 V voltage converter
11	5	Charge module
12	10	Cut-off valve for hybrid battery coolant; coolant pump 1 for hybrid battery
13	10	Coolant pump for electric drive system
14	25	Hybrid component cooling fan
15	–	Not Used
16	–	Not Used
17	–	Not Used
18	–	Not Used
19	–	Not Used
20	–	Not Used
21	–	Not Used
22	–	Not Used
23	–	Not Used
24	15	12 V outlet in tunnel console, front
25	15	Not Excellence: 12 V outlet in tunnel console between second-row seats Excellence: 12 V outlet in tunnel console, between rear seats; USB ports in tunnel console between rear seats
26	15	12 V outlet in trunk/cargo compartment USB ports for iPad holders
27	–	Not Used
28	–	Not Used
29	–	Not Used
30	–	Not Used
31	Shunt	Heated windshield, left side
32	40	Heated windshield, left side
33	25	Headlight washers
34	25	Windshield washer
35	–	Not Used
36	20	Horn
37	5	Alarm siren
38	40	Brake system control module (valves, parking brake)
39	30	Wipers
40	25	Rear window washer
41	40	Heated windshield, right side
42	20	Parking heater
43	40	Brake system control module (ABS pump)
44	–	Not Used
45	Shunt	Heated windshield, right side
46	5	Fed when ignition is on: Engine control module; transmission components, electrical power steering, central electrical module
47	5	Exterior vehicle sound (certain markets)
48	7.5	Right-side headlight
48	15	Right-side headlight, some models with LED
49	–	Not Used
50	–	Not Used
51	–	Not Used
52	5	Airbags
53	7.5	Left-side headlight
53	15	Left-side headlight, some models with LED
54	5	Accelerator pedal sensor
55	15	Transmission control module; gear selector control module
56	5	Engine control module
57	–	Not Used
58	–	Not Used
59	–	Not Used
60	–	Not Used
61	20	Engine control module; actuator; throttle unit; turbo-charger valve
62	10	Solenoids; valve; engine cooling system thermostat
63	7.5	Vacuum regulators; valve
64	5	Spoiler shutter control module; radiator shutter control module
65	–	Not Used
66	15	Heated oxygen sensor, front; heated oxygen sensor, rear
67	15	Oil pump solenoid; A/C magnetic coupling; heated oxygen sensor (center)
68	–	Not Used
69	20	Engine control module
70	15	Ignition coils; spark plugs
71	–	Not Used
72	–	Not Used
73	30	Transmission oil pump control module
74	40	Vacuum pump control module
75	25	Transmission actuator
76	–	Not Used
77	–	Not Used
78	–	Not Used

Glove compartment

Assignment of fuses under the glovebox (2019)

№	Ampere	Function
1	–	Not Used
2	30	Electrical outlet in tunnel console between rear seats
3	–	Not Used
4	5	Movement sensor
5	5	Media player
6	5	Instrument panel
7	5	Center console buttons
8	5	Sun sensor
9	20	Sensus control module
10	–	Not Used
11	5	Steering wheel module
12	5	Module for start knob and parking brake controls
13	15	Heated steering wheel module
14	–	Not Used
15	–	Not Used
16	–	Not Used
17	–	Not Used
18	10	Climate system control module
19	–	Not Used
20	10	Data link connector OBD-II
21	5	Center display
22	40	Climate system blower module (front)
23	5	USB HUB
24	7.5	Instrument lighting; Interior lighting; Rearview mirror auto-dim function; Rain and light sensors; Rear tunnel console keypad, rear seat; Power front seats; Rear door control panels; Climate system blower module left/right Power rear seats; Display for rear seat convenience functions; Rear seat massage function
25	5	Control module for driver support functions
26	20	Panoramic roof with sun curtain
27	5	Head-up display
28	5	Passenger compartment lighting
29	–	Not Used
30	5	Ceiling console display (seat belt reminder/front passenger side airbag indicator)
31	–	Not Used
32	5	Humidity sensor
33	20	Door module in right-side rear door Power right rear seat
34	10	Fuses in the trunk/cargo compartment
35	5	Control module for Internet-connected vehicle; Control module for Volvo On Call
36	20	Door module in left-side rear door Power left rear seat
37	40	Audio control module (amplifier) (certain models only)
38	40	Climate system blower module (rear)
39	5	Multi-band antenna module
40	5	Front seat massage function
41	–	Not Used
42	15	Rear window wiper
43	15	Fuel pump control module
44	5	Twin-engine: Relay windings for distribution box in engine compartment; Relay windings for transmission oil pump
45	–	Not Used
46	15	Driver’s seat heating
47	15	Front passenger’s seat heating
48	10	Coolant pump
49	–	Not Used
50	20	Door module in left-side front door Twin-engine: Power driver’s seat
51	20	Active chassis control module
52	–	Not Used
53	10	Sensus control module
54	–	Not Used
55	–	Not Used
56	20	Door module in right-side front door Twin-engine: Power front passenger seat
57	–	Twin-engine: Display for rear seat convenience functions; On-board diagnostics (OBD II) in tunnel console between rear seats; Extra movement sensor
58	5	TV (certain markets only)
59	15	Primary fuse for fuses 9, 53 and 58

Cargo compartment

Assignment of fuses in the cargo area (2019)

№	Ampere	Function
1	30	Heated rear window
2	40	Twin-engine: Central electrical module
3	40	Pneumatic suspension compressor
4	30	Rear auxiliary electric heater (right-hand side)
5	30	Twin-engine: Electrical outlets in the tunnel console between the rear seats
6	15	Rear auxiliary electric heater (left-hand side)
7	20	Twin-engine: Door module right side, rear
8	30	Control module for reduction of nitrous oxides (diesel)
9	25	Power tailgate
10	20	Power front passenger seat
11	40	Towbar control module
12	40	Seat belt tensioner module (right side)
13	5	Internal relay windings
14	15 / 20	Control module for reduction of nitrous oxides (diesel) Twin-engine: Door module left side, rear
15	5	Foot movement detection module for opening the power tailgate
16	–	USB hub/accessory port
17	20	Module for electrically folding third-row seats
18	25	Towbar control module
18	40	Accessory module
19	20	Power driver seat Twin-engine: Door module left side, front
20	40	Seat belt tensioner module (left side)
21	5	Park Assist Camera
22	–	Not Used
23	–	Not Used
24	–	Not Used
25	10	Twin-engine: Feed when ignition is on
26	5	Control module for airbags and seat belt tensioners
27	10 5	Twin-engine: Excellence: Cooler ; Heated/cooled cup holder (rear) Accessory module
28	15	Heated rear seat (left side)
29	–	Not Used
30	5	Blind Spot Information (BUS); Exterior reverse signal control module
31	–	Not Used
32	5	Modules for seat belt tensioners
33	5	Emissions system actuator (gasoline, certain engine variants)
34	–	Not Used
35	15	All Wheel Drive (AWD) control module
36	15	Heated rear seat (right side)
37	–	Not Used

2020

Engine compartment

Assignment of fuses in the engine compartment (2020)

№	Amps	Function
1	–	–
2	–	–
3	–	–
4	15	Ignition coils (petrol); Spark plugs (petrol); Exhaust sensor; Diesel particle sensor
5	15	Solenoid for engine oil pump; Solenoid clutch A/C; Lambda probe, centre (petrol); Lambda probe, rear (diesel); Lambda probe, front (petrol/diesel)
6	7,5	Vacuum regulators; Valve; Valve for output pulse (diesel); Oil level/temperature sensor (diesel); Glow plugs (GCU) (diesel)
7	20	Engine control module; Actuator; Throttle unit; EGR valve (diesel); Position sensor for turbo (diesel); Valve for turbocharger (petrol)
8	5	Engine Control Module (ECM)
9	–	–
10	10	Solenoids (petrol); Valve; Thermostat for engine cooling system (petrol); Cooling pump for EGR (diesel); Glow control unit (diesel); Supercharger clutch (petrol); Crankshaft ventilation heater (diesel); Valve, gearbox oil cooler (diesel)
11	5	Control module for spoiler damper; Control module for radiator damper; Relay coils for output pulse (diesel)
12	15	Coolant pump
13	20	Engine Control Module (ECM)
14	40	Starter motor
15	Shunt	Starter motor
16	30	Fuel filter heater (diesel)
17	–	–
18	5	Calculation unit
19	–	–
20	–	–
21	–	–
22	–	–
23	–	–
24	15	12 V socket in tunnel console, front
25	15	12 V socket in tunnel console, by legroom for second seat row 230 V socket in tunnel console, by legroom for second seat row
26	15	12 V socket in cargo area
27	–	–
28	15	Left-hand headlamp, LED
29	15	Right-hand headlamp, LED
30	–	–
31	Shunt	Heated windscreen, left-hand side
32	40	Heated windscreen, left-hand side
33	25	Headlamp washers
34	25	Washer fluid pump
35	15	Transmission control unit; Electric gear selector
36	20	Horn
37	5	Siren
38	40	Control module for brake system (valves, parking brake)
38	30	Brake control with 48V battery
39	30	Windscreen wipers
40	25	Rear window washer
41	40	Heated windscreen, right-hand side
42	20	Parking heater
43	40	Control unit for brake system (ABS pump)
44	–	–
45	Shunt	Heated windscreen, right-hand side
46	5	Supplied when the ignition is switched on: Engine control module; Transmission components; Electric steering servo; Central electronic module; Control module for brake system
47	–	–
48	15	Right-hand headlamp, LED
49	5	Alcohol lock
50	10	Transmission control module
51	5	Module for controlling battery engagement
52	5	Airbags; Passenger weight sensor
53	15	Left-hand headlamp, LED
54	5	Accelerator pedal sensor

Engine compartment (Twin-engine)

Assignment of fuses in the engine compartment (2020, Twin-Engine)

№	Amps	Function
1	–	–
2	–	–
3	–	–
4	5	Control module for actuator for engagement/change of automatic gearbox gear positions
5	5	Control module for the high-voltage heater of the internal combustion engine’s coolant
6	5	Control module for air conditioning; Shut-off valve for heat exchanger; Shut-off valve for coolant that passes through the climate control system
7	5	Control module for hybrid battery; High voltage converter for combined hiqh-voltaqe qenerator/starter motor with voltage converter 500V-12V
8	–	–
9	10	Converter for control of the supply to the rear axle’s electric motor
10	10	Control module for hybrid battery; High voltage converter for combined high-voltage generator/starter motor with voltage converter 500V-12V
11	5	Charging unit
12	15	Shut-off valve for the hybrid battery’s coolant; Coolant pump 1 for hybrid battery
13	15	Coolant pump for electric drive system
14	25	Cooling fan for hybrid components
15	–	–
16	–	–
17	–	–
18	5	Calculation unit
19	–	–
20	–	–
21	–	–
22	–	–
23	–	–
24	15	12 V socket in tunnel console, front
25	15	12 V socket in tunnel console, by legroom for second seat row (Not Excellence) 12 V socket in tunnel console, between the rear seats (Excellence); USB ports in tunnel console, between the rear seats (Excellence)
26	15	12 V socket in cargo area USB ports in head restraints right/left
27	–	–
28	15	Left-hand headlamp, LED
29	15	Right-hand headlamp, LED
30	–	–
31	Shunt	Heated windscreen, left-hand side
32	40	Heated windscreen, left-hand side
33	25	Headlamp washers
34	25	Windscreen washers
35	–	–
36	20	Horn
37	5	Siren
38	40	Control module for brake system (valves, parking brake)
39	30	Windscreen wipers
40	25	Rear window washer
41	40	Heated windscreen, right-hand side
42	20	Parking heater
43	40	Control unit for brake system (ABS pump)
44	–	–
45	Shunt	Heated windscreen, right-hand side
46	5	Supplied when the ignition is switched on: Engine control module; Transmission components; Electric steering servo; Central electronic module
47	5	Exterior car noise (certain markets)
48	15	Right-hand headlamp, LED
49	5	Alcohol lock
50	–	–
51	–	–
52	5	Airbags; Passenger weight sensor
53	15	Left-hand headlamp, LED
54	5	Accelerator pedal sensor
55	15	Transmission control module; Control module for gear selector
56	5	Engine Control Module (ECM)
57	–	–
58	–	–
59	–	–
60	–	–
61	20	Engine control module; Actuator; Throttle unit; Valve for turbocharger
62	10	Solenoids; Valves; Overpressure connection
63	7,5	Vacuum regulators; Valve for electric bypass: Valve for ventilation
64	5	Control unit, spoiler damper; Control unit, radiator damper
65	–	–
66	15	Lambda probe, front and rear
67	15	Solenoid for engine oil pump; Solenoid clutch A/C; Lambda probe, front, centre and rear
68	–	–
69	20	Engine Control Module (ECM)
70	15	Ignition coils; Spark plugs
71	–	–
72	–	–
73	30	Control module for transmission fluid pump
74	–	–
75	25	Actuator for transmission
76	–	–
77	–	–
78	–	–

Glove compartment

Assignment of fuses under the glove compartment (2020)

№	Amps	Function
1	10	Intermediate voltage module
2	30	Electrical socket in tunnel console, by legroom for rear seat
3	–	–
4	5	Movement detector
5	5	Media player
6	5	Driver display
7	5	Keypad in centre console
8	5	Sun sensor
9	–	–
10	–	–
11	5	Steering wheel module
12	5	Module for start knob and for parking brake control
13	15	Steering wheel module for heated steering wheel
14	–	–
15	–	–
16	–	–
17	–	–
18	10	Control module for climate control system
19	7,5	Steering lock
20	10	Diagnostic socket OBDII
21	5	Centre display
22	40	Fan module for climate control system, front
23	5	USB HUB
24	7,5	Controls lighting; Interior lighting; Dimming of interior rearview mirror; Rain and light sensor; Keypad in tunnel console, by legroom for rear seat; Power front seats; Control panels in rear doors; Fan module for climate control left/right Twin Engine: Controls lighting; Interior lighting; Dimming of interior rearview mirror; Rain and light sensor; Keypad in tunnel console, by legroom for second seat row (Not Excellence); Power front seats; Control panels in rear doors; Fan module for climate control left/right Power rear seats (Excellence); Display for rear seat comfort functions (Excellence); Modules for seat comfort (massage) rear (Excellence)
25	5	Control module for driver support functions
26	20	Panorama roof with sun blind
27	5	Head-up display
28	5	Passenger compartment lighting
29	–	–
30	5	Display in roof console (Seatbelt reminder/lndicator for airbag on the front passenger seat)
31	–	–
32	–	–
33	20	Door module in right-hand rear door
34	10	Fuses in cargo area
35	5	Control module for online car; Control module for Volvo On Call
36		Door module in left-hand rear door
37	40	Audio control device (amplifier)
38	40	Fan module for climate control system, rear
39	5	Module for multi-band antenna
40	5	Modules for seat comfort (massage) front
41	5	Alcohol lock
42	15	Rear window wiper
43	15	Control module for fuel pump
44	5	Twin Engine: Relay coils in fuse box in engine compartment; Relay coil for transmission oil pump; Medium voltage converter; Integrated dynamo
45	5	Opening the boot lid/tailgate with foot motion
46	15	Seat heating, driver’s side front
47	15	Seat heating, passenger side front
48	7,5	Coolant pump
49	–	–
50	20	Door module in left-hand front door Twin Engine: Power driver’s seat
51	20	Control module for suspension (active chassis)
52	–	–
53	10	Sensus control module
54	–	–
55	–	–
56	20	Door module in right-hand front door Twin Engine: Electrically operated front passenger seat
57	5	Twin Engine (Excellence): Display for rear seat comfort functions; Data link connector OBD-II in tunnel console between the rear seats; Extra movement detectors
58	5	TV (certain markets)
59	15	Primary fuse for fuses 52, 53, 57 and 58

Cargo compartment

Assignment of fuses in the cargo area (2020)

№	Amps	Function
1	30	Rear window defroster
2	40	Twin Engine: Central electronic module
3	40	Compressor for air suspension
4	30	Electric additional heaters right-hand side rear
5	–	–
6	30	Electric additional heaters left-hand side rear
7	20	Electrically operated front passenger seat Door module right-hand side rear
8	30	Control module for reduction of nitrous oxides (diesel)
8	20	Twin Engine, Excellence: Electrically operated seat, right-hand side rear
9	25	Power operated tailgate
10	20	Electrically operated front passenger seat Door module right-hand side front
11	40	Towbar control module
12	40	Seatbelt pretensioner module, right-hand side
13	5	Internal relay coils
14	15	Control module for reduction of nitrous oxides (diesel)
14	20	Twin Engine, Excellence: Electrically operated seat, left-hand side rear
15	20	Door module left-hand side rear
16	5	Alcohol lock, USB hub/accessory port
17	20	Module for lowering the backrest in the third seat row
18	25	Towbar control module
18	40	Accessory module
19	20	Power driver seat Door module left-hand side front
20	40	Seatbelt pretensioner module, left-hand side
21	5	Parking camera
22	–	–
23	–	–
24	–	–
25	10	Twin Engine: Supply when the ignition is switched on
26	–	–
27	10	Twin Engine, Excellence: Refrigerator; Heated/cooled cup holder, rear
27	5	Twin Engine: Accessory module
28	15	Seat heating left-hand side rear
29	–	–
30	5	Blind Spot Information (BLIS) Control module, exterior reversing sound
31	–	–
32	5	Seatbelt pretensioner modules
33	5	Actuator for exhaust gases (petrol, certain engine variants)
34	–	–
35	15	All Wheel Drive (AWD) control module
36	15	Seat heating right-hand side rear
37	–	–

From 2021

Engine compartment

Assignment of fuses in the engine compartment (from 2021)

№	Amps	Function
1	–	–
2	–	–
3	15	Lambda sensors; Electric charge pressure module
4	15	Ignition coils (gasoline); spark plugs (gasoline) Exhaust sensor; Diesel particulate sensor
5	15	Oil pump solenoid; A/C magnetic coupling; heated oxygen sensor, center (gasoline); heated oxygen sensor, rear (diesel); heated oxygen sensor, front (gasoline/diesel)
6	7.5	Vacuum regulator; Valve; Output pulse valve (diesel); Oil level/temperature sensor (gasoline/diesel); Glow plug (GCU) (diesel)
7	20	Engine control module; actuator; throttle unit; EGR valve (diesel); turbo position sensor (diesel); turbocharger valve (gasoline)
8	5	Engine control module
9	–	–
10	10	Solenoids (gasoline); Fuel leakage control valve; Engine cooling system thermostat (gasoline); EGR vacuum valve (diesel); Glow control module (diesel); Supercharger clutch (gasoline); Crankshaft ventilation heater (diesel); Transmission oil cooler valve (diesel)
11	5	Spoiler damper control module; Cooler damper control module; Relay coils for output pulse (diesel); Coolant valve Fuel leakage detection (gasoline)
12	15	Coolant pump
13	20	Engine control module
14	40	Starter motor
15	Shunt	Starter motor
16	30	Fuel filter heater (diesel)
17	–	–
18	5	Calculation module
19	–	–
20	–	–
21	15	ECM camera
22	–	–
23	7.5	Front USB port in tunnel console, rear
24	15	12 V outlet in tunnel console, front
25	–	–
26	15	12 V outlet in trunk/cargo compartment
27	–	–
28	15	Driver-side headlight, LED
29	15	Passenger-side headlight, LED
30	–	–
31	–	–
32	–	–
33	25	Headlight washers
34	25	Washer fluid pump
35	15	Transmission control module; Electric gear selector
36	20	Horn
37	5	Alarm siren
38	40	Brake system control module (valves, parking brake)
38	30	Brake control with 48 V battery
39	30	Wipers
40	25	Rear window washer
41	–	–
42	20	Parking heater
43	40	Brake system control module (ABS pump)
44	–	–
45	–	–
46	5	Fed when ignition is on: engine control module, transmission components, electrical power steering, central electrical module, brake system control module
47	–	–
48	15	Passenger-side headlight, LED
49	–	–
50	10	Transmission control module
51	5	Battery connection control module
52	5	Airbags; Passenger weight sensor
53	15	Driver-side headlight, LED
54	5	Accelerator pedal sensor

Engine compartment (Recharge Plug-in Hybrid)

Assignment of fuses in the cargo compartment (from 2021, Recharge PHEV)

№	Amps	Function
1	–	–
2	–	–
3	–	–
4	5	Control module for actuator for engaging/changing gears, automatic transmission
5	5	High-voltage coolant heater control module
6	5	Control module for A/C; heat exchanger cut-off valve; cut-off valve for coolant through the climate system
7	5	Hybrid battery control module; high-voltage converter for combined high-voltage generator/starter motor with 500V-12V voltage converter
8	–	–
9	10	Converter for controlling feed to rear axle electric motor
10	10	Hybrid battery control module; high-voltage converter for combined high-voltage generator/starter motor with 500V-12V voltage converter
11	5	Charge module
12	15	Cut-off valve for hybrid battery coolant; coolant pump 1 for hybrid battery
13	15	Coolant pump for electric drive system
14	25	Hybrid component cooling fan
15	–	–
16	–	–
17	–	–
18	5	Calculation module
19	–	–
20	–	–
21	–	–
22	–	–
23	7.5	Front USB port in tunnel console, front
24	15	12 V outlet in tunnel console, front
25	–	–
26	15	12 V outlet in trunk/cargo compartment
27	–	–
28	15	Driver-side headlight, LED
29	15	Passenger-side headlight, LED
30	–	–
31	–	–
32	–	–
33	25	Headlight washers
34	25	Windshield washer
35	–	–
36	20	Horn
37	5	Alarm siren
38	30	Brake system control module (valves, parking brake)
39	30	Wipers
40	25	Rear window washer
41	–	–
42	20	Parking heater
43	–	–
44	–	–
45	–	–
46	5	Fed when ignition is on: Engine control module; transmission components, electrical power steering, central electrical module
47	5	Exterior vehicle sound (certain markets)
48	15	Passenger-side headlight, LED
49	–	–
50	–	–
51	–	–
52	5	Airbags; Passenger weight sensor
53	15	Driver-side headlight, LED
54	5	Accelerator pedal sensor
55	15	Transmission control module; gear selector control module
56	5	Engine control module
57	–	–
58	–	–
59	–	–
60	–	–
61	20	Engine control module; actuator; throttle unit; turbo-charger valve
62	10	Solenoids, Fuel leakage control valve; Overpressure coupling
63	7.5	Vacuum regulator; Electric bypass valve: Ventilation valve
64	5	Spoiler damper control module; Cooler damper control module Fuel leakage control pump
65	–	–
66	15	Heated oxygen sensor front and rear
67	15	Oil pump solenoid; A/C magnetic coupling; Heated oxygen sensor front, center and rear
68	–	–
69	20	Engine control module
70	15	Ignition coils; spark plugs
71	–	–
72	–	–
73	30	Transmission oil pump control module
74	–	–
75	–	–
76	–	–
77	–	–
78	–	–

Glove compartment

Assignment of fuses under the glove compartment (from 2021)

№	Amps	Function
1	10	Medium voltage module (Vehicles with 48 V support battery only)
2	–	–
3	–	–
4	5	Movement sensor
5	–	–
6	5	Instrument panel
7	5	Center console buttons
8	5	Sun sensor
9	–	–
10	–	–
11	5	Steering wheel module
12	5	Module for start knob and parking brake controls
13	15	Heated steering wheel module
14	–	–
15	–	–
16	–	–
17	–	–
18	10	Climate system control module
19	–	–
20	10	Data link connector OBD-II
21	5	Center display
22	40	Climate system blower module (front)
23	5	USB HUB
24	7.5	Instrument lighting; Interior lighting; Rearview mirror auto-dim function; Rain and light sensors; Rear tunnel console keypad, rear seat; Power front seats; Rear door control panels; Climate system blower module left/right
25	5	Control module for driver support functions
26	20	Panoramic roof with sun curtain
27	5	Head-up display
28	5	Passenger compartment lighting
29	5	Wireless charging pad
30	5	Ceiling console display (seat belt reminder/front passenger side airbag indicator)
31	–	–
32	–	–
33	–	–
34	10	Fuses in the trunk/cargo compartment
35	5	Control module for Internet-connected vehicle; Control module for Volvo On Call
36	20	Door module in left-side rear door
37	40	Infotainment control module (amplifier)
38	40	Climate system blower module (rear)
39	5	Multi-band antenna module
40	5	Front seat massage function
41	–	–
42	15	Rear window wiper
43	15	Fuel pump control module
44	5	Relay coil for transmission oil pump Converter medium voltage; Integrated starter motor
45	5	Opening trunk/tailgate with foot movement
46	15	Driver’s seat heating
47	15	Front passenger’s seat heating
48	7.5	Coolant pump
49	–	–
50	20	Door module in left-side front door Recharge PHEV: Power driver’s seat
51	20	Active chassis control module
52	–	–
53	10	Sensus control module
54	–	–
55	–	–
56	20	Door module in right-side front door Recharge PHEV: Power front passenger seat
57	–	–
58	5	TV (certain markets only)
59	15	Primary fuse for fuses 52, 53, 57 and 58

Cargo compartment

Assignment of fuses in the cargo area (from 2021)

№	Amps	Function
1	–	–
2	40	Recharge PHEV: Central electrical module
3	40	Pneumatic suspension compressor
4	30	Rear auxiliary electric heater (right-hand side)
5	–	–
6	30	Rear auxiliary electric heater (left-hand side)
7	20	Door module right side, rear
8	–	–
9	25	Power tailgate
10	20	Power front passenger seat Door module right side, front
11	40	Towbar control module
12	40	Seat belt tensioner module (right side)
13	5	Internal relay windings
14	–	–
15	20	Door module left side, rear
16	5	USB hub/accessory port
17	20	Module for electrically folding third-row seats
18	25	Towbar control module
18	40	Accessory module
19	20	Power driver seat Door module left side, front
20	40	Seat belt tensioner module (left side)
21	5	Park Assist Camera
22	–	–
23	–	–
24	–	–
25	10	Recharge PHEV: Feed when ignition is on
26	–	–
27	–	–
28	15	Heated rear seat (left side)
29	–	–
30	5	Blind Spot Information (BLIS) Exterior reverse signal control module
31	–	–
32	5	Seat belt tensioner module, left
33	5	Emissions system actuator (gasoline, certain engine variants)
34	–	–
35	15	All Wheel Drive (AWD) control module
36	15	Heated rear seat (right side)
37	–	–

FAQ

What are the cigar lighter (power outlet) fuses in the Volvo XC90?

The fuses are:

#24, #25, #26 – Located in the engine compartment fuse box
#2 – For the electrical outlet in the tunnel console, located in the fuse box under the glovebox.
