BMW 2 (F22-F23) | 2013-2021

Access BMW 2 Series Coupe and Convertible fuse box diagrams for 2013–2021 models with fuse locations, panel layouts, and complete electrical system information. This article covers the BMW 2 Series Coupe (Model Code: F22) and BMW 2 Series Convertible (Model Code: F23), and includes fuse box diagrams for BMW 2 Series 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020 and 2021, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse (fuse layout).

Engine Compartment

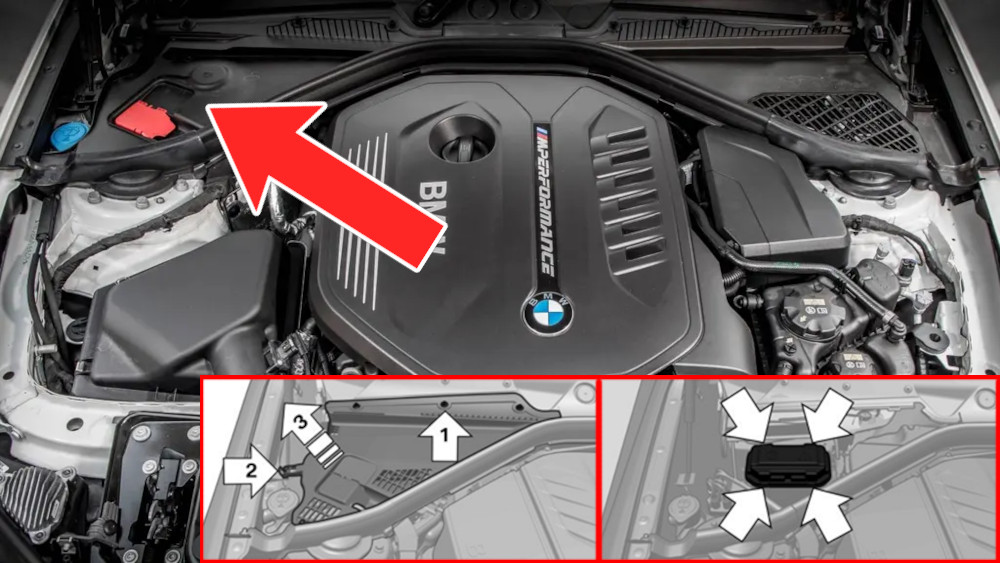

Fuse Box Location

The fuse box is located in the engine compartment on the passenger side, near the windshield.

Note: On right-hand drive vehicles, the fuses are positioned on the opposite side of the engine compartment.

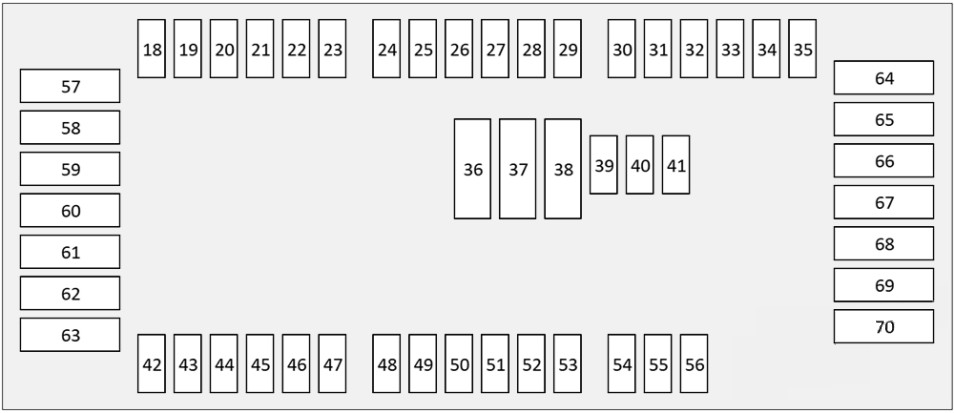

Fuse Box Diagram

Fuses

Assignment of the fuses in the engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
1815ADiagnostic connector
1910AEngine control
205AAudio control unit, roof electronics
215AControl unit
227.5ADoor locks, Passenger rearview mirror, interior lighting
2310ADDE main relay
2410AElectronic automatic transmission (EAT) control unit, 4×4
255ATouchbox, audio, Body control unit, abs, praking
265ASeat heating
2710ADriver/passenger seat lumbar support valve block, driver/passenger side seat adjustment switch block
285AFront left lamp, Front right lamp, Rain sensor, Interior lighting
295ACoolant pump
325ATransfer box security system
3315ACoolant pump, Air conditioning compressor, Additional water pump
3410ASafety system, seat belt
3640ADME – Digital Motor Electronics / Integrated Voltage Module – IVM
3740ADME – Digital Motor Electronics / Integrated Voltage Module – IVM
4015AHeadlights, outdoor lighting, dimensions
425AElectrochromic rearview mirror
445ADriver support systems based on a video camera, active steering system
455ACruise control
465ACrankcase ventilation heater, Coolant shut-off valve, louvre
475ANight vision electronics (NVE), vehicle sound generator (VSG)
4810ASteering column switches
505AInstrument cluster
527.5AInstrument cluster
535AGlove box lighting, instrument panel trim strip lighting (driver/passenger side), instrument panel trim strip lighting on driver’s side, driver/passenger footwell lighting
547.5ASelector switch
555AElectronic power steering (EPS)
565AAir quality sensor, ventilation system
5740AFuse box, Headlights, outdoor lighting, dimensions
5830ADynamic Stability Control (DSC)
6230ARetractable roof
6330ATransfer box
6420AFront passenger seat heating module
6530ADriver seat heating module
6620ACigarette lighter
6730ADriver’s seat control unit, Driver seat adjustment
6830APassenger seat adjustment, Passenger seat control unit
6920A12V socket
7020AHeating

Luggage Compartment

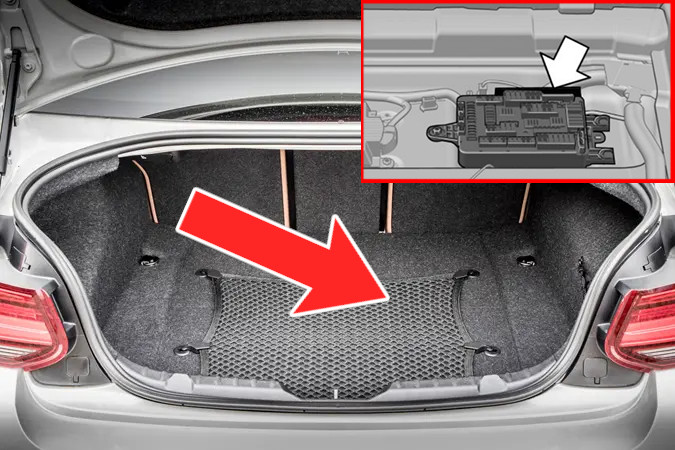

Fuse Box Location

Fold the cargo floor panel upward to gain access.

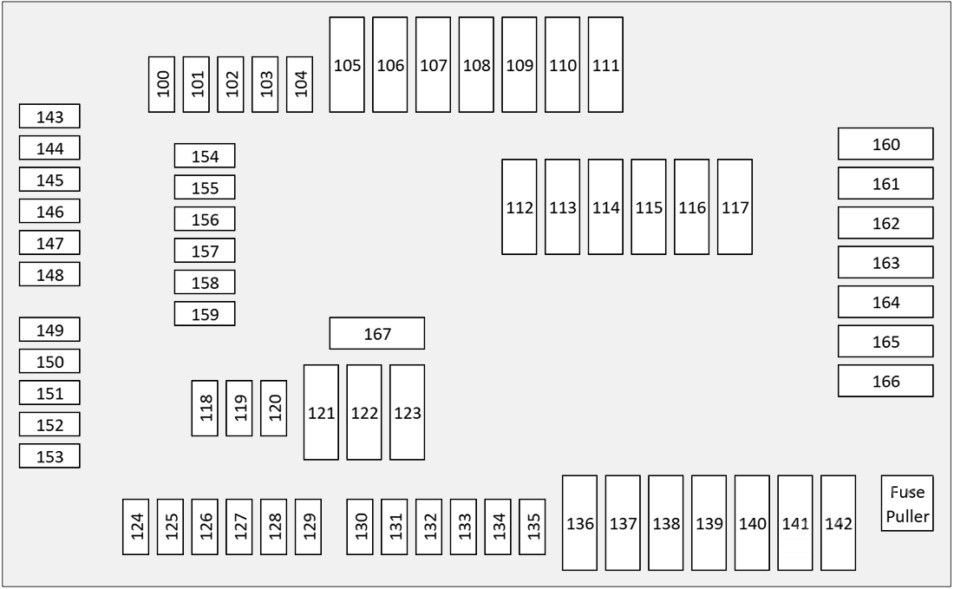

Fuse Box Diagram

Fuses

Assignment of the fuses in the luggage compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
10015AMain headlights, Rain sensor, Light sensor, Electronic ride height control
1035AAlarm
1045AAlarm, Door module, Automatic soft-close
10640AConvertible top module / Convertible relay
10740ABoot lid (tailgate) lock / Soft-close automatic for tailgate
11320ATrailer module
11420ATrailer module
11630ASeatbelts
11730ASeatbelts
1205AHead-Up Display (HUD), HiFi Amp, TV tuner, Video module, Telephone
12120AHead-Up Display (HUD), Instrument cluster, HiFi Amp, TV tuner, Video module, Navigation system
12230AHiFi Amp, TV tuner, Video module
12340AHead-Up Display (HUD), HiFi Amp, TV tuner, Video module
1245AAir suspension system
1255AHead-Up Display (HUD), HiFi Amp, TV tuner, Video module, Navigation system
12610AHead-Up Display (HUD), HiFi Amp, TV tuner, Video module
1275ACD changer, Can Gateway module
1285AHead-Up Display (HUD), HiFi Amp, TV tuner, Video module, Telephone
1305ABoot lid (tailgate) lock / Soft-close automatic for tailgate
1325ATire pressure control RDV
1355AUnknown
13720ADME – Digital Motor Electronics, Integrated Voltage Module – IVM
13920ATrailer module
14020ATrailer module
14120AHeated seats, Convertible top module / Convertible relay
14230AHead-Up Display (HUD), HiFi Amp, TV tuner, Video module
1435AConvertible top module / Convertible relay
14410ADME – Digital Motor Electronics / Integrated Voltage Module – IVM
14515ADME – Digital Motor Electronics/ Integrated Voltage Module – IVM
1465AParking sensors, Home link (garage door opener), DME – Digital Motor Electronics / Integrated Voltage Module – IVM
1475AHead-Up Display (HUD), HiFi Amp, TV tuner, Video module
1485AAir suspension system
1497.5AFuel pump relay, Fuel pump control
1505ADoor module, Automatic soft-close, Fuel pump relay, Fuel pump control, Boot lid (tailgate) lock / Soft-close automatic for tailgate
1515AFuel pump relay, Fuel pump control
1525ASeatbelts
1535ALight module
1545AHead-Up Display (HUD)
15515AHead-Up Display (HUD), Instrument cluster, HiFi Amp, TV tuner, Video module, Navigation system
1595AHead-Up Display (HUD), HiFi Amp, TV tuner, Video module
16020AAir suspension system
16120AMain headlights, Rain sensor, Light sensor, Electronic ride height control
16220AFront & rear cigarette lighter, 12V socket / Glove box charging socket (12V)
16320ADoor module, Automatic soft-close
16430AHeated seats
16520AFuel pump relay, Fuel pump control
