BMW 2 (F44) | 2020-2024

Browse BMW 2 Series Gran Coupe fuse box diagrams for 2020–2024 models with fuse locations, panel layouts, and detailed electrical system information. This article covers the first-generation BMW 2 Series Gran Coupe (Model Code: F44) and includes fuse box diagrams for BMW 2 Series Gran Coupe 2020, 2021, 2022, 2023 and 2024, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse (fuse layout).

Fuse Box Locations

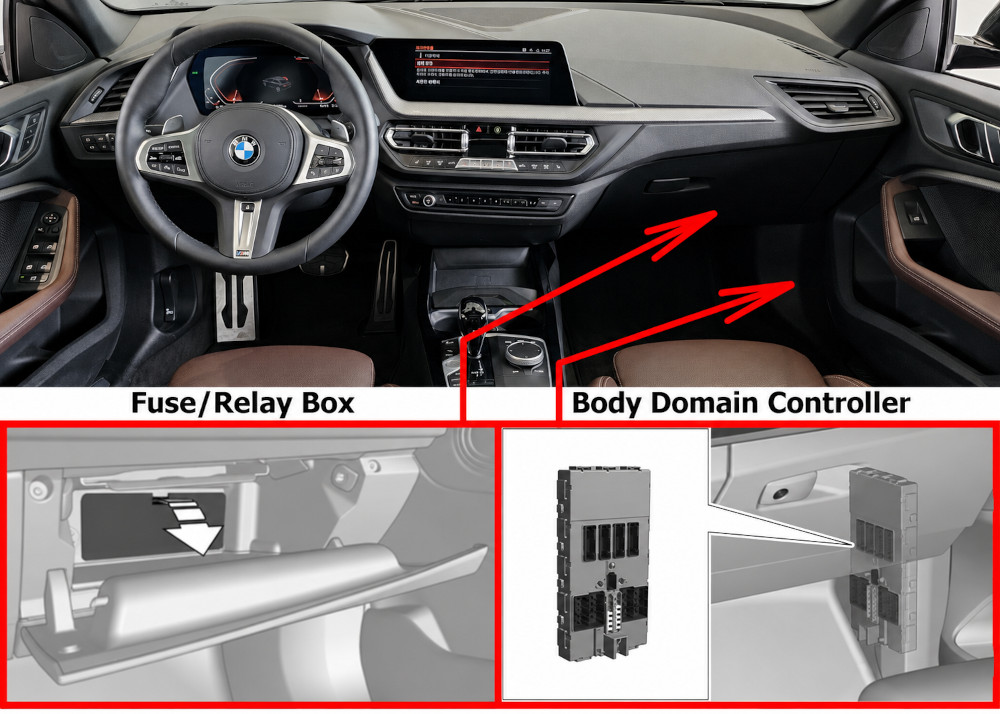

The fuses are located behind a cover in the glove compartment on the front passenger side. Press the holder downward, arrow 1, and take off the cover, arrow 2.

Fuses and Relays Box Diagram

Fuses

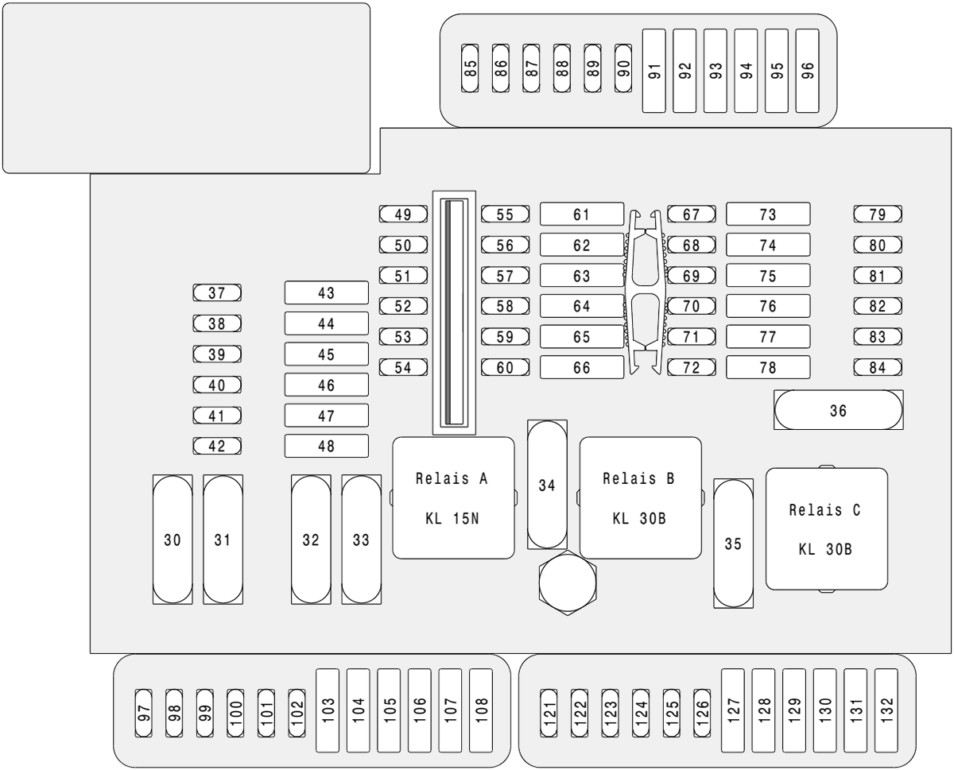

Assignment of the fuses in the passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
3140AABS (Anti-lock Brake System), DSC (Dynamic Stability Control), Parking brake
3360ASteering column function control module, Main headlights / Rain sensor / Light sensor / Electronic ride height control, Rear seat entertainment, Door module / Automatic soft-close, Electric fan, OBD, Air conditioner system, HiFi Amp, TV tuner, Video module, Boot lid (tailgate) lock / Soft-close automatic for tailgate, Telephone
3440AElectric fan, Air conditioner system
3540AHorn, Rear wiper relay
375AABS (Anti-lock Brake System), DSC (Dynamic Stability Control), Indicator Cutie Viteze Automata, Sistem EDC, Sistemul de tractiune integrala / Gear indicator, EDC, Gear Automatic Transmission Control, AWD, Parking brake
385ADoor module / Automatic soft-close
395ARear seat entertainment, Door module / Automatic soft-close, Seatbelts, Convertible top module / Convertible relay
415AHead-Up Display (HUD), Instrument cluster
425ADoor module / Automatic soft-close, Tire pressure control RDV
4330APower windows with anti-trapping function
4430APower windows with anti-trapping function
4530ASteering column function control module, Air suspension system, Indicator Cutie Viteze Automata, Sistem EDC, Sistemul de tractiune integrala / Gear indicator, EDC, Gear Automatic Transmission Control, AWD, Driver assistance system, Air conditioner system, Fuel pump relay / Fuel pump control
4630APower windows with anti-trapping function
4730APower windows with anti-trapping function
4830ARear window defroster (defogger)
4920ATrailer module
5020ATrailer module
56Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V)
617.5AInstrument cluster
627.5AFront & rear cigarette lighter, 12V socket / Glove box charging socket (12V)
6320ATrailer module
6415AHead-Up Display (HUD), Rear seat entertainment, Navigation system
6520AFront & rear cigarette lighter, 12V socket / Glove box charging socket (12V)
6620AFuel pump relay / Fuel pump control,
675AElectric mirrors
685ARear seat entertainment
695AElectric mirrors, Power windows with anti-trapping function, Power windows with anti-trapping function
705AInterior lights
715AInterior lights
725AElectric fan, DME – Digital Motor Electronics / Integrated Voltage Module – IVM
7310ASeat adjustment
747.5AElectric fan, OBD, DME – Digital Motor Electronics / Integrated Voltage Module – IVM
7510ASeat adjustment, OBD
765ASeatbelts
7710ASteering column function control module
7810AOBD, DME – Digital Motor Electronics / Integrated Voltage Module – IVM
795ARear seat entertainment, Parking sensors / Home link (garage door opener), Navigation system, Electrochromic rear view mirror
815AElectric fan, DME – Digital Motor Electronics / Integrated Voltage Module – IVM
8215AIndicator Cutie Viteze Automata, Sistem EDC, Sistemul de tractiune integrala / Gear indicator, EDC, Gear Automatic Transmission Control, AWD
835ASteering column function control module, Driver assistance system
845AIndicator Cutie Viteze Automata, Sistem EDC, Sistemul de tractiune integrala / Gear indicator, EDC, Gear Automatic Transmission Control, AWD
855ADoor module / Automatic soft-close, Telephone, Near Field Communication
865ARear seat entertainment, Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V)
875ADriver assistance system, Rear seat entertainment
884ADriver assistance system, Parking sensors / Home link (garage door opener)
8910AHeating / Independent aux. heater
907.5ADME – Digital Motor Electronics / Integrated Voltage Module – IVM
9115ARear seat entertainment, HiFi Amp, TV tuner, Video module
9210AAir suspension system
9310AOBD, DME – Digital Motor Electronics / Integrated Voltage Module – IVM
9415AOBD, DME – Digital Motor Electronics / Integrated Voltage Module – IVM
9530ASeat adjustment
9610ABoot lid (tailgate) lock / Soft-close automatic for tailgate
995AOBD, Fuel pump relay / Fuel pump control
1015ADoor module / Automatic soft-close, Near Field Communication
103Seatbelts
104Seatbelts
10540ARear seat entertainment
10630AOBD, DME – Digital Motor Electronics / Integrated Voltage Module – IVM
10740ABoot lid (tailgate) lock / Soft-close automatic for tailgate
10830AConvertible top module / Convertible relay
113OBD
121HiFi Amp, TV tuner, Video module
122DME – Digital Motor Electronics / Integrated Voltage Module – IVM
12730AHeated seats, Seat adjustment
12830AHeated seats
12930ARear seat entertainment
13030AIndicator Cutie Viteze Automata, Sistem EDC, Sistemul de tractiune integrala / Gear indicator, EDC, Gear Automatic Transmission Control, AWD

Body Domain Controller

It is positioned in the front pillar on the passenger side, beneath the glove box.

Fuses

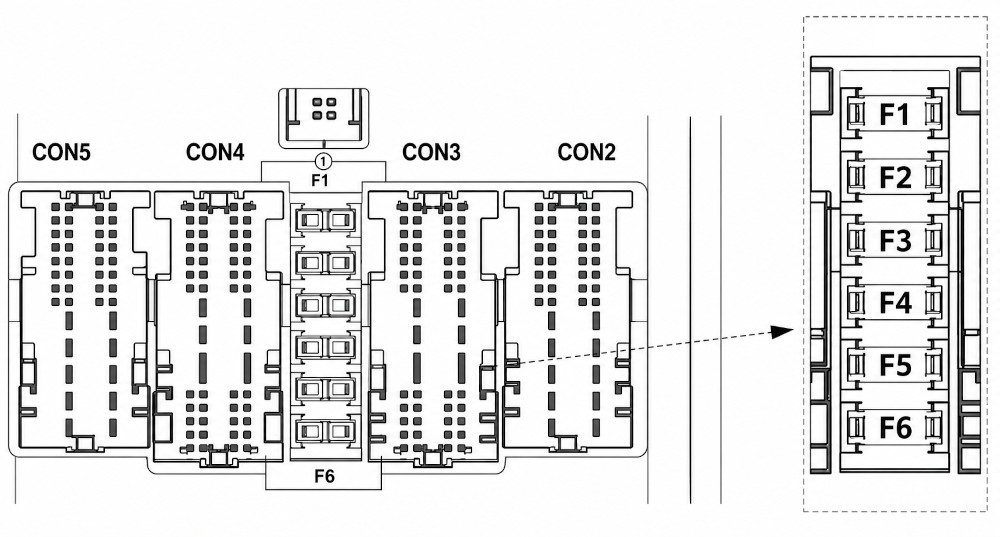

Assignment of the fuses in the body domain controller fuse box

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
F15ASteering column switch box, Front center air vent, audio control panel, lighting control unit, head unit
F27.5ADiagnostic socket, Electronic ride height control, vertical dynamics platform
F37.5AHeating/air conditioning system, Tailgate function module, rain/light/sun/condensation sensor
F45APassenger Side Outer Door Handle Electronic Module, Driver Side Rear Door Outer Handle Electronic Module, Rear Passenger Side Outer Door Handle Electronic Module, Power Control Unit, Telematics Unit
F520ALock Relay, Unlock Relay (Doors, Fuel Cap)
F620ADriver’s Door Lock Relay, Lockout Relay (Driver’s Door Lock, Front Passenger’s Door Lock, Driver’s Side Rear Door Lock, Rear Passenger’s Side Door Lock, Fuel Door Central Lock Actuator)
