Explore BMW 7 Series fuse box diagrams for 2016–2022 models with fuse locations, panel layouts, and detailed electrical system information for petrol, diesel, and plug-in hybrid variants. This article covers the sixth-generation BMW 7 Series (Model Codes: G11, G12), available from 2016, and includes fuse box diagrams for BMW 7 Series 2016, 2017, 2018, 2019, 2020, 2021 and 2022 (Models: 730i, 740i, 740e, 745e, 750i, M760Li, 725d, 730d, 740d and 750d), along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse (fuse layout).

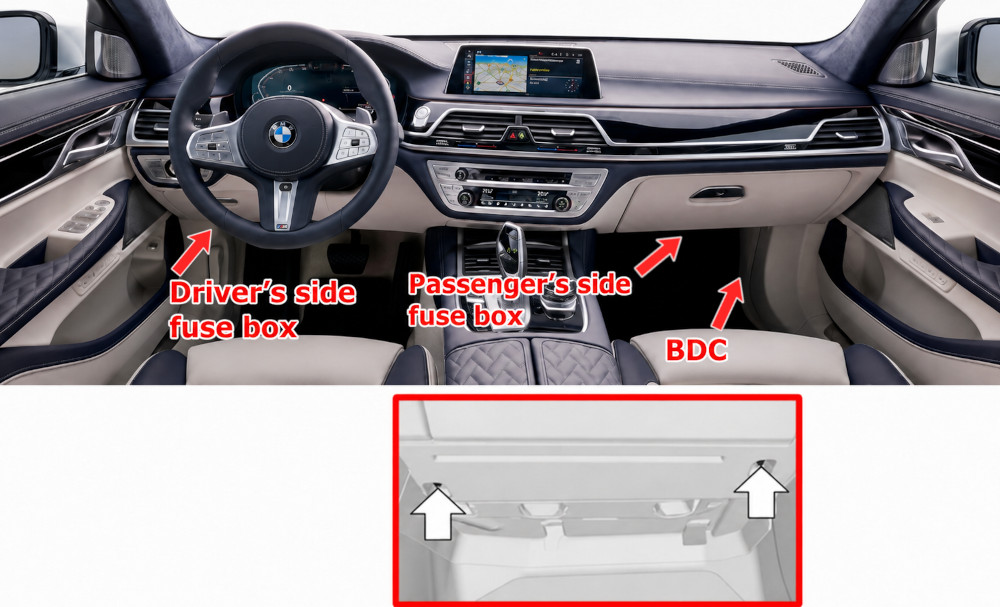

Two fuse panels are positioned beneath the dashboard: the first is on the passenger side, and the second is on the driver side (you may need to remove the protective trim—loosen the fasteners, indicated by arrows, and open the cover). There are also several fuses on the Body Domain Controller, which is located in the passenger-side pillar behind the trim.

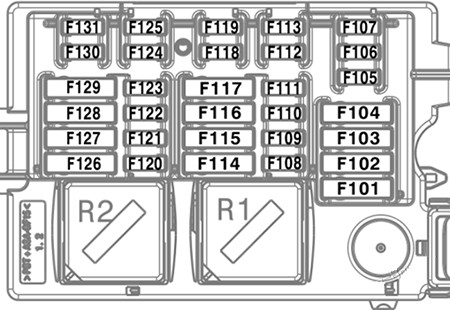

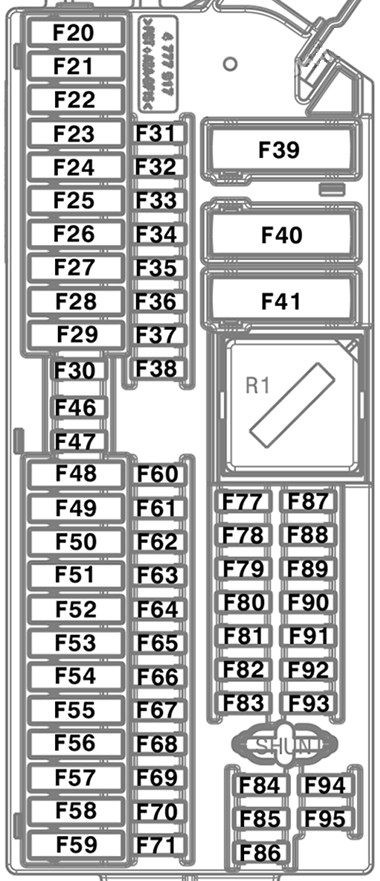

Fuse Box Diagram (Driver’s Side)
Fuses
Assignment of the fuses in the passenger compartment on the driver’s side
Fuse Data
Full access is available to registered users — log in or register.
Front passenger seat module (with seat module), front passenger seat adjustment switch block (without seat module)
56
15A
Electric steering column adjustment
57
10A
Steering column switch block
58
10A
Functional center of the roof
60
5A
Seat management
61
5A
Upper Center Instrument Panel Light, Upper Front Passenger Instrument Panel Light, Lower Center Instrument Panel Light, Lower Driver/Passenger Instrument Panel Light, Front Left/Right Footwell Light
62
5A
Glove box light switch, driver’s camera system, interior lighting
63
5A
Dashboard speaker light, air freshener, CD drive, ionizer, 48V starter generator
64
5A
Driver Seat Back Width Adjustment Valve Block, Driver Lumbar Support Valve Block, Seat Adjustment Switch Block (Driver’s Side), Footwell Tail Light (Driver’s Side), Driver’s Backrest Backlight, USB Charging Socket, Module front left seat inflation
65
5A
Front Passenger Back Width Adjustment Valve Unit, Front Passenger Lumbar Support Valve Unit, Seat Adjustment Switch Unit (Front Passenger’s Side), Rear Footwell Light (Front Passenger’s Side), Front Passenger’s Back Seat Back Lighting, USB Connector for Charging No. 2, Front Right Seat Inflation Module
66
5A
Interior lighting
67
5A
Driver’s Door Switch Box, Driver’s Door Seat Switch Box, Driver’s Door Interior Handle Light, Driver’s Door Trim Panel Light (Center), Driver’s Door Pocket Light, Driver’s Door Trim Panel Light (Top), Front Left Midrange Speaker Light, Light front left tweeter
68
5A
Passenger Outside Mirror, Passenger Door Switch Box, Passenger Door Interior Door Handle Light, Front Passenger Door Trim Panel Light (Center), Passenger Door Pocket Light, Front Passenger Door Trim Panel Light (Top), Front Right Midrange Speaker Light, Light front right tweeter
69
10A
Crash safety module
70
5A
Electric fan shutdown relay, electric fan

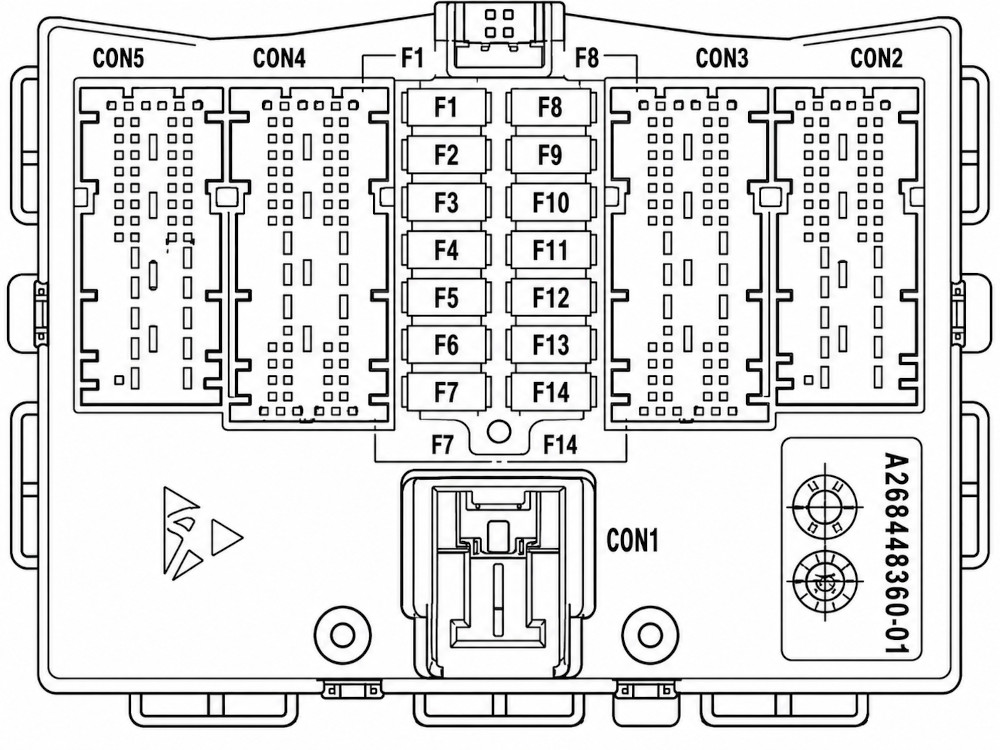

Fuse Box Diagram (BDC)
Body Domain Controller
Fuses
Assignment of the fuses in the passenger compartment (Body Domain Controller)
Fuse Data
Full access is available to registered users — log in or register.
Driver’s door lock relay, lock relay (driver’s door lock, front passenger’s door lock, driver’s side rear door lock, rear passenger’s side door lock, fuel filler door central lock actuator)
7
15A
Signal (Horn)
10
5A
Steering column switch block, front center ventilation grille, audio control panel, lighting control unit, head unit
