Discover BMW 8 Series fuse box diagrams for 2018–2026 models with fuse locations, panel layouts, and detailed electrical system information for Coupe, Convertible, and Gran Coupe variants. This article covers the second-generation BMW 8 Series (Model Codes: G14, G15, G16) , produced from 2018 , and includes fuse box diagrams for BMW 8 Series 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025 and 2026 (Models: 840i, M850i, 840d and M8 ), along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse (fuse layout).

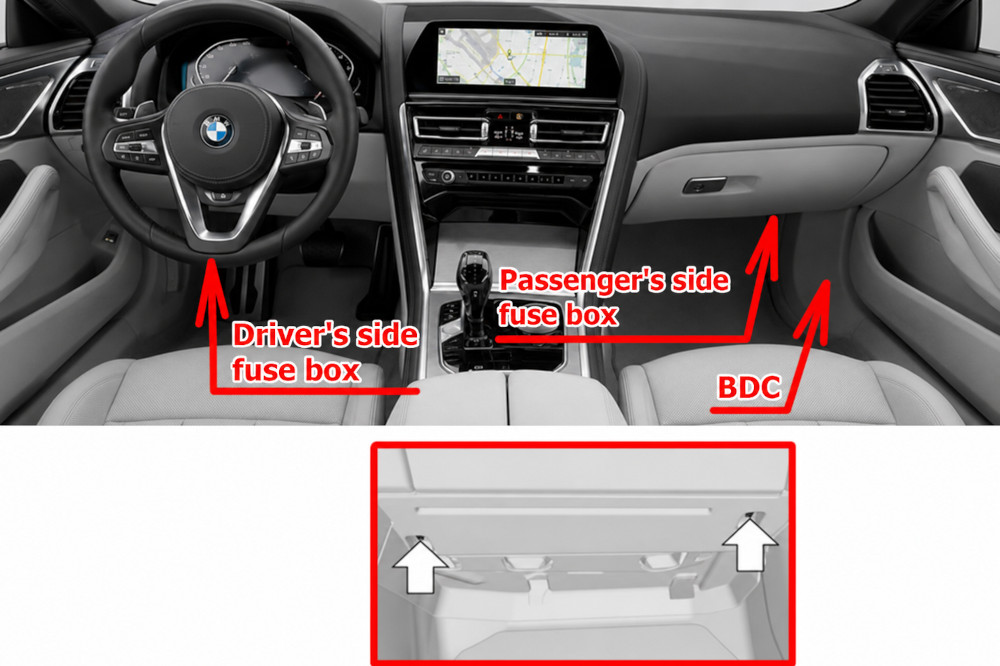

Two fuse panels are positioned beneath the dashboard: the first is on the passenger side, and the second is on the driver side (you may need to remove the protective trim—loosen the fasteners, indicated by arrows, and open the cover). There are also several fuses on the Body Domain Controller, which is located in the passenger-side pillar behind the trim.

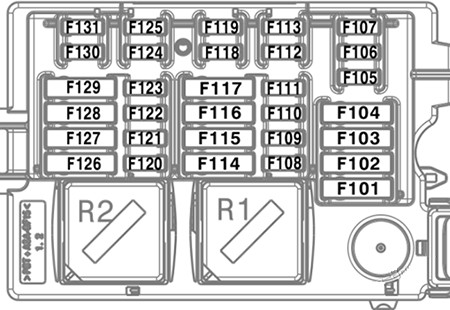

Assignment of the fuses in the passenger compartment (Driver’s Side)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 105 7.5A DME – Digital Motor Electronics / Integrated Voltage Module – IVM 107 10A Fuel pump, Hybrid system 108 15A DME – Digital Motor Electronics / Integrated Voltage Module – IVM, Hybrid system 110 5A Heating / Independent aux. heater 112 10A Heated seats 113 10A Heated seats 117 30A Gear indicator, EDC, Gear Automatic Transmission Control, AWD, Hybrid system 118 10A Heated seats 119 10A Heated seats
This content requires JavaScript and a valid membership to view.

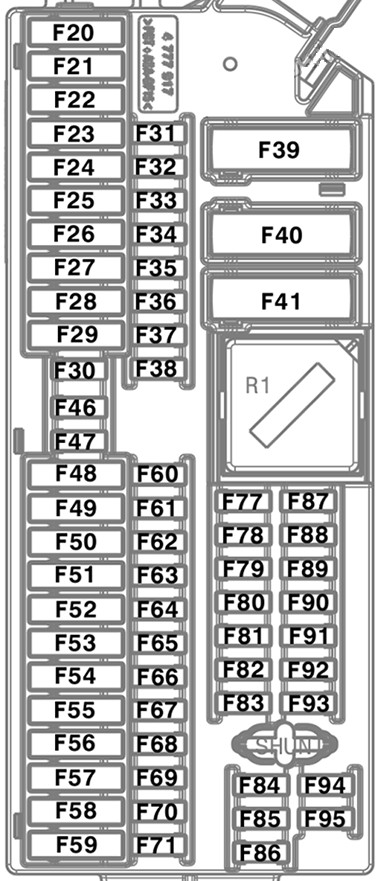

Assignment of the fuses in the passenger compartment (Passenger’s Side)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 20 30A Seatbelts 21 40A ABS (Anti-lock Brake System), DSC (Dynamic Stability Control), Parking brake 22 30A Seatbelts 23 30A Electric windows 24 30A Electric windows 25 30A Electric windows 26 30A Electric windows 27 20A Replacement top module; Alternating relay 28 20A BDC (Body Domain Controller) 29 20A Main headlights / Rain sensor / Light sensor / Electronic ride height control 30 5A Parking brake, Transmission; DSC – Dynamic Stability Control; SMG – Sequential manual gearbox. 31 5A Instrument Cluster 32 5A Car alarm, Replacement top module; Alternating relay, Interior lights 33 5A Sound system 34 10A Air suspension compressor relay 37 10A Air conditioning system, Electric fan 39 40A Air conditioning system, Electric fan 40 60A BDC (Body Domain Controller), Main headlights / Rain sensor / Light sensor / Electronic ride height control 41 40A BDC (Body Domain Controller) 46 5A Driving assistance 47 5A Air conditioning system, Infotainment, Interior lights, Electrochromic rear view mirror 48 30A Rear wiper relay 49 20A Gear indicator, EDC, Gear Automatic Transmission Control, AWD 50 20A Front and rear lighter; 12V socket; Glove compartment charging socket (12V). 51 20A Heated seats 52 20A Heated seats 53 30A Seat adjustment 54 20A Heating / Independent aux. heater 55 30A Seat adjustment 56 15A Steering column function control module 57 10A Steering column function control module 58 10A Replacement top module; Alternating relay 59 10A 48V 60 5A Seat adjustment, Interior lights 61 5A Instrument cluster 62 5A Air conditioning system, Interior lights 63 5A Air conditioning system, Driving assistance, Infotainment, Interior lights 64 5A Seat adjustment, Interior lights 65 5A Seat adjustment, Interior lights 66 5A Interior lights 67 5A Seat adjustment, Interior lights, Electric mirrors 68 5A Seat adjustment, Electric mirrors 69 10A Seatbelts 70 5A 48V, Electric fan 71 5A Gear indicator, EDC, Gear Automatic Transmission Control, AWD, DME – Digital Motor Electronics / Integrated Voltage Module – IVM 79 5A Interior lights 80 5A Air conditioning system 83 5A Steering column function control module 90 5A Driving assistance 91 5A Driving assistance 92 5A Driving assistance 93 10A Steering column function control module
This content requires JavaScript and a valid membership to view.

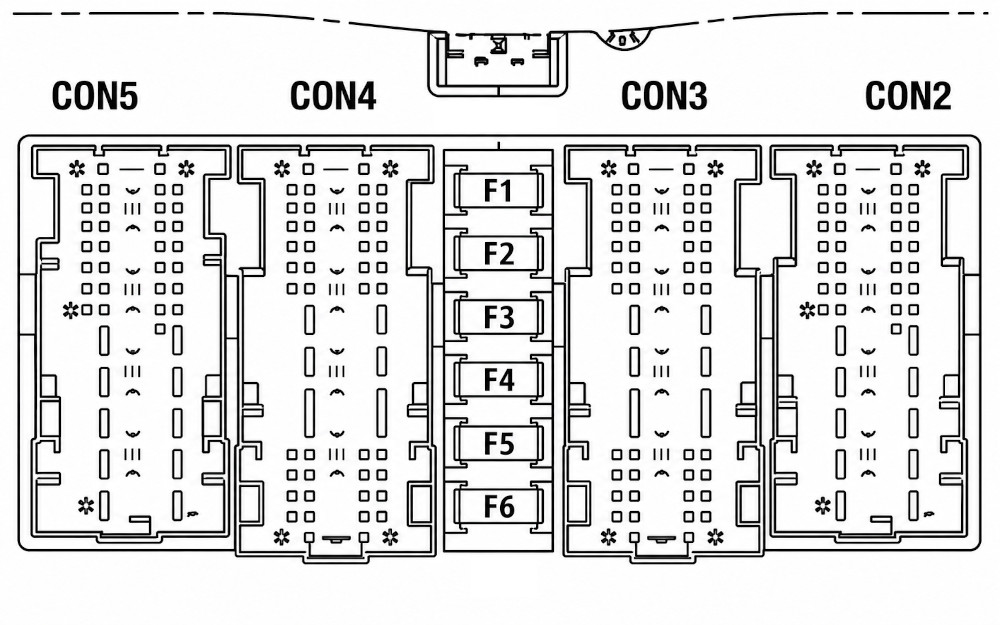

Body Domain Controller fuse box diagram.
Assignment of the fuses in the passenger compartment (Body Domain Controller)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description F1 5A Steering column function control module, Driving assistance, Infotainment, Main headlights / Rain sensor / Light sensor / Electronic ride height control F2 7.5A On-Board Diagnostics, Air suspension compressor relay, Load level, Dynamic drive system F3 7.5A Air conditioning system, Electric rear sunshade, Tailgate, Main headlights / Rain sensor / Light sensor / Electronic ride height control F4 5A Dynamic drive system, Infotainment, Door module / Automatic soft-close, START-STOP system F5 20A Door module / Automatic soft-close F6 20A Door module / Automatic soft-close
This content requires JavaScript and a valid membership to view.

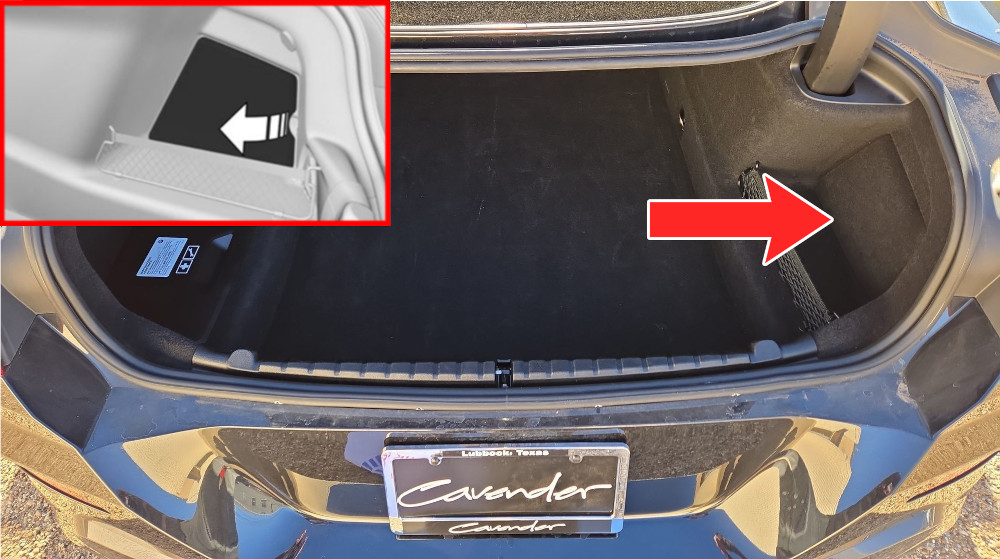

The fuses are positioned in the cargo area on the right side, behind a cover.

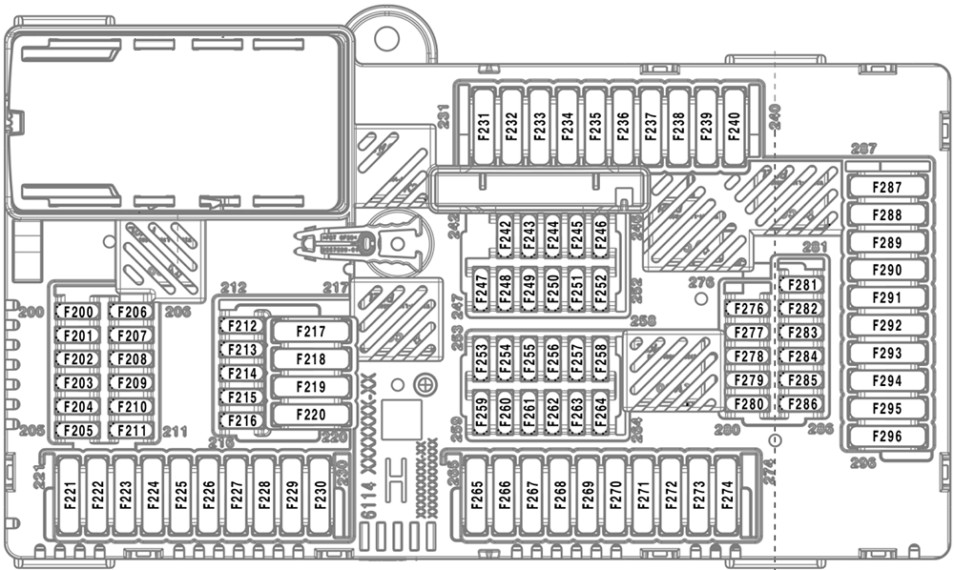

Assignment of the fuses in the luggage compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 203 7.5A DME – Digital Motor Electronics / Integrated Voltage Module – IVM 204 5A Load level, Driving assistance, Infotainment, DME – Digital Motor Electronics / Integrated Voltage Module – IVM 206 10A Air conditioning system, DME – Digital Motor Electronics / Integrated Voltage Module – IVM 208 5A Head-Up Display (HUD) 209 5A BacUp alarm, Dynamic drive system, DME – Digital Motor Electronics / Integrated Voltage Module – IVM, Hybrid system 210 5A Driving assistance 212 15A Head-Up Display (HUD), Infotainment 214 5A Infotainment 215 10A Infotainment 216 5A Infotainment, Interior lights 217 40A Infotainment 218 20A Infotainment 220 30A Infotainment 221 30A DME – Digital Motor Electronics / Integrated Voltage Module – IVM 223 20A Steering column function control module, Main headlights / Rain sensor / Light sensor / Electronic ride height control 224 30A Air suspension compressor relay, Dynamic drive system, Load level 225 20A Main headlights / Rain sensor / Light sensor / Electronic ride height control 226 40A Electric rear sunshade, Tailgate 227 30A DME – Digital Motor Electronics / Integrated Voltage Module – IVM 230 30A Electric rear sunshade, Tailgate 231 30A Rear window defroster (defogger) 232 30A Rear window defroster (defogger) 240 40A Trailer module, towbar 244 5A Car alarm, Fuel pump, Door module / Automatic soft-close, START-STOP system, Hybrid system 249 10A Door module / Automatic soft-close 251 10A Door module / Automatic soft-close 252 5A Driving assistance 254 5A Tailgate 255 5A Infotainment 256 10A Electric rear sunshade, Door module / Automatic soft-close 257 5A Seatbelts, Driving assistance, Hybrid system, Interior lights 258 10A Electric rear sunshade, Door module / Automatic soft-close 259 15A DME – Digital Motor Electronics / Integrated Voltage Module – IVM 262 5A Air conditioning system, Heated seats, Replacement top module; Alternating relay, Load level, Parking sensors / Home link (garage door opener), Driving assistance, Head-Up Display (HUD), Infotainment 263 7.5A Seat adjustment 264 10A Tailgate 267 30A Heated seats, Seat adjustment, Replacement top module; Alternating relay 268 20A Replacement top module; Alternating relay 269 30A Seat adjustment, Load level 271 30A Fuel pump, DME – Digital Motor Electronics / Integrated Voltage Module – IVM 273 20A Front and rear lighter; 12V socket; Glove compartment 276 5A Steering column function control module 277 5A Air conditioning system, Head-Up Display (HUD), Infotainment 278 5A Hybrid system 280 10A Hybrid system 282 20A Trailer module, towbar 284 20A Front and rear lighter; 12V socket; Glove compartment, Trailer module, towbar 289 20A Trailer module, towbar
This content requires JavaScript and a valid membership to view.
