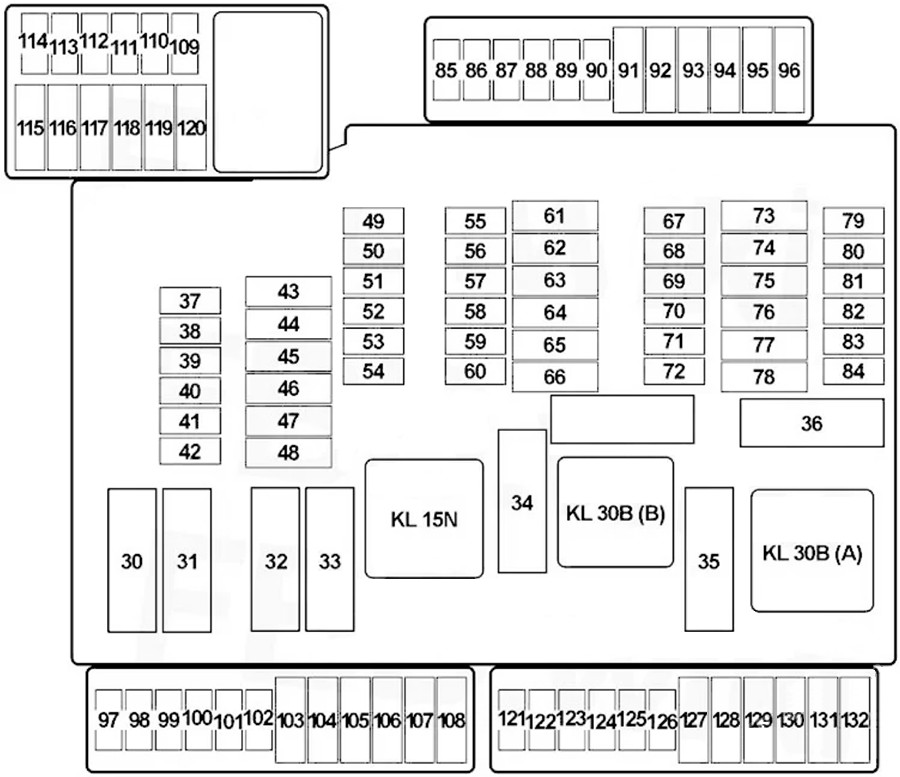

| 30 | — | – |
| 31 | — | – |

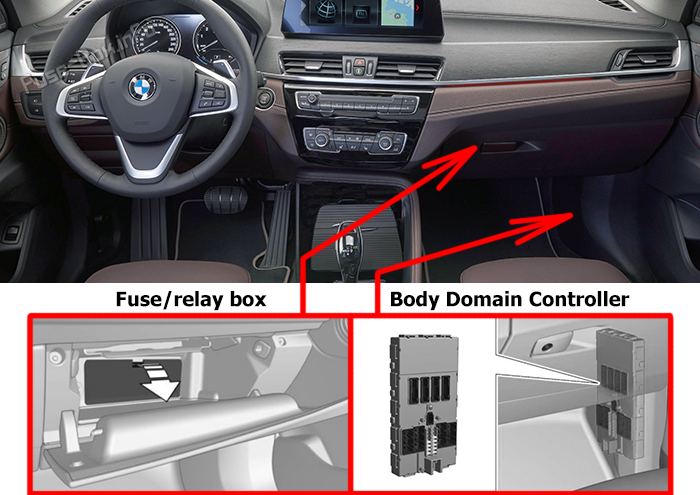

| 32 | 40A | Body Domain Controller |
| 33 | — | – |
| 34 | 40A | Fan output stage |
| 35 | 50A | Body Domain Controller |
| 37 | 5A | Parking brake button |
| 38 | 5A | Siren with tilt sensor |
| 39 | 5A | Roof function center |
| 40 | 5A | Dynamic Stability Control (DSC) |
| 41 | 5A | Instrument cluster control unit |
| 42 | 5A | Remote control receiver |
| 43 | 30A | Roof Function Center |
| 44 | 20A | Right headlight |
| 45 | 30A / 40A | Without electromechanical parking brake (30A): Dynamic Stability Control (DSC)
With electromechanical parking brake (40A): Dynamic Stability Control (DSC) |
| 46 | 5A | Natural vacuum leak detection |
| 47 | 20A / 30A | 2016 (30A): Longitudinal torque distribution
2017-2022 (20A): Left headlight |
| 48 | 30A | Selective Catalytic Regeneration (SCR) Control Unit |
| 49 | 5A | Electric exhaust flap, electric auxiliary heater control electronics #2 |
| 50 | 5A | Radiator shutter actuator, catalytic converter sensor (except PHEV) |
| 51 | 5A | Fan Base |
| 52 | 5A | Electrochromic interior rear view mirror |
| 53 | 5A | Automatic air recirculation control (AUC) sensor |
| 54 | 5A | Electromechanical power steering |
| 55 | 5A | Reversing camera, parking assistant |
| 56 | 5A | Longitudinal Torque Distribution, Vehicle Sound Generator (PHEV), Vehicle Sound Generator #2 (PHEV) |
| 57 | — | – |
| 58 | 10A | Steering column switch |
| 59 | 5A | Camera-based driver assistance system |
| 60 | 5A | Additional optional system |
| 61 | 20A | Head unit (radio or navigation system) |
| 62 | 5A | Front interior lighting, rain light, solar condensation sensor, vanity mirror lighting, third row interior lighting, trim strip lighting, interior trim lighting, door trim lighting |
| 63 | 20A | Trailer socket |
| 64 | — | – |
| 65 | 20A | Front cigarette lighter (12V socket), socket (under glove box) |
| 66 | 20A | Electric fuel pump control electronics |
| 67 | 5A / 7.5A | 2016-2017 (7.5A): Outside mirror (front passenger)
2017-2022 (5A): Outside mirror (front passenger) |
| 68 | 5A | Touchbox, controller (CON), USB hub, USB charging connector #3 |
| 69 | 5A / 7.5A | 2016-2017 (7.5A): Outside mirror (switch block – driver’s door)
2017-2022 (5A): Outside mirror (switch block – driver’s door) |
| 70 | 5A | Luggage compartment light, glove box light, rear lid button on the inside of the rear lid |
| 71 | 7.5A | Instrument cluster control unit |
| 72 | 5A | Standard: Electric fan cut-out relay
Fan >400W: Built-in power module |
| 73 | 10A | Driver’s Seat Back Adjustment (Valve Block), Driver’s Lumbar Support Valve Block, Driver’s Seat Back Width Adjustment Switch |
| 74 | 7.5A | Gasoline (TU): Turbocharger coolant pump |
| 75 | 10A | Front passenger seat backrest adjustment (valve block), passenger lumbar support valve block, passenger seat backrest width adjustment switch |
| 76 | 5A | 2016-2017: Front interior lighting |
| 77 | 10A | Nitrogen Oxide Sensor Downstream Selective Catalytic Reduction (SCR) Converter |
| 78 | 15A | Selective Catalytic Regeneration (SCR) Control Unit |
| 79 | 5A | Base, Wireless Charging Accessory Tray, Wireless Charging Accessory Tray Antenna Booster |
| 80 | 5A | Front interior lighting |
| 81 | 15A | Electronic transmission control |
| 82 | 5A | Selector level (gear switch) |
| 83 | 5A / 7.5A | 2016 (5A): Digital engine electronics
2017-2022 (7.5A): Digital engine electronics |
| 84 | 5A | With manual transmission: clutch module
With dual clutch transmission: dual clutch transmission control unit, dual clutch transmission relay |
| 85 | 5A | Electrochromic interior rear view mirror |
| 86 | — | – |
| 87 | — | – |
| 88 | — | – |
| 89 | — | – |
| 90 | 5A | Automatic tailgate release |
| 91 | — | – |
| 92 | 10A | Optional optional system |
| 93 | — | – |
| 94 | 20A | Remote control electronics for seat back release |
| 95 | 30A | Seat adjustment switch block, front passenger side |
| 96 | 10A | Trunk / tailgate lock |
| 97 | 5A | Auxiliary control unit |
| 98 | — | – |
| 99 | — | – |
| 100 | 5A | PHEV: high voltage battery pack |
| 101 | 5A | ID Reader, Car Sharing Module (CSM) |
| 102 | — | – |
| 103 | 20A | Right headlight |
| 104 | 20A | Left headlight |
| 105 | — | – |
| 106 | — | – |
| 107 | 40A | 2016-2017: Automatic tailgate release
2017-2022: Rear door function module |
| 108 | 30A | 2020-2022: Rear door function module |
| 109 | 5A | Bistable relay |
| 110 | 5A | Bistable relay |
| 111 | 5A | Bistable relay |
| 112 | — | – |
| 113 | 10A | PHEV (2016): Pressurized Fuel Tank Control Module |
| 114 | — | – |
| 115 | 5A | PHEV: convenient charging electronics |
| 116 | — | – |
| 117 | — | – |
| 118 | — | – |
| 119 | 20A | Trailer module |
| 120 | 20A | Trailer module |
| 121 | 7.5A | USB charging port #4 |
| 122 | 5A | PHEV: gas generator with safety battery terminal |
| 123 | 5A | PHEV: electric air conditioning compressor, additional electric heater |
| 124 | 10A | PHEV: Electrical Machine Electronics |
| 125 | — | – |
| 126 | — | – |
| 127 | 30A | Electronic driver’s seat heater (basic version), driver’s seat module (High version) |
| 128 | 30A | Electronically heated front passenger seat |
| 129 | 30A | Hi-Fi amplifier |
| 130 | 10A | Petrol: Coolant pump 2 in low temperature coolant circuit |
| 131 | 30A | Longitudinal torque distribution, transmission oil pump (PHEV) |
| 132 | 20A | Socket under armrest, rear socket (2016-2018), socket in trunk |
