BMW X1 (U11) | 2023-2026

View BMW X1 fuse box diagrams for 2023–2026 models with fuse locations, panel layouts, and detailed electrical system information for the latest generation of this compact SUV. This article covers the third-generation BMW X1 (Model Code: U11), available from 2023, and includes fuse box diagrams for BMW X1 2023, 2024, 2025 and 2026, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse (fuse layout).

Passenger Compartment (Passenger’s Side)

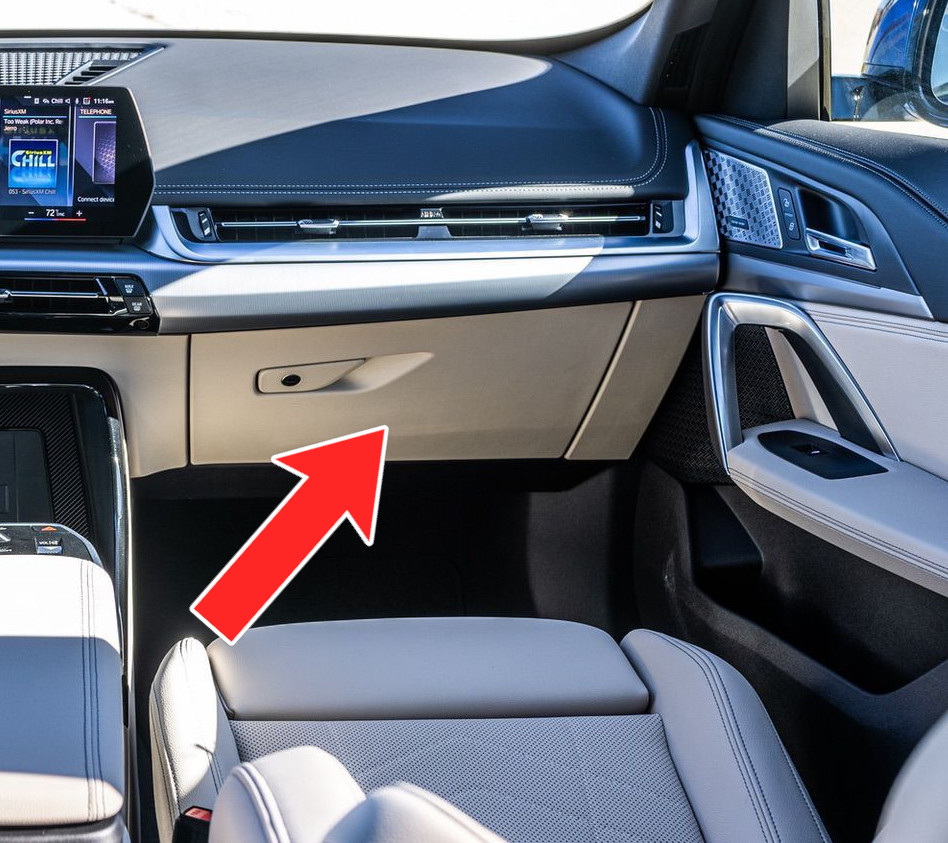

Fuse Box Location

This fuse panel is situated beneath the glove compartment. Take off the protective cover to reach it.

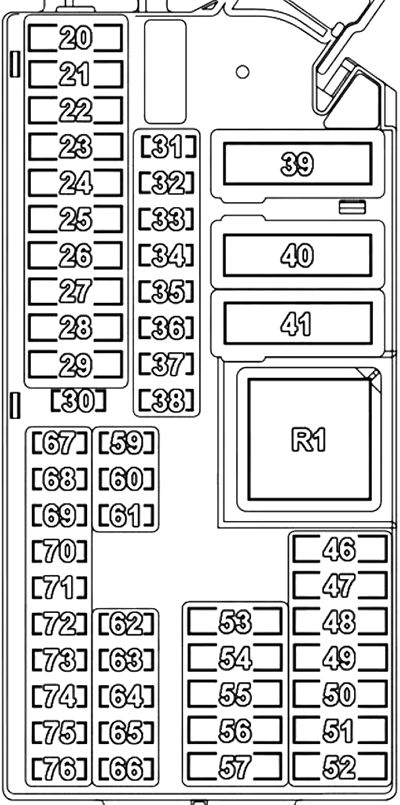

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment fuse box (Passenger’s Side)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
2030AFuel pump
2115AInstrument cluster, Head-Up Display (HUD), Infotainment
2330AReplacement top module, Alternating relay
2440ATrunk lid (tailgate) lock, Automatic tailgate closing
2530AElectric mirrors
2630AFuel injection and similar electronics (combustion engine)
2740ARear window defroster, Steering column function control module
2830ARear window defroster, Steering column function control module
2940AHorn, On-Board Diagnostics (OBD), Infotainment, BCP, Main headlights, Rain sensor, Light sensor, Electronic ride height control
325AAlarm
337.5ADoor module / Automatic soft-close, Sound system
367.5AInstrument cluster, Parking sensors / HomeLink (garage door opener), Head-Up Display (HUD), Infotainment
377.5AHybrid system
385AReplacement top module, Alternating relay
3950ATrailer module
4060AHorn, On-Board Diagnostics (OBD), Infotainment, BCP, Main headlights, Rain sensor, Light sensor, Electronic ride height control
4140ASound system (combustion engine models)
4620AFront and rear cigarette lighter, 12 V socket, Glove box charging socket
4730ASeat adjustment
4820ATrailer module
4930ACombustion engine: Gear indicator, EDC, Automatic transmission control, AWD, Fuel injection electronics
4920AHybrid system: Gear indicator, EDC, Automatic transmission control, AWD, Fuel injection electronics
5030ATrailer module
5115AFuel injection electronics (combustion engine)
5210AFuel injection electronics (combustion engine)
5330AHeated seats
5420ATrailer module
5610AFuel injection electronics (combustion engine)
5740AReplacement top module, Alternating relay (combustion engine)
605ARear window defroster, Steering column function control module
6110ASteering column function control module
6210ADriving assistance systems
635AElectric fan
645AInterior lights
657.5AParking sensors / HomeLink (garage door opener), Head-Up Display (HUD)
665ASeat adjustment
6710ADriving assistance systems
685AParking sensors / HomeLink (garage door opener)
695ADriving assistance systems
705ATrunk lid (tailgate) lock, Automatic tailgate closing, Interior lights
7110ASeat belts
737.5AReplacement top module, Alternating relay, Electrochromic rear-view mirror
747.5AFuel injection electronics, Hybrid system
7610AParking sensors / HomeLink (garage door opener), Infotainment

Passenger Compartment (Driver’s Side)

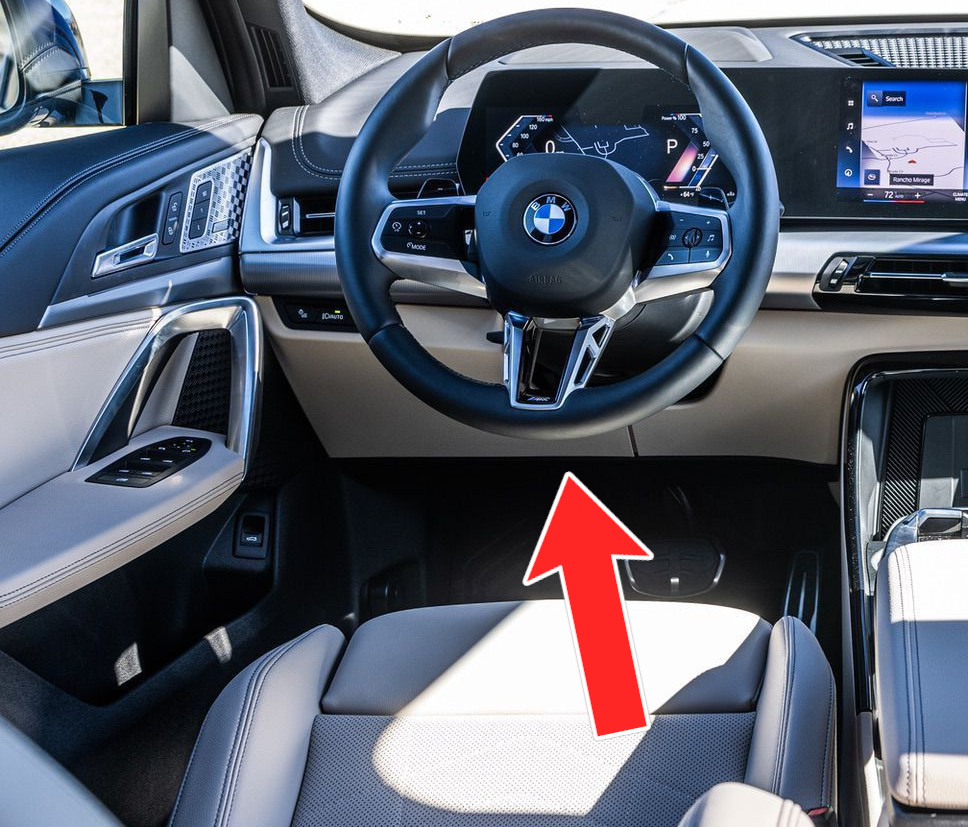

Fuse Box Location

This fuse panel is positioned beneath the instrument panel on the driver’s side.

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment fuse box (Driver’s Side)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
2440ASound system
2530AElectric windows, Electric mirrors
305AInfotainment, START-STOP system
367.5ADoor module, Automatic soft closing
377.5AElectric / Plug-in Hybrid system
385A48 V system
387.5A48 V system (Electric / Plug-in Hybrid)
3940AAir conditioning system, Heating / Independent auxiliary heater
4040AElectric mirrors (combustion engine models)
4150AABS (Anti-lock Brake System), DSC (Dynamic Stability Control), Parking brake, START-STOP system
4730ASeat adjustment
4920AElectric / Plug-in Hybrid: DME (Digital Motor Electronics), Integrated Voltage Module (IVM)
5130ASound system, Infotainment
527.5ADME (Digital Motor Electronics), Integrated Voltage Module (IVM)
5330AHeated seats
557.5AElectric / Plug-in Hybrid: DME (Digital Motor Electronics), Integrated Voltage Module (IVM)
5610ADME (Digital Motor Electronics), Integrated Voltage Module (IVM)
5615AElectric / Plug-in Hybrid: DME (Digital Motor Electronics), Integrated Voltage Module (IVM)
5740ACombustion engine: Replacement top module, Alternating relay
605ARear window defroster, Steering column function control module
6210ADriving assistance
635ASound system
645AInterior lights
665ASeat adjustment
6715AElectric / Plug-in Hybrid: Hybrid system
685AElectric fan, Parking sensors / HomeLink (garage door opener), Driving assistance, Hybrid system
697.5ANFC
705ADME (Digital Motor Electronics), Integrated Voltage Module (IVM), Hybrid system
7110AGear indicator, DSC (Dynamic Stability Control), SMG (Sequential Manual Gearbox)
725ADriving assistance
745A48 V system, Hybrid system

Passenger Compartment (BDC)

Body Domain Controller

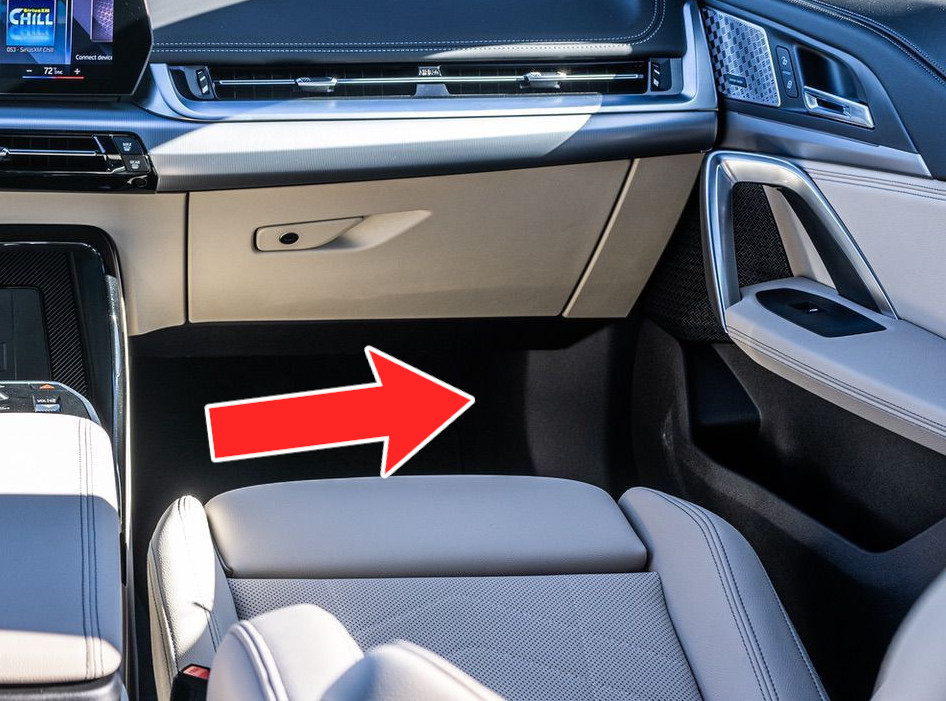

Fuse Box Location

It is situated in the front pillar on the passenger side, beneath the glove box.

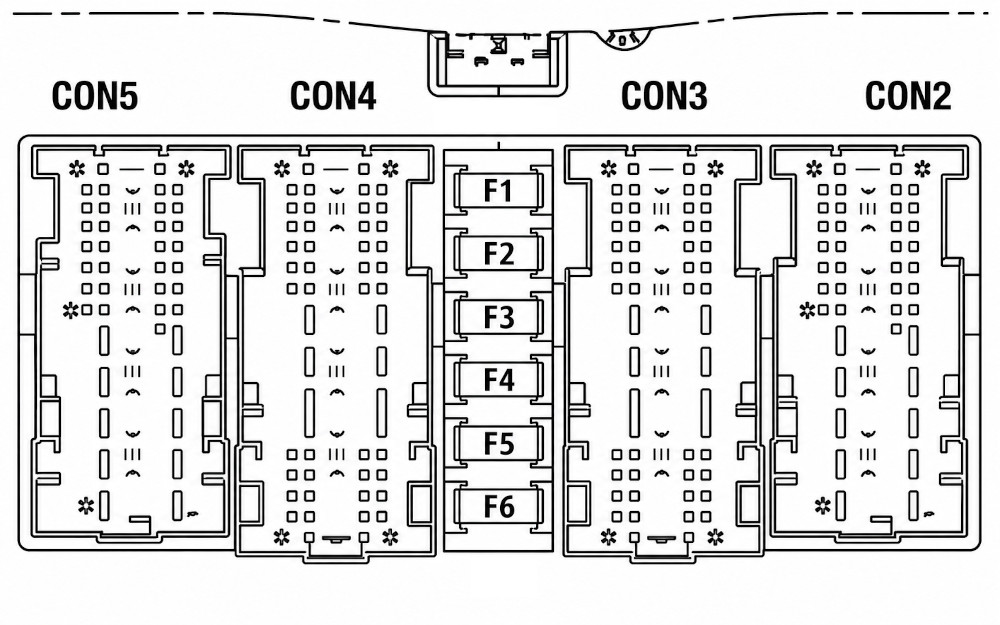

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment fuse box (Body Domain Controller)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
F15ASteering column function control module, Driving assistance systems, Main headlights, Rain sensor, Light sensor, Electronic ride height control, Interior lights
F27.5AOn-board diagnostics (OBD), Hybrid system
F37.5AAir conditioning system, Tailgate
F45AFront and rear cigarette lighter, 12 V socket, Glove box charging socket, Infotainment, Tailgate, Door module / Automatic soft-close, START-STOP system
F520ADoor module / Automatic soft-close
F620ADoor module / Automatic soft-close
