BMW X4 (F26) | 2015-2018 | Fuse Box Diagrams and Locations

BMW X4 (G02) | 2018-2025

Explore BMW X4 fuse box diagrams for 2015–2018 models with fuse locations, panel layouts, and detailed electrical system information for this sporty luxury SUV. This article covers the first-generation BMW X4 (Model Code: F26), available from 2015, and includes fuse box diagrams for BMW X4 2015, 2016, 2017 and 2018, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse (fuse layout).

What’s Included

Passenger Compartment

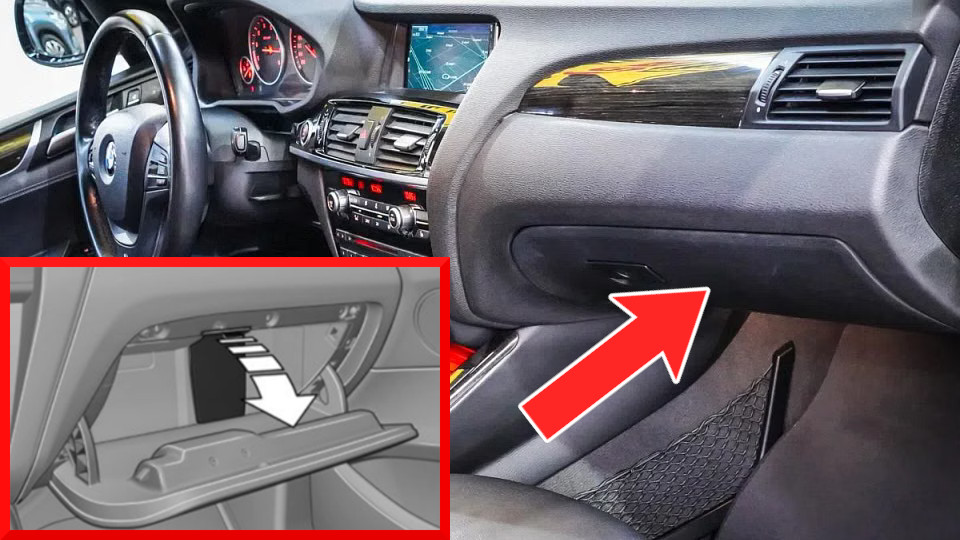

Fuse Box Location

The fuse box is located beneath the lid inside the glove box.

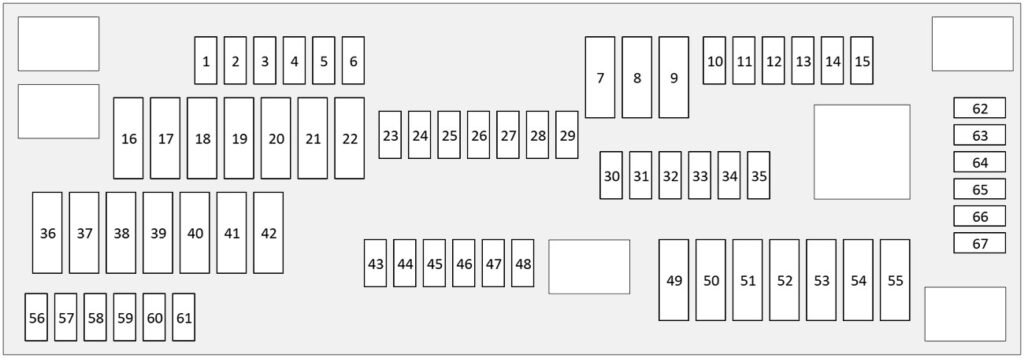

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
2	5A	Door module, Automatic soft-close
3	5A	OBD
4	10A	Main headlights, Rain sensor, Light sensor, Electronic ride height control; Telephone
7	30A	Power windows with anti-trapping function
8	30A	Steering column function control module; Head-Up Display (HUD); Electric mirrors; Main headlights, Rain sensor, Light sensor, Electronic ride height control; Parking sensors, Home link (garage door opener); Horn; Door module, Automatic soft-close; Power windows with anti-trapping function; Rear wiper relay; Washer fluid heater; Instrument cluster; Air-conditioning; Windscreen washers; Headlight washing system
9	30A	Power windows with anti-trapping function
10	10A	Head-Up Display (HUD); Light module
11	7.5A	Air-conditioning
12	5A	Instrument cluster
13	5A	Steering column function control module; Head-Up Display (HUD); Main headlights, Rain sensor, Light sensor, Electronic ride height control; Light module; HiFi Amp, TV tuner, Video module; Interior lights; Instrument cluster
14	15A	Door module, Automatic soft-close
15	20A	Door module, Automatic soft-close
16	40A	Main headlights, Rain sensor, Light sensor, Electronic ride height control; Light module
17	30A	Power windows with anti-trapping function
18	30A	Power windows with anti-trapping function
19	20A	Trailer module
23	5A	Telephone
24	10A	Steering column function control module; Main headlights, Rain sensor, Light sensor, Electronic ride height control
25	5A	Head-Up Display (HUD)
26	5A	Instrument cluster
31	5A	Head-Up Display (HUD); HiFi Amp, TV tuner, Video module; Heated seats; Seat adjustment; Air-conditioning
32	7.5A	Electric mirrors; Door module, Automatic soft-close; Power windows with anti-trapping function; Seat adjustment
33	5A	ABS (Anti-lock Brake System), DSC (Dynamic Stability Control); Steering column function control module; Electric fan
34	5A	ABS (Anti-lock Brake System), DSC (Dynamic Stability Control); Dynamic drive system
35	15A	ABS (Anti-lock Brake System), DSC (Dynamic Stability Control); Digital Diesel Electronics (DDE); DME – Digital Motor Electronics, Integrated Voltage Module – IVM
36	30A	Windscreen washers; Headlight washing system
37	30A	Automatic gearbox indicator, System EDC, All-wheel drive system, Gear indicator, EDC, Gear Automatic Transmission Control, AWD; Dynamic drive system
38	40A	Door module, Automatic soft-close; Start-Stop system
39		Steering column function control module
40	30A	ABS (Anti-lock Brake System), DSC (Dynamic Stability Control); Automatic gearbox indicator, System EDC, All-wheel drive system, Gear indicator, EDC, Gear Automatic Transmission Control, AWD
43	5A	ABS (Anti-lock Brake System), DSC (Dynamic Stability Control); Steering column function control module; Head-Up Display (HUD); HiFi Amp, TV tuner, Video module
44	5A	HiFi Amp, TV tuner, Video module; Heating, Independent aux. heater; Air-conditioning
45		Steering column function control module; Head-Up Display (HUD); Parking sensors, Home link (garage door opener); Dynamic drive system
47	5A	Head-Up Display (HUD); Dynamic drive system
48	5A	Heating, Independent aux. heater; Interior lights
50	20A	Heating, Independent aux. heater
52	30A	Seat adjustment
53	30A	Seat adjustment
54	20A	Front & rear cigarette lighter, 12V socket, Glove box charging socket (12V)
56	5A	Door module, Automatic soft-close; Start-Stop system
57	15A	Main headlights, Rain sensor, Light sensor, Electronic ride height control
58	5A	Panoramic Moon Roof controls; Convertible top module, Convertible relay
60	5A	ABS (Anti-lock Brake System), DSC (Dynamic Stability Control); Steering column function control module
61	20A	Panoramic Moon Roof controls; Electric rear sunshade; Convertible top module, Convertible relay
63	10A	Automatic gearbox indicator, System EDC, All-wheel drive system, Gear indicator, EDC, Gear Automatic Transmission Control, AWD
64	7.5A	Automatic gearbox indicator, System EDC, All-wheel drive system, Gear indicator, EDC, Gear Automatic Transmission Control, AWD
65	20A	Front & rear cigarette lighter, 12V socket, Glove box charging socket (12V)
66	7.5A	Automatic gearbox indicator, System EDC, All-wheel drive system, Gear indicator, EDC, Gear Automatic Transmission Control, AWD; Light module; Interior lights
67	10A	Seat adjustment

Luggage Compartment

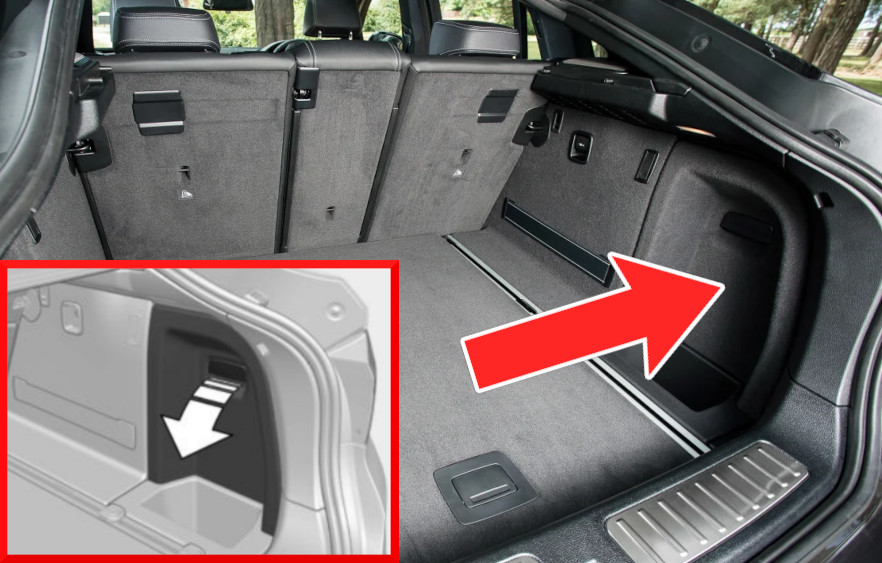

Fuse Box Location

Open the cover on the right-side trim, the arrow, and remove the sound insulation.

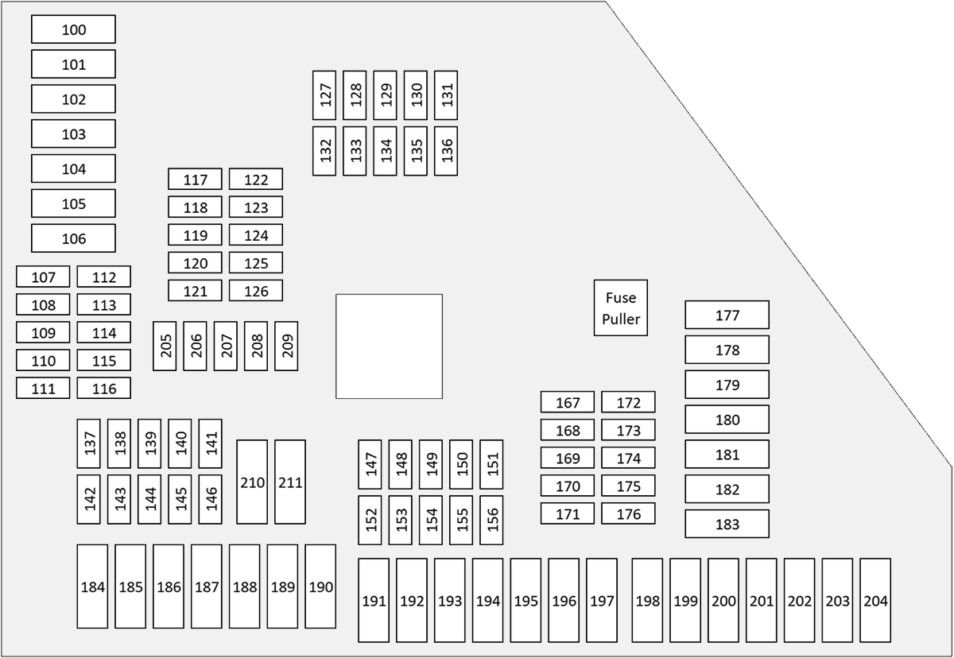

Fuse Box Diagram

Fuses

Assignment of the fuses in the luggage compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
100	20A	Trailer module, Electric rear sunshade
101	40A	Main headlights, Rain sensor, Light sensor, Electronic ride height control
103		START-STOP system
107	10A	Main headlights, Rain sensor, Light sensor, Electronic ride height control, Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V)
108	5A	Boot lid (tailgate) lock, Soft-close automatic for tailgate
111	20A	Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V)
115	5A	ABS (Anti-lock Brake System), DSC (Dynamic Stability Control)
117	5A	Head-Up Display (HUD)
118	5A	Head-Up Display (HUD), Telephone
120	5A	Head-Up Display (HUD), HiFi Amp, TV tuner, Video module
121	5A	Head-Up Display (HUD), Electric fan
123	5A	Head-Up Display (HUD)
129	5A	Head-Up Display (HUD)
130	5A	Parking sensors, Home link (garage door opener)
131	20A	Digital Motor Electronics (DME), Integrated Voltage Module (IVM)
132	20A	Digital Motor Electronics (DME), Integrated Voltage Module (IVM)
137	15A	Boot lid (tailgate) lock, Soft-close automatic for tailgate
139	5A	Fuel pump relay, Fuel pump control, Tire pressure control RDV
140	5A	Light module
141	5A	Boot lid (tailgate) lock, Soft-close automatic for tailgate
143	15A	Digital Motor Electronics (DME), Integrated Voltage Module (IVM), Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V)
144	20A	Trailer module, Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V)
146	20A	Trailer module
169	5A	ABS (Anti-lock Brake System), DSC (Dynamic Stability Control), Head-Up Display (HUD), Parking brake
170	5A	Head-Up Display (HUD), HiFi Amp, TV tuner, Video module
171	0	Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V)
173	15A	Main headlights, Rain sensor, Light sensor, Electronic ride height control
176	15A	Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V)
184	20A	Fuel pump relay, Fuel pump control
186	20A	Heated seats
187	20A	Heated seats
188	20A	Heated seats
189	20A	Heated seats
190	30A	ABS (Anti-lock Brake System), DSC (Dynamic Stability Control), Head-Up Display (HUD), HiFi Amp, TV tuner, Video module, START-STOP system
191	30A	HiFi Amp, TV tuner, Video module
192	20A	HiFi Amp, TV tuner, Video module
198	30A	ABS (Anti-lock Brake System), DSC (Dynamic Stability Control), Parking brake
199	30A	ABS (Anti-lock Brake System), DSC (Dynamic Stability Control), Parking brake
200	40A	Boot lid (tailgate) lock, Soft-close automatic for tailgate
203	30A	Rear window defroster (defogger)
