BMW X6 (F16) | 2015-2019

Access BMW X6 fuse box diagrams for 2015–2019 models with fuse locations, panel layouts, and detailed electrical system information for the second-generation Sports Activity Coupe. This article covers the second-generation BMW X6 (Model Code: F16), available from 2015, and includes fuse box diagrams for BMW X6 2015, 2016, 2017, 2018 and 2019, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse (fuse layout).

Passenger Compartment

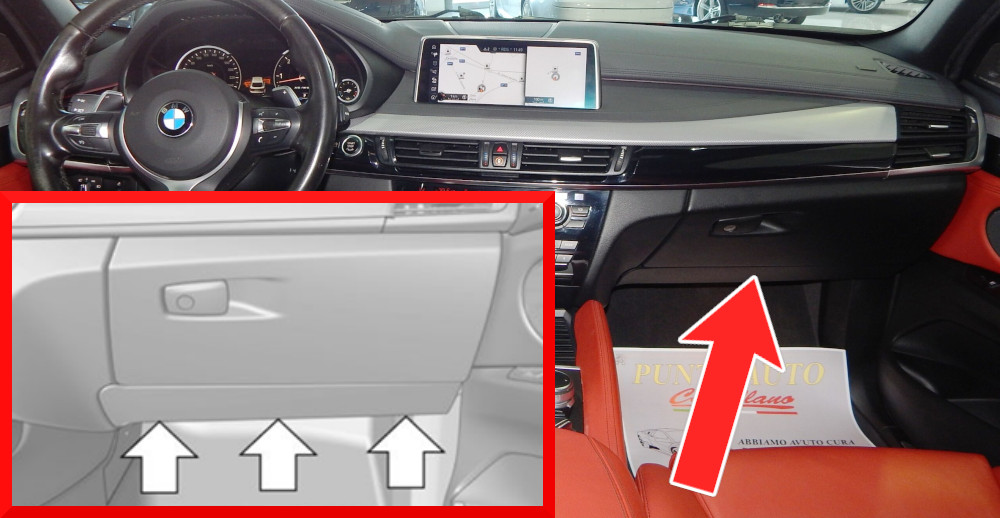

Fuse Box Location

The fuses are positioned beneath the glove compartment. Loosen the fasteners, follow the arrows, and open the cover.

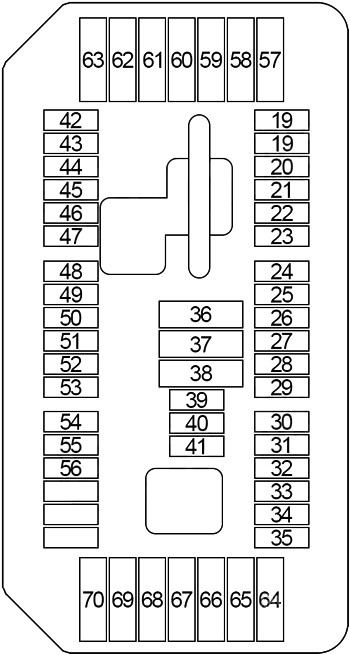

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
195ARemote control receiver
205ACeiling console
215APreheating control unit
227.5ADriver’s door switch box, outside rear view mirror on the front passenger’s side
2310AEngine management system (DME)
2410AElectronic transmission control system
255ATouchbox, controller (joystick)
265ARetractable instrument panel speaker, rear left/right heated seat switch
2710ADriver /passenger seat lumbar support valve block, driver/passenger side seat adjustment switch block
285ARain /light /sun sensor, overhead console, vanity mirror lighting
2915AAdditional coolant pump
3010ACharge air cooler coolant pump
315AElectric fan open relay
325ATransfer case
335AN63, S63: Turbocharger coolant pump
5AN20: Electric air conditioner compressor, additional electric heater
345AIntegrated Chassis Management (ICM)
3520AElectrochromic rear view mirror
3620ASocket in the armrest
3720ACigarette lighter
3820ACeiling console (terminal 30 power supply)
3915ALeft headlight
4110AS63: Charge air cooler coolant pump;
N20: Refrigerant shut-off valve in the vehicle interior, electrical machine control (EME)
425AElectronic Damper Control, Electrochromic Rear View Mirror
435ADirectional illumination left/right
447.5ACamera based driver assistance systems (KAFAS), active steering system
455AActive Cruise Control (ACC), Automatic Outside Air Contamination Control (AUC) sensors
465ARadiator shutter drive;
B47, N47, N57: Engine ventilation system heating, radiator shutter drive
475ANight vision electronics (NVE), vehicle sound generator (VSG)
4810ASwitching center in the steering column
495ASteering angle sensor;
57D30T1: Coolant reservoir shut-off valve, steering angle sensor
505AInstrument cluster
527.5AInstrument cluster
535AGlove box lighting, instrument panel trim strip lighting (driver /passenger side), instrument panel trim strip lighting on driver’s side, driver/ passenger footwell lighting
5410AGear Select Switch (GWS)
555AServotronic (SVT), electromechanical power steering (EPS)
565AVertical Dynamics Management (VDM)
5720ALeft headlight
5830ADynamic Stability Control (DSC)
5940AActive steering system
6040AHeater
6120AElectronic Damper Control
6220AVertical Dynamics Management (VDM)
6330ATransfer box (VTG)
6430AFront passenger seat heating module
6530ADriver seat heating module
6620AAuxiliary /additional heater
6730ADriver’s side seat adjustment switch block (without seat module (SMFA)), driver’s seat module (SMFA)
6830APassenger side seat adjustment switch block (without seat module (SMBF)), front passenger seat module (SMBF)
6920AElectronic transmission control system (EGS)
7020APower steering column adjustment

Passenger Compartment (BDC)

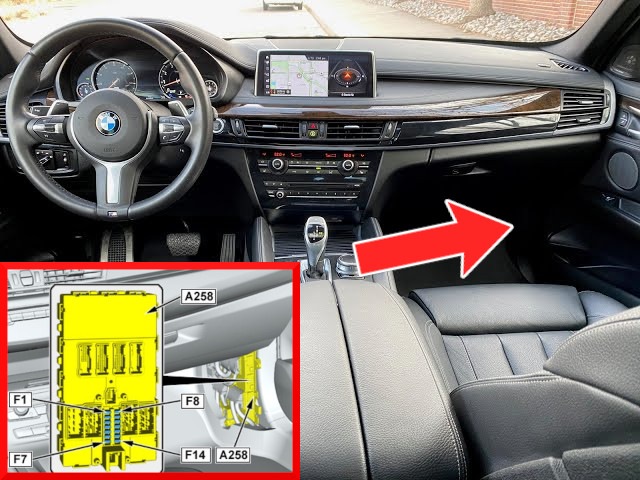

Fuse Box Location

It is positioned in the front pillar on the passenger side, behind the interior trim.

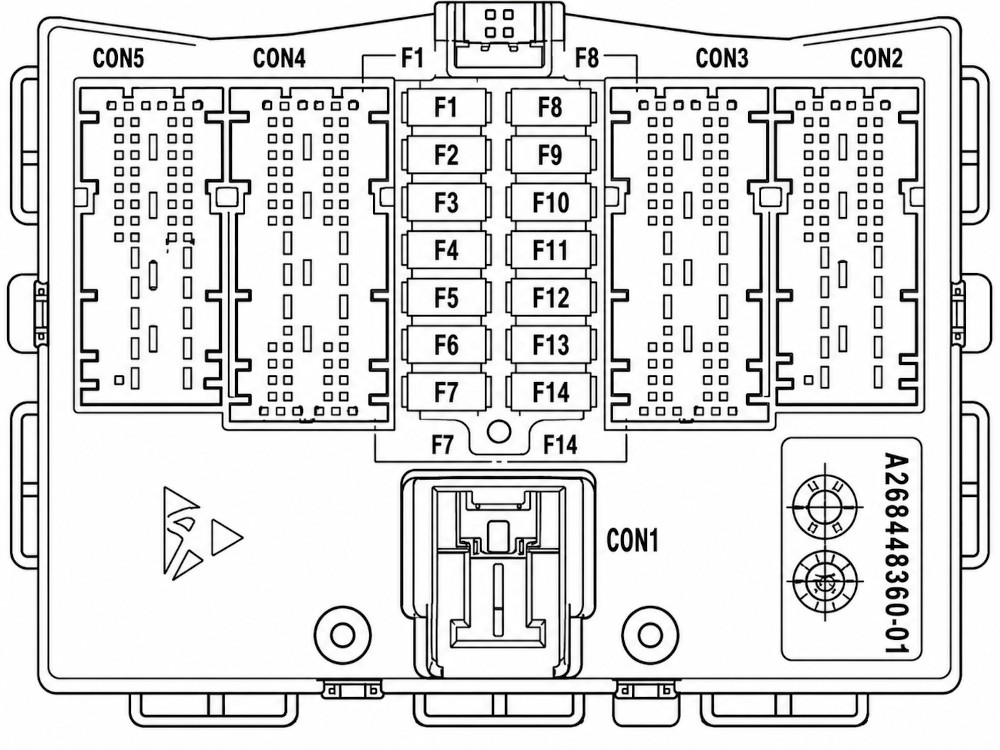

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment Body Domain Controller

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
130AFront passenger window drive
230ARear power window drive on the driver’s side
320AFront passenger door lock
430APower window drive driver
530AHeated rear window
630ARear power window drive from the passenger
720ADriver’s door lock
95ASwitching center in the steering column, light switch unit, driver assistance system control unit with hazard warning light switch
107.5ALeft headlight
117.5ADiagnostic connector, heating and air conditioning system, dynamic stability control (DSC)
125ATelematic communication unit, electronic units of door handles
1315AHorn (high/low tone)

Luggage Compartment

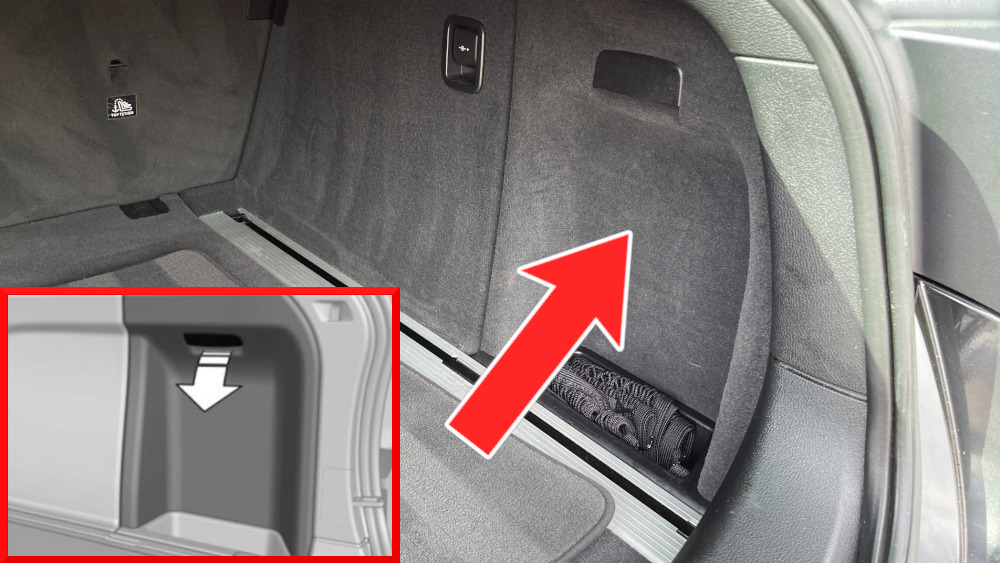

Fuse Box Location

Open the cover on the right-side trim, as indicated by the arrow. The fuse box is located behind the sound insulation.

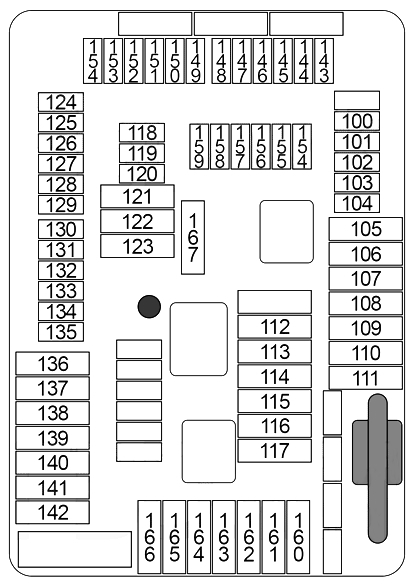

Fuse Box Diagram

Fuses

Assignment of the fuses in the luggage compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
1005AParking brake button
10115ARight headlight
1025AHigh voltage battery pack
1035ASiren with tilt alarm
1045AParking brake control unit, Natural Vacuum Leak Detection (NVLD)
10530AElectric reversible seat belt retractor right
10630ATorque distribution between rear axle wheels
10740AAutomatic tailgate lift, tailgate function module
11040AAir suspensión compressor relay
11220AHybrid pressure tank electronics
11330ATrailer electrical connection module
11430ATrailer electrical connection module
11520ARight headlight
11630AParking brake control unit
11730AElectric reversible seat belt retractor left
1185AVideo switcher (VSW)
1205APower control unit
1205AN20: Charging box for additional battery
12120AHead Unit
12230AAudio amplifier
1245AVideo module
12610ARear door closer drive (passenger side)
1275ADVD changer
1285AWireless charging slot, antenna booster (wireless charging), base board
12915AActive Sound Design (ASD)
1305AAutomatic tailgate lift
1315ALuggage compartment lighting, trunk button on rear lid from inside, noise filter
1325ARear axle torque distribution, electronic ride height control
1335ARear climate control
13410ARear door closer drive (driver’s side)
1355AGas generator emergency shutdown terminals
13920ATrailer socket
14020ATrunk lid lock
14310ARefrigerator relay
14415AControl unit for selective catalytic reduction (SCR – Selective – Catalytic Reduction)
1455AParking aid, information system fan
14615ASilencer electric shutter (#1, #2)
14715AControl unit for selective catalytic reduction (SCR – Selective – Catalytic Reduction)
1485ALane change warning (SWW)
1497.5ARight headlight
1505AContactless trunk release electronic return unit, electronic comfort charge [Hybrid]
1515AUSB-HUB (USB connector #1/#2, AUX-In connector)
1525AElectric reversible seat belt retractor left/right
15315AControl unit for selective catalytic reduction (SCR – Selective Catalytic Reduction)
1545ASurround View Camera (TRSVC), rear view camera
15510AFront passenger’s door closer drive
15610ADriver’s door closer drive
15810ARear audio system
1595AAudio amplifier, information system fan
16020ARear heater
16220ASecond row sockets, luggage compartment socket
16330ATrailer electrical connection module
16430AHeated rear right seat
16520AFuel pump control unit (EKPS)
16630AHeated rear left seat
16730ADriver’s door closer actuator, front passenger’s door closer actuator

Luggage Compartment (High Current Fuses)

Fuse Box Location

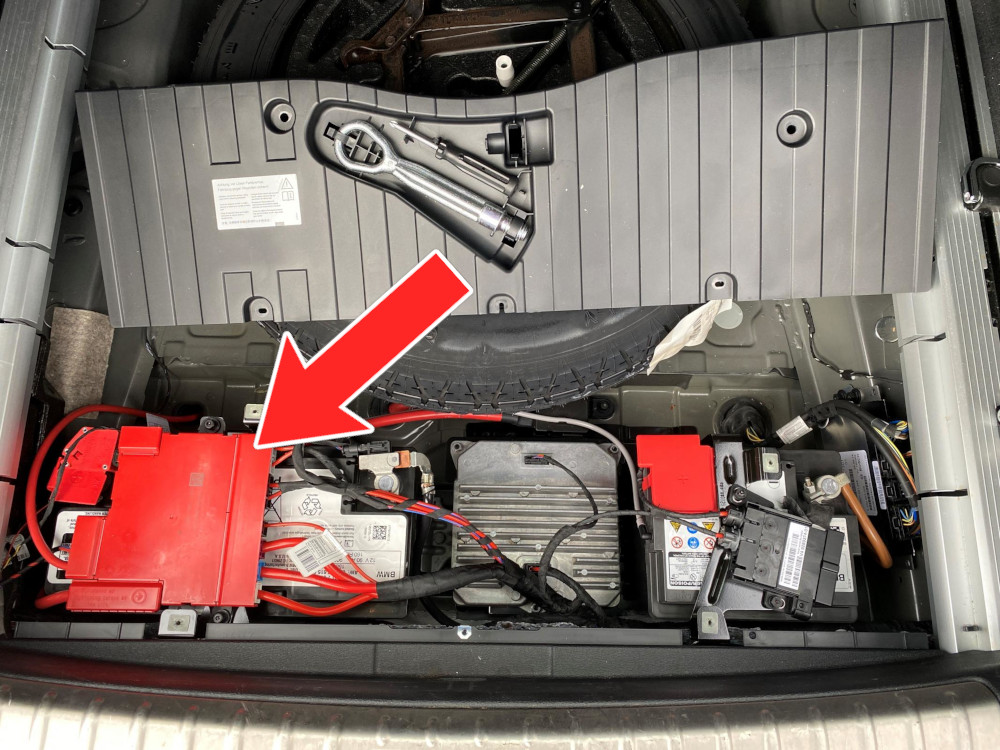

High-power fuses are built into the battery cover to protect all circuits, and it is located in the luggage compartment beneath the spare tyre, under the lid.

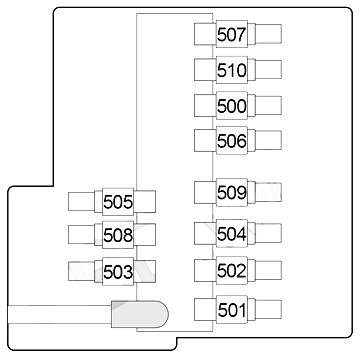

Fuse Box Diagram

High Voltage Fuses

Assignment of the high voltage fuses in the luggage compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
50050ACentral body control unit – Body Domain Controller (BDC)
501125AFuse box in the luggage compartment
502150ADynamic Stability Control (DSC)
503125AN63, S63, N20: Built-in power module
D47, N47, N57: Main engine management relay (DDE)
504125ACentral control unit for body electronics – Body Domain Controller (BDC)
50550AAudio amplifier
50660AN55, N63, S53, B47, N47, N57: Power Control Unit (PCU)
N20: Charging box for additional battery
50740AAdditional electric heater – rear right
50840A3rd row auxiliary heating control unit
50940ACentral body control unit – Body Domain Controller (BDC)
51040AAdditional electric heater – rear left
