BMW X6 (G06) | 2020-2026

View BMW X6 fuse box diagrams for 2020–2026 models with fuse locations, panel layouts, and detailed electrical system information for the latest generation of this luxury Sports Activity Coupe. This article covers the third-generation BMW X6 (Model Codes: G06, F96), available from 2020, and includes fuse box diagrams for BMW X6 2020, 2021, 2022, 2023, 2024, 2025 and 2026, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse (fuse layout).

Engine Compartment

If one of the fuses in these units in engine compartment is faulty, the entire power module has to be replaced.

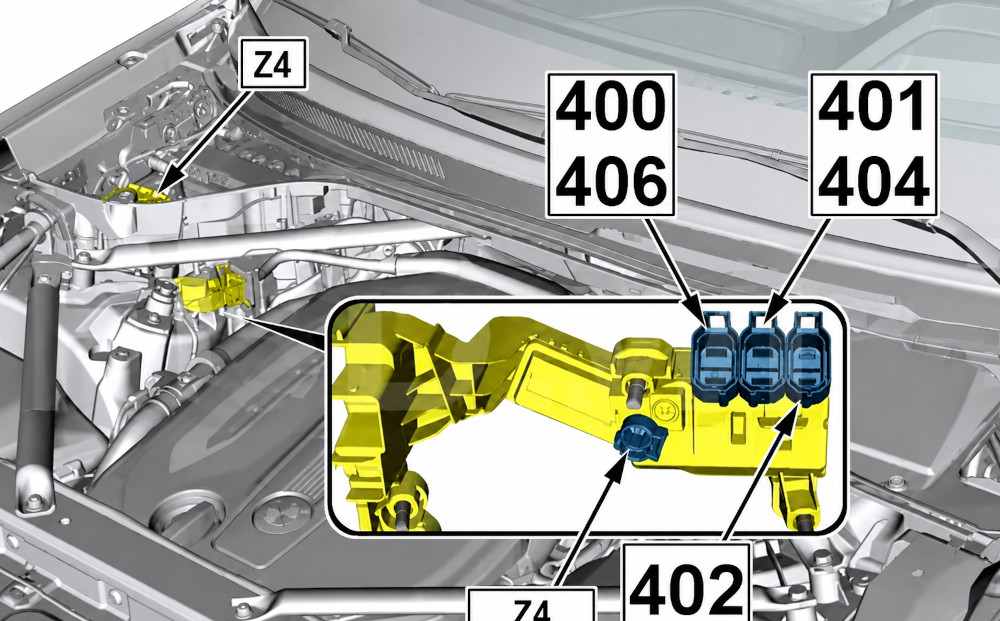

Location and Diagram (Module 1)

Fuses

Assignment of the fuses in the engine compartment (Module 1)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
40080A / 125A / 150AFan 400W, 600W (80A): electric fan shutdown relay
Fan 850W (125A): Electric Fan Shutdown Relay
Fan 1000W (150A): Electric Fan Shutdown Relay
401150AElectromechanical power steering
402100AFront electric auxiliary heater
403—–
40480ADynamic Stability Control (DSC)
405—–
406125ABuilt-in power module

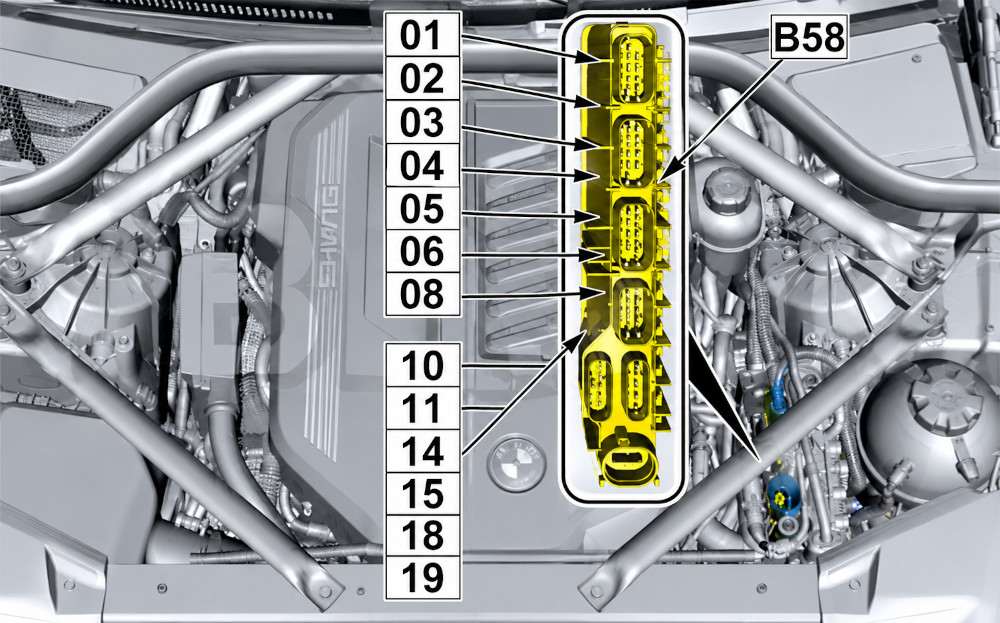

Location and Diagram (Module 2)

Integrated supply module

Fuses

Assignment of the fuses in the engine compartment (Module 2)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
17.5AN63: Oil level sensor, oil pressure control valve, shut-off valve for the entire heater circuit
S63: Oil pressure control valve
B58: Oil level sensor, oil pressure control valve, heating control module
B57: Oil level sensor, oil pressure control valve, fuel quantity control valve
25A / 15AN63, B58, S63 (5A): Turbocharger coolant pump
B57 (xDrive30d TU2, xDrive40d) (15A): Active oil separation, coolant circuit shut-off valve
B57 (xDrive30d, M50d Electro) (5A): Piston cooling solenoid valve
37.5A / 10AN63 (10A): Coolant pump switch element
S63 (10A): Thermostat map
B57 (xDrive30d TU2, xDrive40d) (7.5A): Engine mount changeover valve, oil pressure control valve, low stage turbocharger coolant shutoff valve
B57 (xDrive30d, M50d) (10A): Engine support changeover valve, post-catalyst oxygen sensor
410A / 15AN63 (M50i) (15A): Purge valve 1 and 2
B58 (15A): Engine ventilation heating
B57 (xDrive30d TU2, xDrive40d) (10A): Nitrogen oxide lambda probe before oxidation catalytic converter
B57 (xDrive30d, M50d) (15A): Oxygen sensor before catalytic converter
520AN63: Characteristics of thermostat map (TU2 and 3), oxygen sensor before catalytic converter, oxygen sensor after catalytic converter
S63: Oxygen sensor before catalytic converter, oxygen sensor after catalytic converter, oxygen sensor after catalytic converter No. 2
B58: Pre-catalyst oxygen sensor, post-catalyst oxygen sensor, purge valve (with external sight, RDE)
B57 TOP (xDrive30d, M50d): Compressor bypass plate bypass valve, turbine control damper pressure transducer
B57S (xDrive30d, M50d): High pressure compressor flap actuator changeover valve, turbine control flap changeover valve
67.5A / 15A / 20AN63, B58 (15A): Coolant pump in the low temperature coolant circuit
B57 (xDrive30d TU2, xDrive40d) (7.5A): EGR cooler bypass damper, EGR cooler reversing damper
B57 (xDrive30d, M50d) (20A): Pressure converter for wastegate, low pressure compressor wastegate changeover valve, coolant pump changeover valve (except B57S), changeover gas recirculation radiator wastegate valve, nitrogen oxide sensor before SCR catalytic converter, oxide sensor nitrogen after SCR catalytic converter
710A / 15AN63 (15A): Oxygen sensor no. 2 before catalytic converter, oxygen sensor no. 2 after catalytic converter
S63 (15A): Oxygen sensor before catalytic converter #2, oxygen sensor after catalytic converter #2, oxygen sensor after catalytic converter #2
B57 (xDrive30d TU2, xDrive40d) (10A): Digital Diesel Electronics (DDE), engine breather heater, rail pressure control valve
B57 (xDrive30d, M50d) (15A): Diesel fuel sensor, low pressure EGR damper
810A / 15A / 20AN63, B58, S63 (15A): Digital engine electronics (DME)
B57 (xDrive30d TU2, xDrive40d) (20A): Diesel Battery Sensor, Low Temperature Coolant Circuit, 48V Coolant Pump, Post Catalyst SCR Nitrogen Oxide Sensor (Chassis), Post Diesel Particulate Filter (SCRF) Nitrogen Oxide Lambda Sensor
B57 (xDrive30d, M50d) (10A): Digital Diesel Electronics (DDE), engine breather heater, rail pressure control valve
920A / 30AB58 (20A): Coolant pump in low temperature coolant circuit
B57 (xDrive30d TU2, xDrive40d) (30A): Digital Diesel Electronics (DDE)
1030A / 40AN63, B58, S63 (30A): Digital Engine Electronics (DME)
B57 (xDrive30d TU2, xDrive40d) (40A): Digital Diesel Electronics (DDE)
B57 (xDrive30d, M50d) (30A): Digital Diesel Electronics (DDE)
1115A / 20AN63, B58, S63 (20A): Digital Engine Electronics (DME)
B57 (xDrive30d TU2, xDrive40d) (15A): Digital Diesel Electronics (DDE)
1230A / 40AN63, S63 (30A): Digital Engine Electronics (DME) No. 2
B57 (xDrive30d TU2, xDrive40d) (40A): Digital Diesel Electronics (DDE)
B57 (xDrive30d, M50d) (40A): Fuel filter heater
1315A / 20AN63, S63 (20A): Digital Engine Electronics (DME) No. 2
B57 (xDrive30d TU2, xDrive40d) (15A): Fuel filter heater
B57 (xDrive30d, M50d): Digital Diesel Electronics (DDE)
1425A / 40AN63, B58, S63 (40A): Digital engine electronics (DME)
B57 (xDrive30d TU2, xDrive40d) (25A): Electromechanical coolant pump
B57 (xDrive30d, M50d) (40A): Digital Diesel Electronics (DDE)
1530A / 40AN63, S63 (40A): Digital Engine Electronics (DME) No. 2
B58 (with recovery system) (40A): Transmission oil pump
B57 (xDrive30d TU2, xDrive40d) (30A): Transmission oil pump
B57 (xDrive30d, M50d) (30A): Digital Diesel Electronics (DDE)
16—–
1720AS63: Coolant pump 3 in the low temperature coolant circuit
1810AN63, S63: VANOS intake/exhaust solenoid drive, tank vent valve
B58: Digital Engine Electronics (DME), VANOS intake/exhaust solenoid drive, tank vent valve
1910AN63, S63: VANOS intake/exhaust solenoid drive no. 2, tank vent valve no. 2
2015AN63, S63: Digital Engine Electronics (DME) No. 2
Petrol Engines:
B58 –  3.0L (xDrive40i, sDrive40i)
N63 – 4.4L V8 (M50i)
S63 – 4.4L V8 (M & M Competition)
Diesel Engines:
B57 – 3.0L (xDrive30d, xDrive40d & M50d)

Driver Side

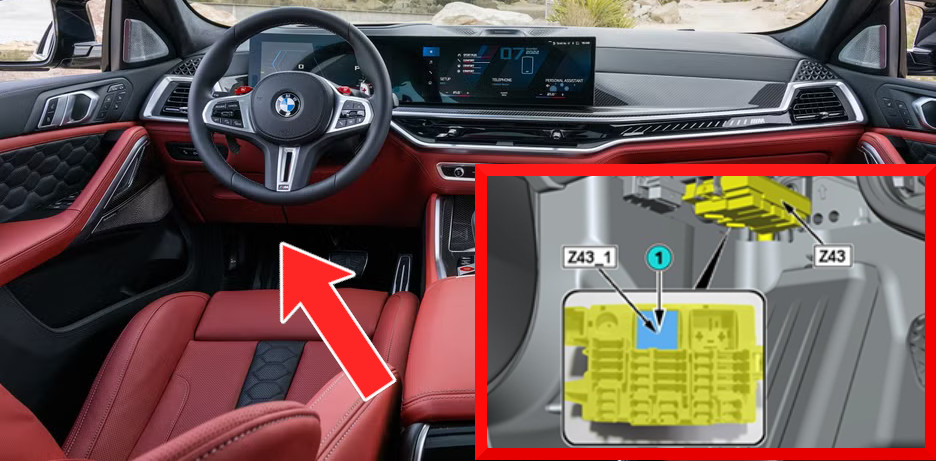

Fuse Box Location

Beneath the instrument panel on the driver’s side, there is another box that contains fuses and relays.

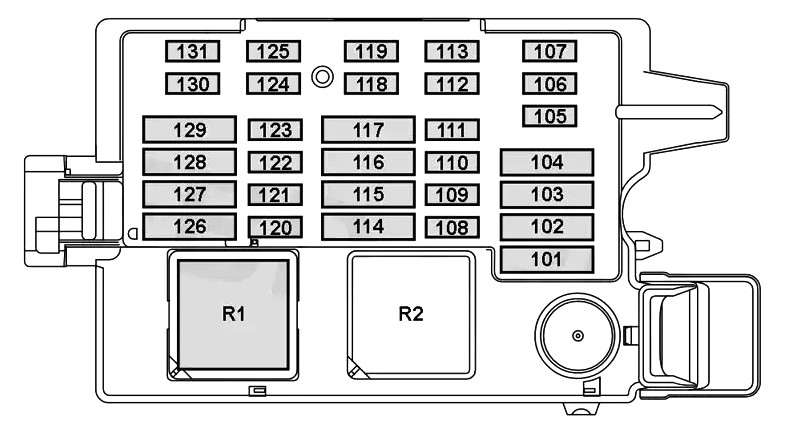

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment (Driver’s Side)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
101—–
102—–
103—–
104—–
105—–
106—–
107—–
108—–
109—–
1105AAuxiliary electric heater, front midrange speaker lighting
1115ARear switchboard
112—–
113—–
114—–
115—–
116—–
117—–
118—–
119—–
120—–
121—–
122—–
123—–
124—–
125—–
126—–
127—–
128—–
129—–
130—–
131—–

Relays

Assignment of the relays in the passenger compartment (Driver’s Side)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1—
R2Terminal 30B relay

Passenger Side

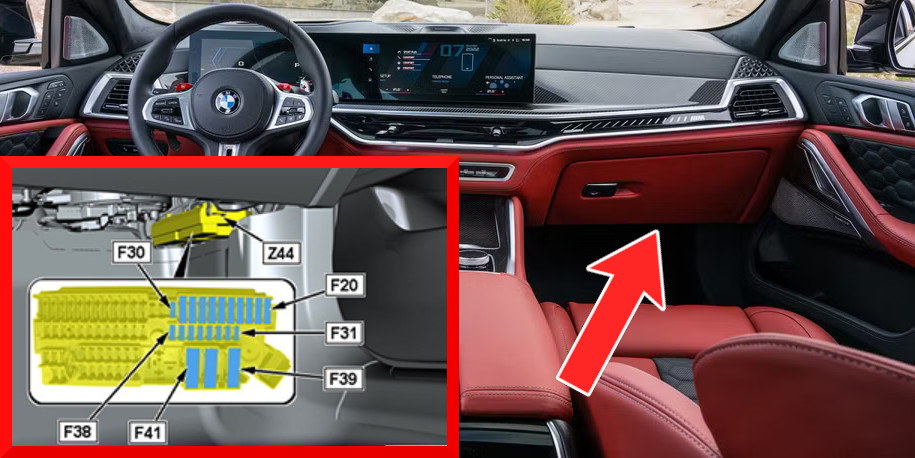

Fuse Box Location

On the right side, beneath the glove compartment, is the fuse and relay box.

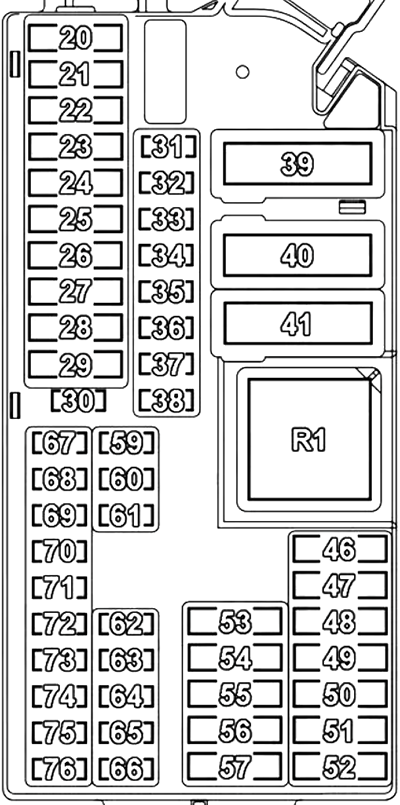

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment (Passenger’s Side)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
2030APower window actuator, driver’s door with control electronics
2130AFront passenger window with control electronics
2230ADriver’s side rear power window with control electronics
2330APassenger side rear power window with control electronics
2430ALeft reversible electromotive automatic reel (seat belt)
2520ARoof function center
2620ABody domain controller
27—–
2840ADynamic Stability Control (DSC)
2915ABody domain controller
30—–
31—–
325ACenter console control panel
335ADriver’s outer door handle electronic module
345AInstrument cluster control unit
355AAuxiliary control box
365ARoof function center (map lamp, interior lighting, ambient lighting)
3710AOutput stage for rear fan motor (4-zone A/C)
38—–
3960ABody domain controller
4040AFan motor with output stage
41—–
42—–
43—–
44—–
45—–
4620ARear cigarette lighter, front cigarette lighter (without thermoelectric cup holder), thermoelectric cup holder
4730AWiper module
48—–
4920AElectric steering column adjustment
5015AThermoelectric cup holder
5130AB46, B48, B58, N63: Electronic transmission control, transfer case
5220AFront passenger seat heating electronics
5330ADriver’s seat module (with seat module), driver’s side seat adjustment switch block (without seat module)
5420AAutonomous additional heater (ShZh)
5530AFront passenger seat module (with seat module), front passenger seat adjustment switch block (without seat module)
5610AHeated armrest electronic control unit, front passenger side
5710AHeated armrest electronic control unit, driver’s side
58—–
595AUSB socket #2 electrochromic interior rear view mirror
605ACenter rear door trim panel illumination (driver’s side), rear door pocket illumination (driver’s side), rear door interior handle illumination (driver’s side), rear door trim panel illumination driver’s side (top), rear left speaker illumination, Diesel: additional water pump
615AGlove box light switch, driver camera system, 48V power control unit (PCU48), 48V battery
62—–
635AAuxiliary battery, instrument panel speaker light, air freshener, CD drive, ionizer, B57, B58: starter-alternator 48V
6410ADriver’s seat back width adjustment valve block, driver’s lumbar support valve block, seat adjustment switch block (driver’s side), footwell taillight (driver’s side), backlight driver’s seat back panel, USB charging port, front left seat inflation module
6510AFront passenger’s backrest width adjustment valve block, Front passenger’s lumbar support valve block, Seat adjustment switch block (front passenger’s side), Rear footwell lighting (front passenger’s side), Front passenger’s backrest rear panel lighting, USB connector for charging No. 2, front Right seat inflation module
665AUpper center instrument panel light, upper front passenger side instrument panel light, lower center instrument panel light, lower driver/passenger side instrument panel light, front left/right footwell lighting
675ADriver’s door switch box, Driver’s door seat switch box, Driver’s door interior handle lighting, Driver’s door trim panel lighting (center), Driver’s door pocket lighting, Driver’s door trim panel lighting (top), Front left midrange speaker lighting, Front Left Tweeter Illumination
685APassenger’s exterior mirror, Passenger’s door switch box, Passenger’s interior door handle illumination, Front passenger’s door trim panel illumination (center), Passenger’s door pocket illumination, Front passenger’s door trim panel illumination (top), Front right midrange speaker illumination, Illuminated front right tweeter
695ARadiator shutters (upper, lower)
705ARear switchboard, electric fan shutdown relay, electric fan
715AWith Surround Camera: Surround Camera, Rear View Camera
72—–
735AInstrument cluster control unit
7410ASteering column switch box
7510ACrash safety module
76—–

Relays

Assignment of the relays in the passenger compartment (Passenger’s Side)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Terminal 30B relay

Passenger Side (BDC)

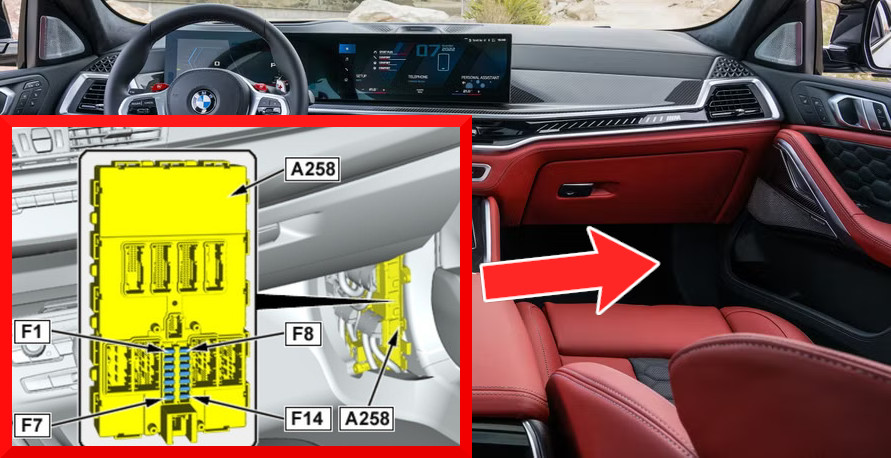

Fuse Box Location

The fuse compartment is located in the BDC (Body Domain Controller) electronic control unit, mounted on the right-hand pillar beneath the passenger compartment trim on the passenger’s right side.

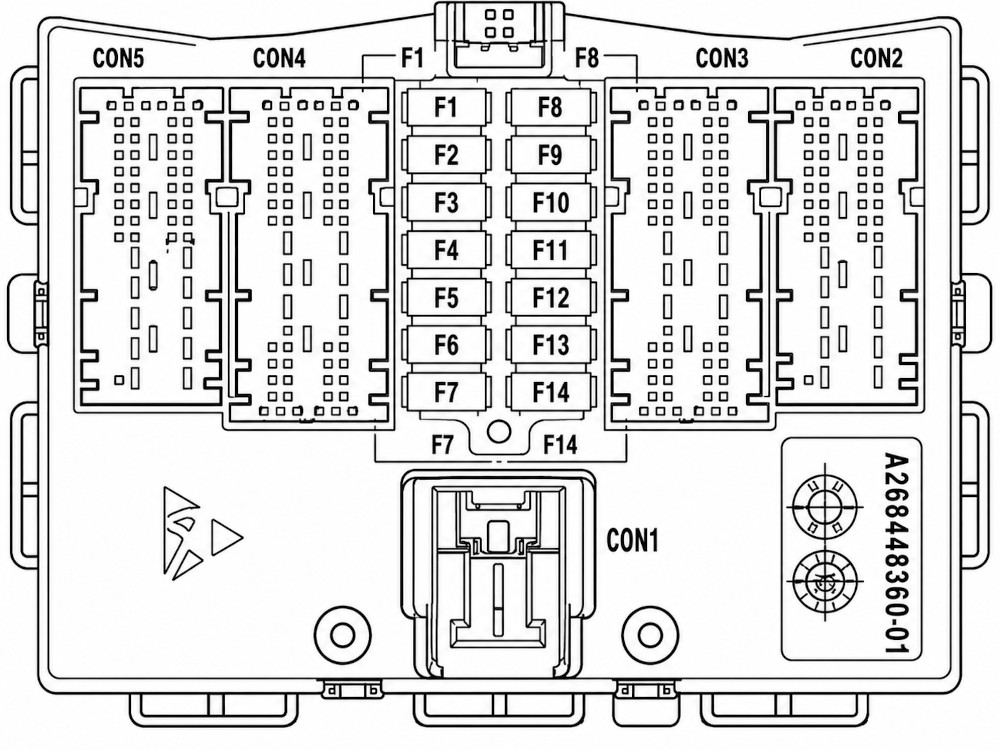

Fuse Box Diagram

Fuses

Assignment of the fuses in the Body Domain Controller (Passenger’s Side)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
15ASteering Column Switch Cluster, Front Centre Ventilation Grille, Audio Control Panel, Light Operating Unit, Headunit
27.5ADiagnosis Socket, Electronic Ride-Height Control, Vertical Dynamics Platform
37.5AHeating/Air Conditioning System, Tailgate Function Module, Rain/Light/Solar/Condensation Sensor
45APassenger Electronic Outer Door Handle Module, Rear Driver’s Side Outer Door Handle Electronic Module, Rear Passenger’s Side Outer Door Handle Electronic Module, Power Control Unit, Telematic Communication Box
520ALocking Relay, Unlocking Relay (Doors, Fuel Filler Flap)
620ADriver’s Door Locking Relay, Deadlocking Relay (Driver’s Door Lock, Front Passenger Door Lock, Rear Driver’s Side Door Lock, Rear Passenger’s Side Door Lock, Fuel Filler Flap Central Locking Locking Drive)

Luggage Compartment

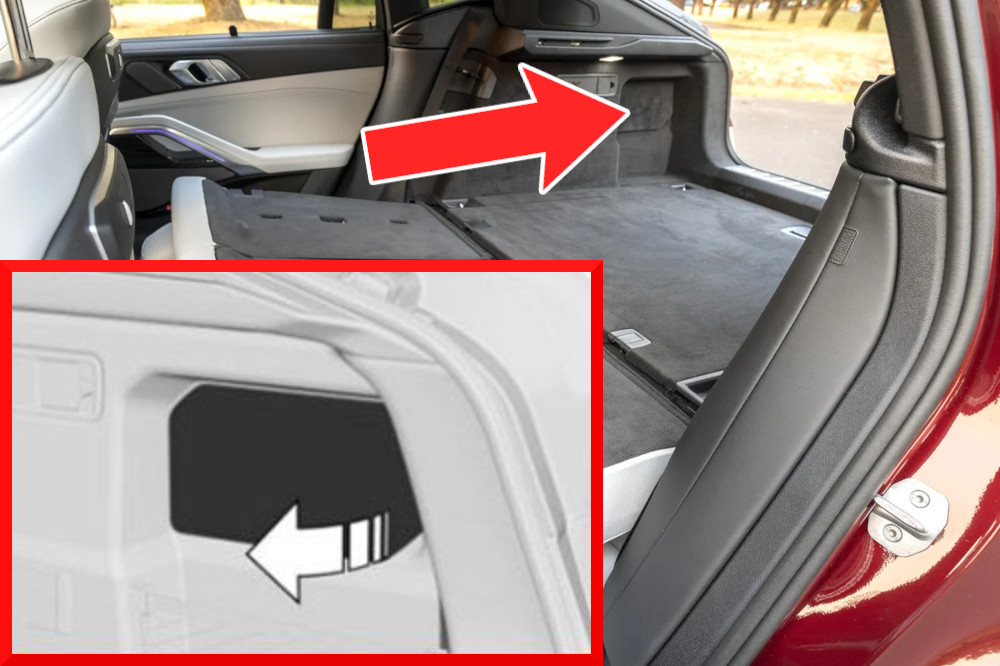

Fuse Box Location

In the luggage compartment, on the right side beneath the protective cover, is the main fuse and relay box.

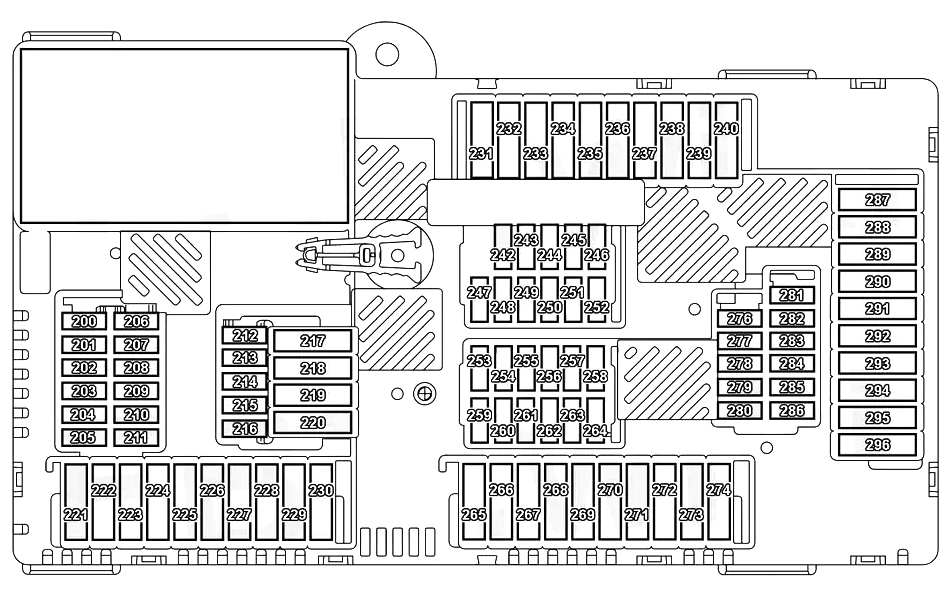

Fuse Box Diagram

Fuses

Assignment of the fuses in the luggage compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
200—–
201—–
202—–
2037.5AElectric Exhaust Damper (B46, B46, B58, N63, S63), Electric Exhaust Damper #2 (N63, S63)
2045ARear axle tilt control, AUC sensor, adjustable rear axle differential lock
205—–
206—–
2075AFront left/right side short range radar sensor, rear left/right short range radar sensor, optional add-on system
2085AElectromechanical power steering
2095ALong range front radar sensor (active cruise control (high version)), front radar sensor (basic cruise control (high version)), front electrical active roll stabilization, rear electrical active roll stabilization
2105AElectric fuel pump control electronics
2115AElectronic night vision module (BMW Night Vision)
21215AHead unit
21315ATrailer socket
2145ABooster
21510ARear Seat Entertainment
2165AWireless Charging Tray Antenna Amplifier
21740ABooster
21812A12V connection #2 (luggage compartment)
219—–
22030AReceiver audio module
221—–
222—–
223—–
22420AVertical dynamics platform (Executive Drive Pro)
225—–
22640ARear door function module
22730ASelective catalytic reduction (SCR) control unit
228—–
229—–
23030ARight reversible electromotive automatic reel (seat belt)
23130ARear window heating
232—–
233—–
234—–
235—–
236—–
237—–
238—–
239—–
24020ATrailer module
241—–
242—–
243—–
2445ARemote Control Receiver, Natural Vacuum Leak Detection, Tilt Alarm Siren, High Voltage Battery Pack (Hybrid), Gas Generator with Battery Protective Terminal (with Dual Storage System, with 48V System)
245—–
246—–
24715AAnti-slip rail control electronics
24815ARetractable roller cover for luggage compartment control electronics
24910APassenger’s door closer
2505AInterior lighting, vanity mirror lighting, glass hatch lighting
25110AAutomatic driver’s door closer
2525AAuxiliary battery
2537.5AParking assistant, automatic rear air conditioner, camera-based driving assistance system, rear right seat heating switch, rear left seat heating switch
2545ALuggage compartment lighting, trunk lid button for the bottom of the trunk lid, trunk lid button on the inside of the trunk lid
2555ALuggage compartment switch box
25610AAutomatic closer drive, rear passenger side
2575ARear right speaker light, rear passenger door pocket light, rear passenger side interior door handle light, rear passenger side center door trim panel light, upper rear passenger door trim panel light, left/right reversible electric motor automatic drum
25810ARear wheel drive with driver’s side automatic closer
25915ASelective catalytic reduction (SCR) control unit
26010AAutomatic soft closing tailgate lower left
261—–
2625AController, Self Leveling Suspension Button, Wireless Charging Tray, Center Console Light, Front Center Armrest Light
26310AAutomatic soft close right lower tailgate
26410ATrunk lid/trunk lock
26530AAdjustable rear axle differential lock
26620ATrailer module
26730ATrailer module
268—–
26930ADriver side rear seat module
27030AElectric fuel pump control electronics
27130AWith seat module: Rear passenger side seat module
Without seat module: passenger side rear seat heating module, driver’s side rear seat heating module
272—–
273—–
274—–
275—–
276—–
277—–
2785AHybrid: Charging controller for auxiliary battery
2795ANon-contact tailgate evaluation electronics
2805AConvenient electronics charging
281—–
282—–
283—–
284—–
285—–
286—–
287—–
288—–
28920ATrailer module
290—–
291—–
292—–
293—–
294—–
295—–
296—–

Luggage Compartment (Power Fuses)

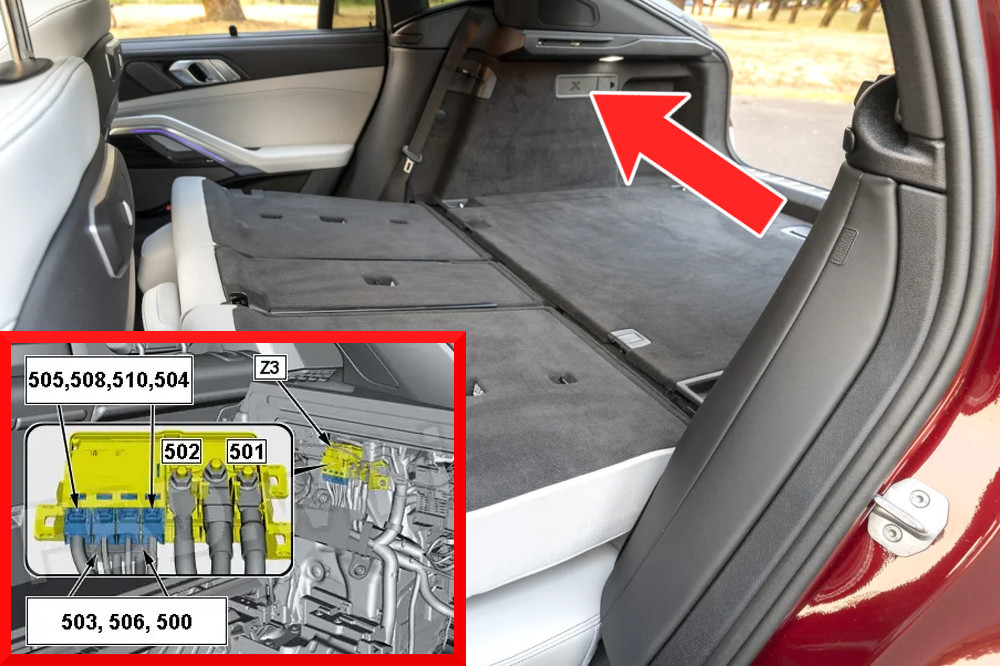

Fuse Box Location

It is also positioned on the right side of the luggage compartment, beneath the cover.

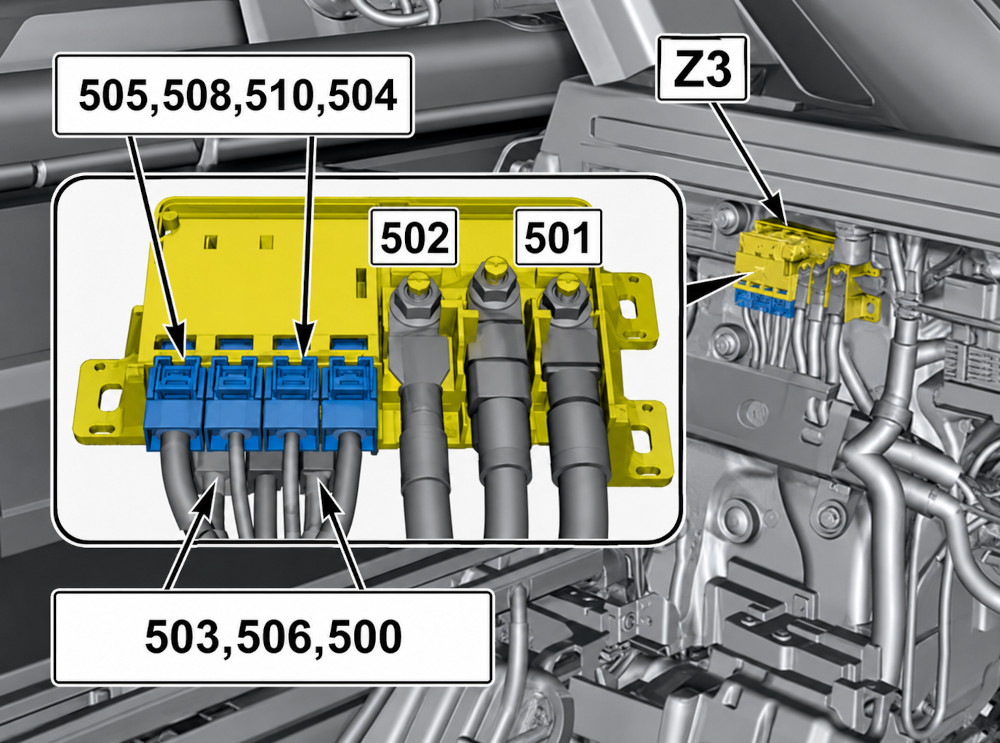

Fuse Box Diagram

High Voltage Fuses

Assignment of the high voltage fuses in the luggage compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
50050ABooster
501250ARear power distributor (luggage fuse box)
502250AFront Right Power Distribution Box (Passenger Compartment Fuse Box #2)
50340A3rd row auxiliary heating control
50460ABody domain controller
505100AFront left switchboard
50680ARear axle kingpin tilt control (Integrated Active Steering)
507—–
50860AExcept hybrid: power control unit
Hybrid: Charging controller for auxiliary battery
509—–
51040AElectronic ride height control

Scroll to Top
