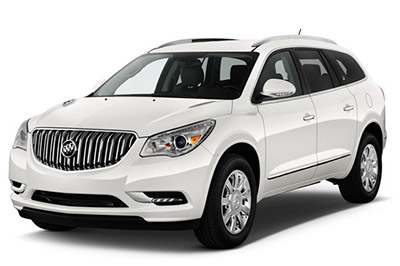

Looking for Buick Enclave fuse box diagrams ? This article covers the first-generation Buick Enclave , produced from 2008 to 2017 (facelift in 2013) , and includes fuse box diagrams for Buick Enclave 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016 and 2017 , along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

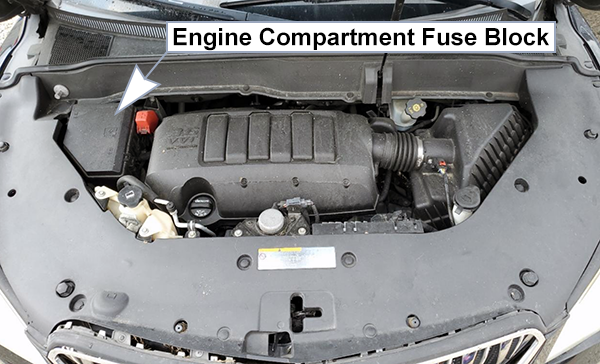

The underhood fuse block is in the engine compartment, on the passenger side of the vehicle. Lift the cover for access to the fuse/relay block.

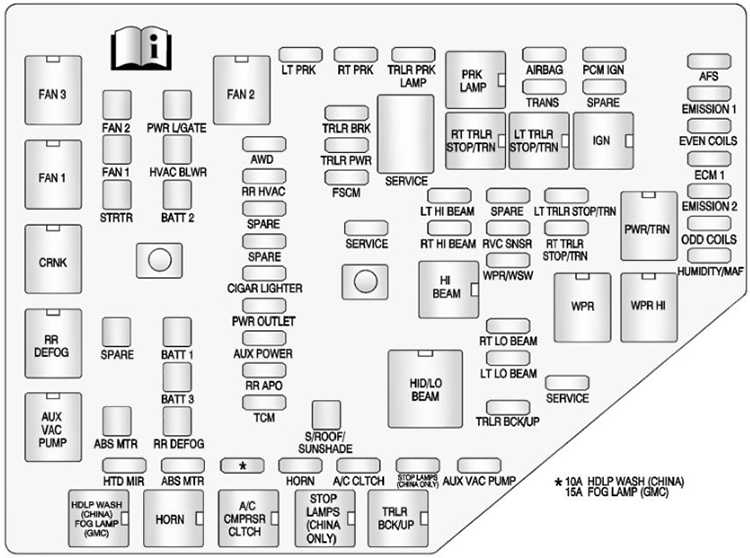

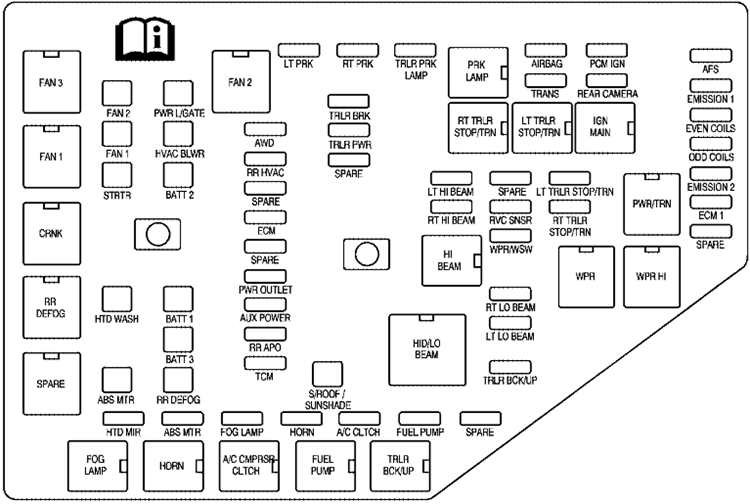

Assignment of the fuses in the engine compartment fuse box (2008, 2009)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description LT PRK Left Parking Lamp RT PRK Right Parking Lamp TRLR PRK LAMP Trailer Parking Lamps AIRBAG Airbag System PCM IGN Powertrain Control Module Ignition AFS Adaptive Forward Lighting System TRANS Transmission REAR CAMERA Rear camera EMISSION 1 Antilock Brakes System 2 TRLR BRK Trailer Brake AWD All-Wheel-Drive System TRLR PWR Trailer Power EVEN COILS Even Injector Coils SPARE Spare ODD COILS Odd Injector Coils SPARE Spare LT HI BEAM Left High-Beam Headlamp SPARE Spare LT TRLR STOP/TRN Trailer Left Stoplamp and Turn Signal EMISSION 2 Emission 2 ECM Engine Control Module RT HI BEAM Right High-Beam Headlamp RVC SNSR Regulated Voltage Control Sensor RT TRLR STOP/TRN Trailer Right Stoplamp and Turn Signal ECM 1 Engine Control Module 1 SPARE Spare WPR/WSW Windshield Wiper/Washer SPARE Spare PWR OUTLET Power Outlet AUX POWER Auxiliary Power RT LO BEAM Right Low-Beam Headlamp RR APO Rear Accessory Power Outlet LT LO BEAM Left Low-Beam Headlamp TCM Transmission Control Module TRLR BCK/UP Trailer Back-up Lamps HTD MIR Heated Outside Rearview Mirror ABS MTR Antilock Brake System Motor FOG LAMP Fog Lamps HORN Horn A/C CLTCH Air Conditioning Clutch FUEL PUMP Fuel Pump SPARE Spare FAN 2 Cooling Fan 2 PWR L/GATE Power Liftgate FAN 1 Cooling Fan 1 HVAC BLWR Climate Control System Blower STRTR Starter BATT 2 Battery 2 HTD WASH Heated Windshield Washer System BATT 1 Battery 1 BATT Battery 3 ABS MTR Antilock Brake System Motor RR DEFOG Rear Defogger S/ROOF/SUNSHADE Sunroof, Sunshade
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment fuse box (2008, 2009)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description FAN 3 Cooling Fan 3 FAN 2 Cooling Fan 2 PRK LAMP Park lamp FAN 1 Cooling Fan 1 RT TRLR STOP/TRN Trailer Right Stoplamp and Turn Signal LT TRLR STOP/TRN Trailer Left Stoplamp and Turn Signal IGN Ignition Main CRNK Switched Power PWR/TRN Powertrain HI BEAM High-Beam Headlamps WPR Windshield Wiper WPR HI Windshield Wiper High Speed RR DEFOG Rear Window Defogger HID/LO BEAM High Intensity Discharge (HID) Low-Beam Headlamps SPARE Spare FOG LAMP Fog lamp HORN Horn A/C CMPRSR CLTCH Air Conditioning Compressor Clutch FUEL PUMP Fuel pump TRLR BCK/UP Trailer Back-up Lamps
This content requires JavaScript and a valid membership to view.

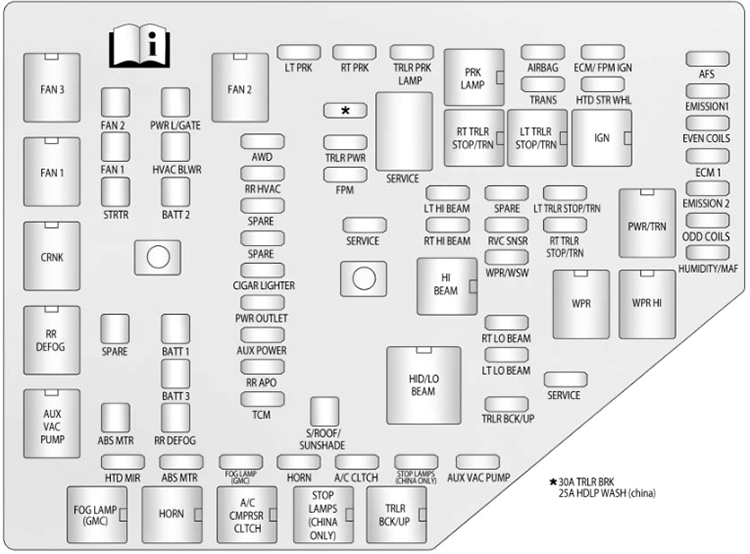

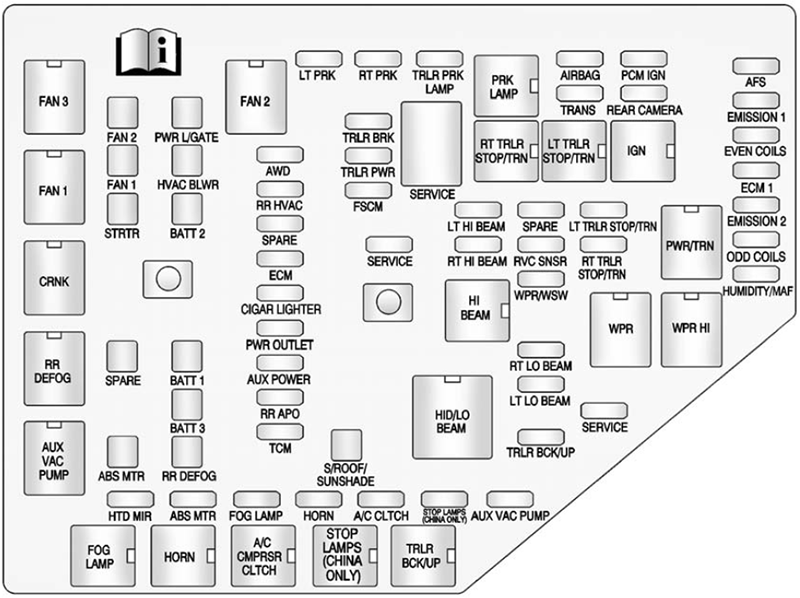

Assignment of the fuses in the engine compartment (2010, 2011, 2012)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description A/C CLUTCH Air Conditioning Clutch ABS MTR Antilock Braking System (ABS) Motor AFS Adaptive Forward Lighting System AIRBAG Airbag System AUX POWER Auxiliary Power AUX VAC PUMP Auxiliary Vacuum Pump AWD All-Wheel-Drive System BATT 1 Battery 1 BATT 2 Battery 2 BATT 3 Battery 3 CIGAR LIGHTER Cigar Lighter ECM Engine Control Module ECM 1 Engine Control Module 1 EMISSION 1 Emission 1 EMISSION 2 Emission 2 EVEN COILS Even Injector Coils FAN 1 Cooling Fan 1 FAN 2 Cooling Fan 1 FOG LAMP Fog lamps FSCM Fuel System Control Module HORN Horn HTD MIR Heated Outside Rearview Mirror HVAC BLWR Heating, Ventilation and Air Conditioning Blower LT HI BEAM Left High-Beam Headlamp LT LO BEAM Left Low-Beam Headlamp LT PRK Left Parking Lamp LT TRLR STOP/TRN Trailer Left Stoplamp and Turn Signal ODD COILS Odd Injector Coils PCM IGN Powertrain Control Module Ignition PWR L/GATE Power Liftgate PWR OUTLET Power Outlet REAR CAMERA Rear Camera RR APO Rear Accessory Power Outlet RR DEFOG Rear Defogger RR HVAC Rear Climate Control System RT HI BEAM Right High-Beam Headlamp RT LO BEAM Right Low-Beam Headlamp RT PRK Right Parking Lamp RT TRLR STOP/TRN Trailer Right Stoplamp and Turn Signal RVC SNSR Regulated Voltage Control Sensor S/ROOF/SUNSHADE Sunroff SERVICE Service Repair SPARE Spare Stop Lamps (China Only) Stop Lamps (China Only) STRTR Starter TCM Transmission Control Module TRANS Transmission TRLR BCK/UP Trailer Back-up Lamps TRLR BRK Trailer Brake TRLR PRK LAMP Trailer Parking Lamps TRLR PWR Trailer Power WPR/WSW Windshield Wiper/Washer
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment (2010, 2011, 2012)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description A/C CMPRSR CLTCH Air Conditioning Compressor Clutch AUX VAC PUMP Auxiliary Vacuum Pump CRNK Switched Power FAN 1 Cooling Fan 1 FAN 2 Cooling Fan 2 FAN 3 Cooling Fan 3 FOG LAMP Fog Lamps HI BEAN High-Beam Headlamps HID/LO BEAM High Intensity Discharge (HID) Low-Beam Headlamps HORN Horn IGN Ignition Main LT TRLR STOP/TRN Trailer Left Stoplamp and Turn Signal Lamp PRK LAMP Park Lamp PWR/TRN Powertrain RR DEFOG Rear Window Defogger RT TRLR STOP/TRN Trailer Right Stoplamp and Turn Signal Lamp Stop Lamps (China Only) Stop Lamps (China Only) TRLR BCK/UP Trailer Back-up Lamps WPR Windshield Wiper WPR HI Windshield Wiper High Speed
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the engine compartment (2013)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description A/C CLUTCH Air Conditioning Clutch ABS MTR Antilock Braking System (ABS) Motor AFS Adaptive Forward Lighting System AIRBAG Airbag System AUX POWER Auxiliary Power AUX VAC PUMP Auxiliary Vacuum Pump AWD All-Wheel-Drive System BATT 1 Battery 1 BATT 2 Battery 2 BATT 3 Battery 3 CIGAR LIGHTER Cigar Lighter ECM 1 Engine Control Module 1 ECM/ FPM IGN Engine control module/Fuel pump control module ignition EMISSION 1 Emission 1 EMISSION 2 Emission 2 EVEN COILS Even Injector Coils FAN 1 Cooling Fan 1 FAN 2 Cooling Fan 1 * Headlamp Washer (China)/Fog Lamps (GMC) FPM Fuel pump power module FSCM Fuel System Control Module FOG LAMP (GMC) Fog Lamps (GMC) HTD STR WHL Heated steering wheel HORN Horn HTD MIR Heated Outside Rearview Mirror HUMIDITY/MAF Humidity Sensor/ MAF Sensor HVAC BLWR Heating, Ventilation and Air Conditioning Blower LT HI BEAM Left High-Beam Headlamp LT LO BEAM Left Low-Beam Headlamp LT PRK Left Parking Lamp LT TRLR STOP/TRN Trailer Left Stoplamp and Turn Signal ODD COILS Odd Injector Coils PCM IGN Powertrain Control Module Ignition PWR L/GATE Power Liftgate PWR OUTLET Power Outlet RR APO Rear Accessory Power Outlet RR DEFOG Rear Defogger RR HVAC Rear Climate Control System RT HI BEAM Right High-Beam Headlamp RT LO BEAM Right Low-Beam Headlamp RT PRK Right Parking Lamp RT TRLR STOP/TRN Trailer Right Stoplamp and Turn Signal RVC SNSR Regulated Voltage Control Sensor S/ROOF/SUNSHADE Sunroff SERVICE Service Repair SPARE Spare Stop Lamps (China Only) Stop Lamps (China Only) STRTR Starter TCM Transmission Control Module TRANS Transmission TRLR BCK/UP Trailer Back-up Lamps TRLR BRK Trailer Brake TRLR PRK LAMP Trailer Parking Lamps TRLR PWR Trailer Power WPR/WSW Windshield Wiper/Washer
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment (2013)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
A/C CMPRSR CLTCH Air Conditioning Compressor Clutch AUX VAC PUMP Auxiliary Vacuum Pump CRNK Switched Power FAN 1 Cooling Fan 1 FAN 2 Cooling Fan 2 FAN 3 Cooling Fan 3 HDLP WASH (CHINA) Headlamp Washer (China)/Fog Lamps (GMC) HI BEAM High-Beam Headlamps HID/LO BEAM High Intensity Discharge (HID) Low-Beam Headlamps HORN Horn IGN Ignition Main LT TRLR STOP/TRN Trailer Left Stoplamp and Turn Signal Lamp PRK LAMP Park Lamp PWR/TRN Powertrain RR DEFOG Rear Window Defogger RT TRLR STOP/TRN Trailer Right Stoplamp and Turn Signal Lamp Stop Lamps (China Only) Stop Lamps (China Only) TRLR BCK/UP Trailer Back-up Lamps WPR Windshield Wiper WPR HI Windshield Wiper High Speed
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the engine compartment (2014, 2015, 2016, 2017)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description A/C CLUTCH Air Conditioning Clutch ABS MTR Antilock Braking System (ABS) Motor AFS Adaptive Forward Lighting System AIRBAG Airbag System AUX POWER Auxiliary Power AUX VAC PUMP Auxiliary Vacuum Pump AWD All-Wheel-Drive System BATT 1 Battery 1 BATT 2 Battery 2 BATT 3 Battery 3 CIGAR LIGHTER Cigar Lighter ECM 1 Engine Control Module 1 ECM/ FPM IGN Engine control module/Fuel pump control module ignition EMISSION 1 Emission 1 EMISSION 2 Emission 2 EVEN COILS Even Injector Coils FAN 1 Cooling Fan 1 FAN 2 Cooling Fan 1 * Headlamp Washer (China)/Fog Lamps (GMC) FPM Fuel pump power module FSCM Fuel System Control Module FOG LAMP (GMC) Fog Lamps (GMC) HTD STR WHL Heated steering wheel HORN Horn HTD MIR Heated Outside Rearview Mirror HUMIDITY/MAF Humidity Sensor/ MAF Sensor HVAC BLWR Heating, Ventilation and Air Conditioning Blower LT HI BEAM Left High-Beam Headlamp LT LO BEAM Left Low-Beam Headlamp LT PRK Left Parking Lamp LT TRLR STOP/TRN Trailer Left Stoplamp and Turn Signal ODD COILS Odd Injector Coils PCM IGN Powertrain Control Module Ignition PWR L/GATE Power Liftgate PWR OUTLET Power Outlet RR APO Rear Accessory Power Outlet RR DEFOG Rear Defogger RR HVAC Rear Climate Control System RT HI BEAM Right High-Beam Headlamp RT LO BEAM Right Low-Beam Headlamp RT PRK Right Parking Lamp RT TRLR STOP/TRN Trailer Right Stoplamp and Turn Signal RVC SNSR Regulated Voltage Control Sensor S/ROOF/SUNSHADE Sunroff SERVICE Service Repair SPARE Spare Stop Lamps (China Only) Stop Lamps (China Only) STRTR Starter TCM Transmission Control Module TRANS Transmission TRLR BCK/UP Trailer Back-up Lamps TRLR BRK Trailer Brake TRLR PRK LAMP Trailer Parking Lamps TRLR PWR Trailer Power WPR/WSW Windshield Wiper/Washer
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment (2014, 2015, 2016, 2017)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description A/C CMPRSR CLTCH Air Conditioning Compressor Clutch AUX VAC PUMP Auxiliary Vacuum Pump CRNK Switched Power FAN 1 Cooling Fan 1 FAN 2 Cooling Fan 2 FAN 3 Cooling Fan 3 HDLP WASH (CHINA) Headlamp Washer (China)/Fog Lamps (GMC) HI BEAM High-Beam Headlamps HID/LO BEAM High Intensity Discharge (HID) Low-Beam Headlamps HORN Horn IGN Ignition Main LT TRLR STOP/TRN Trailer Left Stoplamp and Turn Signal Lamp PRK LAMP Park Lamp PWR/TRN Powertrain RR DEFOG Rear Window Defogger RT TRLR STOP/TRN Trailer Right Stoplamp and Turn Signal Lamp Stop Lamps (China Only) Stop Lamps (China Only) TRLR BCK/UP Trailer Back-up Lamps WPR Windshield Wiper WPR HI Windshield Wiper High Speed
This content requires JavaScript and a valid membership to view.

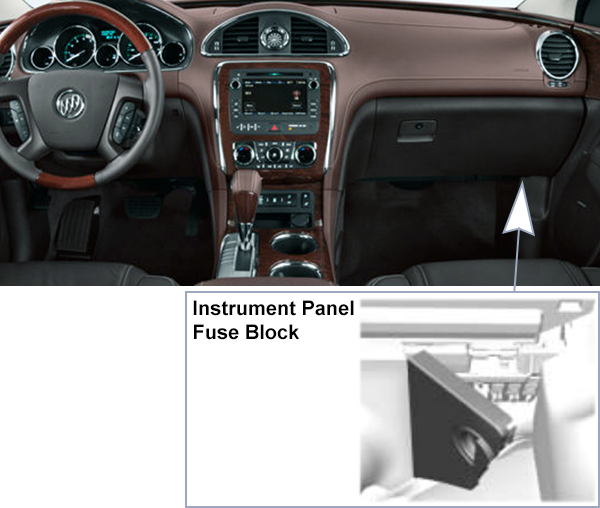

The instrument panel fuse block is under the instrument panel on the passenger side of the vehicle. Pull down on the cover to access the fuse block.

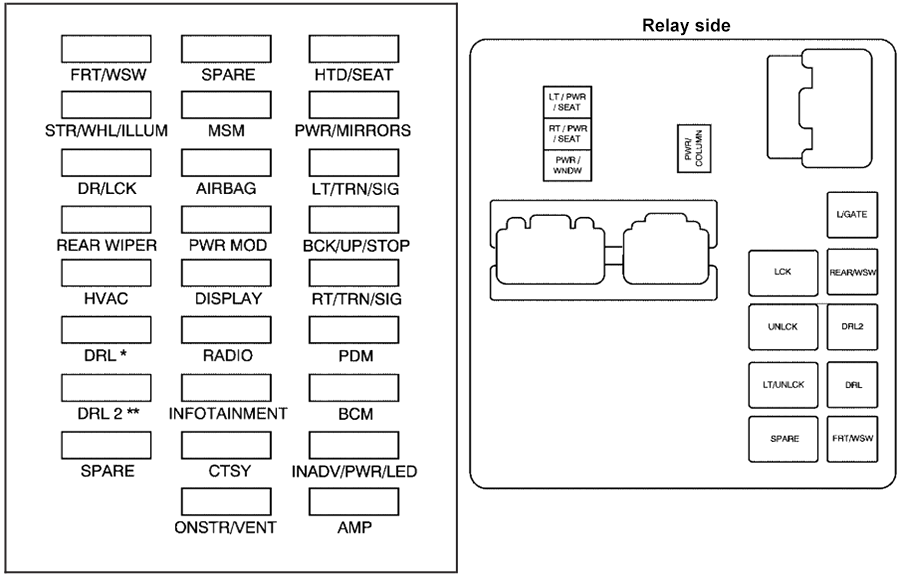

Assignment of the fuses in the passenger compartment fuse box (2008, 2009)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description FRT/WSW Front Windshield Wiper SPARE Spare HTD/SEAT Front Heated Seats STR/WHL/ILLUM Steering Wheel Illumination MSM Memory Seat Module PWR/MIRRORS Power Mirrors DR/LCK Door Locks AIRBAG Airbag System LT/TRN/SIG Driver Side Turn Signal REAR WIPER Rear Window Wiper PWR MOD PassKey Module, Body Control Module BCK/UP/STOP Back-up Lamps, Stoplamps HVAC Climate Control System DISPLAY Display RT/TRN/SIG Passenger Side Turn Signal DRL Daytime Running Lamps RADIO Radio PDM Power Mirrors, Liftgate Release DRL 2 Not used INFOTAINMENT Infotainment System BCM Body Control Module SPARE Spare CTSY Dome Lamps INADV/PWR/LED Interior Lamps ONSTR/VENT Emissions AMP Audio Amplifier
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the passenger compartment fuse box (2008, 2009)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description LT/PWR/SEAT Driver Side Power Seat Relay RT/PWR/SEAT Passenger Side Power Seat Relay PWR/WNDW Power Windows Relay PWR/COLUMN Power Steering Column Relay L/GATE Liftgate Relay LCK Power Lock Relay REAR/WSW Rear Window Washer Relay UNLCK Power Unlock Relay DRL2 Daytime Running Lamps 2 Relay LT/UNLCK Driver Side Unlock Relay DRL Daytime Running Lamps Relay SPARE Spare FRT/WSW Front Windshield Washer Relay
This content requires JavaScript and a valid membership to view.

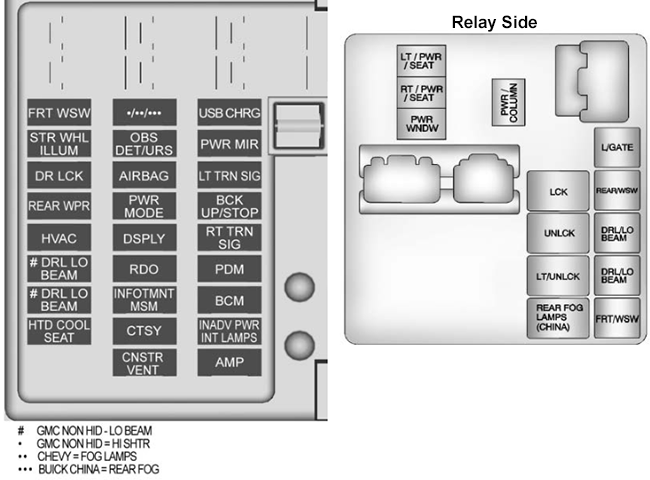

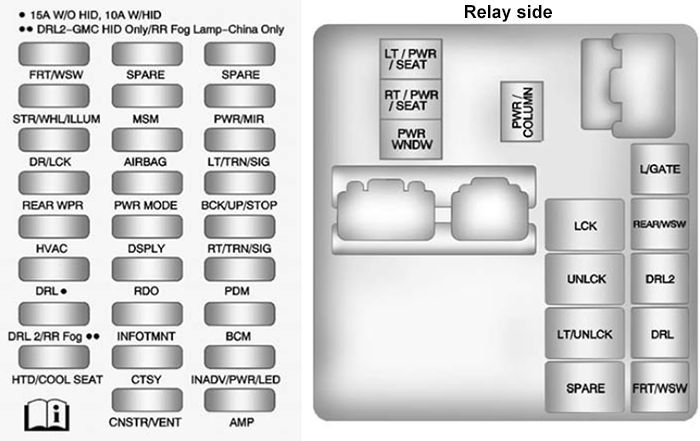

Assignment of the fuses in the passenger compartment (2010, 2011, 2012)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description AIRBAG Airbag AMP Amplifier BCK/UP/STOP Back-up Lamp/Stoplamp BCM Body Control Module CNST/VENT Canister Vent CTSY Courtesy DRL Daytime Running Lamps DRL 2 GMC HID Only/Rear Fog Lamps – China Only DSPLY Display FRT/WSW Front Windshield Washer HTD/COOL SEAT Heated/Cooling Seats HVAC Heating, Ventilation and Air Conditioning INADV/PWR/LED Inadvertent Power LED INFOTMNT Infotainment LT/TRN/SIG Driver Side Turn Signal MSM Memory Seat Module PDM Power Mirrors, Liftgate Release PWR MODE Power Mode PWR/MIR Power Mirrors RDO Radio REAR WPR Rear Wiper RT/TRN/SIG Passenger Side Turn Signal SPARE Spare STR/WHL/ILLUM Steering Wheel Illumination
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the passenger compartment (2010, 2011, 2012)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description LT/PWR/SEAT Driver Side Power Seat Relay RT/PWR/SEAT Passenger Side Power Seat Relay PWR/WNDW Power Windows Relay PWR/COLUMN Power Steering Column Relay L/GATE Liftgate Relay LCK Power Lock Relay REAR/WSW Rear Window Washer Relay UNLCK Power Unlock Relay DRL2 Daytime Running Lamps 2 Relay LT/UNLCK Driver Side Unlock Relay DRL Daytime Running Lamps Relay SPARE Spare FRT/WSW Front Windshield Washer Relay
This content requires JavaScript and a valid membership to view.

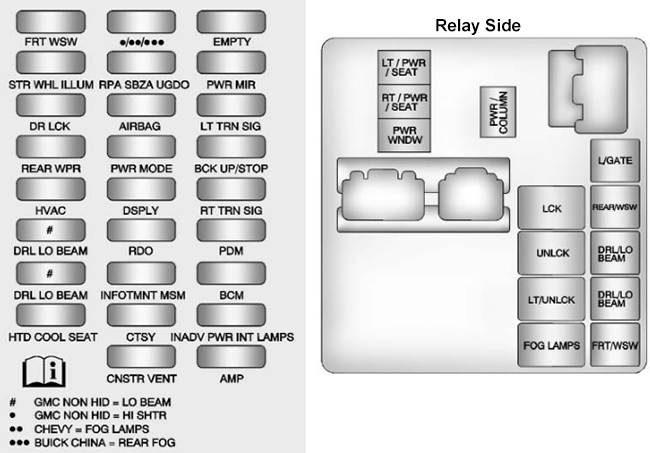

Assignment of the fuses in the passenger compartment (2013)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description # GMC NON HID = Lo Beam * GMC NON HID = High Shutter ** Chevy = Fog Lamps *** Buick China = Rear Fog Lamp AIRBAG Airbag AMP Amplifier BCK/UP/STOP Back-up Lamp/Stoplamp BCM Body Control Module CNSTR VENT Canister Vent CTSY Courtesy DRL LC Door lock DRL /LO BEAM Daytime Running Lamps Relay/Low Beam Headlamps Relay DSPLY Display EMPTY Empty FRT WSW Front Windshield Washer HTD/COOL SEAT Heated/Cooling Seats HVAC Heating, Ventilation and Air Conditioning INADV PWR INT LAMPS Inadvertent Power/Interior Light Pipe Lamps INFOTMNT/MSM Infotainment/ Memory Seat Module LT/TRN/SIG Driver Side Turn Signal PDM Power Mirrors, Liftgate Release PWR MODE Power Mode PWR MIR Power Mirrors RDO Radio REAR WPR Rear Wiper RPA/SBZA/UGDO Rear Park Assist/ Side Blind Zone Alert /Universal Garage Door Opener RT TRN SIG Passenger Side Turn Signal STR WHL ILLUM Steering Wheel Illumination
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the passenger compartment (2013)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description LT/PWR/SEAT Driver Side Power Seat Relay RT/PWR/SEAT Passenger Side Power Seat Relay PWR/WNDW Power Windows Relay PWR/COLUMN Power Steering Column Relay L/GATE Liftgate Relay LCK Power Lock Relay REAR/WSW Rear Window Washer Relay UNLCK Power Unlock Relay DRL/LO BEAM Daytime Running Lamps Relay/Low Beam Headlamps Relay LT/UNLCK Driver Side Unlock Relay DRL/ LO BEAM Daytime Running Lamps Relay (If Equipped) FOG LAMPS Fog Lamps Relay (Chevy) FRT/WSW Front Windshield Washer Relay
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the passenger compartment (2014, 2015, 2016, 2017)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description # GMC NON HID = Low Beam * GMC NON HID = High Shutter ** Chevy = Fog Lamps *** Buick China = Rear Fog Lamp AIRBAG Airbag AMP Amplifier BCK UP/STOP Back-up Lamp/Stoplamp BCM Body Control Module CNSTR VENT Canister Vent CTSY Courtesy DRL LC Door lock DRL /LO BEAM Daytime Running Lamps Relay/Low Beam Headlamps Relay DSPLY Display FRT WSW Front Windshield Washer HTD/COOL SEAT Heated/Cooling Seats HVAC Heating, Ventilation and Air Conditioning INADV PWR INT LAMPS Inadvertent Power/Interior Light Pipe Lamps INFOTMNT/MSM Infotainment/ Memory Seat Module LT TRN SIG Driver Side Turn Signal OBS DET /URS Rear park assist/ Side blind zone alert/Forward collision alert/ Universal remote system PDM Power Mirrors, Liftgate Release PWR MODE Power Mode PWR MIR Power Mirrors RDO Radio REAR WPR Rear Wiper RT TRN SIG Passenger Side Turn Signal STR WHL ILLUM Steering Wheel Illumination USB CHRG USB Charging
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the passenger compartment (2014, 2015, 2016, 2017)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description LT/PWR/SEAT Driver Side Power Seat Relay RT/PWR/SEAT Passenger Side Power Seat Relay PWR/WNDW Power Windows Relay PWR/COLUMN Power Steering Column Relay L/GATE Liftgate Relay LCK Power Lock Relay REAR/WSW Rear Window Washer Relay UNLCK Power Unlock Relay DRL/LO BEAM Daytime Running Lamps Relay/Low Beam Headlamps Relay LT/UNLCK Driver Side Unlock Relay DRL/ LO BEAM Daytime Running Lamps Relay (If Equipped) REAR FOG LAMPS (CHINA) Fog Lamps Relay (Chevy) FRT/WSW Front Windshield Washer Relay
This content requires JavaScript and a valid membership to view.
