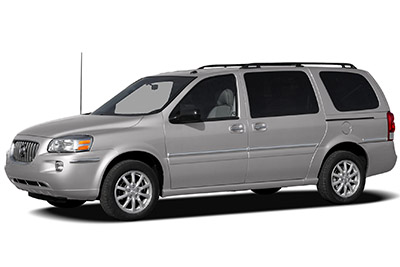

Looking for Buick Terraza fuse box diagrams ? This article covers the luxury minivan Buick Terraza , produced from 2004 to 2007 , and includes fuse box diagrams for Buick Terraza 2004, 2005, 2006, 2007 and 2008 , along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

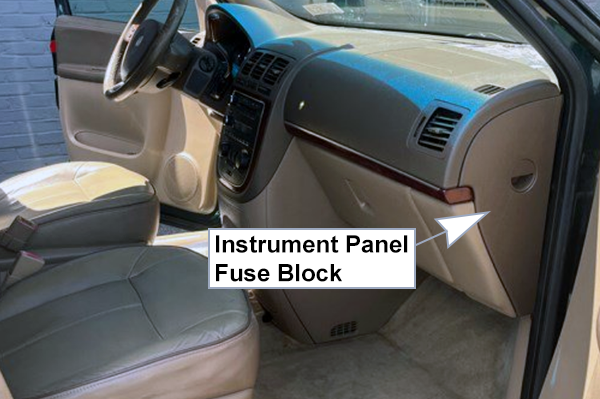

It is located on the passenger’s side of the instrument panel, behind the cover.

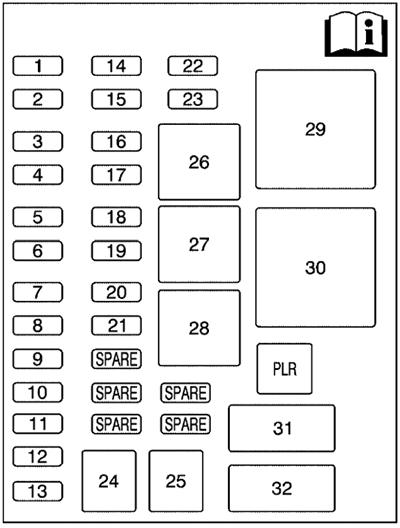

Assignment of the fuses in the Passenger compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 Trunk, Door Locks 2 Electronic Level Control 3 Rear Wiper 4 Radio, DVD Player 5 Interior Lamps 6 OnStar 7 Keyless Entry Module 8 Cluster, Heating, Ventilation, Air Conditioning 9 Cruise Switch 10 Steering Wheel Illumination 11 Power Mirror 12 Stoplamp, Turn Lamps 13 Heated Seats 14 Blank 15 Electronic Level Control 16 Heated Mirror 17 Center High-Mounted Stoplamp, Back-up Lamps 18 Blank 19 Canister Vent Solenoid 20 Park Lamps 21 Power Sliding Door 22 Blank 23 Blank 24 Left Power Sliding Door 25 Right Power Sliding Door PLR Fuse Puller
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Passenger compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 26 Blank 27 Blank 28 Park Lamps, Taillamps 29 Retained Accessory Power 30 Rear Defog
This content requires JavaScript and a valid membership to view.
Assignment of the circuit breakers in the Passenger compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 31 Power Seats 32 Power Window
This content requires JavaScript and a valid membership to view.

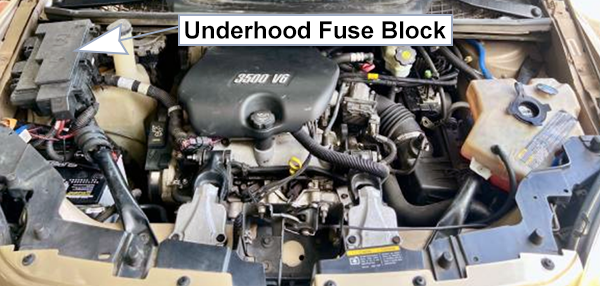

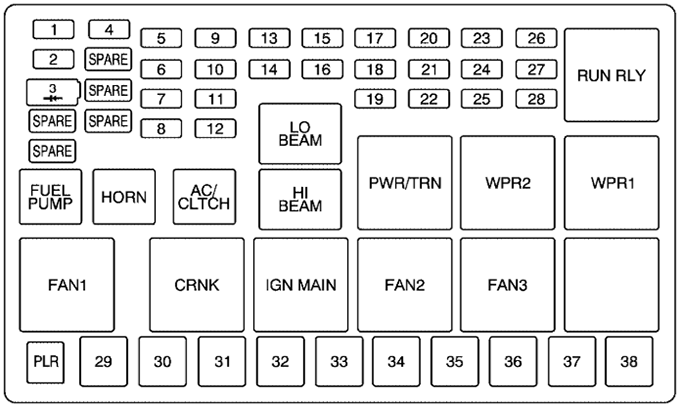

Assignment of the fuses in the engine compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Description 1 Mini Right High-Beam 2 Mini Fuel Pump 3 Mini Diode 4 Mini Left High-Beam 5 Mini Not Used 6 Mini Air Conditioning Clutch 7 Mini Horn 8 Mini Left Low-Beam 9 Mini Powertrain Control Module, Electronic Throttle Control 10 Mini Not Used 11 Mini Transmission Solenoid 12 Mini Right Low-Beam 13 Mini Anti-lock Brake System 14 Mini Powertrain Control Module Ignition 15 Mini Electronic Ignition 16 Mini Fuel Injector 17 Mini Climate Control, RPA, Cruise Control 18 Mini Electronic Throttle Control 19 Mini Engine Sensor, Evaporator 20 Mini Airbag 21 Mini Not Used 22 Mini 2004-2005: Emission, All-Wheel Drive2006-2008: Not Used23 Mini Auxiliary Power 24 Mini Front Windshield Washer 25 Mini AC/DC Inverter 26 Mini Rear Blower 27 Mini Front Blower 28 Mini Front Windshield Wiper PLR – Fuse Puller 29 J-Case Fan 1 30 J-Case Starter Solenoid 31 J-Case Anti-lock Brake System Motor 32 J-Case Blank 33 J-Case Fan 2 34 J-Case Front Blower High 35 J-Case Battery Main 3 36 J-Case Rear Defogger 37 J-Case Battery Main 2 38 J-Case 2004-2005: Battery Main 12006-2008: Spare
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description RUN RLY Starter LO BEAM Low-Beam FUEL PUMP Fuel Pump HORN Horn AC/CLTCH Air Conditioning Clutch HI BEAM High-Beam PWR/TRN Powertrain WPR2 Wiper 2 WPR1 Wiper 1 FAN 1 Fan 1 CRNK Crank IGN MAIN Ignition Main FAN2 Fan 2 FAN3 Fan 3 BLANK Not Used
