Engine Compartment

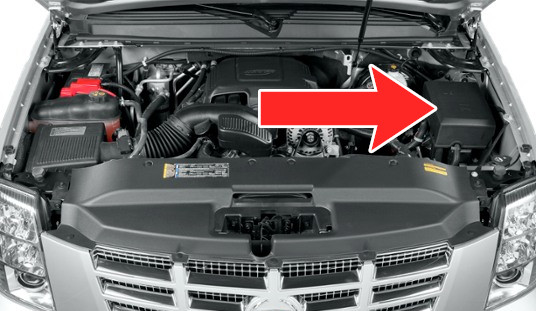

Fuse Box Location

The engine compartment fuse block is located under the hood, on the driver side of the vehicle. Raise the cover to access the fuse/relay block.

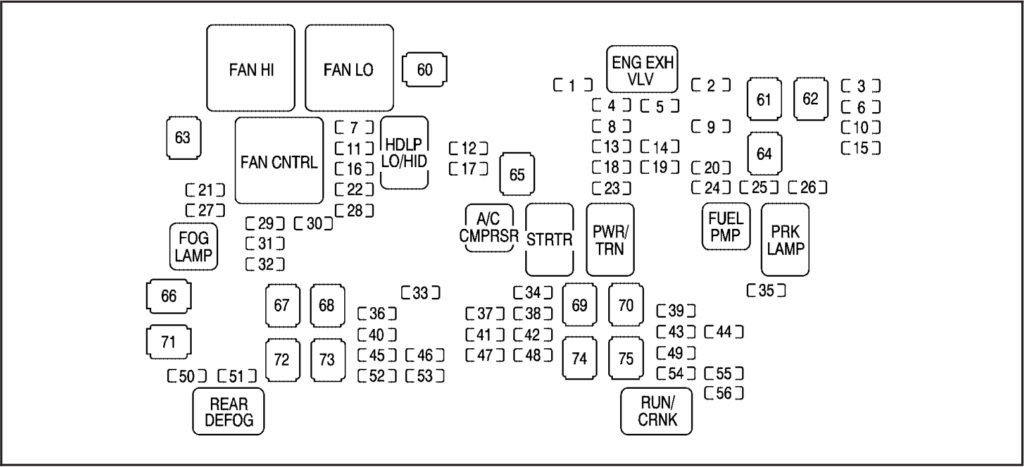

Fuse Box Diagram (2007)

Fuses

Assignment of the fuses in the engine compartment fuse box (2007)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeDescription
1Mini–
2MiniElectronic Stability Suspension Control, Automatic Level Control Exhaust
3MiniLeft Trailer Stop / Turn Lamp
4MiniEngine Controls
5MiniEngine Control Module, Throttle Control
6MiniRight Trailer Stop / Turn Lamp
7MiniFront Washer
8MiniOxygen Sensors
9MiniAnti-lock Brakes System 2
10MiniTrailer Back-up Lamps
11MiniDriver’s High Intensity Discharge Lamp
12MiniEngine Control Module (Battery)
13MiniFuel Injectors, Ignition Coils (Right Side)
14MiniTransmission Control Module (Battery)
15MiniVehicle Back-up Lamps
16MiniPassenger’s Side High Intensity Discharge Lamp
17MiniAir Conditioning Compressor
18MiniOxygen Sensors
19MiniTransmission Controls (Ignition)
20MiniFuel Pump
21Mini–
22MiniRear Washer
23MiniFuel Injectors, Ignition Coils (Left Side)
24MiniTrailer Park Lamps
25MiniDriver’s Side Park Lamps
26MiniPassenger’s Side Park Lamps
27MiniFog Lamps
28MiniHorn
29MiniPassenger’s Side High-Beam Headlamp Solenoid
30MiniDaytime Running Lamps
31MiniDriver’s Side High-Beam Headlamp Solenoid
32Mini–
33MiniSunroof
34MiniKey Ignition System, Theft Deterrent System
35MiniWindshield Wiper
36MiniSEO B2 Upfitter Usage (Battery)
37MiniElectric Adjustable Pedals
38MiniClimate Controls (Battery)
39MiniAirbag System (Ignition)
40MiniAmplifier
41MiniAudio System
42Mini–
43MiniMiscellaneous (Ignition), Rear Vision Camera (If Equipped), Cooled Seats, Cruise Control
44MiniLiftgate Release
45MiniOnStar®, Rear Seat Entertainment Display
46MiniInstrument Panel Cluster
47Mini–
48MiniHeated Steering Wheel
49MiniAuxiliary Climate Control (Ignition), Compass-Temperature Mirror
50MiniRear Defogger
51MiniAirbag System (Battery)
52MiniSEO B1 Upfitter Usage (Battery)
53MiniCigarette Lighter, Auxiliary Power Outlet
54MiniAutomatic Level Control Compressor Relay, SEO Upfitter Usage
55MiniClimate Controls (Ignition)
56MiniEngine Control Module, Secondary Fuel Pump (Ignition)
57—–
58—–
59—–
60J-CaseCooling Fan 1
61J-CaseAutomatic Level Control Compressor
62J-Case–
63J-CaseCooling Fan 2
64J-CaseAnti-lock Brake System 1
65J-CaseStarter
66J-CaseStud 2 (Trailer Brakes)
67J-CaseLeft Bussed Electrical Center 1
68J-CaseElectric Running Boards
69J-CaseHeated Windshield Washer System
70J-Case–
71J-CaseStud 1 (Trailer Connector Battery Power)
72J-CaseMid-Bussed Electrical Center 1
73J-CaseClimate Control Blower
74J-CasePower Liftgate Module
75J-CaseLeft Bussed Electrical Center 2

Relays

Assignment of the relays in the engine compartment fuse box (2007)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

Short-CodeDescription
FAN HICooling Fan High Speed
FAN LOCooling Fan Low Speed
ENG EXH VLV–
FAN CNTRLCooling Fan Control
HDLP LO/HIDHi Intensity Discharge Headlamp
FOG LAMPFront Fog Lamps
A/C CMPRSRAir Conditioning Compressor
STRTRStarter
PWR/TRNPowertrain
FUEL PMPFuel Pump
PRK LAMPParking Lamps
REAR DEFOGRear Defogger
RUN/CRANKSwitched Power

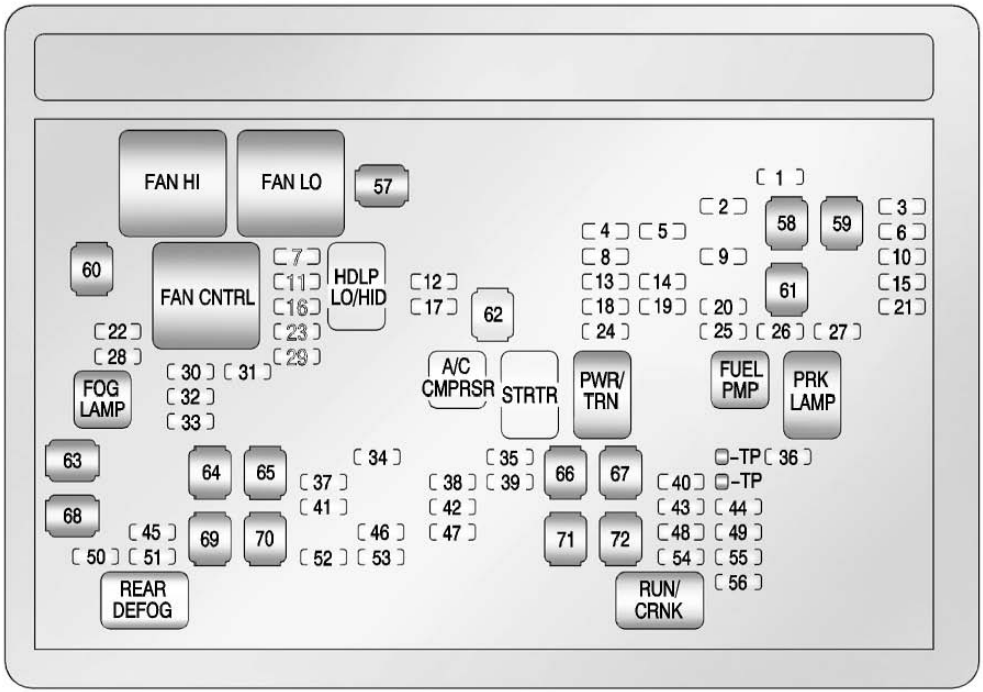

Fuse Box Diagram (2008-2014)

Fuses

Assignment of the fuses in the engine compartment fuse box (2008-2014)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeDescription
1MiniRight Trailer Stop / Turn Lamp
2MiniElectronic Stability Suspension Control, Automatic Level Control Exhaust
3MiniLeft Trailer Stop / Turn Lamp
4MiniEngine Controls
5MiniEngine Control Module, Throttle Control
6MiniTrailer Brake Controller
7MiniFront Washer
8MiniOxygen Sensors
9MiniAnti-lock Brakes System 2
10MiniTrailer Back-up Lamps
11MiniDriver Side Low-Beam Headlamp
12MiniEngine Control Module (Battery)
13MiniFuel Injectors, Ignition Coils (Right Side)
14MiniTransmission Control Module (Battery)
15MiniVehicle Back-up Lamps
16MiniPassenger Side Low-Beam Headlamp
17MiniAir Conditioning Compressor
18MiniOxygen Sensors
19MiniTransmission Controls (Ignition)
20MiniFuel Pump
21MiniFuel System Control Module
22MiniHeadlamp Washers
23MiniRear Windshield Washer
24MiniFuel Injectors, Ignition Coils (Left Side)
25MiniTrailer Park Lamps
26MiniDriver’s Side Park Lamps
27MiniPassenger’s Side Park Lamps
28MiniFog Lamps
29MiniHorn
30MiniPassenger Side High-Beam Headlamp
31MiniDaytime Running Lamps (DRL) (If Equipped)
32MiniDriver Side High-Beam Headlamp
33MiniDaytime Running Lights 2 (If Equipped)
34MiniSunroof
35MiniKey Ignition System, Theft Deterrent System
36MiniWindshield Wiper
37MiniSEO B2 Upfitter Usage (Battery)
38MiniElectric Adjustable Pedals
39MiniClimate Controls (Battery)
40MiniAirbag System (Ignition)
41MiniAmplifier
42MiniAudio System
43MiniMiscellaneous (Ignition), Cruise Control
44MiniLiftgate Release
45MiniAirbag System (Battery)
46MiniInstrument Panel Cluster
47Mini2008-2010: Power Take-Off
2011-2014: –
48Mini2008-2010: Auxiliary Climate Control (Ignition), Compass-Temperature Mirror
2011-2014: Auxiliary Climate Control (Ignition)
49MiniCenter High-Mounted Stoplamp (CHMSL)
50MiniRear Defogger
51MiniHeated Mirror
52MiniSEO B1 Upfitter Usage (Battery)
53MiniCigarette Lighter, Auxiliary Power Outlet
54Mini2008-2010: Automatic Level Control Compressor Relay, SEO Upfitter Usage
2011-2014: Automatic Level Control Compressor Relay
55MiniClimate Controls (Ignition)
56MiniEngine Control Module, Secondary Fuel Pump (Ignition)
57J-CaseCooling Fan 1
58J-CaseAutomatic Level Control Compressor
59J-CaseHeavy Duty Antilock Brake System
60J-CaseCooling Fan 2
61J-CaseAnti-lock Brake System 1
62J-CaseStarter
63J-CaseStud 2 (Trailer Brakes)
64J-CaseLeft Bussed Electrical Center 1
65J-CaseElectric Running Boards
66J-CaseHeated Windshield Washer System
67J-Case2008-2010: Four-Wheel Drive System
2011-2014: Transfer Case
68J-CaseStud 1 (Trailer Connector Battery Power)
69J-CaseMid-Bussed Electrical Center 1
70J-CaseClimate Control Blower
71J-CasePower Liftgate Module
72J-CaseLeft Bussed Electrical Center 2

Relays

Assignment of the relays in the engine compartment fuse box (2008-2014)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

Short-CodeDescription
FAN HICooling Fan High Speed
FAN LOCooling Fan Low Speed
FAN CNTRLCooling Fan Control
HDLP LO/HIDHi Intensity Discharge Headlamp
FOG LAMPFront Fog Lamps
A/C CMPRSRAir Conditioning Compressor
STRTRStarter
PWR/TRNPowertrain
FUEL PMPFuel Pump
PRK LAMPParking Lamps
REAR DEFOGRear Defogger
RUN/CRANKSwitched Power

Passenger Compartment (Left)

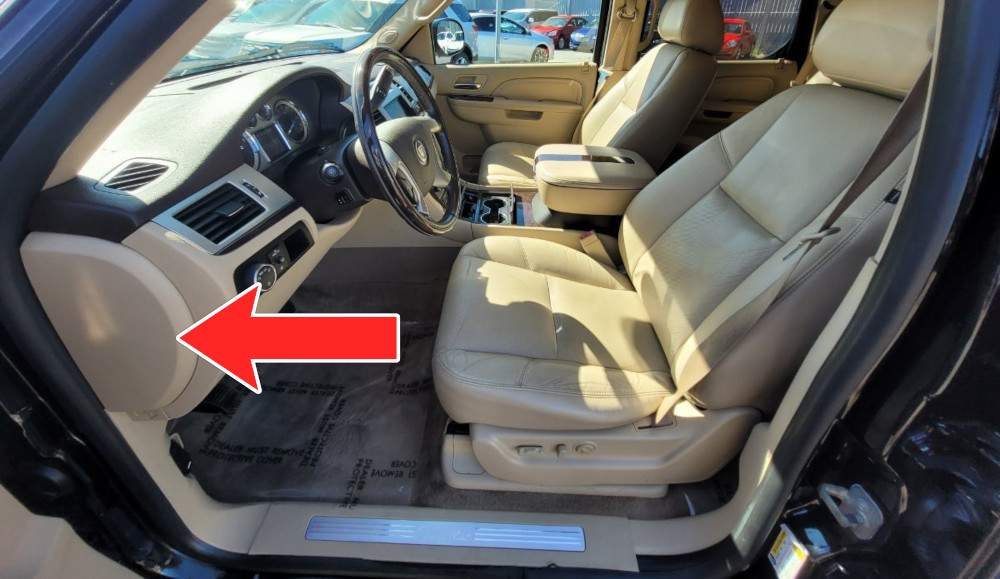

Fuse Box Location

The instrument panel fuse block access door is positioned on the outer edge of the instrument panel on the driver’s side.

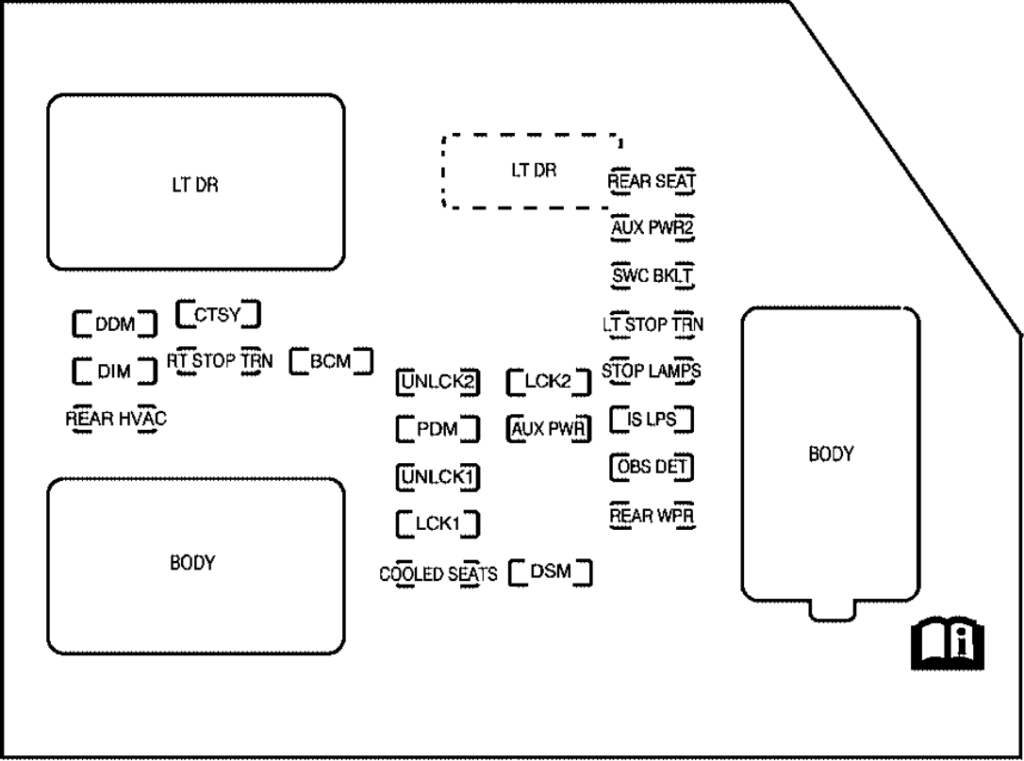

Fuse Box Diagram (2007)

Fuses

Assignment of the fuses in the instrument panel left side fuse box (2007)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

Short-CodeDescription
LT DRDriver’s Side Power Window Circuit Breaker
REAR SEATRear Seats
AUX PWR2Rear Cargo Area Power Outlets
SWC BKLTSteering Wheel Controls Backlight
DDMDriver Door Module
CTSYDome Lamps, Driver’s Side Turn Signal
LT STOP TRNDriver’s Side Turn Signal, Stoplamp
DIMInstrument Panel Back Lighting
RT STOP TRNPassenger’s Side Turn Signal, Stoplamp
BCMBody Control Module
UNLCK2Power Door Lock 2 (Unlock Feature)
LCK2Power Door Lock 2 (Lock Feature)
STOP LAMPSStoplamps, Center-High Mounted Stoplamp
REAR HVACRear Climate Controls
PDMPassenger Door Module, Universal Home Remote System
AUX PWRAccessory Power Outlets
IS LPSInterior Lamps
UNLCK1Power Door Lock 1 (Unlock Feature)
OBS DETUltrasonic Rear Parking Assist, Power Liftgate
LCK1Power Door Lock 1 (Lock Feature)
REAR WPRRear Wiper
COOLED SEATSCooled Seats
DSMDriver Seat Module, Remote Keyless Entry System

Harness Connectors

Assignment of the harness connectors in the instrument panel left side fuse box (2007)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

Short-CodeDescription
LT DRDriver’s Door Harness Connection
BODYHarness Connector
BODYHarness Connector

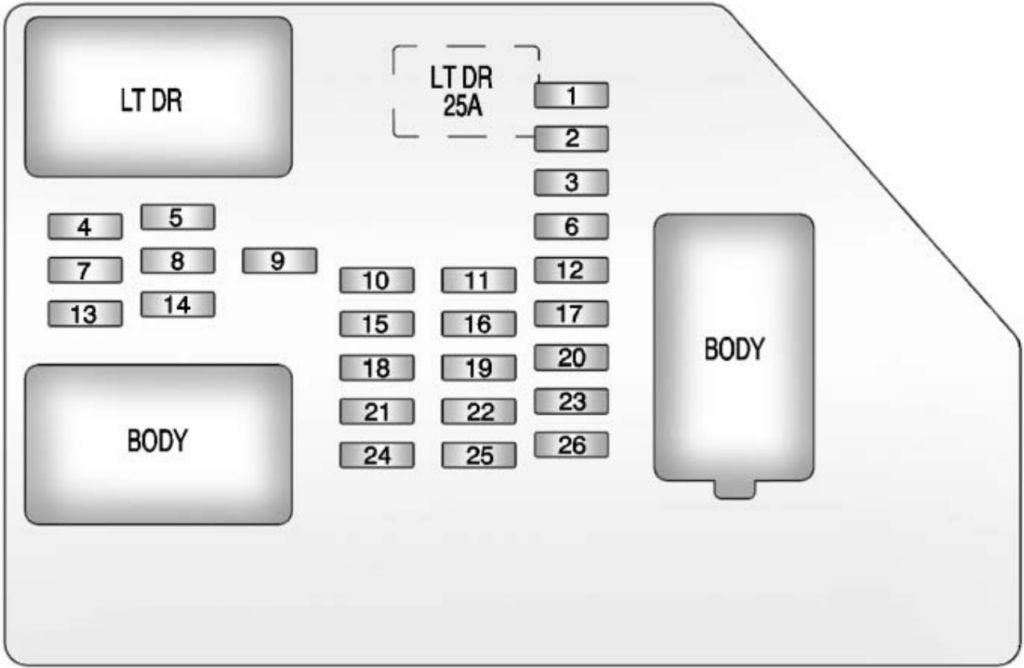

Fuse Box Diagram (2008-2014)

Fuses

Assignment of the fuses in the left side instrument panel (2008-2014)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
1Rear Seats
2Rear Cargo Area Power Outlets
3Steering Wheel Controls Backlight
4Driver Door Module
5Dome Lamps, Driver’s Side Turn Signal
6Driver’s Side Turn Signal, Stoplamp
7Instrument Panel Back Lighting
8Passenger’s Side Turn Signal, Stoplamp
92008-2010: Passenger Door Module
2011-2014: Passenger Door Module, Driver Unlock
10Power Door Lock 2 (Unlock Feature)
11Power Door Lock 2 (Lock Feature)
12Stoplamps, Center-High Mounted Stoplamp
13Rear Climate Controls
142008-2010: Not used
2011-2014: Power Mirror
15Body Control Module (BCM)
16Accessory Power Outlets
17Interior Lamps
18Power Door Lock 1 (Unlock Feature)
17Rear Seat Entertainment
20Ultrasonic Rear Parking Assist, Power Liftgate
21Power Door Lock 1 (Lock Feature)
22Driver Information Center (DIC)
23Rear Wiper
242008-2010: Not used
2011-2014: Cooled Seats
25Driver Seat Module, Remote Keyless Entry System
262008-2010: Not used
2011-2014: Driver Power Door Lock (Unlock Feature)
LT DR2011-2014: Driver Side Power Window Circuit Breaker

Harness Connectors

Assignment of the harness connectors in the left side instrument panel (2008-2014)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

Short-CodeDescription
LT DRDriver’s Door Harness Connection
BODYHarness Connector
BODYHarness Connector

Passenger Compartment (Center)

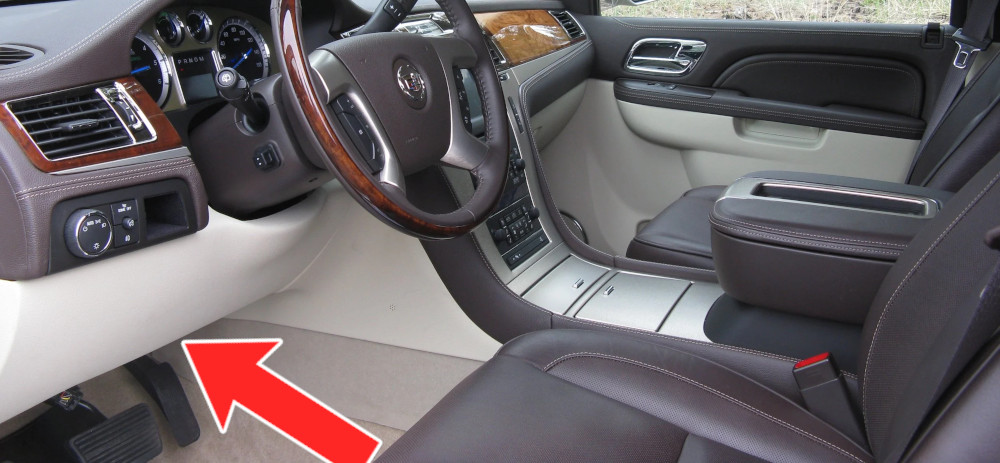

Fuse Box Location

The center instrument panel fuse block is located below the instrument panel, to the left of the steering column.

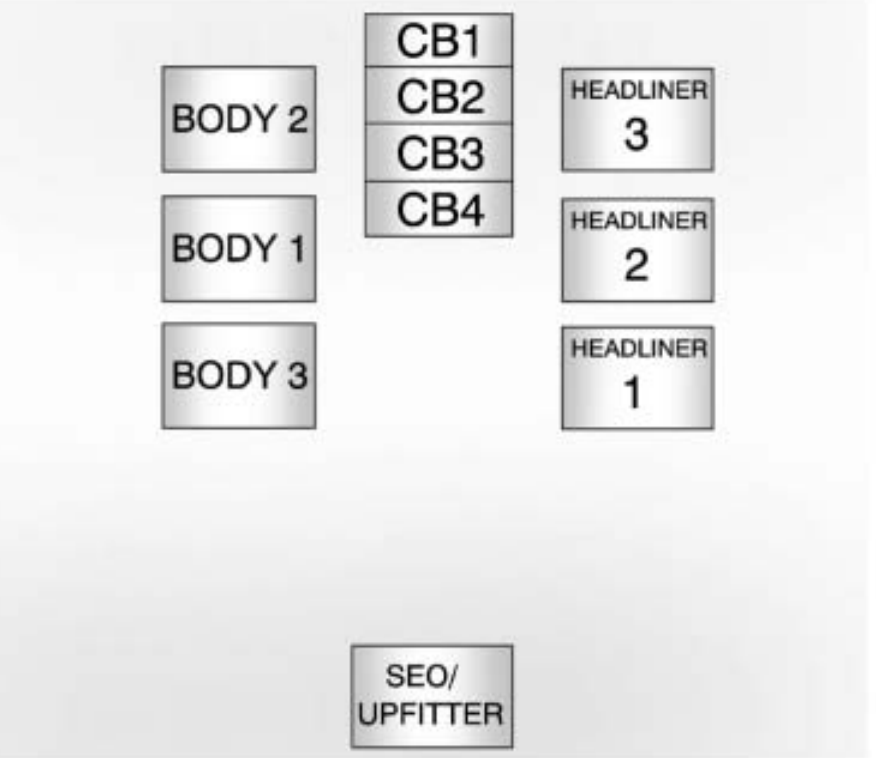

Fuse Box Diagram

Harness Connectors

Assignment of the harness connectors in the instrument panel (Center)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

Short-CodeDescription
BODY 2Body Harness Connector 2
BODY 1Body Harness Connector 1
BODY 3Body Harness Connector 3
HEADLINER 3Headliner Harness Connector 3
HEADLINER 2Headliner Harness Connector 2
HEADLINER 1Headliner Harness Connector 1
BRAKE CLUTCHBrake Clutch Harness Connector
SEO/UPFITTERSpecial Equipment Option Upfitter Harness Connector

Circuit Breakers

Assignment of the circuit breakers in the instrument panel (Center)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
CB1Passenger’s Side Power Window Circuit Breaker
CB2Passenger’s Seat Circuit Breaker
CB3Driver’s Seat Circuit Breaker
CB4Not Used
