Browse Cadillac Escalade fuse box diagrams for 2015–2020 models with relay locations, fuse assignments, panel layouts, and electrical system information. This article covers the fourth-generation Cadillac Escalade / Escalade ESV (Model Code: GMT K2XL) , available from 2015 , and includes fuse box diagrams for Cadillac Escalade / Escalade ESV 2015, 2016, 2017, 2018, 2019 and 2020 , along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

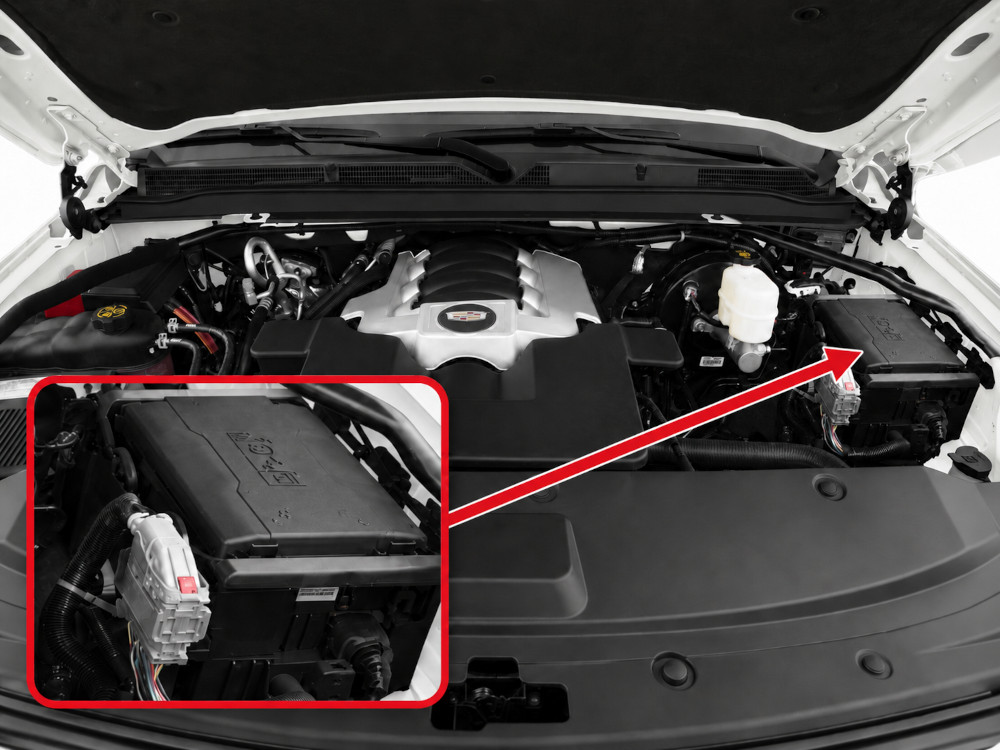

The engine compartment fuse block is located in the engine compartment on the driver side of the vehicle.

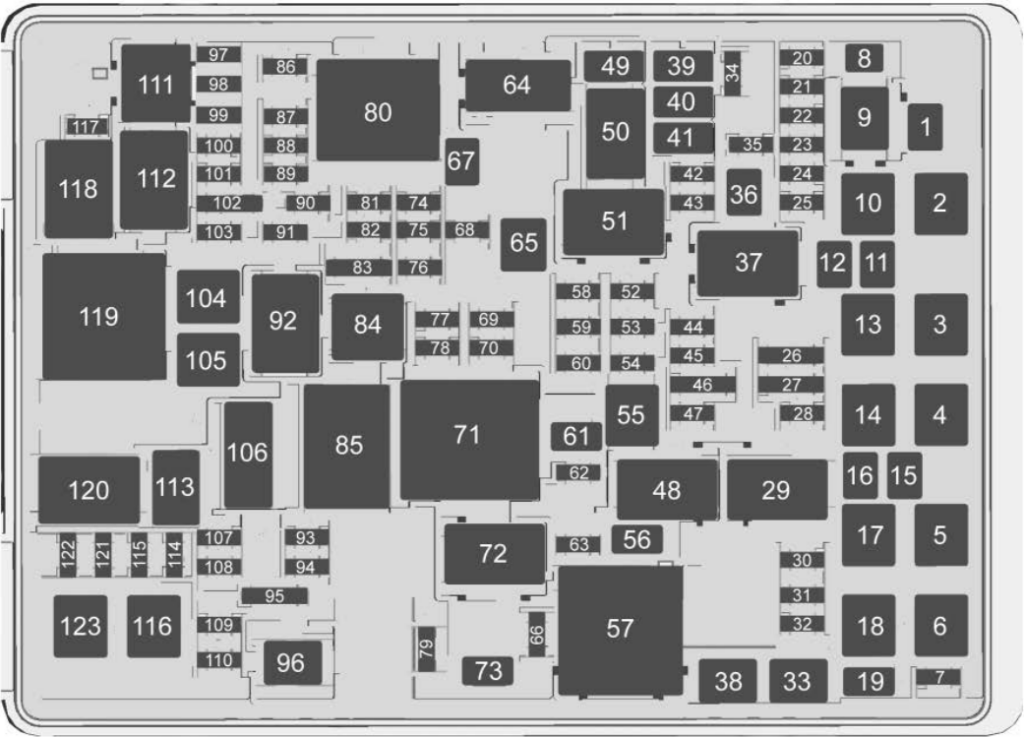

Assignment of the fuses in the engine compartment fuse box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 2015-2019: Electric Running Boards2020: Power Assist Steps2 Antilock Brake System Pump 3 Interior Body Electrical Center LT1 4 Passenger Motorized Seat Belt 5 Suspension Leveling Compressor 6 4WD Transfer Case Electronic Control 7 – 8 – 10 Electric Parking Brake 11 – 12 – 13 Interior Body Electrical Center LT2 14 Rear Body Electrical Center 1 15 – 16 – 17 Driver Motorized Seat Belt 18 – 19 – 20 – 21 Automatic Headlamp Leveling / Exhaust Solenoid 22 2018-2020: Fuel Pump23 Integrated Chassis Control Module 24 Real Time Dampening 25 Fuel Pump Power Module 26 2015-2017: Spare / Battery Regulated Voltage Control2018-2020: Active Hydraulic Assist / Battery Regulated Voltage Control27 – 28 Upfitter 2 30 Wiper 31 Trailer Interface Module 32 – 33 – 34 Reverse Lamps 35 Antilock Brake System Valve 36 Trailer Brakes 38 – 39 Right Trailer Stop Lamp / Turn Signal Lamp 40 Left Trailer Stop Lamp / Turn Signal Lamp 41 Trailer Parking Lamps 42 Right Parking Lamps 43 Left Parking Lamps 44 Upfitter 3 45 Automatic Level Control / Run / Crank 46 – 47 Upfitter 4 49 Reverse Lamps 50 – 52 – 53 – 54 – 55 – 56 – 57 – 58 – 59 Euro Trailer 60 Air Conditioning Control 61 – 62 – 63 Upfitter 1 65 – 66 – 67 Trailer Battery 68 2018-2020: Secondary Fuel Pump69 Run/Crank Upfitter 3 and 4 70 Vehicle Battery Upfitter 3 and 4 71 – 73 – 74 Engine Control Module / Ignition 75 Miscellaneous / Ignition Spare 76 Transmission Ignition 77 Run/Crank Upfitter 1 and 2 78 Vehicle Battery Upfitter 1 and 2 79 – 80 – 81 – 82 – 83 Euro Trailer Run/Crank 85 – 86 – 87 2015-2017: Engine2018-2020: Mass Air Flow / Intake Air Temperature / Humidity / Throttle Inlet Absolute Pressure Sensor88 Injector A – Odd 89 Injector B – Even 90 Oxygen Sensor B 91 Throttle Control 93 Horn 94 Fog Lamps 95 High-Beam Headlamps 96 – 97 – 98 – 99 – 100 Oxygen Sensor A 101 Engine Control Module 102 Engine Control Module / Transmission Control Module 103 Auxiliary Interior Heater 104 Starter 105 – 106 – 107 Aero Shutter 108 – 109 Police Upfitter 110 – 111 – 113 – 114 Front Windshield Washer 115 Rear Window Washer 116 Left Cooling Fan 117 2017-2020: Fuel Pump Prime118 – 119 – 121 Right HID Headlamp 122 Left HID Headlamp 123 Right Cooling Fan
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment fuse box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 9 2018-2020: Fuel Pump Relay29 Upfitter 2 Relay 37 Upfitter 3 Relay 48 Upfitter 4 Relay 51 Parking Lamp Relay 64 2018-2020: Secondary Fuel Pump Relay72 Upfitter 1 Relay 84 Run / Crank Relay 92 Engine Control Module Relay 112 Starter Relay 120 2017-2020: Fuel Pump Prime Relay
This content requires JavaScript and a valid membership to view.

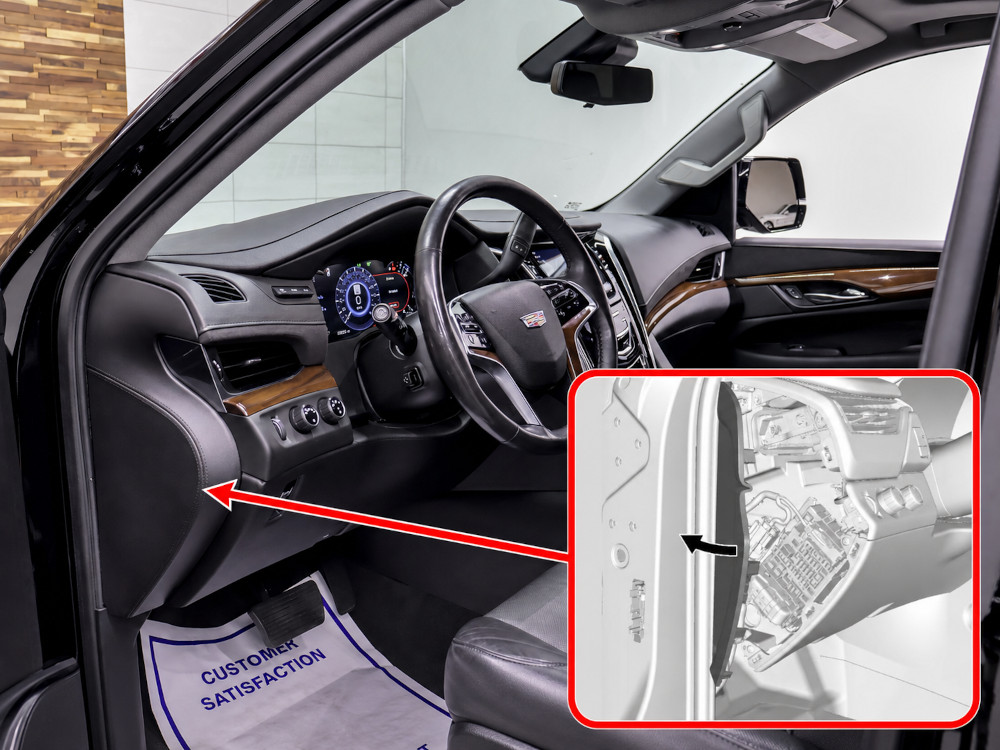

The access door for the left instrument panel fuse block is located on the driver-side edge of the instrument panel.
Pull back the cover to reach the fuse block.
There are relays on the rear side of the fuse block. To reach them, press the tabs and take out the fuse block.

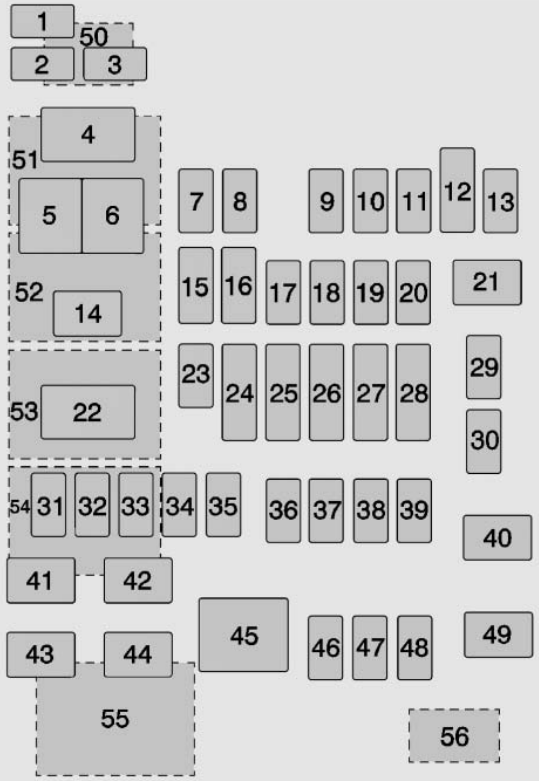

Assignment of the fuses in the instrument panel (Driver’s Side)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 – 2 – 3 – 4 Accessory Power Outlet 1 5 Accessory Power Outlet From Retained Accessory Power 6 Accessory Power Outlet From Battery Power 7 Universal Remote System / Interior Rearview Mirror 8 Special Equipment Option Retained Accessory Power 9 – 10 Body Control Module 3 11 Body Control Module 5 12 Steering Wheel Controls Backlighting 13 – 14 – 15 – 16 Discrete Logic Ignition Sensor 17 2015-2018: Video Processing Module2019-2020: Video Processing Module / Virtual Key Module18 Mirror Window Module 19 Body Control Module 1 20 Front Bolster 21 – 22 – 23 – 24 Heater, Ventilation and Air Conditioning Ignition / Auxiliary 25 Instrument Cluster Ignition / Sensing Diagnostic Module Ignition 26 Tilt Column / Special Equipment Option, Tilt Column Lock 1 / Special Equipment Option 27 Data Link Connector / Driver Seat Module 28 Passive Entry / Passive Start / Heater, Ventilation and Air Conditioning Battery 29 Content Theft Deterrent 30 – 31 – 32 – 33 2015-2017: Special Equipment Option / Automatic Level Control2018-2020: Special Equipment Option / Left Heated Seat34 Park Enable Electric Adjustable Pedal 35 – 36 Miscellaneous Run / Crank Loads 37 Heated Steering Wheel 38 Steering Column Lock 2 39 Instrument Cluster Battery 40 – 41 – 42 Euro Trailer 43 Left Doors 44 Driver Power Seat 45 – 46 Right Heated / Cooled Seat 47 Left Heated / Cooled Seat 48 – 49 –
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the instrument panel (Driver’s Side)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 50 Accessory Power Outlet 2 51 – 52 Retained Accessory Power / Accessory Relay 53 Run / Crank Relay 54 – 55 – 56 –
This content requires JavaScript and a valid membership to view.

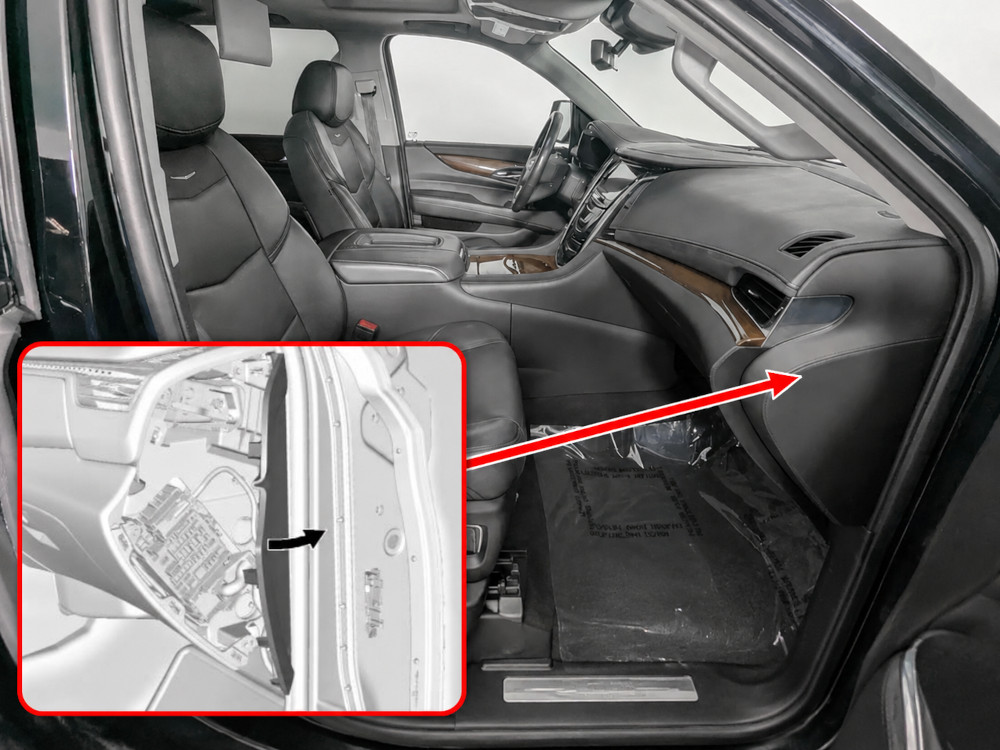

The access door for the right instrument panel fuse block is located on the passenger-side edge of the instrument panel. Remove the cover to reach the fuse block.
There are relays located on the rear of the fuse block. To reach them, press the tabs and remove the fuse block.

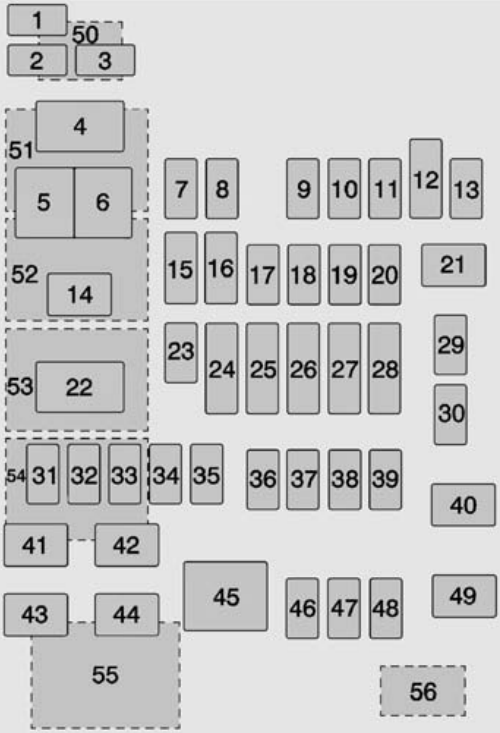

Assignment of the fuses in the instrument panel (Passenger’s Side)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 – 2 – 3 – 4 Accessory Power Outlet 4 5 – 6 – 7 – 8 Glove Box 9 – 10 – 11 – 12 Steering Wheel Controls 13 Body Control Module 8 14 – 15 – 16 – 17 – 18 – 19 Body Control Module 4 20 Rear Seat Entertainment 21 Sunroof 22 – 23 – 24 – 25 – 26 Infotainment / Airbag 27 Spare / Right Front Window Switch / Rain Sensor 28 Obstacle Detection / USB 29 Radio 30 – 31 – 32 – 33 – 34 – 35 – 36 Special Equipment Option B2 37 Special Equipment Option 38 Body Control Module 2 39 DC to AC Inverter 40 – 41 – 42 – 43 – 44 Right Door Window Motor 45 Front Blower 46 Body Control Module 6 47 Body Control Module 7 48 Amplifier 49 Right Front Seat 50 Accessory Power Outlet 3 51 – 53 – 54 – 55 – 56 –
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the instrument panel (Passenger’s Side)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 52 Retained Accessory Power Relay
This content requires JavaScript and a valid membership to view.

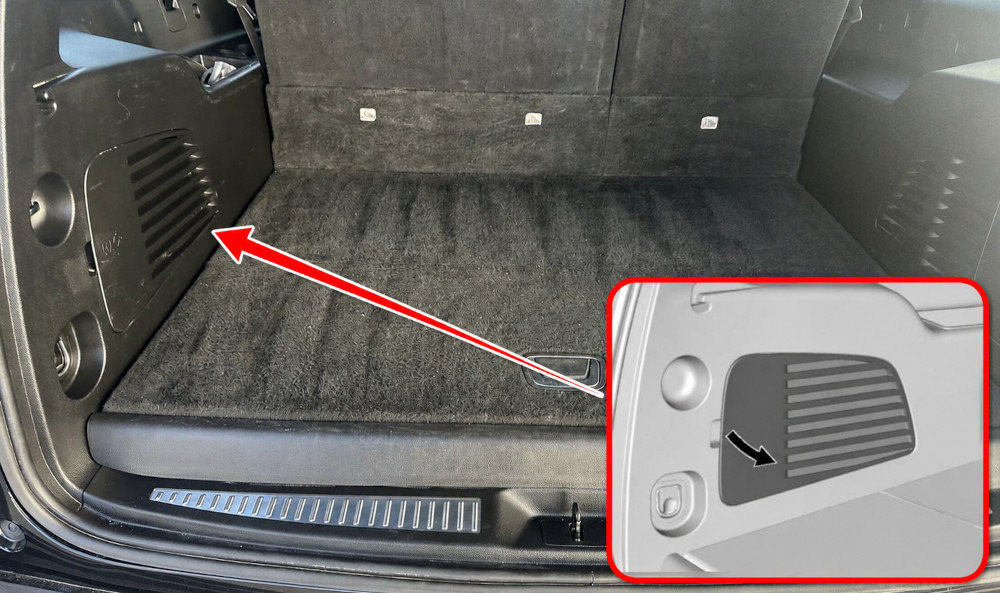

The rear compartment fuse block is located behind the access panel on the left side of the compartment. To remove the panel, pull it out using the finger access slot at the rear edge.

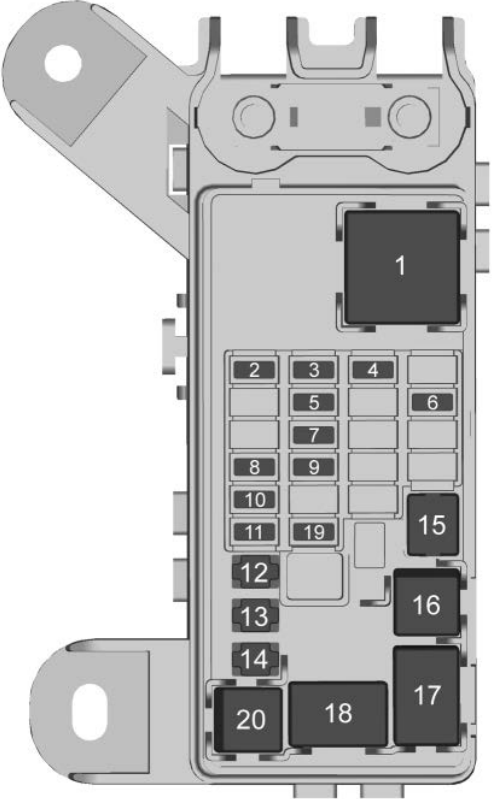

Assignment of the fuses in the rear compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Description 2 Micro 2015-2017: Left Heated Second Row Seat2018-2020: –3 Micro Right Heated Second Row Seat 4 Micro Heated Mirrors 5 Micro Liftgate 6 Micro Glass Breakage 7 Micro Liftglass 8 Micro Liftgate Module Logic 9 Micro Rear Wiper 10 Micro Rear Heating, Ventilation, and Air Conditioning Blower 11 Micro Second Row Seat 12 M-Type Liftgate Module 13 M-Type Third Row Seat 14 M-Type Rear Accessory Power Outlet 15 M-Type Rear Window Defogger 19 Micro Rear Fog Lamp (if equipped)
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the rear compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Description 1 ISO Mini Rear Window Defogger 16 Ultra Micro Liftgate 17 Micro Liftglass 18 Micro Rear Fog Lamp 20 Micro Heated Mirror
This content requires JavaScript and a valid membership to view.
