Explore Chevrolet Traverse fuse box diagrams in this clear guide that outlines the electrical layout of the original full-size crossover. Here we cover the first-generation Chevrolet Traverse (produced from 2008 to 2017) and provide fuse diagrams for 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016 and 2017 , along with the location of the fuse panels and the assignment of each fuse and relay , giving you a reliable reference for electrical diagnostics and maintenance.

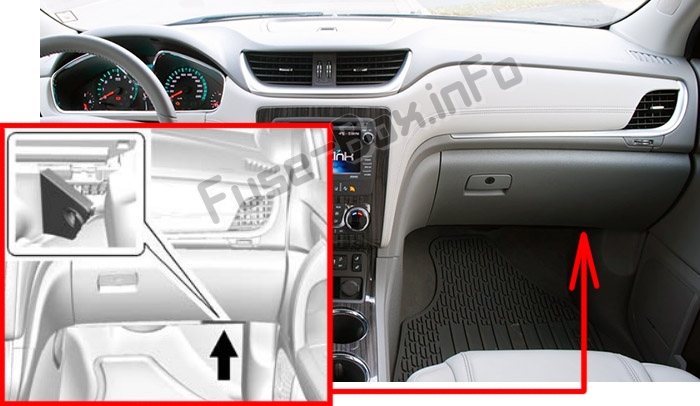

It is located underneath the instrument panel, on the passenger side, under the cover.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

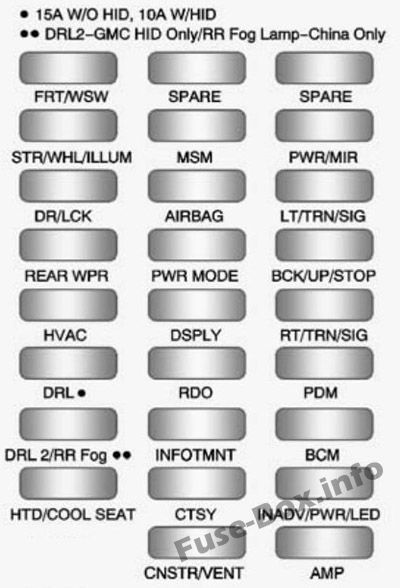

Assignment of the fuses in the Instrument Panel (2010, 2011, 2012)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description AIRBAG Airbag AMP Amplifier BCK/UP/STOP Back-up Lamp/Stoplamp BCM Body Control Module CNSTR/VENT Canister Vent CTSY Courtesy Lamps DR/LCK Door Locks DRL Daytime Running Lamps DRL 2 GMC HID Only (If Equipped)/Rear Fog Lamps-China Only DSPLY Display FRT/WSW Front Windshield Washer HTD/COOL SEAT Heated/Cooling Seats HVAC Heating, Ventilation and Air Conditioning INADV/PWR/LED Inadvertent Power LED INFOTMNT Infotainment LT/TRN/SIG Driver Side Turn Signal MSM Memory Seat Module PDM Power Mirrors, Liftgate Release PWR MODE Power Mode PWR/MIR Power Mirrors RDO Radio REAR WPR Rear Wiper RT/TRN/SIG Passenger Side Turn Signal SPARE Spare STR/WHL/ILLUM Steering Wheel Illumination
This content requires JavaScript and a valid membership to view.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

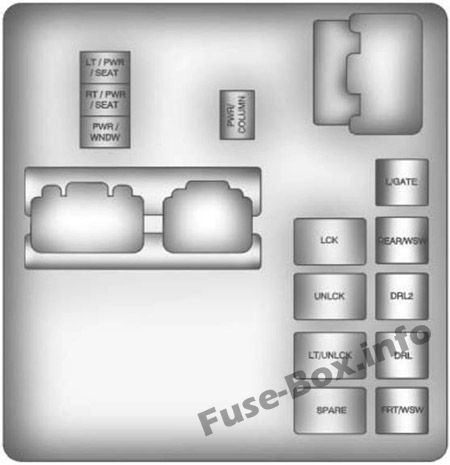

Assignment of the relays in the Instrument Panel (2010, 2011, 2012)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description LT/PWR/SEAT Driver Side Power Seat Relay RT/PWR/SEAT Passenger Side Power Seat Relay PWR/WNDW Power Windows Relay PWR/COLUMN Power Steering Column Relay L/GATE Liftgate Relay LCK Power Lock Relay REAR/WSW Rear Window Washer Relay UNLCK Power Unlock Relay DRL2 Daytime Running Lamps 2 Relay (If Equipped) LT/UNLCK Driver Side Unlock Relay DRL Daytime Running Lamps Relay (If Equipped) SPARE Spare FRT/WSW Front Windshield Washer Relay
This content requires JavaScript and a valid membership to view.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

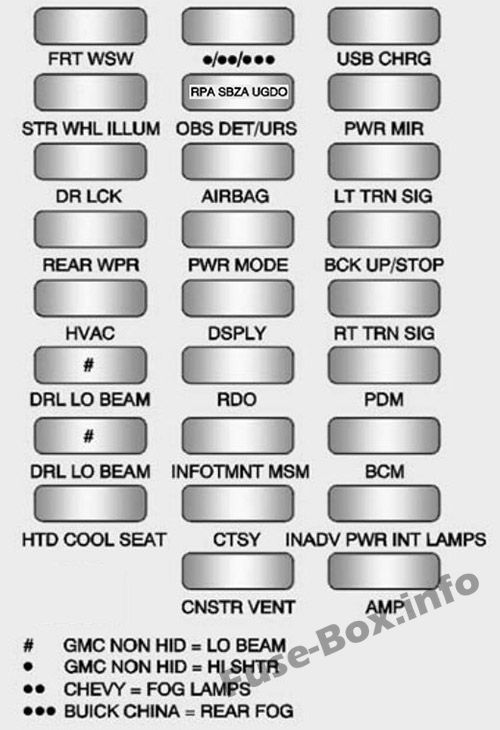

Assignment of the fuses in the Instrument Panel (2013, 2014, 2015, 2016, 2017)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description # GMC NON HID = Lo Beam * GMC NON HID = High Shutter ** Chevy = Fog Lamps *** Buick China = Rear Fog Lamp AIRBAG Airbag AMP Amplifier BCK UP/STOP Back-up Lamp/Stoplamp BCM Body Control Module CNSTR/VENT Canister Vent CTSY Courtesy Lamps DR LCK Door Locks DRL/LO BEAM Daytime Running Lamps Relay/Low Beam Headlamps Relay DSPLY Display FRT WSW Front Windshield Washer HTD/COOL SEAT Heated/Cooling Seats HVAC Heating, Ventilation and Air Conditioning INADV PWR INT LAMPS Inadvertent Power/Interior Light Pipe Lamps INFOTMNT/MSM Infotainment/Memory Seat Module LT TRN SIG Driver Side Turn Signal OBS DET/URS (2014-2017) Rear Park Assist/Side Blind Zone Alert/Forward Collision Alert/ Universal Remote System RPA/SBZA/UGDO (2013) Rear Park Assist/Side Blind Zone Alert/Universal Garage Door Opener PDM Power Mirrors, Liftgate Release PWR MODE Power Mode PWR MIR Power Mirrors RDO Radio REAR WPR Rear Wiper RT TRN SIG Passenger Side Turn Signal STR WHL ILLUM Steering Wheel Illumination USB CHRG 2014-2017: USB Charging
This content requires JavaScript and a valid membership to view.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

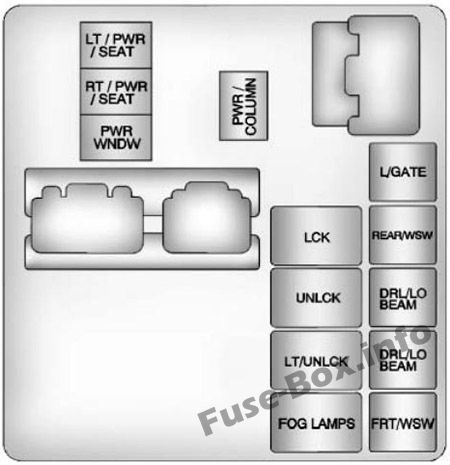

Assignment of the relays in the Instrument Panel (2013, 2014, 2015, 2016, 2017)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description LT/PWR/SEAT Left power seat relay RT/PWR/SEAT Right power seat relay PWR/WNDW Power windows relay PWR/COLUMN Power steering column relay L/GATE Liftgate Relay LCK Power Lock Relay REAR/WSW Rear Window Washer Relay UNLCK Power Unlock Relay DRL/LO BEAM Daytime running lamps relay/Low-beam headlamps relay LT/UNLCK Left unlock relay DRL/LO BEAM Daytime running lamps relay (if equipped) FOG LAMPS Fog Lamps Relay FRT/WSW Front Windshield Washer Relay
This content requires JavaScript and a valid membership to view.

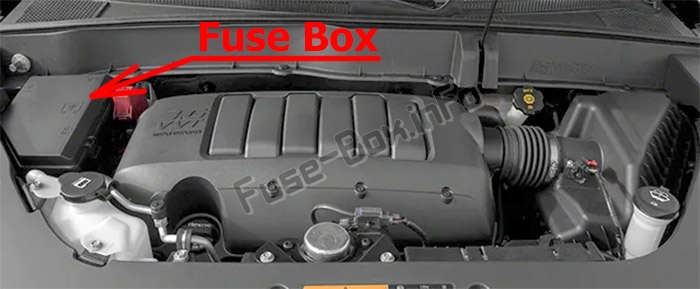

It is located in the engine compartment on the passenger side.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

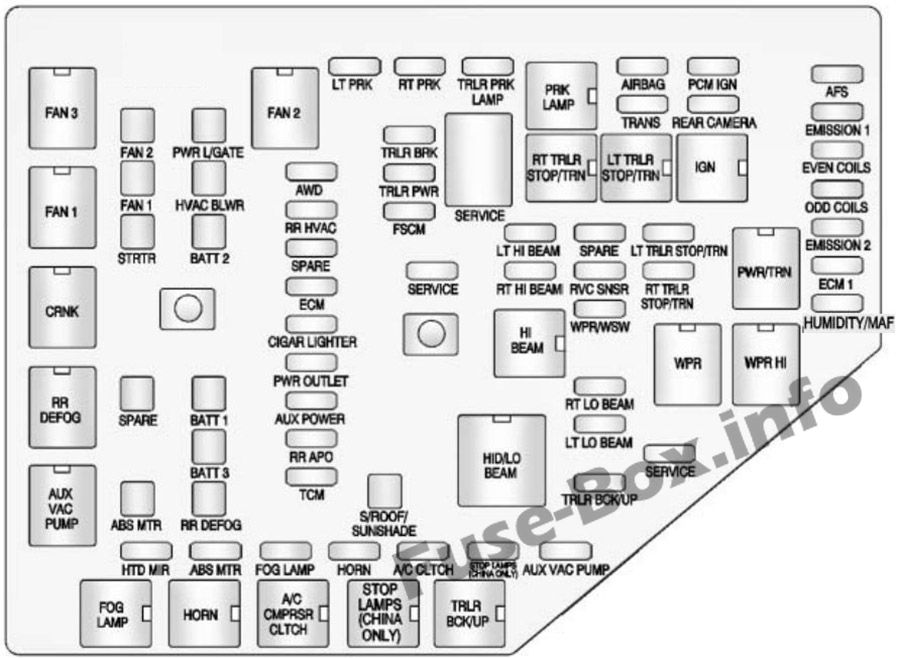

Assignment of the fuses in the engine compartment (2010, 2011, 2012)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description A/C CLUTCH Air Conditioning Clutch ABS MTR Antilock Braking System (ABS) Motor AFS Adaptive Forward Lighting System AIRBAG Airbag System AUX POWER Auxiliary Power AUX VAC PUMP Auxiliary Vacuum Pump AWD All-Wheel-Drive System BATT 1 Battery 1 BATT 2 Battery 2 BATT 3 Battery 3 CIGAR LIGHTER Cigar Lighter ECM Engine Control Module ECM 1 Engine Control Module 1 EMISSION 1 Emission 1 EMISSION 2 Emission 2 EVEN COILS Even Injector Coils FAN 1 Cooling Fan 1 FAN 2 Cooling Fan 2 FOG LAMP Fog Lamps FSCM Fuel System Control Module HORN Horn HTD MIR Heated Outside Rearview Mirror HUMIDITY/MAF Humidity Sensor/MAF Sensor HVAC BLWR Heating, Ventilation and Air Conditioning Blower LT HI BEAM Left High-Beam Headlamp LT LO BEAM Left Low-Beam Headlamp LT PRK Left Parking Lamp LT TRLR STOP/TRN Trailer Left Stoplamp and Turn Signal ODD COILS Odd Injector Coils PCM IGN Powertrain Control Module Ignition PWR L/GATE Power Liftgate PWR OUTLET Power Outlet REAR CAMERA Rear Camera RR APO Rear Accessory Power Outlet RR DEFOG Rear Defogger RR HVAC Rear Climate Control System RT HI BEAM Right High-Beam Headlamp RT LO BEAM Right Low-Beam Headlamp RT PRK Right Parking Lamp RT TRLR STOP/TRN Trailer Right Stoplamp and Turn Signal RVC SNSR Regulated Voltage Control Sensor S/ROOF/SUNSHADE Sunroof SERVICE Service Repair SPARE Spare Stop Lamps (China Only) Stop Lamps (China Only) STRTR Starter TCM Transmission Control Module TRANS Transmission TRLR BCK/UP Trailer Back-up Lamps TRLR BRK Trailer Brake TRLR PRK LAMP Trailer Parking Lamps TRLR PWR Trailer Power WPR/WSW Windshield Wiper/Washer
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment (2010, 2011, 2012)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description A/C CMPRSR CLTCH Air Conditioning Compressor Clutch AUX VAC PUMP Auxiliary Vacuum Pump CRNK Switched Power FAN 1 Cooling Fan 1 FAN 2 Cooling Fan 2 FAN 3 Cooling Fan 3 FOG LAMP Fog Lamps HI BEAM High-Beam Headlamps HID/LO BEAM High Intensity Discharge (HID) Low-Beam Headlamps HORN Horn IGN Ignition Main LT TRLR STOP/TRN Trailer Left Stoplamp and Turn Signal Lamp PRK LAMP Park Lamp PWR/TRN Powertrain RR DEFOG Rear Window Defogger RT TRLR STOP/TRN Trailer Right Stoplamp and Turn Signal Lamp Stop Lamps (China Only) Stop Lamps (China Only) TRLR BCK/UP Trailer Back-up Lamps WPR Windshield Wiper WPR HI Windshield Wiper High Speed
This content requires JavaScript and a valid membership to view.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

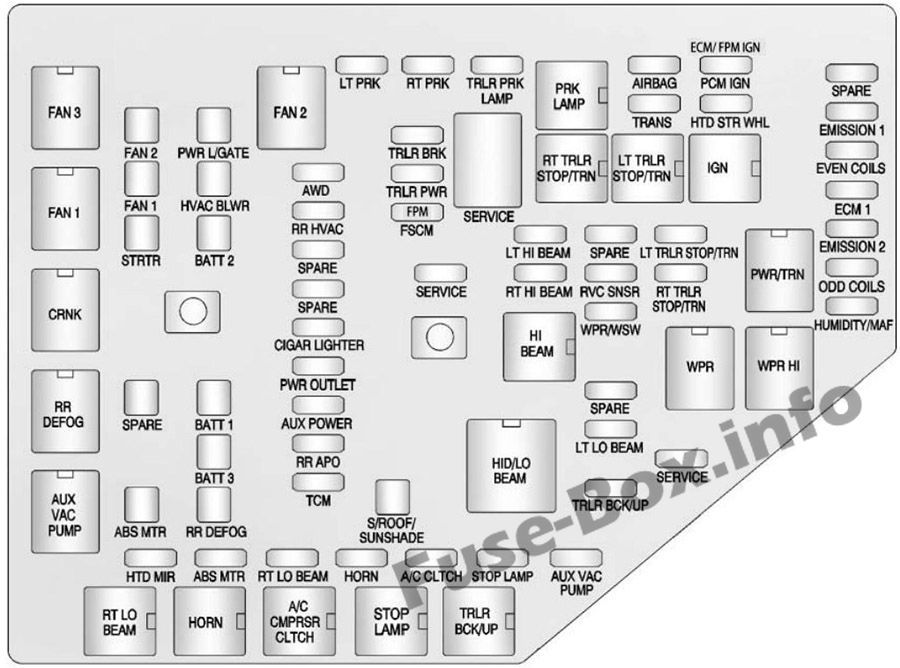

Assignment of the fuses in the engine compartment (2013, 2014, 2015, 2016, 2017)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description A/C CLUTCH Air Conditioning Clutch ABS MTR Antilock Braking System (ABS) Motor AIRBAG Airbag System AUX POWER Auxiliary Power AUX VAC PUMP Auxiliary Vacuum Pump AWD All-Wheel-Drive System BATT 1 Battery 1 BATT 2 Battery 2 BATT 3 Battery 3 CIGAR LIGHTER Cigarette Lighter ECM Engine Control Module ECM 1 Engine Control Module 1 ECM/FPM IGN Engine Control Module/Fuel Pump Control Module Ignition EMISSION 1 Emission 1 EMISSION 2 Emission 2 EVEN COILS Even Injector Coils FAN 1 Cooling Fan 1 FAN 2 Cooling Fan 2 FSCM Fuel System Control Module FPM Fuel pump power module HORN Horn HTD MIR Heated Outside Rearview Mirror HTD STR WHL Heated Steering Wheel HUMIDITY/MAF Humidity Sensor/MAF Sensor HVAC BLWR Heating, Ventilation and Air Conditioning Blower LT HI BEAM Left High-Beam Headlamp LT LO BEAM Left Low-Beam Headlamp LT PRK Left Parking Lamp LT TRLR STOP/TRN Trailer Left Stoplamp and Turn Signal ODD COILS Odd Injector Coils PCM IGN Powertrain Control Module Ignition PWR L/GATE Power Liftgate PWR OUTLET Power Outlet RR APO Rear Accessory Power Outlet RR DEFOG Rear Defogger RR HVAC Rear Climate Control System RT HI BEAM Right High-Beam Headlamp RT LO BEAM Right Low-Beam Headlamp RT PRK Right Parking Lamp RT TRLR STOP/TRN Trailer Right Stoplamp and Turn Signal RVC SNSR Regulated Voltage Control Sensor S/ROOF/SUNSHADE Sunroof SERVICE Service Repair SPARE Spare STOP LAMPS Stoplamps STRTR Starter TCM Transmission Control Module TRANS Transmission TRLR BCK/UP Trailer Back-up Lamps TRLR BRK Trailer brake lamps TRLR PRK LAMP Trailer Parking Lamps TRLR PWR Trailer Power WPR/WSW Windshield Wiper/Washer
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment (2013, 2014, 2015, 2016, 2017)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description A/C CMPRSR CLTCH Air Conditioning Compressor Clutch AUX VAC PUMP Auxiliary Vacuum Pump CRNK Switched Power FAN 1 Cooling Fan 1 FAN 2 Cooling Fan 2 FAN 3 Cooling Fan 3 HI BEAM High-Beam Headlamps HID/LO BEAM High Intensity Discharge (HID) Low-Beam Headlamps HORN Horn IGN Ignition Main LT TRLR STOP/TRN Trailer Left Stoplamp and Turn Signal Lamp PRK LAMP Parking Lamp PWR/TRN Powertrain RR DEFOG Rear Window Defogger RT LO BEAM Right Low-Beam Headlamp RT TRLR STOP/TRN Trailer Right Stoplamp and Turn Signal Lamp STOP LAMP Stop Lamps TRLR BCK/UP Trailer Back-up Lamps WPR Windshield Wiper WPR HI Windshield Wiper High Speed
