Dodge Caravan (2001-2007)

Explore Dodge Caravan fuse box diagrams in this helpful guide that breaks down the electrical layout of the fourth-generation model. Here we cover the Dodge Caravan (2000–2007), also known as the Dodge Grand Caravan, and provide fuse diagrams for 2001, 2002, 2003, 2004, 2005, 2006 and 2007, along with the location of the fuse panels and the assignment of each fuse and relay, giving you a clear and organized reference for handling electrical issues.

Fuse box location

The Integrated Power Module is located in the engine compartment near the battery.
This center contains maxi fuses, mini fuses and relays. A label that identifies each component is printed on the inside of the cover.

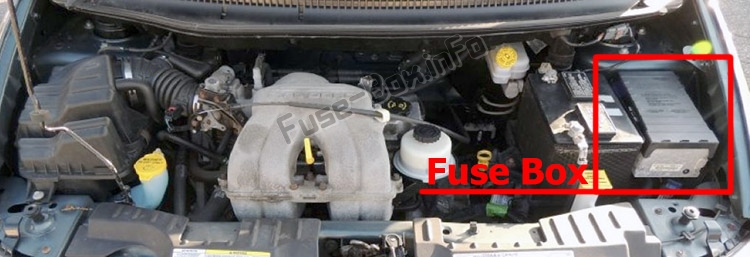

The location of the fuses in the engine compartment: Dodge Caravan (2001-2007)

Fuse box diagram

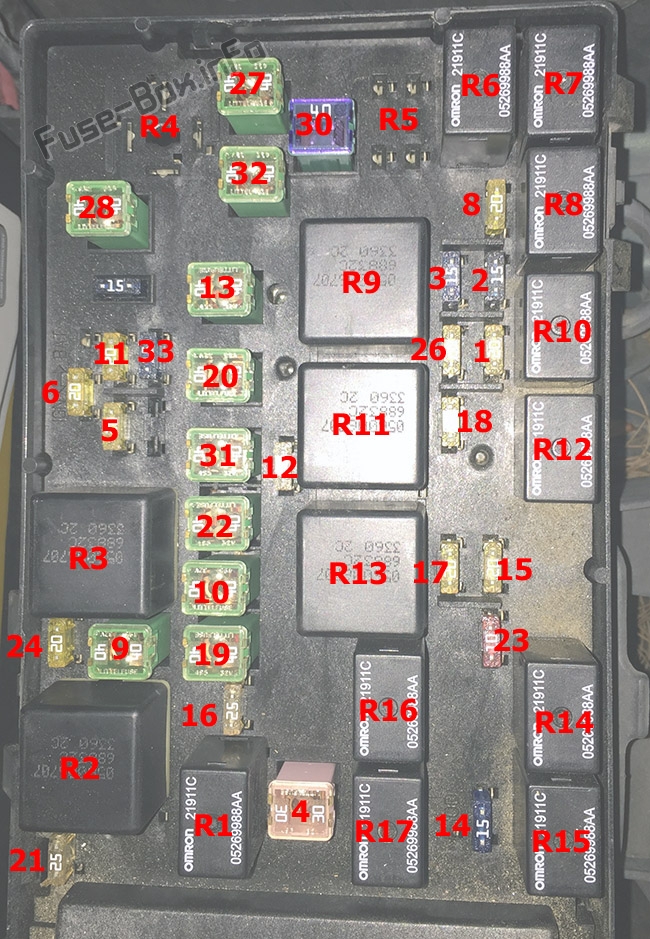

Under-hood fuse box diagram: Dodge Caravan (2001, 2002, 2003, 2004, 2005, 2006, 2007)

Maxi fuses

Assignment of the maxi fuses in the IPM

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
F430 Amp PinkFront Wipers
F940 Amp GreenAnti-Lock Brake System (ABS) Pump
F1040 Amp GreenFront Blower
F1340 Amp GreenElectronic Back Light (EBL)
F1940 Amp GreenBody Control Module (BCM) Feed 1
F2030 Amp PinkCentral Amplifier
F2230 Amp PinkSeats
F2740 Amp GreenRadiator Fan
F2840 Amp GreenPower Windows
F3040 Amp GreenHeadlight Washers (Export Only)
F3140 Amp GreenPower Sliding Door
F3240 Amp GreenPower Liftgate

Mini fuses

Assignment of the mini fuses in the IPM

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
F120 Amp YellowFog Lights
F215 Amp BlueLeft Park/Tail Light
F315 Amp BlueRight Park/Tail Light
F520 Amp YellowRDO/IP Ignition
F620 Amp Yellow12 Volt Out Ignition or Battery
F820 Amp YellowHorn
F1120 Amp YellowEWD/ Rear Wiper
F1225 Amp NaturalRear Blower
F1420 Amp YellowIgnition Off Draw (IOD)
F1520 Amp YellowElectronic Automatic Transaxle (EATX) Battery
F1625 Amp NaturalASD
F1720 Amp YellowFuel Pump
F1815 Amp BlueA/C Clutch
F2125 Amp NaturalAnti-Lock Brake System (ABS) Module
F2310 Amp RedIgnition Switch
F2420 Amp YellowHazard
F2620 Amp YellowStop Lamp
F3315 Amp BlueFront/Rear Washer
20 Amp YellowSpare (IOD)

Relays

Assignment of the relays in the IPM

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Auto Shut Down
R2Starter Motor
R3Accessory
R4Spare
R5Headlamp Washer (export)
R6Park Lamp
R7Horn
R8Front Fog Lamp
R9Defogger
R10A/C Compressor Clutch
R11Rear Blower Motor
R12Fuel Pump
R13Front Blower Motor
R14Transmission Control
R15Spare
R16Front Wiper Hight/Low
R17Front Wiper On/Off
