Dodge Viper (2003-2010)

Explore Dodge Viper fuse box diagrams in this straightforward guide built to help you understand the ZB generation’s electrical layout—because even a raw, analog beast needs organized wiring. Here we look at the second-generation Dodge Viper (2003–2010) (Model Code: ZB) and provide fuse diagrams for 2003, 2004, 2005, 2006, 2007, 2008, 2009 and 2010, along with the location of the fuse panels and the assignment of each fuse and relay, giving you a clear reference for the car’s electrical essentials.

Fuse box location

Power Distribution Center is located in the engine compartment on the driver’s side.

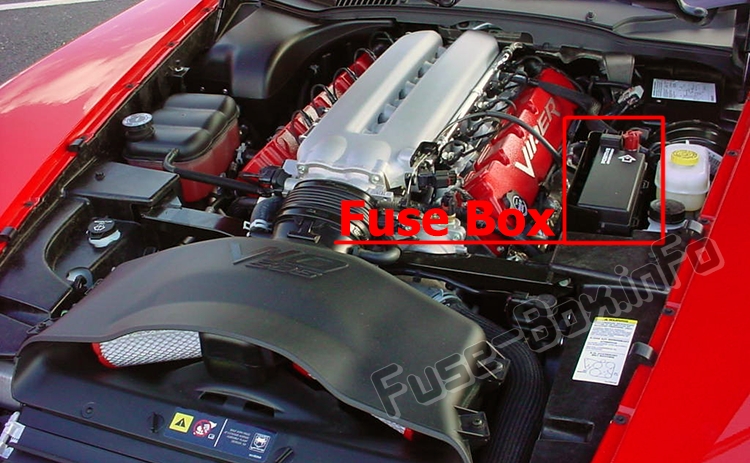

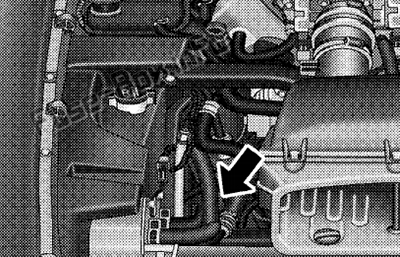

The location of the fuses in the engine compartment: Dodge Viper (ZB; 2003-2010)

Fuse box diagrams

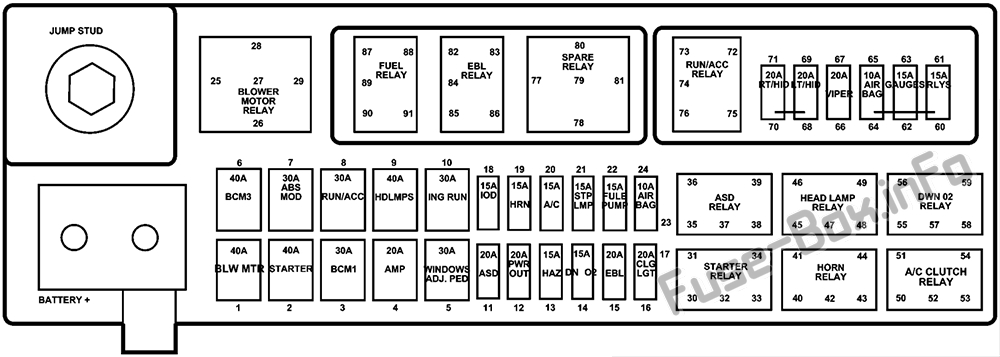

Under-hood fuse box diagram: Dodge Viper (ZB; 2005, 2006, 2008)

Assignment of fuses and relays in the Power Distribution Center

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsTypeDescription
140AFMX/JCaseBlower Motor
240AFMX/JCaseAnti-Lock Brakes (ABS) Pump Feed / Starter
330AFMX/JCaseBody Control Module (BCM) – Battery Feed
420AFMX/JCaseAmplifier
530AFMX/JCaseIgnition Switch Run / Accessory Feed – Windows
510AFMX/JCaseAirbag
640AFMX/JCaseBody Control Module (BCM) – Battery Feed
610AFMX/JCaseAirbag
730AFMX/JCaseAnti-Lock Brakes (ABS) Module
720AFMX/JCaseWiper Switch
830AFMX/JCaseIgnition Switch Run / Accessory Feed
820AFMX/JCaseWiper Switch
940AFMX/JCaseHeadlights
920AFMX/JCaseLeft HID Headlight
1030AFMX/JCaseIgnition Switch Run Feed
1020AFMX/JCaseLeft HID Headlight
1120AMINIAuto Shutdown Relay (ASD)
1120AMINIRight HID Headlight
1220AMINICigar Lighter
1220AMINIRight HID Headlight
1315AMINIHazard Flasher
1420AMINIAuto Shutdown Relay (ASD)
1525AMINIRear Window Defogger (EBL)
16–1720AMINIPower Outlet
1815AMINIIgnition Off Draw (IOD)
1915AMINIHorn
2015AMINIAir Conditioning (A/C) Clutch Relay
2115AMINIStop Light Switch
2225AMINIFuel Pump / Powertrain Control Module (PCM)
23–2410AMINIAirbag
25–29—RelayBlower Motor Relay
30–34—RelayStarter Relay
35–39—RelayASD Relay
40–44—RelayHorn Relay
45–49—RelayHead Lamp Relay
50–54—RelayA/C Clutch
55–59—RelayDWN 02 Relay
60–6115AMINIIgnition Run / Start Relay Feed
62–6315AMINIGauges
64–6510AMINIAirbag
66–6720AMINIWiper
68–6920AMINILT/HID
70–7120AMINIRT/HID
72–76—RelayRUN/ACC Relay
77–81—RelaySpare Relay
82–86—RelayEBL Relay
87–91—RelayFuel Relay
JUMP STUD—OtherJump Stud
BATTERY—Battery TerminalBattery

Mini-power distribution center

A mini-power distribution center is located in the engine compartment on the passenger’s side of the vehicle. This center contains radiator fan control relays and has two externally-mounted 40 Amp fuses for the radiator fans.
