Explore Ford Expedition fuse box diagrams in this clear guide that explains the electrical layout of the latest full-size SUV generation. In this article, we consider the fifth-generation Ford Expedition (Model Code: U717), available from 2025 , and provide fuse box diagrams for Ford Expedition 2025 and 2026 , along with information about the location of the fuse panels and the assignment of each fuse and relay (fuse layout).

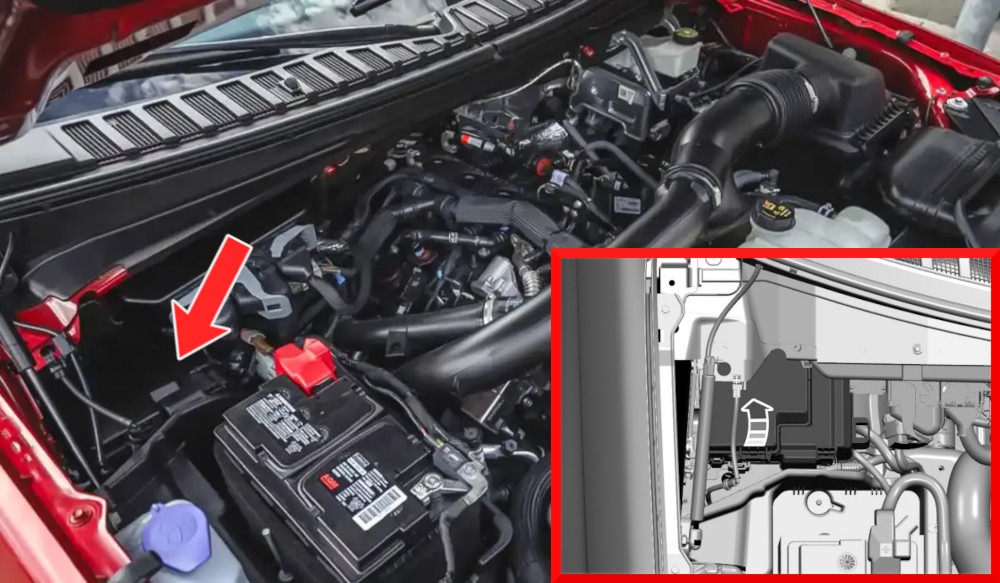

The under-hood fuse box is located in the engine compartment near the passenger-side windshield wiper.

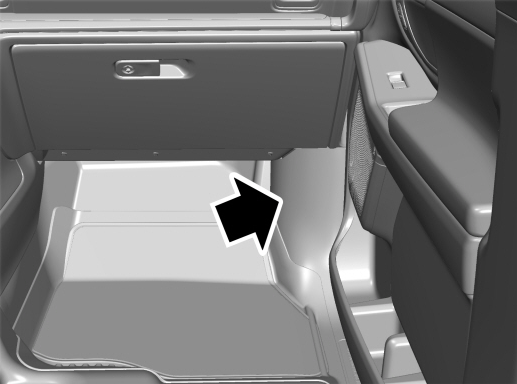

To access the passenger compartment fuse box, look under the dashboard on the passenger side near the footwell. It is behind a small removable plastic panel that can be pulled off.

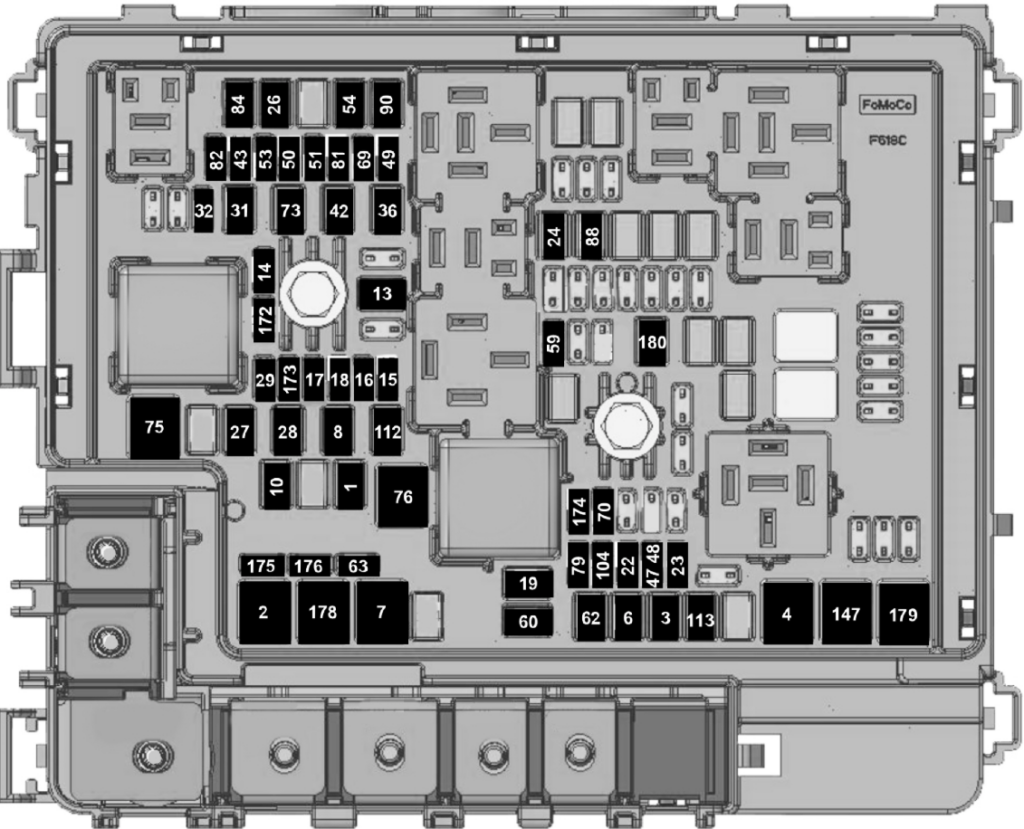

Assignment of the fuses in the engine compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 1 30 A Body control module ignition 1 supply line 2 30 A Body control module ignition 2 supply line 3 30 A Body control module permanent power supply line 4 60 A Brake booster module 6 30 A Driver heated seat module 7 60 A Brake booster module 8 30 A Trailer brake control module 10 25 A Trailer tow module 13 40 A Four wheel drive control module 14 5 A Powertrain control module relay 15 20 A Powertrain control module ignition 16 25 A Vehicle power supply 2 17 20 A Vehicle power supply 3 18 20 A Vehicle power supply 4 19 15 A Transmission control module 22 30 A Right headlamp 23 30 A Left headlamp 24 30 A Starter motor 26 30 A Fuel pump control module 27 20 A Power outlet 1 28 20 A Power outlet 2 29 10 A Cargo USB charging port; Media bin USB charging port 31 30 A Front wiper motor 32 5 A Rain sensor module 36 30 A Body control module permanent power supply line 42 20 A Trailer brake control module; Trailer tow module 43 30 A Interior power distribution box 47 15 A Police spot lamps 48 30 A Digital sound processor; Amplifier 49 5 A Brake booster module 50 10 A Powertrain control module 51 10 A Air quality sensor module 53 20 A Rear seat control module 54 40 A Rear window heater module 59 20 A Horn 60 30 A Trailer parking lamp 62 40 A Blower motor 63 10 A Trailer backup lamp 69 5 A Power steering 70 10 A Smart data link connector 73 20 A Rear wiper motor 75 50 A Electric cooling fan 1 76 50 A Electric cooling fan 2 79 5 A Smart headlamp control module 81 10 A In-vehicle cooler 82 5 A Interior power distribution box run/start 84 15 A Fuel injectors 88 40 A Rear blower motor 90 20 A Windshield washer motor 104 5 A Brand logo lamp 112 30 A Second row seat motor – left 113 30 A Second row seat motor – right 147 40 A Intercooler fan 172 5 A Ambient lighting 173 15 A Driver seat USB charging port; Passenger seat USB charging port 174 15 A Rear entertainment system 175 5 A Left roof marker light 176 5 A Right roof marker light 178 60 A Driver door module 179 60 A Passenger door module 180 30 A Passenger heated seat module
This content requires JavaScript and a valid membership to view.

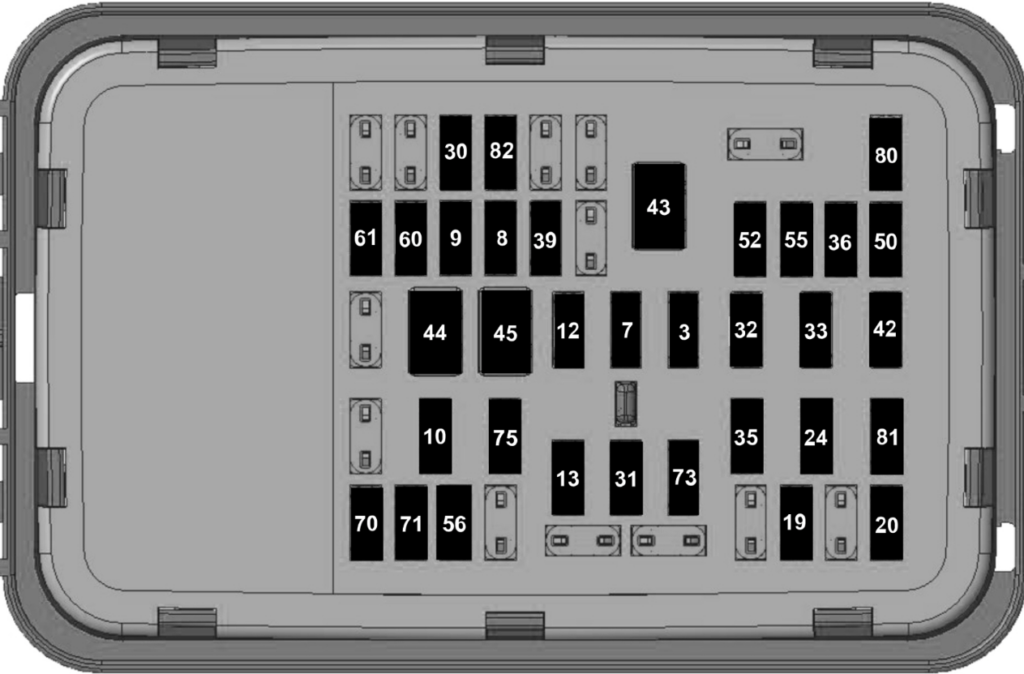

Assignment of the fuses in the passenger compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 3 7.5 A Wireless charger control module 7 10 A Gear shift module 8 7.5 A Telematics control module 9 5 A Rear climate control module; Keypad 10 20 A Front multi-contour seat module 12 15 A Climate control module 13 7.5 A Steering wheel control module 19 5 A Bluetooth low energy module 20 5 A Headlamp module 24 30 A Glass roof control module 30 15 A USB charging port 3; USB charging port 4 31 10 A Central gateway module; Terrain management gateway module; Roof mounted remote receiver 32 20 A Audio control module 33 20 A Instrument cluster control module 35 10 A Center console control module; Center stack display 36 5 A Interior air particulate sensor 39 5 A Driver state monitor control module 42 20 A Integrated control panel; Voice control module 43 50 A Power splitgate control module 44 30 A Front driver seat motor 45 30 A Front passenger seat motor 50 7.5 A Splitgate assembly 52 5 A Trailer brake switch 55 15 A Electrochromatic rear view mirror 56 10 A Driver power window switch 60 10 A Glass roof; Rear seat entertainment 61 5 A Center console slide switch 70 20 A Driver assistance system control module 73 7.5 A Wireless charger control module 75 20 A Not used (spare) 80 15 A Steering wheel control module 81 30 A Center console slide motor 82 10 A Media connector
