Jeep Cherokee (2014-2023) Fuse Box Diagrams and Locations

Explore Jeep Cherokee fuse box diagrams in this clear guide designed to make the KL generation’s electrical layout easier to understand. Here we focus on the fifth-generation Jeep Cherokee (2013–2023) (Model Code: KL) and provide fuse diagrams for 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022 and 2023, along with the location of the fuse panels and the assignment of each fuse, giving you a well-organized overview of the vehicle’s electrical system.

What’s Included

Passenger compartment

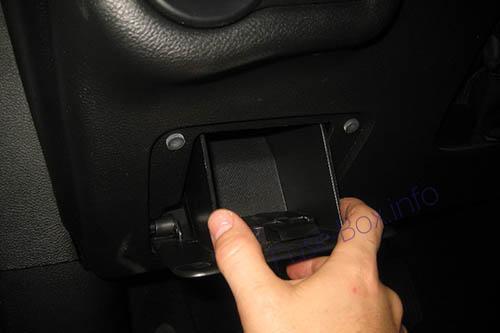

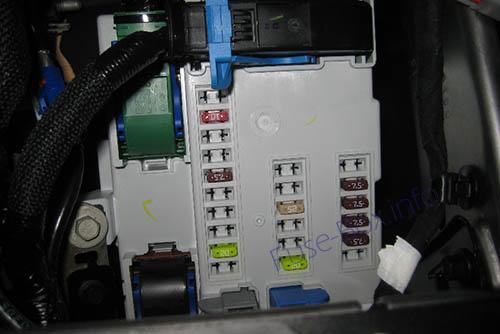

Fuse box location

The interior fuse panel is located in the passenger compartment on the left side dash panel behind the storage compartment.

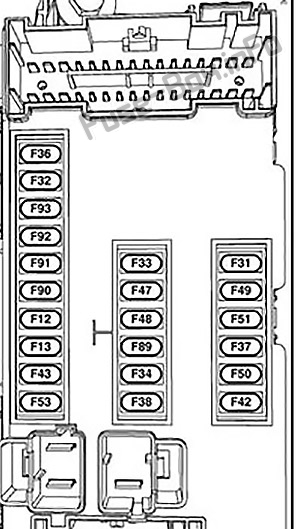

Fuse box diagram

Assignment of the interior fuses

No.	Amp	Description
F13	15A	Low Beam Left (Only 2014–2019; not present 2020–2023)
F32	10A	Interior Lighting
F36	10A	Intrusion Module / Siren – If Equipped
F37	7.5A	UCI Port (USB & AUX) (Only 2020–2023)
F38	20A	Deadbolt All Unlock
F42	7.5A	Passenger Lumbar Support (Only 2020–2023)
F43	20A	Washer Pump – Front
F48	25A	Fog Lamp Rear Left / Right – If Equipped
F49	7.5A	Lumbar Support
F50	7.5A	Wireless Charging Pad – If Equipped
F51	7.5A/10A	2014–2019: (10A) Driver Window Switch / Power Mirrors – If Equipped 2020–2023: (7.5A) Driver Window Switch / Power Mirrors
F53	7.5A	UCI Port (USB & AUX) (Only 2014–2019)
F89	10A	Door Locks – Driver Unlock (Only 2014–2019)
F91	7.5A	Left Front Fog Lamp (Low + High Line) (Only 2014–2019)
F92	7.5A	Right Front Fog Lamp (High Line) (Only 2014–2019)
F93	10A	Low Beam Right (Only 2014–2019)

Engine compartment

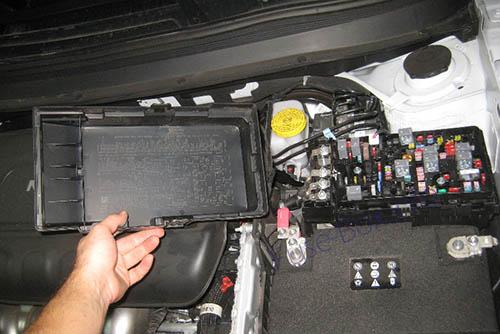

Fuse box location

The Power Distribution Center is located in the engine compartment near the battery. This center contains cartridge fuses, mini-fuses, and relays.
A label that identifies each component is printed on the inside of the cover.

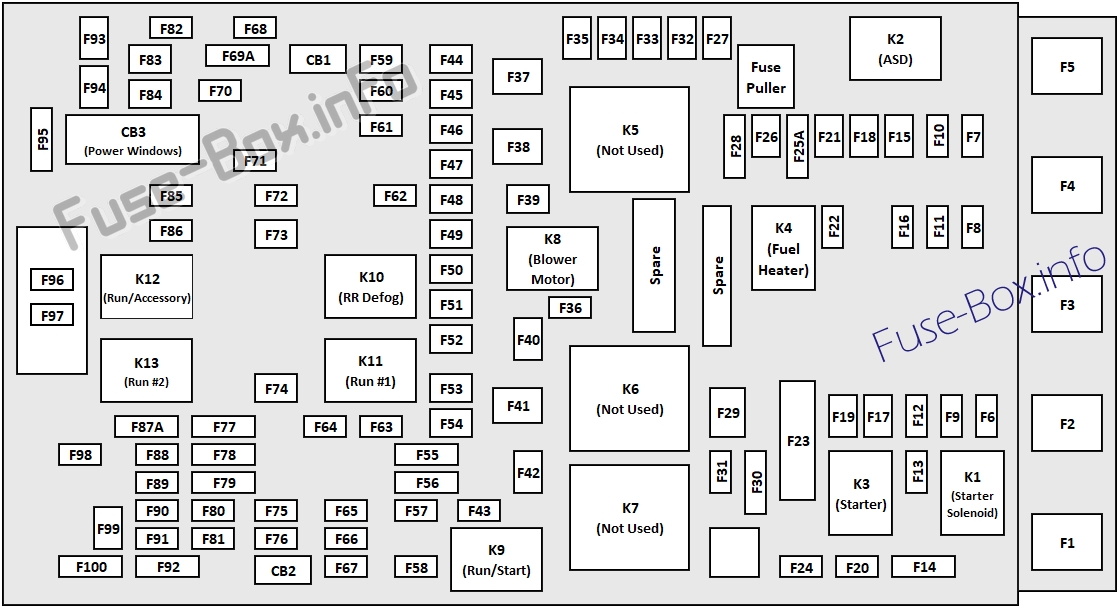

Fuse box diagrams

2014

Assignment of the under-hood fuses (2014)

Fuse Data

Full access is available to registered users — log in or register.

Cavity	Blade Fuse	Cartridge Fuse	Description
F06	—	—	Not Used
F07	15 Amp Blue	—	Powertrain Control Module – PCM
F08	25 Amp Clear	—	Engine Control Module (ECM)
F09	—	—	Not Used
F10	20 Amp Yellow	—	Power Takeoff Unit (PTU)
F11	—	—	Not Used
F12	20 Amp Yellow	—	Brake Vacuum Pump – If Equipped
F13	10 Amp Red	—	Engine Control Module (ECM)
F14	10 Amp Red		Drivetrain Control Module (DTCM) / Power Take-Off Unit (PTU) – If Equipped / Brake System Module (BSM)
F15	—	—	Not Used
F16	20 Amp Yellow	—	Powertrain
F17	—	—	Not Used
F18	—	—	Not Used
F19	—	40 Amp Green	Starter Solenoid
F20	10 Amp Red	—	A/C Compressor Clutch
F21	—	—	Not Used
F22	5 Amp Tan	—	Radiator Fan
F23	70 Amp Tan	—	Body Controller Module (BCM) – Feed 1
F24	—	—	Not Used
F25	—	—	Not Used
F26	—	30 Amp Pink	Fuel Heater – Diesel Only
F27	—	—	Not Used
F28	15 Amp Blue	—	Transmission Control Module (TCM)
F29	—	—	Not Used
F30	10 Amp Red	—	Engine Control Module (ECM)
F31	—	—	Not Used
F32	—	—	Not Used
F33	—	30 Amp Pink	Driver Door Module (DDM) – If Equipped
F34	—	30 Amp Pink	Body Controller Module (BCM) – Feed 3
F35	—	—	Not Used
F36	—	—	Not Used
F37	—	50 Amp Red	Voltage Stabilization Module (VSM) -If Equipped With Stop/Start Engine Option
F38	—	50 Amp Red	Radiator Fan
F38	—	60 Amp Yellow	Glow Plugs – Diesel Only – If Equipped
F39	—	40 Amp Green	HVAC Blower Motor
F40	—	20 Amp Blue	Trailer Tow Park Light – If Equipped
F41	—	60 Amp Yellow	Body Controller Module (BCM) – Feed 2
F42	—	30 Amp Pink	Electric Park Brake (EPB) – Left
F43	20 Amp Yellow		Trailer Tow Left Stop/Turn Light -If Equipped
F44	—	30 Amp Pink	Trailer Tow / 7-YVay Connector – If Equipped
F45	—	30 Amp Pink	Passenger Door Module (PDM) – If Equipped
F46	—	25 Amp Clear	Sunroof – If Equipped
F47	—	30 Amp Pink	Drivetrain Control Module (DTCM)
F48	—	—	Not Used
F49	—	30 Amp Pink	Power Inverter (115V A/C) – If Equipped
F50	—	30 Amp Pink	Power Liftgate – If Equipped
F51	—	—	Not Used
F52	—	—	Not Used
F53	—	30 Amp Pink	BSM-ECU & Valves
F54	—	30 Amp Pink	Urea Heater Control Unit – If Equipped With Diesel Engine
F55	10 Amp Red		Blind Spot Sensors / Compass / Rearview Camera If Equipped / Rear Seat Heater Switches / Trunk Lamp YV/ Flashlamp Charger
F56	15 Amp Blue	—	Ignition Node Module (1GNM)/KIN/RF Hub/Electric Steering Column Lock (ESL)
F57	20 Amp Yellow	—	Fuel Pump Motor
F58	10 Amp Red	—	Occupant Classification Module
F59	—	—	Not Used
F60	20 Amp Yellow	—	Power Outlet – Center Console
F61	—	—	Not Used
F62	10 Amp Red	—	Heated Mirrors – If Equipped
F63	25 Amp Clear	—	Front Heated Seats – If Equipped
F64	25 Amp Clear		Heated Steering Wheel / Rear Heated Seats -If Equipped
F65	15 Amp Blue	—	HVAC (ECC) / Instrument Panel Cluster (1PC)
F66	10 Amp Red		In Car Temperature Sensor / Humidity Sensor / Driver Assist System Module (DASM) / Park Assist (PAM)
F67	—	—	Not Used
F68	—	—	Not Used
F69	10 Amp Red	—	Power Transfer Unit Switch (TSBM) / Active Grill Shutter (AGS) – If Equipped
F70	—	—	Not Used
F71	20 Amp Yellow	—	Windshield De-Icer – If Equipped
F72	5 Amp Tan	—	Intelligent Battery Sensor (IBS) If Equipped With Stop/Start Engine Option
F72	20 Amp Yellow	—	Trailer Tow RT Stop / Turn Lights -If Equipped
F73	—	30 Amp Pink	Rear Defroster / Defogger
F74	—	20 Amp Blue	Engine Control Module (ECM) Gasoline Engine – If Equipped
F75	20 Amp Yellow	—	Cigar Lighter
F76	20 Amp Yellow	—	Rear Differential Module (RDM) -If Equipped
F77	10 Amp Red	—	Fuel Door Release/Brake Pedal Switch
F78	10 Amp Red	—	Diagnostic Port / Steering Column Control Module (SCCM) / Digital TV – If Equipped
F79	10 Amp Red		Integrated Center Stack (ICS) / HVAC / Aux Switch Bank Module (ASBM) / Instrument Panel Cluster (1PC)
F80	20 Amp Yellow	—	Radio / CD – If Equipped
F81	—	—	Not Used
F82	—	—	Not Used
F83	—	30 Amp Pink	Headlamp Washer Pump – If Equipped
F84	—	40 Amp Green	Brake System Module (BSM) – Pump Motor If Equipped With Diesel Engine
F84	—	20 Amp Blue	Trailer Tow Backup Lights – If Equipped With Gasoline Engine
F85	—	—	Not Used
F86	—	—	Not Used
F87	—	—	Not Used
F88	15 Amp Blue		Collision Mitigation Module (CMM) / Electrochromatic Mirror / Smart Camera Module – If Equipped
F89	10 Amp Red	—	Headlamp Leveling – If Equipped
F90	—	—	Not Used
F91	—	—	Not Used
F92	20 Amp Yellow	—	Rear Power Outlet
F93	—	40 Amp Green	Brake System Module (BSM) – Pump Motor -If Equipped With Gasoline Engine
F94	—	30 Amp Pink	Electric Park Brake (EPB) – Right
F95	10 Amp Red	—	Electrochromatic Mirror / Rain Sensor / Sunroof – If Equipped
F96	10 Amp Red	—	Occupant Restraint Controller (ORC)
F97	10 Amp Red	—	Occupant Restraint Controller (ORC)
F98	25 Amp Clear	—	Audio Amplifier – If Equipped
F99		30 Amp Pink	Trailer Tow Module – If Equipped With Gasoline Engine
F100	—	—	Not Used
CB1			Power Seat (Driver)
CB2			Power Seat (Pass)
CB3			Power Window

2015

Assignment of the under-hood fuses (2015)

Fuse Data

Full access is available to registered users — log in or register.

Cavity	Blade Fuse	Cartridge Fuse	Description
F06	–	–	Not Used
F07	15 Amp Blue	—	Powertrain Control Module -PCM
F08	25 Amp Clear	–	Engine Control Module (ECM)
F09	–	–	Not Used
F10	20 Amp Yellow		Power Transfer Unit (PTU) – If Equipped
F11	–	–	Not Used
F12	20 Amp Yellow		Brake Vacuum Pump – If Equipped
F13	10 Amp Red	–	Engine Control Module (ECM)
F14	10 Amp Red		Drivetrain Control Module (DTCM) / Power Take-Off Unit (PTU) / Brake System Module (BSM) – If Equipped
F15	–	–	Not Used
F16	20 Amp Yellow	–	Powertrain
F17	–	–	Not Used
F18	–	–	Not Used
F19	–	40 Amp Green	Starter Solenoid
F20	10 Amp Red	–	A/C Compressor Clutch
F21	–	–	Not Used
F22	5 Amp Tan	–	Radiator Fan
F23	70 Amp Tan	—	Body Controller Module (BCM) -Feed 2
F23	50 Amp Red		Voltage Stability Module (VSM) Feed #2 – If Equipped with Stop/Start Engine Option
F24	20 Amp Yellow	—	Rear Wiper — If Equipped with Stop/Start Engine Option
F25B	20 Amp Yellow	—	Front Washer — If Equipped with Stop/Start Engine Option
F26	–	30 Amp Pink	Fuel Heater – Diesel Only
F27	–	–	Not Used
F28	15 Amp Blue	“	Transmission Control Module (TCM)
F29	–	–	Not Used
F30	10 Amp Red	“	Engine Control Module (ECM)/(EPS)/(PCM)
F31	–	–	Not Used
F32	–	–	Not Used
F33	–	–	Not Used
F34	–	–	Not Used
F35	–	–	Not Used
F36	–	–	Not Used
F37	–	–	Not Used
F38	–	–	Not Used
F38	—	60 Amp Yellow	Glow Plugs (Diesel Only) – If Equipped
F39	–	40 Amp Green	HVAC Blower Motor
F40	—	20 Amp Blue	Trailer Tow Park Light – If Equipped
F40	—	30 Amp Pink	Headlamp Washer Pump – If Equipped
F41	—	60 Amp Yellow	Body Controller Module (BCM) -Feed 1
F41		50 Amp Red	Voltage Stability Module – Feed 1 – If Equipped with Stop/Start Engine Option
F42	—	30 Amp Pink	Trailer Tow Electric Brake Module
F43	20 Amp Yellow	–	Fuel Pump Motor
F44	—	30 Amp Pink	Trailer Tow / 7-Way Connector – If Equipped
F45	—	30 Amp Pink	Passenger Door Module (PDM) – If Equipped
F46	—	25 Amp Clear	Sunroof / Skyslider – If Equipped
F47	—	30 Amp Pink	Drivetrain Control Module (DTCM)
F48	—	30 Amp Pink	Driver Door Module – If Equipped
F49	—	30 Amp Pink	Power Inverter (115V A/C) – If Equipped
F50	–	30 Amp Pink	Power Liftgate – If Equipped
F51	–	–	Not Used
F52	—	30 Amp Pink	Front Wipers – If Equipped with Stop/Start Engine Option
F53	–	30 Amp Pink	Brake System Module & Valves
F54	—	30 Amp Pink	Body Control Module (BCM) Feed 3
F55	10 Amp Red		Blind Spot Sensors / Compass / Rearview Camera / Trunk Lamp With Flashlamp Charger – If Equipped
F56	15 Amp Blue		Ignition Node Module (IGNM)/KIN/RF Hub/Electric Steering Column Lock (ESL)
F57	20 Amp Yellow	—	Trailer Tow Lights Left – If Equipped
F58	10 Amp Red	–	Occupant Classification Module
F59	—	30 Amp Pink	Drivetrain Control Module (DTCM) If Equipped
F60	20 Amp Yellow	–	Power Outlet – Center Console
F61	20 Amp Yellow	—	Trailer Tow Lights Right- If Equipped
F62	20 Amp Yellow	—	Windshield de-icer – If Equipped
F63	20 Amp Yellow	—	Front Heated Seats – If Equipped
F64	20 Amp Yellow	—	Heated Steering Wheel – If Equipped
F65	10 Amp Red		In Car Temperature Sensor / Humidity Sensor / Driver Assist System Module (DASM) / Park Assist (PAM) – If Equipped With Stop/Start option
F66	15 Amp Blue	—	HVAC (ECC) / Instrument Panel Cluster (IPC)
F67	10 Amp Red		In Car Temperature Sensor / Humidity Sensor / Driver Assist System Module (DASM) / Park Assist (PAM) – If Not Equipped With Stop/Start Option
F68	–	–	Not Used
F69	10 Amp Red		Power Transfer Unit Switch (TSBM) / Active Grill Shutter (AGS) – If Equipped
F70	5 Amp Tan		Intelligent Battery Sensor If Equipped with Stop/Start Engine Option
F71	20 Amp Yellow		HID Headlamp Right if Equipped with Stop/Start Engine Option
F72	10 Amp Red	–	Heated Mirrors – If Equipped
F73		20 Amp Blue	Trailer Tow Back Up – If Equipped
F74	–	30 Amp Pink	Rear Defroster
F75	20 Amp Yellow	–	Cigar Lighter
F76	20 Amp Yellow	—	Rear Differential Module (RDM) – If Equipped
F77	10 Amp Red	—	Fuel Door Release/Brake Pedal Switch
F78	10 Amp Red	–	Diagnostic Port
F79	10 Amp Red		Integrated Center Stack (ICS) / HVAC / Aux Switch Bank Module (ASBM) / Instrument Panel Cluster (IPC)
F80	20 Amp Yellow	–	Radio / CD – If Equipped
F81	–	–	Not Used
F82	–	–	Not Used
F83		20 Amp Blue	Engine Controller Module (Gas)
F84	–	30 Amp Pink	Electric Park Brake (EPB) – Left
F85	–	–	Not Used
F86	20 Amp Yellow	—	Horns – If Equipped With Stop/Start Engine Option
F87A	20 Amp Yellow		HID Headlamp Left – If Equipped with Stop/Start Engine Option
F88	15 Amp Blue		Collision Mitigation Module (CMM) / Electrochromatic Mirror / Smart Camera Module -If Equipped
F89	10 Amp Red	—	Headlamp Leveling – If Equipped
F90	–	–	Not Used
F91	20 Amp Yellow	–	Power Outlet Rear
F92	–	–	Not Used
F93		40 Amp Green	Brake System Module (BSM) -Pump Motor
F94	—	30 Amp Pink	Electric Park Brake (EPB) -Right
F95	10 Amp Red		Electrochromatic Mirror / Rain Sensor / Sunroof – If Equipped / Passenger Window Switch / Power Outlet Console
F96	10 Amp Red	“	Occupant Restraint Controller (ORC) / (Airbag)
F97	10 Amp Red	“	Occupant Restraint Controller (ORC) / (Airbag)
F98	25 Amp Clear	–	Audio Amplifier – If Equipped
F99	–	–	Not Used
F100	–	–	Not Used
CB1			Power Seat (Driver)
CB2			Power Seat (Pass)
CB3			Power Window

2016

Assignment of the under-hood fuses (2016)

Fuse Data

Full access is available to registered users — log in or register.

Cavity	Blade Fuse	Cartridge Fuse	Description
F06	–	–	Not Used
F07	15 Amp Blue	–	Powertrain Control Module – PCM (Diesel Only)
F08	25 Amp Clear	–	Engine Control Module (ECM)/Fuel Injection
F09	–	–	Not Used
F10	20 Amp Yellow	–	Power Transfer Unit (PTU) – If Equipped
F11	–	–	Not Used
F12	20 Amp Yellow	–	Brake Vacuum Pump – If Equipped
F13	10 Amp Red	–	Engine Control Module (ECM)
F14	10 Amp Red		Drivetrain Control Module (DTCM) / Power Take-Off Unit (PTU) / Brake System Module (BSM) – If Equipped/Brake Pedal Switch/Back Up Switch (Diesel Only)
F15	–	–	Not Used
F16	20 Amp Yellow	–	Ign Coil (Gas) / Engine Sensor (Diesel)
F17	–	–	Not Used
F18	–	–	Not Used
F19	–	40 Amp Green	Starter Solenoid
F20	10 Amp Red	–	A/C Compressor Clutch
F21	–	–	Not Used
F22	5 Amp Tan	–	Radiator Fan
F23	70 Amp Tan	–	Body Controller Module (BCM) – Feed 2
F23	50 Amp Red	—	Voltage Stability Module (VSM) Feed #2 – If Equipped with Stop/Start Engine Option
F24	20 Amp Yellow	–	Rear Wiper – If Equipped with Stop/Start Engine Option
F25B	20 Amp Yellow	–	Front Washer – If Equipped with Stop/Start Engine Option
F26	–	30 Amp Pink	Fuel Heater – Diesel Only
F27	–	–	Not Used
F28	15 Amp Blue	–	Transmission Control Module (TCM)
F29	–	–	Not Used
F30	10 Amp Red	–	Engine Control Module (ECM)/(EPS)/(PCM)
F31	–	–	Not Used
F32	–	–	Not Used
F33	–	–	Not Used
F34	–	–	Not Used
F35	–	–	Not Used
F36	–	–	Not Used
F37	–	–	Not Used
F38	–	60 Amp Yellow	Glow Plugs (Diesel Only) – If Equipped
F39	–	40 Amp Green	HVAC Blower Motor
F40	–	20 Amp Blue	Trailer Tow Park Light – If Equipped
F40	–	30 Amp Pink	Headlamp Washer Pump – If Equipped
F41	60 Amp Yellow	–	Body Controller Module (BCM) – Feed 1
F41	50 Amp Red	—	Voltage Stability Module – Feed 1 – If Equipped with Stop/ Start Engine Option
F42	–	30 Amp Pink	Trailer Tow Electric Brake Module – If Equipped
F43	20 Amp Yellow	–	Fuel Pump Motor
F44	–	30 Amp Pink	Trailer Tow / 7-Way Connector – If Equipped
F45	–	30 Amp Pink	Passenger Door Module (PDM) – If Equipped
F46	–	25 Amp Clear	Sunroof – If Equipped
F48	–	30 Amp Pink	Driver E)oor Module – If Equipped
F49	–	30 Amp Pink	Power Inverter (115V A/C) – If Equipped
F50	–	30 Amp Pink	Power Liftgate – If Equipped
F51	–	–	Not Used
F52	–	30 Amp Pink	Front Wipers – If Equipped with Stop/Start Engine Option
F53	–	30 Amp Pink	Brake System Module & Valves
F54	–	30 Amp Pink	Body Control Module (BCM) Feed 3
F55	10 Amp Red	—	Blind Spot Sensors / Compass / Rearview Camera / Trunk Lamp With Flashlamp Charger – If Equipped
F56	15 Amp Blue	—	Ignition Node Module (IGNM)/KIN/RF Hub/Electric Steering Column Lock (ESL)
F57	20 Amp Yellow	–	Trailer Tow Lights Left – If Equipped
F58	10 Amp Red	–	Occupant Classification Module/VSM/ESC
F59	–	30 Amp Pink	Drivetrain Control Module (DTCM) If Equipped
F60	20 Amp Yellow	–	Power Outlet – Center Console
F61	20 Amp Yellow	–	Trailer Tow Lights Right – If Equipped
F62	20 Amp Yellow	–	Windshield de-icer – If Equipped
F63	20 Amp Yellow	–	Front Heated/Vented Seats – If Equipped
F64	20 Amp Yellow	–	Heated Steering Wheel – If Equipped
F65	10 Amp Red		In Vehicle Temperature Sensor / Humidity Sensor / Driver Assist System Module (DASM) / Park Assist (PAM) – If Equipped with Stop/Start option
F66	15 Amp Blue	–	HVAC (ECC) / Instrument Panel Cluster (IPC)
F67	10 Amp Red		In Vehicle Temperature Sensor / Humidity Sensor / Driver Assist System Module (DASM) / Park Assist (PAM) – If Not Equipped with Stop/Start Option
F68	–	–	Not Used
F69	10 Amp Red	—	Power Transfer Unit Switch (TSBM) / Active Grill Shutter (AGS) – If Equipped with Gas Engine
69A	10 Amp Red	—	Power Transfer Unit Switch (TSBM) – If Equipped with Diesel Engine
F70	5 Amp Tan	—	Intelligent Battery Sensor If Equipped with Stop/Start Engine Option
F71	20 Amp Yellow	—	HID Headlamp Right if Equipped with Stop/Start Engine Option
F72	10 Amp Red	–	Heated Mirrors – If Equipped
F73	–	20 Amp Blue	Trailer Tow Back Up – If Equipped
F74	–	30 Amp Pink	Rear Defroster
F75	20 Amp Yellow	–	Cigar Lighter – If Equipped
F76	20 Amp Yellow	–	Rear Differential Module (RDM) – If Equipped
F77	10 Amp Red	–	Fuel Door Release/Brake Pedal Switch
F78	10 Amp Red	–	Diagnostic Port / Digital TV (Japan Only)
F79	10 Amp Red	—	Integrated Center Stack (ICS) / HVAC / Aux Switch Bank Module (ASBM) / Instrument Panel Cluster (IPC)
F80	20 Amp Yellow	–	Radio / CD – If Equipped
F81	–	–	Not Used
F82	–	–	Not Used
F83	–	20 Amp Blue	Engine Controller Module (Gas)
F84	–	30 Amp Pink	Electric Park Brake (EPB) – Left
F85	–	–	Not Used
F86	20 Amp Yellow	–	Horns – If Equipped With Stop/Start Engine Option
F87A	20 Amp Yellow	—	HID Headlamp Left – If Equipped with Stop/Start Engine Option
F88	15 Amp Blue	—	Collision Mitigation Module (CMM) / Electrochromatic Mirror / Smart Camera Module – If Equipped
F89	10 Amp Red	–	Headlamp Leveling – If Equipped
F90	–	–	Not Used
F91	20 Amp Yellow	–	Power Outlet Rear – If Equipped – Customer Selectable
F92	–	–	Not Used
F93	–	40 Amp Green	Brake System Module (BSM) – Pump Motor
F94	–	30 Amp Pink	Electric Park Brake (EPB) – Right
F95	10 Amp Red		Electrochromatic Mirror / Rain Sensor / Sunroof – If Equipped / Passenger Window Switch / Power Outlet Console / Digital TV (Japan Only)
F96	10 Amp Red	–	Occupant Restraint Controller (ORC) / (Airbag)
F97	10 Amp Red	–	Occupant Restraint Controller (ORC) / (Airbag)
F98	25 Amp Clear	–	Audio Amplifier – If Equipped
F99	–	–	Not Used
F100	–	–	Not Used
CB1			Power Seat (Driver)
CB2			Power Seat (Pass)
CB3			Power Window

2018

Assignment of the under-hood fuses (2018)

Fuse Data

Full access is available to registered users — log in or register.

Cavity	Blade Fuse	Cartridge Fuse	Description
F06	–	–	Not Used
F07	15 Amp Blue	—	Powertrain Control Mod – PCM (Diesel Only)
F08	25 Amp Clear		Power Control Mod (PCM)/ Engine Control Module (ECM)/ Fuel Injection
F09	–	–	Not Used
F10	20 Amp Yellow	—	Power Transfer Unit (PTU) – If Equipped
F11	–	–	Not Used
F12	20 Amp Yellow	—	Brake Vacuum Pump – If Equipped
F13	10 Amp Red		Voltage Stability Mod (VSM)/ Powertrain Control Mod (PCM)/ Engine Control Module (ECM)
F14	10 Amp Red		Drivetrain Control Module (DTCM)/Power Take-Off Unit (PTU)/Electric Park Brake (EPB)/RDM/Brake System Module (BSM) – If Equipped/ Brake Pedal Switch/Back Up Switch (Diesel Only)
F15	–	–	Not Used
F16	20 Amp Yellow	—	Ign Coil (Gas)/Engine Sensor (Diesel)
F17	–	–	Not Used
F18	–	–	Not Used
F19	–	40 Amp Green	Starter Solenoid
F20	10 Amp Red	–	A/C Compressor Clutch
F21	–	–	Not Used
F22	5 Amp Tan	–	Radiator Fan
F23	70 Amp Tan	—	Body Controller Module (BCM) -Feed 2
F23	50 Amp Red		Voltage Stability Module (VSM) Feed #2 – If Equipped With Stop/Start Engine Option
F24	20 Amp Yellow	—	Rear Wiper – If Equipped With Stop/Start Engine Option
F25B	20 Amp Yellow	—	Front Washer – If Equipped With Stop/Start Engine Option
F26	–	30 Amp Pink	Fuel Heater – Diesel Only
F27	–	–	Not Used
F28	15 Amp Blue	—	Transmission Control Module (TCM)
F29	–	–	Not Used
F30	10 Amp Red		Engine Control Module (ECM)/ (EPS)/Fuel Pump Relay Feed/ (PCM)
F31	–	–	Not Used
F32	–	–	Not Used
F33	–	–	Not Used
F34	–	–	Not Used
F35	–	–	Not Used
F36	–	–	Not Used
F37	–	–	Not Used
F38	“	60 Amp Yellow	Glow Plugs (Diesel Only) – If Equipped
F39	–	40 Amp Green	HVAC Blower Motor
F40	“	20 Amp Blue	Trailer Tow Park Light – If Equipped
F40	“	30 Amp Pink	Headlamp Washer Pump – If Equipped
F41	“	60 Amp Yellow	Body Controller Module (BCM) – Feed 1
F41		50 Amp Red	Voltage Stability Module – Feed 1 — If Equipped With Stop/ Start Engine Option
F42	—	30 Amp Pink	Trailer Tow Electric Brake Module – If Equipped
F43	20 Amp Yellow	–	Fuel Pump Motor
F44	—	30 Amp Pink	Trailer Tow / 7-Way Connector – If Equipped
F45	“	30 Amp Pink	Passenger Door Module (PDM) – If Equipped
F46	–	25 Amp Clear	Sunroof – If Equipped
F48	“	30 Amp Pink	Driver Door Module – If Equipped
F49	“	30 Amp Pink	Power Inverter (115V A/C) — If Equipped
F50	–	30 Amp Pink	Power Liftgate – If Equipped
F51	–	–	Not Used
F52	—	30 Amp Pink	Front Wipers – If Equipped With Stop/Start Engine Option
F53	–	30 Amp Pink	Brake System Module & Valves
F54	—	30 Amp Pink	Body Control Module (BCM) Feed 3
F55	10 Amp Red	—	Blind Spot Sensors/Rearview Camera
F56	15 Amp Blue		Ignition Node Module (IGNM)/KIN/RF Hub/Electric Steering Column Lock (ESCL)
F57	20 Amp Yellow	—	Trailer Tow Lights Left – If Equipped
F58	10 Amp Red	—	Occupant Classification Module/VSM/TT Mod/ESCL
F59	“	30 Amp Pink	Drivetrain Control Module (DTCM) – If Equipped
F60	20 Amp Yellow	–	Power Outlet – Center Console
F61	20 Amp Yellow	—	Trailer Tow Lights Right – If Equipped
F62	20 Amp Yellow	—	Windshield De-Icer – If Equipped
F63	20 Amp Yellow	—	Front Heated/Vented Seats – If Equipped
F64	20 Amp Yellow	—	Heated Steering Wheel – If Equipped
F65	10 Amp Red		In Vehicle Temperature Sensor/ Humidity Sensor/Driver Assist System Module (DASM)/Park Assist (PAM) – If Equipped With Stop/Start option
F66	15 Amp Blue	—	HVAC (ECC)/Instrument Panel Cluster (IPC)
F67	10 Amp Red		In Vehicle Temperature Sensor/ Humidity Sensor/Driver Assist System Module (DASM)/Park Assist (PAM) – If Not Equipped With Stop/Start Option
F68	–	–	Not Used
F69	10 Amp Red		Power Transfer Unit Switch (TSBM)/Active Grill Shutter (AGS) – If Equipped With Gas Engine
F69A	10 Amp Red		Power Transfer Unit Switch (TSBM) – If Equipped With Diesel Engine
F70	5 Amp Tan		Intelligent Battery Sensor – If Equipped With Stop/Start Engine Option
F71	20 Amp Yellow		HID Headlamp Right – If Equipped With Stop/Start Engine Option
F72	10 Amp Red	–	Heated Mirrors – If Equipped
F73	–	20 Amp Blue	Trailer Tow Back Up – If Equipped
F74	–	30 Amp Pink	Rear Defroster
F75	20 Amp Yellow	–	Cigar Lighter – If Equipped
F76	20 Amp Yellow	—	Rear Differential Module (RDM) – If Equipped
F77	10 Amp Red	—	Fuel Door Release/Brake Pedal Switch
F78	10 Amp Red	—	Diagnostic Port/Digital TV (Japan Only)
F79	10 Amp Red		Integrated Center Stack (ICS)/ Electric Park Brake (EPB) SW/CD Mod/Steering Control Mod (SCCM)/ HVAC/ Instrument Panel Cluster (IPC)
F80	20 Amp Yellow	–	Radio / CD – If Equipped
F81	–	–	Not Used
F82	–	–	Not Used
F83	–	20 Amp Blue	Engine Controller Module (Gas)
F84	–	30 Amp Pink	Electric Park Brake (EPB) – Left
F85	–	–	Not Used
F86	20 Amp Yellow	—	Horns – If Equipped With Stop/Start Engine Option
F87A	20 Amp Yellow		HID Headlamp Left – If Equipped With Stop/Start Engine Option
F88	15 Amp Blue	–	Seat Belt Reminder (SBR)
F89	10 Amp Red	—	Headlamp Leveling – If Equipped
F90	–	–	Not Used
F91	20 Amp Yellow		Power Outlet Rear – If Equipped – Customer Selectable
F92	–	–	Not Used
F93	—	40 Amp Green	Brake System Module (BSM) -Pump Motor
F94	—	30 Amp Pink	Electric Park Brake (EPB) -Right
F95	10 Amp Red		Electrochromatic Mirror/Rain Sensor/Sunroof – If Equipped/ Passenger Window Switch/ Power Outlet Console/Digital TV (Japan Only)
F96	10 Amp Red	—	Occupant Restraint Controller (ORC)/(Airbag)
F97	10 Amp Red	—	Occupant Restraint Controller (ORC)/(Airbag)
F98	25 Amp Clear	–	Audio Amplifier – If Equipped
F99	–	–	Not Used
F100	–	–	Not Used
CB1			Power Seat (Driver)
CB2			Power Seat (Pass)
CB3			Power Window

2019

Assignment of the under-hood fuses (2019)

Fuse Data

Full access is available to registered users — log in or register.

Cavity	Blade Fuse	Cartridge Fuse	Description
F06	–	–	Not Used
F07	15 Amp Blue	—	Powertrain Control Mod – PCM (Diesel) / Surge Solenoid Purge Valve (Gas)
F08	25 Amp Clear	—	Fuel Injectors (Gas), ECM (Gas), PCM/Fuel Injectors (Diesel)
F09	15 Amp Blue (Gas) 10 Amp Red (Diesel)	—	Coolant Pump (Gas) UREA Coolant Pump/PCM (Diesel)
F10	20 Amp Yellow	–	Power Transfer Unit (PTU) – If Equipped
F11	–	–	Not Used
F12	10 Amp Red	–	Supply And Purging Pump (Diesel)
F13	10 Amp Red	—	Voltage Stability Mod (VSM)/Powertrain Control Mod (PCM)/Engine Control Module (ECM)
F14	10 Amp Red		Drivetrain Control Module (DTCM)/Power Take-Off Unit (PTU)/Electric Park Brake (EPB)/RDM/ Brake System Module (BSM) – If Equipped/Brake Pedal Switch/Back Up Lamp Switch (Diesel)
F15	–	–	Not Used
F16	20 Amp Yellow	–	Ing Coils / Additional Diesel Content
F17	30 Amp Green		Brake Vacuum Pump (GAS GMET4/V6 Engines Only)
F18	–	–	Not Used
F19	–	40 Amp Green	Starter Solenoid
F20	10 Amp Red	–	A/C Compressor Clutch
F21	–	–	Not Used
F22	5 Amp Tan	–	Radiator Fan (PWM) Enable
F23	50 Amp Red	–	Voltage Stability Module (VSM) #2
F24	20 Amp Yellow	–	Rear Wiper
F25B	20 Amp Yellow	–	FT/RR Washer
F26	–	30 Amp Pink	Fuel Heater (Diesel)
F27	–	–	Not Used
F28	15 Amp Blue	–	Transmission Control Module (TCM/Shifter)
F29	–	–	Not Used
F30	10 Amp Red		Engine Control Module (ECM)/(EPS)/Fuel Pump Relay Feed/(PCM)
F31	–	–	Not Used
F32	–	–	Not Used
F33	–	–	Not Used
F34	–	–	Not Used
F35	–	–	Not Used
F36	–	–	Not Used
F37	–	–	Not Used
F38	–	60 Amp Yellow	Glow Plugs (Diesel)
F39	–	40 Amp Green	HVAC Blower Motor
F40	–	20 Amp Blue	Trailer Tow Park Light – If Equipped
F41	–	50 Amp Red	Voltage Stability Module (VSM) #1
F42	–	30 Amp Pink	Trailer Tow Module – If Equipped
F43	20 Amp Yellow	–	Fuel Pump Motor
F44	–	30 Amp Pink	Trailer Tow Receptacle – If Equipped
F45	–	30 Amp Pink	Passenger Door Module (PDM) – If Equipped
F46	–	25 Amp Clear	Sunroof Control Module – If Equipped
F47	–	–	Not Used
F48	–	30 Amp Pink	Driver Door Module
F49	–	30 Amp Pink	Power Inverter (115V/220V A/C)
F50	–	30 Amp Pink	Power Liftgate Module
F51	–	–	Not Used
F52	–	30 Amp Pink	Front Wipers
F53	–	30 Amp Pink	Brake System Module (BSM) – ECU And Valves
F54	–	30 Amp Pink	Body Control Module (BCM) Feed 3
F55	10 Amp Red	—	Blind Spot Sensors/Rearview Camera, Rear Heated Seat Switch
F56	15 Amp Blue		Ignition Node Module (IGNM)/KIN/RF Hub/ Electric Steering Column Lock (ESCL), Dual USB Port – RR Console
F57	20 Amp Yellow	–	Trailer Tow Left Stop/Turn Lights – If Equipped
F58	10 Amp Red	—	Occupant Classification Module/VSM/TT Mod/ ESCL
F59	–	30 Amp Pink	Drivetrain Control Module (DTCM) – If Equipped
F60	20 Amp Yellow	–	Power Outlet – Center Console
F61	20 Amp Yellow	–	Trailer Tow Right Stop/Turn Lights – If Equipped
F62	20 Amp Yellow	–	Windshield De-Icer – If Equipped
F63	20 Amp Yellow	–	Front Heated /Ventilated Seats – If Equipped
F64	20 Amp Yellow	–	Rear Heated Seats – If Equipped
F65	10 Amp Red		In Vehicle Temperature Sensor/Humidity Sensor/ Driver Assist System Module (DASM)/Park Assist (PAM)
F66	15 Amp Blue		HVAC (ECC)/Instrument Panel Cluster (IPC)/ Gateway Module
F67	–	–	Not Used
F68	–	–	Not Used
F69	10 Amp Red		Transfer Case Switch (TSBM)/Active Grill Shutter (AGS) – If Equipped With Gas Engine
F70	5 Amp Tan	–	Intelligent Battery Sensor (IBS)
F71	–	–	Not Used
F72	10 Amp Red	–	Heated Mirrors (Gas) / PM Sensor (Diesel)
F73	—	20 Amp Blue	NOX Sensor #1 & #2 / Trailer Tow Backup (NAFTA & Gas)
F74	–	30 Amp Pink	Rear Defroster (EBL)
F75	20 Amp Yellow	–	Cigar Lighter – If Equipped
F76	20 Amp Yellow	–	Rear Differential Module (RDM) – If Equipped
F77	10 Amp Red	–	Hands Free Module, Brake Pedal Switch
F78	10 Amp Red	–	Diagnostic Port / Digital TV / TBM
F79	10 Amp Red		Integrated Center Stack (ICS)/Electric Park Brake (EPB) SW/CD Mod/Steering Control Mod (SCCM)/HVAC/Instrument Panel Cluster (IPC)
F80	20 Amp Yellow	–	Radio
F81			Customer Selectable Location For F91 Power Outlet Feed
F82	5 Amp Tan	–	Cybersecurity Gateway Module
F83		20 Amp Blue 30 Amp Pink	Engine Controller Module (Gas) SCU Module (Diesel)
F84	–	30 Amp Pink	Electric Park Brake (EPB) – Left
F85	15 Amp Blue	–	(CSWM) Heated Steering Wheel
F86	20 Amp Yellow	–	Horns
F87	–	–	Not Used
F88	10 Amp Red	–	Seat Belt Reminder (SBR)/Smart Camera
F89	15 Amp Blue	—	Auto Headlamp Leveling (If Equipped) / Headlamp
F90	–	–	Not Used
F91	20 Amp Yellow	—	Power Outlet Rear – If Equipped – Customer Selectable
F92	–	–	Not Used
F93	–	40 Amp Green	Brake System Module (BSM) – Pump Motor
F94	–	30 Amp Pink	Electric Park Brake (EPB) – Right
F95	10 Amp Red		Sunroof Module / Rain Sensor Module (LRSM) / Electrochromatic Mirror Module (ECMM) / Dual USB Port (Rear)/ Power Outlet Console Illumination / Digital TV
F96	10 Amp Red	–	Occupant Restraint Controller (ORC)/(Airbag)
F97	10 Amp Red	–	Occupant Restraint Controller (ORC)/(Airbag)
F98	25 Amp Clear	–	Audio Amplifier/ANC
F99	–	–	Not Used
F100	–	–	Not Used
Circuit Breakers:
CB1	30 Amp (30A mini fuse is substituted for 25A Circuit Breaker)		Power Seat (Driver)
CB2	30 Amp (30A mini fuse is substituted for 25A Circuit Breaker)		Power Seat (Pass)
CB3	25 Amp		Power Window

2020, 2021, 2022, 2023

Assignment of the under-hood fuses (2020-2023)

Fuse Data

Full access is available to registered users — log in or register.

№	Amp.	Description
F01	70A	Electric Power Str
F02	150A	Aux PDC
F03	300A	Alternator
F04	Shunt	Battery
F05	100A	Rad Fan
F06	–	Not Used
F07	15A	Powertrain Control Mod – PCM (Diesel) / Surge Solenoid Purge Valve (Gas)
F08	25A	Fuel Injectors (Gas), ECM (Gas), PCM/Fuel Injectors (Diesel)
F09	15A (Gas) / 10A (Diesel)	Coolant Pump (Gas) / UREA Coolant Pump/PCM (Diesel)
F10	20A	Power Transfer Unit (PTU)
F11	–	Not Used
F12	10A	Supply And Purging Pump (Diesel)
F13	10A	Voltage Stability Mod (VSM)/ Powertrain Control Mod (PCM)/ Engine Control Module (ECM)
F14	10A	Drivetrain Control Module (DTCM)/ Power Take-Off Unit (PTU)/ Electric Park Brake (EPB)/ RDM/Brake System Module (BSM) / Brake Pedal Switch/ Back Up Lamp Switch (Diesel)
F15	–	Not Used
F16	20A	Ign Coils / Additional Diesel Content
F17	30A	Brake Vacuum Pump (GAS GMET4/V6 Engines Only)
F18	–	Not Used
F19	40A	Starter Solenoid
F20	10A	A/C Compressor Clutch
F21	–	Not Used
F22	5A	Radiator Fan (PWM) Enable
F23	50A	Voltage Stability Module (VSM) #2
F24	20A	Rear Wiper
F25B	20A	FT/RR Washer
F26	30A	Fuel Heater (Diesel)
F27	–	Not Used
F28	15A	Transmission Control Module (TCM/Shifter)
F29	–	Not Used
F30	10A	Engine Control Module (ECM)/(EPS)/Fuel Pump Relay Feed/(PCM)/Gas Particulate Filter (GPF)
F31	–	Not Used
F32	–	Not Used
F33	–	Not Used
F34	–	Not Used
F35	–	Not Used
F36	–	Not Used
F37	–	Not Used
F38	60A	Glow Plugs (Diesel)
F39	40A	HVAC Blower Motor
F40	20A	Trailer Tow Park Light
F41	50A	Voltage Stability Module (VSM) #1
F42	30A	Trailer Tow Module
F43	20A	Fuel Pump Motor
F44	30A	Trailer Tow Receptacle
F45	30A	Passenger Door Module (PDM)
F46	25A	Sunroof Control Module
F47	–	Not Used
F48	30A	Driver Door Module
F49	30A	Power Inverter (115V/220V A/C)
F50	30A	Power Liftgate Module
F51	–	Not Used
F52	30A	Front Wipers
F53	30A	Brake System Module (BSM) – ECU And Valves
F54	30A	Body Control Module (BCM) Feed 3
F55	10A	Blind Spot Sensors/ Rearview Camera, Rear Heated Seat Switch
F56	15A	Ignition Node Module (IGNM)/ KIN/ RF Hub/ Electric Steering Column Lock (ESCL), Dual USB Port – RR Console
F57	20A	Trailer Tow Left Stop/Turn Lights
F58	10A	Occupant Classification Module/VSM/TT Mod/ESCL
F59	30A	Drivetrain Control Module (DTCM)
F60	20A	Power Outlet – Center Console
F61	20A	Trailer Tow Right Stop/Turn Lights
F62	20A	Windshield De-Icer
F63	20A	Front Heated/Ventilated Seats
F64	20A	Rear Heated Seats
F65	10A	In Vehicle Temperature Sensor/ Humidity Sensor/ Driver Assist System Module (DASM)/ Park Assist (PAM)
F66	15A	HVAC (ECC)/ lnstrument Panel Cluster (IPC)/ Gateway Module
F67	–	Not Used
F68	–	Not Used
F69	10A	Transfer Case Switch (TSBM)/ Active Grill Shutter (AGS) With Gas Engine
F70	5A	Intelligent Battery Sensor (IBS)
F71	–	Not Used
F72	10A	Heated Mirrors (Gas) / PM Sensor (Diesel)
F73	20A	NOX Sensor #1 & #2 / Trailer Tow Backup (NAFTA & Gas)
F74	30A	Rear Defroster (EBL)
F75	20A	Cigar Lighter
F76	20A	Rear Differential Module (RDM)
F77	10A	Hands Free Module, Brake Pedal Switch
F78	10A	Diagnostic Port / Digital TV / TBM
F79	10A	Integrated Center Stack (ICS)/ Electric Park Brake (EPB) SW/CD Mod/ Steering Control Mod (SCCM)/ HVAC/ lnstrument Panel Cluster (IPC)
F80	20A	Radio
F81	–	Customer Selectable Location For F91 Power Outlet Feed
F82	5A	Cybersecurity Gateway Module
F83	20A/30A	Engine Controller Module (Gas) / SCU Module (Diesel)
F84	30A	Electric Park Brake (EPB) – Left
F85	15A	(CSWM) Heated Steering Wheel
F86	20A	Horns
F87	–	Not Used
F88	10A	Seat Belt Reminder (SBR)/ Smart Camera
F89	10A	Auto Headlamp Leveling (If Equipped) / Headlamp
F90	–	Not Used
F91	20A	Power Outlet Rear – Customer Selectable
F92	–	Not Used
F93	40A	Brake System Module (BSM) – Pump Motor
F94	30A	Electric Park Brake (EPB) – Right
F95	10A	Sunroof Module / Rain Sensor Module (LRSM) / Electrochromatic Mirror Module (ECMM) / Dual USB Port (Rear)/ Power Outlet Console Illumination / Digital TV
F96	10A	Occupant Restraint Controller (ORC)/(Airbag)
F97	10A	Occupant Restraint Controller (ORC)/(Airbag)
F98	25A	Audio Amplifier/ANC
F99	–	Not Used
F100	–	Not Used
CB1	30A	Power Seat (Driver)
CB2	30A	Power Seat (Pass)
CB3	25A	Power Window

FAQ

Which fuses power the cigar lighter and accessory outlets in the Jeep Cherokee?

In the Jeep Cherokee, the cigar lighter and power outlets use these engine-compartment fuses:
F60 – Power Outlet (Center Console)
F75 – Cigar Lighter
F92 (2014) or F91 (2015-present) – Rear Power Outlet
