Explore Jeep Compass fuse box diagrams in this clear, straightforward guide that helps you get familiar with the MP/552 generation’s electrical layout. Here we cover the second-generation Jeep Compass (2017–2025) (Model Codes: MP / 552 ) and provide fuse diagrams for 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024 and 2025 , along with the location of the fuse panels and the assignment of each fuse , giving you a solid overview of how the system is organized.

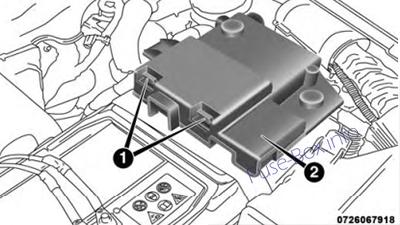

The power distribution unit is located on the left side of the engine compartment.

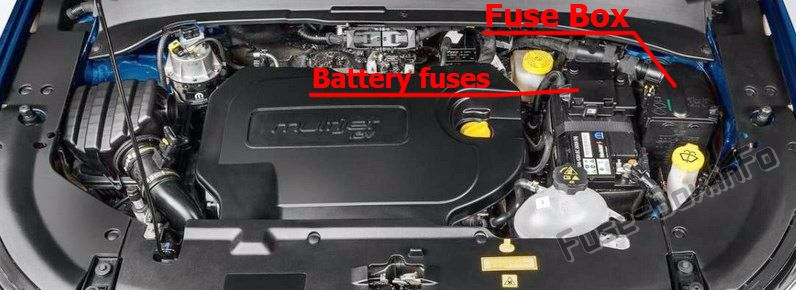

Fuse Panel & Cover Location

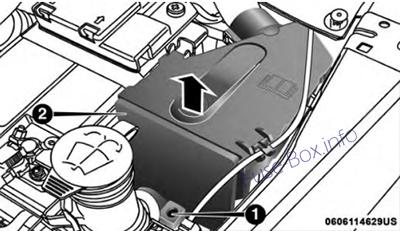

Slowly turn the screw counterclockwise.
Slowly release the screw.
Remove the fuse cover by sliding it upward.
Battery Fuse Cover Location

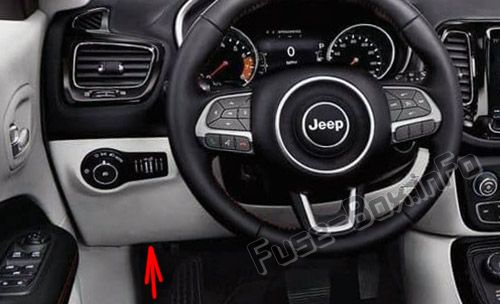

It is located in the passenger compartment on the left side dash panel under the instrument panel.

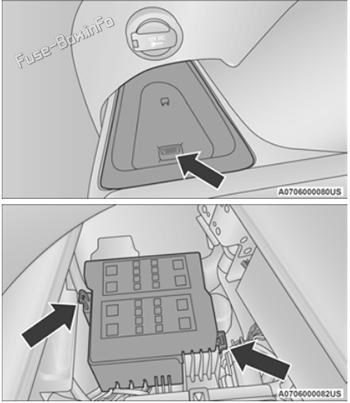

To access the fuses, remove the access door from the left rear panel of the rear cargo area.
The fuses may be contained in two units. Fuse holder version 1 is located closest to the rear of the vehicle and fuse holder version 2 (if equipped with trailer towing) is located closest to the front of the vehicle.

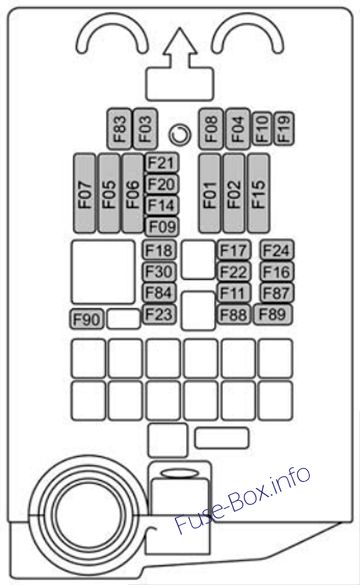

Assignment of the fuses in the engine compartment fuse box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Cavity Maxi Fuse Cartridge Fuse Mini Fuse Description F01 70 Amp Tan – – Module Body Computer F02 70 Amp Tan – – Module Body Computer, Rear Distribution Units F03 – 30 Amp Pink with HID Lamps – 2017-2018: Supply Body Computer F04 – 40 Amp Tan Brake Control Electronics Module F05 – 40 Amp Tan – PTC Heater F06 40 Amp Orange – – Starter Relay F07 40 Amp Orange – – Rear Distribution Unit For Trailer Tow Usage F08 – 30 Amp Pink – Supply for F24, F87, Steering Control F09 – – 7.5 Amp Brown 2017-2018: Control Module Engine F10 – – 20 Amp Yellow Horn F11 – – 20 Amp Yellow – 1.4L Gas & Diesel Engines 2017-2018: Supply Secondary Loads F14 – – 7.5 Amp Brown (Diesel) Diesel Crankcase Heater F15 40 Amp Orange – – Brake Control Module Pump F16 – – 10 Amp Red Engine Control Module Power, Automatic Transmission F17 – – 10 Amp Red Engine Secondary Loads F18 – – 20 Amp Yellow 12V Rear Cargo Outlet Ignition Powered F19 – – 7.5 Amp Brown 2017-2018: Air Conditioner Compressor and PWM Rad Fan enable F20 – – 20 Amp Yellow Cigar Lighter F21 – – 15 Amp Blue Fuel Pump F22 – – 20 Amp Yellow – Gas Engine 2017-2018: Power Control Module Engine F23 – – 30 Amp Green Window Heater Grid F24 – – 15 Amp Blue Electronic Unit Supply Automatic Transmission F30 20 Amp Yellow (Customer Selectable, Move From FI8) 12V Rear Cargo Outlet Constant Battery Powered F81 60 Amp Blue – – 2017-2018: Glow Plug Module F82 – 40 Amp Green – Diesel Fuel Filter Heater F83 – 40 Amp Green – HVAC Fan F84 – – 30 Amp Green Power Supply All Wheel Drive F87 – – 5 Amp Tan Gear Selector Automatic Transmission F88 – – 7.5 Amp Brown Heated Outside Mirrors F89 – – 30 Amp Green Heated Rear Window F90 – – 5 Amp Tan IBS Sensor (Battery State Of Charge) Fxx – – 10 Amp Red Dual Battery Control Relay
This content requires JavaScript and a valid membership to view.
The Fuse Box has additional ATO fuse holders installed on the bottom of the box Additional ATO fuse
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Cavity ATO / UNIVAL Fuse Description F1 5 Amp Biege Drivetrain Control Module (4×4/AWD) F2 10 Amp Red ECM — Start Diagnostic Sense F3 2 Amp Grey Mod Steering Control
This content requires JavaScript and a valid membership to view.

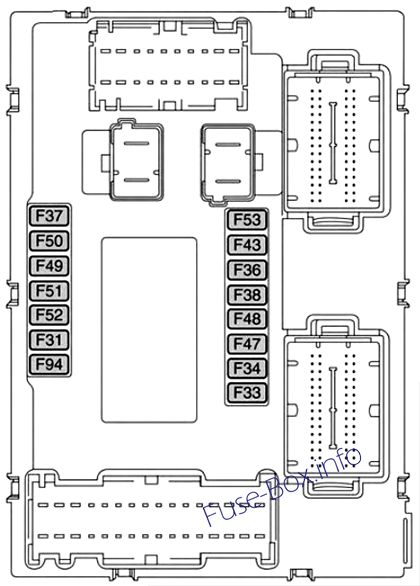

Assignment of the interior fuses
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Cavity Blade Fuse Description F31 7.5 Amp Brown Occupant Restraint Controller F33 20 Amp Yellow Window Motor Passenger F34 20 Amp Yellow Window Motor Driver F36 20 Amp Yellow Intrussion Module/Siren, Radio, UCI/USB Port, VSU, Climate Control, Electronic Steering Lock, Power Folding Mirrors, Security Gateway/DTV (2019-2025) F37 10 Amp Red Instrument Panel Cluster, Drivetrain Control Module, Adaptive Cruise, ECC (HVAC) Blower F38 20 Amp Yellow 2017-2018: Door Lock/Unlock F42 7.5 Amp Brown Brake System Module, Electric Power Steering F43 20 Amp Yellow Washer Pump Front And Rear F47 20 Amp Yellow Rear Left Window Lifter F48 20 Amp Yellow Rear Right Window Lifter F49 7.5 Amp Brown Park Assist, Blind Spot, Voltage Stabilizer, Humidity Sensor, Sunroof, Electronic Steering Lock, Temp Sense, Mirror, Heated Seats, Light And Rain Sensor, Start Stop Switch (2019-2025) F50 7.5 Amp Brown Occupant Restraint Controller F51 7.5 Amp Brown Electronic Climate Control, Occupant Classification, Rear View Camera, Climate Control, Headlamp Leveling, Terrain Select, Heated Rear Window, Trailer Tow, Haptic Lane Departure F53 7.5 Amp Brown Keyless Ignition Node Module, Electric Park Brake, RF Hub, Cluster F94 15 Amp Blue ECC (HVAC) Blower (2017-2018), Lumbar Adjust Driver Seat, Power Outlets
This content requires JavaScript and a valid membership to view.

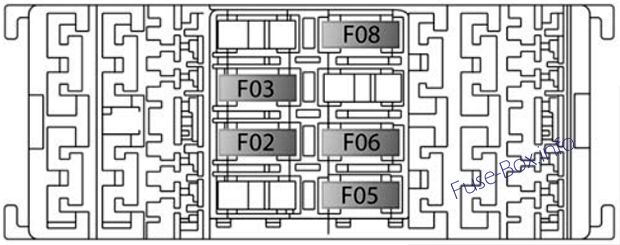

Rear cargo fuse holder 1
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Cavity Mini Fuse Description F1 30 Amp Green Power Inverter F2 30 Amp Green Memory Seat F3 20 Amp Yellow Sun Roof – If Equipped F4 30 Amp Green Power Seat (Passenger Side) F5 30 Amp Green Power Seat (Driver Side) F6 7.5 Amp Brown Power Lumbar (Power Seats) F7 15 Amp Blue Heated Steering Wheel / Ventilated Seats F8 20 Amp Yellow Heated Seats
This content requires JavaScript and a valid membership to view.
Rear cargo fuse holder 2
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Cavity Mini Fuse Description F1 10 Amp Red 2017-2018: Controller Exterior Lighting On Trailer F5 15 Amp Blue Controller Exterior Lighting Lights (Drivers Side) F6 15 Amp Blue Controller Exterior Lighting Lights (Passenger Side) F7 10 Amp Red TTM Jumper Battery Feed
This content requires JavaScript and a valid membership to view.
On the Rear Cargo Fuse/Relay Distribution Unit bracket, there is a Maxi Fuse holder for the Power Liftgate and an ATO / Uni Val fuse holder for the HIFI Audio System.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
F01 30 Amp Green (Maxi Fuse) Power Liftgate F02 25 Amp Clear (ATO / Uni-Val Fuse) HIFI Audio System
This content requires JavaScript and a valid membership to view.
