Explore Jeep Liberty fuse box diagrams in this straightforward guide that helps you make sense of the KJ model’s electrical system. Here we look at the first-generation Jeep Liberty (2001–2007) —also known as the Jeep Cherokee outside North America (Model Code: KJ )—and provide fuse diagrams for 2002, 2003, 2004, 2005, 2006 and 2007 , along with the location of the fuse panels and the assignment of each fuse and relay , giving you the essential details in one place.

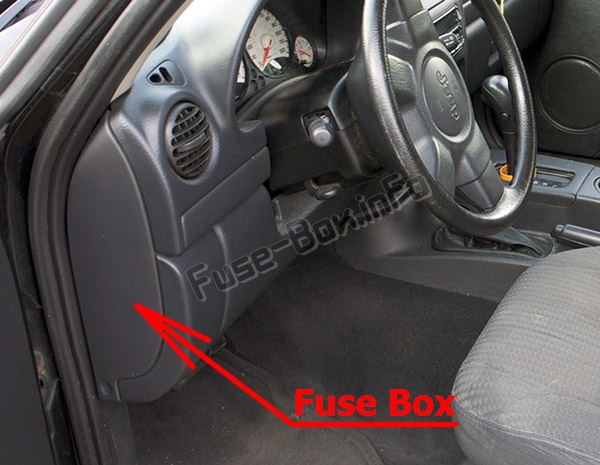

The fuse panel is on the left side of the instrument panel behind the cover.

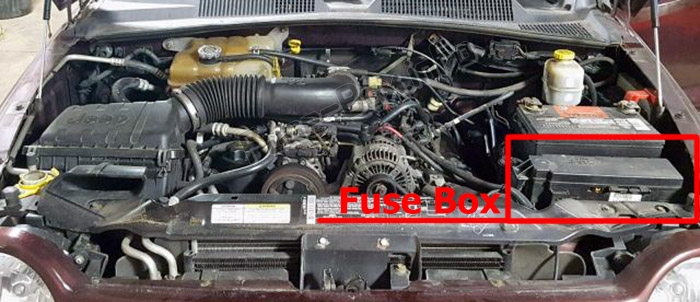

The electrical power distribution center is located in the engine compartment near the battery.
This power center houses plug-in “Cartridge” fuses which replace in-line fusible links. The power center also contains “Mini” fuses and plug-in full and micro ISO relays. A label inside the latching cover of the center identifies each component for ease of replacement, if necessary. “Cartridge” fuses and relays can be obtained from your authorized dealer.

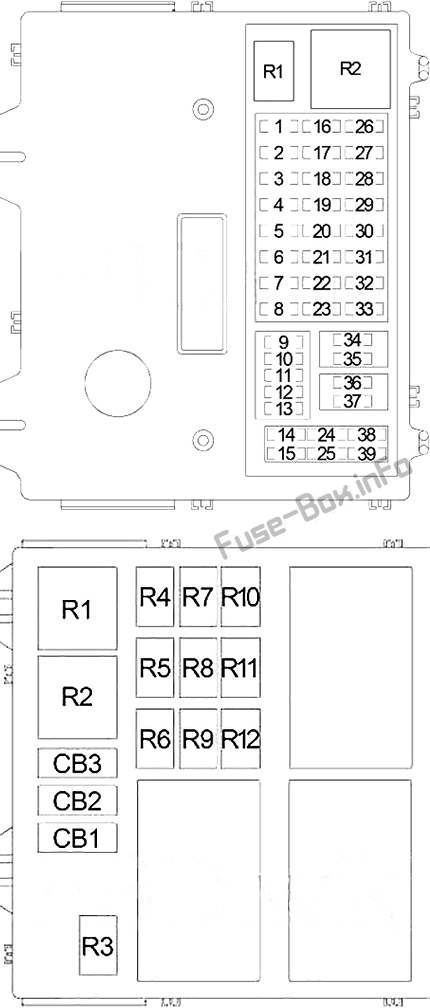

Assignment of the fuses in the passenger compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Cavity Amp Description 1 15 Amp Blue Horn Relay, Power Sunroof Relay, Power Window Relay 2 10 Amp Red Rear Fog Lights (Export Only) 3 20 Amp Yellow Cigar Lighter 4 10 Amp Red Headlight Low Beam Right 5 10 Amp Red Headlight Low Beam Left 6 20 Amp Yellow Body Control Module/Power Door Locks 7 10 Amp Red Left Park Light/Left Tail Lamp/License Plate Lamp 8 Spare 9 10 Amp Red Right Park Light/RightTail Lamp/License Plate Lamp/ Cluster 10 Spare 11 15 Amp Blue Flasher 12 15 Amp Blue Stop Lights 13 10 Amp Red Body Control Module /CMTC/ Cluster/Pass. Airbag On,Off Indicator, Auto Daylight Mirror/Light Bar Switch (Renegade Only) 14 10 Amp Red PDC Fuel Pump/AC Clutch, Starter Relay/Engine Controller/Transmission Controller (Diesel Only) 15 Spare 16 20 Amp Yellow Power Outlet (Rear) 17 15 Amp Blue Rear Wiper 18 20 Amp Yellow Radio Choke & Relay 19 20 Amp Yellow Frt Fog Lights/Trailer Tow Stop and Turn Lights 20 Spare 21 10 Amp Red Radio 22 20 Amp Yellow Power Sunroof Relay/Antenna Module (Export Only) 23 Spare 24 10 Amp Red PDC Blower Motor 25 10 Amp Red Heated Seat Switches/HVAC Control Head/Trailer Tow Battery Charge 26 10 Amp Red Headlight High Beam Right 27 10 Amp Red Headlight High Beam Left 28 Spare 29 10 Amp Red Heated Mirrors/Rear Window Defroster Indicator 30 15 Amp Blue Heated Seat Module 31 Spare 32 10 Amp Red Wiper Switch/Front and Rear Wipers 33 10 Amp Red SKIM Module/Data Link Connector 34 15 Amp Blue Body Control Module/ Cluster/Interior Lights, Hands Free Module/Radio/CMTC/ ITM Module & Siren (Export Only) 35 Spare 36 10 Amp Red Airbag Control Module/ Occupation Classification Module (Right Front Seat) 37 10 Amp Red Airbag Control Module 38 10 Amp Red ABS Controller/Shifter Assembly 39 10 Amp Red Hazard Flasher (Turn Signals)/ Backup Lamp Switch (Manual Transmission Only)/ Transmission Range Switch (Automatic Transmission Only) CB1 25 Amp Circuit Breaker Power Seat CB2 – – CB3 20 Amp Circuit Breaker Front Wiper (On/Off) Relay, Fron Wiper (High/Low) Relay, Front Wiper Motor Relay R1 (front) High Beam R2 (front) Daytime Running Lamp R1 (rear) Power Window R2 (rear) Rear Window Defogger R3 Low Beam R4 Power Sunroof R5 Front Fog Lamp R6 Door Lock R7 – R8 Horn R9 Passenger Door Unlock R10 Rear Fog Lamp R11 Park Lamp R12 Driver Door Unlock
This content requires JavaScript and a valid membership to view.

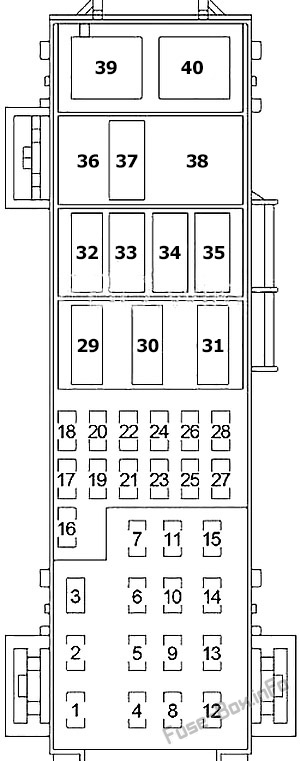

Assignment of the fuses in the engine compartment (Gasoline)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Cavity Amp Description F1 40 Amp Green Blower Motor F2 40 Amp Green Radiator Fan F3 50 Amp Red JB Power F4 40 Amp Green ABS Pump F5 20 Amp Yellow NGC Trans F6 30 Amp Pink ASD F7 50 Amp Red JB Power F8 40 Amp Green Ign/Start F9 50 Amp Red JB Power F10 30 Amp Pink Trailer Tow F11 Open F12 30 Amp Pink Light Bar F13 40 Amp Green Windows F14 40 Amp Green Ignition Switch F15 50 Amp Red JB Power F16 Open F17 Open F18 Open F19 30 Amp Pink Rear Window Defogger (HBL) F20 Open F21 20 Amp Yellow A/C Clutch F22 Open F23 Open F24 20 Amp Yellow Fuel Pump F25 20 Amp Yellow ABS Valves F26 25 Amp Natural Injectors F27 Open F28 15 Amp Blue Starter R29 Half ISO Relay Fuel Pump R30 Half ISO Relay Starter R31 Half ISO Relay Wiper On/Off R32 Half ISO Relay Wiper Hi/Lo R33 Full ISO Relay H. Blower R34 Full ISO Relay Rad. Fan Hi R35 Half ISO Relay A/C Clutch R36 Open R37 Half ISO Relay NGC Trans R38 Open R39 Full ISO Relay ASD R40 Full ISO Relay Rad. Fan Lo
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the engine compartment (Diesel)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Cavity Amp Description F1 40 Amp Green Blower Motor F2 40 Amp Green Radiator Fan F3 50 Amp Red JB Power F4 40 Amp Green ABS Pump F5 Open F6 30 Amp Pink ASD F7 50 Amp Red JB Power F8 40 Amp Green Ign/ Start F9 50 Amp Red JB Power F10 30 Amp Pink Trailer Tow F11 20 Amp Yellow Fuel Heater F12 30 Amp Pink Light Bar F13 40 Amp Green Windows F14 40 Amp Green Ignition Switch F15 50 Amp Red JB Power F16 15 Amp Blue ASD Feed F17 Open F18 Open F19 30 Amp Pink Rear Window Defogger (HBL) F20 Open F21 20 Amp Yellow A/C Clutch F22 Open F23 Open F24 Open F25 20 Amp Yellow ABS Valves F26 25 Amp Natural Injectors F27 Open F28 15 Amp Blue Starter R29 Half ISO Relay Fuel Heater R30 Half ISO Relay Starter R31 Half ISO Relay Wiper On/Off R32 Half ISO Relay Wiper Hi/Lo R33 Full ISO Relay H. Blower R34 Full ISO Relay Rad. Fan Hi R35 Half ISO Relay A/C Clutch R36 Half ISO Relay Viscous Heat R37 Open R38 Open R39 Full ISO Relay ASD R40 Full ISO Relay Rad. Fan Lo
