Jeep Liberty (2008-2012)

Explore Jeep Liberty fuse box diagrams in this clear, compact guide designed to help you understand the KK generation’s electrical layout with ease. Here we focus on the second-generation Jeep Liberty (2007–2012), also known as the Jeep Cherokee outside North America (Model Code: KK), and provide fuse diagrams for 2008, 2009, 2010, 2011 and 2012, along with the location of the fuse panels and the assignment of each fuse and relay, giving you a practical overview of its electrical system.

Fuse box location

The Totally Integrated Power Module (TIPM) is located in the engine compartment near the battery.
This center contains cartridge fuses, mini fuses and relays. A label that identifies each component is printed on the inside of the cover.

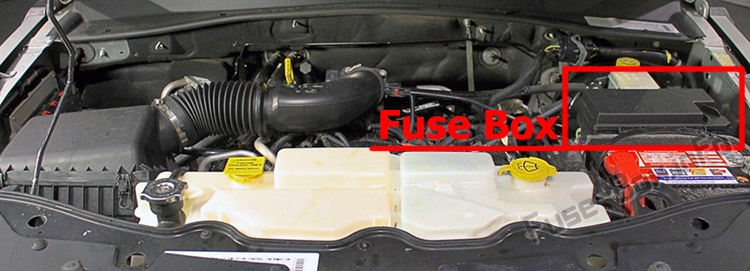

The location of the fuses in the engine compartment: Jeep Liberty (KK; 2008-2012)

Fuse box diagram

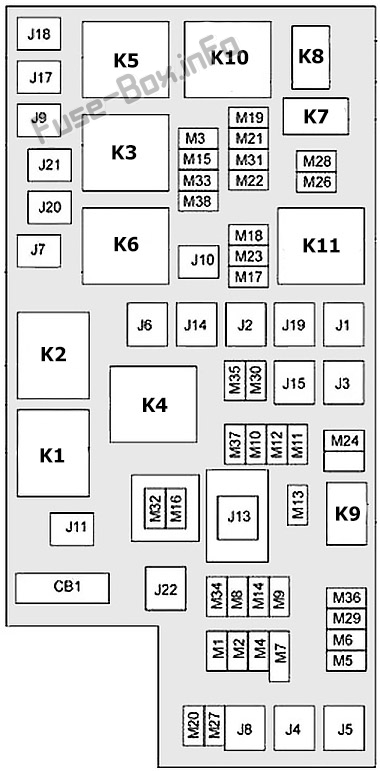

Assignment of the fuses in the Integrated Power Module

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

CavityCartridge FuseMini- FuseDescription
J1
J230 Amp PinkTransfer Case Module – If Equipped
J3
J425 Amp NaturalDriver Door Node
J525 Amp NaturalPassenger Door Node
J640 Amp GreenAntilock Brakes Pump/Stability Control System – If Equipped
J730 Amp PinkAntilock Brakes Valve/ Stability Control System – If Equipped
J840 Amp GreenPower Seats – If Equipped
J9
J10
J1130 Amp PinkThatchm Lock/Unlock – If Equipped
J1360 Amp YellowIgnition Off Draw
J1440 Amp GreenRear Defroster – If Equipped
J1540 Amp GreenFront Blower
J1740 Amp GreenStarter Solenoid
J1820 Amp BluePowertrain Control Module
J1960 Amp YellowRadiator Fan
J2030 Amp PinkFront Wiper
J2120 Amp BlueFront Washer/Rear Washer – If Equipped
J2225 Amp NaturalSunroof Module – If Equipped
M115 Amp BlueStop Light Switch Feed — Rear Center Brake Lamp
M220 Amp YellowTrailer Lighting – If Equipped
M320 Amp YellowFrt/Rr Axle Lockers -If Equipped
M410 Amp RedTrailer Tow – If Equipped
M525 Amp NaturalPower Inverter – If Equipped
M620 Amp YellowRain Sensor – If Equipped
M720 Amp YellowCigar Lighter
M820 Amp YellowFront Heated Seats – If Equipped
M9
M1015 Amp BlueIgnition Off Draw -Vehicle Entertainment System, Satellite Digital Receiver, DVD, Hands Free Module, Radio, Antenna,Universal Garage Door Opener – If Equipped/Vanity Light
M1110 Amp RedClimate Control System – If Equipped
M1230 Amp GreenRadio/Amplifier – If Equipped
M1320 Amp YellowInstrument Cluster/ Wireless Control Module/Multifunction Control Switch, Siren -If Equipped
M1420 Amp YellowTrailer Tow (Export Only) – If Equipped
M1520 Amp YellowInstrument Cluster/ Rear View Mirror/Tire Pressure Monitor/ Transfer Case Module – If Equipped/Glow Plugs – If Equipped
M1610 Amp RedAirbag Module
M1715 Amp BlueExterior Lighting – Left Front Park and Side Marker, Left Tail and Running, License Lights
M1815 Amp BlueExterior Lighting -Right Front Park and Side Marker, Right Tail and Running Lights
M1925 Amp NaturalAutomatic Shutdown #1 and #2
M2015 Amp BlueInterior Lighting/ Steering Wheel Switches – If Equipped/Switch Bank/Steering Column Module – If Equipped
M2120 Amp YellowAutomatic Shutdown #3
M2210 Amp RedRight Horn (Hi/Low)
M2310 Amp RedLeft Horn (Hi/Low)
M2425 Amp NaturalRear Wiper – If Equipped
M2520 Amp YellowFuel Pump, Diesel Lift Pump – If Equipped
M2610 Amp RedPower Mirror Switch/ Driver Window Switch
M2710 Amp RedIgnition Switch/ Wireless Control Module/Steering Column Lock – If E q ui PP ed
M2810 Amp RedPowertrain Control Module
M2910 Amp RedOccupant Classification Module
M3015 Amp BlueRear Wiper Module -If Equipped/Power Folding Mirror – If Equipped / Diagnostic Link
M3120 Amp YellowBack-Up Lights
M3210 Amp RedAirbag Module
M3310 Amp RedPowertrain Control Module
M3410 Amp RedPark Assist Module – If Equipped/Climate Control System Module – If Equipped/ Compass Module – If Equipped/Cabin Heater – If Equipped/ Diesel Rad Fan – If Equipped
M3510 Amp RedHeated Mirrors – If Equipped
M36
M3710 Amp RedAntilock Brakes/ Stability Control System Module/Stop Light Switch/Fuel Pump Relay
M3825 Amp NaturalDoor and Liftgate Lock/Unlock Motors
CB125 Amp Circuit BreakerPower Seat
Relay
K1Ignition (Run/Accessory)
K2Ignition (Run)
K3Starter
K4Ignition (Run-Start)
K5Transmission Control Module (TCM)
K6Rear Window Defogger
K7 –
K8 –
K9 –
K10Automatic Shutdown
K11Radiator Fan Control
