Lincoln Aviator (U611) | 2020-2024

Check Lincoln Aviator fuse box diagrams for 2020–2024 models with relay locations, fuse assignments, panel layouts, and electrical system details. This article covers the second-generation Lincoln Aviator (Model Code: U611) before the facelift, available from 2020, and includes fuse box diagrams for Lincoln Aviator 2020, 2021, 2022, 2023 and 2024, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

Engine Compartment

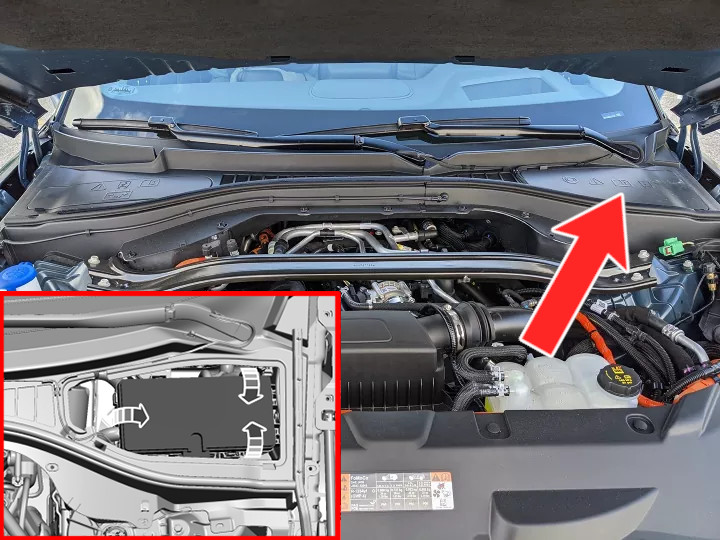

Fuse Box Location

The fuse box is located in the engine compartment under the driver’s side leaf lid.

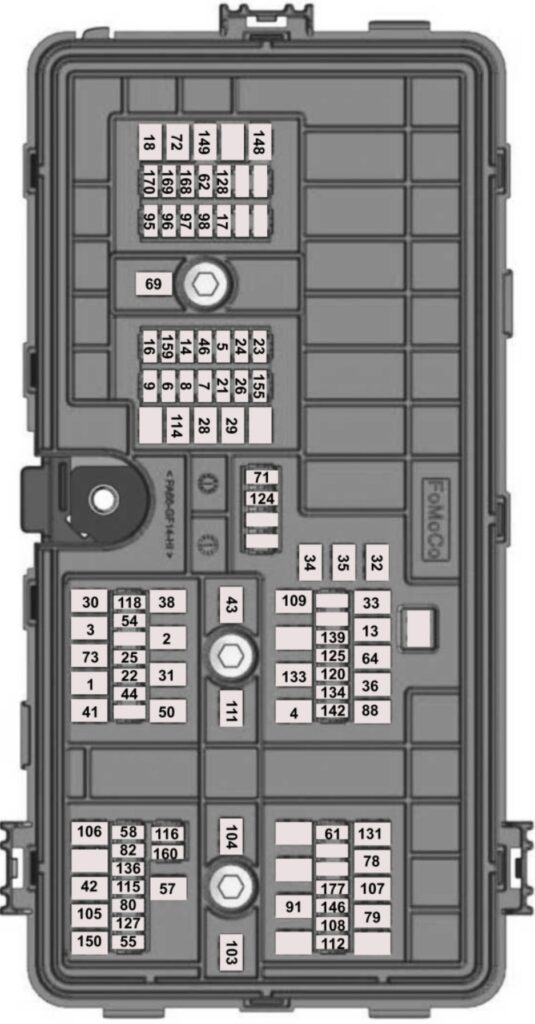

Fuse Box Diagram

Fuses

Assignment of the fuses in the engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
140ABody control module – battery power in feed 1
220AN/A
340ABody control module – battery power in feed 2
430AFuel pump
55APowertrain control module keep alive power
620APowertrain control module power
720ACanister vent solenoid, Evaporative leak control module, Exhaust gas heat recovery (2021-2024), Tank pressure control valve (2021-2024), Refueling valve (2021-2024), Vapor blocking valve, Universal exhaust gas oxygen 11, Universal exhaust gas oxygen 21, Catalyst monitor sensor 12, Catalyst monitor sensor 22, Canister purge valve
820ACooling fan relay coil, Battery interrupt box, Transmission oil pump, Auxiliary coolant pump, Fuel flap door (2021-2024), Engine coolant bypass valve, Active grille shutters
920AIgnition coils
1340AFront blower motor relay
1415ATransmission oil pump, A/C compressor variable clutch, Engine mounts, Auxiliary pumps (2021-2024)
1615AWindshield and rear window washer pump relay power
175A2021-2024: Charge status indicator
1830AStarter motor
2110AHeadlamp leveling motors, Adaptive headlamps
2210AElectric power assisted steering module
2310AAnti-lock brake system module with integrated park brake
2410APowertrain control module, Hybrid powertrain control module
2510AAir quality sensor, Particulate matter sensor, 360 camera with park aid, Rear view camera, Blind spot information system, Adaptive cruise control module
2615ATransmission control module
2840AAnti-lock brake system valves with integrated park brake
2960AAnti-lock brake system pump with integrated park brake
3030ADriver seat module
3130APassenger seat module
3220AN/A
3320ARear cargo area power point
3420AMain console bin power point
3520AN/A
3640APower inverter
3830AClimate controlled seat module
4130APower liftgate module
4230ATrailer brake control module
4360ABody control module
4410ABrake on and off switch
4615A2021-2024: Battery charger control module
5040AHeated backlite
5420AHeated steering wheel
5520ATrailer tow park lamps
5730ATrailer tow battery charge
5810ATrailer tow backup lamps
6115AMulti-contour seat module
6215AHeadlamp washer pump
6440AFour-wheel drive module
6930AFront window wiper motor
7115ARear window wiper motor
7220AAir suspension module
7330ADriver door module
78—N/A
79—N/A
8020ALeft-hand front electronic door
8220ARight-hand front electronic door
8820ARear blower motor
9120ATrailer tow lighting module
9515A2021-2024: Integrated spark control
9615AN/A
9710A2021-2024: Electric A/C, High voltage positive temperature coefficient heater
9810A2021-2024: Traction battery coolant proportional valve
10350AN/A
10450AN/A
10540A2020: Steering angle sensor module – adaptive front steering
10640AN/A
10740AN/A
10820AN/A
10930APassenger door module
11130ABody control module voltage quality monitor feed
11220ALeft-hand rear electronic door
11450AAir suspension compressor
11520AAmplifier
1165AN/A
11830ASecond row heated seats
12015APort fuel injectors
1245ARain sensor
1255AUSB smart charger 1
12720AAmplifier
12815AIlluminated badge
13140APower folding seat module
13315ALeft-hand heated wiper blade, Right-hand heated wiper blade
13410AFamily entertainment system
13620ARight-hand rear electronic door
1395AUSB smart charger 2
1425ATraffic cam
14615A2021-2024: Battery electronic control module
14830ALeft-hand headlamp module
14930ARight-hand headlamp module
15040AN/A
15525A2021-2024: Transmission control module
15915A2021-2024: DC/DC converter
16010AN/A
16820A2021-2024: Low voltage service disconnect
16910A2021-2024: Coolant pump
17010A2021-2024: Traction battery coolant pump, Pedestrian sounder
17710ACenter console blower

Passenger Compartment

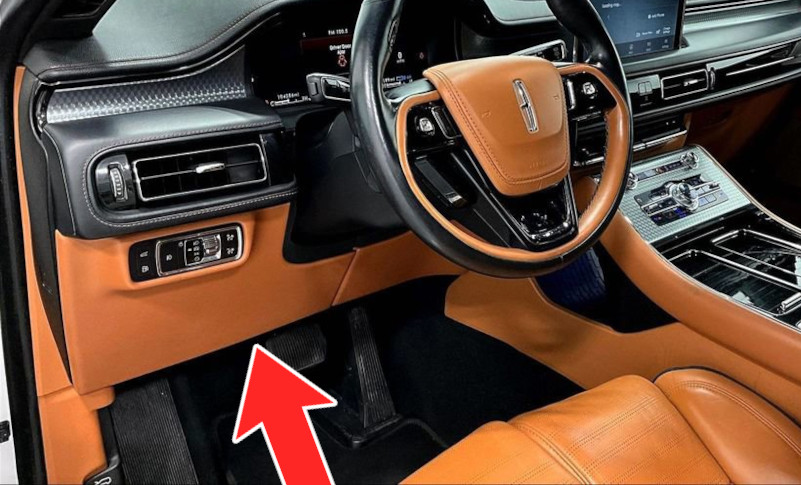

Fuse Box Location

The fuse box is located under the dashboard on the driver’s side.

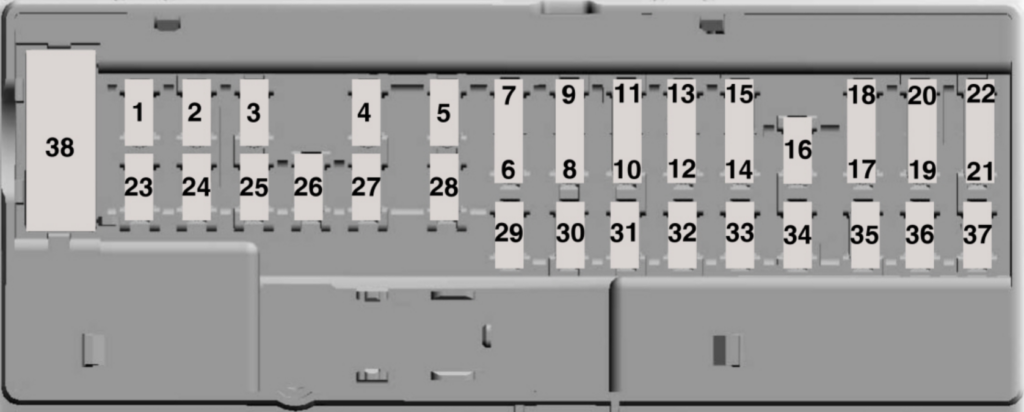

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
1—N/A
210AMoonroof, eCall, Telematics control unit module, Inverter, Driver door switch pack
37.5AMemory seat switch, Wireless accessory charger module, Seat switches
420AN/A
5—N/A
610AN/A
710ASmart data link connector power
85ATelematics control unit module, Hands-free liftgate actuation module, Power liftgate module
95ACombined sensor module, Keypad switch, Rear climate control
10—N/A
11—N/A
127.5ARemote climate control module, Gear shift module
137.5ASteering column control module, Switch interface module A, Smart datalink connector, Instrument cluster
1415AN/A
1515ASYNC, Electronic finish panel
16—N/A
177.5AHeadlamp control module
187.5AN/A
195AHeadlamp switch, Push button ignition switch
205ATelematics control unit module, eCall, Bluetooth low energy module
215AN/A
225AN/A
2330AN/A
2430AMoonroof
2520AN/A
2630AN/A
2730AN/A
2830AN/A
2915AHead up display
305ATrailer brake connector
3110ATerrain management switch, Transceiver module
3220AAudio control module
33—N/A
3430ARun/start relay
355AN/A
3615APark assist module, Electrochromic mirror, Suspension module, Image processing module A
3720AN/A
38—N/A
