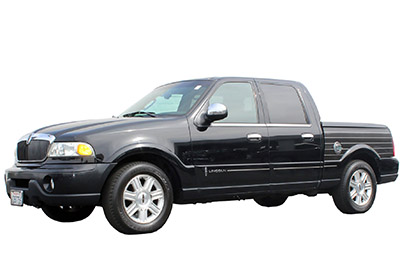

Find Lincoln Blackwood fuse box diagrams for 2002–2003 models with relay locations, fuse assignments, panel layouts, and electrical system details. This article covers the large luxury pickup truck Lincoln Blackwood, produced from 2000, and includes fuse box diagrams for Lincoln Blackwood 2002 and 2003, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

Engine Compartment

Fuse Box Location

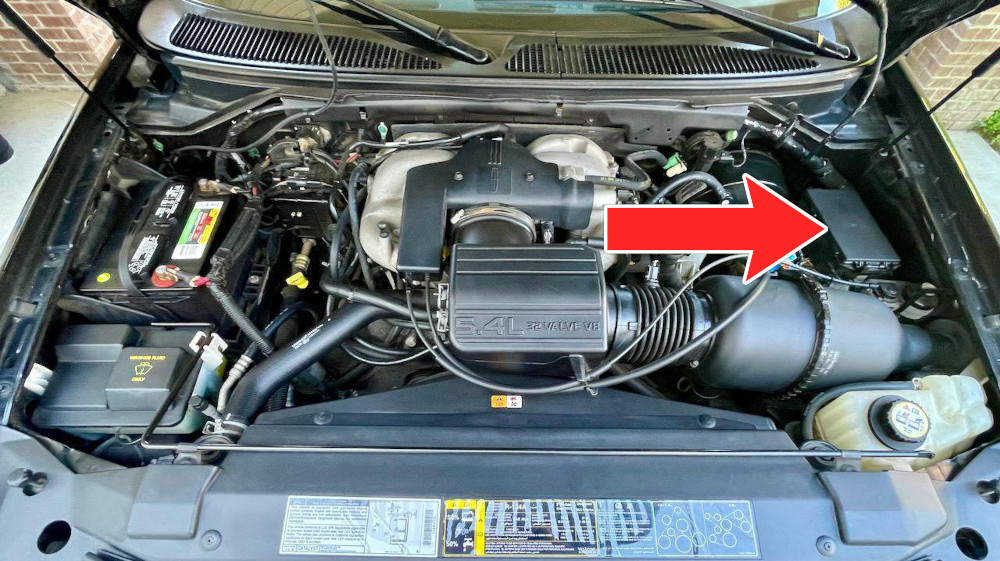

Power distribution box is located in the engine compartment on the driver’s side.

Fuse Box Diagram

Fuses

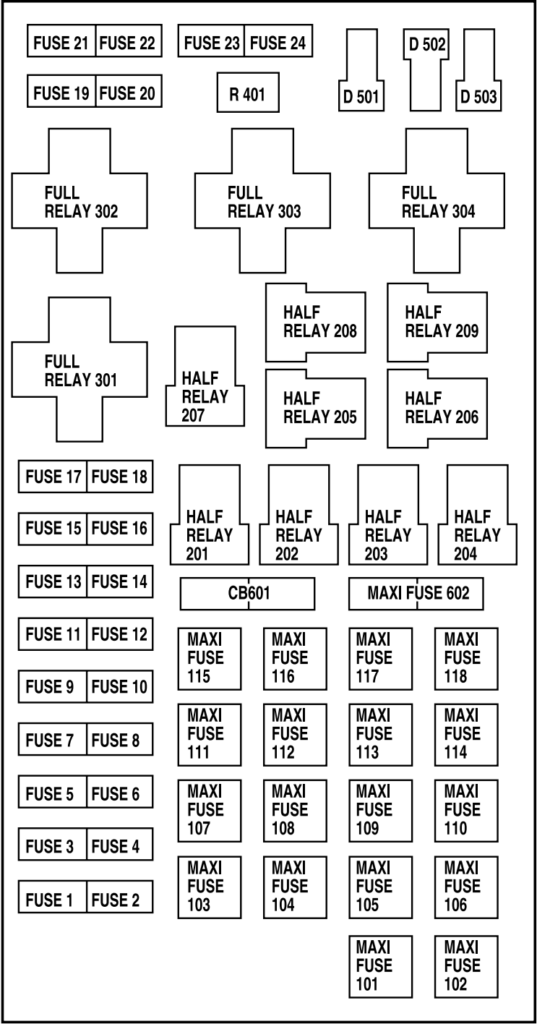

Assignment of the fuses and circuit breaker in the engine compartment fuse box

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeAmpsDescription
1Mini20APower point
2Mini30APowertrain control module (PCM)
3Mini30AHeadlamps/Autolamps
4Mini20AConsole power point
5Mini20ATrailer tow back-up/park lamps
6Mini15AParklamps/Autolamps, Passenger fuse panel feed fuse #18
7Mini20AHorn
8Mini30APower door locks
9Mini15AFog lamps, Power tonneau
10Mini20AFuel pump
11Mini20AAlternator field
12Mini20ARear auxiliary power point
13Mini15AA/C clutch
14Mini20ABox power point
15——N/A
16——N/A
17Mini10ADelayed accessory
18Mini15APCM, Fuel injectors, Fuel pump relay, Idle Air control, Mass air flow sensor
19Mini10ATrailer tow stop and right turn lamp
20Mini10ATrailer tow stop and left turn lamp
21——N/A
22——N/A
23Mini15AHEGO sensor, Canister vent, Automatic transmission, CMS sensor
24——N/A
101Maxi30ATrailer tow battery charge
102Maxi50AAnti-lock Brake System (ABS) module, Traction control
103Maxi50AJunction block battery feed
104——N/A
105Maxi40AClimate control front blower
106——N/A
107Maxi30APassenger power seat
108Maxi30ATrailer tow electric brake
109Maxi50AAir suspension
110Maxi30AClimate control seats
111Maxi40AIgnition switch battery feed (start and run circuits)
112Maxi30ADrivers power seat, Adjustable pedals
113Maxi40AIgnition switch battery feed (run and accessory circuits)
114——N/A
115——N/A
116Maxi40AHeated grid/mirrors
117——N/A
118——N/A
601Circuit breaker30APower windows, Moonroof
602Maxi50APower tonneau

Relays and Diodes

Assignment of the relays in the engine compartment fuse box

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeDescription
201Half RelayTrailer tow park lamp relay
202Half RelayFront wiper run/park relay
203Half RelayTrailer tow backup lamp relay
204Half RelayA/C clutch relay
205Half RelayN/A
206Half RelayFog lamp relay
207Half RelayFront washer pump relay
208Half RelayN/A
209Half RelayN/A
301Full RelayFuel pump relay
302Full RelayTrailer tow battery charge relay
303Full RelayWiper high/low relay
304Full RelayPCM relay
401Full RelayN/A
501DiodePCM diode
502DiodeA/C compressor diode
503DiodeAuto park brake diode

Passenger Compartment

Fuse Box Location

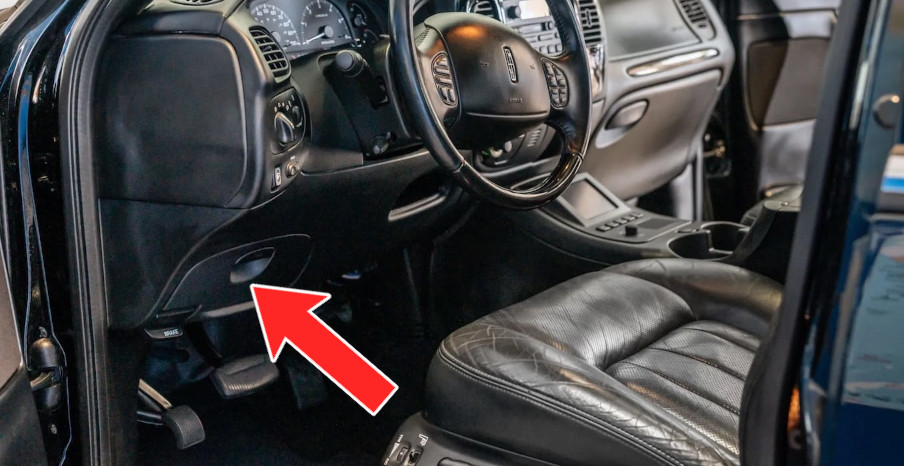

Fuses is located behind the lid below the steering wheel by the brake pedal.

Fuse Box Diagram

Fuses

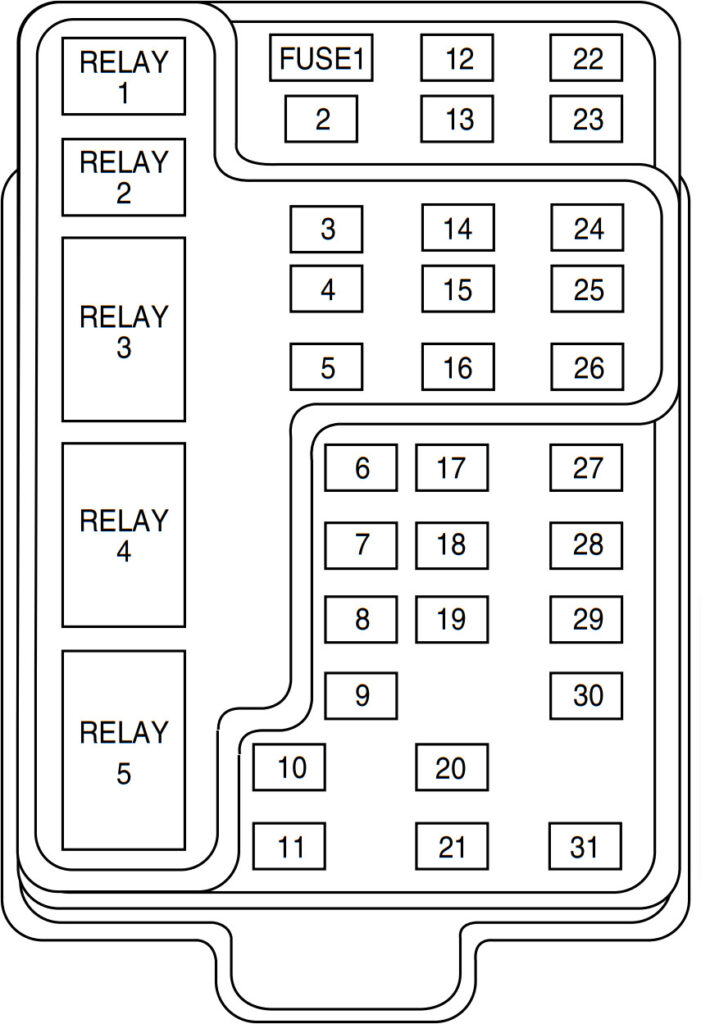

Assignment of the fuses in the passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
125ARadio, Amplifier, I/P fuse 31
25APowertrain Control Module (PCM), Instrument cluster, Electronic Automatic Temperature Control (EATC), Overhead Trip Computer Module (OTC), Navigation module, Clock
320ACigar lighter, Data Link Connector (DLC)
47.5AMirrors, Seats, Pedals, (memory)
515ASpeed control module, Reverse lamp, Reverse Sensing System (RSS), E/C mirror, Central security module, Navigation module
65ACluster, Brake shift interlock solenoid, Generic Electronic Module (GEM), RSS, Air suspension, OTC, Compass, Automatic parking brake release
75AConsole blower relay
85AE/C mirror, Navigation module, Clock, GEM
9—N/A
10—N/A
1130AFront washer pump relay, Wiper Run/Park relay, Wiper Hi/Lo relay, Windshield wiper motor
1215AAir suspension
1320AStop lamp switch (lamps), Turn/Hazard flasher, Trailer brake, Radio Frequency Interference (RFI) module
1415ABattery saver relay, Interior lamp relay, Accessory delay relay (power windows)
155AStop lamp switch (speed control, brake shift interlock, Anti-lock Brake System (ABS), PCM module inputs, Traction control, Air suspension, Central security Module, GEM)
1620AHeadlamps (Hi Beams), Cluster (Hi Beam Indicator)
1710AHeated mirrors, Rear defrost
185AInstrument illumination (dimmer switch power)
19—N/A
205AGEM, Power tonneau cover, Air suspension, Memory
2115AStarter relay, Fuse 20 of the fuse panel, Radio
2210AAir bag module
2310ATrailer tow battery charge relay, Turn/Hazard flasher, Rear console controls, Climate control seats, Traction control module
2410AI/P fuse 7, EATC, Blower relay
25—N/A
2610ARight side low beam headlamp
275AFog lamp relay and fog lamp indicator
2810ALeft side low beam headlamp
295AAutolamp module, Transmission overdrive control switch, Central security module, Power tonneau
3030APassive anti-theft transceiver, Instrument cluster, Ignition coils, PCM Relay
3110ACD changer, Rear console controls

Relays

Assignment of the relays in the passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
1Interior lamp relay
2Battery saver relay
3Heated grid relay
4One touch down window relay
5Ignition key accessory delay relay
