Lincoln Continental | 1996-2002

Explore Lincoln Continental fuse box diagrams for 1996–2002 models with relay assignments, fuse locations, panel diagrams, and electrical layout information. This article covers the ninth-generation Lincoln Continental, produced from 1995, and includes fuse box diagrams for Lincoln Continental 1996, 1997, 1998, 1999, 2000, 2001 and 2002, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

Engine Compartment

Fuse Box Location

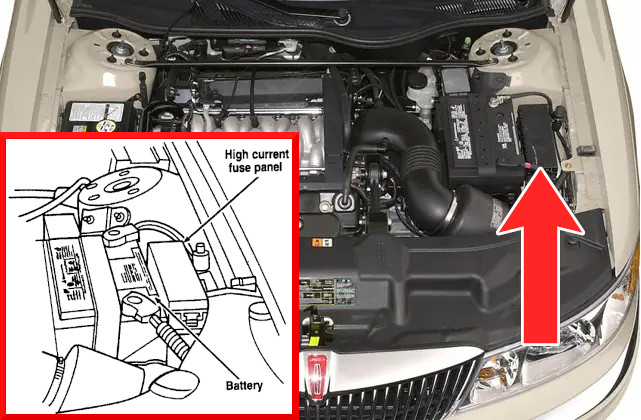

The power distribution box is located in the engine compartment on the driver’s side, near the main battery.

Fuse Box Diagram

1996

Fuses

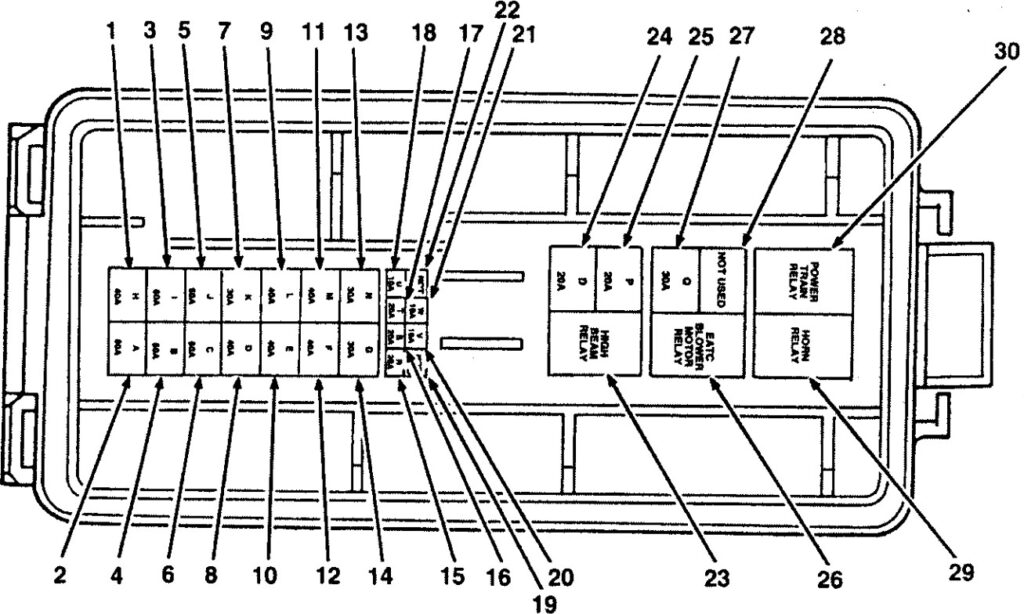

Assignment of the fuses in the engine compartment (1996)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
140AEATC blower motor
260AEngine cooling fans
360AAir suspension compressor relay
460AABS module, EVAC and fill
560AFuse panel to LCM, OBD II
660AFuse panel to LCM, CD player
730AVDM
840AHeated mirrors, Heated backlight
940ADDM, LH power windows, Door locks
1040ARH power windows
1140AIgnition switch to fuse panel
1240AIgnition switch to fuse panel
1330ADSM, Heated seats, Driver 4-way power lumbar seats
1430APassenger power seat, Passenger 4-way power
1530ALuxury radio, Sub woofer amplifier, CD player
1620AHi beam
1720AHorn
1810AAir bags
19—N/A
2010APCM KAPWR
2110AAlternator sensor, Alternator field supply
22—N/A
2420AFuel pump
2520AThermactor pump
2730APCM, STC
28—N/A

Relays

Assignment of the relays in the engine compartment (1996)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
23Hi beam headlamps relay
26EATC blower motor relay
29Horns relay
30Powertrain control module relay

1998-2002

Fuses

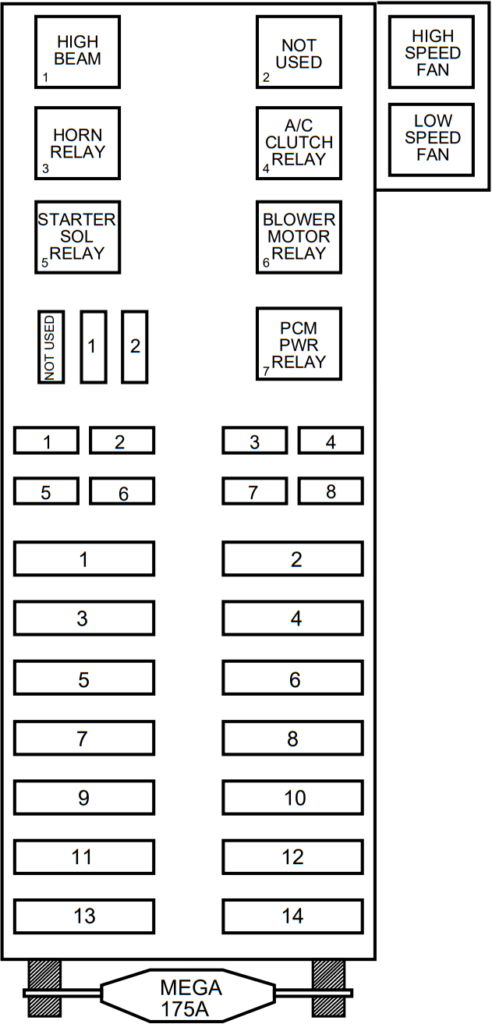

Assignment of the fuses in the engine compartment (1996, 1997, 1998, 1999, 2000, 2001, 2002)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeAmpsDescription
—Mega175AGenerator/Voltage Regulator
1Maxi30ADriver’s Seat Module
2Maxi30APassenger’s Seat Module
3Maxi40AIgnition Switch
4Maxi40AIgnition Switch
5Maxi40ADriver Window
6Maxi30A1997-1998: N/A
1999-2002: Low Speed Cooling Fan
7Maxi30APowertrain Control Module
8Maxi40ARear Window Defrost Control
9Maxi60AI/P Fuse Panel
10Maxi60ALighting Control Module
11Maxi60ACompressor Relay
12Maxi60A1997-1998: Anti-Lock Brake Control Module, ABS EVAC and Fill Connector
1999-2002: Anti-Lock Brake Control Module
13Maxi40ABlower Motor
14Maxi60A1997-1998: Dual Auxiliary Relay Box
1999-2002: High Speed Cooling Fan
1Mini30APCM
2Mini20AALT SENSE
3Mini30ARight Rear Passenger Window
4Mini30AAir Suspension
5Mini10A1998: Air Bag
1999-2002: N/A
6Mini20AHorns
7Mini15AHigh Beam
8Mini30ARight Front Passenger Window

Diodes

Assignment of the diodes in the engine compartment (1996, 1997, 1998, 1999, 2000, 2001, 2002)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeDescription
1DiodeA/C Diode
2DiodePCM Diode

Passenger Compartment

Fuse Box Location

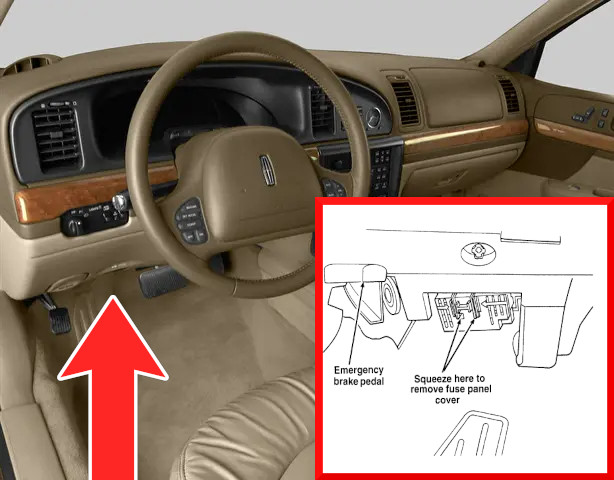

The fuse box is located under the dashboard near the brake pedal.

Fuse Box Diagram

Fuses

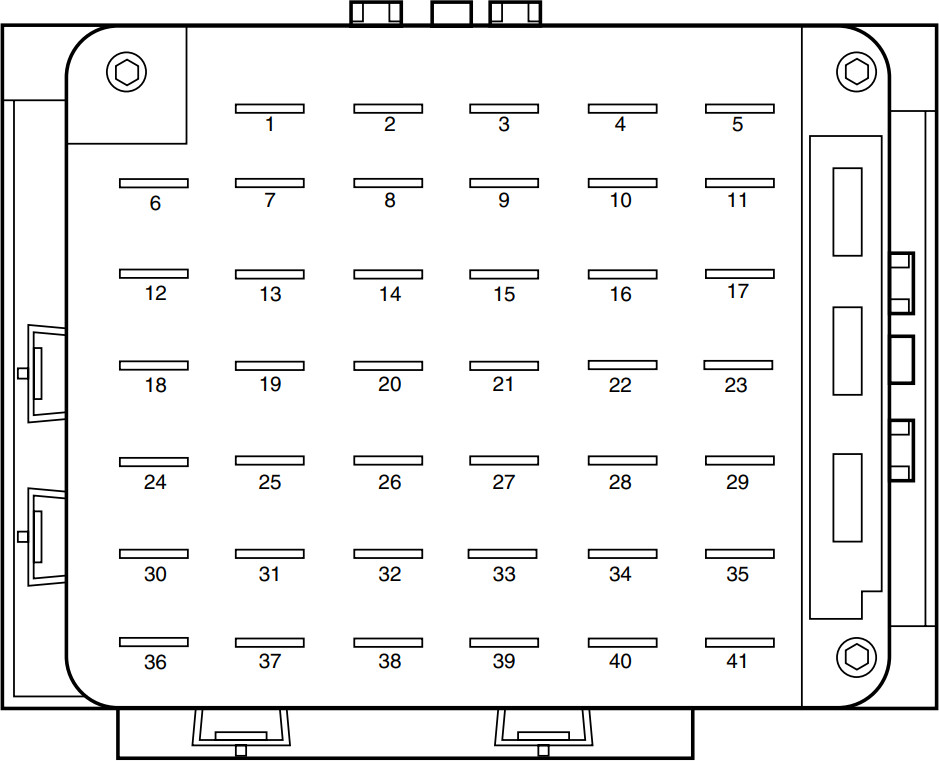

Assignment of the fuses in the passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
11996: 10A
1997-2002: 5A		1996: Anti-Theft indicator light, PWM dimming output for microphone illumination, ashtray illumination (R & L rear door), heated seat switches, heated backlight switch, EATC control panel, message center switches, cigar lighter, console shift illumination, navigation display module, and navigation switches
1997-2002: Lighting Control Module: Anti-Theft Indicator Lamp, PWM Dimming Output, Illumination Lamps for Microphone, RR and LR Door Ashtrays, Heated Seat Switches, Rear Defrost Control Switch, EATC Control Panel, Message Center Switches, Speed Control Switches, Cigar Lighter, Console and Ashtray
210A1996: Luxury radio, Clock (non-navigational), Cellular phone
1997-2002: Data Link Connector (DLC), Powertrain Control Module (PCM)
31996: 10A
1997-2002: 15A		1996: Multi-function switch
1997-2002: Multi-Function Switch, Cornering Lamps, High Beam and Turn Signal Input to LCM
410A1996: Run/Accessory sensor (luxury radio), Cellular phone, Run/Accessory sensor (LCM), Window switches backlight RF, LR, RR, Compass, E/C mirror, Stand alone clock, Door lock switches backlight
1997-2002: Power Door Locks and Power Windows Switch Backlights, Radio, Mobile Telephone Transceiver, Lighting Control Module, (RUN/ACC Sense), Electronic Day/Night Mirror
510A1996: Virtual image cluster, Light sensor (Autolamp), Traction Assist OFF switch, Airbag diagnostic, Luxury radio FCU, Run/Start sensor (LCM)
1997-2002: Virtual Image Instrument Cluster, Lighting Control Module (LCM RUN/START Sense), Autolamp Light Sensor
61996: 5A
1997-2002: 10A		1996: SCP network
1997-2002: Virtual Image Instrument Cluster, RF Park/Turn Lamp
71996: 15A
1997-2002: 20A		1996: Right front turn lamp, Right turn indicator, HI beam switch, Right and left front side marker lamps, Right and left front park lamps, Right and left front tail lamps, Right rear stop/turn lamps
1997-2002: Power Point
81996: 30A
1997-2002: 20A		1996: Fuel filler, Trunk solenoid, Navigation system power
1997-2002: Fuel Filler Door Release Switch, Trunk Lid Relay
910AAir Bag Diagnostic Monitor, EATC Module, Blower Motor Relay
1030AWindshield wiper motor, Windshield wiper control module (washer pump motor)
1110A1996: PCM power relay coil, Ignition coil
1997-2002: Ignition Coils, Radio Interference Capacitor, PCM Power Relay, Passive Anti-Theft System (PATS) Transceiver
121996: 5A
1997-2002: 10A		1996: SCP network
1997-2002: Lighting Control Module
1315A1996: Stand alone clock illumination, Right and left rear side marker lamps, License lamps, Right and left tail lamps (on decklid), Left rear stop/turn lamps, Left turn indicator, Left front turn lamp
1997-2002: Lighting Control Module (LCM): RF Turn Lamp, Right Turn Indicator (VIC), RR Side Marker Lamps, Tail Lamps, License Lamps, LR Stop/Turn Lamps, Clock Illumination
141996: 15A
1997-2002: 20A		1996: Front cigar lighter
1997-2002: Cigar Lighter
1510A1996: Navigation display, Navigation module, Heated seat control switches
1997-2002: ABS Evac and Fill Connector
1630A1996: Power moonroof switch, Moonroof motor
1997-2002: Moonroof Switch
17—N/A
181996: 5A
1997-2002: 10A		1996: SCP network
1997-2002: Lighting Control Module
1910A1996: LH low beam
1997-2002: Lighting Control Module (LCM): Left Headlamp, DRL
201996: 10A
1997-2002: 15A		1996: Multi-function switch (Flash to pass and hazard signal to LCM), LH & RH cornering lamps
1997-2002: Multi-Function Switch: Flash to Pass, and Hazard Warning Input to LCM
2110A1996: ABS control module
1997-2002: N/A
22—N/A
2310A1996: N/A
1997-2002: Digital Transmission Range Sensor
241996: 5A
1997-2002: 10A		1996: SCP network
1997-2002: Virtual Image Cluster-LF Turn Indicator, LF Turn Signal
2510A1996: RH low beam
1997-2002: Lighting Control Module (LCM): Right Headlamp
2610AInstrument cluster power, EATC power
27—N/A
2810A1996: Shift interlock, VDM logic power, Instrument cluster logic power, Rear defrost control
1997-2002: Shift Lock Actuator, Vehicle Dynamic Module, Virtual Image Instrument Cluster, Rear Window Defrost, Heated Seat Switch Assembly, Low Tire Pressure Module, RESCU
2910A1996: Luxury RCU station signal, Navigation module signal
1997-2002: Radio
3010AHeated Mirrors
3115A1996: Voltage dimming for FCU and stand alone clock, Courtesy lamps in the doors, Rear reading lamps, Map lamps, RH & LH I/P courtesy lamps, Engine compartment lamp, Visor lamps, Storage bin lamp (5 passenger only), Luggage compartment lamp, Glove box lamp
1997-2002: Lighting Control Module (LCM): FCU, Electronic Day/Night Mirror, RH and LH Courtesy Lamp, Door Courtesy Lamps, RH and LH Map Lamps, RR and LR Reading Lamps, RH and LH Visor Lamps, Storage Bin Lamps, Trunk Lid Lamp, Glove Box Lamp, Light Sensor Amplifier
3215A1996: Speed control brake deact switch, Stop lamp switch
1997-2002: Speed Control DEAC. Switch, Brake On/Off (BOO) Switch
33—N/A
3415A1996: Back-up L & R lamp ext., DRL module (Canada only), EATC clutch, Speed control logic, IMRC
1997-2002: Console Shift Illumination, A/C Clutch Cycling Pressure Switch, A/C Clutch Relay (DTR) Sensor, Intake Manifold Runner Control, Backup Lamps
3520A1996: L & R heated seat module power
1997-2002: N/A
36—N/A
3730A1996: N/A
1997-2002: Subwoofer Amplifier, Radio
3810A1996: OBD II scan tool connection
1997-2002: Analog Clock, CD Player, Mobile Telephone Transceiver, RESCU
3910A1996: DSM logic power, DDM logic power, Door lock switches, Keyless keypad switch, Memory set switch, Driver seat switch, Power mirror switch
1997-2002: Power Door Locks, Power Seats, Power Mirrors, Keyless Entry, LF Seat Module, LF Door Module
4010A1996: Blend door actuator, LTPS
1997-2002: Cornering Lamps
4120ADoor locks (DDM)
