Discover Lincoln Continental fuse box diagrams for 2017–2020 models with relay locations, fuse assignments, panel layouts, and electrical system details. This article covers the tenth-generation Lincoln Continental, available from 2017, and includes fuse box diagrams for Lincoln Continental 2017, 2018, 2019 and 2020, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

What’s Included

Engine Compartment

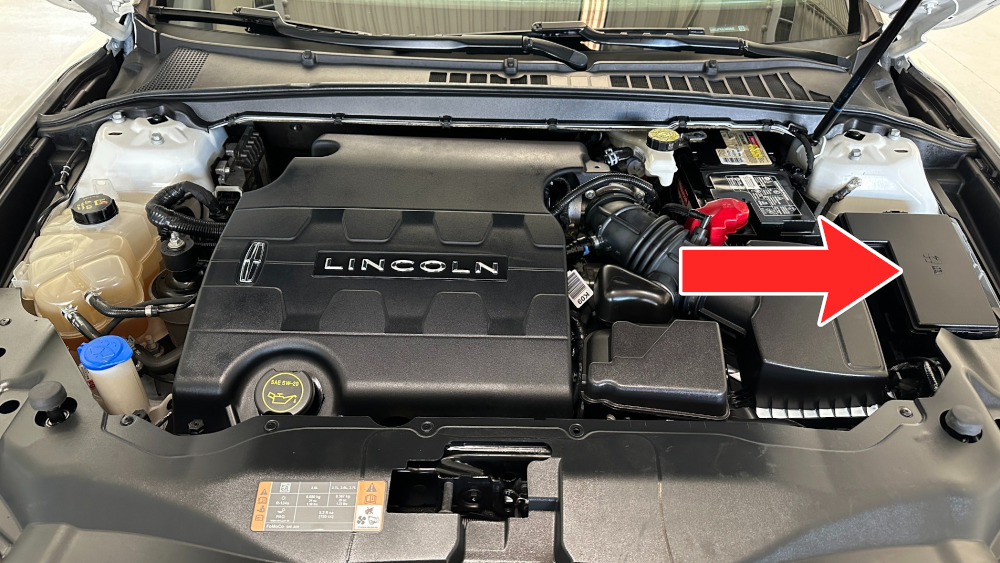

Fuse Box Location

Fuse box is located in the engine compartment on the driver’s side.

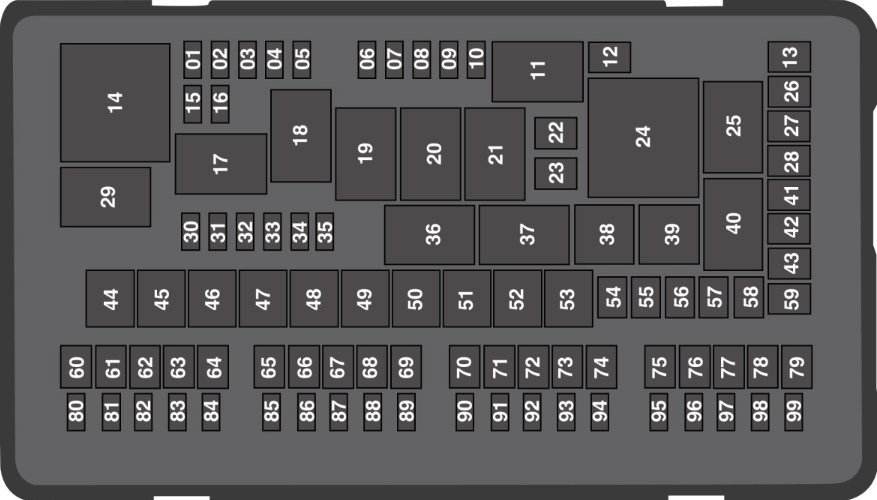

Fuse Box Diagram

Fuses

Assignment of the fuses in the engine compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Type	Amps	Description
1	Micro	20A	Powertrain control module power
2	Micro	20A	Engine emissions (malfunction indicator lamp / MIL)
3	Micro	20A	A/C clutch control relay coil, Ventilation and climate control (VACC), Active grille shutters, Cooling fan relays, All-wheel drive module (2.7L and 3.7L engines)
4	Micro	20A	Ignition coils
5	—	—	N/A
6	Micro	15A	2017: N/A 2018-2020: Fuel injectors (3.7L engine)
7	Micro	5A	Rear recline relay box
8	—	—	N/A
9	—	—	N/A
10	Micro	10A	N/A (Spare)
12	—	—	N/A
13	M-type	40A	Rear seat recline
15	Micro	20A	Horn
16	Micro	10A	A/C clutch
17	—	—	N/A
18	—	—	N/A
22	M-type	30A	Electric cooling fan
23	—	—	N/A
24	—	—	N/A
26	M-type	30A	Anti-lock brake system valves
27	—	—	N/A
28	M-type	30A	Rear climate controlled seats
30	Micro	10A	N/A (Spare)
31	Micro	10A	Electric power-assisted steering, Electric parking brake
32	Micro	10A	Anti-lock brake system module
33	Micro	10A	Powertrain control module
34	Micro	10A	Blind spot information system, Adaptive cruise control, Front view camera, 360 degree camera module, Rear camera, Transmission range control module
35	—	—	N/A
40	—	—	N/A
41	—	40A	2017: Right heated windshield 2018-2020: N/A
42	M-type	40A	Blower motor
43	—	—	N/A
44	J-type	50A	Body control module/voltage quality module bus
45	—	—	N/A
46	J-type	50A	Electric cooling fan
47	J-type	50A	Electric cooling fan
48	J-type	50A	Body control module RP1 bus
49	J-type	40A	Torque vectoring (3.0L engine)
50	J-type	50A	Body control module RP2 bus
51	—	—	N/A
52	J-type	60A	Anti-lock brake system pump
53	J-type	40A	Adaptive front steering
54	M-type	40A	2017: Left heated windshield 2018-2020: Heated windshield
55	M-type	40A	Heated rear window
56	M-type	40A	Power inverter
57	M-type	30A	Power deck lid module, Manual deck lid latch
58	—	—	N/A
59	—	—	N/A
60	M-type	30A	Fuel pump
61	—	—	N/A
62	M-type	20A	Power point 2A
63	M-type	30A	Power seat control module, Front heated seats
64	—	—	N/A
65	M-type	30A	Fuel pump 2
66	M-type	30A	Passenger power seat
67	M-type	20A	Power point 1B
68	M-type	15A	Auxiliary blower
69	M-type	20A	Power point 1A
70	—	—	N/A
71	—	—	N/A
72	M-type	30A	Driver power seat module
73	—	—	N/A
74	M-type	25A	Wiper motor
75	—	—	N/A
76	M-type	20A	N/A (Spare)
77	—	—	N/A
78	M-type	30A	Starter
79	M-type	20A	2017: N/A 2018-2020: Auxiliary transmission pump (2.0L engine with start-stop)
80	—	—	N/A
81	Micro	5A	USB smart charge – passenger side
82	Micro	5A	USB smart charge – console
83	Micro	20A	Electronic door latch (left rear)
84	Micro	5A	USB smart charge – driver side
85	Micro	20A	Electronic door latch (right front)
86	Micro	20A	Electronic door latch (right rear)
87	Micro	15A	Transmission range control module
88	Micro	5A	Rear recline
89	Micro	20A	Electronic door latch (left front)
90	Micro	10A	Powertrain control module relay keep alive
91	Micro	10A	Brake on/off switch
92	Micro	15A	Front multi-contour seat module
93	Micro	15A	Rear multi-contour seats
94	Micro	20A	Right hand side high intensity discharge headlamp
95	Micro	20A	Left hand side high intensity discharge headlamp
96	Micro	10A	Wiper park heater
97	Micro	10A	Alternator sense line
98	Micro	5A	Rain sensor
99	—	—	N/A

Relays

Assignment of the relays in the engine compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
11	Torque vectoring relay (3.0L engine)
14	Powertrain control module relay
19	Heated rear window relay
20	Electric cooling fan relay
21	Electric cooling fan relay
25	Blower motor relay
29	Run/start relay
36	Electric cooling fan relay
37	Rear seat recline relay
38	A/C compressor clutch relay
39	Horn relay

Passenger Compartment

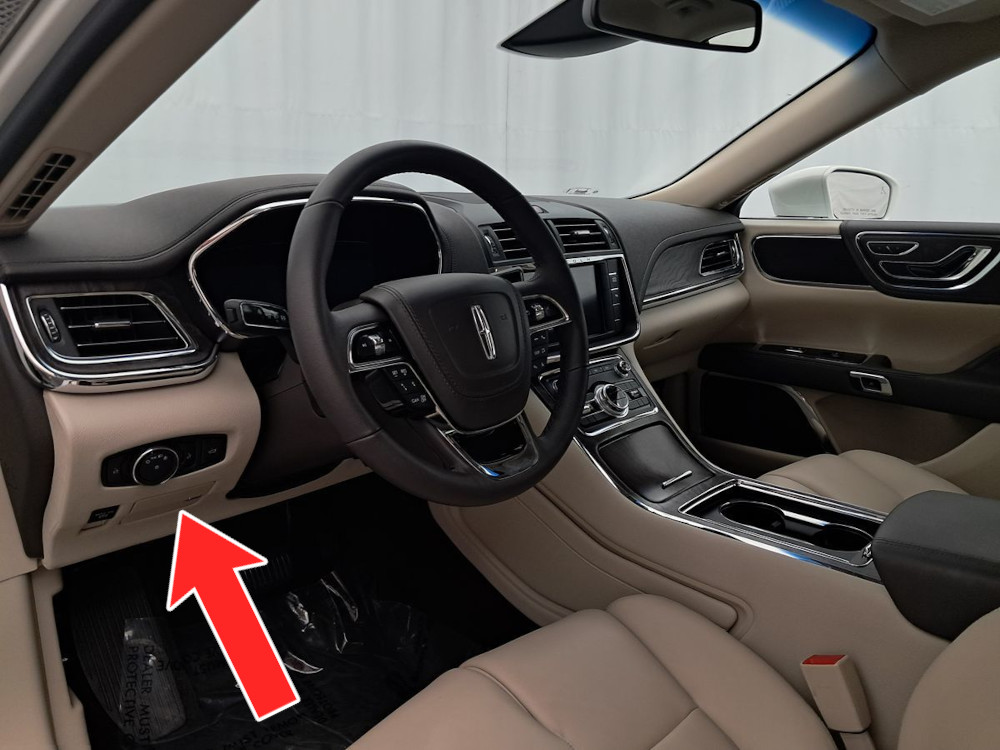

Fuse Box Location

The fuse box is located under the dashboard to the left of the steering column.

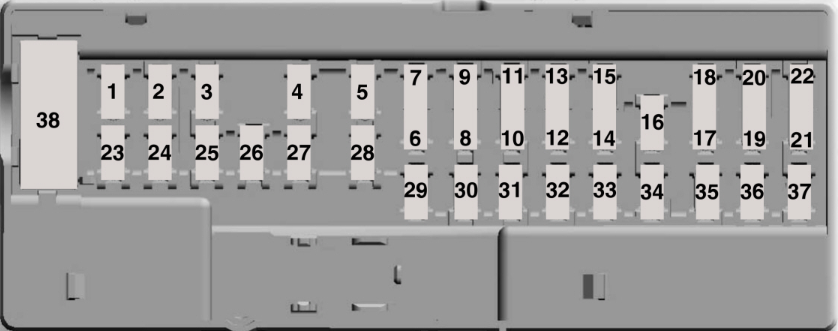

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Type	Amps	Description
1	—	—	N/A
2	Micro	7.5A	Driver seat switch, Passenger seat switch
3	Micro	20A	Driver unlock relay
4	Micro	5A	N/A
5	Micro	20A	Subwoofer amplifier, Revel digital signal processing amplifier
6	—	—	N/A
7	—	—	N/A
8	Micro	10A	Security horn
9	Micro	10A	2017: Rear seat entertainment module 2018-2020: N/A
10	Dual micro	5A	Telematics module, Power decklid module
11	Dual micro	5A	Keypad, Outside lock switch, Combined security sensor module
12	Dual micro	7.5A	Front control interface module (climate control), Gear shift module, Rear climate control module
13	Dual micro	7.5A	Instrument cluster, Smart data link, Steering column control module
14	Micro	10A	Restraints control module
15	Dual micro	10A	Smart datalink connector power
16	Dual micro	5A / 15A	Decklid release relay, Power decklid
17	Dual micro	5A	N/A
18	Dual micro	5A	Push button start switch
19	Dual micro	7.5A	2017: LED heads up display 2018-2020: N/A
20	Micro	7.5A	Headlamp control module
21	Dual micro	5A	Humidity sensor
22	Dual micro	5A	2017: Occupant classification sensor 2018-2020: N/A
23	Micro	10A	Delayed accessory power, Left front window switch, Moonroof, Rear window power sunshade module, DC inverter
24	Micro	2017: 20A 2018-2020: 30A	Central lock relay
25	Micro	30A	Left front door zone module
26	Micro	30A	Right front door zone module
27	Micro	30A	Moonroof
28	Micro	20A	Revel digital signal processing amplifier
29	Micro	30A	Left rear door zone module
30	Micro	30A	Right rear door zone module
31	Micro	15A	2017: Column memory module 2018-2020: Column memory module, Advanced heads up display
32	Micro	10A	2017: SYNC, Radio frequency receiver 2018: SYNC, Radio frequency receiver, Rear Seat Entertainment 2019-2020: SYNC
33	Micro	20A	2017-2018: Radio, Remote CD mechanism 2019-2020: Radio frequency receiver, Rear Seat Entertainment
34	Micro	30A	Run/start relay
35	Micro	5A	Restraint control module
36	Micro	15A	Lane keeping system module, Auto high beam, Electrochromic mirrors, Rear heated seats, Vehicle dynamics module
37	Micro	20A	Heated steering wheel, Steering effort control module, Steering angle control module
38	Circuit breaker	30A	2017: Left hand front window motor, Rear power window motors 2018-2020: N/A

FAQ

Where are the cigar lighter / power outlet fuses in the Lincoln Continental?

They are located in the engine compartment fuse box:
#62 – Power point 2A
#67 – Power point 1B
#69 – Power point 1A
