Lincoln Corsair | 2020-2026

Access Lincoln Corsair fuse box diagrams for 2020–2026 models with relay locations, fuse assignments, panel layouts, and electrical system information. This article covers the compact premium crossover Lincoln Corsair, available from 2020, and includes fuse box diagrams for Lincoln Corsair 2020, 2021, 2022, 2023, 2024, 2025 and 2026, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

Engine Compartment

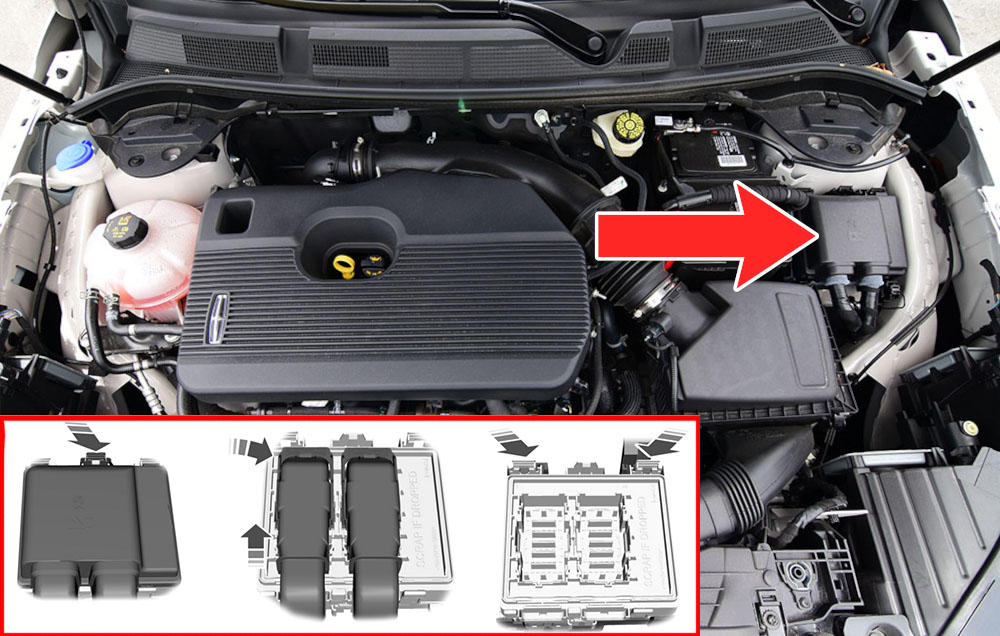

Fuse Box Location

  1. Pull the latch toward you and remove the top cover.
  2. Pull the connector lever upward.
  3. Pull the connector upward to remove it.
  4. Pull both latches toward you and remove the fuse box.
  5. Turn the fuse box over and open the lid.

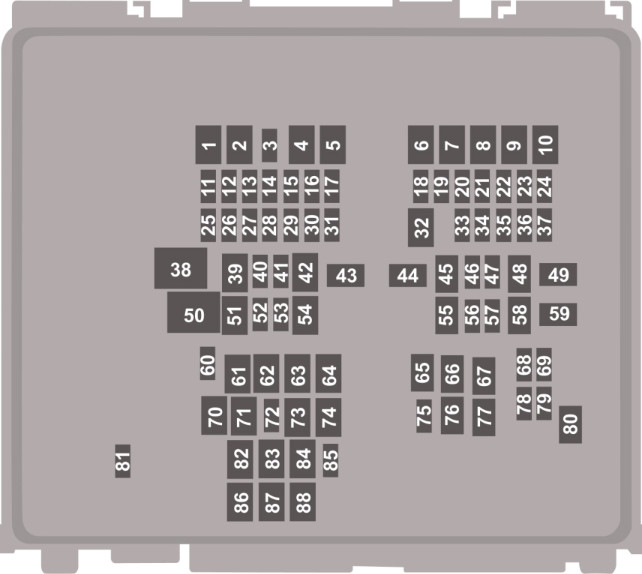

Fuse Box Diagram

Fuses

Assignment of the fuses in the engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
1—Not used
230A2020-2021: Heated backlight
2022-2026: Rear defrost
310A2020: Heated exterior mirrors
450AElectric water pump (hybrid)
5—Not used
6—Not used
740ADriveline control module
8—Not used
930ASecond row seat release
10—Not used
1115APowertrain control module
1215APowertrain control module
1315APowertrain control module
1415APowertrain control module
1510A2023-2026: Vehicle dynamics module.
16—Not used
1715AHeated wiper park
1810AAir conditioning clutch
19—Not used
205ADC/DC converter (hybrid)
2110ABattery charge control module (hybrid)
225A2020-2021: Adaptive cruise control
235ACharge port light ring (hybrid)
245ABattery electronic control module (hybrid)
2525ALeft-hand enhanced exterior lighting module
2625ARight-hand enhanced exterior lighting module
275APowertrain control module (hybrid)
2810AAnti-lock brake system module
2910APowertrain control module
3010AElectronic stability control
Transmission oil pump
315AElectronic power assist steering
3230ABody control module
3310A2020-2022:
Front parking aid camera
Rear view camera
Blind spot information system
Gear shift actuator (2020)
Cruise control module
Image processing module B

2023-2026:
Advanced Driver Assistance System (ADAS).
3410AHeadlamp leveling
3515AHeated steering wheel
3610APowertrain control module (hybrid)
3720AHorn
3840ABlower motor
39—Not used
4010A2020-2022: Brake on-off switch.
2023-2026: USB smart charger.
4120AAmplifier
4230ADriver power seat
4340AAnti-lock brake control valves
4440A2020: Trailer tow module
4530APassenger power seat
4620A2020:
Transmission oil pump
Transmission oil temperature
4720AHeated seats
4830APower liftgate
4960AAnti-lock brake control pump
5060ACooling fan
5130AMoonroof
525AUSB charge port – rear console
535AUSB charge port – rear console
5420ARear heated seat module
5530AStarter motor
5620AAmplifier
5710AData link connector
5830AClimate controlled seat module
5940ABody control module
6020A2023-2026: Rear window washer pump.
61—Not used
62—Not used
63—Not used
64—Not used
65—Not used
66—Not used
67—Not used
685A2020: Mass air flow and intake air temperature sensor
2021-2022: Not Used
2023-2026: Mass air flow and intake air temperature sensor
6915APort fuel injectors
7020ARear cargo power point
7120ARear console power point
7220ARear window wiper
73—Not used
7430AWindshield wiper motor
7520A2020: Steering column lock
76—Not used
77—Not used
7815AMulti-contour seats
7910A2020: Headlamp washer
8020AFuel pump
8110A2020-2022: Rear window washer pump
8240A2020: Power inverter
83—Not used
8440AAuxiliary power distribution box (hybrid)
855ARain sensor
86—Not used
87—Not used
88—Not used

Passenger Compartment

Fuse Box Location

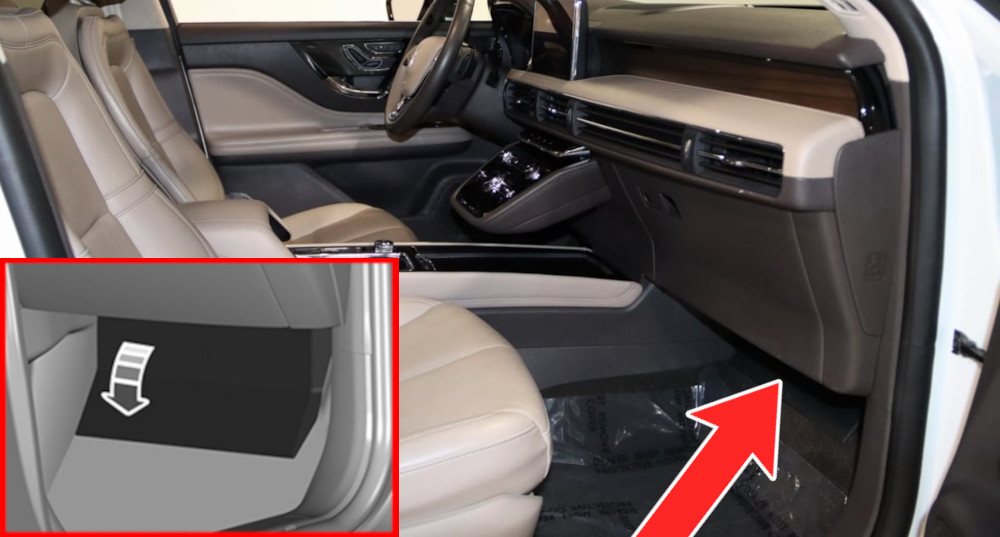

The fuse box is located in the passenger compartment under the glove box.

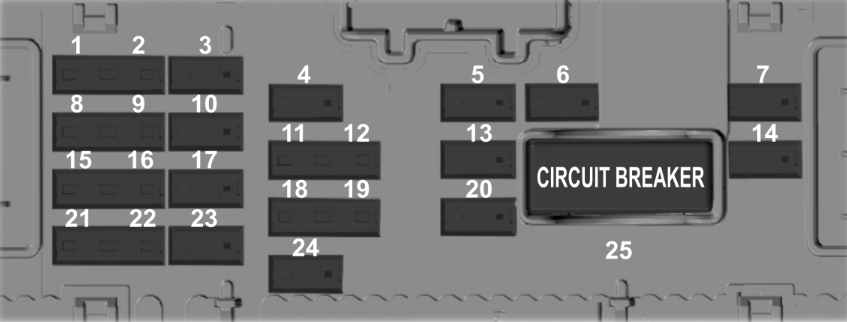

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
15ANot used
25A2020-2022: Rear heated seats.
2023-2026: Rear heated seats. Air quality sensor. Particulate matter sensor.
310A2020: Pedestrian sounder
410A2020-2022: Ignition switch.
2023-2026: Integrated control panel. Center stack display. Gateway module.
520ALock
Unlock
610AMoonroof
DC inverter (2020)
730APassenger door module
85A2020-2022: Parking assist control module.
2023-2026: Driveline control module.
95A2020-2022: Image processing module A. Electrochromatic mirror.
2023-2026: Electrochromatic mirror.
1010AExtended power module
115APower liftgate
Hands-free liftgate actuation module
Telematics control unit module
125A2020-2022: Keyless keypad switch.
2023-2026: Keyless keypad switch. Heads up display.
1315ADriver door lock
1430ADriver door module
1515AExtended power module
1615A2020-2022: Vehicle dynamics module
1715ASYNC
Receiver transceiver module
Integrated control panel
187.5ADriver power seat switch
Passenger power seat switch
Wireless accessory charging module
Selectable drive mode switch
Driver state monitor (2023)
197.5AHeadlamp switch pack
Telematics control unit module
Bluetooth low energy module
2010ANot used (spare)
217.5AClimate control
E-shifter module
227.5AInstrument cluster
Gateway module
Steering column control module
2320AAudio unit
2420A2020-2022: Head up display
2530ANot used (spare)
