Lincoln LS | 2000-2006 | Fuse Box Diagrams and Locations

Browse Lincoln LS fuse box diagrams for 2000–2006 models featuring relay assignments, fuse locations, panel placement, and electrical layout details. This article covers the luxury sedan Lincoln LS, produced from 1999, and includes fuse box diagrams for Lincoln LS 2000, 2001, 2002, 2003, 2004, 2005 and 2006, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

What’s Included

Passenger Compartment

Fuse Box Location

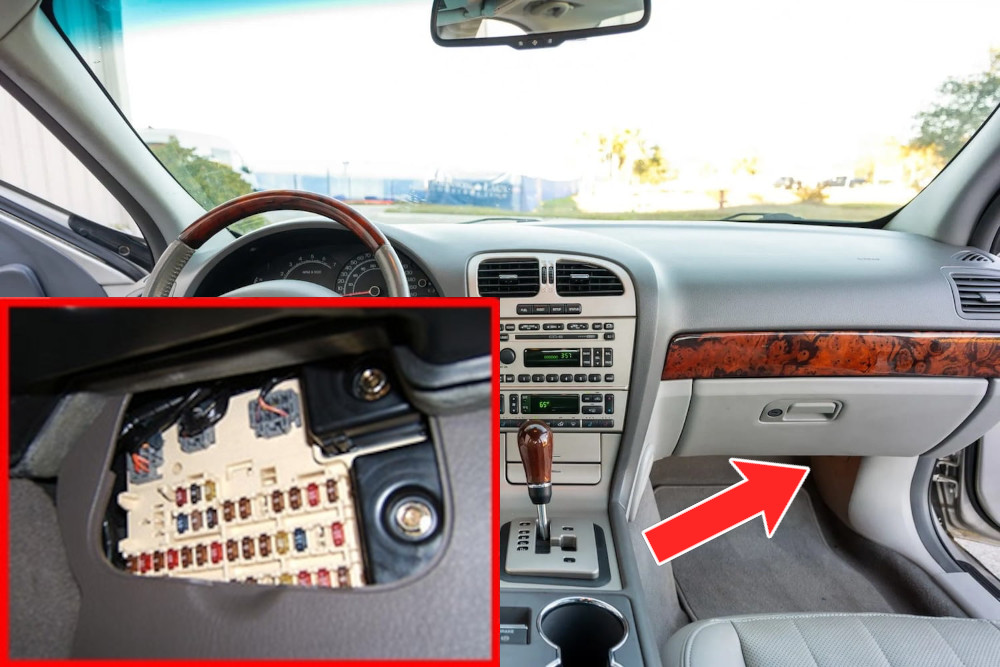

The fuse box is located to the right of the passenger-side footrest. Remove the cover to access the fuses.

Fuse Box Diagram

Fuses

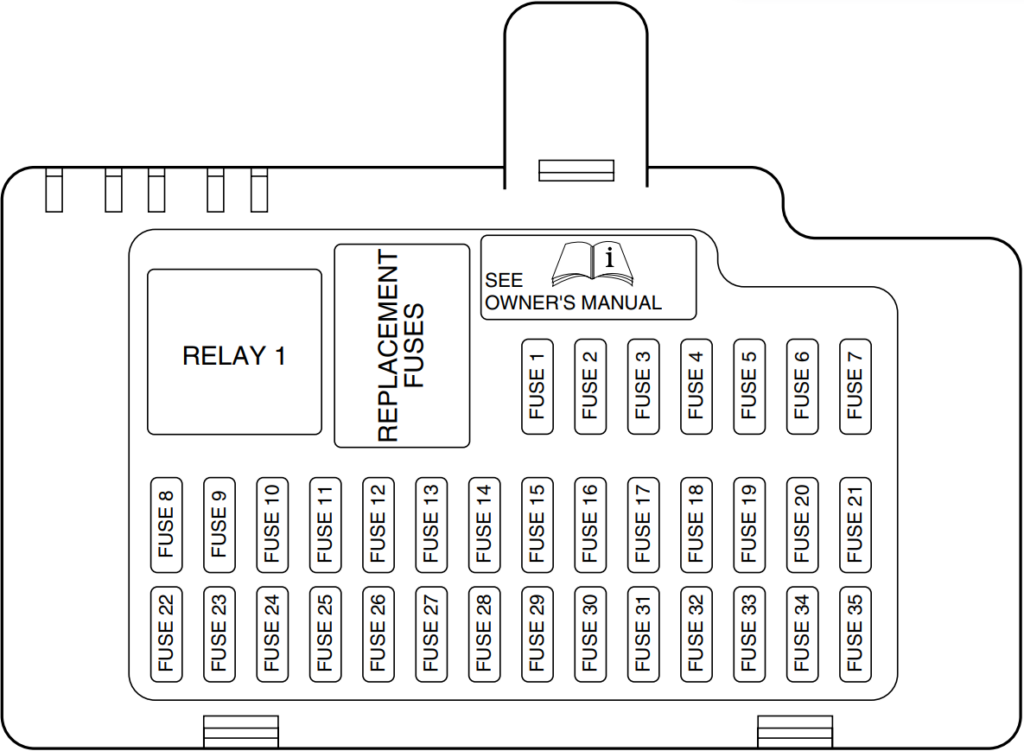

Assignment of the fuses in the passenger compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
1	5A	Starter relay coil
2	5A	Radio
3	5A	ABS/TCS/AdvanceTrac
4	5A	2000-2004: Cluster, Powertrain Control Module (PCM) relay, Fuel pump relay, REM, Transit relay 2005-2006: Cluster, Powertrain Control Module (PCM) relay, Fuel pump relay, REM
5	2000-2002: 5A 2003-2006: 10A	2000-2002: T/A Switch, O/D Cancel Switch, Autolamp Sensor, Heated Seat Modules, VCS (2002) 2003-2004: Restraints Control Module (RCM), Passenger Occupant Detection System (PODS) electronic control unit 2005-2006: Restraints Control Module (RCM)
6	10A	OBD II
7	5A	2000-2002: DDM, DSM, Anti-theft LED, Security Horn, PCM, Power Mirror 2003-2004: DDM, DSM, Anti-theft LED, Power mirror switch, Electric Park Brake (EPB) switch 2005-2006: DDM, DSM, Anti-theft LED, Power mirror switch, Electric Park Brake switch, PCM
8	5A	Right front turn, Right front repeater, Right front sidemarker, Right front park lamps
9	2000-2002: 10A 2003-2006: 15A	Right front low beam/HID
10	5A	Left front turn, Left front repeater, Left front sidemarker, Left front park lamps
11	10A	Left front high beam
12	2000-2002: 10A 2003-2006: 5A	2000-2002: Headlamp Leveling (if equipped) 2003-2004: Rain sensor, Electrochromic mirror 2005-2006: Electrochromic mirror
13	5A	Cluster
14	2000-2002: 10A 2003-2006: 5A	2000-2002: RCM, DATC 2003-2006: DATC
15	5A	2000-2002: N/A 2003-2006: O/D cancel, ABS/Traction-Assist switch
16	5A	2000-2002: E/C Mirror, Heated Seat Controls, RSM (Rain Sensor Module) 2003-2006: Heated seat controls, Climate control seat module
17	5A	RCM, Alternator warning lamp
18	20A	Radio, CIA, Navigation unit
19	15A	Tilt/Tele motors
20	10A	2000-2002: FEM, DATC, Cluster, Brake Shift Interlock, REM 2003-2006: FEM, DATC, Cluster, REM
21	2000-2002: 10A 2003-2006: 7.5A	2000-2002: Power Folding Mirrors 2003-2006: N/A
22	10A	DDM, Driver door mirror
23	10A	Right front high beam
24	5A	PATS
25	2000-2002: 10A 2003-2006: 15A	Left front low beam/HID
26	2000-2002: 3A 2003-2006: 5A	Wiper Relay, Windshield Washer
27	10A	2000-2002: Radio, Cellphone, VCS 2003-2006: Radio, Navigation unit
28	5A	2000-2001: Security Horn 2002-2006: N/A
29	5A	2000-2001: Trailer Tow Ignition Sense, VEMS, FEM 2002: FEM 2003-2006: FEM, Reverse park assist
30	5A	2000-2001: FEM 2002-2006: FEM, Passenger Power Mirror
31	—	N/A
32	20A	Cigar lighter
33	10A	2000-2001: Switch Backlighting 2002-2006: Switch Backlighting, FEM
34	10A	N/A
35	5A	Stop lamp signal

Engine Compartment

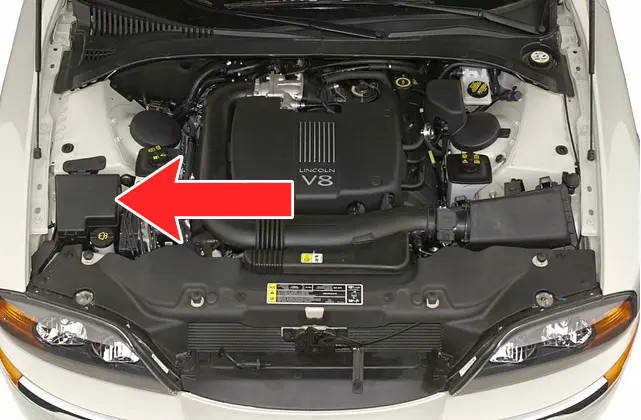

Fuse Box Location

Fuse Box Diagram

Fuses

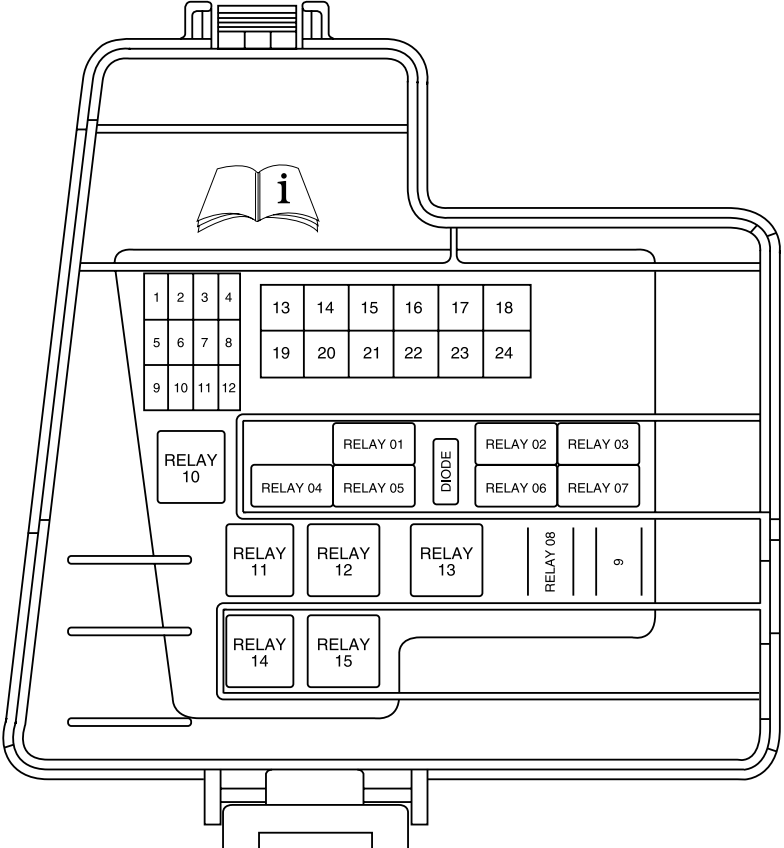

Assignment of the fuses in the engine compartment fuse box

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
1	10A	2000-2002: A/C Clutch 2003-2006: A/C clutch, Coolant control valve, Auxiliary coolant pump
2	10A	2000: Windshield Washer Pump 2001-2006: N/A
3	15A	Fog lamp
4	2000-2002: 15A 2003-2006: 20A	Horn
5	2000-2002: 20A 2003-2006: 15A	2000-2002: Fuel Injectors 2003-2006: Fuel injectors, Electric cooling fan, Mass Air Flow (MAF) sensor
6	15A	2000-2002: Transmission Solenoid 2003-2006: Transmission solenoid, EGR
7	—	N/A
8	—	N/A
9	—	N/A
10	5A	2000-2001: N/A 2002: IAC Solenoid 2003-2006: N/A
11	15A	HEGOs
12	2000-2002: 10A 2003-2006: 15A	Coil-on-plug
13	30A	Heated wiper park
14	30A	ABS module
15	—	N/A
16	30A	Blower motor
17	20A	2000-2002: Thermactor Air Pump (Low Emission Vehicles Only) 2003-2006: N/A
18	40A	2000-2002: PCM 2003-2006: N/A
19	30A	2000-2002: N/A 2003-2006: Electric park brake
20	30A	Wiper motor
21	30A	Starter solenoid
22	2000-2002: 30A 2003-2006: 40A	ABS Motor
23	—	N/A
24	—	N/A

Relays and Diodes

Assignment of the relays and diodes in the engine compartment fuse box

Fuse Data

Full access is available to registered users — log in or register.

No.	Type	Description
01	Relay	2000-2002: Wiper Hi/Lo 2003-2006: N/A
02	Relay	2000-2002: Wiper Park 2003-2006: N/A
03	Relay	Coil-on-plug and HEGOs
04	Relay	2000: Windshield Washer 2001-2002: N/A 2003-2006: Right-hand HID headlamps
05	Relay	Auxiliary coolant pump (V8 engines)
06	Relay	2000-2002: Horn 2003-2006: Left-hand HID headlamps
07	Relay	Fog lamps
08	Relay	A/C clutch
09	Relay	2000-2002: Wiper Run/Acc 2003-2006: N/A
10	Relay	Blower motor
11	Relay	N/A
12	Relay	Heated wiper park
13	Relay	2000-2002: N/A 2003-2006: Horn
14	Relay	PCM power
15	Relay	Starter motor
—	Diode	PCM

Luggage Compartment

Fuse Box Location

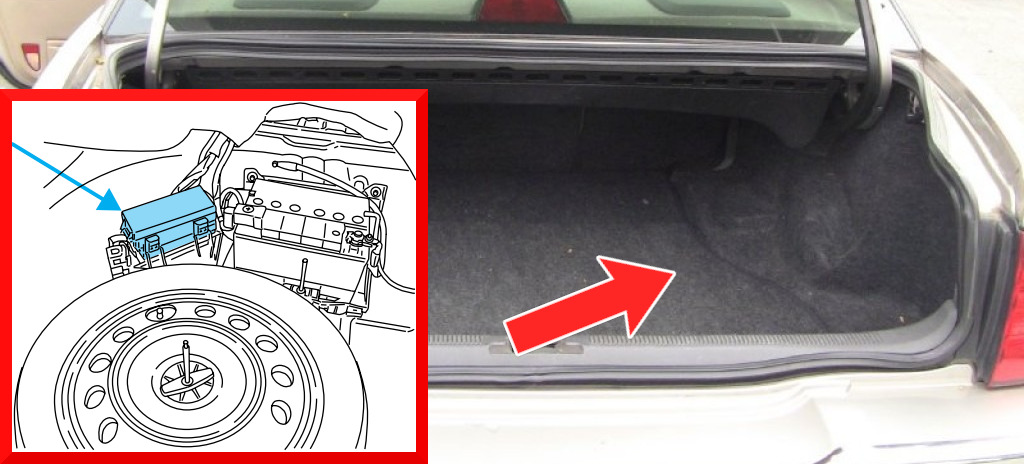

The power distribution box is located in the trunk, beneath the floor cover near the spare tire and battery.

Fuse Box Diagram

Fuses

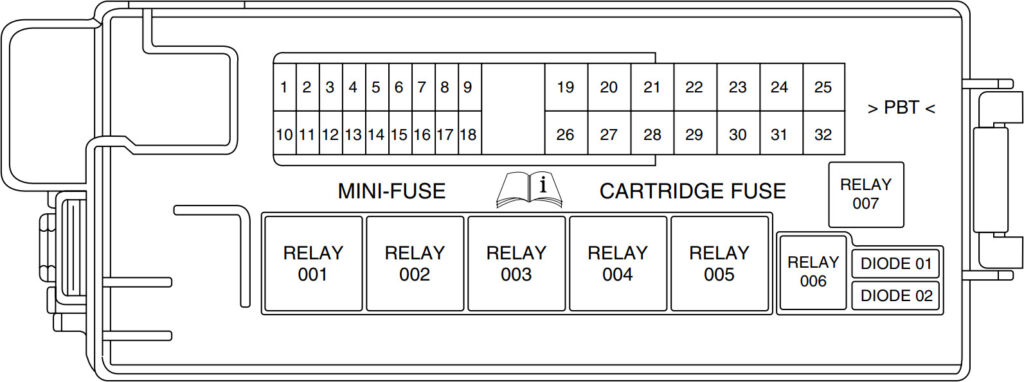

Assignment of the fuses in the luggage compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Type	Amps	Description
1	Mini	15A	2000-2001: Decklid release solenoid 2002-2006: Decklid release solenoid, Passenger door lock motors
2	Mini	10A	Right rear turn lamp, License plate lamp
3	Mini	5A	Left rear stop/tail lamp
4	Mini	10A	2000-2002: Fuel door release solenoid 2003-2006: Fuel door release solenoid, Decklid lamp
5	Mini	10A	2000-2002: Courtesy and map lamps 2003-2006: Courtesy and map lamps, Radio antenna module
6	Mini	10A	Left rear turn and back-up lamps
7	Mini	5A	Right rear stop/tail lamp
8	Mini	2000-2002: 10A 2003-2006: 5A	Center high-mounted stop lamp
9	Mini	5A	Heated mirror
10	Mini	20A	2000: N/A 2001-2006: Power point – console
11	Mini	2000-2002: 15A 2003-2006: 20A	2000-2002: Heated seats 2003-2006: Rear heated seats
12	Mini	2000-2002: 5A 2003-2006: 20A	2000-2002: Transit relay (if equipped) 2003-2006: Power point – ashtray
13	Mini	—	N/A
14	Mini	2000-2002: 5A 2003-2006: 10A	2000-2002: Phone, CD, VEMS 2003-2006: Navigation unit
15	Mini	5A	Alternator sense
16	Mini	20A	Moonroof
17	Mini	15A	Fuel pump motor
18	Mini	2000-2003: 20A 2004-2006: 20A/30A	2000-2002: Subwoofer amplifier 2003: Navigation amp, Subwoofer 2004-2006: Subwoofer amp (20A) / THX amp, Subwoofer amp (30A)
19	J-Case	20A	REM – Left rear window
20	J-Case	2000-2002: 20A 2003-2006: 30A	2000-2002: DDM – Driver window 2003-2006: Front window motors
21	J-Case	20A	Driver lumbar, Power seats
22	J-Case	20A	Ignition switch
23	J-Case	30A	SSP4
24	J-Case	30A	SSP3
25	J-Case	40A	P-J/B
26	J-Case	2000-2002: 20A 2003-2006: 30A	2000-2002: FEM – Front passenger window 2003-2006: Climate control seat module
27	J-Case	30A	SSP1
28	J-Case	20A	Passenger lumbar, Power seats
29	J-Case	2000-2002: 30A 2003-2006: 40A	Rear defroster
30	J-Case	20A	REM – Right rear window
31	J-Case	2000-2002: 20A 2003-2006: 30A	2000: N/A 2001-2002: Ignition switch (V6 manual trans) 2003-2006: Powertrain main power
32	J-Case	30A	SSP2

Relays and Diodes

Assignment of the relays and diodes in the luggage compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Type	Description
001	Relay	SSP1
002	Relay	SSP4
003	Relay	Rear defroster
004	Relay	SSP3
005	Relay	SSP2
006	Relay	N/A
007	Relay	Fuel pump motor
01	Diode	N/A
02	Diode	Fuel pump motor

FAQ

Where are the cigar lighter / power outlet fuses in the Lincoln LS?

Instrument panel fuse box:
#32 – Cigar lighter
Rear power distribution box (trunk):
#10 – Console power point (since 2001)
#12 – Ashtray power point (since 2003)
