Lincoln Mark LT | 2006-2008 | Fuse Box Diagrams and Locations

Find Lincoln Mark LT fuse box diagrams for 2006–2008 models with detailed relay locations, fuse assignments, panel layouts, and electrical information. This article covers the first-generation Lincoln Mark LT, available from 2006, and includes fuse box diagrams for Lincoln Mark LT 2006, 2007 and 2008, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

What’s Included

Engine Compartment

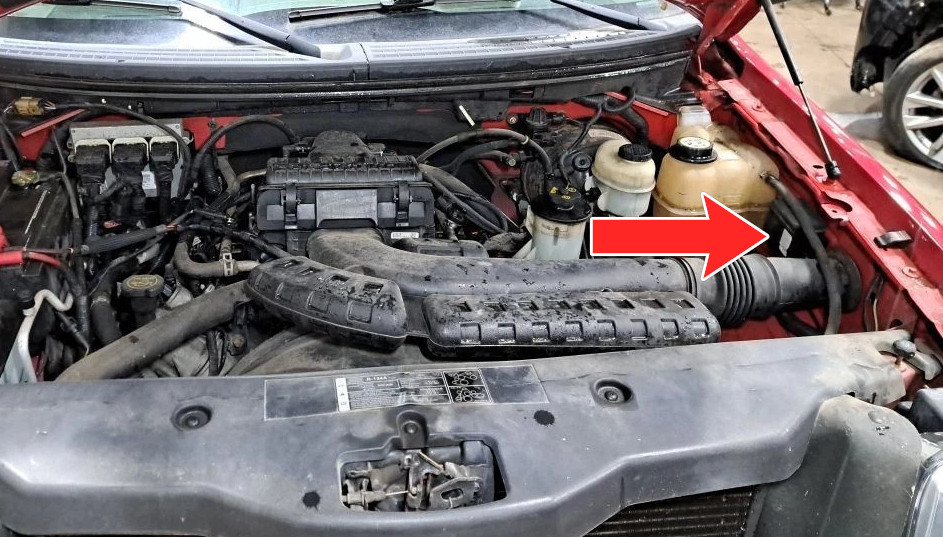

Fuse Box Location

The auxiliary box is located in the engine compartment on the left fender (driver’s side).

Fuse Box Diagram

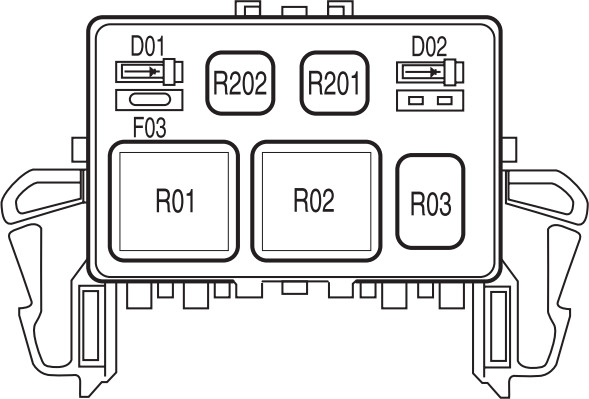

Version 1

With Daytime Running Lamp (DRL) or 4×4 options.

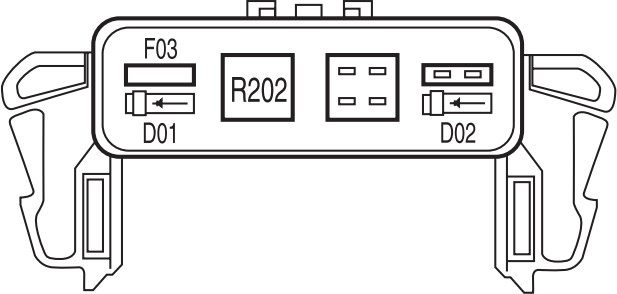

Version 2

Without Daytime Running Lamp (DRL) and 4×4 options.

Relays

Assignment of the relays in the auxiliary relay box

Fuse Data

Full access is available to registered users — log in or register.

No.	Type/Amps	Description
F03	5A	Clockspring illumination
R01	Full ISO Relay	4×4 CCW
R02	Full ISO Relay	4×4 CW
R03	1/2 ISO Relay	Daytime Running Lamps (DRL) high beam disable
R201	Relay	DRL
R202	Relay	A/C clutch

Diodes

Assignment of the diodes in the auxiliary relay box

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
D01	A/C clutch
D02	2008: One Touch Integrated Start (OTIS)

Passenger Compartment

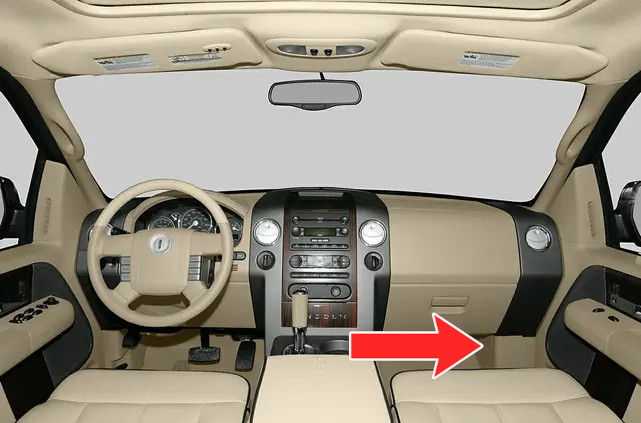

Fuse Box Location

The fuse box is located near the passenger’s footrest. Remove the trim panel and fuse box lid to access the fuses.

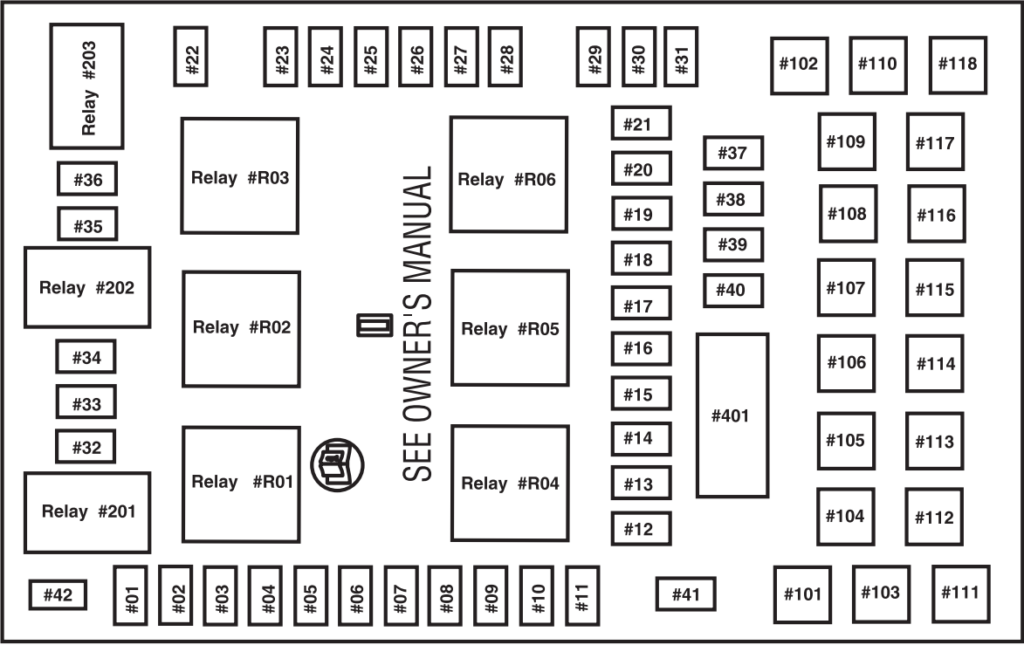

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment fuse box

Fuse Data

Full access is available to registered users — log in or register.

No.	Type	Amps	Description
1	Mini	10A	Run/Accessory – Wipers, Instrument cluster
2	Mini	20A	2006: Stop/Turn lamps, Brake on/off switch 2007-2008: Stop/Turn lamps, Brake on/off switch, Hazard flashers
3	Mini	2006: 5A 2007-2008: 7.5A	2006: Power mirrors, Memory seats and pedals 2007-2008: Power mirrors, Memory seats and pedals, Driver power seat
4	Mini	10A	DVD battery power, Power fold mirror
5	Mini	7.5A	Keep alive memory for Powertrain Control Module (PCM) and climate control module
6	Mini	15A	Parklamps, BSM, Instrument panel illumination
7	Mini	5A	Radio (start signal)
8	Mini	10A	Heated mirrors, Switch indicator
9	Mini	20A	2006: N/A 2007-2008: Fuel pump relay, Fuel injectors
10	Mini	20A	Trailer tow back-up lamps relay (PCB1), Trailer tow parklamp relay (R201)
11	Mini	10A	A/C clutch, 4×4 solenoid
12	Mini	5A	2006: N/A 2007-2008: PCM relay coil
13	Mini	10A	Climate control module power, Flasher relay
14	Mini	10A	Back-up lamp and Daytime Running Lamps (DRL) relay coil, A/C pressure switch, Redundant speed control switch, Heated PCV, Trailer tow back-up lamps relay coil, ABS, Reverse park aid, EC mirror, 2007-2008: Navigation radio (reverse input)
15	Mini	5A	2006: Overdrive cancel, Cluster 2007-2008: Overdrive cancel, Cluster, Traction control switch
16	Mini	10A	Brake-shift interlock solenoid
17	Mini	15A	Fog lamp relay (R202)
18	Mini	10A	Run/Start feed – Overhead power point, Electrochromatic mirror, Heated seats, BSM, Compass, RSS (Reverse Sensing System)
19	Mini	10A	2006: Restraints (Air bag module) 2007-2008: Restraints (Air bag module), OCS
20	Mini	10A	Battery feed for overhead power point
21	Mini	15A	Cluster keep alive power
22	Mini	10A	Delayed accessory power for audio, power door lock switch and moonroof switch illumination
23	Mini	10A	RH low beam headlamp
24	Mini	15A	Battery saver power for demand lamps
25	Mini	10A	LH low beam headlamp
26	Mini	20A	Horn relay (PCB3), Horn power
27	Mini	5A	Passenger Air bag Deactivation (PAD) warning lamp, Cluster RUN/START power
28	Mini	5A	SecuriLock transceiver (PATS)
29	Mini	15A	PCM 4×4 power
30	Mini	15A	PCM 4×4 power
31	Mini	20A	2006: Radio power 2007-2008: Radio power, Satellite radio module
32	Mini	15A	Vapor Management Valve (VMV), A/C clutch relay, Canister vent, Heated Exhaust Gas Oxygen (HEGO) sensors #11 and #21, CMCV, Mass Air Flow (MAF) sensor, VCT, Electronic fan clutch (2007-2008)
33	Mini	15A	Shift solenoid, CMS #12 and #22
34	Mini	2006: 20A 2007-2008: 15A	Fuel injectors and PCM power
35	Mini	20A	Instrument cluster high beam indicator, High beam headlamps
36	Mini	10A	Trailer tow right turn/stop lamps
37	Mini	20A	2006: Rear power point 2007-2008: Rear power point, Center console power point
38	Mini	25A	Subwoofer power
39	Mini	20A	2006: Instrument panel power point 2007-2008: N/A
40	Mini	20A	Low beam headlamps, DRL
41	Mini	20A	2006: Cigar lighter, Diagnostic connector power 2007-2008: N/A
42	Mini	10A	Trailer tow left turn/stop lamps
101	J-Case	30A	Starter solenoid
102	J-Case	20A	Ignition switch feed
103	J-Case	20A	ABS valves
104	—	—	N/A
105	J-Case	30A	Electric trailer brakes
106	J-Case	30A	Trailer tow battery charge
107	J-Case	30A	Power door locks (BSM)
108	J-Case	30A	Passenger power seat
109	J-Case	30A	2006: Driver power seat, Adjustable pedals 2007-2008: Driver power seat, Adjustable pedals, Memory module (pedals, seat, mirror)
110	J-Case	20A	2006: N/A 2007-2008: Cigar lighter, Diagnostic connector power
111	J-Case	30A	4×4 relays
112	J-Case	40A	ABS pump power
113	J-Case	30A	Wipers and washer pump
114	J-Case	40A	Heated backlite, Heated mirror power
115	J-Case	20A	2006: N/A 2007-2008: Moon roof
116	J-Case	30A	Blower motor
117	J-Case	20A	2006: N/A 2007-2008: Instrument panel power point
118	J-Case	30A	Heated seats

Circuit Breaker

Assignment of the circuit breaker in the passenger compartment fuse box

Fuse Data

Full access is available to registered users — log in or register.

No.	Type	Amps	Description
401	Circuit breaker	30A	Power windows, Moon roof, Power sliding backlite

Relays

Assignment of the relays in the passenger compartment fuse box

Fuse Data

Full access is available to registered users — log in or register.

No.	Type	Description
R01	Full ISO relay	Starter solenoid
R02	Full ISO relay	Accessory delay
R03	Full ISO relay	Hi-beam headlamps
R04	Full ISO relay	Heated backlite
R05	Full ISO relay	Trailer tow battery charge
R06	Full ISO relay	Blower motor
R201	Half ISO relay	Trailer tow park lamps
R202	Half ISO relay	Fog lamps
R203	Half ISO relay	PCM

FAQ

Where are the cigar lighter / power outlet fuses in the Lincoln Mark LT?

They are in the passenger compartment fuse box:
#37 – Rear power point / center console power point
#39 – Instrument panel power point (2006)
#41 – Cigar lighter (2006)
#110 – Cigar lighter (2007–2008)
#117 – Instrument panel power point (2007)
