Lincoln Mark VIII | 1997-1998 | Fuse Box Diagrams and Locations

Get Lincoln Mark VIII fuse box diagrams for 1997–1998 models with relay assignments, fuse locations, panel diagrams, and electrical system details. This article covers the facelifted Lincoln Mark VIII, produced from 1997 to 1998, and includes fuse box diagrams for Lincoln Mark 8 1997 and 1998, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

What’s Included

Engine Compartment

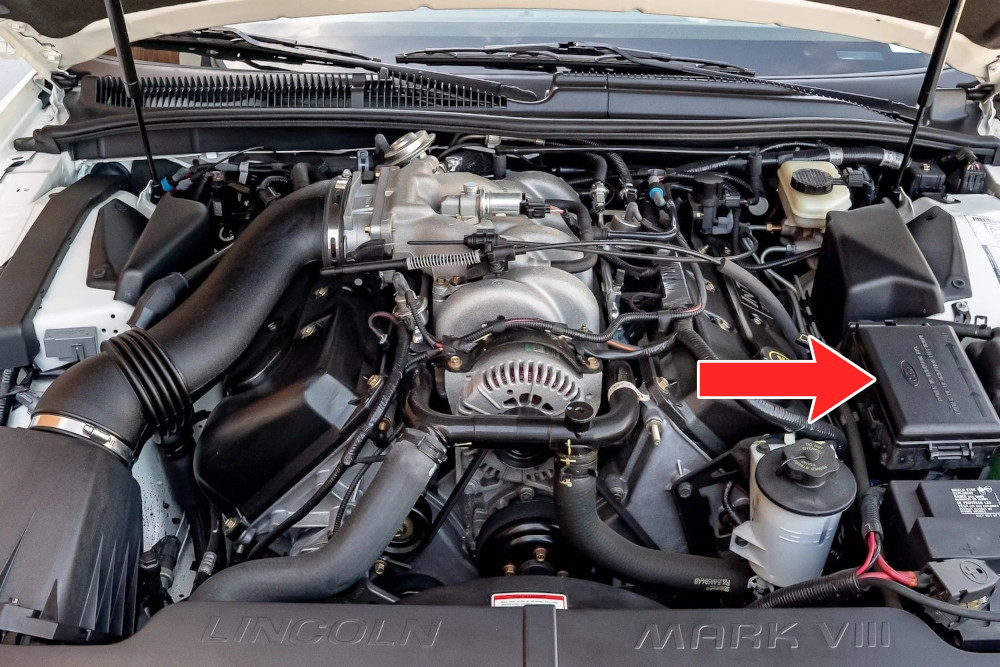

Fuse Box Location

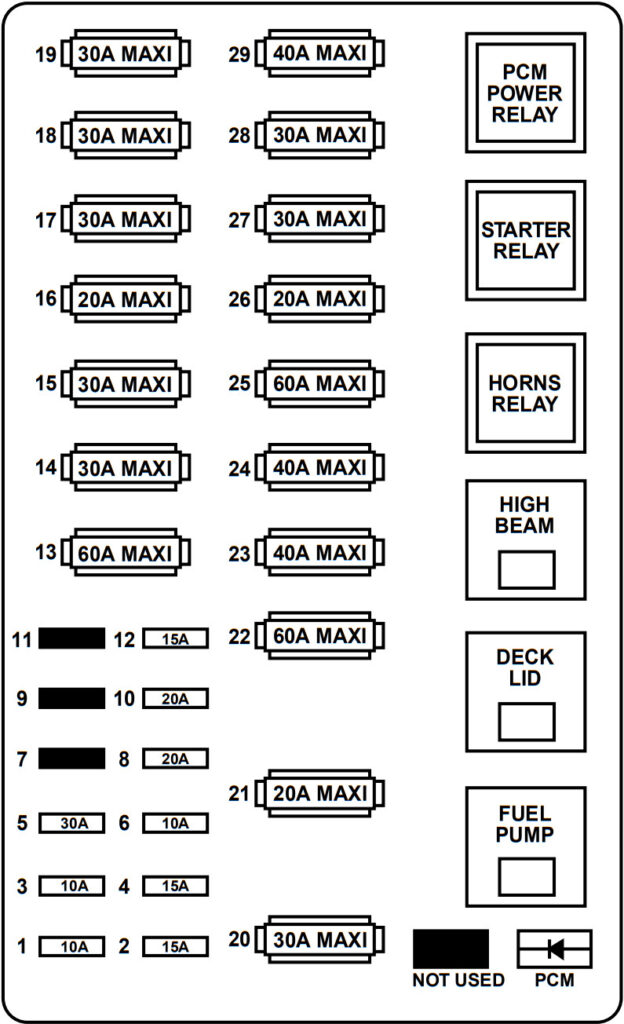

Fuse Box Diagram

Fuses

Assignment of the fuses in the engine compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Type	Amps	Description
1	Mini	10A	Powertrain Control Module (Keep-Alive Memory)
2	Mini	15A	High Beam Relay, Daytime Running Lamps Module
3	Mini	10A	Powertrain Control Module (EAM Pump Motor-Monitor)
4	Mini	15A	Air Suspension, Electronically Variable Orifice Power Steering
5	Mini	30A	1997: Trunk Lid Relay 1998: Trunk Lid Relay, Fuel Filler Door Release
6	Mini	10A	Air Bag Module
7	—	—	N/A
8	Mini	20A	Horn Relay
9	—	—	N/A
10	Mini	20A	Radio Amplifier, CD Changer
11	—	—	N/A
12	Mini	15A	Steering Column/Ignition/Lighting Module (Tilt/Telescoping Steering Column Motors, Mirror Lamps, Brake Shift Interlock, High Beam Indicator, Anti-Theft Indicator)
13	Maxi	60A	Air Suspension
14	Maxi	30A	Delayed Accessory Power Relay #1, I/P Fuses (4, 10, 16)
15	Maxi	30A	Powertrain Control Module, PCM Power Relay, Engine Compartment Fuse 1
16	Maxi	20A	Fuel Pump Relay, Fuel Pump Module
17	Maxi	30A	Electronic Air Management, Engine Compartment Fuse 3
18	Maxi	30A	Passenger Seat Module, Passenger Lumbar, I/P Fuse 12
19	Maxi	30A	Driver Seat Module, Driver Lumbar, I/P Fuse 35
20	Maxi	30A	Anti-Lock Brake Control Module
21	Maxi	20A	Anti-Lock Brake Control Module, EVAC/Fill Connector
22	Maxi	60A	I/P Fuses (1, 7, 13, 19, 25, 31)
23	Maxi	40A	Variable Load Control Module
24	Maxi	40A	Rear Window Defrost Control, I/P Fuse 30
25	Maxi	60A	I/P Fuses (2, 14, 20, 26, 32, 38), Engine Compartment Fuse 5
26	Maxi	20A	Ignition Switch, I/P Fuses (5, 9, 11, 15, 17, 21)
27	Maxi	30A	Starter Motor Solenoid, Ignition Switch, I/P Fuses (6, 28, 34)
28	Maxi	30A	Delayed Accessory Power Relay #2, I/P Fuse 41
29	Maxi	40A	Blower Motor Relay

Passenger Compartment

Fuse Box Location

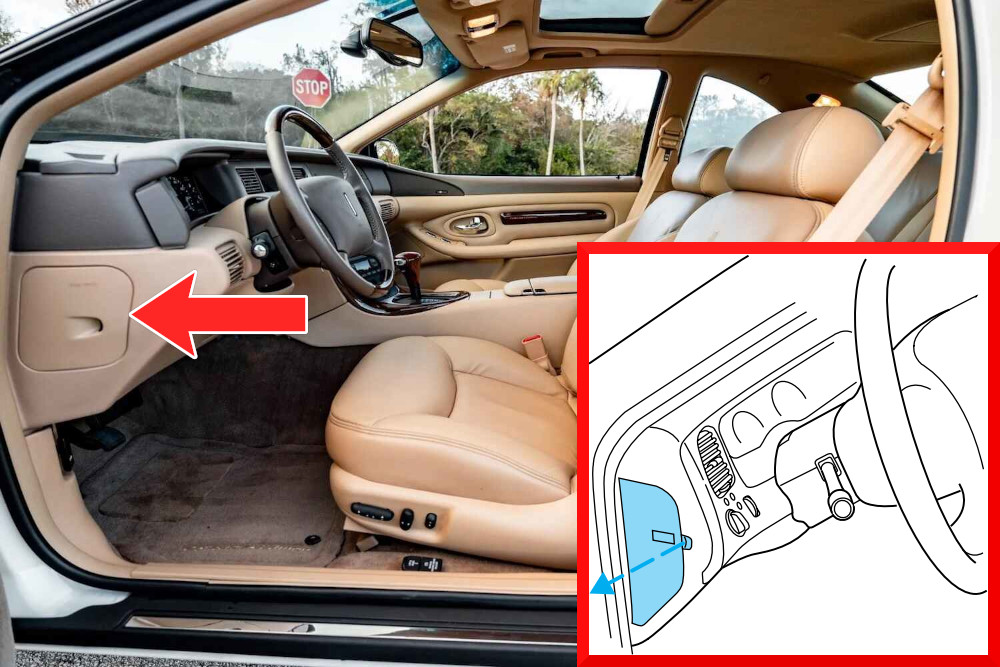

The fuse box is located on the driver’s side dashboard facing the door.

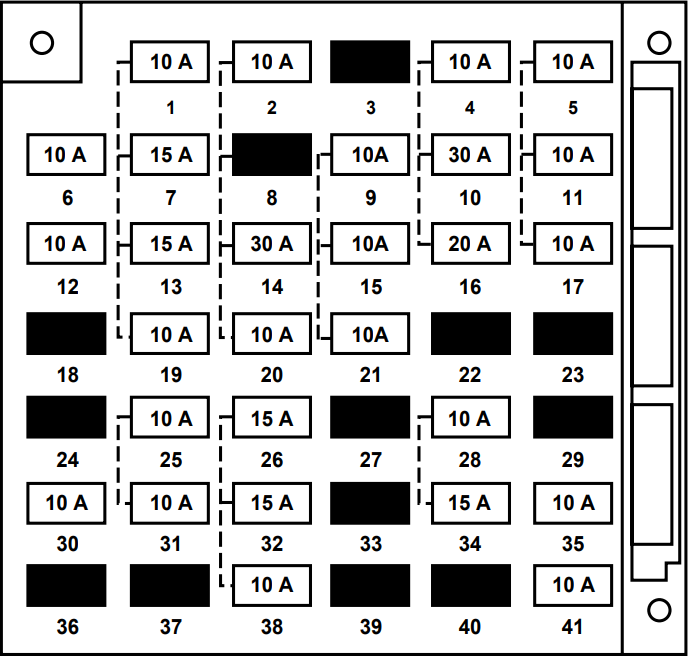

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
1	10A	Steering Column/Ignition/Lighting Module (Brake Lamps, Climate Control Blower Motor, Hazard Lamps, Speed Control)
2	10A	Radio, Cellular Phone
3	—	—
4	10A	Radio, Cellular Phone, Message Center, Compass, Day/Night Mirror, Passenger Seat Module
5	10A	Day/Night Sensor, Cluster (Oil Pressure, Brake Warning, Speed Control), I/P Warning Indicator Display, Steering Column/lgnition/Lighting Module (Logic Input)
6	10A	Starter Motor Relay
7	15A	Steering Column/lgnition/Lighting Module (Left Turn Lamps)
8	—	—
9	10A	Blower Motor Relay, Electronic Automatic Temperature Control Module
10	30 A	Windshield Wipers
11	10A	Coil Drivers, Radio Noise Capacitors, PCM Relay
12	10A	Passenger’s Power and Heated Seats
13	15A	Steering Column/lgnition/Lighting Module (Right Turn Lamps)
14	30 A	Cigar Lighter, Cellular Phone, Power Point
15	10A	Air Bag Diagnostic Monitor
16	20A	Moonroof
17	10A	Instrument Cluster (Charging Indicator)
18	—	—
19	10A	Steering Column/lgnition/Lighting Module (Left Low-Beam Headlamp)
20	10A	Message Center, Instrument Cluster, Electronic Automatic Temperature Control Module
21	10A	1997: Anti-Lock Brake Control Module 1998: EVAC/Fill Connector, Anti-Lock Brake Control Module
22	—	—
23	—	—
24	—	—
25	10A	Steering Column/lgnition/Lighting Module (Right Low-Beam Headlamp)
26	15A	Steering Column/lgnition/Lighting Module (Courtesy Lighting, Demand Lighting)
27	—	—
28	10A	Instrument Cluster, I/P Warning Indicator Display, Air Suspension/EVO Steering Module, Rear Window Defrost Module, Steering Wheel Position Sensor, Transmission Control Switch
29	—	—
30	10A	Heated Mirrors
31	10A	Steering Column/lgnition/Lighting Module (Park Lamps)
32	15A	Brake On/Off Switch, Brake Pressure Switch
33	—	—
34	15A	1997: Heated seats, Backup lamps, Speed control, Daytime running lamps, Powertrain control module, Electronic Automatic Temperature Control module, Day/night mirror 1998: Heated Seats, Backup Lamps, Speed Control, Daytime Running Lamps, A/C Cycling Switch, Digital Transmission Range Sensor, Intake Manifold Runner Control Module
35	10A	Driver’s Power and Heated Seats
36	—	—
37	—	—
38	10A	Data Link Connector
39	—	—
40	—	—
41	10A	Keyless Entry, Power Door Locks, Power Mirror Switch, Memory/Recall Switch, Driver’s Door Module

FAQ

Where are the cigar lighter / power outlet fuses in the Lincoln Mark VIII?

Instrument panel fuse box: Fuse #14
Engine compartment fuse box: Fuse #25
