Lincoln MKC | 2015-2019 | Fuse Box Diagrams and Locations

Check Lincoln MKC fuse box diagrams for 2015–2019 models with detailed relay assignments, fuse locations, panel layouts, and electrical system information. This article covers the compact premium crossover Lincoln MKC, available from 2015, and includes fuse box diagrams for Lincoln MKC 2015, 2016, 2017, 2018 and 2019, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

What’s Included

Engine Compartment

Fuse Box Location

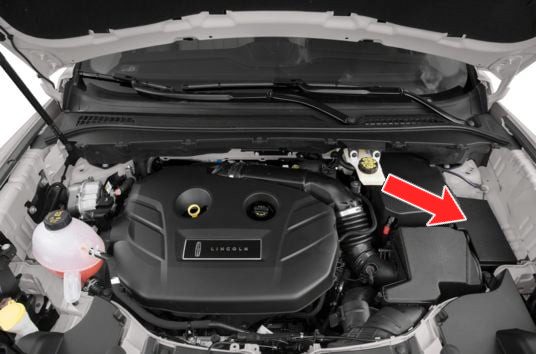

The fuse box is located in the engine compartment on the driver’s side.

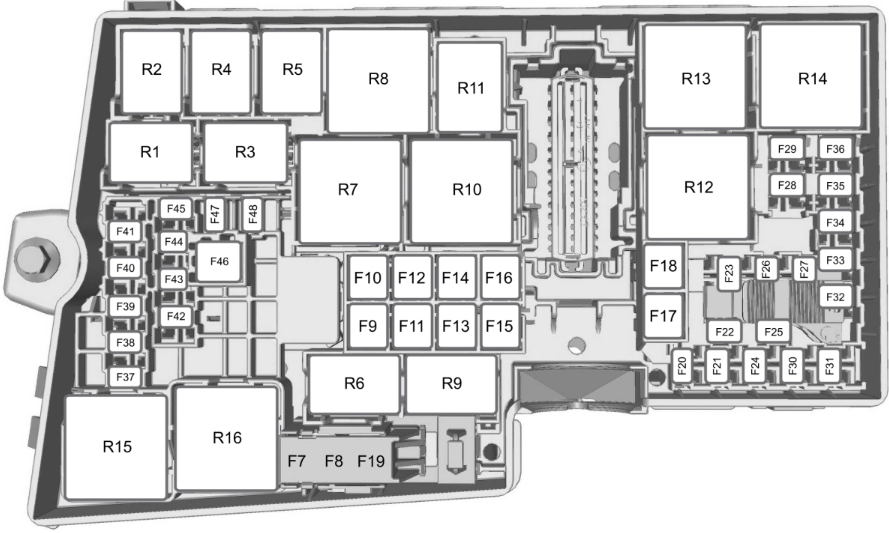

Fuse Box Diagram

Fuses

Assignment of the fuses in the engine compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Type	Amps	Description
F7	J-case	50A	Anti-lock brake system module
F8	J-case	30A	Anti-lock brake system module
F9	J-case	20A	Fuel pump relay
F10	J-case	40A	Blower motor relay
F11	J-case	30A	Run start relay
F12	J-case	40A	Powertrain control module relay
F13	J-case	30A	Starter relay
F14	J-case	30A	Memory seat
F15	J-case	30A	Wipers and washers relay
F16	J-case	25A	Cooling fan
F17	J-case	600W: 40A 750W: 50A	Cooling fan 1
F18	J-case	600W: 40A 750W: 50A	Cooling fan 2
F19	Mini	5A	Anti-lock brake system module run/start
F20	Mini	20A	Horn relay
F21	Mini	10A	Brake pedal switch
F22	Mini	25A	Windshield wipers and washer
F23	Mini	5A	Run/start relay coil
F24	Mini	20A	Transmission range control module
F25	Mini	10A	Air conditioning clutch
F26	Mini	5A	Powertrain control module relay coil
F27	Mini	10A	Washer pump relay
F28	Mini	10A	Alternator sensor
F29	Mini	15A	Rain sensor, Rear wiper, Rear washer pump relay coil
F30	Mini	20A	Left-hand headlamp
F31	Mini	20A	Right-hand headlamp
F32	Mini	15A	Vehicle power 1 (powertrain control module)
F33	Mini	15A	Vehicle power 2 (canister vent solenoid, universal exhausted gas oxygen sensor, variable camshaft timing, catalyst monitor sensor, canister purge solenoid)
F34	Mini	15A	Vehicle power 3 (A/C clutch control relay coil, variable A/C compressor, fan control relay coil, engine charge air bypass valve solenoid, active grill shutters)
F35	Mini	15A	Vehicle power 4 (ignition coils)
F36	—	—	N/A
F37	—	—	N/A
F38	Mini	15A	2015-2016: N/A 2017-2019: Voltage quality module run/start (vehicles equipped with stop/start)
F39	Mini	5A	Powertrain control ignition start power – run
F40	Mini	10A	Electronic power assist steering run/start
F41	Mini	10A	2015-2016: N/A 2017-2019: Extended power module run/start
F42	Mini	10A	Adaptive cruise control, Blind spot information system, Heads-up display, Rear video camera
F43	—	—	N/A
F44	Mini	5A	2015-2016: Heated rear window relay coil, Heated wiper park 2017-2019: Heated rear window relay coil, Heated wiper park, Electronic transmission pump run/stop feed (vehicles equipped with stop/start)
F45	Mini	5A	Transmission range control module run/start
F46	J-case	40A	Heated rear window relay, Heated wiper park
F47	Mini	30A	2015-2016: N/A 2017-2019: Electronic transmission pump B+ feed (vehicles equipped with stop/start)
F48	—	—	N/A

Relays

Assignment of the relays in the engine compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
R1	Run start
R2	Horn
R3	Fuel pump
R4	Rear window washer pump
R5	Cooling fan relay 3 (750W), Spare (600W)
R6	Windshield wipers
R7	Cooling fan relay 1 (600W), Cooling fan relay 5 (750W)
R8	Starter
R9	N/A
R10	Cooling fan relay 4 (750W), Spare (600W)
R11	Air conditioning clutch
R12	Cooling fan relay 1 (750W), Cooling fan relay 3 (600W)
R13	Cooling fan relay 2
R14	Powertrain control module
R15	Heated rear window, Heated wiper park
R16	Blower motor

Passenger Compartment

Fuse Box Location

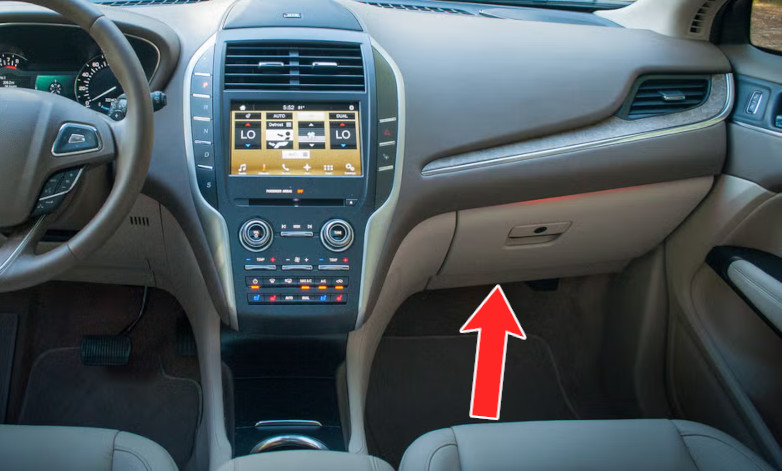

The fuse box is behind the lower end of the glove box (remove the glove box bottom).

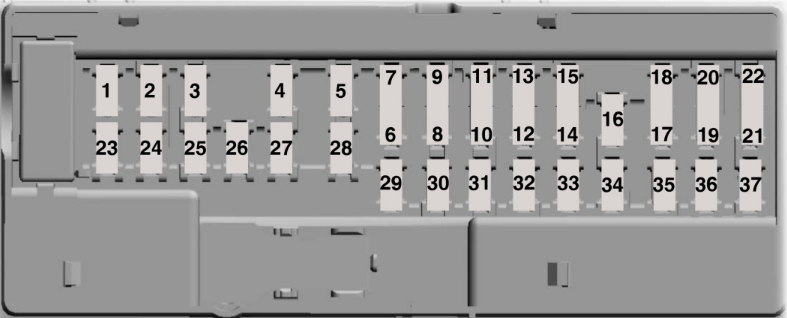

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Type	Amps	Description
1	—	10A	2015-2017: Lighting (ambient, glove box, vanity, dome, cargo) 2018-2019: N/A
2	Micro	7.5A	Memory seats
3	Micro	20A	Driver door unlock
4	Micro	—	N/A
5	Micro	20A	Subwoofer amplifier, THX amplifier
6	Dual micro	—	N/A
7	Dual micro	—	N/A
8	Dual micro	—	N/A
9	Dual micro	—	N/A
10	Dual micro	5A	Keypad, Power liftgate logic
11	Dual micro	—	N/A
12	Dual micro	7.5A	Climate control, Gear shift control, Push-button ignition
13	Dual micro	7.5A	Cluster, Datalink module logic, Steering column module logic
14	Dual micro	10A	2015-2017: N/A 2018-2019: Extended Power Module (supplies power for Restraint Control Module and Occupant Classification System)
15	Dual micro	10A	Datalink module
16	Micro	—	N/A
17	Dual micro	5A	Cellphone passport module
18	Dual micro	—	N/A
19	Dual micro	—	N/A
20	Dual micro	—	N/A
21	Dual micro	5A	Humidity and in-car temperature
22	Dual micro	5A	2015-2017: Occupant classification sensor 2018-2019: N/A
23	Micro	10A	Delayed accessory (driver window switch, moonroof logic, power inverter logic)
24	Micro	20A	Central lock and unlock
25	Micro	30A	Driver door (window, mirror)
26	Micro	30A	Front passenger door (window, mirror)
27	Micro	30A	Moonroof
28	Micro	20A	THX amplifier
29	Micro	30A	Rear driver side door (window)
30	Micro	30A	Rear passenger side door (window)
31	Micro	—	N/A
32	Micro	10A	Display, GPS, Radio frequency receiver, Voice control
33	Micro	20A	Radio and active noise control
34	Micro	30A	Run/start bus (fuse #19, 20, 21, 22, 35, 36, 37, circuit breaker)
35	Micro	5A	2015-2017: Restraints control module 2018-2019: N/A
36	Micro	15A	Auto-dimming rear view mirror, Continuous control damping suspension, Lane keeping system module, Rear heated seats module
37	Micro	20A	All-wheel drive relay, Heated steering wheel

Luggage Compartment

Fuse Box Location

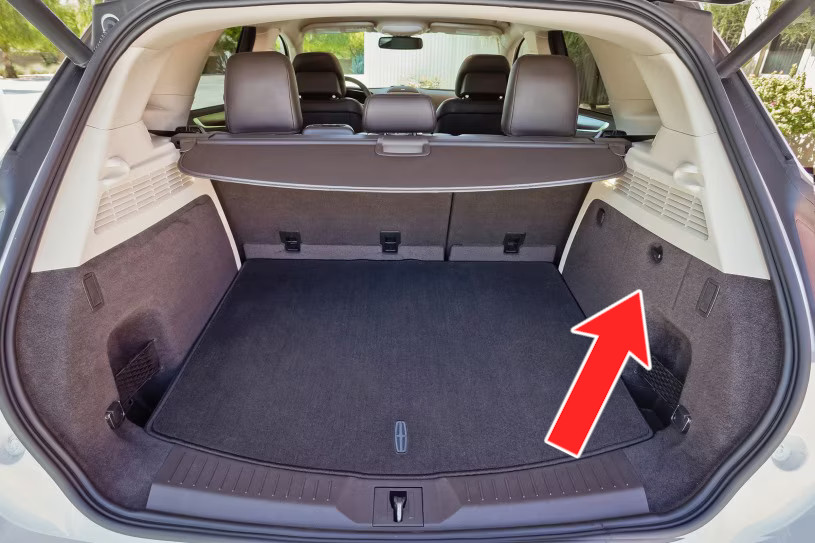

The fuse box is located in the luggage compartment area on the passenger side. Open the cover to gain access to the fuses.

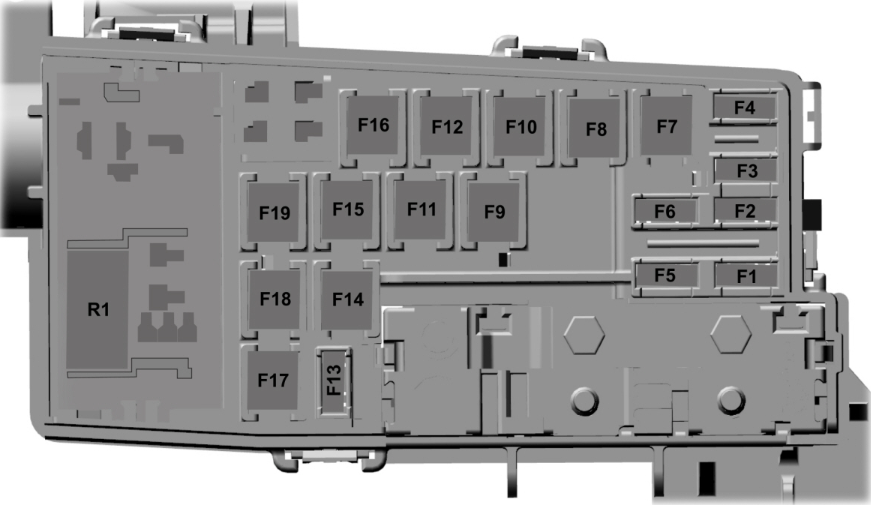

Fuse Box Diagram

Fuses

Assignment of the fuses in the luggage compartment fuse box

Fuse Data

Full access is available to registered users — log in or register.

No.	Type	Amps	Description
F1	—	—	N/A
F2	—	—	N/A
F3	Mini	5A	2015-2017, 2019: Hands-free liftgate module 2018: N/A
F4	—	—	N/A
F5	—	—	N/A
F6	—	—	N/A
F7	J-Case	30A	Rear heated seats
F8	J-Case	30A	Power cinch latch, Power liftgate
F9	J-Case	20A	Heated front seats
F10	J-Case	40A	Trailer tow
F11	J-Case	30A	Climate control seats
F12	J-Case	20A	2015-2017: Auxiliary power point – instrument panel 2018-2019: N/A
F13	—	—	N/A
F14	J-Case	30A	Power seats
F15	J-Case	20A	Auxiliary power point – inside of floor console
F16	J-Case	20A	Auxiliary power point – rear of floor console
F17	—	—	N/A
F18	J-Case	20A	Auxiliary power point – cargo area
F19	J-Case	40A	Inverter power outlet

Relays

Assignment of the relays in the luggage compartment fuse box

No.	Description
R1	N/A

FAQ

Where are the cigar lighter / power outlet fuses in the Lincoln MKC?

They are located in the rear cargo fuse box:
F12 – Auxiliary power point (instrument panel, 2015–2017)
F15 – Auxiliary power point (inside floor console)
F16 – Auxiliary power point (rear of floor console)
F18 – Auxiliary power point (cargo area)
F19 – Inverter power outlet
