Lincoln MKS | 2009-2012

Explore Lincoln MKS fuse box diagrams for 2009–2012 models with relay locations, fuse assignments, panel placement, and complete electrical layout details. This article covers the Lincoln MKS before the facelift, available from 2009, and includes fuse box diagrams for Lincoln MKS 2009, 2010, 2011 and 2012, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

Passenger Compartment

Fuse Box Location

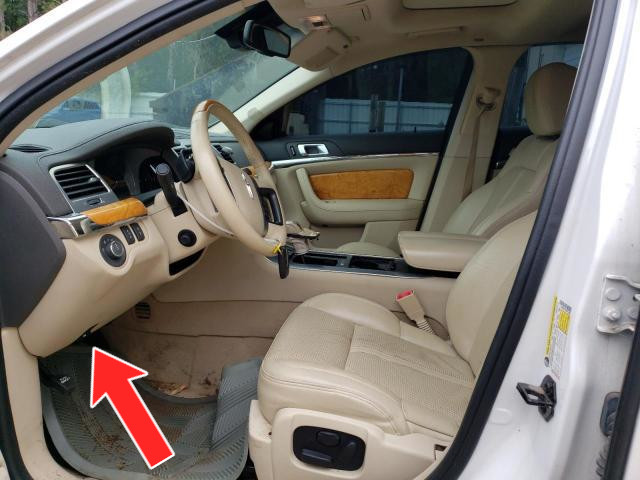

The fuse box is located under the dashboard to the left of the steering wheel (behind the lid).

Lincoln MKS 2009-2012 Passenger Compartment Fuse Box Location

Fuse Box Diagram

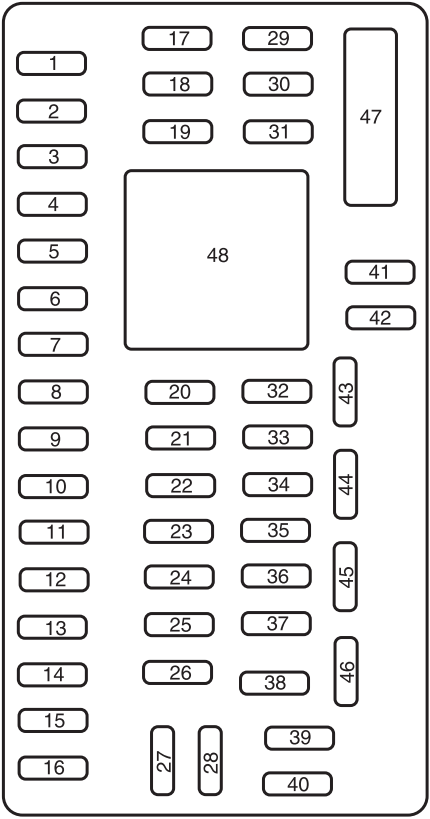

Lincoln MKS 2009-2012 Passenger Compartment Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
130ARight rear window
215A2009: Brake on/off switch
2010-2012: N/A
315ADriver seat control/lumbar
430ARight front window
510A2009-2010: Brake shift interlock (BSI), keypad illumination
2011-2012: Brake-shift interlock (BSI)
620ATurn signals, hazards
710ALow beam headlamps (left)
810ALow beam headlamps (right)
915ACourtesy lamps
1015AIllumination switch, Puddle lamps
1110AAll wheel drive (AWD)
127.5A2009-2010: Passive entry/passive start (PEPS) module
2011-2012: Intelligent access (IA) module
135AMemory/seats/mirrors/steering column, keypad, Driver zone module
1410A2009: CID, MGM
2010-2012: Center information display, SYNC, GPS
1510AClimate control
1615A2009: Electronic finish panel (EFP)
2010-2012: Electronic finish panel (EFP), Ambient lightingAmbient lighting module
1720A2009-2010: Global windows, door locks and trunk release (less PEPS)
2011-2012: Global windows
1820ADual heated rear seat module (DHRSM) (battery)
19—N/A
2015ADiagnostic connector
2115AFog lamps
2215APark lamps, License lamps
2315AHigh beam headlamps
2420AHorn
2510ADemand lamps
2610ACluster/heads-up display
2720A2009-2010: Ignition switch, PEPS
2011-2012: Intelligent access (IA)
285A2009-2010: Radio mute, Radio start signal
2011-2012: N/A
295AInstrument panel cluster (run/start)
30—N/A
3110A2009: Auto high beam
2010-2012: Auto high beam controller, Heads-up display
3210ARestraint control module
3310AAdaptive lighting module
345A2009: IVD, Yaw rate sensor, ACCM
2010-2012: AdvanceTrac, Adaptive cruise control module, Electronic power assist steering module
3510A2009: AWD, DRHSM, DFHSM, Park aid (R/S)
2010-2011: AWD, DHRSM, Absolute steering angle switch, Park aid (run/start) module
2012: AWD, DHRSM, Absolute steering angle switch, Park aid (run/start) module, Blind spot information system
365A2009-2010: Passive anti-theft system (PATS) module
2011-2012: N/A
37—N/A
3820AAmplifier (THX or 6 channel)
3920ARadio/Navigation
4020AAmplifier (THX or 2 channel)
4115ADelayed accessory
42—N/A
4310A2009: Heated backlite relay
2010-2012: Rear window defroster relay, Rain sensor
44—N/A
455AWiper relay and module, Blower relay
467.5A2009: Occupant classification sensor (OCS)
2010-2012: Occupant classification sensor (OCS), Electronic finish panel, Climate control

Circuit Breaker and Relay

Assignment of the circuit breaker and relay in the passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeAmpsDescription
47Circuit breaker30ANot Used or Spare
48Relay—Delayed accessory relay

Engine Compartment

Fuse Box Location

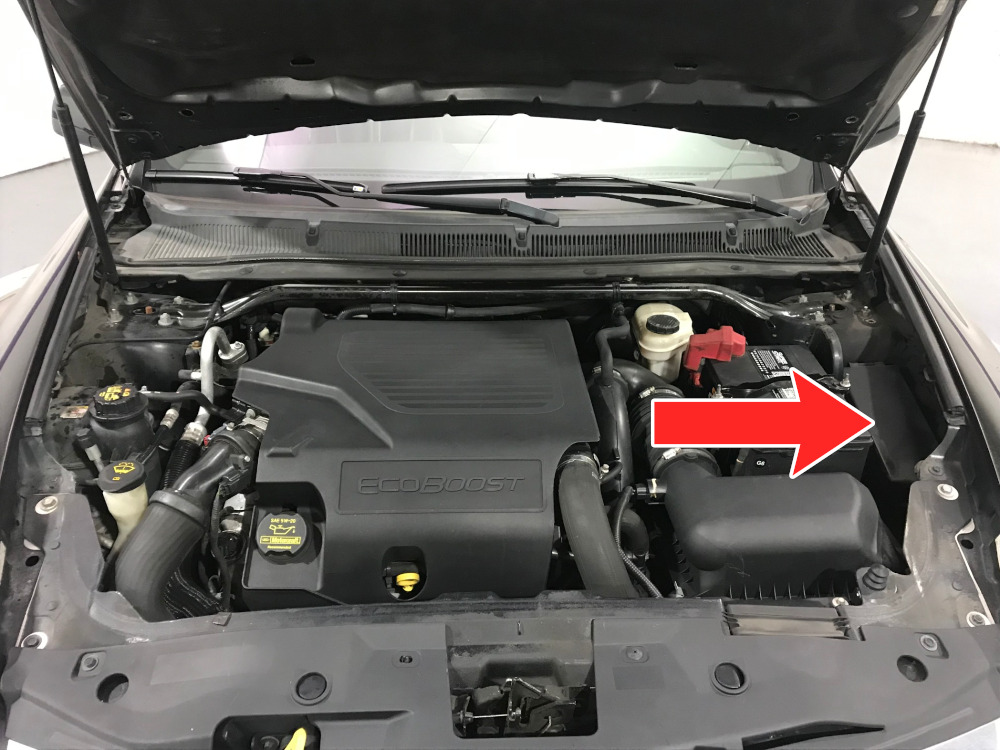

The power distribution box is located in the engine compartment (Driver’s side).

Lincoln MKS 2009-2012 Engine Compartment Fuse Box Location

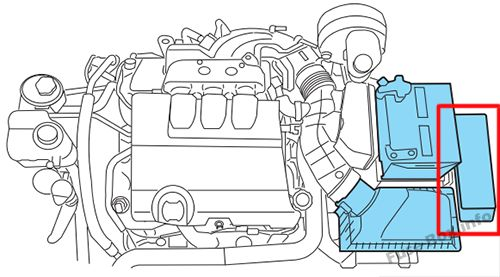

3.7L V6 ENGINE

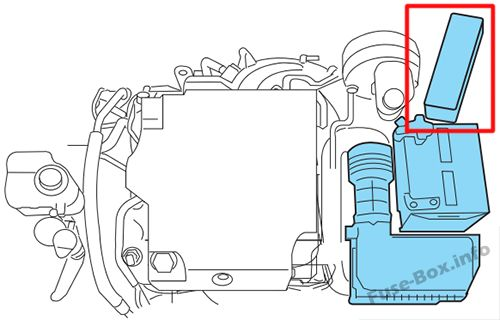

3.5L V6 ECOBOOST ENGINE

Fuse Box Diagram

2009

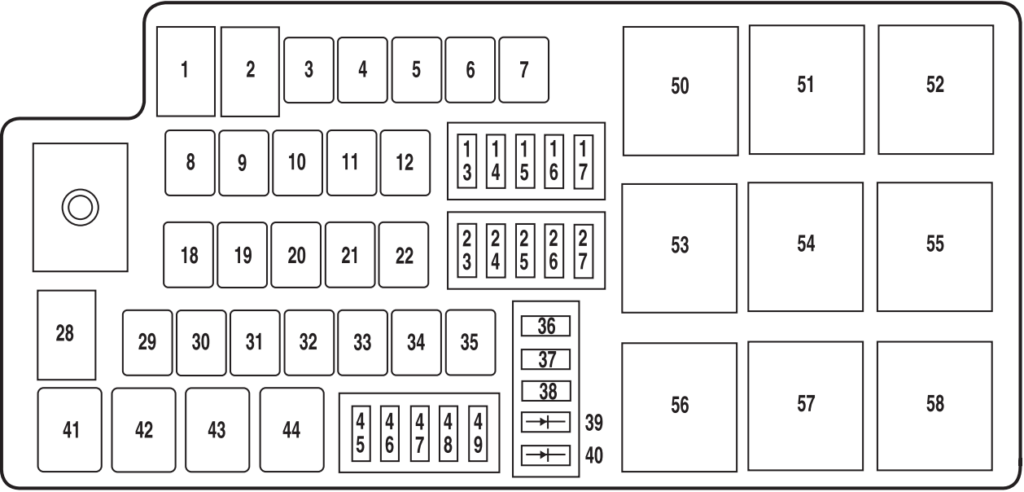

Lincoln MKS 2009 Engine Compartment Fuse Box Diagram
Fuses

Assignment of the fuses in the engine compartment (2009)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeAmpsDescription
1Cartridge fuse80ASPDJB power
2Cartridge fuse80ASPDJB power
3——N/A
4—30AFront wipers
5—30APassenger power seat
6—20ACigar lighter
7——N/A
8—30AMoonroof
9Cartridge fuse40AAnti-lock Brake System (ABS) pump
10Cartridge fuse30AStarter relay
11Cartridge fuse30APowertrain Control Module (PCM) relay
12Cartridge fuse20AABS valve
13Mini fuse15AAdapt cruise
14——N/A
15—15AAuto high beam
16Mini fuse20ALeft HID
17Mini fuse10AAlternator sense
18——N/A
19—20AIP power point
20Cartridge fuse40AHTD Backlite
21Cartridge fuse20AConsole power point
22Cartridge fuse30AFront heated/cooled seats
23Mini fuse7.5APCM Keep alive power, Canister vent
24Mini fuse10AA/C clutch relay
25—20ARight HID
26Mini fuse10ABackup relay
27Mini fuse15AFuel pump
28—60ACooling fan
29—30ALeft rear window
30—30ALeft front window
31——N/A
32Cartridge fuse30ADriver seat module
33Cartridge fuse30APEPS R/S relay
34——N/A
35Cartridge fuse40AFront A/C blower motor
36Mini fuse20ASPDJB R/S
37Mini fuse10APCM R/S
38Mini fuse5ADelayed Accessory
45——N/A
46Mini fuse15AVPWR2, VPWR3
47Mini fuse15APCM VPWR1
48Mini fuse15AVPWR4 Ignition coils
49Mini fuse10AHeated mirrors

Relays and Diodes

Assignment of the relays and diodes in the engine compartment (2009)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeDescription
39DiodeFuel pump diode
40DiodeOTIS diode
41G8VA relayA/C clutch
42G8VA relayFuel pump
43G8VA relayBackup
44G8VA relayAuto high beam
50Full ISO relayPCM relay
51Full ISO relayBlower motor relay
52Full ISO relayStarter relay
53Full ISO relayHeated backlite relay
54Full ISO relayFront wiper relay
55Full ISO relayFog deactivation
56High-current relayOn/start
57Full ISO relayAdapt cruise (stop lamps)
58High-current relayN/A

2010-2012

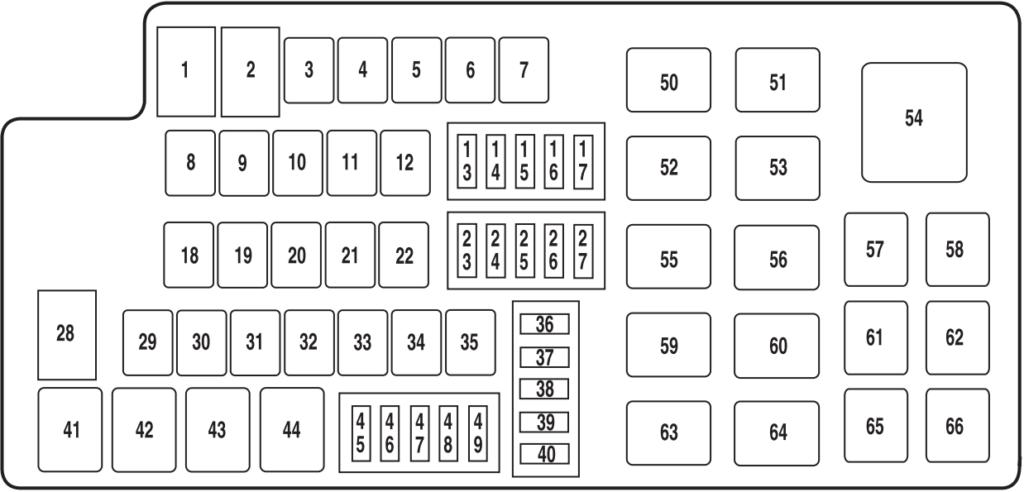

Lincoln MKS 2010-2012 Engine Compartment Fuse Box Diagram
Fuses

Assignment of the fuses in the engine compartment (2010, 2011, 2012)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeAmpsDescription
1Cartridge fuse80APassenger compartment fuse panel power
2Cartridge fuse80APassenger compartment fuse panel power
3——N/A
4Cartridge fuse30AFront wipers
5Cartridge fuse30APassenger power seat
6Cartridge fuse20ACigar lighter
7——N/A
8Cartridge fuse30AMoon roof
9Cartridge fuse40AAnti-lock brake system (ABS) pump
10Cartridge fuse30AStarter relay
11Cartridge fuse30APowertrain control module (PCM) relay
12Cartridge fuse20AABS valve
13Mini fuse15AAdapt cruise
14Mini fuse10ABrake on/off switch
15Mini fuse15AAuto high beam
16Mini fuse20ALeft high intensity discharge (HID) headlamp
17Mini fuse10AAlternator sense
18——N/A
19Cartridge fuse20AInstrument panel power point
20Cartridge fuse2010: 40A
2011-2012: 50A		Rear window defroster
21Cartridge fuse20AConsole power point
22Cartridge fuse30AFront heated/cooled seats
23Mini fuse2010: 7.5A
2011-2012: 10A		PCM Keep alive power, Canister vent
24Mini fuse10AA/C clutch relay
25Mini fuse20ARight HID headlamp
26Mini fuse10ABackup relay
27Mini fuse15AFuel pump
28Cartridge fuse3.7L V6 engine: 60A
3.5L V6 engine: 80A		Cooling fan
29Cartridge fuse30ALeft rear window
30Cartridge fuse30ALeft front window
31——N/A
32Cartridge fuse30ADriver seat module
33Cartridge fuse40A2010: Passive entry/passive start (PEPS) run/start relay
2011-2012: Intelligent access (IA) run/start relay
34——N/A
35Cartridge fuse40AFront A/C blower motor
36Mini fuse20APassenger compartment fuse panel run/start
37Mini fuse10APCM run/start
38Mini fuse5ADelayed accessory
45——N/A
46Mini fuse15AVehicle power 2 (PCM), Vehicle power 3 (PCM)
47Mini fuse2010: 3.7L V6: 15A
3.5L V6: 20A
2011-2012: 20A		PCM Vehicle power 1
48Mini fuse15AVehicle power 4 – Ignition coils
49Mini fuse10AHeated mirrors
54——N/A
57——N/A
58——N/A
59——N/A
60——N/A
61——N/A
62——N/A
65——N/A
66——N/A

Relays and Diodes

Assignment of the relays and diodes in the engine compartment (2010, 2011, 2012)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeDescription
39Diode2010: Fuel pump diode
2011-2012: Fuel pump diode (3.7L V6 engine)
40DiodeOne-touch integrated start (OTIS) diode
41G8VA relayA/C clutch
42G8VA relayFuel pump
43G8VA relayBackup
44G8VA relayAuto high beam
50Half ISO relayBlower motor relay
51Half ISO relay2010: Fog deactivation
2011-2012: N/A
52Half ISO relayStarter relay
53Half ISO relayAdaptive cruise control (stop lamps)
55Half ISO relayWiper relay
56Half ISO relayHBL relay
63Half ISO relayRun/start relay
64Half ISO relayPCM relay
