Lincoln MKS | 2013-2016

Find Lincoln MKS fuse box diagrams for 2013–2016 models with relay assignments, fuse locations, panel diagrams, and complete electrical layout information. This article covers the facelifted Lincoln MKS, available from 2013, and includes fuse box diagrams for Lincoln MKS 2013, 2014, 2015 and 2016, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

Passenger Compartment

Fuse Box Location

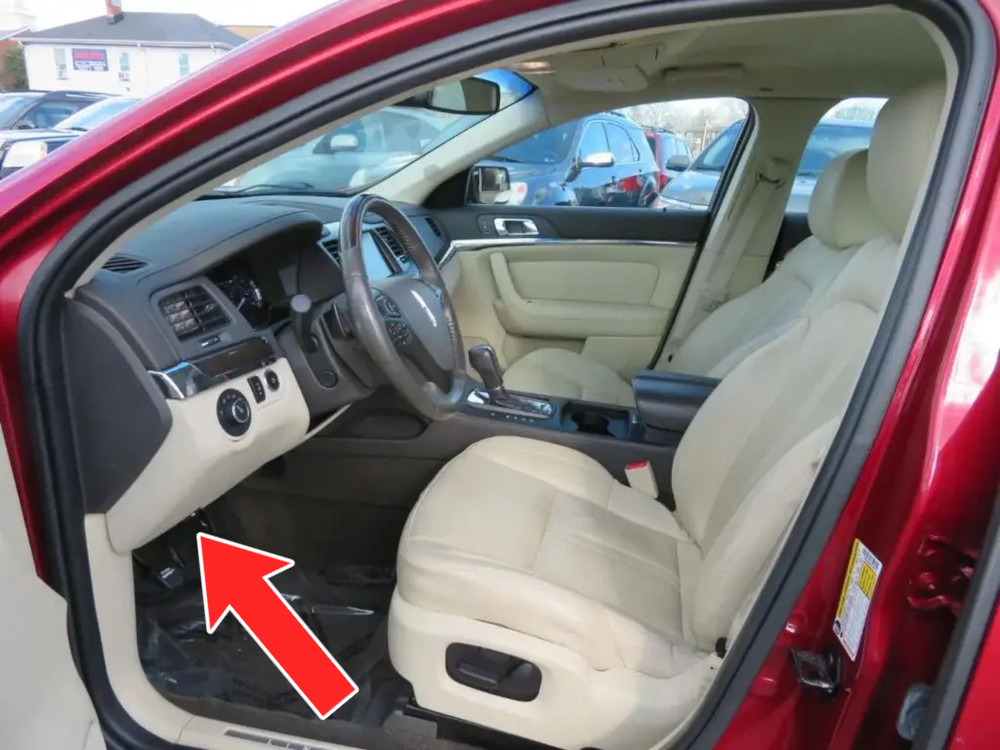

The fuse panel is located under the steering wheel (behind the lid).

Lincoln MKS 2013-2016 Passenger Compartment Fuse Box Location

Fuse Box Diagram

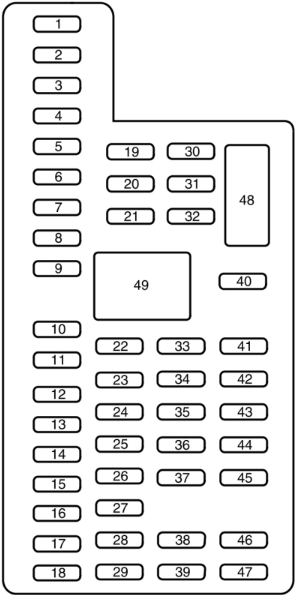

Lincoln MKS 2013-2016 Passenger Compartment Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
130ALeft front and right rear smart window motors
215ADriver seat switch
330ARight front smart window motor
410ADemand lamps battery saver relay
520AAudio amplifier, Active noise control module
6—N/A
77.5ADriver seat module logic, Left front door zone module, Keypad
8—N/A
910ASYNC module, Electronic finish panel, Radio frequency transceiver module
1010ARun accessory relay, Wiper relay, Rain-sense subfuse
1110AIntelligent access module logic, Heads-up display
1215APuddle lamp, Backlighting LED, Interior lighting
1315ARight turn signals
1415ALeft turn signals
1515AStop lamp, Backup lamp
1610ARight front low beam
1710ALeft front low beam
1810AStart button, Keypad illumination, Brake shift interlock, Powertrain control module wake-up, Immobilizer transceiver module
1920AAudio amplifiers
2020AAll lock motor relay and coil, Driver lock motor relay and coil
21—N/A
2220AHorn relay
2315ASteering wheel control module logic, Instrument cluster
2415ASteering wheel control module, Datalink
2515ADecklid release
265APush button start/ignition switch
2720AIntelligent access module power
28—N/A
2920ARadio, Global positioning system module
3015AFront park lamps
31—N/A
3215ASmart window motors, Master window and mirror switch, Rear window power sunshade module, Lock switch illumination
3310ASuspension module
3410AReverse park aid module, Automatic high beam and lane departure module, Rear heated seat module, Blind spot monitor module, Rear video camera
355AMotorized humidity sensor, Heads-up display
3610AHeated steering wheel
37—N/A
3810AMoonroof module and switch
3915AHigh beams
4010ARear park lamps
417.5AOccupant classification sensor, Restraint control module
42—N/A
43—N/A
44—N/A
45—N/A
4610AClimate control module
4715AFog lamp relay

Circuit Breaker

Assignment of the circuit breaker in the passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
4830AFront passenger power window, Rear power windows

Engine Compartment

Fuse Box Location

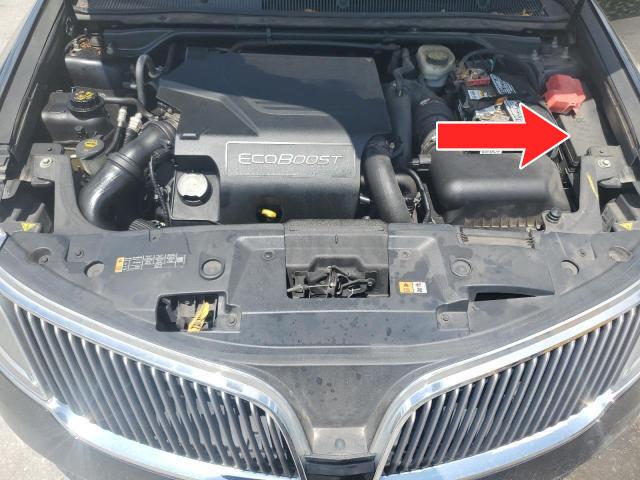

Fuse box (Power Distribution Box) is located in the engine compartment on the driver’s side.

Lincoln MKS 2013-2016 Engine Compartment Fuse Box Location

Fuse Box Diagram

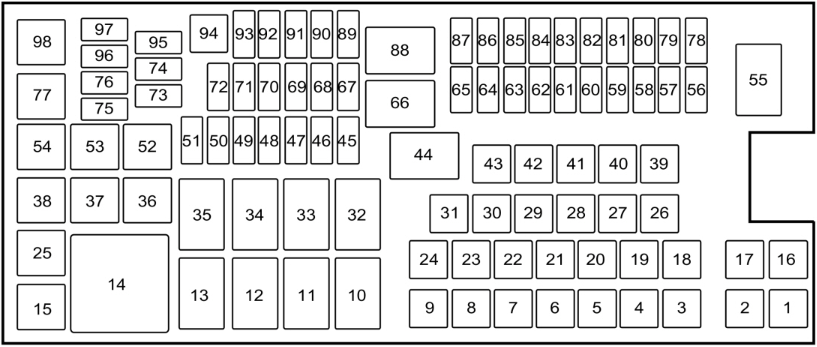

Lincoln MKS 2013-2016 Engine Compartment Fuse Box Diagram

Fuses

Assignment of the fuses in the engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeAmpsDescription
1——N/A
2——N/A
3——N/A
4Cartridge fuse30AWiper motor relay
5Cartridge fuse50AAnti-lock brake system pump
6——N/A
7——N/A
8Cartridge fuse20AMoonroof, Power sunshade
9Cartridge fuse20ASecond row power point
16——N/A
17——N/A
18Cartridge fuse40AFront blower motor relay
19Cartridge fuse30AStarter relay
20Cartridge fuse20AStorage bin power point
21Cartridge fuse20ARear heated seat module
23Cartridge fuse30ADriver power seat, Memory module
24——N/A
26Cartridge fuse40AHeated rear window relay
27Cartridge fuse20ACigar lighter
28Cartridge fuse30AClimate controlled seats
29Cartridge fuse40AElectric fan relay 1
30Cartridge fuse40AElectric fan relay 2
31Cartridge fuse25AElectric fan relay 3
39——N/A
40Cartridge fuse30ALeft front smart window motor
41Cartridge fuse30ALeft rear smart window motor
42Cartridge fuse30APassenger power seat
43Cartridge fuse20AAnti-lock brake system valves
45Mini fuse5ARain sensor
46——N/A
47——N/A
48——N/A
49——N/A
50Mini fuse15AHeated mirrors
51——N/A
56——N/A
57Mini fuse20ALeft high-intensity discharge headlamp
58Mini fuse10AAlternator A-line
59Mini fuse10ABrake on/off switch
60——N/A
61——N/A
62Mini fuse10AA/C clutch relay
63——N/A
64Mini fuse15A2013-2014: N/A
2015-2016: Massage control seats
65Mini fuse30AFuel pump relay, Fuel injectors
67Mini fuse20AOxygen sensor heater, Mass airflow sensor, Variable camshaft timing solenoid valve, Canister vent solenoid, Canister purge solenoid
68Mini fuse20AIgnition coils
69Mini fuse20AVehicle power #1 (powertrain control module)
70Mini fuse15AA/C clutch, Fan control relay coils (1-3), Variable air conditioning compressor, Auxiliary transmission warmup, Turbo charge waste-gate control, Electronic compressor bypass valve, All-wheel drive module, Positive crankcase ventilation heater
71——N/A
72——N/A
73——N/A
74——N/A
75——N/A
76——N/A
78Mini fuse20ARight high-intensity discharge headlamp
79Mini fuse5A2013-2015: Adaptive cruise control module
2016: N/A
80——N/A
81——N/A
82——N/A
83——N/A
84——N/A
85——N/A
86Mini fuse7.5APowertrain control module keep-alive power and relay, Canister vent solenoid
87Mini fuse5ARun/start relay
89Mini fuse5AFront blower relay coil, Electrical power assist steering module
90Mini fuse10APowertrain control module run/start
91Mini fuse10AAdaptive cruise control module
92Mini fuse10AAnti-lock brake system module, Adaptive headlamp module
93Mini fuse5ARear window defroster relay
94Cartridge fuse30APassenger compartment fuse panel run/start
95——N/A
96——N/A
97——N/A

Relays

Assignment of the relays in the engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
10N/A
11Heated rear window relay
12N/A
13Starter motor relay
14Left-hand cooling fan #2 relay
15Fuel pump relay
222013-2014, 2016: N/A
2015: Massage control seats relay
25N/A
322013-2015: N/A
2016: Massage control seat relay
33Right-hand cooling fan relay
34Blower motor relay
35Left-hand cooling fan #1 relay
36N/A
37N/A
38N/A
44N/A
52N/A
53N/A
54N/A
55Wiper relay
66Powertrain control module relay
77N/A
88Run/start relay
982013-2014, 2016: A/C clutch relay
2015: N/A
