View Lincoln MKT fuse box diagrams for 2010–2012 models with detailed relay locations, fuse assignments, panel placement, and electrical system layouts. This article covers the Lincoln MKT before the facelift, available from 2010, and includes fuse box diagrams for Lincoln MKT 2010, 2011 and 2012, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

Passenger Compartment

Fuse Box Diagram

Fuses is located under the dashboard on the driver’s side.

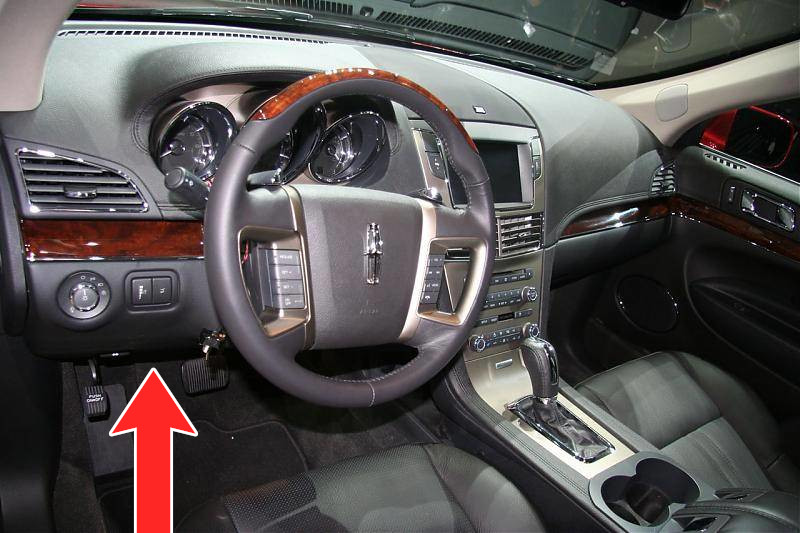

Lincoln MKT 2010-2012 Passenger Compartment Fuse Box Location

Fuse Box Diagram

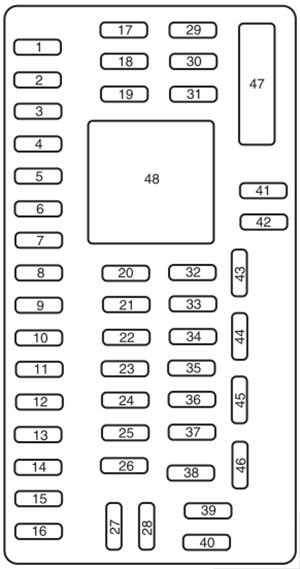

Lincoln MKT 2010-2012 Passenger Compartment Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
130ARight rear smart window
215ARefrigerator
315ADriver seat switch, 2nd row lumbar switches
430ARight front smart window
510ABrake transmission shift interlock, 3rd row power fold module
620ATurn signals
710ALow beam headlamps (left)
810ALow beam headlamps (right)
915AInterior lights, Cargo lamps
1015ABacklighting, Puddle lamps
1110AAll wheel drive (AWD)
127.5AIntelligent access (IA)
135AMemory switches, IA receiver, Exterior mirror switch, Steering column position switch, Driver seat module, Driver door module, Keypad
1410APower liftgate module, SYNC, Rear entertainment
1510AClimate control, Electronic finish panel
1615ANavigation display, ALM, Auxiliary climate control
1720A2010: All power lock motor feeds, Liftgate release
2011: N/A
2012: Global window open
1820AAmplifier
1925AAmplifier
2015AData link connector (OBD-2), 2nd row power fold seat motors
2115AFog lamps
2215APark lamps, License plate lamps, Illuminated liftgate applique
2315AHigh beam headlamps, Auto high beam relay, Fog lamp deactivation relay
2420AHorn
2510ADemand lamps/Interior lamps, 2nd row power fold seats, Powertrain control module (GTDI) wake-up, 3rd row seat relay
2610AInstrument panel cluster, Heads-up display
2720AIgnition Switch, LA
285ARadio mute
295AInstrument panel cluster
305ATransmission shifter
3110ASteering angle sensor, Heads-up display
3210ARestraint control module
3310AAdaptive lighting module
345AFront body run/start feeds
3510ABody module run/start feeds
365A2010: Passive anti-theft system module
2011-2012: N/A
3710APowertrain control module run/start, Fuel relay
3820ATrailer tow park lamps
3920AAudio control module
4020ACigarette lighter
4115ADelayed accessory feeds
42—N/A
4310AAuxiliary blower, Rear wiper, Rain sensor
4410ATrailer tow backup lamps
455AFront wiper, Front blower, Wiper relay
467.5AOccupant classification sensor (OCS), Passenger airbag deactivation indicator (PADI), Front control interface module

Circuit Breaker and Relay

Assignment of the circuit breaker and relay in the passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeAmpsDescription
47Circuit breaker30AN/A (Spare)
48Full ISO relay—Delayed accessory relay

Engine Compartment

Fuse Box Location

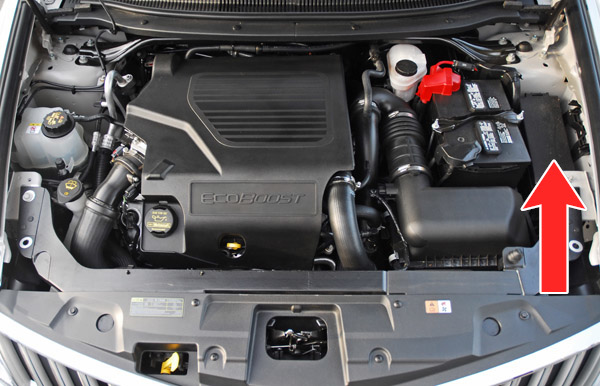

Lincoln MKT 2010-2012 Engine Compartment Fuse Box Location

Fuse Box Diagram

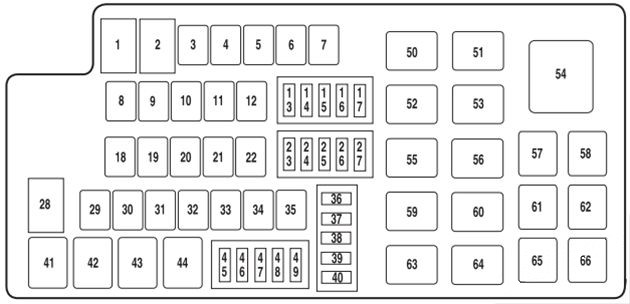

Lincoln MKT 2010-2012 Engine Compartment Fuse Box Diagram

Fuses

Assignment of the fuses in the engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeAmpsDescription
1——N/A
2——N/A
3Cartridge fuse30ATrailer tow brake controller
4Cartridge fuse40AWiper relay (front and rear)
5Cartridge fuse30APassenger power seat
6Cartridge fuse30A110V AC inverter
7Cartridge fuse30ARear climate control seat module
8Cartridge fuse30AFront climate control seat module
9Cartridge fuse40AAnti-lock brake system (ABS) pump
10Cartridge fuse30AStarter
11Cartridge fuse30APowertrain control module (PCM) vehicle power
12Cartridge fuse20AABS valve
13Mini fuse20ARight high intensity discharge (HID) headlamp
14Mini fuse10ABrake on/off (BOO) switch, Adaptive cruise relay
15Mini fuse15AAutomatic high beams, Adaptive cruise control
16Mini fuse20ALeft HID headlamp
17Mini fuse10AAlternator sensor
18Cartridge fuse30A3rd row power seats
19Cartridge fuse20AFront console power point
20Cartridge fuse40ARear defroster, Heated mirrors
21Cartridge fuse20ARear console power point
22Cartridge fuse40ATrailer tow battery charge, Trailer tow stop/turn lamps fuse 45 power
23Mini fuse10APCM keep alive power, Canister vent, Relay coil
24Mini fuse10AA/C clutch
25Mini fuse20ARear power point
26Mini fuse15ABackup lamps
27Mini fuse15AFuel relay (Fuel pump driver module, Fuel pump)
28Cartridge fuse80ACooling fan
29Cartridge fuse30ALeft rear smart window, Panoramic roof module, Power sunshade module
30Cartridge fuse30ALeft front smart window
31Cartridge fuse40AAuxiliary blower motor
32Cartridge fuse30A2010: Driver seat motor
2011-2012: Driver seat motor, Memory motor power
33Cartridge fuse30ARun/start relay
34Cartridge fuse30APower liftgate
35Cartridge fuse40AFront A/C blower
36Mini fuse25ARear wiper module (secondary fuse)
37Mini fuse15AWasher pump
38Mini fuse10ATrailer tow backup lamps
45Mini fuse20ATrailer tow stop/turn lamps (secondary fuse)
46Mini fuse15APCM vehicle power #2, Vehicle power #3
47Mini fuse20APCM vehicle power #1
48Mini fuse15APCM vehicle power #4 (coil on plugs)
49Mini fuse10AHeated mirrors (secondary fuse)
57——N/A
58——N/A

Relays and Diodes

Assignment of the relays and diodes in the engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeDescription
39DiodeFuel pump motor diode
40DiodeOne touch integrated start diode
41G8VA relayTrailer tow park lamp
42G8VA relayTrailer tow stop/turn lamp (left)
43G8VA relayTrailer tow stop/turn lamp (right)
44G8VA relayBackup lamps relay
50HC micro relayBlower motor
51HC micro relayFog lamp deactivation
52HC micro relayStarter
53HC micro relayAdaptive cruise control
54HC micro relay2010: N/A
2011-2012: 3rd row power seats
55HC micro relay2010: Wipers
2011-2012: Wipers (front)
56HC micro relayRear window defroster, Heated mirrors
59HC micro relayAuxiliary blower motor
60HC micro relayTrailer tow battery charge
61G8VA relayRefrigerator
62G8VA relayAutomatic high beams
63HC micro relayRun/start
64HC micro relayPCM
65G8VA relayA/C clutch
66G8VA relayFuel pump
