Looking for Lincoln MKZ Hybrid fuse box diagrams ? This article covers the first-generation Lincoln MKZ Hybrid , available from 2011 , and includes fuse box diagrams for Lincoln MKZ Hybrid 2011 and 2012 , along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

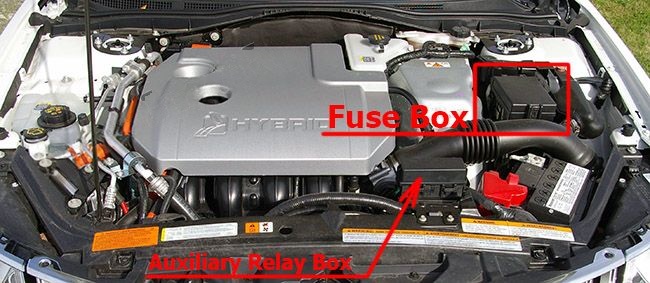

There is two fuse boxes in the engine compartment: The power distribution box is located on the driver’s side and the auxiliary relay box is located in front of the radiator.

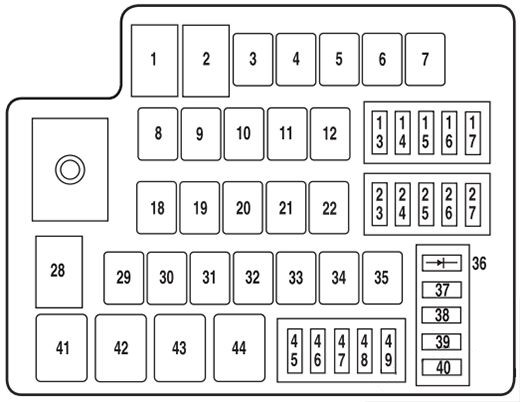

Assignment of the fuses in the Engine compartment main fuse box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Amps Description 1 Cartridge Fuse 50 A Electronic power assist steering B+ 2 Cartridge Fuse 50 A Electronic power assist steering B+ 3 Cartridge Fuse 40 A Powertrain control module (aux relay 5 power) 4 N/A N/A N/A 5 N/A N/A N/A 6 Cartridge Fuse 40 A Rear defrost (aux relay 4 power) 7 Cartridge Fuse 40 A Vacuum pump (aux relay 6 power) 8 Cartridge Fuse 50 A Brake system controller pump 9 Cartridge Fuse 20 A Wiper washer 10 Cartridge Fuse 30 A Brake system controller valves 11 N/A N/A N/A 12 Cartridge Fuse 30 A Heated-cooled seats 13 Mini Fuse 15 A Motor electronics coolant/heater pump (relay 42 & 44 power) 14 N/A N/A N/A 15 N/A N/A N/A 16 N/A N/A N/A 17 Mini Fuse 10 A HEV high voltage battery module 18 N/A N/A N/A 19 N/A N/A N/A 20 Cartridge Fuse 20 A THX Radio 21 Cartridge Fuse 20 A THX Radio 22 Cartridge Fuse 20 A Console power point 23 Mini Fuse 10 A Powertrain control module / Transmission control module keep-alive power, Canister vent 24 N/A N/A N/A 25 N/A N/A N/A 26 Mini Fuse 15 A Left headlamp (aux relay 1 power) 27 Mini Fuse 15 A Right headlamp (aux relay 2 power) 28 Cartridge Fuse 60 A Cooling fan motor 29 Cartridge Fuse 20 A Front power point 30 Cartridge Fuse 30 A Fuel relay (relay 43 power) 31 Cartridge Fuse 30 A Passenger power seat 32 Cartridge Fuse 30 A Driver power seat 33 Cartridge Fuse 20 A Moon roof 34 N/A N/A N/A 35 Cartridge Fuse 40 A Front A/C blower motor (aux relay 3 power) 37 Mini Fuse 5 A Vacuum pump monitoring 38 Mini Fuse 10 A Heated side mirrors 39 Mini Fuse 10 A Transmission control module 40 Mini Fuse 10 A Powertrain control module 45 Mini Fuse 15 A Injectors 46 Mini Fuse 15 A Coil on plugs 47 Mini Fuse 10 A Powertrain control module (general): Heater pump, Motor electronics coolant pump relay coils, DC/DC converter, Back-up lamps, Brake controller 48 Mini Fuse 20 A HEV high voltage battery module, Fuel pump relay 49 Mini Fuse 15 A Powertrain control module (emissions related)
This content requires JavaScript and a valid membership to view.
Assignment of the relays and diodes in the Engine compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Amps Description 36 Diode 1 A Fuel pump 41 Relay (G8VA) N/A Backup lamps 42 Relay (G8VA) N/A Heater pump 43 Relay (G8VA) N/A Fuel pump 44 Relay (G8VA) N/A Motor electronics coolant pump
This content requires JavaScript and a valid membership to view.

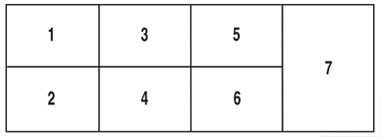

Assignment of the relays in the Engine compartment auxiliary relay box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Description 1 High current micro Left headlamp 2 High current micro Right headlamp 3 High current micro Blower motor 4 High current micro Rear window defogger 5 High current micro Powertrain control module 6 High current micro Vacuum pump cut-off 7 Solid state Vacuum pump
This content requires JavaScript and a valid membership to view.

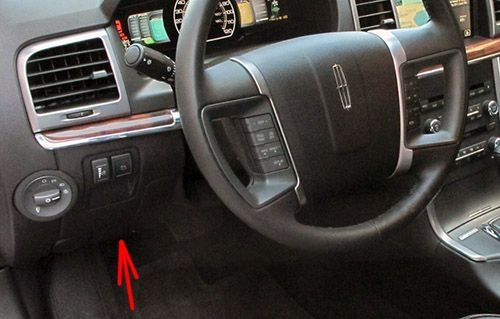

The fuse panel is located under the steering wheel by the brake pedal. Remove the lid to access the fuses.

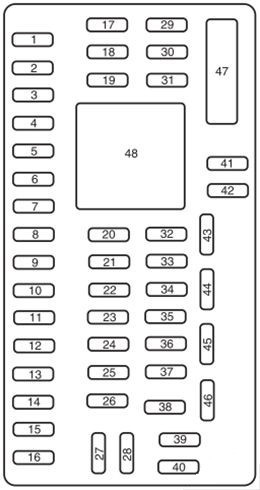

Assignment of the fuses in the Passenger compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 1 30A Driver smart window motor 2 15A Brake on/off switch, Center high-mounted stop lamp 3 15A HEV battery fan 4 30A Passenger front smart window motor 5 10A Keypad illumination, Brake shift interlock 6 20A Turn signal lamps 7 10A Low- beam headlamps (left) 8 10A Low* beam headlamps (right) 9 15A Courtesy lights/Illuminated scuff plate 10 15A Backlighting, Puddle lamps 11 — Not used 12 7.5A Memory modules, Memory seat/mirrors switches 13 5A SYNC® module 14 10A Electronic finish panel (EFP) radio and climate control buttons module, Navigation display, Center information display, GPS module, Ambient lighting 15 10A Climate control 16 15A Not used (spare) 17 20A Door locks, Trunk release 18 20A Heated seat module 19 25A Not used (spare) 20 15A On-Board Diagnostic connector 21 15A Fog lamps 22 15A Front sidemarker lamps, Park lamps, License plate lamp 23 15A High beam headlamps 24 20A Horn 25 10A Demand lamps/power saver relay 26 10A Instrument cluster battery power 27 20A Ignition switch 28 5A Radio crank sense circuit 29 5A Instrument cluster ignition power 30 5A Not used (spare) 31 10A Not used (spare) 32 10A Restraint control module 33 10A Not used (spare) 34 5A Not used (spare) 35 10A Rear park assist, Blind spot information system, Rearview camera 36 5A Passive anti-theft sensor (PATS) transceiver 37 10A Humidity sensor fan 38 20A Subwoofer amplifier 39 20A Radio 40 20A Not used (spare) 41 15A Automatic dimming mirror, Moon roof, Compass, Front windows 42 10A Electronic stability control, Adaptive headlamps 43 10A Rain sensor 44 10A Fuel diode/Pow r ertrain control module 45 5A Heated backlight and blower relay coil, Wiper washer 46 7.5A Occupant classification sensor (OCS) module, Passenger airbag off lamp
This content requires JavaScript and a valid membership to view.
Assignment of the relays and circuit breakers in the Passenger compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Amps Description 47 Circuit Breaker 30A Rear windows 48 Relay – Delayed accessory relay
This content requires JavaScript and a valid membership to view.
