Lincoln MKZ Hybrid (2013-2016) Fuse Box Diagrams and Locations

Looking for Lincoln MKZ Hybrid fuse box diagrams? This article covers the second-generation Lincoln MKZ Hybrid before the facelift, available from 2013, and includes fuse box diagrams for Lincoln MKZ Hybrid 2013, 2014, 2015 and 2016, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

What’s Included

Engine Compartment (Top)

Fuse Box Location

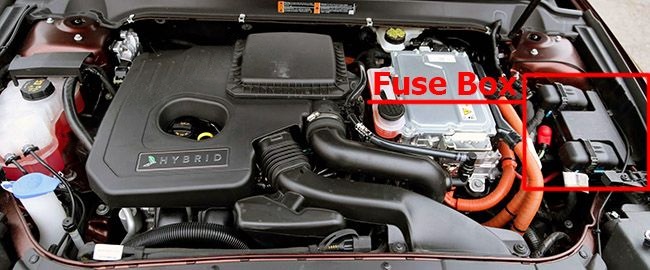

The fuse box is located in the engine compartment on the driver’s side.

Fuse Box Diagram

Fuses

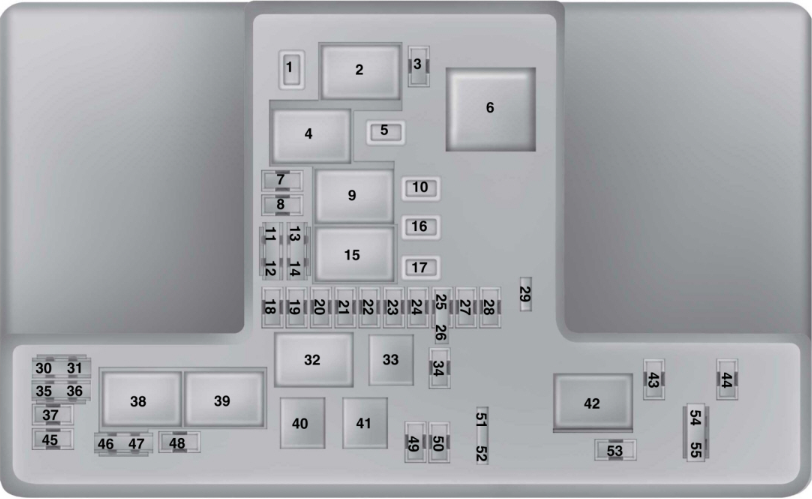

Assignment of the fuses in the engine compartment (Top)

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
1	25 A	2013-2014: Not used (spare) 2015-2016: Wiper Motor 2
3	15 A	Rain sensor
5	20 A	Power point 3 – back of console
7	20 A	Powertrain control module – vehicle power 1
8	20 A	Powertrain control module – vehicle power 2
10	20 A	Power point 1 – driver front
11	15 A	Powertrain control module – vehicle power 4
12	15 A	Powertrain control module – vehicle power 3
13	10 A	2013-2014: Not used (spare) 2015: Powertrain control module vehicle power 5 2016: N/A
14	10 A	2013-2014: Not used (spare) 2015: Powertrain control module vehicle power 6 2016: N/A
16	20 A	Power point 2 – console
17	20 A	2013-2014: N/A 2015-2016: Transmission oil pump
18	10 A	Powertrain and hybrid powertrain control module – keep alive power
19	10 A	Run/start electronic power assist steering
20	10 A	Run/start lighting
21	15 A	2013-2015: Run/start hybrid powertrain control module 2016: Run/start transmission switch, HEV inverter
22	N/A	N/A
23	15 A	Run/start: blind spot information system, rear view camera, adaptive cruise control, heads-up display, shifter
24	10 A	2013-2014: N/A 2015-2016: Run/Start 7 or PHEV transmission oil run/start
25	10 A	Run/start anti-lock brake system
26	10 A	Run/start powertrain control module
27	2015: 15 A 2016: 10 A	2013-2014: N/A 2015-2016: PHEV fuel door solenoid
28	N/A	N/A
29	15 A	Hybrid content vehicle power 5
30	N/A	N/A
31	N/A	N/A
34	10 A	2013-2014: N/A 2015: Electronic steering column lock 2016: N/A
35	15 A	2013-2014: Not used (spare) 2015-2016: PHEV charger fan
36	15 A	2013-2014: Not used (spare) 2015-2016: HEV battery electronic control module fan
37	5 A	2013-2015: N/A 2016: Remote CD
43	N/A	N/A
44	5 A	2013-2014: N/A 2015: Heated washer nozzle 2016: N/A
45	5 A	Vacuum pump monitor
46	10 A	2013-2014: Not used (spare) 2015-2016: Alt Sen or Charge port light
47	10 A	Brake on/off switch
48	20 A	Horn
49	5 A	2013-2014: Not used (spare) 2015-2016: (MAF)Air flow monitor
50	N/A	N/A
51	15 A	Hybrid content vehicle power 1
52	15 A	Hybrid content vehicle power 2
53	10 A	Power seats
54	10 A	2013-2015: Hybrid content vehicle power 4 2016: Hybrid content vehicle power 3
55	10 A	2013-2015: Hybrid content vehicle power 3 2016: Hybrid content vehicle power 4

Relays

Assignment of the relays in the engine compartment (Top)

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
2	N/A
4	Blower motor relay
6	N/A
9	Powertrain control module relay
15	Run/start relay
32	2013-2014: Cooling fan relay (Hybrid) 2015: N/A 2016: HEV/PHEV pulse width modulated fan relay
33	N/A
38	Vacuum pump #1 relay
39	Vacuum pump #2 relay
40	Fuel pump relay
41	Horn relay
42	N/A

Engine Compartment (Bottom)

Fuse Box Location

There are fuses located under the top fuse box.

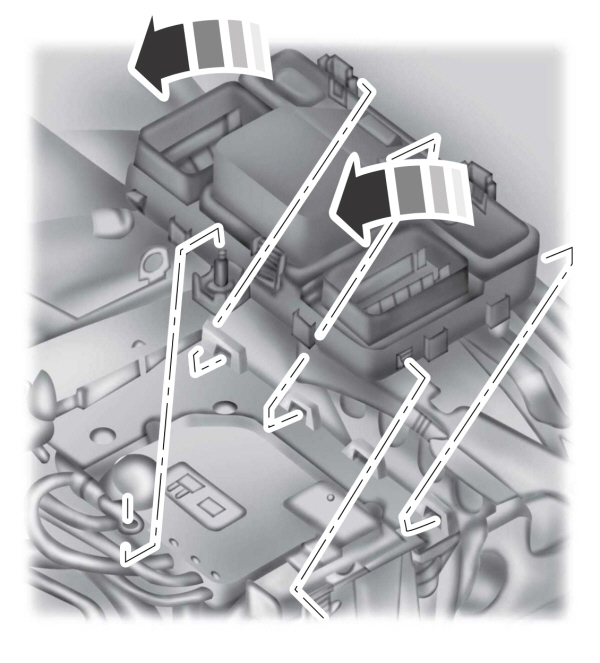

Release the two latches, located on both sides of the fuse panel.
Raise the inboard side of the fuse panel from the cradle.
Move the fuse panel toward the center of the engine compartment.
Pivot the outboard side of the fuse panel to access the bottom side.

Fuse Box Diagram

Fuses

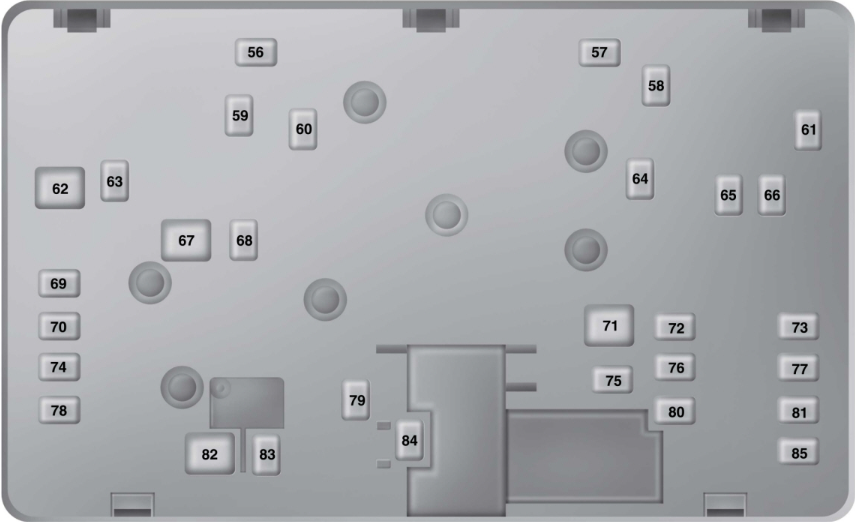

Assignment of the relays in the engine compartment (Bottom)

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
56	30 A	Fuel pump
57	N/A	N/A
58	N/A	N/A
59	40 A	Vacuum pump relay
60	40 A	(PWM) Pulse width modulated fan
61	40 A	2013-2014, 2016: N/A 2015: Left side windshield defroster
62	50 A	Body control module 1
63	N/A	N/A
64	40 A	2013-2014: N/A 2015-2016: PHEV charger
65	20 A	Front heated seat
66	40 A	2013-2014, 2016: N/A 2015: Right side windshield defroster
67	50 A	Body control module 2
68	40 A	Heated rear window
69	30 A	Anti-lock brake system valves
70	30 A	Passenger seat
71	N/A	N/A
72	30 A	Panoramic roof #1
73	20 A	Rear climate controlled seats
74	30 A	Driver seat module
75	N/A	N/A
76	20 A	2013-2014: iShifter 2015-2016: iShifter, Transmission oil pump
77	30 A	Front climate controlled seats
78	40 A	2013-2015: N/A 2016: Trailer tow module
79	40 A	Blower motor
80	30 A	Power trunk/decklid
81	40 A	Inverter
82	60 A	2013-2014, 2016: Anti-lock brake system pump 2015: Not used
83	25 A	Wiper motor #1
84	N/A	N/A
85	30 A	Panoramic roof #2

Passenger Compartment

Fuse Box Location

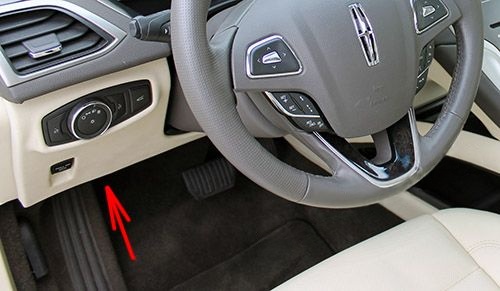

The fuse box is located under the instrument panel to the left of the steering wheel.

Fuse Box Diagram

Fuses

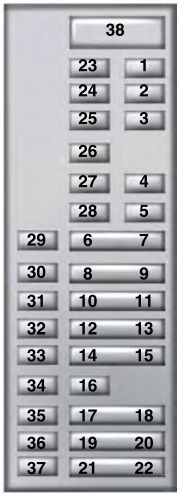

Assignment of the fuses in the passenger compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
1	10 A	Lighting (ambient, glove box, vanity, dome, trunk)
2	7.5 A	Memory seats, Lumbar, Power mirror
3	20 A	Driver door unlock
4	5 A	Not used (spare)
5	20 A	Subwoofer amplifier, THX amplifier
6	10 A	2013-2014: Not used (spare) 2015-2016: Heated seat relay coil
7	10 A	Not used (spare)
8	10 A	Not used (spare)
9	10 A	Not used (spare)
10	5 A	2013-2015: Power trunk logic, Keypad 2016: Power trunk logic, Keypad, Cellphone passport module
11	5 A	Not used (spare)
12	7.5 A	Climate control, Gear shift
13	7.5 A	Steering wheel column, Instrument cluster / Cluster, Datalink logic
14	10 A	Hybrid battery control module
15	10 A	Datalink/Gateway module
16	15 A	Trunk/Decklid/Liftglass release, Child lock
17	5 A	2013-2015: Not used (spare) 2016: Tracking and blocking module
18	5 A	Ignition, Push button start/stop
19	2013-2015: 5 A 2016: 7.5 A	Passenger airbag disabled indicator, Transmission range
20	2013-2015: 5 A 2016: 7.5 A	Adaptive headlamps
21	5 A	2013-2014: Humidity and in-car temperature, Rear climate seats 2015: Humidity and in-car temperature, Blind spot, Rear video camera, Adaptive cruise control 2016: Humidity and in-car temperature
22	5 A	Occupant classification sensor
23	10 A	2013-2014: Delayed accessory (power inverter logic, moonroof logic) 2015-2016: Delayed accessory (power inverter, moonroof, all smart window, driver window switch pack)
24	2013-2015: 30 A 2016: 20 A	Central lock/unlock
25	2013-2014, 2016: 30 A 2015: 20 A	Driver door (window, mirror)
26	30 A	Front passenger door (window, mirror)
27	30 A	Moonroof
28	20 A	THX amplifier
29	30 A	Rear driver side door (window)
30	30 A	Rear passenger side door (window)
31	15 A	Not used (spare)
32	10 A	GPS, Voice control, Display, Adaptive cruise control, Radio frequency receiver
33	20 A	Radio, Active noise control
34	30 A	Run/start (fuse #19, 20, 21, 22, 35, 36, 37, circuit breaker)
35	5 A	Restraints control module
36	15 A	2013-2014: Continuous control damping suspension, Auto-dimming rear view mirror, Lane keeping system module 2015: Auto-dimming rear view mirror, Auto high beam, Heated seat module, All-wheel drive, CCD, Lane keeping system 2016: Auto-dimming rear view mirror
37	15 A	2013-2014: Heated steering wheel 2015: Not used (spare) 2016: All wheel drive, Heated steering wheel
38	30 A	2013-2015: Rear window shade 2016: Not used (spare)

FAQ

Where are the cigar lighter / power outlet fuses in the Lincoln MKZ Hybrid?

They are located in the engine compartment fuse box:
#5 – Power point 3 (back of console)
#10 – Power point 1 (driver front)
#16 – Power point 2 (console)**
