Lincoln MKZ Hybrid (2017-2020) Fuse Box Diagrams and Locations

Looking for Lincoln MKZ Hybrid fuse box diagrams? This article covers the facelifted second-generation Lincoln MKZ Hybrid, available from 2017, and includes fuse box diagrams for Lincoln MKZ Hybrid 2017, 2018, 2019 and 2020, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

What’s Included

Engine Compartment (Top)

Fuse Box Location

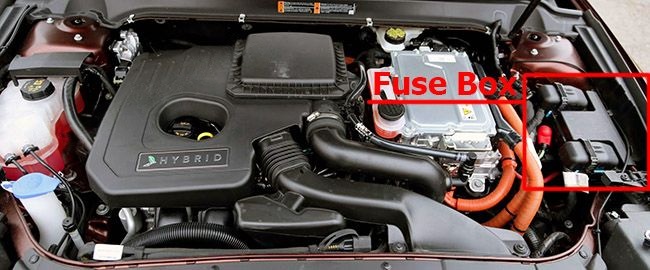

The power distribution box is located in the engine compartment on the driver’s side.

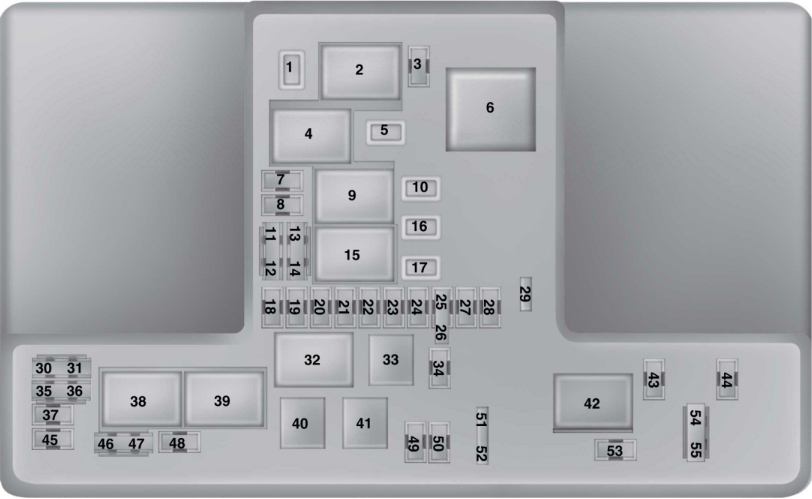

Fuse Box Diagram

Fuses

Assignment of the fuses in the engine compartment (Top)

Fuse Data

Full access is available to registered users — log in or register.

No.	Type	Amps	Description
1	M Case	25 A	Wiper Motor 2
3	Micro 2	15 A	Rain sensor
5	M Case	20 A	Power point 3 – back of console
7	Micro 2	20 A	Powertrain control module – vehicle power 1. Powertrain control module power.
8	Micro 2	20 A	Powertrain control module – vehicle power 2. Emissions components.
10	M Case	20 A	Power point 1 – driver front
11	Micro 3	15 A	Powertrain control module – vehicle power 4. Ignition coils.
12	Micro 3	15 A	Powertrain control module – vehicle power 3. Non-emissions components.
13	Micro 2	2017: 15 A 2018-2020: 10 A	Fuel door mechanism
14	Micro 2	10 A	Not used (spare)
16	M Case	20 A	Power point 2 – console
17	M Case	20 A	2017: N/A 2018-2020: Power point 4
18	Micro 2	10 A	Powertrain and hybrid powertrain control module – keep alive power
19	Micro 2	10 A	Run/start electronic power assist steering
20	Micro 2	10 A	Run/start lighting. Adaptive cruise control.
21	Micro 2	15 A	Run/start transmission switch. HEV inverter.
22	Micro 2	5 A	USB smart charger
23	Micro 2	15 A	Run/start: blind spot information system, rear view camera, heads-up display, shifter.
24	N/A	N/A	N/A
25	Micro 3	10 A	Run/start anti-lock brake system
26	Micro 3	10 A	Run/start powertrain control module
27	Micro 2	10 A	2017: N/A 2018-2020: Heater control valve (HCV) power 5
28	Micro 2	20 A	Right hand side headlamp ballast
29	Micro 2	20 A	Left hand side headlamp ballast
30	N/A	N/A	N/A
31	N/A	N/A	N/A
34	N/A	N/A	N/A
35	Micro 2	15 A	Not used (spare)
36	Micro 3	15 A	Hybrid electric vehicle (HEV) battery electronic control module fan
37	N/A	N/A	N/A
43	Micro 2	10 A	Fuel door motor
44	N/A	N/A	N/A
45	Micro 2	5 A	Vacuum pump monitor
46	Micro 2	10 A	Not used (spare)
47	Micro 3	10 A	Brake on/off switch
48	Micro 2	20 A	Horn
49	Micro 2	5 A	Air flow monitor
50	Micro 2	15 A	Battery energy control module
51	Micro 3	15 A	Hybrid content vehicle power 1. Hybrid powertrain control module.
52	Micro 3	15 A	Hybrid content vehicle power 2. Battery energy control module.
53	Micro 2	10 A	Multi-contour seats
54	Micro 3	10 A	Hybrid content vehicle power 3. Coolant pump.
55	Micro 3	10 A	Hybrid content vehicle power 4. Air conditioning compressor.

Relays

Assignment of the relays in the engine compartment (Top)

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
2	N/A
4	Blower motor relay
6	N/A
9	Powertrain control module relay
15	Run/start relay
32	(HEV/PHEV) Hybrid electric vehicle pulse width modulated fan relay
33	N/A
38	Vacuum pump #1 relay
39	Vacuum pump #2 relay
40	Fuel pump relay
41	Horn relay
42	N/A

Engine Compartment (Bottom)

Fuse Box Location

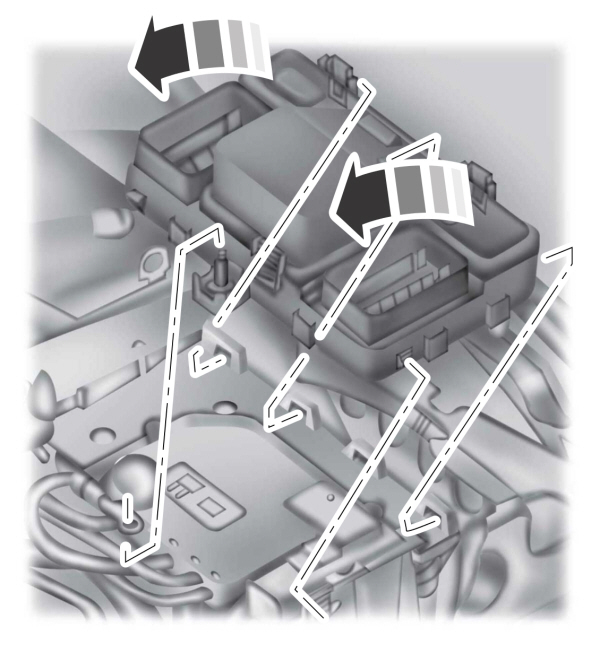

There are fuses located at the bottom of the main fuse box in the engine compartment.

Release the two latches, located on both sides of the fusebox.
Raise the inboard side of the fusebox from the cradle.
Move the fusebox toward the center of the engine compartment.
Pivot the outboard side of the fusebox to access the bottom side.

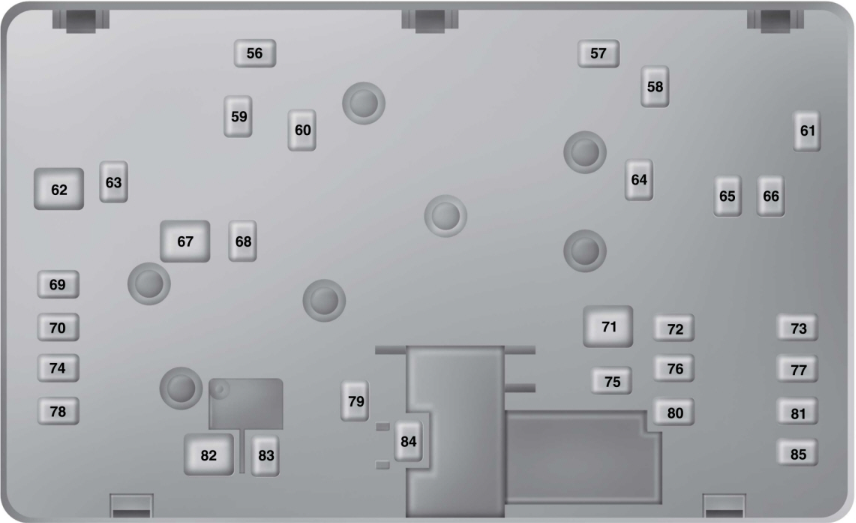

Fuse Box Diagram

Fuses

Assignment of the fuses in the engine compartment (Bottom)

Fuse Data

Full access is available to registered users — log in or register.

No.	Type	Amps	Description
56	M Case	30 A	Fuel pump feed
57	N/A	N/A	N/A
58	N/A	N/A	N/A
59	J Case	40 A	Vacuum pump relay
60	M Case	40 A	Pulse width modulated fan
61	N/A	N/A	N/A
62	J Case	50 A	Body control module 1
63	N/A	N/A	N/A
64	N/A	N/A	N/A
65	M Case	20 A	Front heated seat
66	J Case	15 A	Not used (spare)
67	J Case	50 A	Body control module 2
68	M Case	40 A	Heated rear window
69	M Case	30 A	Anti-lock brake system valves
70	M Case	30 A	Passenger seat
71	M Case	50 A	Not used (spare)
72	M Case	30 A	Moonroof / Panoramic roof #1
73	J Case	20 A	2017: Rear climate controlled seats 2018-2020: Not used (spare)
74	M Case	30 A	Driver seat module
75	N/A	N/A	N/A
76	M Case	20 A	e-Shifter
77	M Case	30 A	Front climate controlled seats
78	N/A	N/A	N/A
79	J Case	40 A	Blower motor
80	M Case	30 A	Power decklid
81	M Case	40 A	Inverter
82	J Case	60 A	Anti-lock brake system pump
83	M Case	25 A	Wiper motor #1
84	N/A	N/A	N/A
85	M Case	30 A	Panoramic roof #2

Passenger Compartment

Fuse Box Location

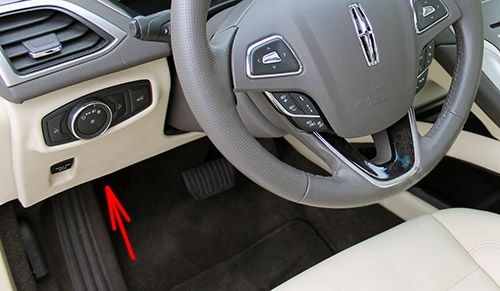

The fuse panel is located under the steering wheel.

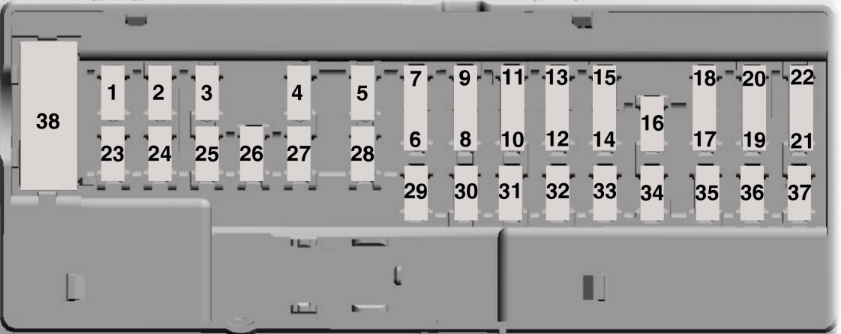

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Type	Amps	Description
1	Micro 2	10 A	2017-2018: Lighting (ambient, glove box, vanity, dome, trunk) 2019-2020: N/A
2	Micro 2	7.5 A	Lumbar
3	Micro 2	20 A	Driver door unlock
4	Micro 2	5 A	Not used (spare)
5	Micro 2	20 A	Subwoofer amplifier
6	Micro 3	10 A	Not used (spare)
7	Micro 3	10 A	Not used (spare)
8	Micro 3	10 A	Not used (spare)
9	Micro 3	10 A	2017: Rear seat entertainment module 2018-2020: Not used (spare)
10	Micro 3	5 A	Power trunk logic. Keypad. Cellphone passport module.
11	Micro 3	5 A	Not used (spare)
12	Micro 3	2017: 5 A 2018-2020: 7.5 A	Climate control. Gear shift.
13	Micro 3	7.5 A	Steering wheel column. Instrument cluster. Datalink logic.
14	Micro 3	10 A	Extended power module.
15	Micro 3	10 A	Datalink/Gateway module.
16	Micro 2	15 A	2017: Decklid release. Child lock. 2018-2020: Decklid release.
17	Micro 3	5 A	Not used (spare)
18	Micro 3	5 A	Push button start/stop.
19	Micro 3	7.5 A	Extended power module.
20	Micro 3	7.5 A	Adaptive headlamps.
21	Micro 3	5 A	Humidity and in-car temperature.
22	Micro 3	5 A	2017-2019: Pedestrian sounder (spare). 2020: Not used (spare).
23	Micro 2	10 A	Delayed accessory (power inverter, moonroof, all smart window, driver window switch pack). Rear sunshade. Panoramic roof.
24	Micro 2	20 A	Central lock/unlock.
25	Micro 2	30 A	Driver door (window, mirror).
26	Micro 2	30 A	Front passenger door (window, mirror).
27	Micro 2	30 A	Moonroof.
28	Micro 2	20 A	Amplifier.
29	Micro 2	30 A	Rear driver side door (window).
30	Micro 2	30 A	Rear passenger side door (window).
31	Micro 2	15 A	Not used (spare)
32	Micro 2	10 A	Voice control. Display. Radio frequency receiver.
33	Micro 2	20 A	Radio. Active noise control. CD changer.
34	Micro 2	30 A	Run/start (fuse #19, 20, 21, 22, 35, 36, 37, circuit breaker).
35	Micro 2	5 A	Not used (spare)
36	Micro 2	15 A	Auto-dimming rear view mirror. Heated rear seats. Continuous control damping suspension module.
37	Micro 2	20 A	Heated steering wheel.
38	Circuit Breaker	30 A	Not used (spare)

FAQ

Where are the cigar lighter / power outlet fuses in the Lincoln MKZ Hybrid?

They are located in the engine compartment fuse box:
#5 – Power point (back of console)
#10 – Power point (driver front)
#16 – Power point (console or rear)
#17 – Power point 4 (2018–2020)
