Lincoln Nautilus (2019-2023)

Looking for Lincoln Nautilus fuse box diagrams? This article covers the first-generation Lincoln Nautilus, available from 2019 to 2023, and includes fuse box diagrams for Lincoln Nautilus 2019, 2020, 2021, 2022 and 2023, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

Engine Compartment (Top)

Fuse Box Location

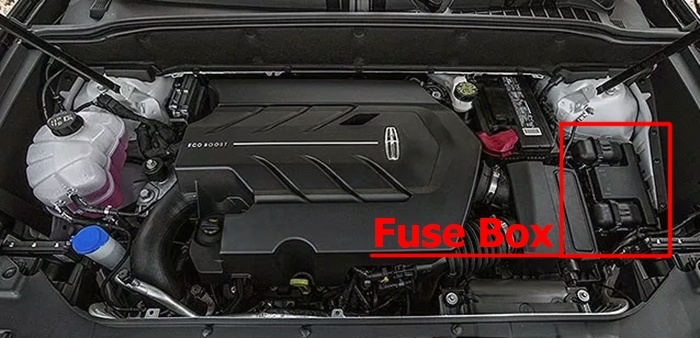

The power distribution box is located in the engine compartment (Driver’s side).

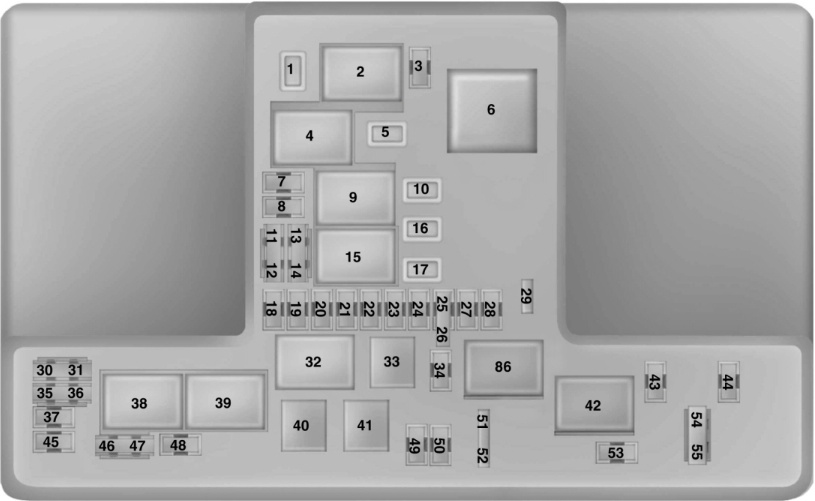

Fuse Box Diagram

Fuses

Assignment of the fuses in the engine compartment fuse box (Top)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
130 ASecond row power seat
315 ARear wiper / Rear window wiper, Rain sensor, Rear wash relay coil
520 A2019-2020: Power point 3 – back of console
2021-2023: N/A
720 APowertrain control module – vehicle power 1
820 A2019-2020: Powertrain control module – vehicle power 2
2021-2023: Powertrain control module – vehicle power 2, Canister vent, Vapor blocking valve, Heated oxygen post
1020 APower point 5 / Power outlet 5 – main bin
1115 APowertrain control module – vehicle power 4
1215 APowertrain control module – vehicle power 3
13N/AN/A
14N/AN/A
1620 APower point 2 – console bin/back of console
1720 APower point 4 / Power outlet 4 – luggage compartment
1820 A2019: Right High Intensity Discharge headlamp
2020-2023: N/A
1910 ARun-start electronic power assist steering
2010 ARun/start lighting
2115 A2019: Run-start relay
2020-2023: N/A
2210 AAir conditioner clutch solenoid
2315 A2019-2020: Front split view camera, Rear view camera, Front split view camera module, Blind spot information system, Adaptive cruise control, 360 camera module, Voltage quality module (start/stop)
2021-2023: Front split view camera, Rear view camera, Forward looking radar, 360° camera module, Blind spot information system, Voltage quality module (start/stop)
2410 ANot used (spare)
2510 ARun-start anti-lock brake system
2610 ARun-start powertrain control module
275 A2019-2020: Not used (spare)
2021-2023: USB power outlet – back of console
2810 ARear washer pump / Rear window washer pump
295 A2019-2020: Not used (spare)
2021-2023: N/A
30N/AN/A
31N/AN/A
3415 A2019-2020: Glove box release
2021-2023: N/A
35N/AN/A
36N/AN/A
3710 A2019-2020: Power transfer unit fan, Transfer case cooling fan relay
2021-2023: N/A
4315 A2019: Second row easy fold seat release
2020-2023: Right high beam and stop lamp / Right-hand high beam and stoplamp
4420 A2019: Left High Intensity Discharge headlamp
2020-2023: N/A
45N/AN/A
46N/AN/A
47N/AN/A
4815 ALeft high beam and stop lamp / Left-hand high beam and stoplamp
49N/AN/A
5020 AHorn
51N/AN/A
52N/AN/A
5310 AMassaging seats
5410 ABrake on-off switch
5510 AAlternator A-line

Relays

Assignment of the relays in the engine compartment fuse box (Top)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
2Starter relay
4Blower motor relay
6N/A
9Powertrain control module relay
15Run-start relay
32Electronic fan 1 relay
33A/C clutch relay
38Electronic fan 2 relay
39Electric fan 3 relay / Electronic fan 3 relay
40Horn relay
412019: Left high beam and stop lamp relay
2020: N/A
2021-2023: Left-hand high beam and stoplamp relay
42Fuel pump relay
86N/A

Engine Compartment (Bottom)

Fuse Box Location

There are fuses located at the bottom of the fuse box.

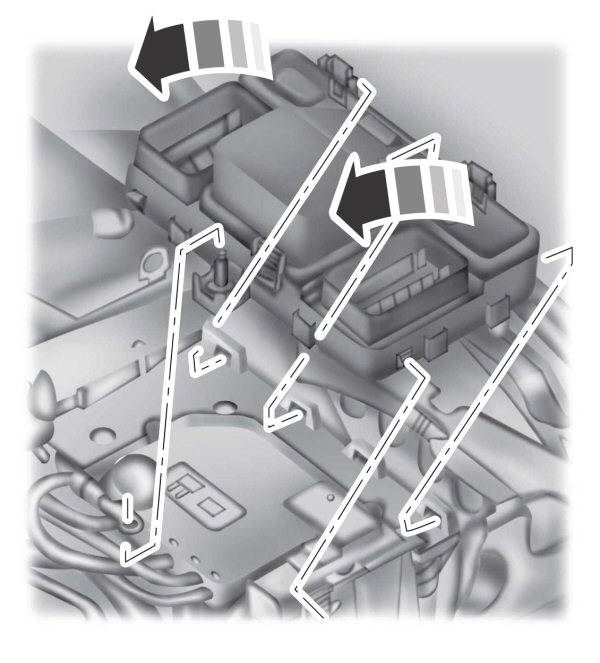

To access, do the following:

  1. Release the two latches, located on both sides of the fuse box.
  2. Raise the inboard side of the fuse box from the cradle.
  3. Move the fuse box toward the center of the engine compartment.
  4. Pivot the outboard side of the fuse box to access the bottom side.

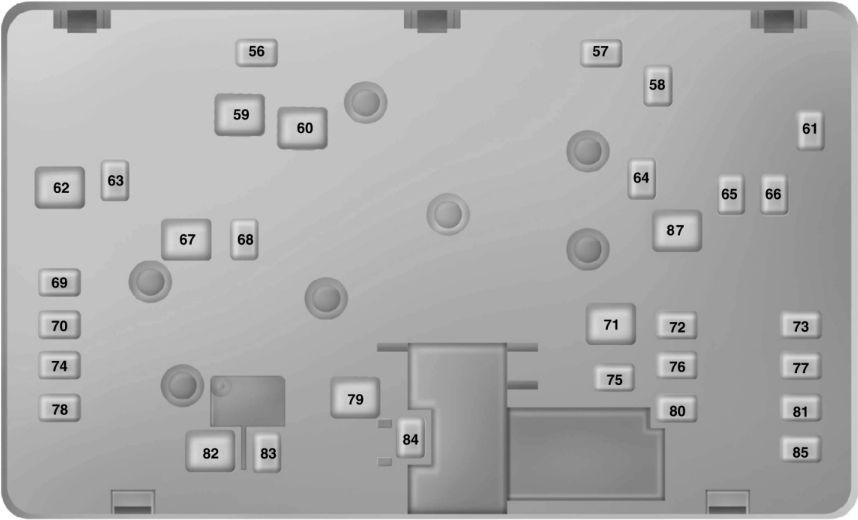

Fuse Box Diagram

Fuses

Assignment of the fuses in the engine compartment (Bottom)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
56N/AN/A
5720 ANot used (spare)
5830 AFuel pump feed
5940 AElectronic fan 3
6040 AElectronic fan 1
61N/AN/A
6250 ABody control module 1
6325 AElectronic fan 2
6415 A2019: Headlamp washer
2020-2023: N/A
6520 AFront heated seat
6615 A2019-2020: Heated wiper park
2021-2023: Not used (spare)
6750 ABody control module 2
6840 AHeated rear window
6930 AAnti-lock brake system valves
7030 APassenger seat
71N/AN/A
7220 A2019: Transmission oil pump
2020-2023: N/A
7320 ARear heated seats
7430 ADriver seat module
7525 AWiper motor 1
7630 APower liftgate module
7730 AClimate control seat module
7840 ATrailer tow
7940 ABlower motor
8025 A2019: Wiper motor 2
2020-2023: N/A
8140 A110 volt inverter
82N/AN/A
8320 A2019: TRCM
2020-2023: N/A
8430 AStarter motor solenoid
8530 ANot used (spare)
8760 AAnti-lock brake system pump

Passenger Compartment

Fuse Box Location

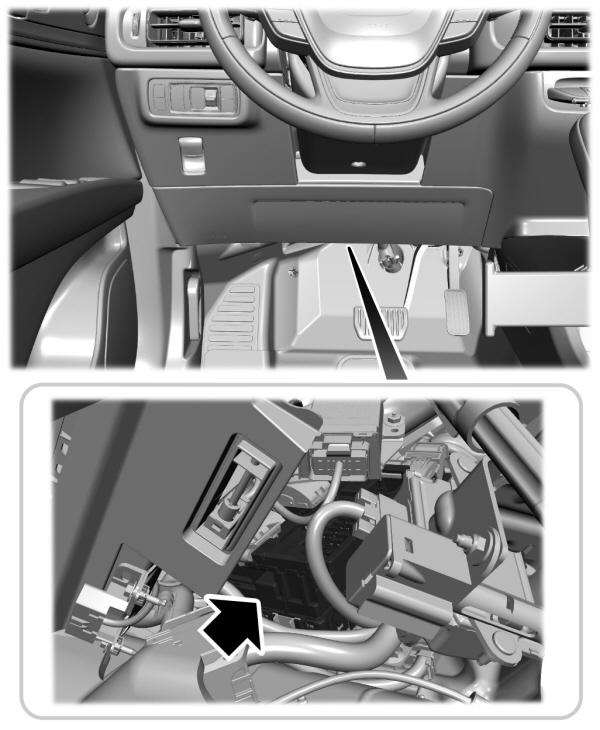

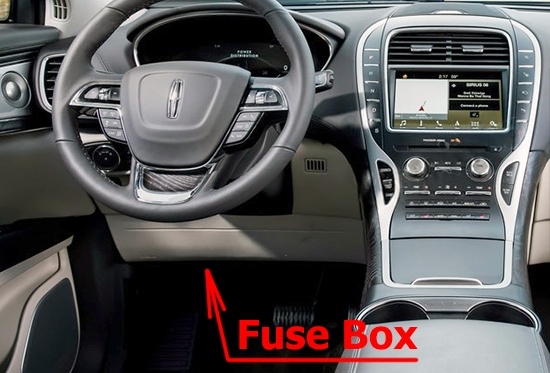

The fuse panel is located under the steering wheel (It may be easier to access the fuse panel if you remove the finish trim piece).

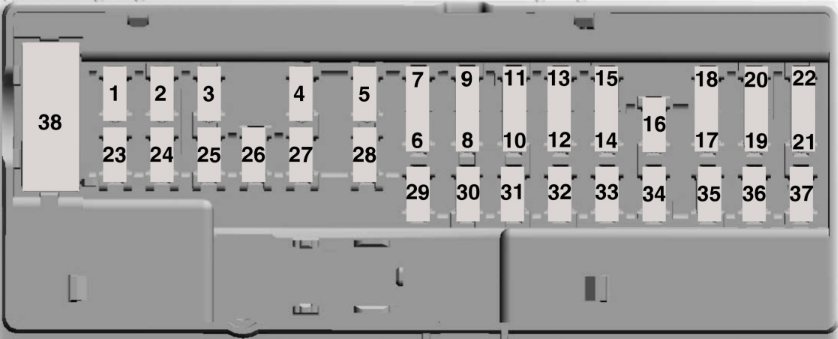

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
1N/AN/A
22019-2020: 7.5 A
2021-2023: 10 A		2019-2020: Memory seats, Lumbar, Driver seat module logic power (2019), Wireless accessory charging
2021-2023: Delayed accessory – power inverter logic, moonroof logic and driver window switch power
32019-2020: 20 A
2021-2023: 7.5 A		2019-2020: Driver door unlock
2021-2023: Memory seats, Lumbar, Wireless accessory charging
42019-2020: 5 A
2021-2023: 20 A		2019-2020: Not used (spare)
2021-2023: Subwoofer amplifier
520 A2019-2020: Subwoofer amplifier
2021-2023: N/A
610 A2019-2020: USB charger
2021-2023: Security horn relay
710 A2019-2020: Not used (spare)
2021-2023: Gearshift module
82019-2020: 10 A
2021-2023: 5 A		2019-2020: Security horn relay
2021-2023: Power liftgate module, Hands free liftgate module, Embedded modem
92019-2020: 10 A
2021-2023: 5 A		2019-2020: Rear seat entertainment system module
2021-2023: Keypad, Combined sensing module
105 A2019-2020: Keypad, Power liftgate module logic power, Hands free liftgate module, SYNC 3 module (2019), Embedded Modem
2021-2023: N/A
115 A2019-2020: Combined sensing module
2021-2023: N/A
127.5 A2019-2020: Climate control module (2019), Gear shift module, Electronic control panel (2020)
2021-2023: Climate control module, Enhanced central gateway module
137.5 A2019-2020: Cluster, Steering column control module, Smart datalink connector (gateway) module
2021-2023: Instrument cluster, Steering column control module
142019-2020: 10 A
2021-2023: 15 A		2019-2020: Extended power module – power
2021-2023: Not used (spare)
152019-2020: 10 A
2021-2023: 15 A		2019-2020: Datalink power
2021-2023: SYNC module
1615 A2019-2020: Not used (spare)
2021-2023: N/A
172019-2020: 5 A
2021-2023: 7.5 A		2019-2020: Not used (spare)
2021-2023: Headlamp control module
182019-2020: 5 A
2021-2023: 7.5 A		2019-2020: Not used (spare)
2021-2023: Not used (spare)
192019-2020: 7.5 A
2021-2023: 5 A		2019-2020: Extended power module – Run/Start
2021-2023: Headlamp switch, Bluetooth low energy module
202019-2020: 7.5 A
2021-2023: 5 A		2019-2020: Headlamp control module (2020)
2021-2023: Push button ignition switch
215 A2019: Humidity sensor (2019)
2020-2023: Not used (spare)
225 A2019-2020: Occupant classification sensor
2021-2023: Not used (spare)
232019-2020: 10 A
2021-2023: 30 A		2019-2020: Delayed accessory (power inverter logic, moonroof logic, driver window switch power)
2021-2023: Driver door window and mirror, Driver door module, Driver door lock indicator, Driver lock switch illumination
242019-2020: 20 A
2021-2023: 30 A		2019-2020: Central lock unlock
2021-2023: Moonroof
252019-2020: 30 A
2021-2023: 20 A		2019-2020: Driver door (window, mirror), Driver door module, Driver door lock indicator, Driver lock switch illumination
2021-2023: Amplifier
2630 AFront passenger door (window, mirror), Front passenger door module, Front passenger lock indicator, Front passenger switch illumination (window, lock)
2730 A2019-2020: Moonroof
2021-2023: Left-hand rear door module
282019-2020: 20 A
2021-2023: 30 A		2019-2020: Amplifier
2021-2023: Right-hand rear door module
292019-2020: 30 A
2021-2023: 15 A		2019-2020: Rear driver side door smart window
2021-2023: Enhanced central gateway power – OBD connector
302019-2020: 30 A
2021-2023: 5 A		2019-2020: Rear passenger side door smart window
2021-2023: Not used (spare)
312019-2020: 15 A
2021-2023: 10 A		2019-2020: Not used (spare)
2021-2023: Radio transceiver module, Multi-function display, Integrated control panel
322019-2020: 10 A
2021-2023: 20 A		2019-2020: Voice control (SYNC) (2019), Sync 3 module (2020), Radio transceiver module
2021-2023: Radio
3320 A2019-2020: Radio
2021-2023: N/A
3430 A2019-2020: Run-start bus (fuse 19, 20, 21, 22, 35, 36, 37, circuit breaker 38)
2021-2023: Run-start bus (fuse 17, 18, 21, 22, 35, 36, 37, circuit breaker 38)
355 A2019-2020: Not used (spare)
2021-2023: Passenger airbag deactivation indicator
3615 A2019-2020: Auto-dimming rear view mirror, Rear heated seat module logic power, Suspension module, Automatic high beam and lane departure mirror module (2020)
2021-2023: Rear heated seat module, Suspension module
3720 A2019-2020: Active front steering (2020), Heated steering wheel module
2021-2023: Heated steering wheel, Auto-dimming interior mirror, Automatic high beam and lane departure mirror module, Parking assist control module
3830 A2019-2020: N/A

2021-2023: Circuit breaker
