Nissan Murano (Z51) | 2007-2014

Browse Nissan Murano fuse box diagrams for 2007–2014 models with fuse locations, panel layouts, and detailed fuse and relay assignment information for this midsize SUV. This article covers the second-generation Nissan Murano (Model Code: Z51), available from 2007, and includes fuse box diagrams for Nissan Murano 2007, 2008, 2009, 2010, 2011, 2012, 2013 and 2014, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
Find Fuses & Relays

Engine Compartment

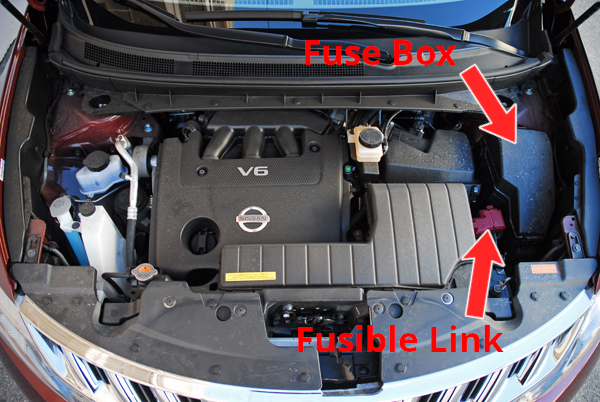

Fuse Box Locations

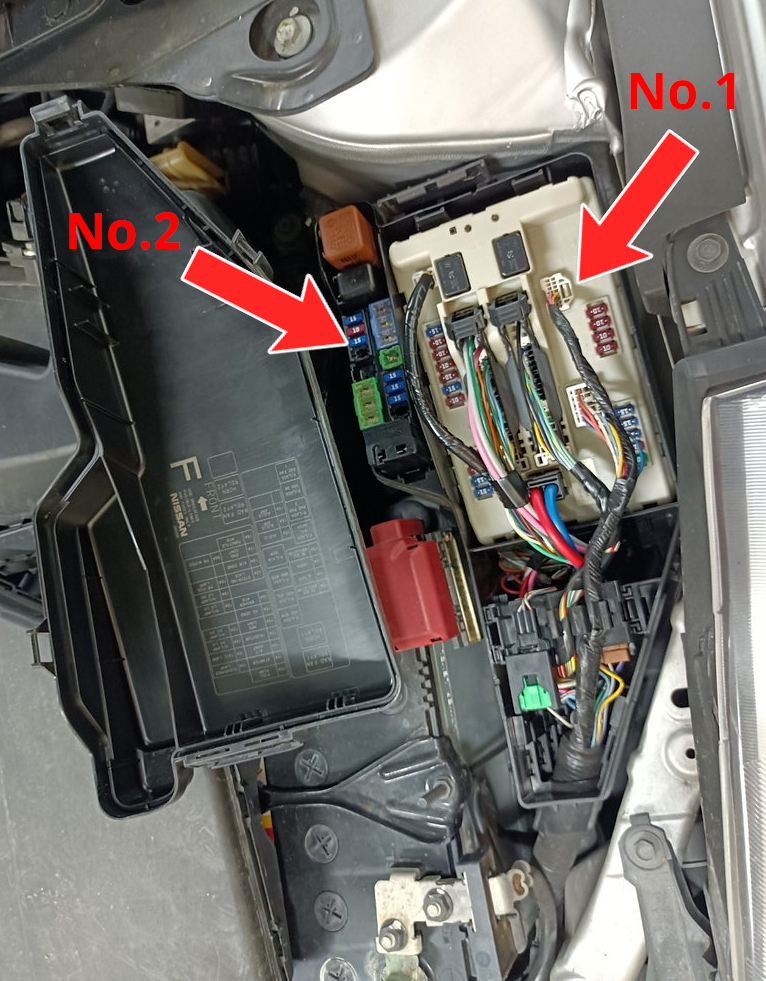

In the engine compartment, you will find a fuse box containing two fuse holders, along with a fusible link connected to the main battery +.

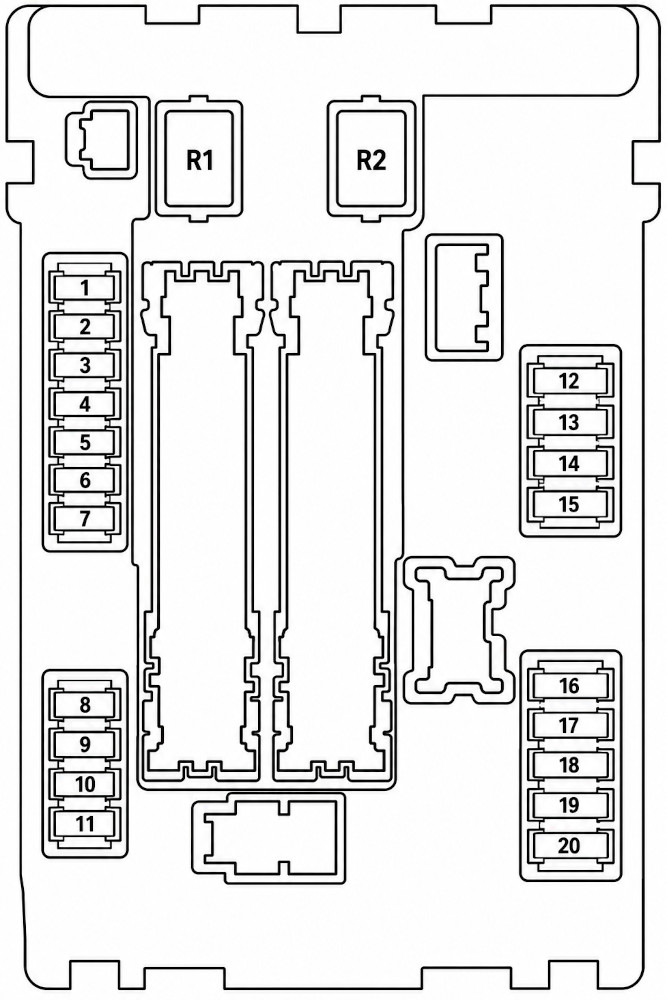

Fuse Box Diagram No.1

Fuses

Assignment of the fuses in the engine compartment fuse box No.1

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeAmpsDescription
1MINI15AFuel Pump Relay
2MINI10ACooling Fan Relay 2, Cooling Fan Relay 3
3MINI10ASecondary Speed Sensor, Transmission Control Module (TCM)
4MINI10AInjectors, Engine Control Module (ECM)
5MINI10AABS, 4WD Control Unit
6MINI15AAir Fuel Ratio Sensor, Heated Oxygen Sensor
7MINI10ACombination Switch
8MINI10ASteering Lock Relay
9MINI10AAir Conditioner Relay
10MINI15AEngine Control Module Relay (VIAS Control Solenoid, Intake Valve Timing Control Solenoid Valve, Condenser, Ignition Coils, Engine Control Module, Mass Air Flow Sensor, EVAP Canister Purge Volume Control Solenoid Valve)
11MINI15AThrottle Control Motor Relay
12MINI10AParking Lamp
13MINI10ARear Combination Lamp, License Plate Lamp, Mood Lamp Center, Map Lamp, Front Heated Seat Switch, Rear Heated Seat Switch, Option Connector, ESP Off Switch, 4WD Lock Switch, Ashtray Illumination, Cluster Illumination, Glove Box Lamp, Combination Switch (Spiral Cable), Hazard Switch, Control Device Illumination, Automatic Back Door Main Switch, Automatic Back Door Switch, Front Power Return Switch, Multifunction Switch, Navi Control Unit, DVD Player, Door Mirror Remote Control Switch, Front Door Inside Handle Illumination, Auto Levelizer Control Unit
14MINI10AHeadlamp High (left)
15MINI10AHeadlamp High (right)
16MINI15AHeadlamp Low (left)
17MINI15AHeadlamp Low (right)
18MINI15AFront Fog Lamp Relay
19MINI10ADaytime Running Light Relay
20MINI30AFront Wiper Relay

Relays

Assignment of the relays in the engine compartment fuse box No.1

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Cooling fan relay 1
R2Starter relay

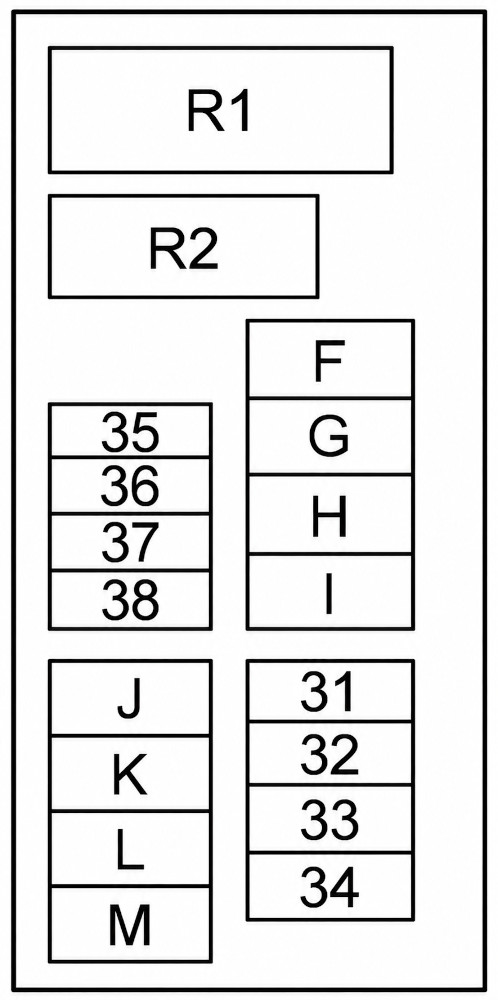

Fuse Box Diagram No.2

Fuses

Assignment of the fuses in the engine compartment fuse box No.2

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeAmpsDescription
31MINI30ATrailer
32MINI30ARR Seat Flip UP
33MINI15ARR Power Socket
34MINI15ARR Heated Seat
35MINI15AAudio, Front Display, Rear Display, Navi Control Unit, DVD Player, Video Distributor, Camera Control Unit
36MINI10A4WD Control Unit
37MINI15AHorn Relay
38MINI10AGenerator, Vehicle Security Horn Relay
FMPF2—VDC MTR
GMPF2—VDC SOL
HMPF2—RAD FAN 3
IFMX/JCase40AIgnition Relay
JFMX/JCase30APower back door
KMPF2—Rad fan 2
LMPF2—BCM (Body Control Module), Circuit Breaker (Automatic Drive Positioner Control Unit, Driver Seat Control, Lumbar Support Switch)
MMPF2—Rad fan 1

Relays

Assignment of the relays in the engine compartment fuse box No.2

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Rad fan relay
R2Horn Relay

Fuse Box Diagram (Additional)

Fuses

Assignment of the fuses in the engine compartment additional fuse box

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeAmpsDescription
23MINI15ABOSE Amplifier
24MINI15ABOSE Amplifier
25MINI15AWoofer
61FMX/JCase40AHeadlamp Washer Relay

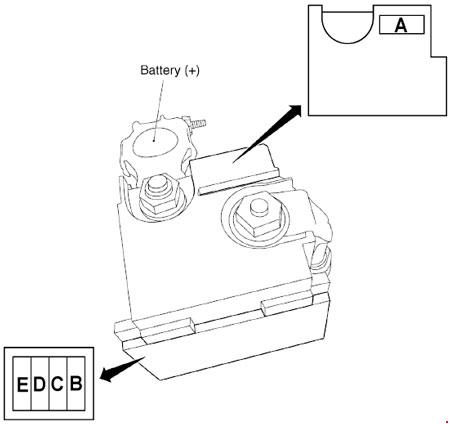

Fusible Link Diagram

High Voltage Fuses

Assignment of the high-voltage fuses in the engine compartment fusible link

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
A250AStarter, Alternator, Fuse No. B, C
B100AEngine compartment fuse box (no. 2)
C60AFront fog lights, High beam relay, Low beam relay, Side light relay, Fuses: 18 – front fog lights, 20 – wiper (engine compartment fuse box (# 1))
D100AHeater relay, Heated rear window relay, Fuses: 5, 6, 7, 9, 10, 11 (passenger compartment fuse box)
E80AIgnition relay, Fuses: 8, 9, 10, 11 (engine compartment fuse box (# 1))

Passenger Compartment

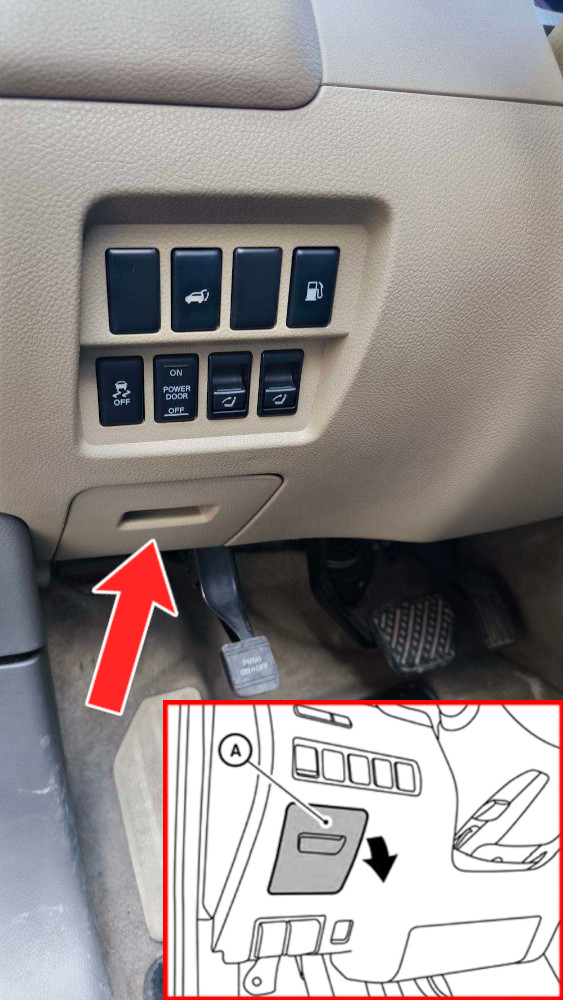

Fuse Box Location

The fuse box is situated behind the cover on the dashboard’s driver’s side.

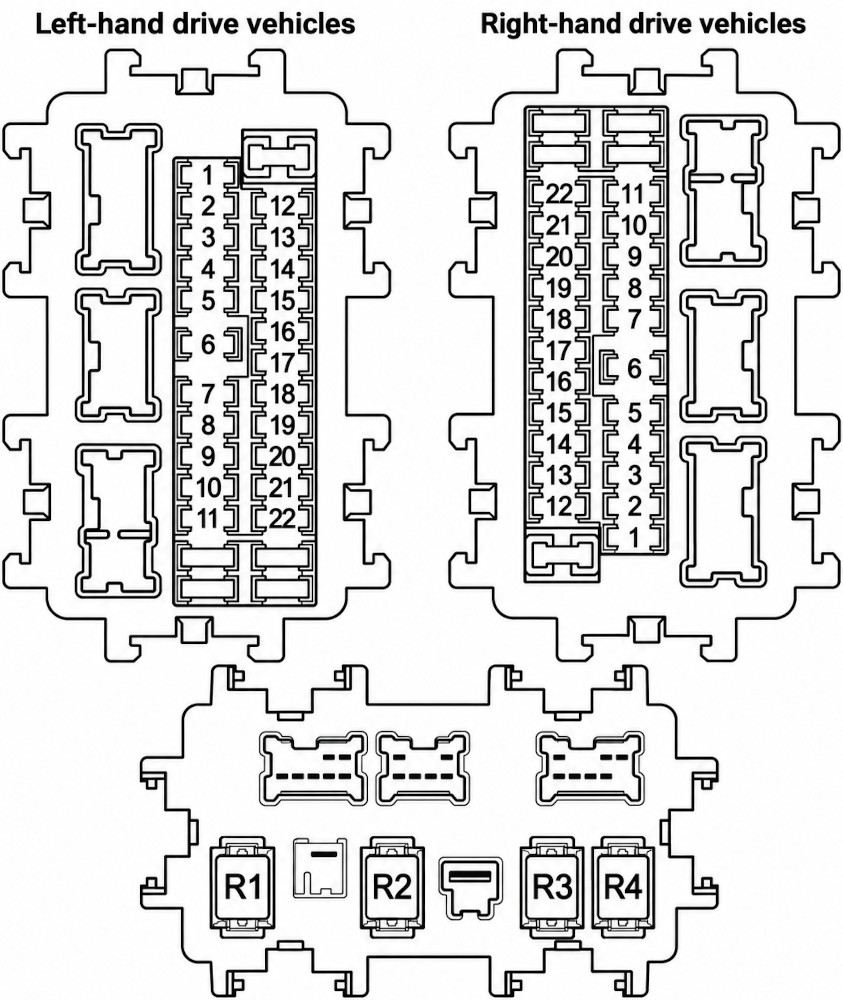

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
115AFront Heated Seat
210AAirBag Diagnosis Sensor Unit
310AAutomatic Back Door Control Unit, ASCD Brake Switch, Stop Lamp Switch, Headlamp Aiming Motor, Electronic Controlled Engine Mount Control Solenoid Valve, Data Link Connector, Steering Angle Sensor, Air Conditioner Amplifier, Heated Seat Relay, Power Steering Control Unit, BCM (Body Control Module), Navi Control Unit, Option Connector, Video Distributor, Auto Anti-Dazzling Inside Mirror, Auto Levelizer Control Unit
410ACombination Meter, Back-Up Lamp Relay
510AFuel Lid Opener Relay
610AIntelligent Key Warning Buzzer, Data Link Connector, Air Conditioner Amplifier, Automatic Back Door Control Unit, Automatic Back Door Warning Buzzer, Vehicle Tilt Sensor, Siren Control Unit, Rear Seatback Power Return Control Unit, Light & Rain Sensor
710AStop Lamp Switch, BCM (Body Control Module)
8–Not Used
910AKey Slot, Security Indicator Lamp, Push-Button Ignition Switch
1010ASeat Memory Switch, BCM (Body Control Module)
1110ACombination Meter, Transmission Control Module (TCM)
12–Not Used
1310ADoor Mirror Defogger, Air Conditioner Amplifier
1420ARear Window Defogger
1520ARear Window Defogger
16–Not Used
17–Not Used
1815ACigarette Lighter Socket
1910AAudio, Front Display, Air Conditioner Amplifier, Rear Display, Navi Control Unit, DVD Player, Video Distributor, Camera Control Unit, Power Socket Relay, BCM (Body Control Module), Multifunction Switch, Door Mirror Remote Control Switch
2015AFront Power Socket
2115ABlower Motor
2215ABlower Motor

Relays

Assignment of the relays in the passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Ignition
R2Rear Window Defogger
R3Accessory
R4Front Blower
