Explore Nissan Murano fuse box diagrams for 2015–2024 models with fuse locations, panel layouts, and detailed fuse and relay assignment information for this midsize SUV. This article covers the third-generation Nissan Murano (Model Code: Z52), available from 2015 to 2024 , and includes fuse box diagrams for Nissan Murano 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023 and 2024 , along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).
NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
Find Fuses & Relays
→

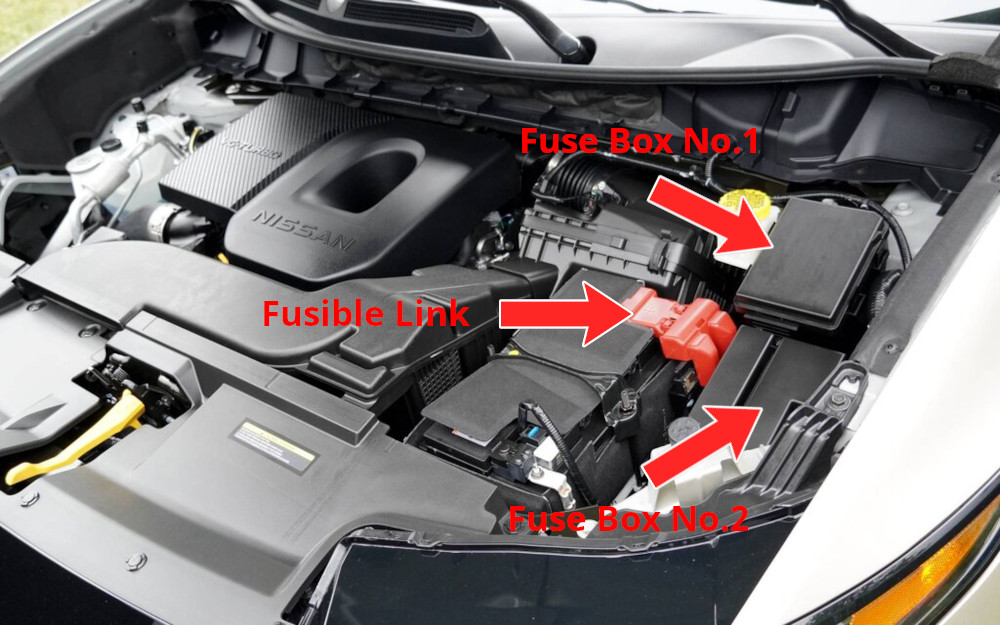

There are two fuse boxes and one fusible link in the engine compartment. All are located on the driver’s side near the main battery, with the fusible link connected to the battery’s positive terminal.

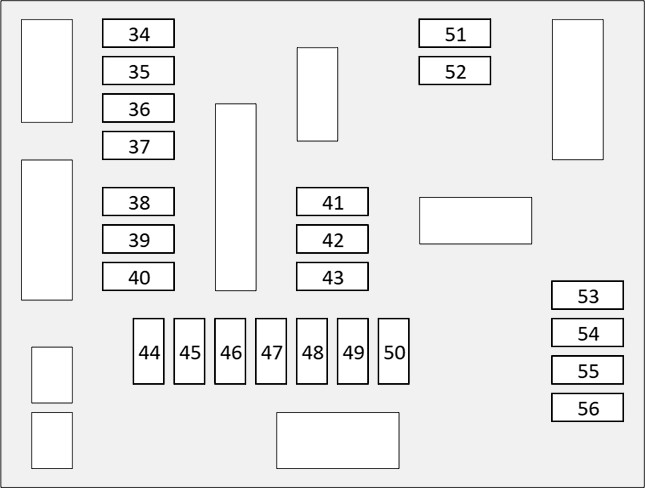

Assignment of the fuses in the engine compartment fuse box No.1
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Amps Description 34 MINI 10A High beam headlights (Right), auto light system, DRL system 35 MINI 10A High beam headlights (Left), auto light system, DRL system 36 MINI 15A Low beam headlights (Right), auto light system, DRL system 37 MINI 15A Low beam headlights (Left), auto light system, DRL system 38 MINI 10A Engine control module (ECM VB) 39 MINI 10A Engine control module (ECM SOL) 40 MINI 15A 02 SENS 41 MINI 30A Windshield wiper relay (front) 42 MINI 15A Fog light relay (front) 43 MINI 10A Auto light system, DRL system 44 MINI 15A IGN COIL 45 MINI 10A INJECTOR 46 MINI 10A BCM (body control module), CVT control system, engine control system, Intelligent Key, NVIS, start system 47 MINI 15A Fuel pump relay 48 MINI 10A STARTER IG 49 MINI 10A ABS, Brake control system, electronic power steering control 50 MINI 10A BCM, driver assistance systems, windshield wiper and washer 51 MINI 10A Parking lights, license plate light, rear lights 52 MINI 10A Auto light system, parking lights, license plate light, rear lights 53 MINI 10A Air conditioning relay 54 — — Not Used 55 MINI 15A Throttle relay 56 MINI 10A ECM BAT
This content requires JavaScript and a valid membership to view.

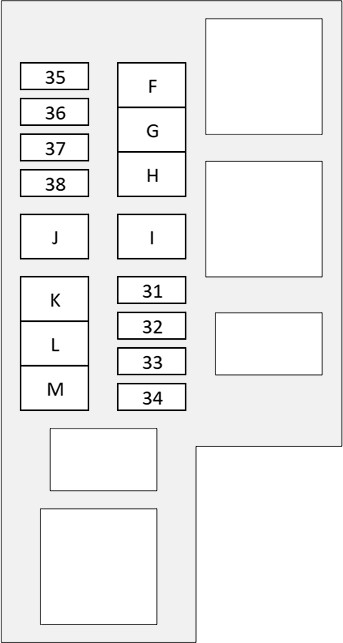

Assignment of the fuses in the engine compartment fuse box No.2
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Amps Description 31 MINI 15A (WIPER DEICER) Deicer or defroster 32 MINI 15A (HORN) Horn 33 MINI 10A (4WD) All wheel drive system 34 MINI 30A (TOWING) Trailer lights 35 MINI 5A/15A AC SEAT LH / E/ACM RR 36 MINI 10A (ALT / ANTI THEFT) Battery and charging system; Anti-theft system 37 MINI 30A RR FLIP UP SEAT 38 MINI 5A/15A AC SEAT RH/ E/ACM FR F MPF2 — (IGN SW) Ignition switch G MPF2 — AUTO BACK DOOR H MPF2 — (BCM) Body control module I FMX/JCase 40A RAD FAN MOTOR-2 J FMX/JCase 40A RAD FAN MOTOR-1 K MPF2 — (VDC SOL) Vehicle dynamics control solenoid L MPF2 — (HEAD LAMP WASHER) Headlight washer M MPF2 — (VDC MOTOR) Vehicle dynamics control solenoid
This content requires JavaScript and a valid membership to view.

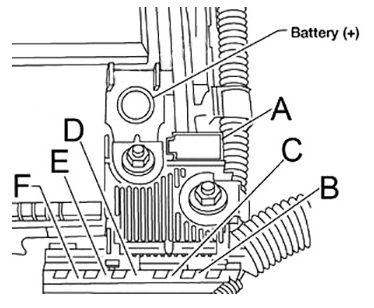

Assignment of the high-voltage fuses in the engine compartment fusible link
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description A 250A Generator, starter, fuses B, C, D B 100A Fuses 59, 60, 62, 63, G, H, I, L, M, N C 80A High beam relay (prev. 34, 35), low beam relay (prev. 36, 37), parking light relay (prev. 51, 52), windshield wiper relay, prev. 41, 42, 43 D 100A Electronic power steering control unit E 80A ECM relay (prev. 38, 39, 40), ignition relay 1 (air conditioning relay, fan relay 1, prev. 44, 45, 46, 47, 48, 49, 50), prev. 53, 55, 56 F 100A Accessory relay 1 (prev. 19, 20, 21), prev. 1, 2, 3, 4, 9, 10, 12, 13, 14, 15, 16, 25
This content requires JavaScript and a valid membership to view.

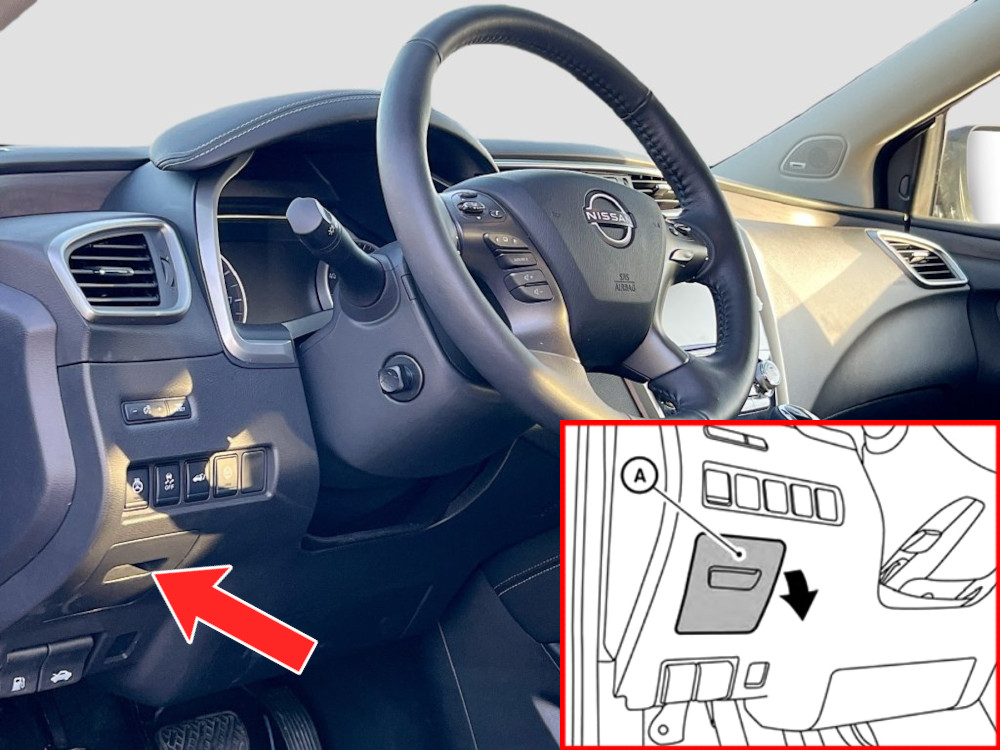

The fuse box is located inside the passenger compartment, beneath the steering wheel on the driver’s side, to the left, under the lid. To access the fuses, pull down on fuse box cover A to remove it.

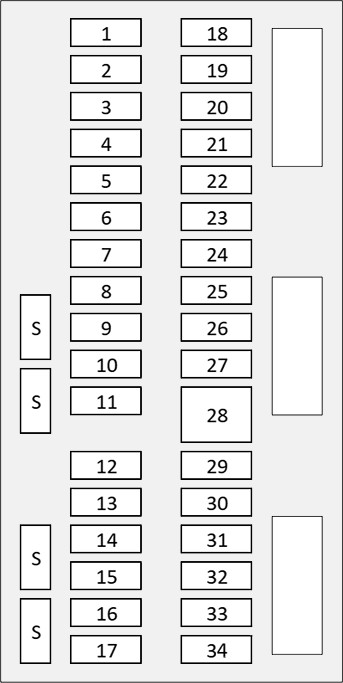

Assignment of the fuses in the passenger compartment fuse box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Amps Description 1 MINI 15A (BLOWER MOTOR) AC blower motor 2 — — Not Used 3 MINI 20A (POWER OUTLET) Auxiliary power outlet 4 MINI 20A (POWER OUTLET) Auxiliary power outlet 5 MINI 10A (ACC RELAY) Protects several accesory circuits 6 MINI 10A (HEATED MIRROR) Mirror heater 7 MINI 15A (RR DEF) Rear window defogger 8 MINI 15A (RR DEF) Rear window defogger 9 MINI 10A ELEC PARTS (BAT-1) 10 MINI 5A (ILLUMINATION) Illumination 11 MINI 15A (BLOWER MOTOR) AC blower motor 12 MINI 15A HEATED SEAT RR 13 MINI 10A (ELEC PARTS (IGN)) Protects several circuits 14 — — Not Used 15 MINI 5A (METER (IGN)) Instrument cluster 16 MINI 10A (AIR BAG) Airbag 17 MINI 15A HEATED SEAT FR 18 MINI 10A (ROOM LAMP) Dome light and interior light 19 — — Not Used 20 MINI 15A (DOOR LOCK FR) Power door lock system 21 MINI 15A (DOOR LOCK RR) Power door lock system 22 MINI 15A (RR WIPER) Rear wiper 23 MINI 10A (HEATED STRG) Heated steering wheel 24 MINI 10A (ELEC PARTS (ACC)) Protects several circuits 25 — — Not Used 26 MINI 10A ELEC PARTS (BAT-2) 27 MINI 10A (STOP LAMP) Stop lights 28 MINI — EXTENDED STORAGE SW 29 MINI 15A BOSE/RSE 30 MINI 15A (BOSE) Audio system 31 MINI 10A (METER (BAT)) Instrument cluster 32 MINI 5A ELEC PARTS (BAT CUT) 33 MINI 20A (AUDIO) Audio system 34 MINI 5A BCM SIGNAL
This content requires JavaScript and a valid membership to view.

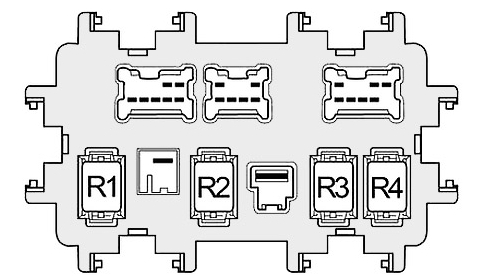

Assignment of the relays in the passenger compartment fuse box (on the back)
There are several relays on the back of the fuse box.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description R1 Ignition 2 R2 Electric fan motor R3 Rear window heater R4 Accessory 1
This content requires JavaScript and a valid membership to view.
