Nissan Murano (Z53) | 2025-2027 | Fuse Box Diagrams and Locations

Discover Nissan Murano fuse box diagrams for 2025–2027 models with fuse locations, panel layouts, and detailed fuse and relay assignment information for this midsize SUV. This article covers the fourth-generation Nissan Murano (Model Code: Z53), available from 2025, and includes fuse box diagrams for Nissan Murano 2025, 2026 and 2027, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

What’s Included

Engine Compartment

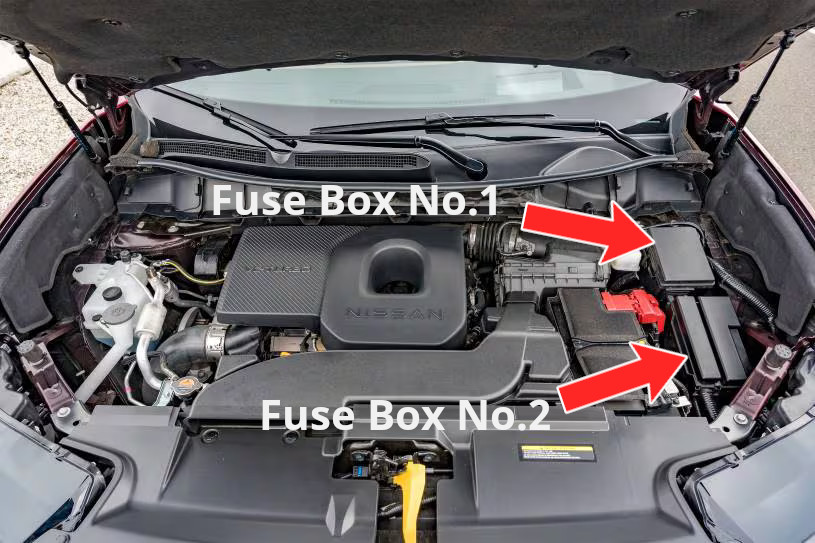

Fuse Box Locations

The fuse box is located on the driver’s side of the engine compartment. Refer to the image below to find the exact locations of fuse boxes no. 1 and no. 2.

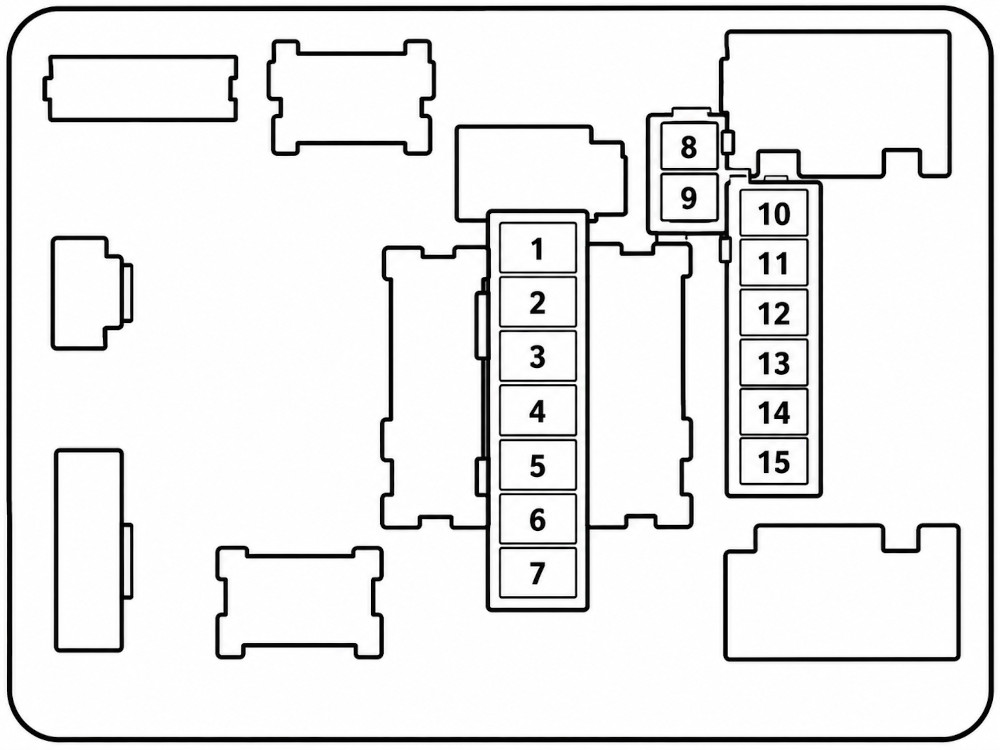

Fuse Box Diagram (No.1)

Fuses

Assignment of the fuses in the engine compartment fuse box No.1

Fuse Data

Full access is available to registered users — log in or register.

No.	Type	Amps	Description
1	MICRO2	10A	REV_LAMP/AC_VALVE
2	—	—	Not Used
3	MICRO2	10A	AT
4	MICRO2	10A	AIRBAG / ABS
5	MICRO2	10A	ACTUATOR 2
6	MICRO2	5A	ECM/ESCL
7	MICRO2	30A	WIPER
8	—	—	Not Used
9	MICRO2	15A	ACTUATOR 1
10	MICRO2	15A	ACTUATOR 5
11	MICRO2	15A	LCS_CABIN/INJECTOR
12	MICRO2	15A	ACTUATOR 3
13	MICRO2	10A	ACTUATOR 4
14	MICRO2	10A	BAT_ABS_VALVES/ECM_BAT
15	MICRO2	20A	FUEL PUMP

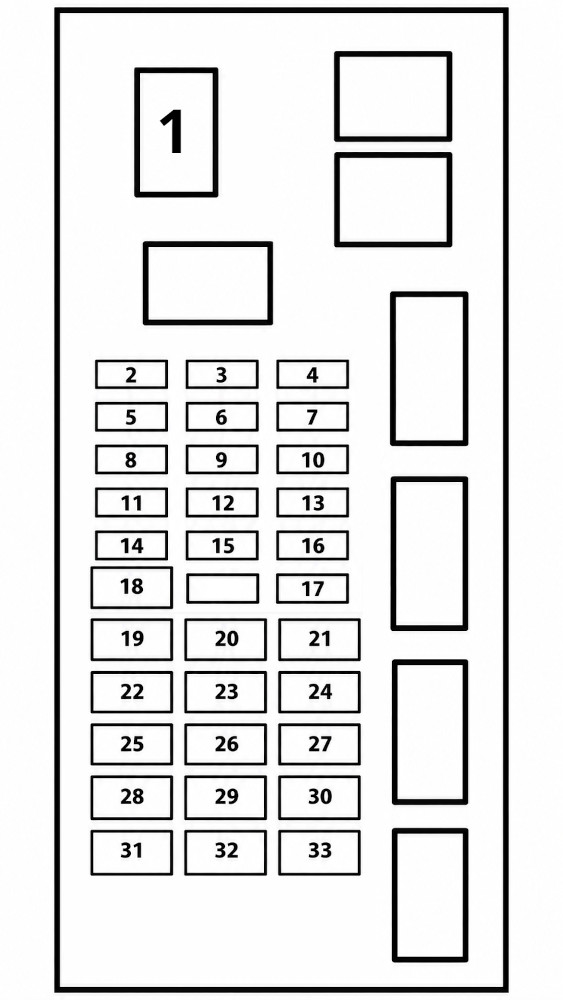

Fuse Box Diagram (No.2)

Fuses

Assignment of the fuses in the engine compartment fuse box No.2

Fuse Data

Full access is available to registered users — log in or register.

No.	Type	Amps	Description
1	FLF/PAL 293	60A	PWM FAN
2	MICRO2	30A	TOWIN
3	MICRO2	10A	TOWIN (REVERSE)
4	MICRO2	—	Not Used
5	MICRO2	20A	POWER OUTLET
6	MICRO2	15A	HEAD LAMP RH
7	MICRO2	10A	CURRENT SENS
8	MICRO2	15A	HEAD LAMP LH
9	MICRO2	15A	VINJ
10	MICRO2	—	Not Used
11	MICRO2	15A	ENG CONT
12	MICRO2	15A	AT CONT
13	MICRO2	10A	TOWING (RUN LAMP)
14	MICRO2	15A	TOWING (STOP/TURN)
15	MICRO2	15A	VINJ 2
16	MICRO2	15A	HORN
17	MICRO2	15A	ANTI THEFT HORN
18	FMM/MCase	60A	OFF LOAD IGN 2
19	FMM/MCase	—	Not Used
20	FMM/MCase	—	Not Used
21	FMM/MCase	—	Not Used
22	FMM/MCase	30A	TOWING (BRAKE)
23	FMM/MCase	30A	IGN SW
24	FMM/MCase	40A	HEAD LAMP WASH
25	FMM/MCase	30A	E-VTC 1
26	FMM/MCase	60A	HFS RH
27	FMM/MCase	—	Not Used
28	FMM/MCase	60A	HFS LH
29	FMM/MCase	—	Not Used
30	FMM/MCase	—	Not Used
31	FMM/MCase	30A	E-VTC 2
32	FMM/MCase	40A	USM
33	FMM/MCase	30A	VDC SOL

Passenger Compartment

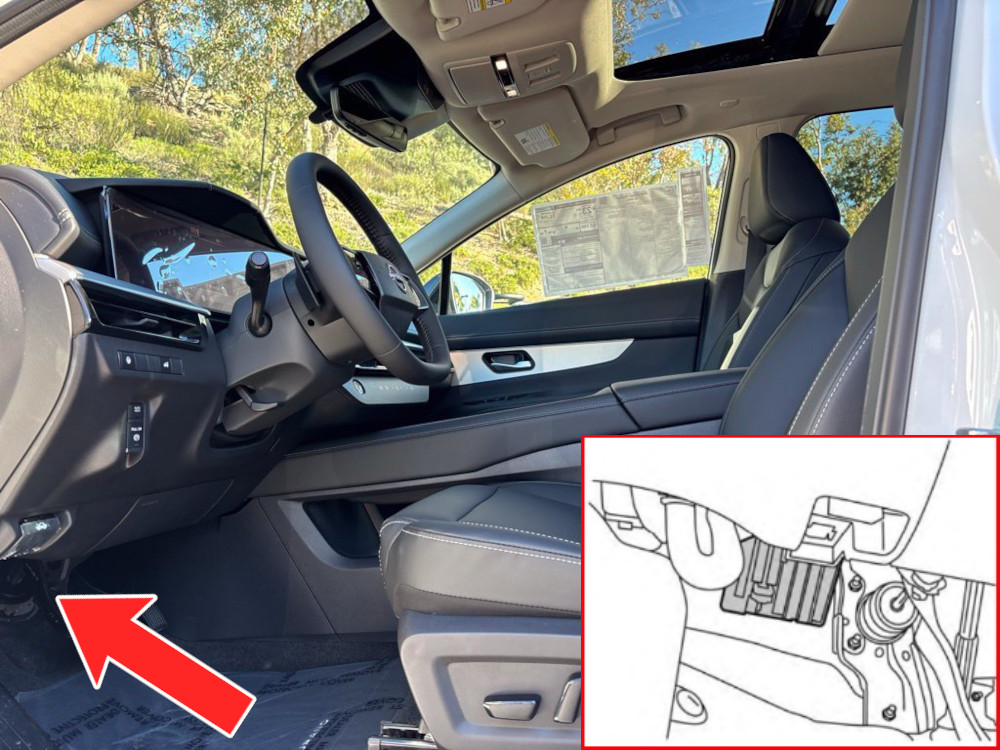

Fuse Box Location

The fuse box is located on the driver’s side, beneath the dashboard and above the pedals.

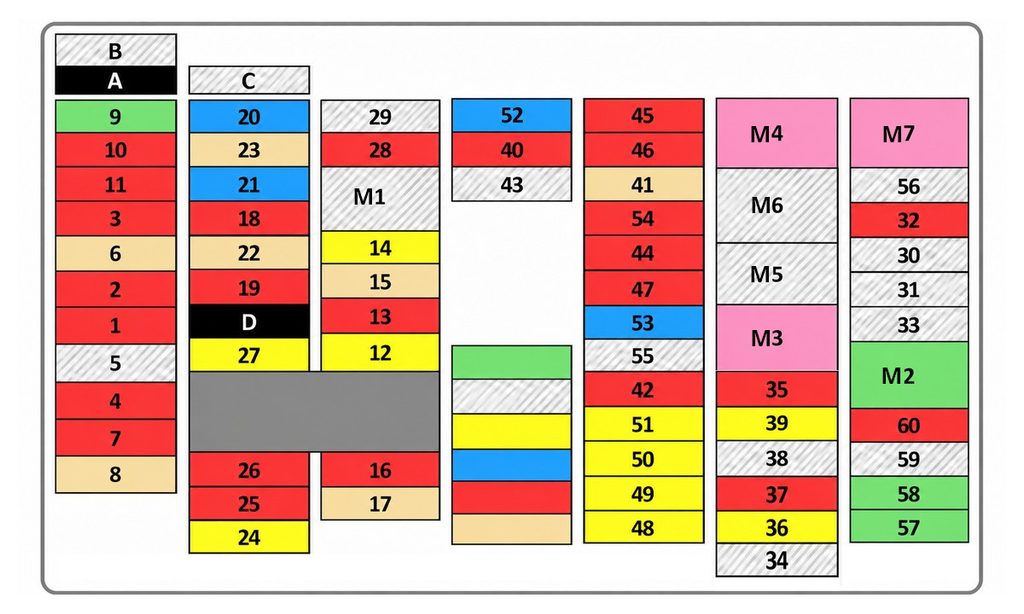

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment fuse box

Fuse Data

Full access is available to registered users — log in or register.

No.	Type	Amps	Description
1	MINI	10A	AIR BAG – Airbags / supplemental restraint system (SRS)
2	MINI	10A	METER IGN – Instrument cluster (dashboard gauges and warning lights), ignition power
3	MINI	10A	ELEC IGN (ACCESSORY) – Electrical circuits powered in accessory (ACC) mode
4	MINI	10A	ELEC IGN (Running) – Electrical circuits powered when ignition is ON (RUN)
5	MINI	—	Not used
6	MINI	5A	Steering Angle Sensor – Steering wheel angle sensor
7	MINI	10A	ELEC B (No cutoff) – Constant battery-powered electrical circuits (not controlled by cutoff switch)
8	MINI	5A	CDM – CDM control module (specific function not identified on the diagram)
9	MINI	30A	RR DEF – Rear window defogger (rear windshield heater)
10	MINI	10A	Heated Outside Mirror – Heated exterior rearview mirrors
11	MINI	10A	HEATED WASHER – Heated windshield washer system
12	MINI	20A	BOSE AMP – Bose audio system amplifier
13	MINI	10A	AUDIO2 (CUT OFF) – Audio system, second power circuit (through cutoff switch)
14	MINI	20A	AUDIO (CUT OFF) – Audio system power (through cutoff switch)
15	MINI	5A	ELEC B (CUT OFF) – Battery-powered electrical circuits (through cutoff switch)
16	MINI	10A	METER B (CUT OFF) – Instrument cluster battery power (through cutoff switch)
17	MINI	5A	BCM B (CUT OFF) – Body Control Module battery power (through cutoff switch)
18	MINI	10A	BCM – Body Control Module (vehicle body electrical systems)
19	MINI	10A	TCU – Telematics Control Unit (vehicle communication / connected services)
20	MINI	15A	PWR DR LOCK FR – Front door power locks
21	MINI	15A	PWR DR LOCK RR – Rear door power locks
22	MINI	5A	CAN GATEWAY – Communication gateway for vehicle electronic control modules
23	MINI	5A	HFM – HFM module (specific function not identified on the diagram)
24	MINI	20A	4WD VB – All-wheel drive (AWD / 4WD) system power supply
25	MINI	10A	STOP LAMP – Brake lights
26	MINI	10A	E-PKB – Electronic parking brake
27	MINI	20A	POWER SOCKET CARGO (US) – Cargo-area 12V power outlet (US models)
28	MINI	10A	CABIN SIDE LIGHTING / ROOF LAMPS – Interior and overhead lights
29	MINI	—	Not used
30	MINI	—	Not used
31	MINI	—	Not used
32	MINI	10A	WASHER MTR – Windshield washer motor
33	MINI	—	Not used
34	MINI	10A	ADAS_AO2 – Advanced driver assistance systems (ADAS), circuit AO2
35	MINI	10A	TURN HAZARD – Turn signals and hazard warning lights
36	MINI	20A	Power Seat RH – Right-front (passenger) power seat
37	MINI	10A	Rear Wiper Motor – Rear window wiper motor
38	MINI	—	eDLC – Marked position; no fuse inserted in the diagram
39	MINI	20A	Power Seat LH – Left-front (driver) power seat
40	MINI	10A	ABS/VDC – Anti-lock braking system and vehicle stability control
41	MINI	5A	EPS CONT – Electric power steering control
42	MINI	10A	HUD – Head-up display (driving information projected on windshield)
43	MINI	10A	iBOOSTER – Electrically assisted brake booster
44	MINI	10A	ShBW – Shift-by-Wire (electronic gear selector)
45	MINI	10A	ELEC Auto ACC 1 (BTS) – Automatic accessory power supply, circuit 1
46	MINI	10A	ELEC Auto ACC 2 (BTS) – Automatic accessory power supply, circuit 2
47	MINI	10A	P/WDW MAIN SW (BPTS) – Main power window switch (driver’s door)
48	MINI	20A	P/WDW FR DR – Driver’s front power window
49	MINI	20A	P/WDW FR AS – Front passenger power window
50	MINI	20A	P/WDW RR LH – Left rear power window
51	MINI	20A	P/WDW RR RH – Right rear power window
52	MINI	15A	SUNROOF – Power sunroof
53	MINI	15A	SUNSHADE – Power sunroof sunshade
54	MINI	10A	USB CHARGE – USB charging ports
55	MINI	—	Not used
56	MINI	—	Not used
57	MINI	30A	HEATER SEAT / AC SEAT RH – Right-side heated seats (front and rear) and front ventilated seat
58	MINI	30A	HEATER SEAT / AC SEAT LH – Left-side heated seats (front and rear) and front ventilated seat
59	MINI	—	Not used
60	MINI	10A	Steering Heater – Heated steering wheel
A	Mini	—	Micro2 shunt – Electrical bridge (not a replaceable fuse)
B	—	—	Not used
C	—	—	Not used
D	Mini	—	Micro2 shunt – Electrical bridge (not a replaceable fuse)
M1	FMM/MCase	—	Not used
M2	FMM/MCase	40A	BLOWER – Heater / air conditioning cabin blower motor
M3	FMM/MCase	30A	TAIL GATE / PBD – Power liftgate (electric rear hatch)
M4	FMM/MCase	30A	SCCM – Steering Column Control Module
M5	FMM/MCase	—	Not used
M6	FMM/MCase	—	Not used
M7	FMM/MCase	—	Not used
