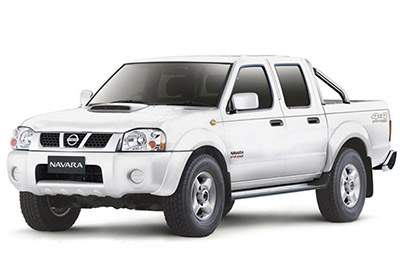

Find Nissan Navara fuse box diagrams for 1997–2004 models with fuse locations, panel layouts, and detailed fuse and relay assignment information for this reliable pickup truck. This article covers the first-generation Nissan Navara (Model Code: D22), available from 1997 , and includes fuse box diagrams for Nissan Navara 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009 and 2010 , along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).
NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
Find Fuses & Relays
→

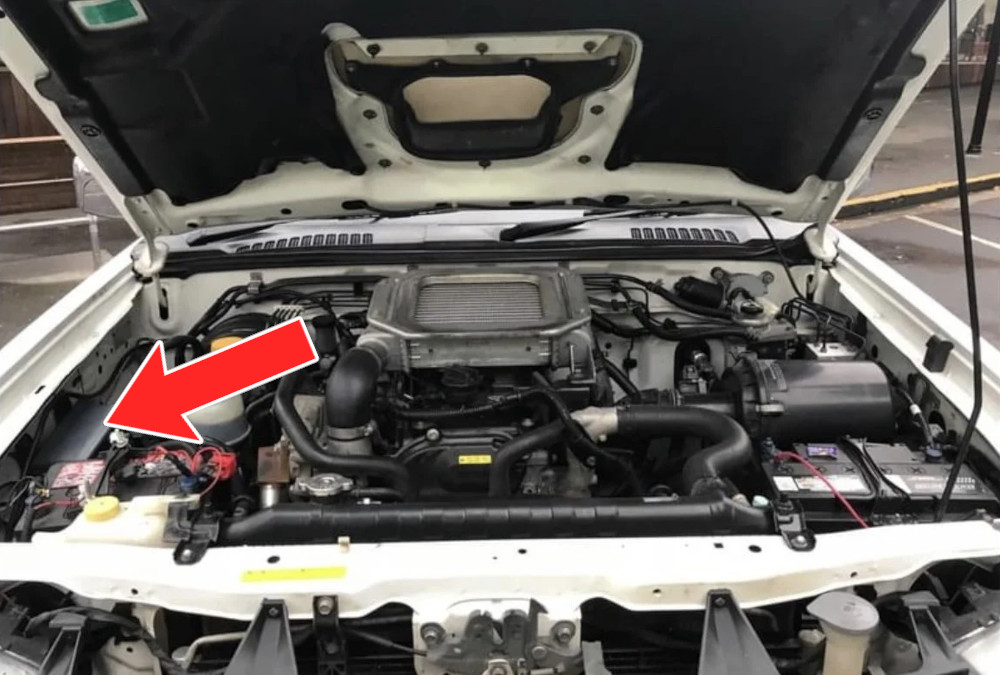

The fuse box is situated in the engine compartment on the passenger side (on the driver side for RHD vehicles).

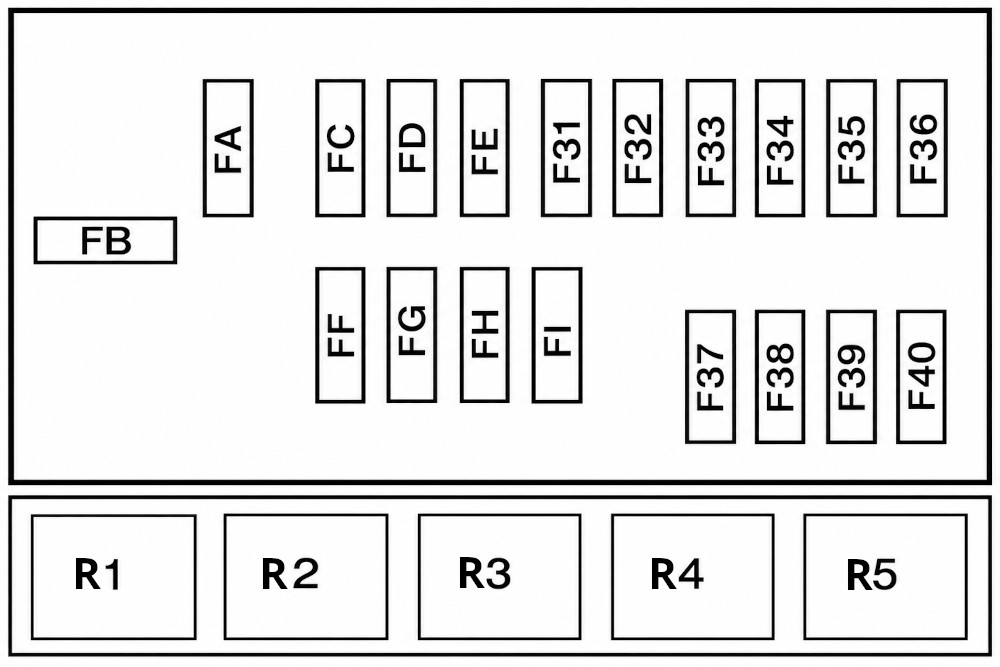

Assignment of the fuses in the engine compartment fuse box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Amps Description FA FLM 80A Battery power distribution FB FLM 60A Glow plugs FC FMX/JCase 40A Central locking, power windows FD FMX/JCase 30A Cooling fan motor FE — — Not Used FF FMX/JCase 40A Ignition switch FG FMX/JCase 30A Anti-lock braking system (ABS) FH FMX/JCase 30A Anti-lock braking system (ABS) BE FMX/JCase 30A Combination switch, daytime running lights F31 MINI 10A Charging system F32 MINI 10A Buzzer(s) F33 MINI 10A Engine management system, immobilizer (petrol) F34 — — Not Used F35 MINI 10A Engine management system (Diesel) F36 MINI 20A Engine management system, immobilizer (Diesel) F37 MINI 15A Combination switch, daytime running light, low/high beam, headlights, fog lamp(s) F38 MINI 15A Combination switch, daytime running lights, headlights low/high, headlights F39 MINI 10A Audio system F40 MINI 15A Fog lights (some models)
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment fuse box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 Cooling Fan Relay 2 Relay of the electromagnetic clutch of the A/C compressor 3 Horn relay 4 Start inhibit relay (“P”/”N”) 5 Engine control system relay
This content requires JavaScript and a valid membership to view.

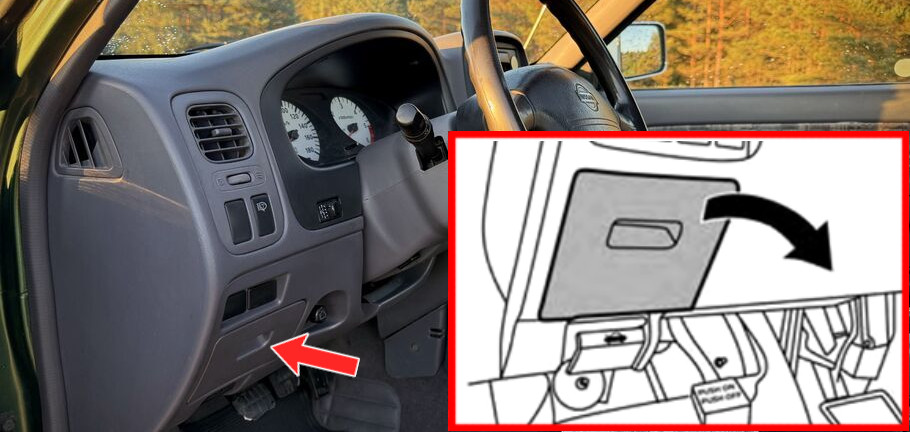

The fuse box is situated beneath the steering wheel on the driver’s side, under the lid.

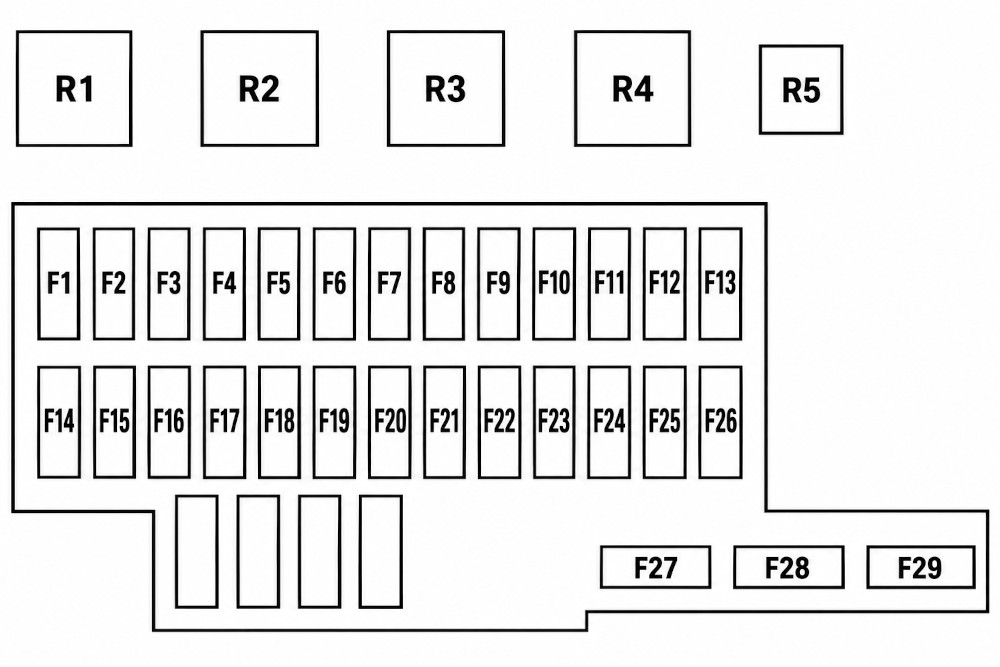

Assignment of the fuses in the passenger compartment fuse box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Amps Description 1 MINI 20A Rear window defogger 2 MINI 10A Anti-lock Braking System (ABS), brake lights 3 MINI 10A Interior lighting lamps, fog lamp (s) 4 — — Not Used 5 MINI 10A Turn lights / alarms 6 MINI 10A Air conditioning, anti-theft system, audio antenna, automatic transmission control system, clock, diagnostic connector, immobilizer, instrument cluster, central locking remote control system, car speed sensor 7 MINI 10A Audio system, audio antenna 8 MINI 10A Seat heater 9 — — Not Used 10 MINI 10A Turn lights / alarms 11 MINI 10A SRS (airbag) system, automatic transmission control system, charging system, daytime running light, engine management system malfunction indicator glow plug, immobilizer, instrument cluster, meters / indicators, reversing lights, car speed sensor, indicators 12 MINI 10A ABS system, audible warning / buzzer, automatic transmission control system, diagnostic connector, daytime running light, low headlights / high beams, power windows, engine warm-up switch, door mirror heater, rear window defogger, central locking remote control system 13 MINI 10A Additional idle air control valve (some models), air conditioning system, cooling fan relay 14 — — Not Used 15 MINI 15A Heater / air conditioning 16 MINI 15A Heater / air conditioning 17 MINI 15A Cigarette lighter 18 MINI 20A Headlight washers 19 MINI 10A Heated door mirror heater 20 MINI 10A Daytime running light, electronic engine control unit (start signal) 21 MINI 10A Engine management system, immobilizer 22 MINI 15A Engine management system, fuel pump relay 23 MINI 15A Engine Management System (ZD30) 24 MINI 10A Airbag 25 MINI 10A Engine management 26 MINI 20A Windscreen wiper / washer 27 MINI 10A Audible warning / buzzer, headlight corrector, front / rear (left), left license plate light, backlighting of switches 28 MINI 10A Front / rear dimensions (right), right license plate light
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the passenger compartment fuse box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description R1 Relay 1 main ignition circuits R2 Auxiliary Ignition Circuit Relay R3 Relay 2 main ignition circuits R4 The power windows relay R5 Thermal fuse (central locking)
This content requires JavaScript and a valid membership to view.
