Explore Nissan Navara (NP300) fuse box diagrams for 2014–2026 models with fuse locations, panel layouts, and detailed fuse assignment information for this versatile pickup truck. This article covers the third-generation Nissan Navara, also known as the Navara NP300 (Model Code: D23), available from 2014 , and includes fuse box diagrams for Nissan Navara (NP300) 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025 and 2026 , along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse (fuse layout).
NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
Find Fuses & Relays
→

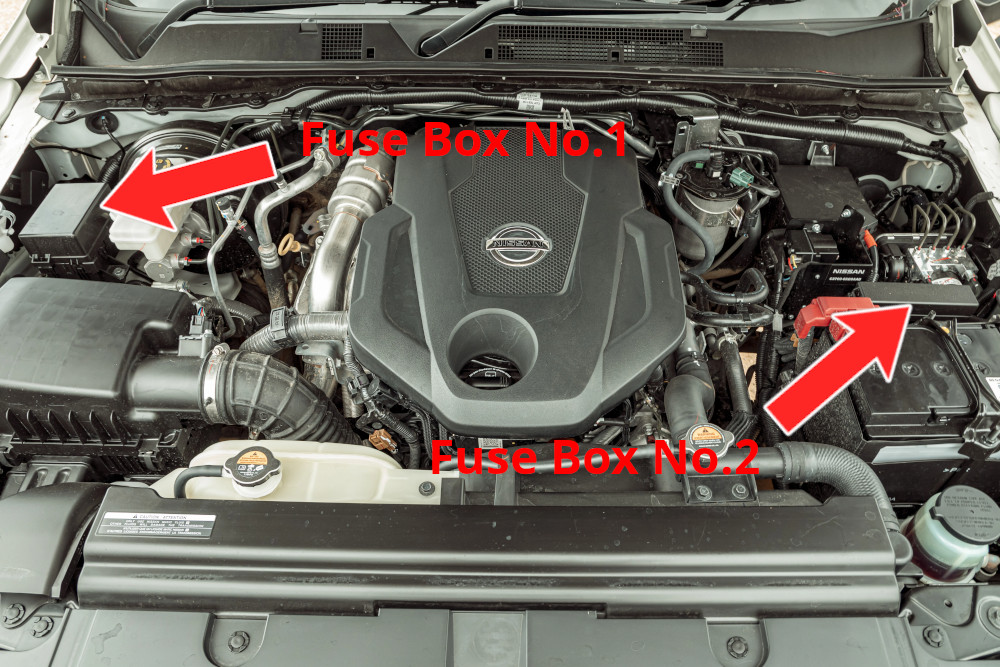

There are two fuse boxes in the engine compartment; refer to the image below to locate their exact positions.

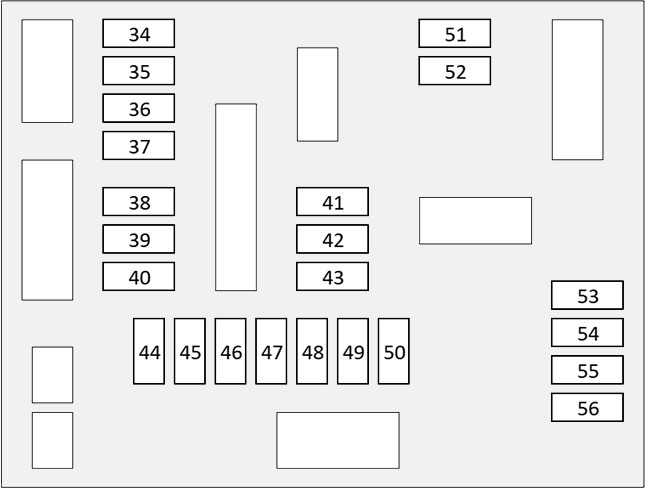

Assignment of the fuses in the engine compartment fuse box no.1
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Amps Description 34 MINI 15A (FUEL PUMP) Fuel pump 35 MINI 15A (FR FOG) Front fog lights 36 MINI 10A (ESCL) Steering lock 37 MINI 15A (INJECTOR) Fuel injectors 38 MINI 15A (H/L LO RH) Right-hand headlight low beam 39 MINI 15A (H/L LO LH) Left-hand headlight low beam 40 MINI 15A (IGN COIL) Ignition coil 41 MINI 30A (FR WIP) Front wipers 42 MINI 10A CLEARANCE LH 43 MINI 10A CLEARANCE RH 44 MINI 10A (H/L HI RH) Right-hand headlight high beam 45 MINI 10A (H/L HI LH) Left-hand headlight high beam 46 MINI 10A (ABS ECU) Anti-lock braking system 47 MINI 10A (A/T ECU) Automatic transmission controller 48 MINI 10A (REVERSE LAMP) Backup lights 49 — — Not Used 50 — — Not Used 51 MINI 10A (A/C CLUTCH) A/C magnetic clutch 52 — — Not Used 53 MINI 20A (RR DEF) Rear window defogger 54 — — Not Used 55 MINI 15A (THROTTLE MTR) Electronic throttle control 56 MINI 20A (ECCS) Air conditioning system
This content requires JavaScript and a valid membership to view.

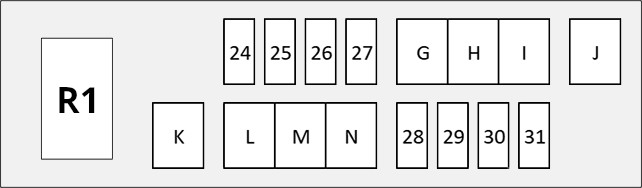

Assignment of the fuses in the engine compartment fuse box no.2
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Short-Code Description 24 15A TRAILER TOW TURN TRAILER TOW TURN 25 10A DTRL Daytime running lights 27 10A TRAILER TOW REV TRAILER TOW REV 28 15A INJECTOR 2 Fuel injectors 29 10A DIFF LOCK DIFF LOCK 30 15A HORN Horn 31 15A INJECTOR 1 Fuel injectors G 60A F/L INVERTER F/L INVERTER H 30A F/L ELEC BRAKE F/L ELEC BRAKE I 30A F/L TF CONT (MTR) F/L TF CONT (MTR) J 40A IGN SW Ignition switch K 40A F/L VDC F/L VDC L 30A F/L ABS MTR Anti-lock braking system M 30A F/L TRAILER TOW Trailer lights N 50A F/L BCM F/L BCM
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment fuse box no.2
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description R1 Horn Relay
This content requires JavaScript and a valid membership to view.

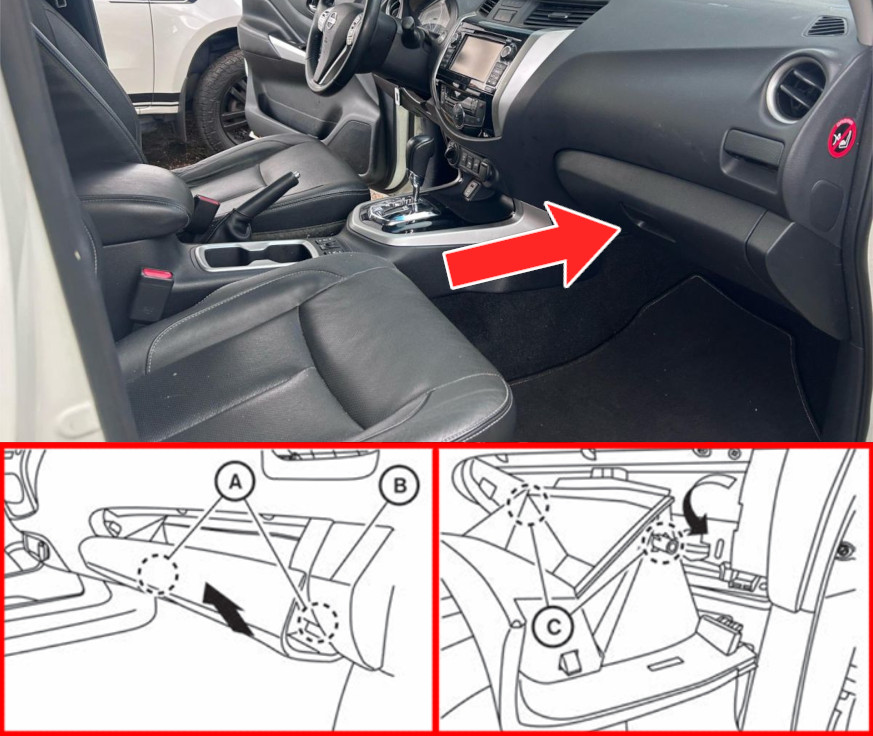

The fuse box is located beneath the glove compartment. To access it, open the glove box, hold its lid, and pull upward to disengage hinges A on the underside. As a reference, align the glove box with corner B . Carefully release the left and right stops C , then remove the glove box.

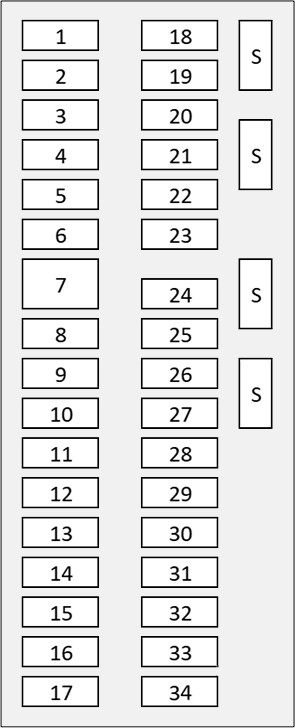

Assignment of the fuses in the passenger compartment fuse box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Amps Description 1 MINI 5A BCM SW 2 MINI 20A (AUDIO) Audio system 3 MINI 10A ELECTRIC PARTS (BAT-1) 4 MINI 10A (METER (BAT)) Instrument cluster 5 — — Not Used 6 — — Not Used 7 MINI — EXTENDED STORAGE SW 8 MINI 10A (STOP LAMP) Stop lights 9 MINI 5A PUSH START 10 MINI 10A ELECTRIC PARTS (BAT-4) 11 MINI 20A TOWING (BAT) 12 MINI 10A (FUEL LID) Fuel lid opener 13 MINI 10A ELECTRIC PARTS (BAT-3) 14 MINI 10A ELECTRIC PARTS (BAT-2) 15 MINI 10A DIFFERENTIAL LOCK 16 MINI 10A AUTOMATIC TRANSMISSION CONTROL 17 MINI 10A (ROOM LAMP) Dome light and interior light 18 MINI 10A (ELECTRIC PARTS (IGN)) Protects several circuits 19 MINI 10A (AIR BAG) Airbag 20 MINI 5A (METER (IGN)) Instrument cluster 21 MINI 10A ELECTRIC PARTS (IGN POWER) 22 MINI 5A ELECTRIC PARTS (IGN SIGNAL) 23 MINI 15A (HEATED SEATS) Seat heater 24 MINI 15A (BLOWER MOTOR) AC blower motor 25 MINI 20A (TOWING (IGN)) Trailer lights 26 — — Not Used 27 MINI 10A DTRL LEFT 28 MINI 10A DTRL RIGHT 29 — — Not Used 30 MINI 20A FRONT POWER SOCKET 2 31 MINI 5A (ELECTRIC PARTS (ACC-1)) Protects several circuits 32 MINI 15A FRONT POWER SOCKET 1 33 MINI 10A (ELECTRIC PARTS (ACC-2)) Protects several circuits 34 MINI 15A (BLOWER MOTOR) AC blower motor 35 MINI 20A (SPARE) Spare fuse 36 MINI 15A (SPARE) Spare fuse 37 MINI 10A (SPARE) Spare fuse 38 MINI 5A (SPARE) Spare fuse
This content requires JavaScript and a valid membership to view.
