Browse Nissan Patrol fuse box diagrams for 1997–2015 models with fuse locations, panel layouts, and detailed fuse and relay assignment information. This article covers the fifth-generation Nissan Patrol (Model Code: Y61) , available from 1997 to 2015 , and includes fuse box diagrams for Nissan Patrol 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014 and 2015 , along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).
NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
Find Fuses & Relays
→

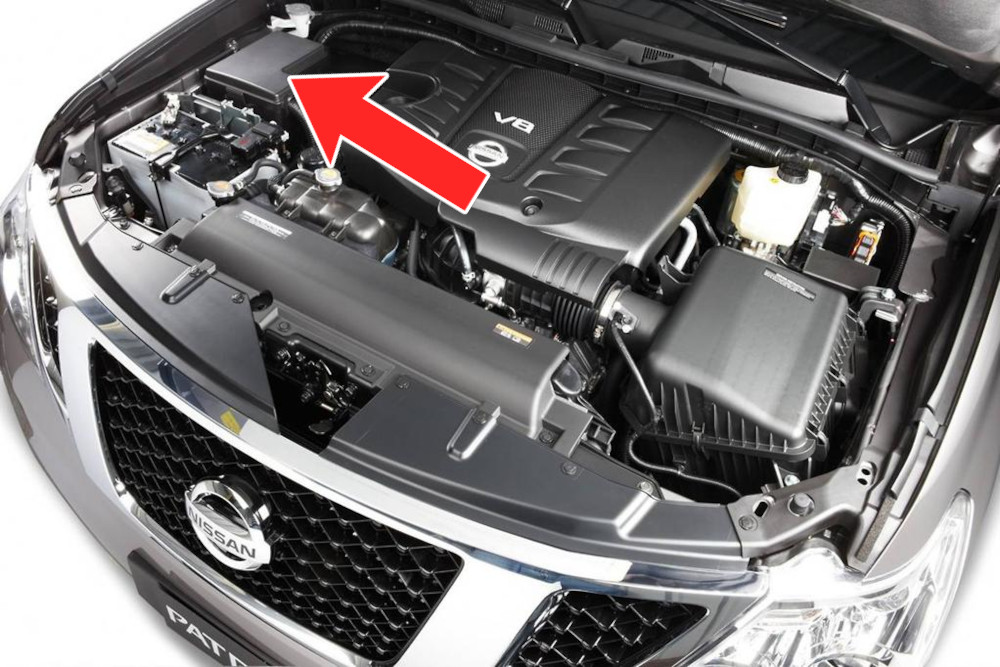

The fuse box is situated in the engine compartment on the passenger side, close to the main battery.
Assignment of the fuses in the engine compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register

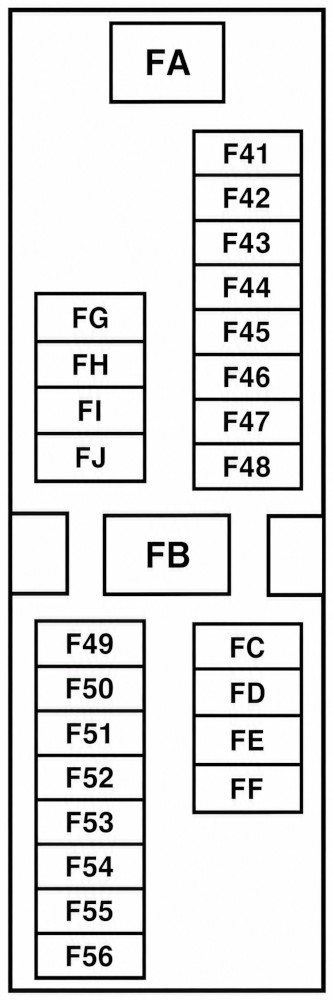

No. Amps Description FA 100A Glow plugs FB 100A / 120A Generator FC 30A / 40A Cooling Fan Motor FD 30A/40A FE 40A FF 80A 2002: Instrument panel fuse / relay boxFG 50A FH 30A/40A FI 30A ABS / ESP system FJ 30A Ignition lock circuits F41 7.5A/20A F42 7.5A/20A F43 15 A F44 20A F45 10A / 15A Windscreen heater F46 15A Cigarette lighter F47 7.5A Generator F48 10A Turn signals F49 7.5A/10A/15A/20A F50 7.5A/10A/20A F51 15A F52 15A F53 15A Fog lights F54 10A F55 15A 2002: Cooling fan motorF56 10A Audio system
Separately, there may be additional fuses: F61 – (15A) Windscreen heater,F62 – Not used,F63 – (20A) Headlight washers,F64 – (10A) Audio system.
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment relay box No.1
Fuse Data
Full access is available to registered users — log in or register.
Log in or register

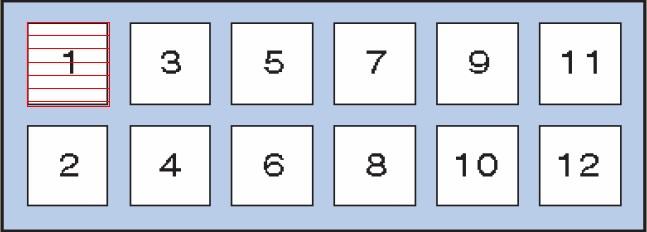

No. Description 1 – 2 – 3 Diesel: Transmission Control System Relay 4 Fog lights relay 5 Rear window heater 6 A/C Relay 7 – 8 – 9 Horn relay 10 – 11 – 12 4WD system relay
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment relay box No.2
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 – 2 Reversing light relay 3 Throttle Control Module Relay 4 PVN 5 –
This content requires JavaScript and a valid membership to view.

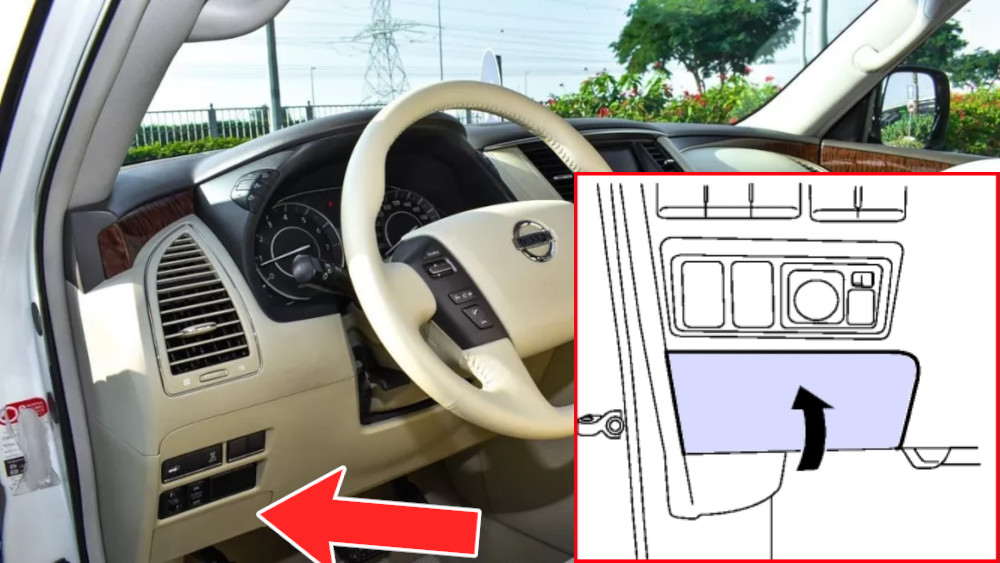

The fuse box is behind the cover on the left beneath the steering wheel.
Assignment of the fuses in the passenger compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register

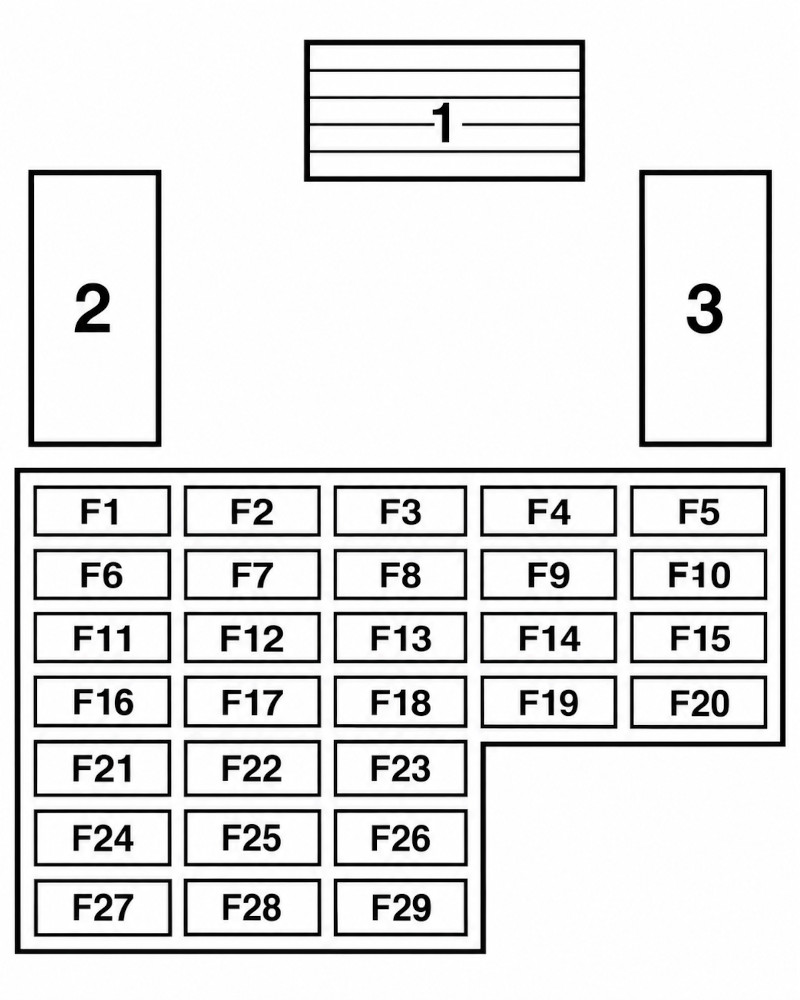

No. Amps. Description F1 15A F2 15A F3 20A Windscreen wiper / washer F4 15A F5 15A F6 10A/20A F7 7,5A ABS / ESP system F8 7.5A F9 7.5A F10 10A Audio system F11 7.5A Turn signals F12 7.5A F13 15A Cigarette lighter F14 10A F15 10A F16 10A SRS system F17 15A F18 10A Rear window wiper / washer F19 15A 2002: Headlight washersF20 10A F21 10A Engine management system F22 15A F23 7,5A The electric drive of mirrors F24 7.5A F25 10A F26 7.5A F27 15A Fuel pump F28 10A
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the passenger compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 Heater fan relay 2 Relay for main ignition 3 Auxiliary Ignition Circuit Relay
This content requires JavaScript and a valid membership to view.
