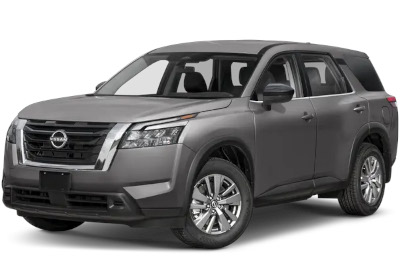

Access Nissan Pathfinder fuse box diagrams for 2022–2026 models with fuse locations, panel layouts, and detailed electrical system and fuse assignment information. This article covers the fourth-generation Nissan Pathfinder (Model Code: R53) , available from 2022 , and includes fuse box diagrams for Nissan Pathfinder 2022, 2023, 2024, 2025 and 2026 , along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse (fuse layout).
NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
Find Fuses & Relays
→

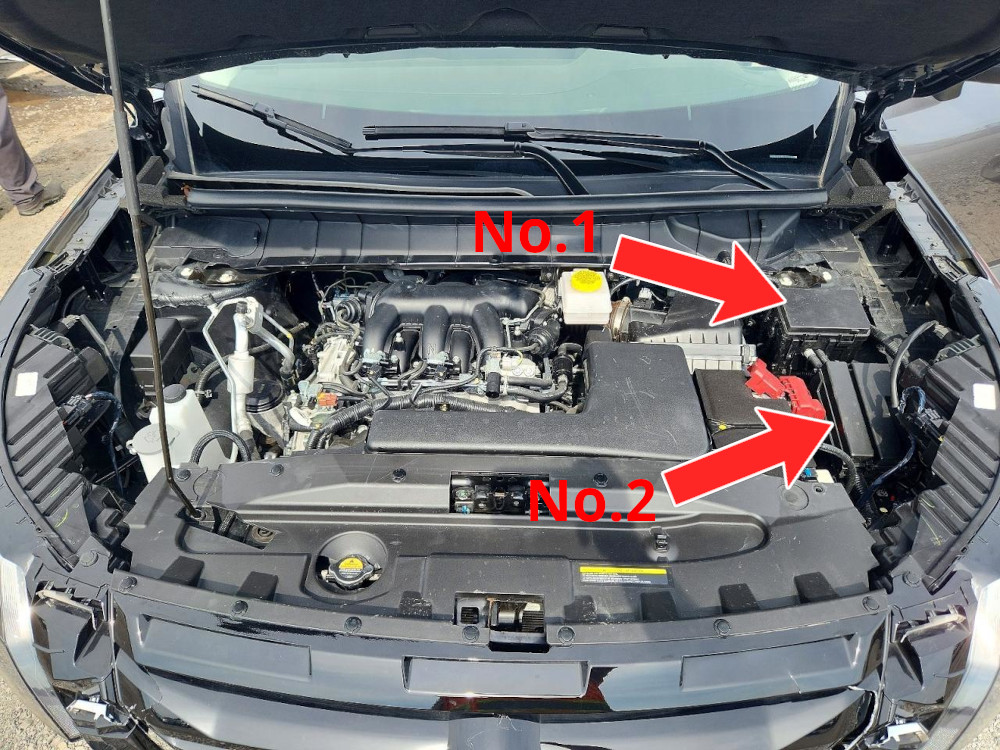

The fuse boxes are located in the engine compartment on the driver’s side, near the main battery, in two separate boxes shown in the image as No. 1 and No. 2.

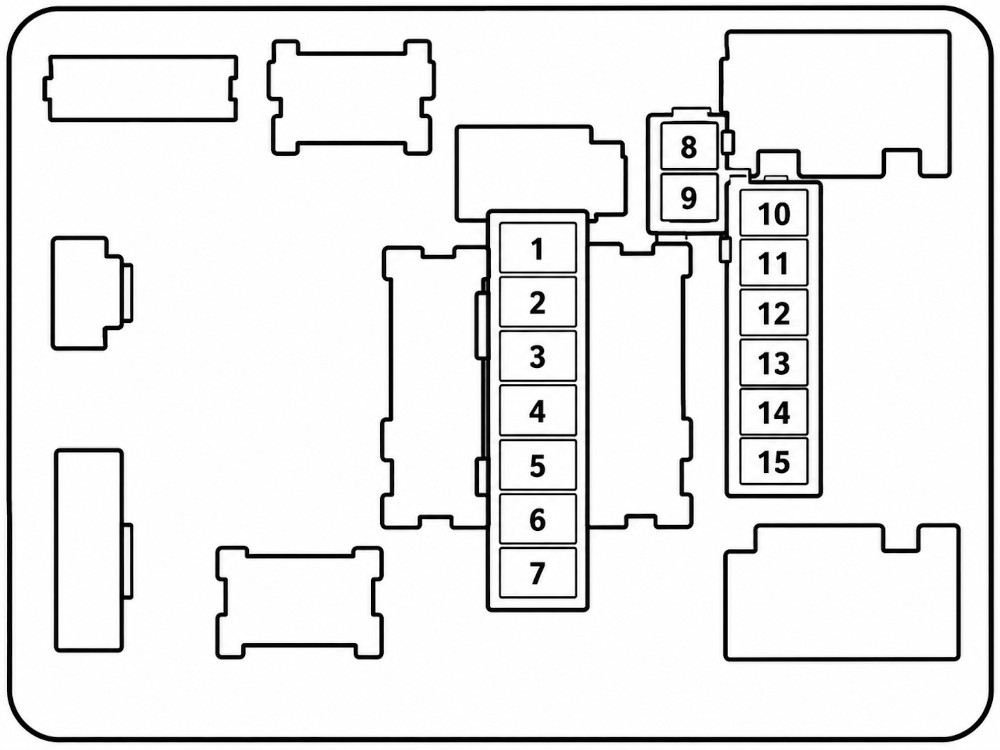

Assignment of the fuses in the engine compartment fuse box No.1
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Amps Description 1 MICRO2 10A REV_LAMP/AC_VALVE 2 — — Not Used 3 MICRO2 10A AT 4 MICRO2 10A AIRBAG / ABS 5 MICRO2 10A ACTUATOR 2 6 MICRO2 5A ECM/ESCL 7 MICRO2 30A WIPER 8 — — Not Used 9 MICRO2 15A ACTUATOR 1 10 MICRO2 15A ACTUATOR 5 11 MICRO2 15A LCS_CABIN/INJECTOR 12 MICRO2 15A ACTUATOR 3 13 MICRO2 10A ACTUATOR 4 14 MICRO2 10A BAT_ABS_VALVES/ECM_BAT 15 MICRO2 20A FUEL PUMP
This content requires JavaScript and a valid membership to view.

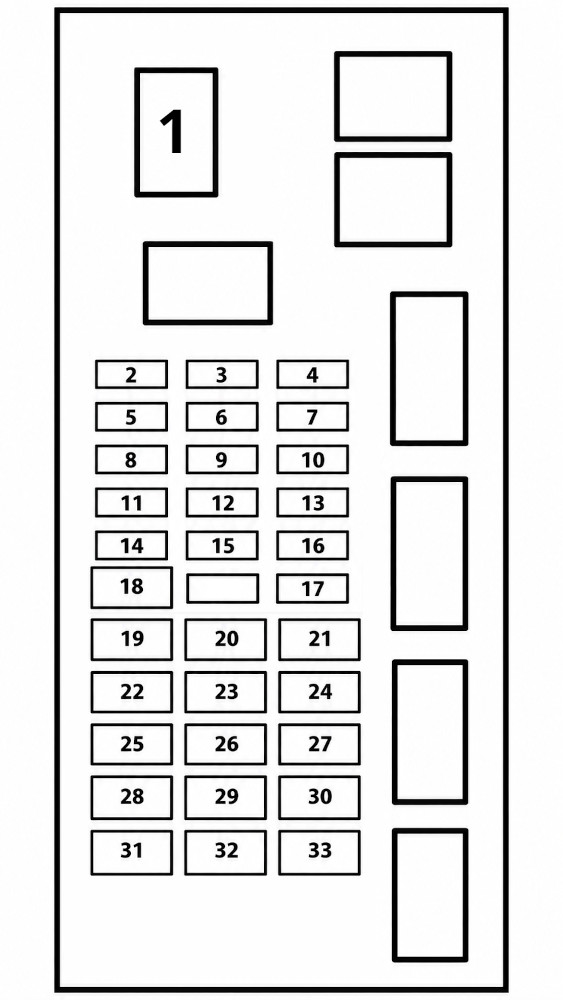

Assignment of the fuses in the engine compartment fuse box No.2
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Amps Description 1 FLF/PAL 293 60A PWM FAN 2 MICRO2 30A TOWIN 3 MICRO2 10A TOWIN (REVERSE) 4 MICRO2 — Not Used 5 MICRO2 20A POWER OUTLET 6 MICRO2 15A HEAD LAMP RH 7 MICRO2 10A CURRENT SENS 8 MICRO2 15A HEAD LAMP LH 9 MICRO2 15A VINJ 10 MICRO2 — Not Used 11 MICRO2 15A ENG CONT 12 MICRO2 15A AT CONT 13 MICRO2 10A TOWING (RUN LAMP) 14 MICRO2 15A TOWING (STOP/TURN) 15 MICRO2 15A VINJ 2 16 MICRO2 15A HORN 17 MICRO2 15A ANTI THEFT HORN 18 FMM/MCase 60A OFF LOAD IGN 2 19 FMM/MCase — Not Used 20 FMM/MCase — Not Used 21 FMM/MCase — Not Used 22 FMM/MCase 30A TOWING (BRAKE) 23 FMM/MCase 30A IGN SW 24 FMM/MCase 40A HEAD LAMP WASH 25 FMM/MCase 30A E-VTC 1 26 FMM/MCase 60A HFS RH 27 FMM/MCase — Not Used 28 FMM/MCase 60A HFS LH 29 FMM/MCase — Not Used 30 FMM/MCase — Not Used 31 FMM/MCase 30A E-VTC 2 32 FMM/MCase 40A USM 33 FMM/MCase 30A VDC SOL
This content requires JavaScript and a valid membership to view.

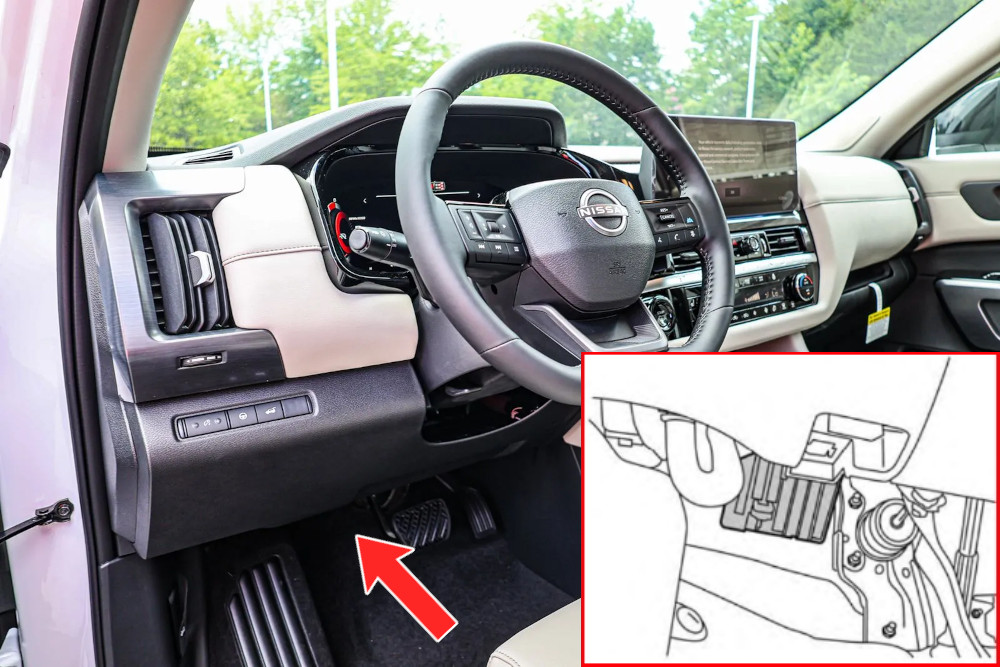

The fuse box is positioned beneath the dashboard on the driver’s side.

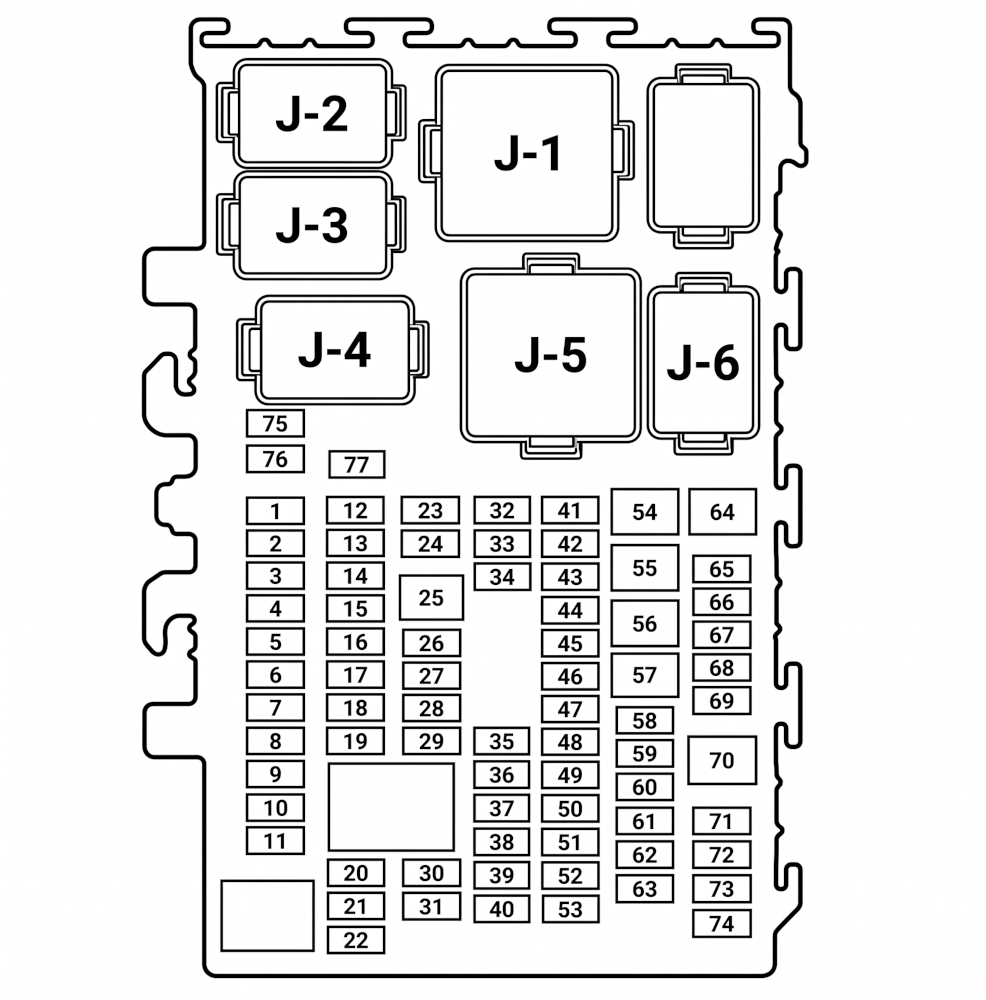

Assignment of the fuses in the passenger compartment fuse box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Amps Description 1 MICRO2 30A (RR DEF) Rear window defogger 2 MICRO2 10A (HEATED MIRROR) Mirror heater 3 MICRO2 10A HEATED WASHER 4 MICRO2 10A (IGN) ELEC PARTS 5 MICRO2 5A STRG SENS 6 MICRO2 10A (IGN) METER 7 MICRO2 10A (AIR BAG) Airbag 8 MICRO2 5A (EPS) Electric power steering 9 MICRO2 10A (IGN) ELEC PARTS 10 MICRO2 10A (BAT 2) ELEC PARTS 11 MICRO2 5A CDM 12 MICRO2 15A DOOR LOCK FR 13 MICRO2 5A (INTELLIGENT KEY) Smart key system 14 MICRO2 15A LOCK RR 15 MICRO2 10A (BCM1) Body control module 16 MICRO2 5A CAN GATEWAY 17 MICRO2 10A (TCU) Transmission control unit 18 MICRO2 — Not Used 19 MICRO2 20A (BAT) POWER SOCKET 3 20 MICRO2 10A Parking brake switch 21 MICRO2 10A (STOP LAMP) Stop lights 22 MICRO2 20A (4WD) All wheel drive system 23 MICRO2 — Not Used 24 MICRO2 10A CABIN LIGHTING 25 FMM/MCase — Not Used 26 MICRO2 20A (AUDIO) Audio system 27 MICRO2 5A (BAT 1) ELEC PARTS 28 MICRO2 10A (BOSE AMP 1) Audio system 29 MICRO2 20A (BOSE AMP 2) Audio system 30 MICRO2 10A (BAT) METER 31 MICRO2 5A (BCM) Body control module 32 MICRO2 15A (SUNROOF) Sunroof 33 MICRO2 10A (VDC/ABS CONT) Vehicle dynamics control solenoid; Anti-lock braking system 34 MICRO2 — Not Used 35 MICRO2 30A (SPARE1) Spare fuse 36 MICRO2 — Not Used 37 MICRO2 20A (SPARE2) Spare fuse 38 MICRO2 15A (SPARE3) Spare fuse 39 MICRO2 10A (SPARE4) Spare fuse 40 MICRO2 5A (SPARE5) Spare fuse 41 MICRO2 10A (AUTO ACC) ELEC PARTS 1 42 MICRO2 10A (AUTO ACC) ELEC PARTS 2 43 MICRO2 — Not Used 44 MICRO2 15A (USB CHARGE) USB charger 45 MICRO2 10A SHIFT BY WIRE 46 MICRO2 10A P/WDW MAIN SW 47 MICRO2 15A SUN SHADE 48 MICRO2 — Not Used 49 MICRO2 10A HUD 50 MICRO2 20A P/WDW RR RH 51 MICRO2 20A (P/WDW RR LH) Power windows 52 MICRO2 20A P/WDW FR RH 53 MICRO2 20A P/WDW FR LH 54 FMM/MCase 30A SCCM 55 FMM/MCase — Not Used 56 FMM/MCase — Not Used 57 FMM/MCase 30A AUTO BACK DOOR 58 MICRO2 10A (TURN&HAZARD) Turn signal; Hazard light 59 MICRO2 20A POWER SEAT LH 60 MICRO2 30A FLIP UP SEAT 3RD 61 MICRO2 10A (WIPER RR) Rear wiper 62 MICRO2 20A POWER SEAT RH 63 MICRO2 15A WALK IN 2ND 64 FMM/MCase 30A (SPARE6) Spare fuse 65 MICRO2 — Not Used 66 MICRO2 10A WASHPUMP 67 MICRO2 20A (IGN) POWER SOCKET 1 68 MICRO2 10A (HEATED STRG) Heated steering wheel 69 MICRO2 20A (IGN) POWER SOCKET 2 70 FMM/MCase 40A BLOWER MOTOR FR 71 MICRO2 20A BLOWER MOTOR RR 72 MICRO2 — Not Used 73 MICRO2 30A HEATED SEAT LH 74 MICRO2 30A HEATED SEAT RH 75 MICRO2 — Not Used 76 MICRO2 — Not Used 77 MICRO2 — Not Used
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the passenger compartment fuse box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description J1 Ignition relay 2 J2 Interior lighting relay J3 Ignition relay J4 Rear window defroster relay J5 Accessory relay J6 Power window relay
This content requires JavaScript and a valid membership to view.
